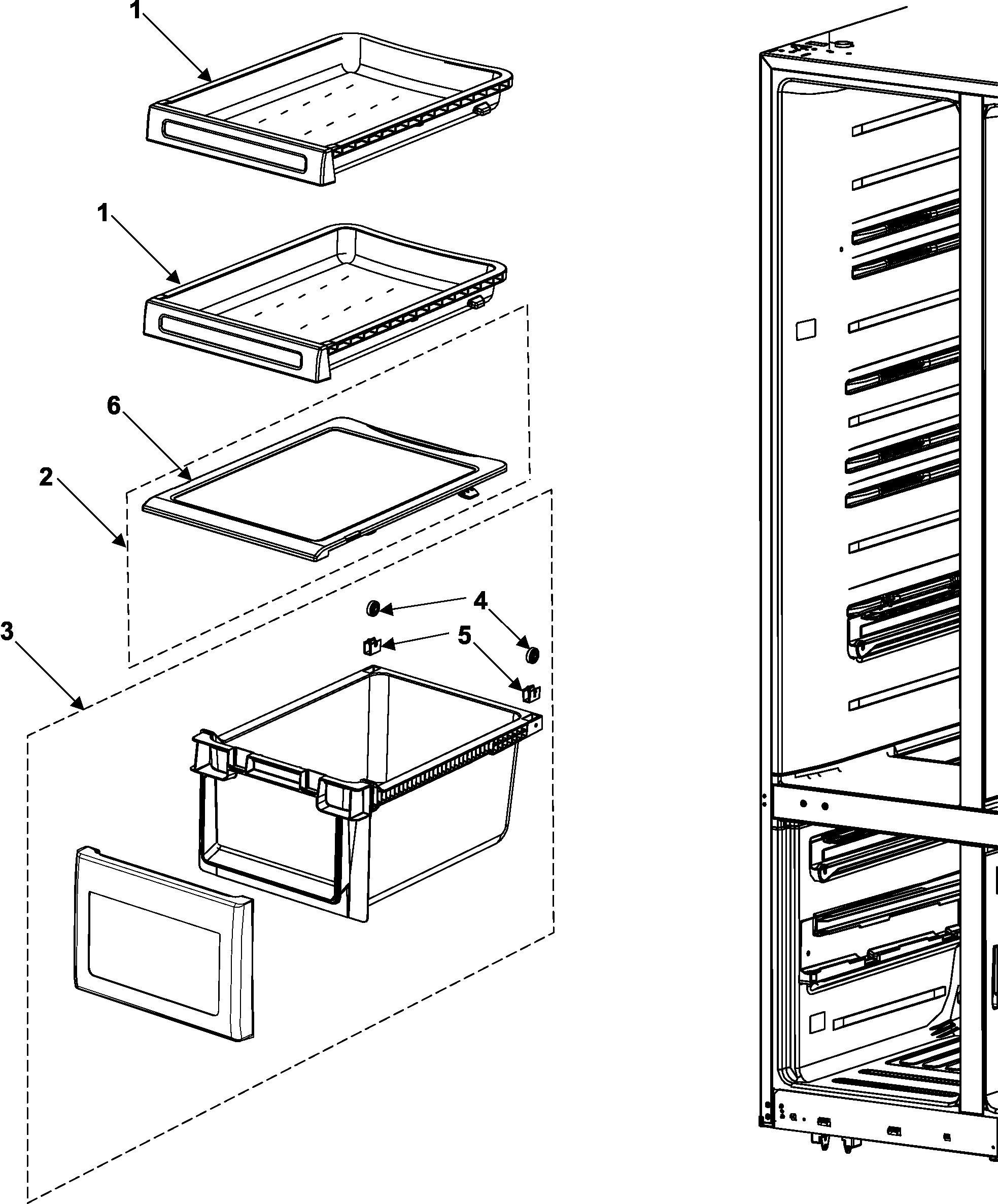

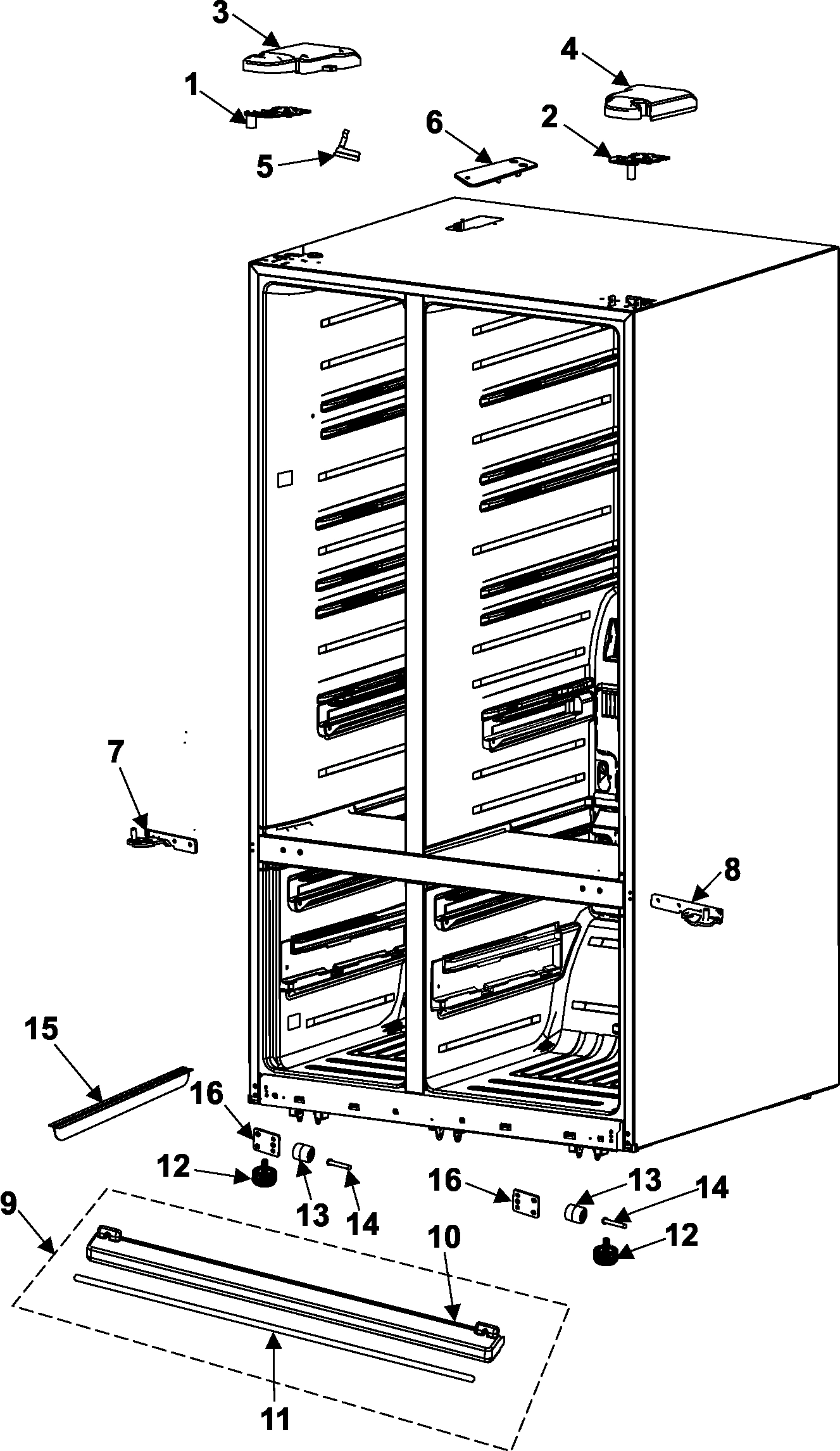

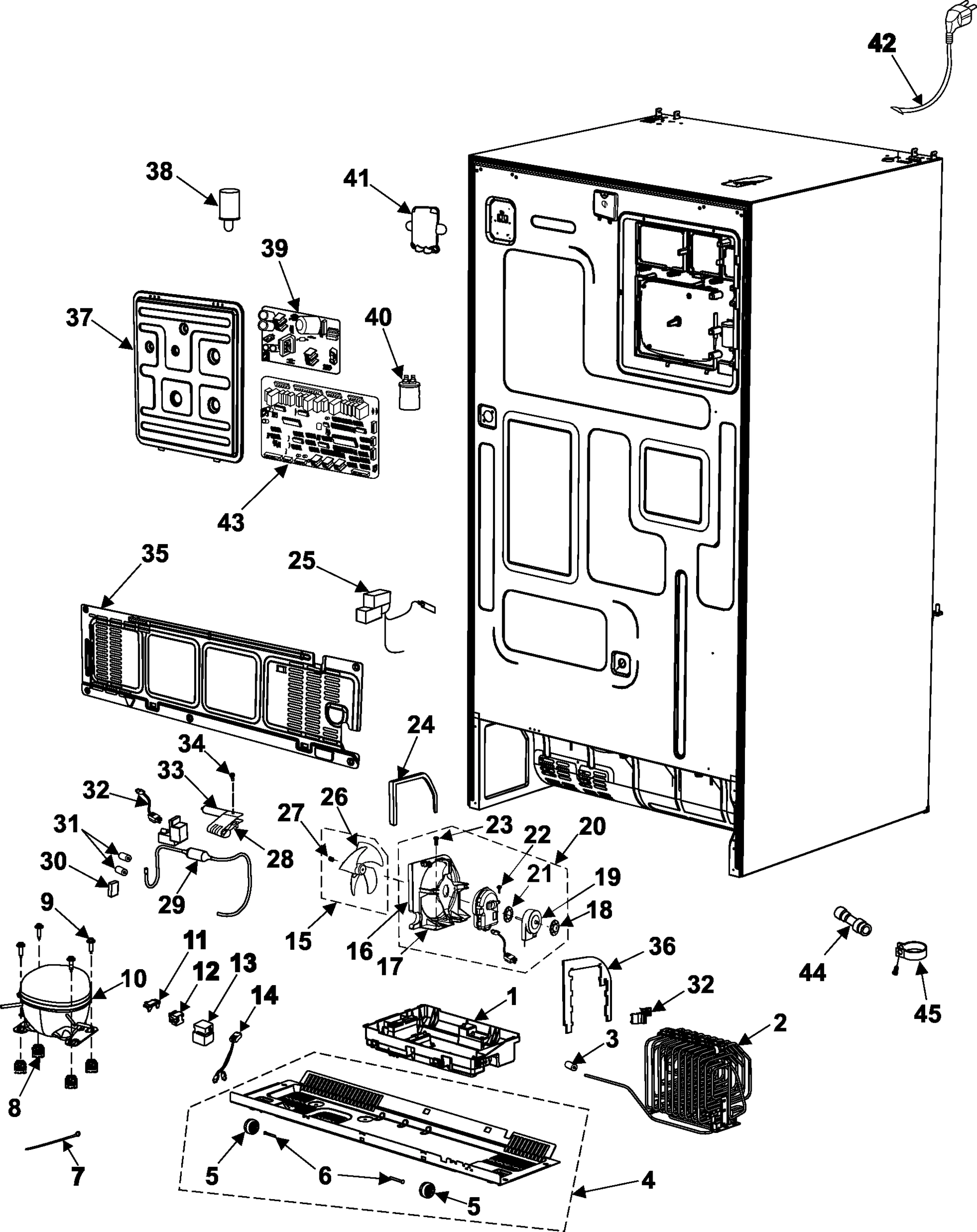

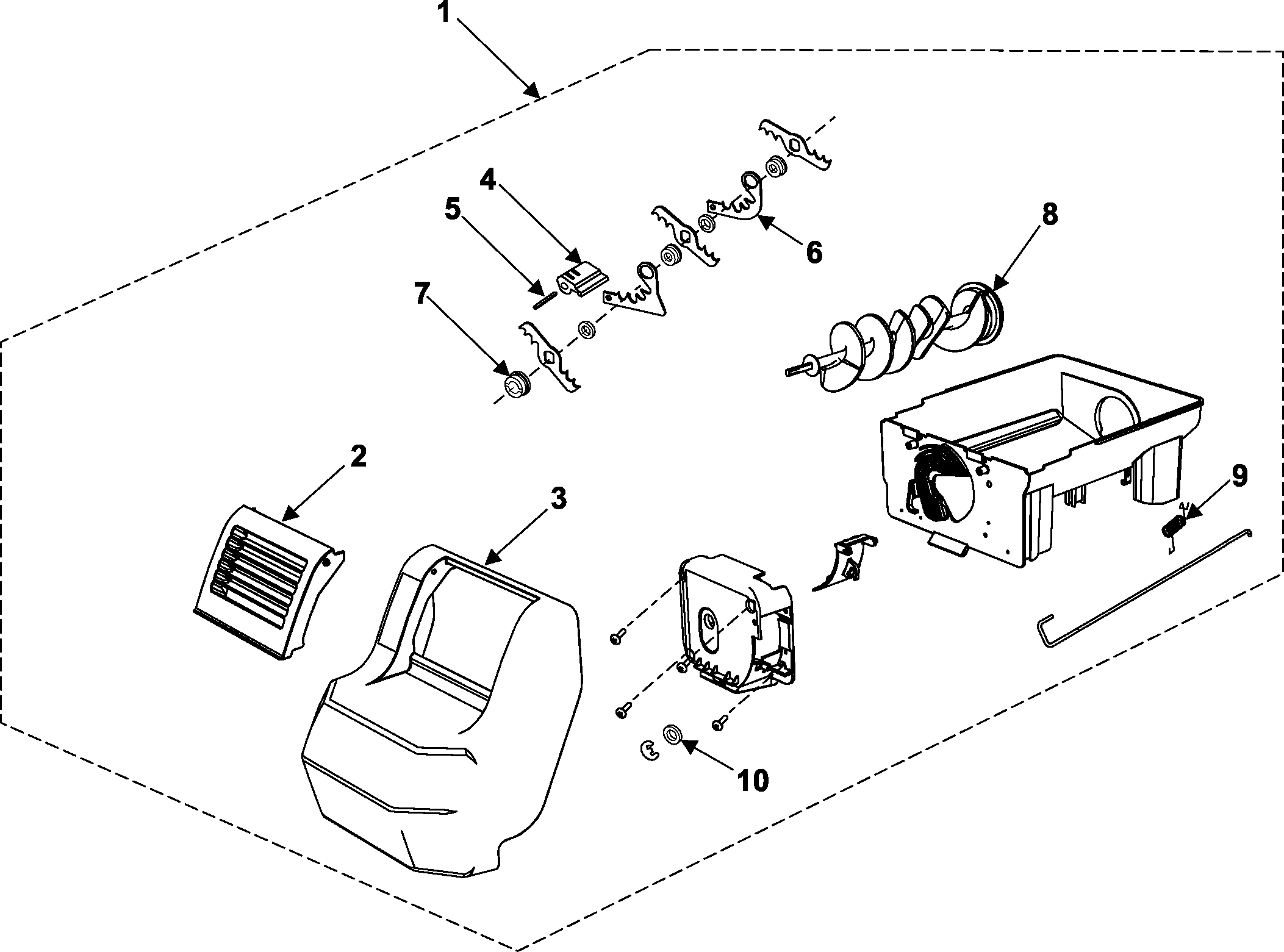

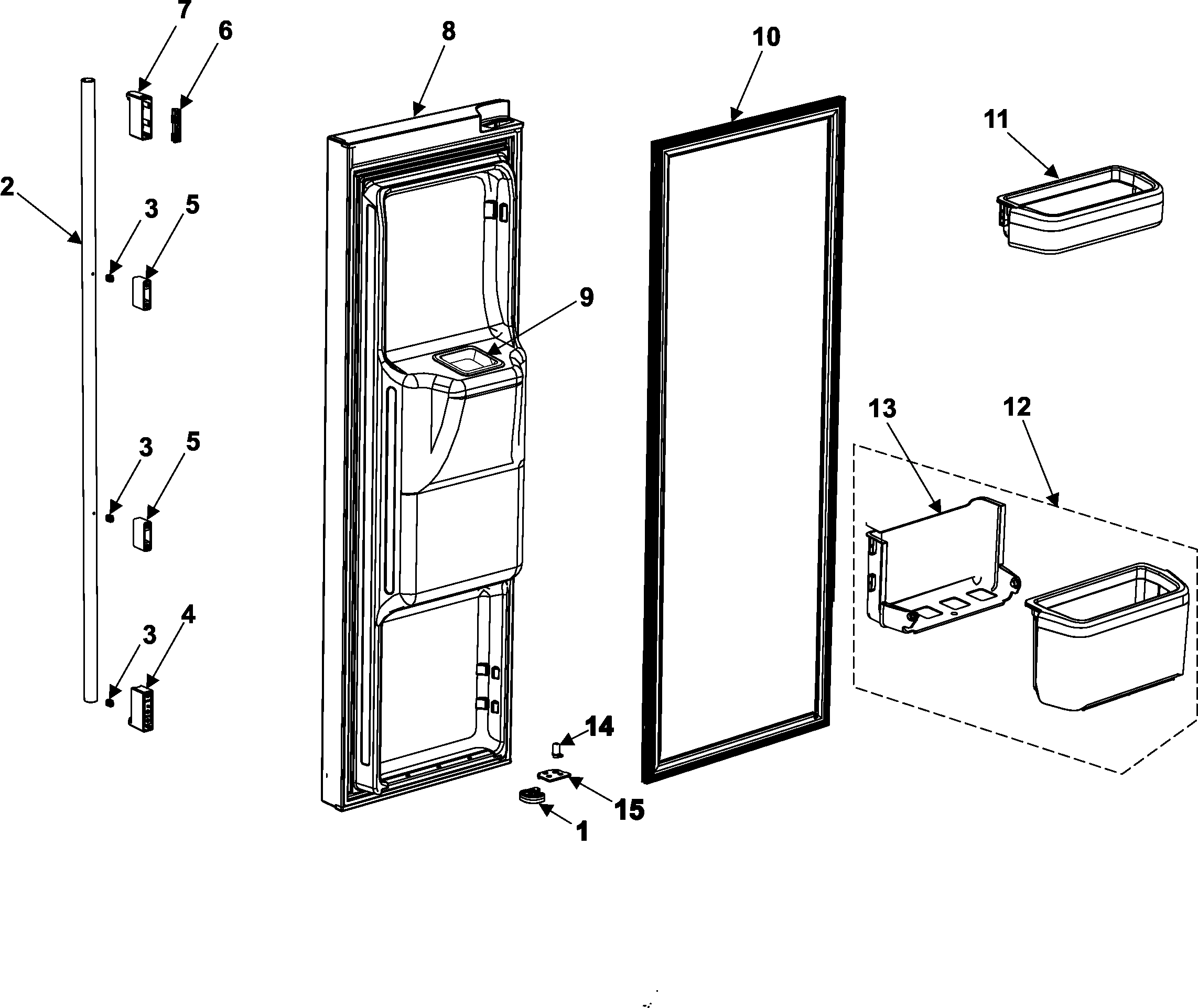

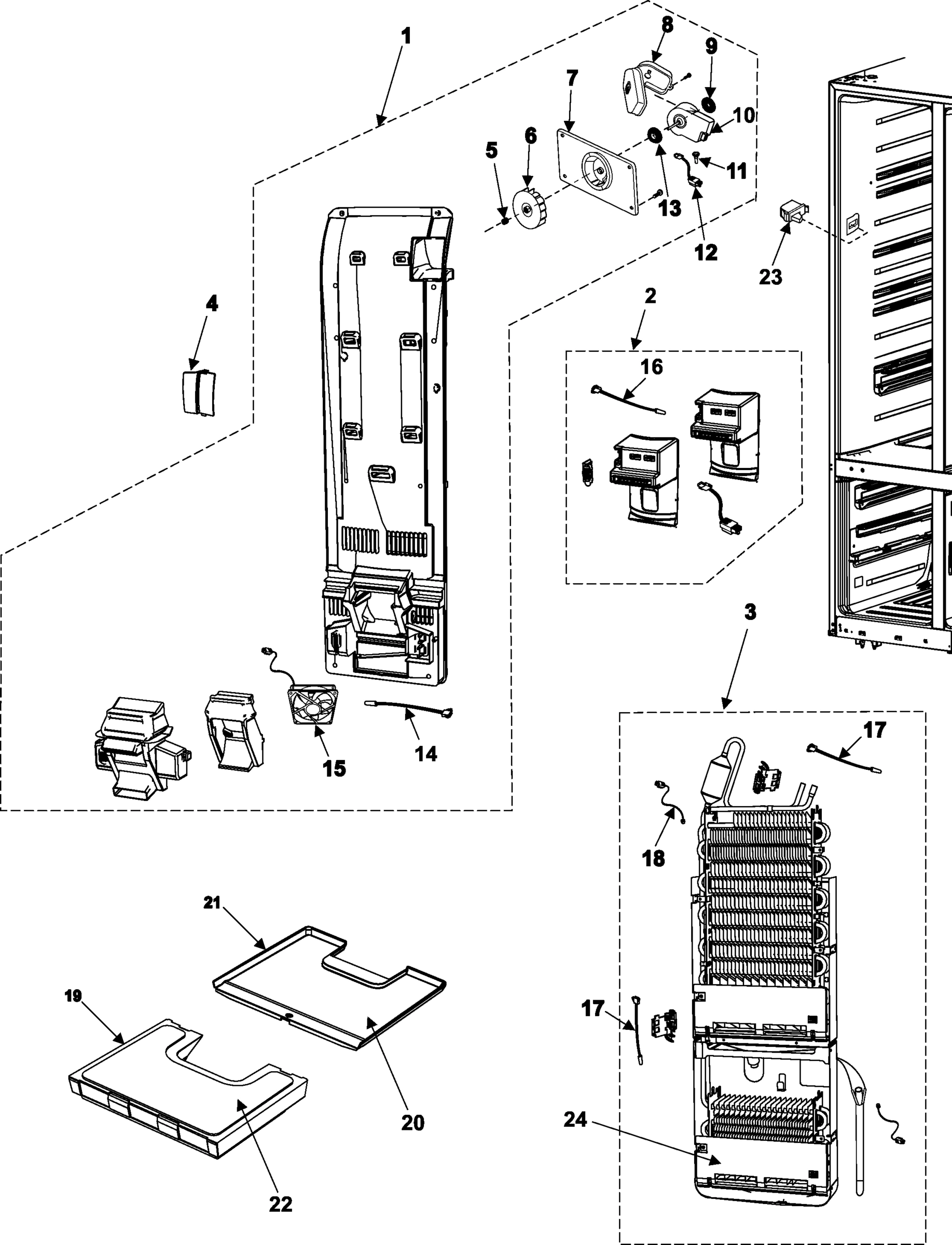

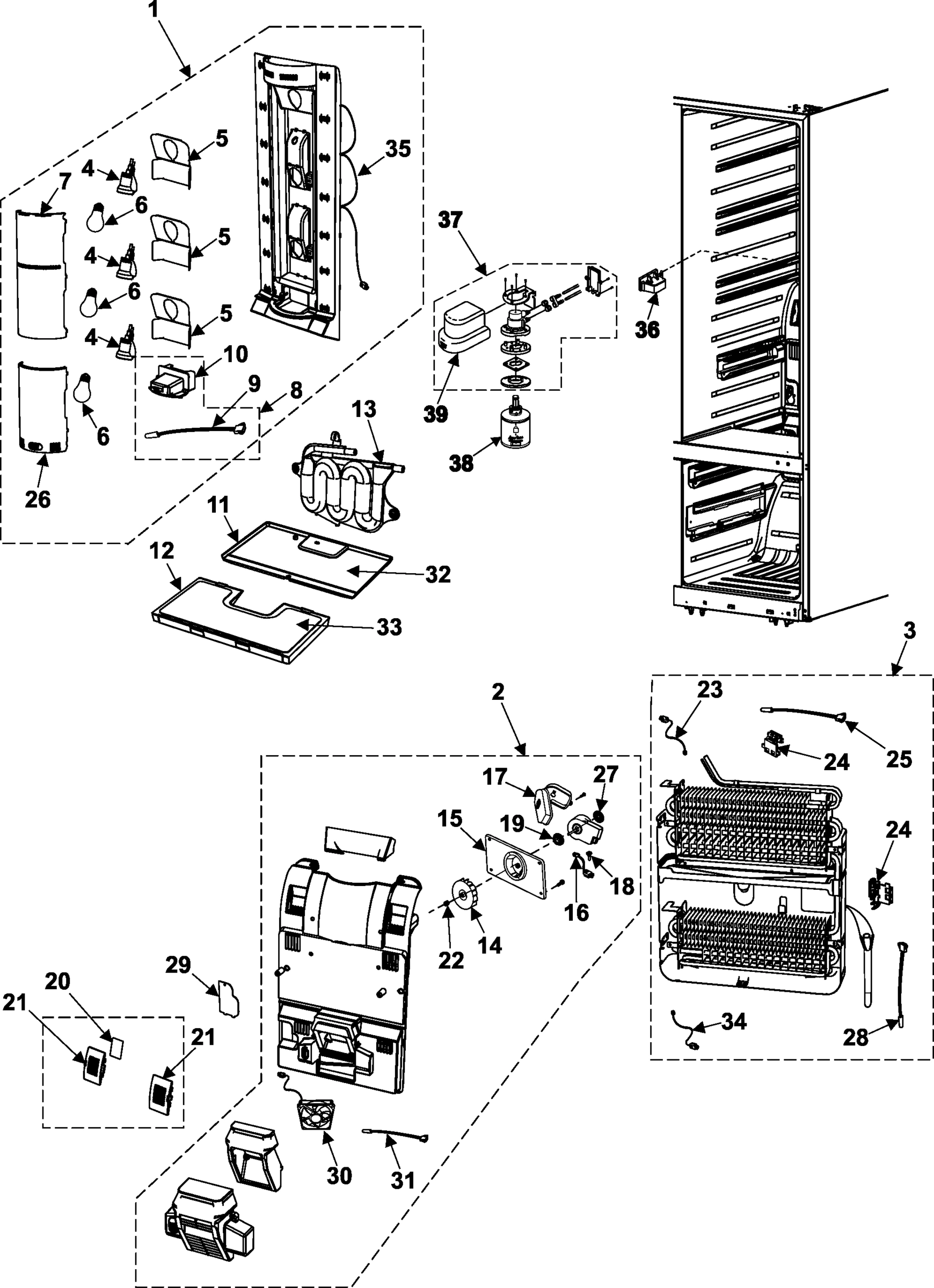

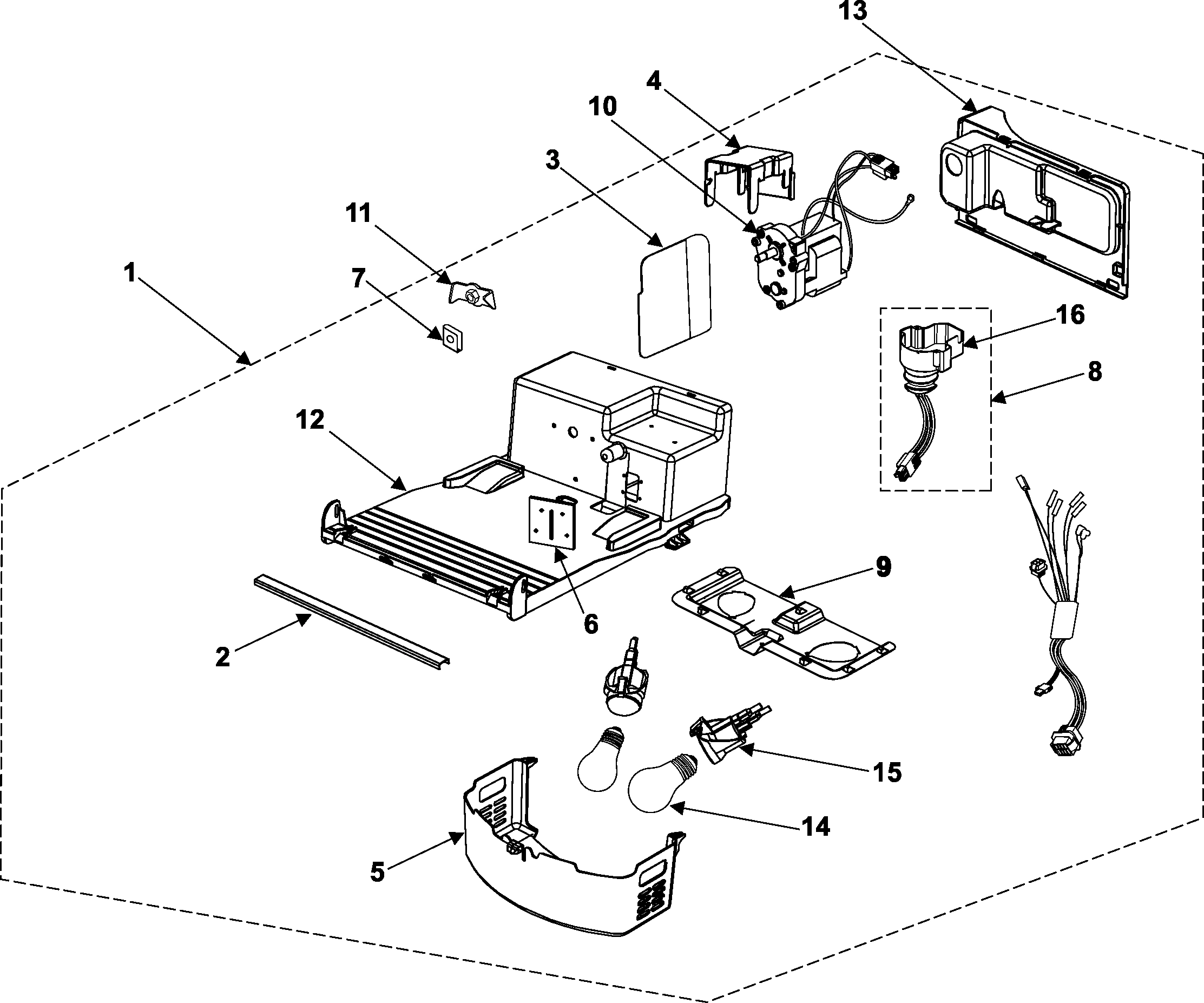

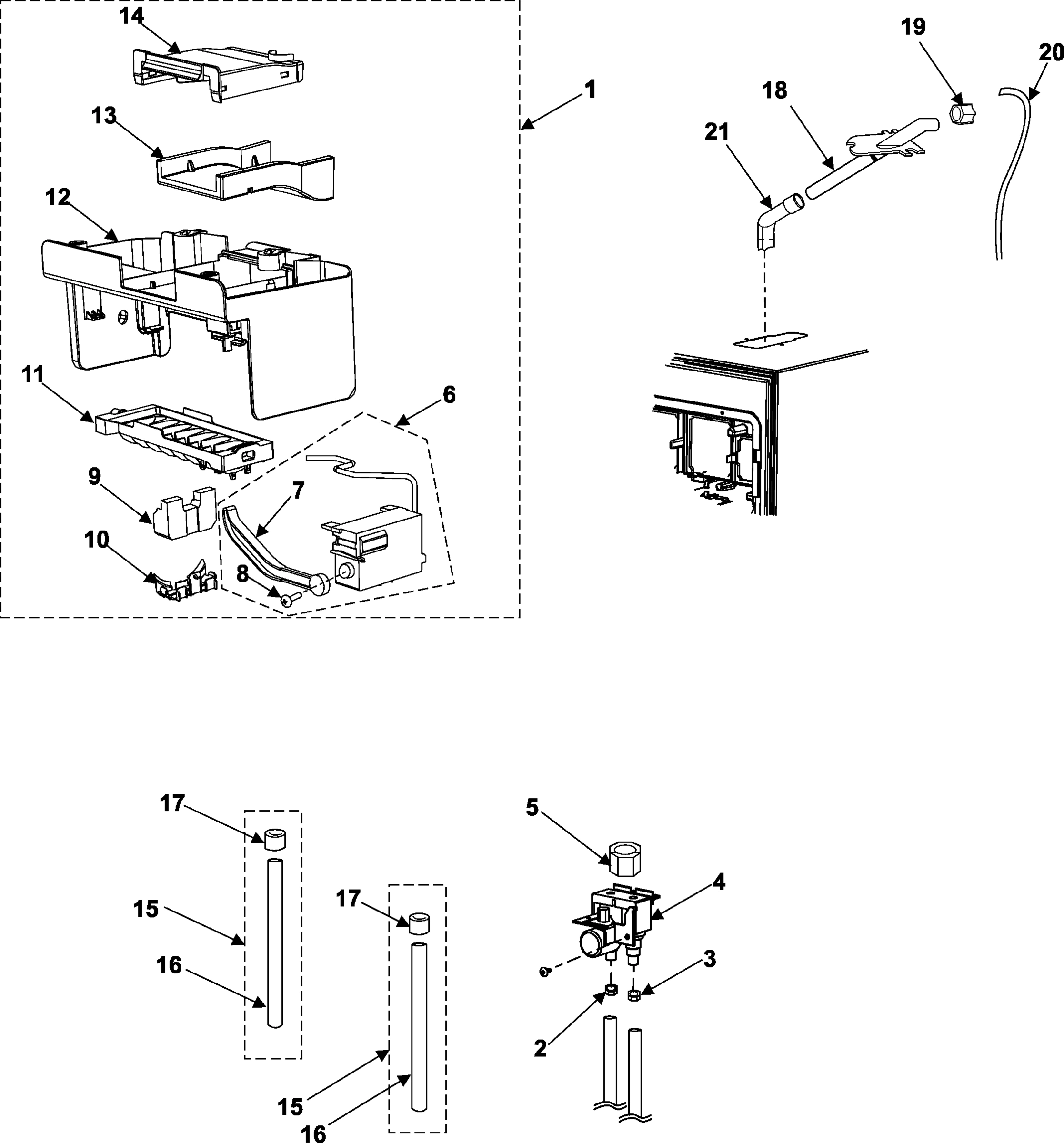

Model Samsung RM255BARB/XAA-00 Side-By-Side Refrigerator – Common Parts &amp; Diagrams

1

DA67-01284A Samsung Upper Shelf Assembly Backorder SMG DA67-01284A $61.12

1

DA97-03150A Samsung Refrigerator Upper Hinge Backorder SMG DA97-03150A $29.87

1

Refrigerator cover assembly SMG DA97-03114A Contact Us For Availability

1

Samsung refrigerator shelf assembly SMG DA97-02956A Contact Us For Availability

1

Refrigerator freezer ice bucket assembly SMG DA97-03168B Contact Us For Availability

1

Refrigerator ice maker assembly SMG DA97-03172A Contact Us For Availability

1

Refrigerator tray assembly SMG DA97-03146A Contact Us For Availability

1

Refrigerator cover assembly SMG DA97-03131A Contact Us For Availability

1A

6009-001252 Samsung Refrigerator Special Scre Backorder SMG 6009-001252 $1.24

1A

DA41-00217B Samsung Refrigerator LED Dispense In Stock SMG DA41-00217B $45.35

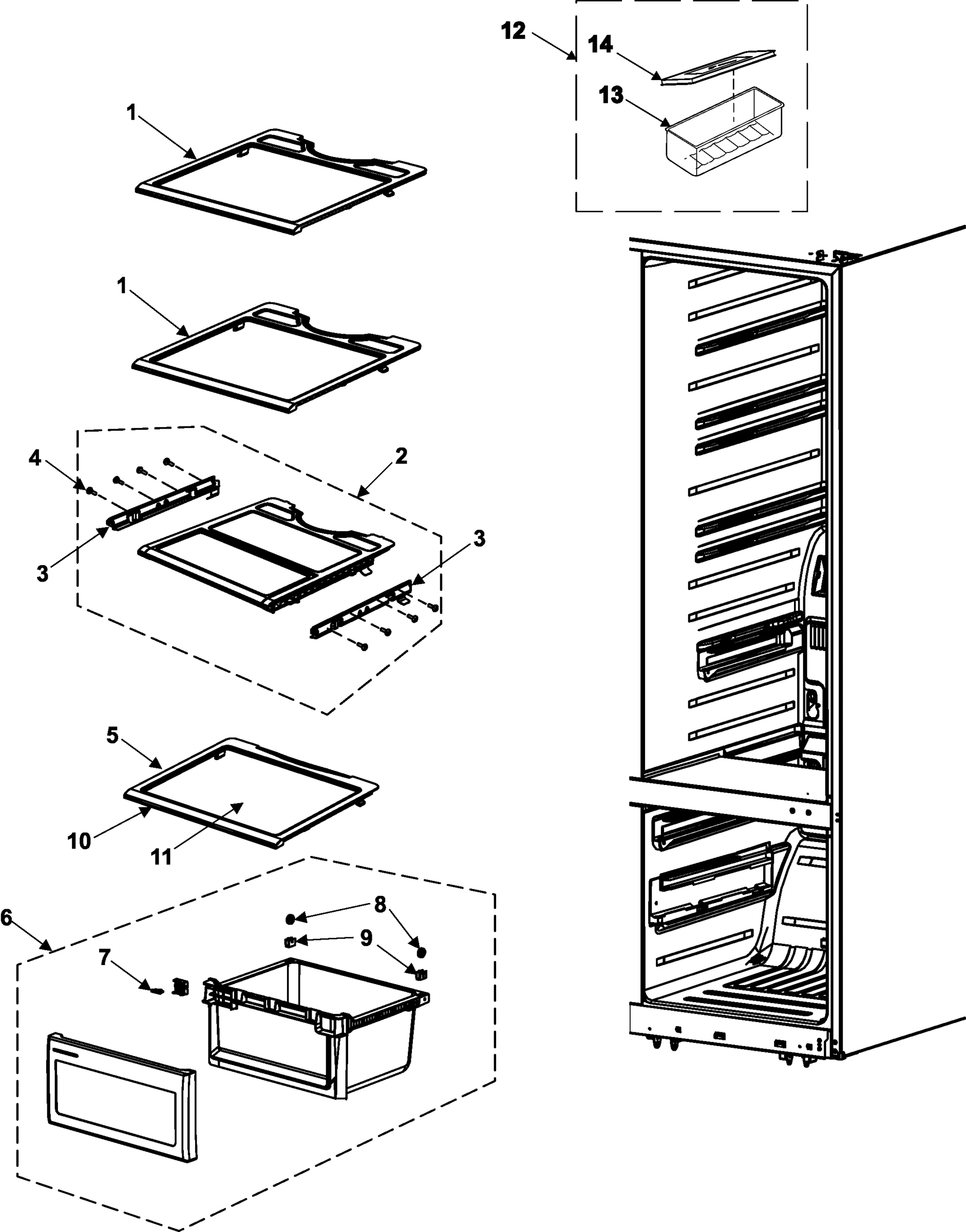

2

DA71-20208A Samsung Refrigerator Water Valve Backorder SMG DA71-20208A $0.92

2

DA97-03113A Samsung Refrigerator Evaporator C Backorder SMG DA97-03113A $183.20

2

DA97-03130A Samsung Refrigerator Multi Cover Backorder SMG DA97-03130A $69.65

2

DA97-03149A Samsung Refrigerator Upper Hinge Backorder SMG DA97-03149A $25.49

2

Refrigerator handle bar SMG DA64-01588A Contact Us For Availability

2

Refrigerator shelf assembly SMG DA97-02955A Contact Us For Availability

2

Refrigerator ice cover SMG DA63-02732A Contact Us For Availability

2

Refrigerator pipe assembly SMG DA97-03137A Contact Us For Availability

2

Refrigerator shelf assembly SMG DA97-03645A Contact Us For Availability

2A

DA63-40128A Samsung Refrigerator Condenser Gr Backorder SMG DA63-40128A $0.92

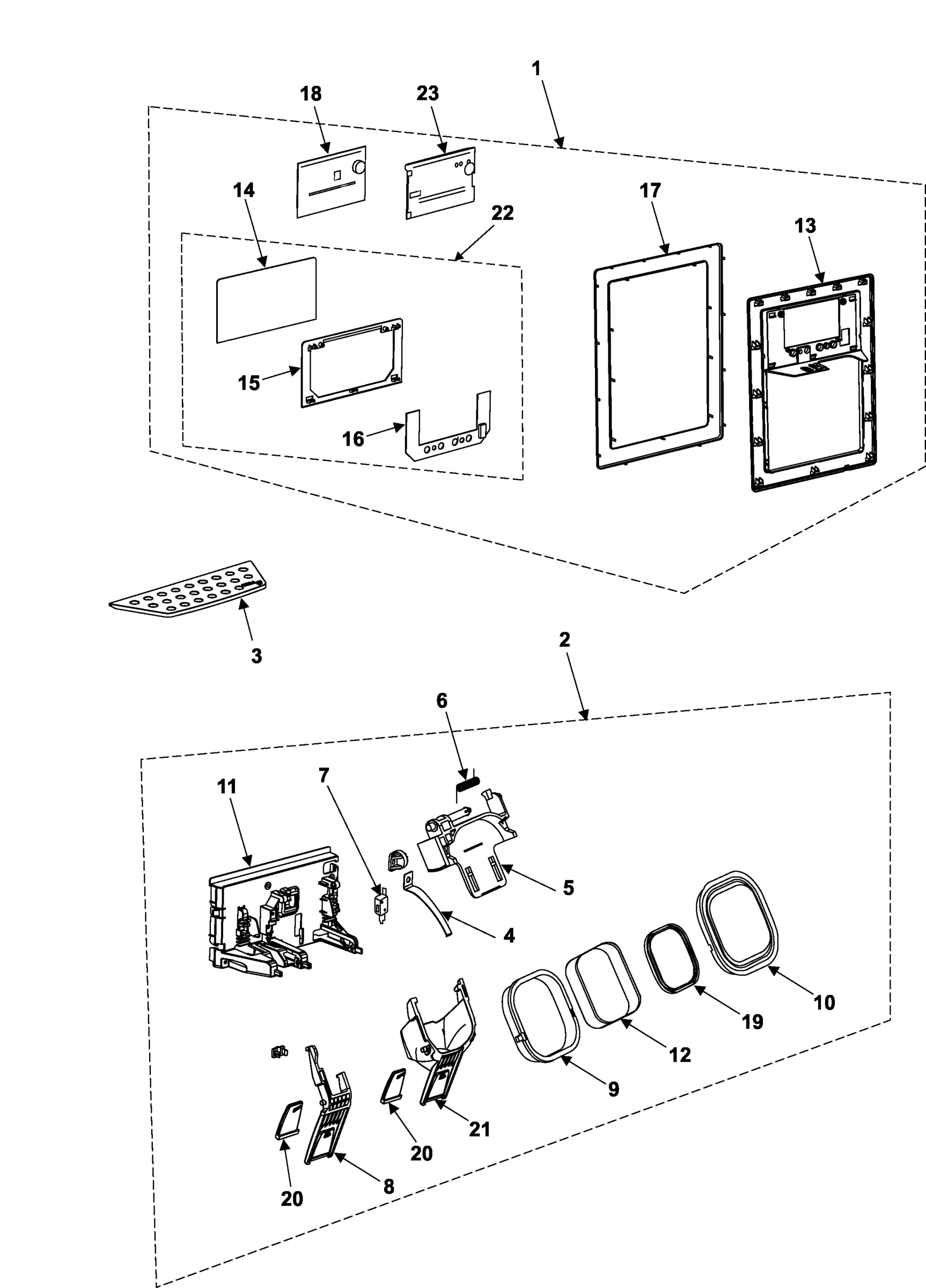

3

DA63-02734A Samsung Refrigerator Ice Bucket C Backorder SMG DA63-02734A $41.45

3

DA63-40171B Samsung Refrigerator Suction Pipe Backorder SMG DA63-40171B $2.49

3

DA71-20207A Samsung Refrigerator Water Valve Backorder SMG DA71-20207A $0.92

3

DA97-03154B Samsung Refrigerator Evaporator A Backorder SMG DA97-03154B $204.30

3

Refrigerator evaporator assembly SMG DA97-03153B Contact Us For Availability

3

Refrigerator freezer drawer assembly SMG DA97-02944A Contact Us For Availability

3

Refrigerator cover assembly SMG DA97-03750A Contact Us For Availability

3

Refrigerator shelf SMG DA67-01372A Contact Us For Availability

3A

DA63-02723A Samsung Refrigerator Upper Hinge Backorder SMG DA63-02723A $15.88

3A

Plate insert SMG DA61-02369A Contact Us For Availability

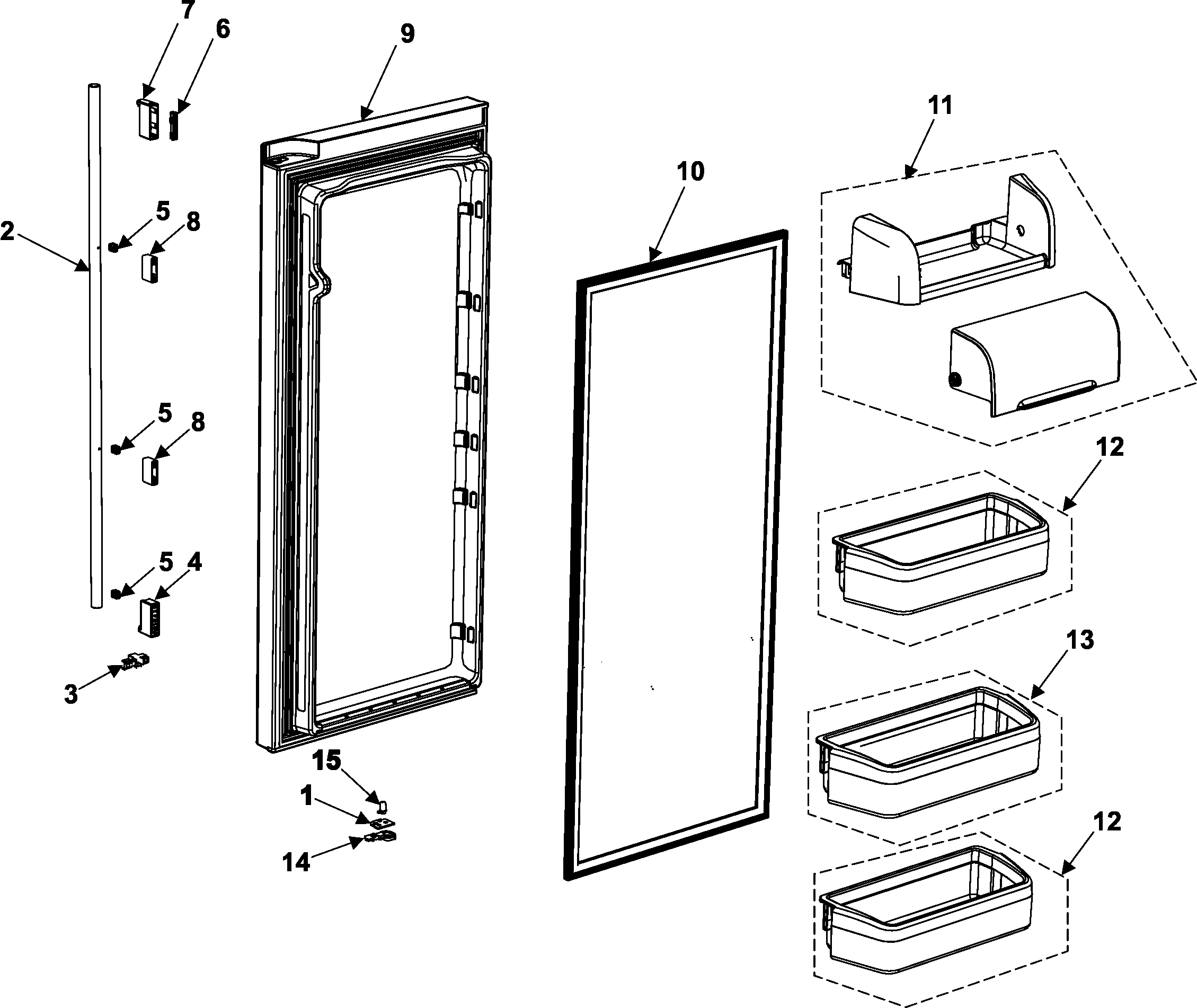

4

6002-001341 Samsung Screw Tapping Backorder SMG 6002-001341 $0.92

4

DA47-40001C Samsung Lamp Holder-Assy Backorder SMG DA47-40001C $12.39

4

DA61-01651A Samsung Refrigerator Ice Route Co Backorder SMG DA61-01651A $3.73

4

DA71-20231A Samsung Refrigerator Fixer Guard Backorder SMG DA71-20231A $2.71

4

DA99-00240G Samsung Refrigerator Valve Packin Backorder SMG DA99-00240G $26.54

4

Refrigerator freezer diffuser panel cover SMG DA63-02701A Contact Us For Availability

4

Refrigerator freezer door handle end cap SMG DA67-01267A Contact Us For Availability

4

Refrigerator hinge cover SMG DA63-02722A Contact Us For Availability

4

Assy chass SMG DA97-02064A Contact Us For Availability

4A

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

5

DA60-90136A Samsung Refrigerator Spiral Pin Backorder SMG DA60-90136A $3.88

5

DA61-40126B Samsung Refrigerator Rear Caster Backorder SMG DA61-40126B $2.49

5

DA63-01970A Samsung Refrigerator Ice Route Co Backorder SMG DA63-01970A $4.56

5

DA71-20267A Samsung Refrigerator Upper Hinge Backorder SMG DA71-20267A $7.74

5

DA74-00070A Samsung Valve Fitting Nut Backorder SMG DA74-00070A $5.42

5

Fluid grommet SMG DA63-00789A Contact Us For Availability

5

Refrigerator lamp plate SMG DA61-02375A Contact Us For Availability

5

Refrigerator shelf SMG DA67-01283A Contact Us For Availability

6

4713-001194 Samsung Incandescent Lamp Backorder SMG 4713-001194 $20.92

6

DA31-00053A Samsung Refrigerator Backward Fan Backorder SMG DA31-00053A $18.65

6

DA59-00294A Samsung Refrigerator Ice Maker As Backorder SMG DA59-00294A $130.08

6

DA60-90146A Samsung Refrigerator Caster Pin M Backorder SMG DA60-90146A $1.67

6

DA64-00090B Samsung Trim Shelf Backorder SMG DA64-00090B $0.92

6

DA97-02943A Samsung Refrigerator Ref Veg Case Backorder SMG DA97-02943A $114.40

6

Base-cap h SMG DA61-00831A Contact Us For Availability

6

Refrigerator cover tube SMG DA63-01275C Contact Us For Availability

6

Refrigerator blade SMG DA31-20122B Contact Us For Availability

6A

Fixer grommet SMG DA71-20252A Contact Us For Availability

7

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $12.02

7

DA39-20389E Samsung Refrigerator Earth Wire H Backorder SMG DA39-20389E $0.92

7

DA60-30108A Samsung Refrigerator Hex Nut Backorder SMG DA60-30108A $3.31

7

DA64-00817A Samsung Refrigerator Humidity Kno Backorder SMG DA64-00817A $9.96

7

Refrigerator handle cap SMG DA67-00773A Contact Us For Availability

7

Refrigerator hinge assembly SMG DA97-03152A Contact Us For Availability

7

Refrigerator ice guide SMG DA61-00954A Contact Us For Availability

7

Refrigerator lamp cover SMG DA63-02710A Contact Us For Availability

7A

Refrigerator hinge SMG DA61-02386A Contact Us For Availability

8

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

8

DA61-00264A Samsung Support-Handle Mid Backorder SMG DA61-00264A $24.71

8

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $4.98

8

Refrigerator door assembly SMG DA91-02102A Contact Us For Availability

8

Refrigerator hinge assembly SMG DA97-03151B Contact Us For Availability

8

Complete clamper SMG DA65-00043A Contact Us For Availability

8

Complete grommet SMG DA63-02908A Contact Us For Availability

8

Refrigerator cover assembly SMG DA97-03116A Contact Us For Availability

8A

Cover-hous SMG DA63-02906A Contact Us For Availability

8A

Refrigerator hinge SMG DA61-02385B Contact Us For Availability

9

DA32-10105U Samsung Refrigerator Temperature In Stock SMG DA32-10105U $15.34

9

DA60-20008A Samsung Hex Bolt Backorder SMG DA60-20008A $3.09

9

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $27.65

9

DA61-20124C Samsung Dispenser Spring Backorder SMG DA61-20124C $3.09

9

DA97-03129A Samsung Front Leg Cover Assembly Backorder SMG DA97-03129A $37.15

9

Refrigerator dispenser ice chute cap SMG DA67-01268A Contact Us For Availability

9

Refrigerator door assembly SMG DA91-02104A Contact Us For Availability

DA31-00020E Samsung Refrigerator Freezer Evap In Stock SMG DA31-00020E $125.22

DA31-00105A Samsung Refrigerator Auger Motor Backorder SMG DA31-00105A $150.18

DA63-01972A Samsung Refrigerator Gasket Cover Backorder SMG DA63-01972A $13.69

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.07

DA64-01588B Samsung Refrigerator NEXT Al 328 Backorder SMG DA64-01588B $42.38

DA67-00903C Samsung Folder Shelf Backorder SMG DA67-00903C $52.81

MK183CL2U/E07 Samsung Refrigerator Compressor Backorder SMG MK183CL2U/E07 $233.08

Refrigerator gasket SMG DA97-01800U Contact Us For Availability

Refrigerator leg cover SMG DA63-02688A Contact Us For Availability

Plate washer SMG DA60-40116A Contact Us For Availability

Cover sensor SMG DA63-02713A Contact Us For Availability

Refrigerator gasket SMG DA97-01800V Contact Us For Availability

10A

DA61-01869A Samsung Refrigerator Oil Damper Backorder SMG DA61-01869A $12.44

10A

DA96-00036B Samsung Auger Wire Harness Assemb Backorder SMG DA96-00036B $25.84

DA67-01253M Samsung Refrigerator Glass Shelf Backorder SMG DA67-01253M $27.23

DA97-03099A Samsung Refrigerator Upper Guard Backorder SMG DA97-03099A $38.59

Refrigerator compressor start relay SMG DA35-10013Q Contact Us For Availability

Refrigerator freezer door bin SMG DA97-03100A Contact Us For Availability

Refrigerator ice dispenser auger drive plate SMG DA61-01659B Contact Us For Availability

Refrigerator toe grille trim strip SMG DA64-00125A Contact Us For Availability

Refrigerator ice bin SMG DA63-02284A Contact Us For Availability

Refrigerator cover assembly SMG DA97-03134B Contact Us For Availability

DA34-10003S Samsung Refrigerator Compressor O Backorder SMG DA34-10003S $34.66

DA61-02542A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-02542A $36.87

DA97-03098A Samsung Refrigerator Guard Assemb Backorder SMG DA97-03098A $55.06

Refrigerator guard assembly SMG DA97-03141A Contact Us For Availability

Assy parti SMG DA97-03136B Contact Us For Availability

Refrigerator egg bin SMG DA97-02806A Contact Us For Availability

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $11.60

DA63-02492A Samsung Tray Egg Backorder SMG DA63-02492A $31.02

DA97-02432C Samsung Refrigerator Water Tank A Backorder SMG DA97-02432C $95.88

Caster,a-t SMG DA61-01871A Contact Us For Availability

Refrigerator insulation SMG DA62-01059A Contact Us For Availability

Refrigerator guard assembly SMG DA97-03562A Contact Us For Availability

13A

DA47-00205A Samsung Refrigerator Heater Water Backorder SMG DA47-00205A $34.81

DA31-00123A Samsung Refrigerator Backward Fan Backorder SMG DA31-00123A $8.14

DA39-00084D Samsung Refrigerator Relay Wire H Backorder SMG DA39-00084D $13.27

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

DA63-02491A Samsung Egg Tray Cover Backorder SMG DA63-02491A $12.00

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.24

Support cover SMG DA63-02820A Contact Us For Availability

Refrigerator door stopper SMG DA61-02374A Contact Us For Availability

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $14.09

DA61-00417A Samsung Refrigerator Motor Case Backorder SMG DA61-00417A $21.56

DA97-00359A Samsung Refrigerator Drain Tube A Backorder SMG DA97-00359A $5.42

Refrigerator evaporator fan motor assembly SMG DA31-00125A Contact Us For Availability

Refrigerator door stopper SMG DA61-02373A Contact Us For Availability

See note (qty 12) screw-tapping currently SMG 00000000 Contact Us For Availability

Trim blade SMG DA64-01731A Contact Us For Availability

DA32-10105C Samsung Refrigerator Temperature Backorder SMG DA32-10105C $13.56

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $119.35

DA61-02355A Samsung Refrigerator Circuit Moto Backorder SMG DA61-02355A $3.31

DA62-20001R Samsung Refrigerator PVC Tube Backorder SMG DA62-20001R $2.71

Cabinet reinforcement SMG DA61-02461A Contact Us For Availability

17

DA63-00951C Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951C $7.87

17

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $10.78

17

Support-ci SMG DA61-02349A Contact Us For Availability

18

DA47-00133E Samsung Refrigerator Bimetal Ther Backorder SMG DA47-00133E $39.31

18

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.24

18

Refrigerator pipe assembly SMG DA97-00708J Contact Us For Availability

18A

GUIDE-PIPE WATER,ICE;BEST-BUY, Backorder SMG DA61-00764A $4.65

18B

Seal tube SMG DA62-00068D Contact Us For Availability

DA31-00020H Samsung Refrigerator BLDC Compres Backorder SMG DA31-00020H $107.26

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.31

Assy parti SMG DA97-03135B Contact Us For Availability

Grommet-tu SMG DA63-01274A Contact Us For Availability

DA02-40034A Samsung Refrigerator Catalyst Backorder SMG DA02-40034A $136.49

Refrigerator condenser fan motor assembly SMG DA97-03145A Contact Us For Availability

Cover part SMG DA63-02708A Contact Us For Availability

Refrigerator water pipe SMG DA62-00040E Contact Us For Availability

DA63-02707A Samsung Purifier Cover Assembly Backorder SMG DA63-02707A $1.56

DA97-03132A Samsung Cover Partition Assembly Backorder SMG DA97-03132A $39.62

Refrigerator dispenser lever SMG DA66-00354A Contact Us For Availability

Refrigerator water inlet valve grommet SMG DA63-02928A Contact Us For Availability

22

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $0.92

22

Refrigerator cover assembly SMG DA97-03632A Contact Us For Availability

22

Refrigerator partition SMG DA67-01279A Contact Us For Availability

22A

Refrigerator insulation SMG DA62-01010A Contact Us For Availability

6003-000003 Samsung Refrigerator TAPTYPE Scre Backorder SMG 6003-000003 $8.53

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.02

Refrigerator cover panel SMG DA63-02810A Contact Us For Availability

Refrigerator defrost bi-metal thermostat SMG DA47-00133F Contact Us For Availability

24

DA61-00453A Samsung Refrigerator Ice Maker Se Backorder SMG DA61-00453A $0.92

24

Heat cover SMG DA63-02728A Contact Us For Availability

25

DA32-10105R Samsung Refrigerator Defrost Temp In Stock SMG DA32-10105R $21.56

25

Refrigerator motor assembly SMG DA97-03125A Contact Us For Availability

25A

Refrigerator refrigerant step valve motor SMG DA31-00112A Contact Us For Availability

25B

Bracket-st SMG DA61-02351A Contact Us For Availability

25C

Refrigerator motor step SMG DK31-00005B Contact Us For Availability

26

Refrigerator turbo fan SMG DA31-00015C Contact Us For Availability

26

Refrigerator lamp cover SMG DA63-02711A Contact Us For Availability

27

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.73

28

Refrigerator temperature sensor SMG DA32-00006M Contact Us For Availability

29

Refrigerator pipe assembly SMG DA97-03433A Contact Us For Availability

29A

Refrigerator water supply tube fitting SMG DA61-02587A Contact Us For Availability

29A

Fixer-hous SMG DA61-02707A Contact Us For Availability

30

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.24

31

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $9.97

31

DA63-40171D Samsung Refrigerator Suction Pipe Backorder SMG DA63-40171D $2.07

32

Cover-nois SMG DA63-02907A Contact Us For Availability

32

Cover part SMG DA63-02709A Contact Us For Availability

33

DK71-00025C Samsung Refrigerator Dryer Assemb Backorder SMG DK71-00025C $22.40

33

Refrigerator partition SMG DA67-01278A Contact Us For Availability

33A

Refrigerator insulation SMG DA62-01011A Contact Us For Availability

34

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

34

DA47-00133G Samsung Thermostat Bimetal Protec Backorder SMG DA47-00133G $64.53

35

DA97-01947C Samsung Assembly Cover Comp Backorder SMG DA97-01947C $59.98

35

Assy w/har SMG DA96-00213A Contact Us For Availability

35A

Seal absorber SMG DA62-00719M Contact Us For Availability

36

DA34-10110E Samsung Refrigerator Door Light S Backorder SMG DA34-10110E $34.11

36

Samsung seal-sub c SMG DA62-01034A Contact Us For Availability

37

DA97-03301A Samsung Refrigerator Water Filter Backorder SMG DA97-03301A $140.19

37

Refrigerator cover assembly SMG DA97-03307A Contact Us For Availability

38

DA27-00009B Samsung Refrigerator Coil Filter Backorder SMG DA27-00009B $79.64

38

Refrigerator filter assembly SMG DA29-00012B Contact Us For Availability

39

DA63-02776A Samsung Refrigerator Water Filter Backorder SMG DA63-02776A $23.77

39

Refrigerator power control board SMG DA41-00320A Contact Us For Availability

40

Refrigerator run capacitor SMG 2501-001045 Contact Us For Availability

41

Refrigerator cover tube SMG DA63-00586A Contact Us For Availability

42

Refrigerator power cord SMG DA39-10165E Contact Us For Availability

43

Refrigerator power control board SMG DA41-00318A Contact Us For Availability

44

DA62-20111C Samsung Refrigerator Tube Fitting Backorder SMG DA62-20111C $12.00

45

DA65-20110B Samsung Refrigerator Cable Clamp Backorder SMG DA65-20110B $3.50

NI

4713-001172 Samsung Refrigerator Incandescent Backorder SMG 4713-001172 $10.07

NI

DA61-02363A Samsung Refrigerator Low Handle S Backorder SMG DA61-02363A $3.88

NI

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24
