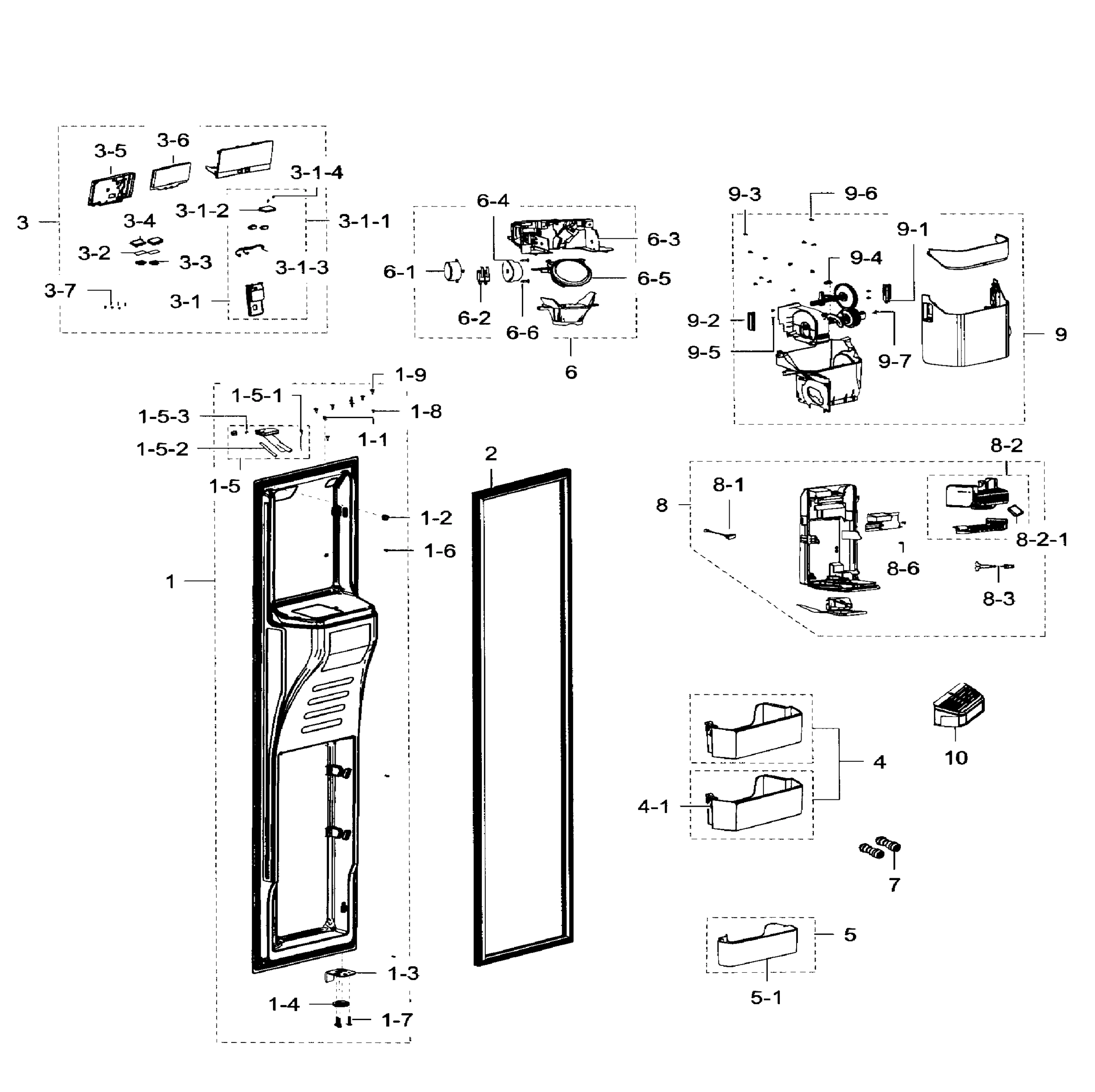

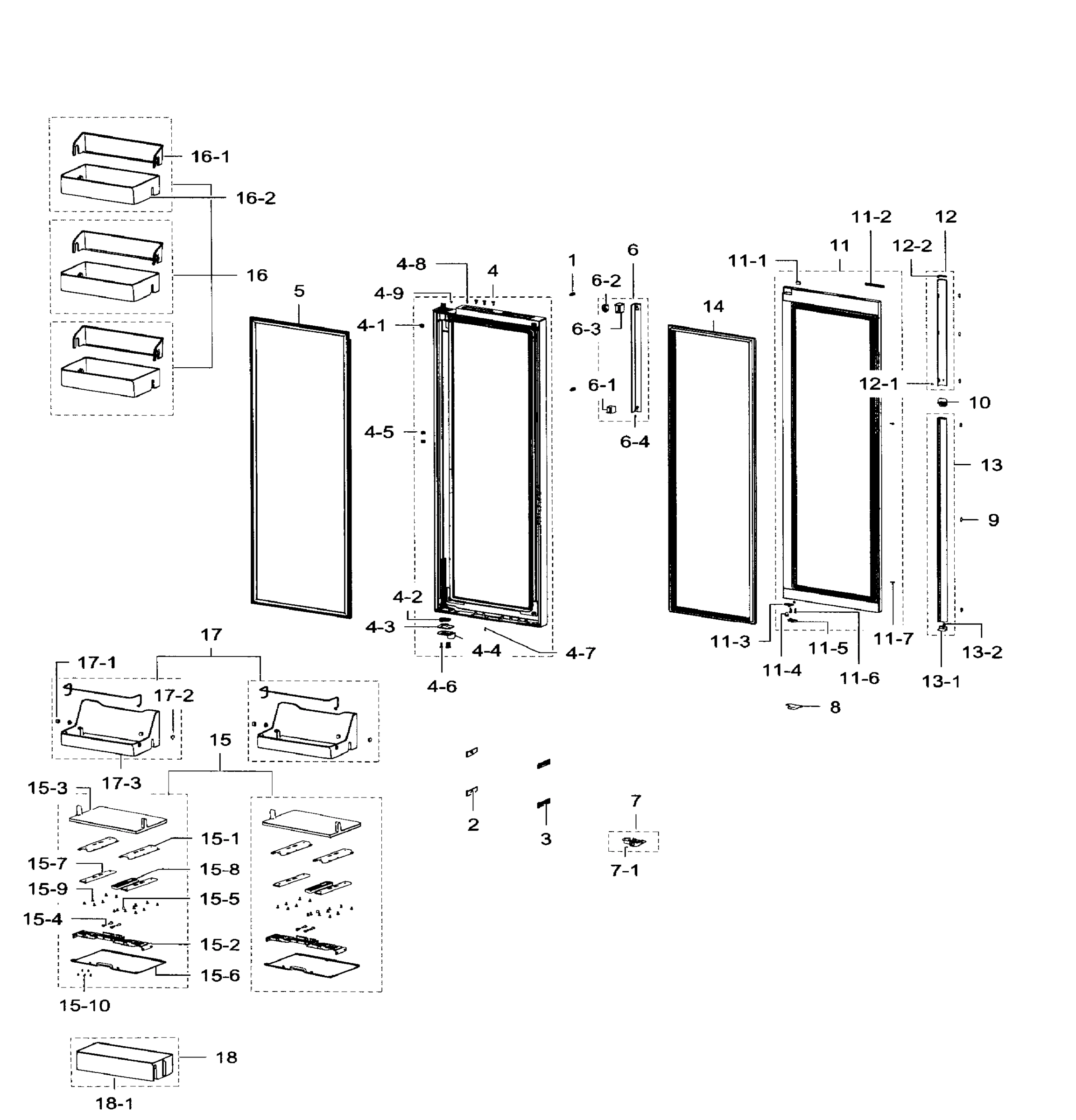

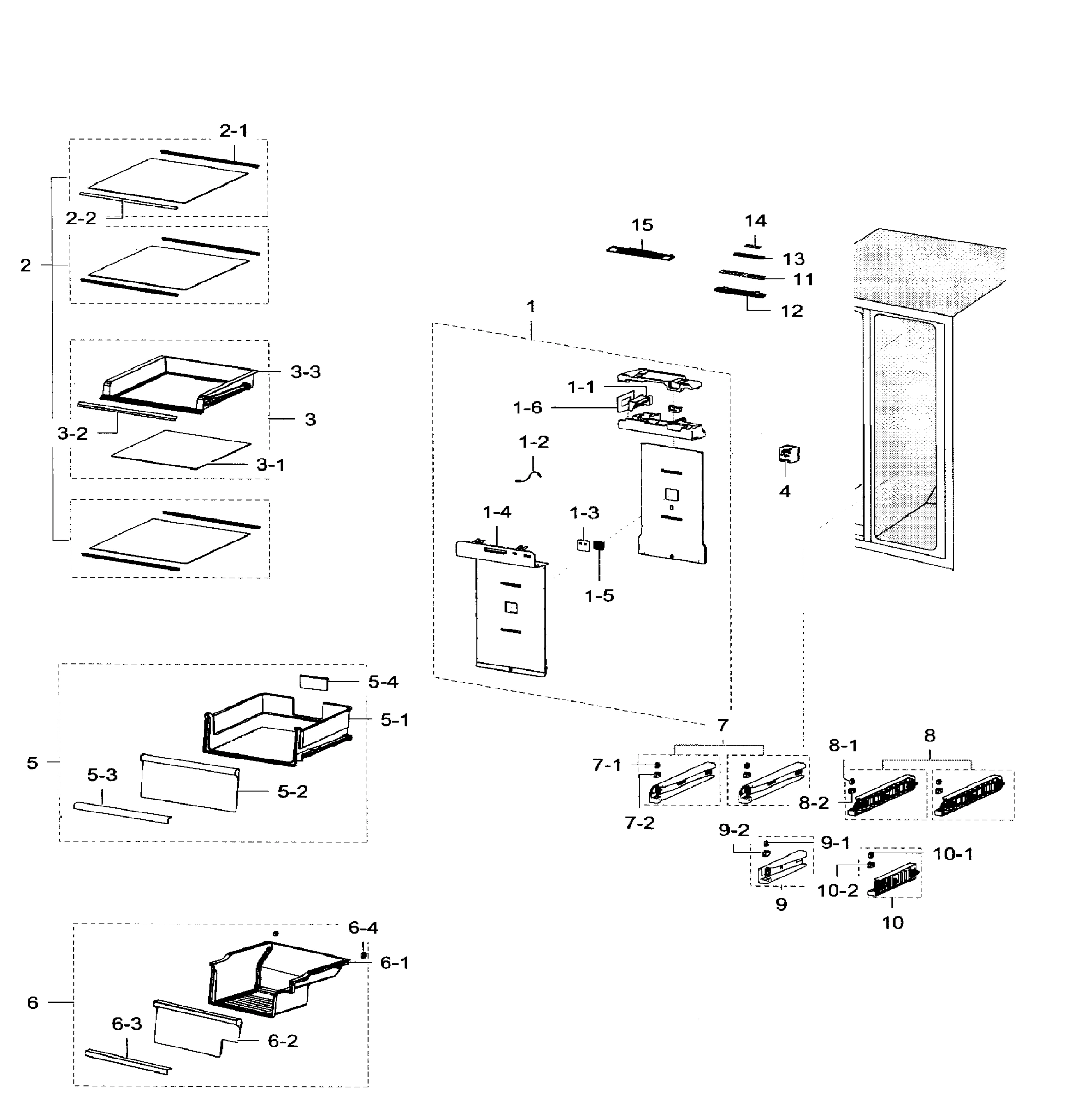

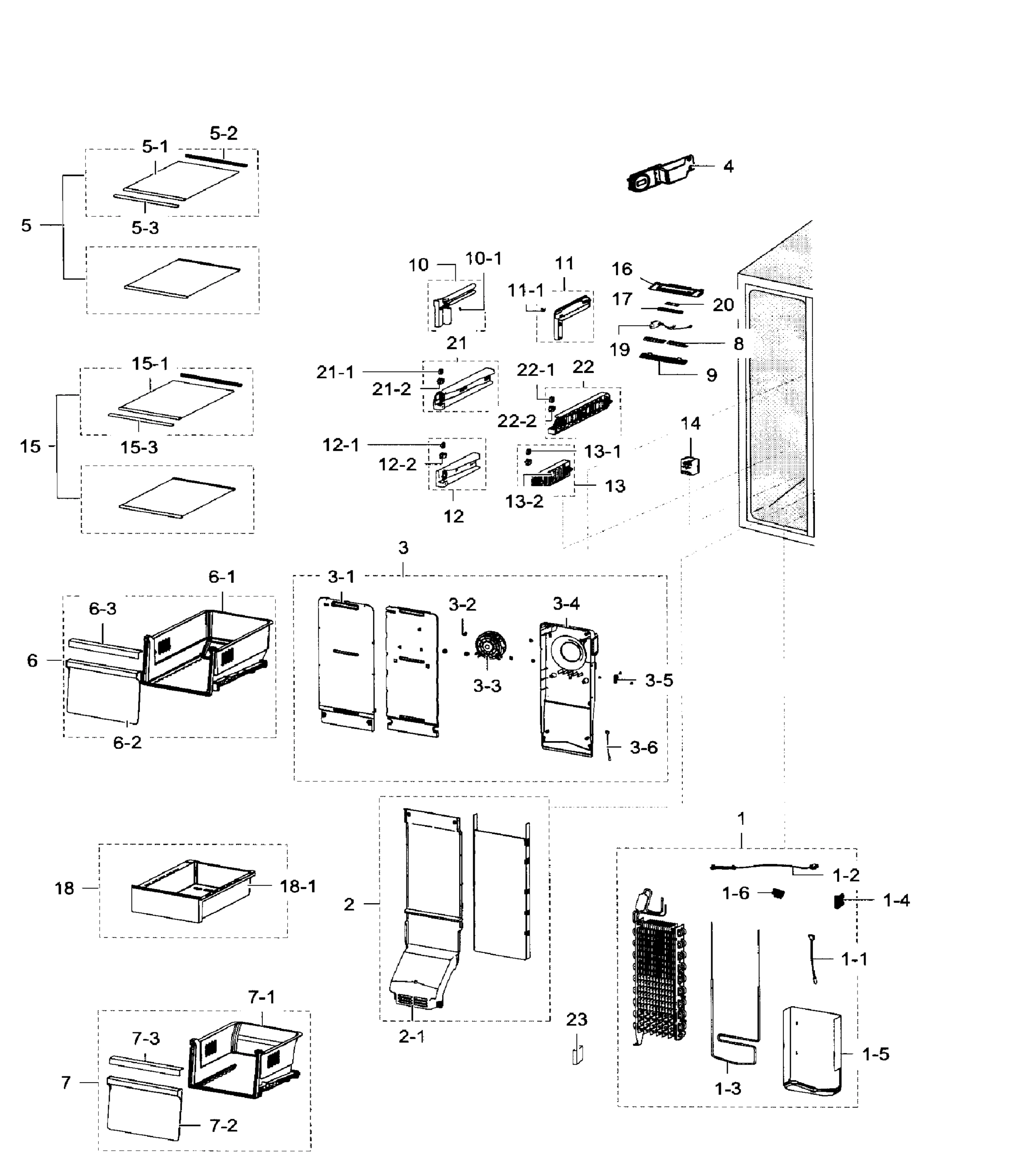

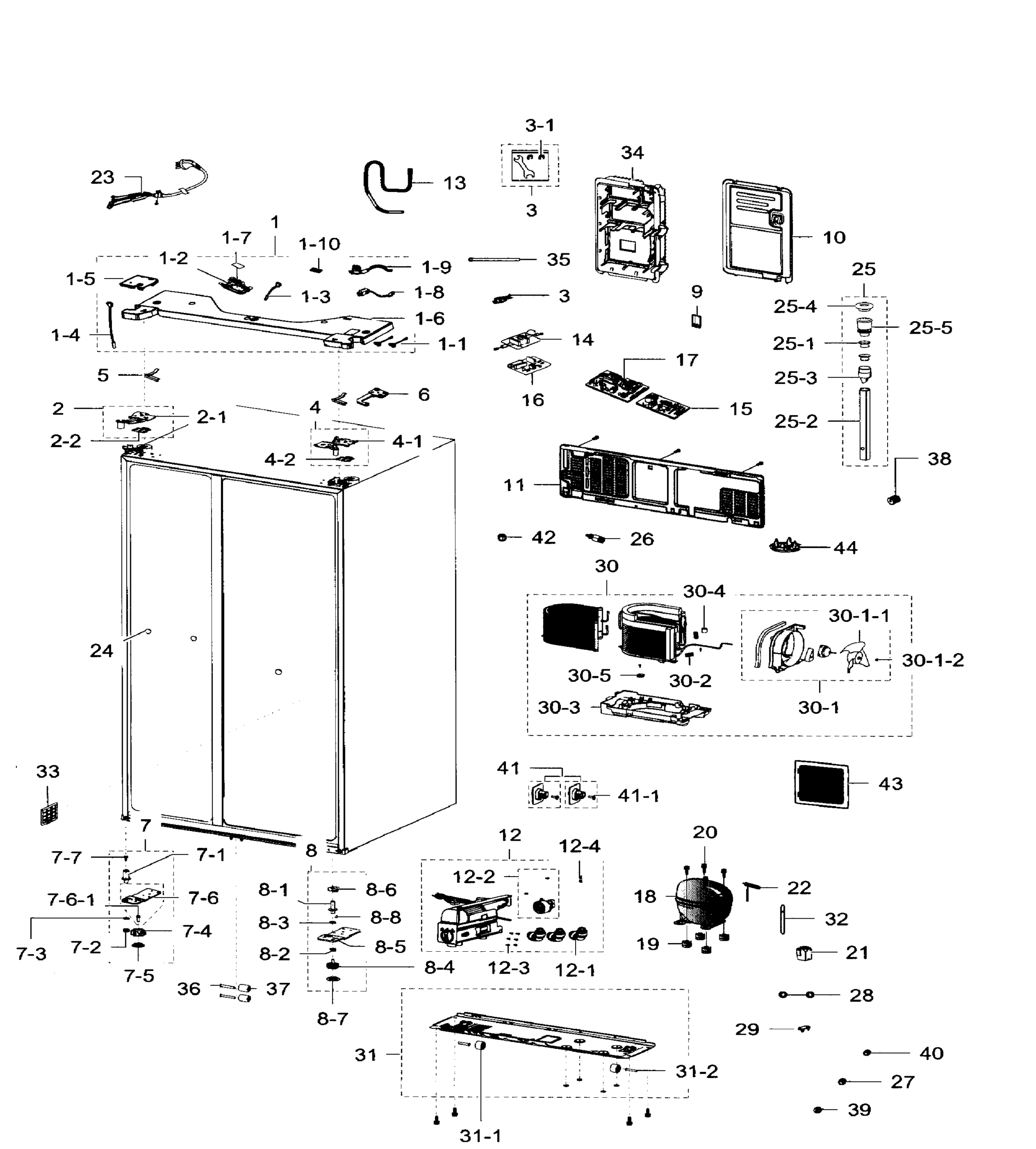

Model Samsung RH29H9000SR/AA-05 Refrigerator – Common Parts &amp; Diagrams

1

DA91-04329A Samsung Refrigerator Foam Door Backorder SMG DA91-04329A $325.60

1

DA97-13749D Samsung Refrigerator Damper Cover Backorder SMG DA97-13749D $158.14

DA31-00043E Samsung Refrigerator DC Damper Mo Backorder SMG DA31-00043E $132.61

DA32-00029P Samsung Refrigerator Temperature Backorder SMG DA32-00029P $25.80

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $24.47

DA61-03769A Samsung Refrigerator Door Magnet Backorder SMG DA61-03769A $2.07

1-2

DA32-10105V Samsung Refrigerator Temperature Backorder SMG DA32-10105V $8.97

1-2

DA47-00301H Samsung Refrigerator Thermostat F Backorder SMG DA47-00301H $22.38

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $56.89

DA47-00463B Samsung Refrigerator Metal Sheath Backorder SMG DA47-00463B $124.39

DA61-07527A Samsung Refrigerator Low Door Sto Backorder SMG DA61-07527A $50.93

DA63-07224A Samsung Cover Deodorizer Backorder SMG DA63-07224A $7.87

DA32-10105B Samsung Refrigerator Temperature In Stock SMG DA32-10105B $15.76

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

DA66-00558B Samsung Refrigerator Door Closing In Stock SMG DA66-00558B $2.49

Refrigerator damper control SMG DA63-07525C Contact Us For Availability

1-5

DA02-90106R Samsung Refrigerator Catalyst LTC Backorder SMG DA02-90106R $22.38

1-5

DA97-06542H Samsung Refrigerator Water Ice Pi Backorder SMG DA97-06542H $81.69

1-6

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $0.99

1-6

DA62-04268A Samsung Seal Damper Backorder SMG DA62-04268A $4.15

2

DA67-03730B Samsung Reinforcement Cap Backorder SMG DA67-03730B $1.94

2

DA97-04568W Samsung Refrigerator Polaris Gray Backorder SMG DA97-04568W $111.91

2

DA97-14084B Samsung Refrigerator Glass Shelf Backorder SMG DA97-14084B $68.83

2-1

DA64-04395E Samsung Refrigerator Rear Shelf T Backorder SMG DA64-04395E $18.25

2-2

Refrigerator shelf trim SMG DA64-04407E Contact Us For Availability

3

DA67-03731B Samsung Reinforcement Cap Backorder SMG DA67-03731B $2.07

3

DA97-13719A Samsung Refrigerator Shelf Slide Backorder SMG DA97-13719A $104.89

3

DA97-13745G Samsung Refrigerator Multi-FSR Co Backorder SMG DA97-13745G $190.24

3

DA97-14704A Samsung Refrigerator Ice Dispense Backorder SMG DA97-14704A $266.20

3-1

DA97-12628M Samsung Refrigerator Dispenser Le Backorder SMG DA97-12628M $130.83

3-1

Refrigerator glass shelf SMG DA01-00883A Contact Us For Availability

3-2

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $36.14

3-2

Refrigerator shelf trim SMG DA64-04347C Contact Us For Availability

3-3

DA61-05687A Samsung Refrigerator Case LED Lam Backorder SMG DA61-05687A $1.24

3-3

Refrigerator shelf SMG DA67-03712A Contact Us For Availability

3-4

DA63-02446A Samsung Refrigerator Epel ABS Coo Backorder SMG DA63-02446A $2.49

3-5

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $9.11

3-6

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $19.49

3-6

DA92-00635A Samsung Refrigerator LED Touch Di Backorder SMG DA92-00635A $212.52

4

DA63-02902A Samsung Cover Housing Fixer Backorder SMG DA63-02902A $5.38

4

DA91-04005J Samsung Refrigerator Foam Door As Backorder SMG DA91-04005J $325.60

4

DA97-14041A Samsung Refrigerator Upper Right- Backorder SMG DA97-14041A $43.13

4

DA97-14068B Samsung Refrigerator Guard Assemb Backorder SMG DA97-14068B $41.30

4

DA97-14619A Samsung Refrigerator Auger Motor Backorder SMG DA97-14619A $186.60

4-1

DA97-11151D Samsung Movable Fixer Assembly Backorder SMG DA97-11151D $7.47

4-1

Refrigerator guard SMG DA63-07520A Contact Us For Availability

4-2

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24

4-2

DA66-01035A Samsung Refrigerator Cam Riser Mi Backorder SMG DA66-01035A $2.65

4-3

DA61-09137A Samsung Refrigerator Low Out Hing Backorder SMG DA61-09137A $31.71

4-4

DA61-09264A Samsung Refrigerator Door Stopper Backorder SMG DA61-09264A $26.19

4-5

DA63-07538A Samsung Refrigerator Grommet Asse Backorder SMG DA63-07538A $1.67

4-6

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $0.92

4-7

6001-000716 Samsung Refrigerator Machine Scre Backorder SMG 6001-000716 $0.92

5

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

5

DA97-04568V Samsung Refrigerator Door Gasket Backorder SMG DA97-04568V $174.44

5

DA97-14082E Samsung Refrigerator Vegetable Cr Backorder SMG DA97-14082E $121.24

5

DA97-14096B Samsung Low Guard Assembly Backorder SMG DA97-14096B $41.36

5-1

Refrigerator freezer guard SMG DA63-07620A Contact Us For Availability

5-2

Cover veg-fr SMG DA63-07487A Contact Us For Availability

5-4

DA67-03728A Samsung Cap Tray Assembly Backorder SMG DA67-03728A $9.30

6

DA97-06473K Samsung Refrigerator Ice Route Ca Backorder SMG DA97-06473K $133.78

6

DA97-13873E Samsung Refrigerator Handle Assem Backorder SMG DA97-13873E $108.24

6

DA97-14714A Samsung Refrigerator Low Vegetabl Backorder SMG DA97-14714A $127.06

6-1

CAP-HANDLE REF IN LOW;FOOD SHO Backorder SMG DA67-03674A $21.03

6-1

Refrigerator auger motor SMG DA31-00079B Contact Us For Availability

6-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $9.53

6-2

DA61-09327A Samsung Refrigerator Food Showcas Backorder SMG DA61-09327A $2.91

6-2

Cover veg-fr SMG DA63-07862A Contact Us For Availability

6-3

DA61-04373A Samsung Refrigerator Ice Route Ca Backorder SMG DA61-04373A $24.34

6-3

DA67-03673A Samsung Upper Handle Cap Assembly Backorder SMG DA67-03673A $21.36

6-4

Refrigerator door handle set screw SMG 6009-001526 No Longer Available

6-4

DA66-00309A Samsung Refrigerator Gear Motor C Backorder SMG DA66-00309A $4.56

6-5

DA97-00883E Samsung Refrigerator Ice Route Co In Stock SMG DA97-00883E $43.70

6-6

6002-001364 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001364 $0.92

7

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $19.89

7

DA97-14090A Samsung Latch Cover Assembly Backorder SMG DA97-14090A $34.29

7

Refrigerator rail SMG DA97-14142A Contact Us For Availability

7-4

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $7.87

7-5

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.91

7-7

6003-001435 Samsung Refrigerator Screw, Tap T Backorder SMG 6003-001435 $0.92

8

DA64-04574A Samsung Locker Assembly Backorder SMG DA64-04574A $3.88

8

DA97-14253A Samsung Refrigerator Indoor Ice M Backorder SMG DA97-14253A $225.05

8

Refrigerator rail SMG DA97-14141A Contact Us For Availability

8-1

DA34-00043C Samsung Refrigerator Reed Switch Backorder SMG DA34-00043C $26.19

8-2

DA97-13415B Samsung Refrigerator Ice Maker As In Stock SMG DA97-13415B $224.80

8-3

DA97-00151B Samsung Refrigerator Reed Switch Backorder SMG DA97-00151B $25.07

8-4

DA61-09458A Samsung Refrigerator Front Foot Backorder SMG DA61-09458A $7.47

8-8

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.92

9

DA97-14263A Samsung Refrigerator Ice Tray Ass Backorder SMG DA97-14263A $198.65

9

Rail-low-l SMG DA97-14742A Contact Us For Availability

9

Refrigerator handle cap SMG DA67-03677C Contact Us For Availability

9-1

DA66-00587A Samsung Refrigerator Lever Bucket Backorder SMG DA66-00587A $9.11

9-2

DA66-00588A Samsung Lever Bucket Assembly Rig Backorder SMG DA66-00588A $2.91

9-3

SCREW-TAPPING;STS304,PASS,L14, Backorder SMG 6002-000473 $0.92

9-4

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.80

9-5

DA61-04378A Samsung Spring Bucket Lever Assem Backorder SMG DA61-04378A $1.67

9-7

DA60-10107A Samsung Screw Machine Backorder SMG DA60-10107A $2.07

10

DA67-03727A Samsung CAP Handle Assembly Backorder SMG DA67-03727A $22.86

10

DA97-06568D Samsung Refrigerator Ice Maker Co In Stock SMG DA97-06568D $67.53

10

Rail-low-r SMG DA97-14743A Contact Us For Availability

11

DA41-00519B Samsung Refrigerator LED Lamp Ass In Stock SMG DA41-00519B $36.14

11

DA91-04189K Samsung Refrigerator Door Foam As Backorder SMG DA91-04189K $325.60

11

DA97-12749B Samsung Refrigerator Compressor C Backorder SMG DA97-12749B $139.02

11-1

DA61-03769B Samsung Refrigerator Dispenser Dr Backorder SMG DA61-03769B $4.98

11-2

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $23.22

11-3

DA61-09426A Samsung Door Stopper Backorder SMG DA61-09426A $28.38

11-4

DA63-07566A Samsung Refrigerator Low Food Hin Backorder SMG DA63-07566A $3.50

11-5

DA66-01044A Samsung Right Auto Close Cam Backorder SMG DA66-01044A $2.07

11-6

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $0.92

12

DA63-05431A Samsung Refrigerator LED Cover Si Backorder SMG DA63-05431A $7.47

12

DA97-13874A Samsung Refrigerator Upper Door H Backorder SMG DA97-13874A $104.98

12

DA97-14655E Samsung Refrigerator Side Water F Backorder SMG DA97-14655E $241.93

12-1

DA63-07634B Samsung Grommet Handle Backorder SMG DA63-07634B $1.17

12-2

DA67-03675A Samsung Upper Out Handle Cap Backorder SMG DA67-03675A $19.38

13

DA97-13875A Samsung Assembly Low Handle Backorder SMG DA97-13875A $111.71

13

Refrigerator lamp cover SMG DA63-03623D Contact Us For Availability

13-1

DA67-03676A Samsung Low Outer Handle Cap Backorder SMG DA67-03676A $22.05

14

DA27-00043B Samsung Refrigerator Coil Filter Backorder SMG DA27-00043B $86.03

14

DA97-13915A Samsung Refrigerator Food Show Ga Backorder SMG DA97-13915A $121.66

15

DA67-03879A Samsung Air Out Cap Assembly Backorder SMG DA67-03879A $7.74

15

DA92-00483C Samsung Refrigerator Inverter Ass In Stock SMG DA92-00483C $163.39

15

DA97-13891A Samsung Assembly Middle Tray Backorder SMG DA97-13891A $129.05

15-1

DA61-09232A Samsung Middle Right Rail Backorder SMG DA61-09232A $22.09

15-2

Refrigerator reinforcement SMG DA61-09252A Contact Us For Availability

15-3

Refrigerator tray SMG DA63-07523A Contact Us For Availability

15-4

DA63-07548A Samsung Grommet Backorder SMG DA63-07548A $2.32

15-5

DA63-07559A Samsung Refrigerator Low Grommet Backorder SMG DA63-07559A $3.31

15-6

Refrigerator rail cover SMG DA63-07630A Contact Us For Availability

15-7

DA97-13887A Samsung Assembly Rail Middle Backorder SMG DA97-13887A $54.04

15-8

DA97-13895A Samsung Refrigerator Rail Assembl Backorder SMG DA97-13895A $22.75

15-9

6002-000623 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000623 $0.92

16

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $120.19

16

DA97-13728G Samsung Refrigerator Upper Food S Backorder SMG DA97-13728G $113.58

16-1

DA61-09441A Samsung Refrigerator Guide Latour Backorder SMG DA61-09441A $16.65

16-2

DA63-07516D Samsung Refrigerator Upper Food S Backorder SMG DA63-07516D $78.14

17

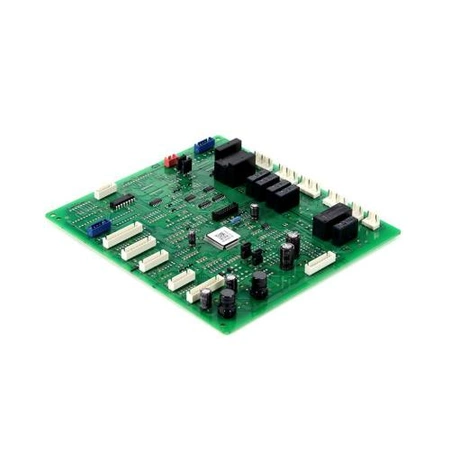

DA92-00715F Samsung Refrigerator PCB Main Ass Backorder SMG DA92-00715F $297.48

17

DA97-13729G Samsung Refrigerator Middle Guard Backorder SMG DA97-13729G $123.16

17-1

Refrigerator door stopper SMG DA61-09373A Contact Us For Availability

17-2

Refrigerator door stopper SMG DA61-09404A Contact Us For Availability

17-3

Refrigerator guard SMG DA63-07517C Contact Us For Availability

18

DA97-14095B Samsung Refrigerator Low Guard As Backorder SMG DA97-14095B $113.51

18

MKV190CL2B/ASH Samsung Refrigerator Compresso Backorder SMG MKV190CL2B/ASH $289.71

18-1

DA63-07619B Samsung Refrigerator Guard Sub Fr Backorder SMG DA63-07619B $64.54

20

DA41-00519P Samsung Refrigerator Pba-Led Lamp Backorder SMG DA41-00519P $23.97

21

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $11.60

23

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $64.47

25

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $17.56

25-3

DA63-00951B Samsung Refrigerator Drain Hose G Backorder SMG DA63-00951B $5.03

26

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

27

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.38

29

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $26.31

30-1

DA97-15765C Samsung Refrigerator Circuit Moto In Stock SMG DA97-15765C $152.80

31-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

31-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.56

36

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

37

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

42

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

151

DA47-00104M Samsung Refrigerator Water Pipe H Backorder SMG DA47-00104M $42.38

152

DA62-01368L Samsung Refrigerator Water Line P Backorder SMG DA62-01368L $6.22

153

DA71-20208A Samsung Refrigerator Water Valve Backorder SMG DA71-20208A $0.92

311

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $12.02

312

DA63-05449A Samsung Refrigerator Cover-Switch Backorder SMG DA63-05449A $3.73

313

DA96-00106J Samsung Dispenser Wire Harness As Backorder SMG DA96-00106J $23.61

821

DA33-10011A Samsung Refrigerator Magnet Backorder SMG DA33-10011A $2.07

3011

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $20.31

6002-000471 Samsung Refrigerator Screw Backorder SMG 6002-000471 $0.92

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

6002-001547 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001547 $0.92

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.24

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $4.98

Refrigerator glass shelf SMG DA01-00918A Contact Us For Availability

Refrigerator shelf trim SMG DA64-04407F Contact Us For Availability

Basket cover SMG DA63-07486A Contact Us For Availability

Refrigerator basket trim SMG DA64-04565C Contact Us For Availability

Refrigerator owner's manual SMG DA68-02976A Contact Us For Availability

Vegetable low case SMG DA61-09850A Contact Us For Availability

Refrigerator basket trim SMG DA64-04565D Contact Us For Availability
