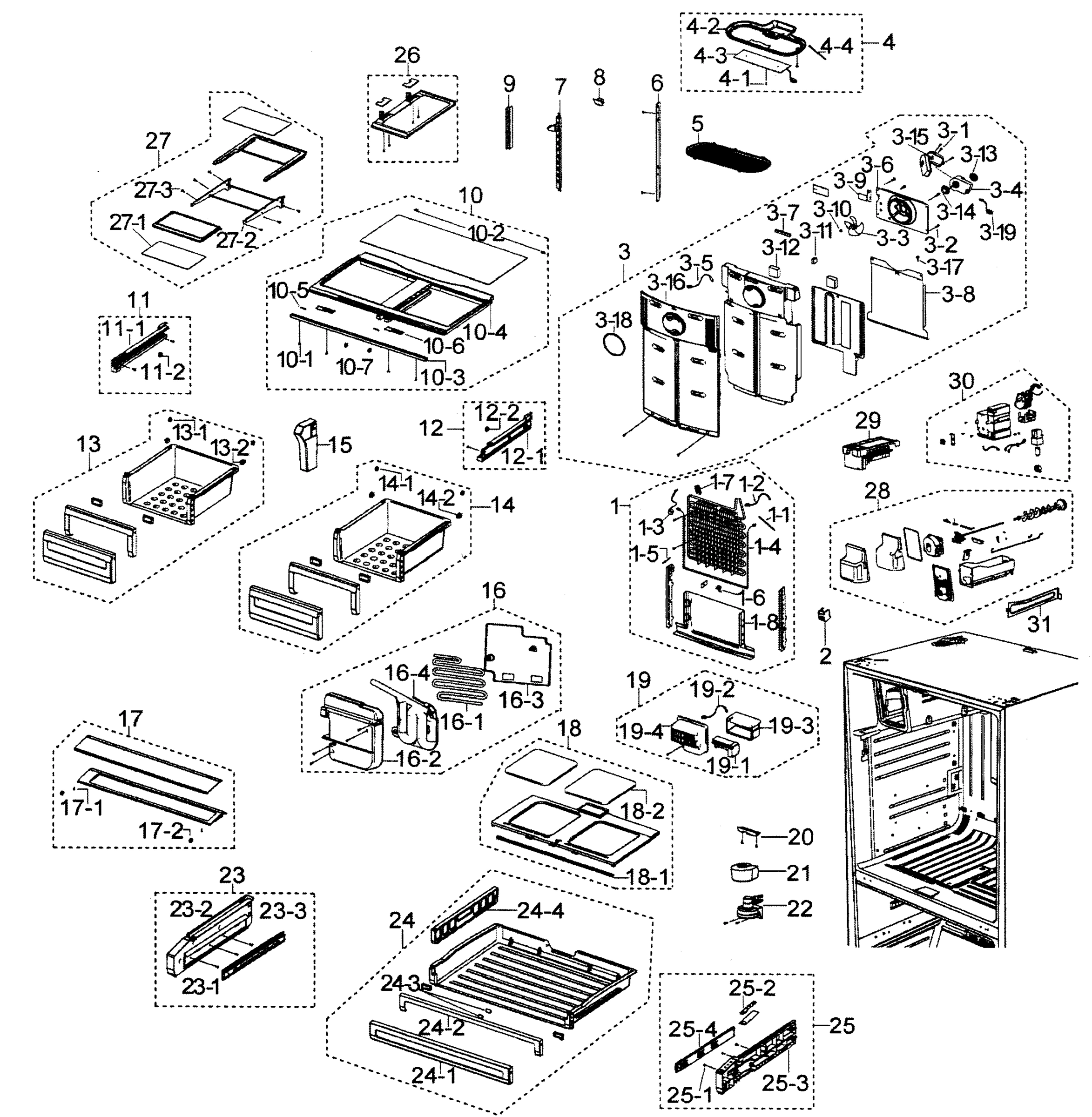

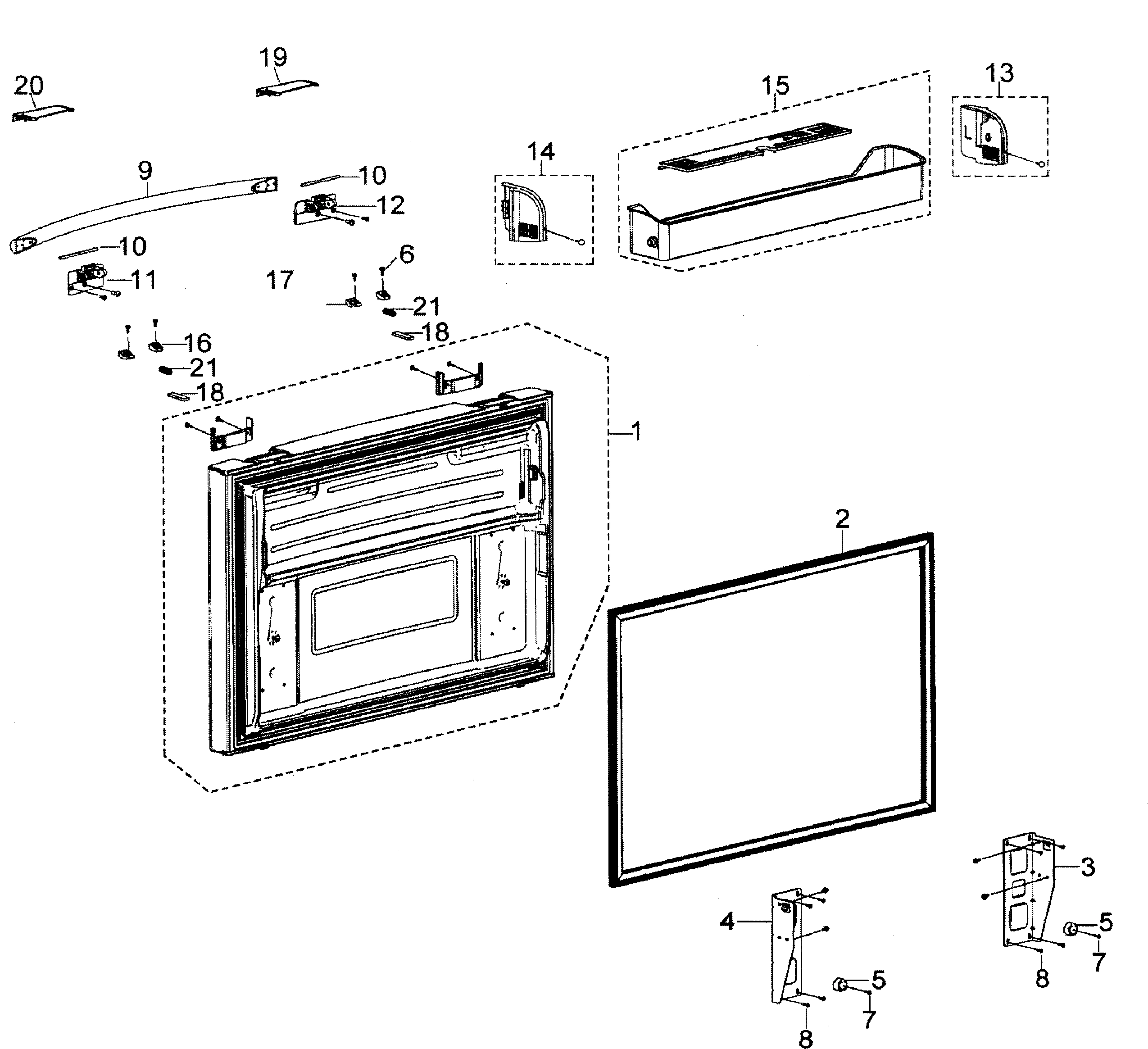

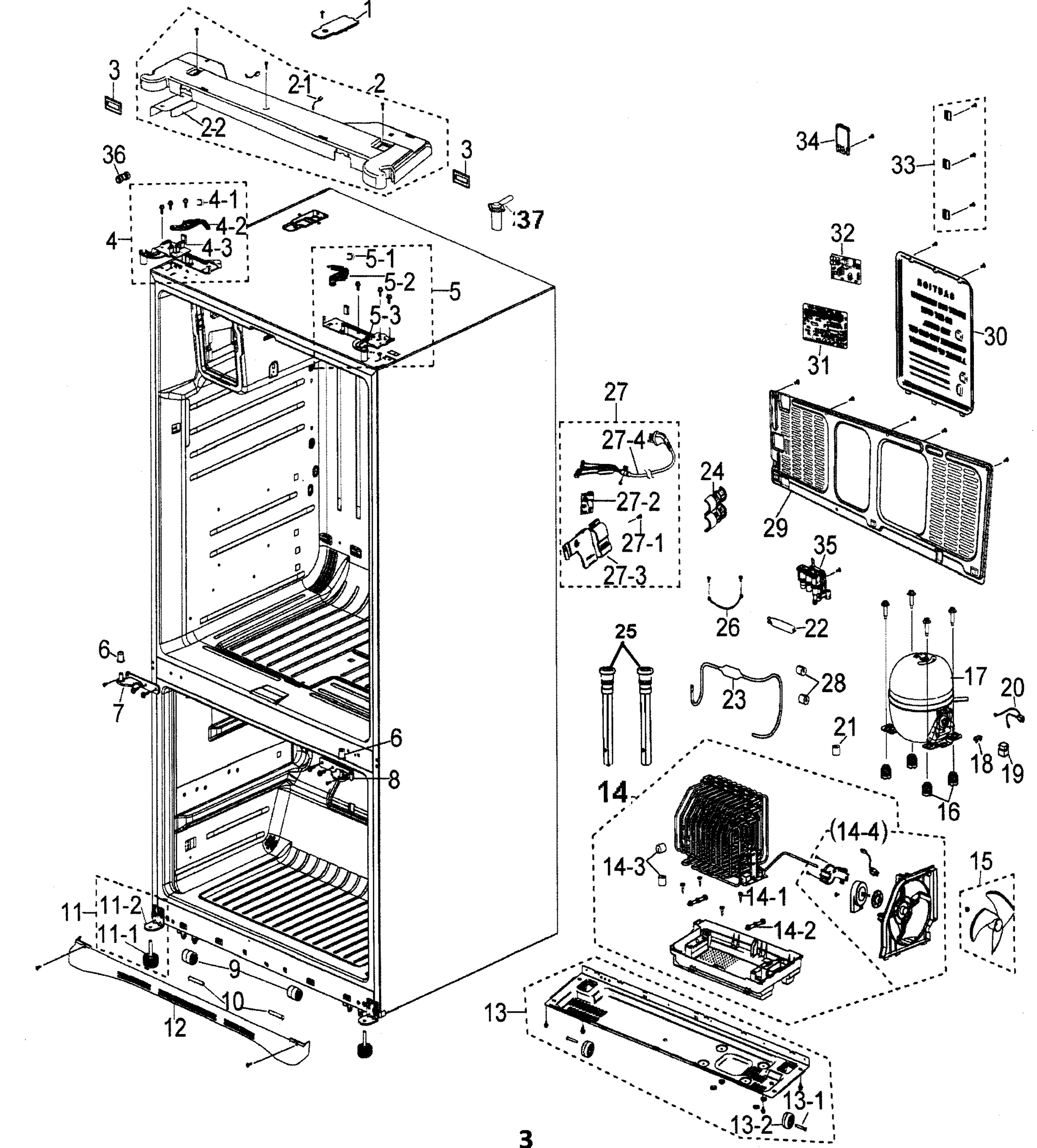

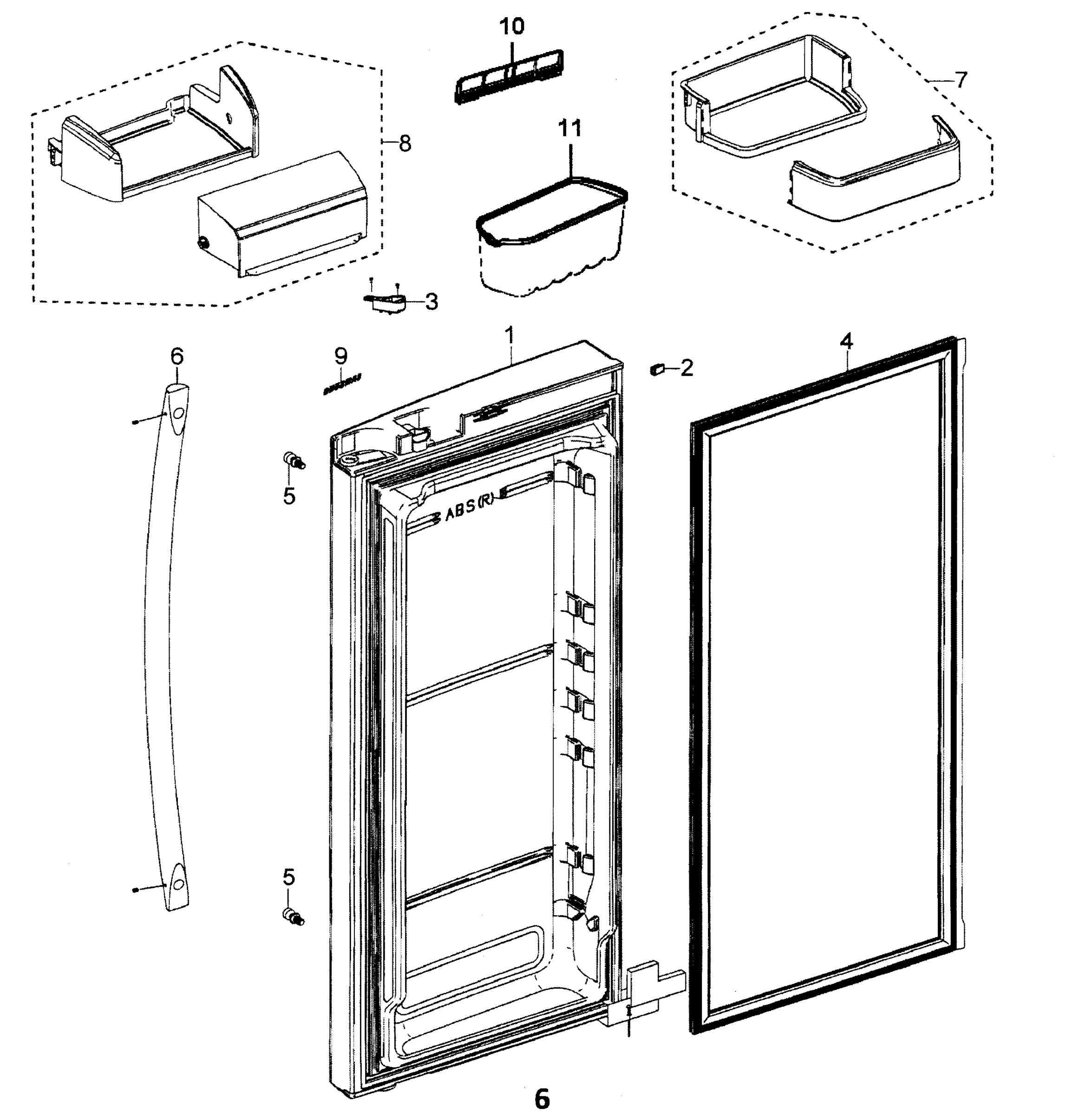

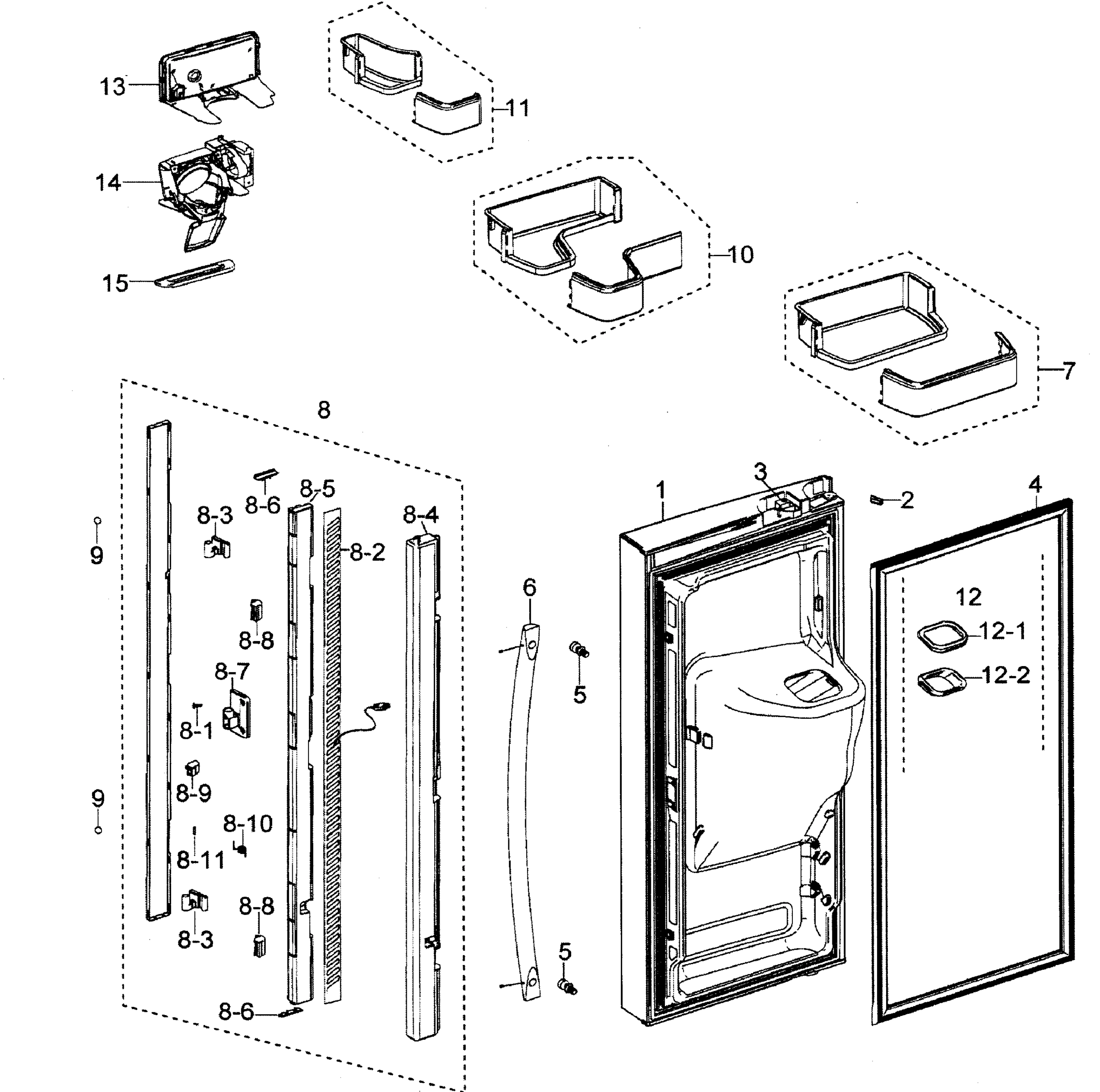

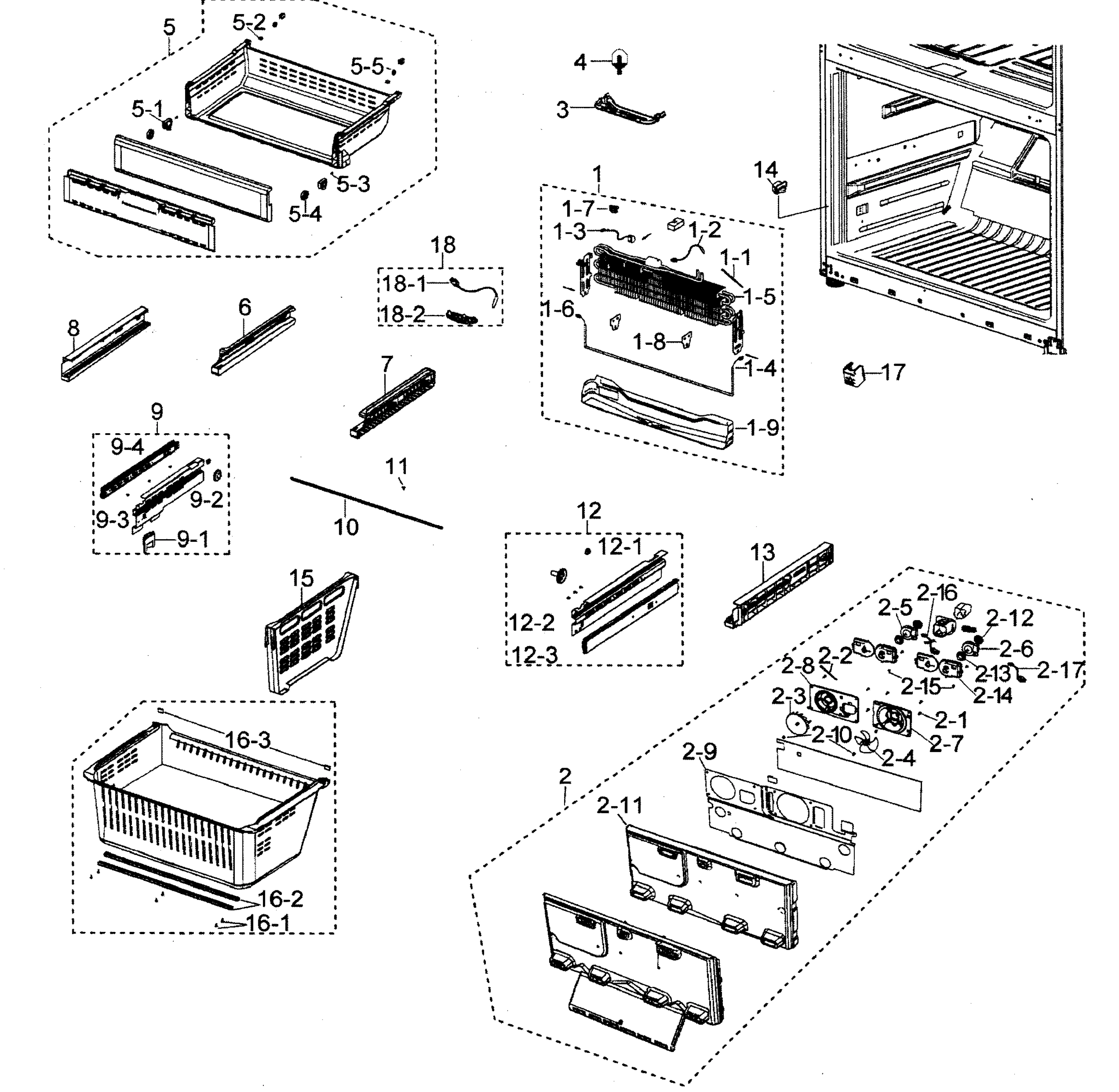

Model Samsung RFG297AAWP/XAA-00 Bottom-Mount Refrigerator – Common Parts &amp; Diagrams

1

Refrigerator Evaporator Assembly SMG DA96-00762C Contact Us For Availability

1-2

Refrigerator Defrost Sensor SMG DA32-00027B Contact Us For Availability

1-3

Refrigerator Defrost Bi-Metal Thermostat SMG DA47-00243R Contact Us For Availability

1-4

Refrigerator Evaporator Fan Blade SMG DA31-00124A Contact Us For Availability

1-4

Refrigerator Defrost Heater SMG DA47-00244C Contact Us For Availability

1-7

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.35

1-7

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.35

1-8

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $8.14

2

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.42

2

Refrigerator Freezer Evaporator Cover and Fan SMG DA97-06389B Contact Us For Availability

2-1

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $26.25

2-5

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $92.22

2-6

DA31-00146E Samsung Refrigerator Evaporator F In Stock SMG DA31-00146E $120.24

3

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $61.77

3

DA97-06323D Samsung Refrigerator Cover Assemb Backorder SMG DA97-06323D $195.56

3-4

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $126.00

3-6

DA61-03181A Samsung Refrigerator Bubble Pjt A Backorder SMG DA61-03181A $13.12

3-9

DA61-03599A Samsung Refrigerator Galvanized H Backorder SMG DA61-03599A $1.81

3-13

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.07

3-14

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.63

3-15

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $11.77

3-16

DA63-04218A Samsung Refrigerator Evaporator C Backorder SMG DA63-04218A $66.11

3-19

DA96-00042J Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042J $39.45

4

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $58.22

4

DA97-05253E Samsung Refrigerator Door Gasket In Stock SMG DA97-05253E $157.00

4

DA97-06409A Samsung Assembly Case LampAw2 Pjt Backorder SMG DA97-06409A $200.04

4-2

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $6.33

4-3

DA96-00392A Samsung Refrigerator LED Lamp Ass Backorder SMG DA96-00392A $39.04

5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.98

5

DA97-04875H Samsung Refrigerator Upper Hinge Backorder SMG DA97-04875H $67.77

5-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $7.70

5-3

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.52

6

Refrigerator door handle assembly SMG DA64-02552B Contact Us For Availability

7

DA97-06372A Samsung Refrigerator Angle Shelf Backorder SMG DA97-06372A $73.42

7

DA97-06419C Samsung Refrigerator Door Shelf B In Stock SMG DA97-06419C $71.09

7

DA97-06420C Samsung Refrigerator Door Shelf B Backorder SMG DA97-06420C $81.69

7

DA97-06572A Samsung Refrigerator Mid Left Hin Backorder SMG DA97-06572A $75.75

8

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $37.83

8

DA67-01688A Samsung Refrigerator Angle Cap As Backorder SMG DA67-01688A $0.97

8

DA97-06426B Samsung Refrigerator Dairy Bin As Backorder SMG DA97-06426B $61.46

8

Refrigerator flipper assembly SMG DA97-06417F Contact Us For Availability

8-1

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $0.97

8-3

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $2.72

8-4

DA61-04286A Samsung Refrigerator French Case In Stock SMG DA61-04286A $46.26

8-7

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.79

8-8

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.07

8-9

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.52

8-12

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $0.97

9

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $5.89

9

Refrigerator nameplate SMG DA64-01985A Contact Us For Availability

9-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.63

9-2

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.35

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $2.26

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $31.40

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $7.70

DA97-06329A Samsung Refrigerator Glass Crispe Backorder SMG DA97-06329A $188.66

DA97-06425C Samsung Refrigerator Freezer Uppe Backorder SMG DA97-06425C $56.66

10-2

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.35

10-3

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $138.05

10-4

DA63-04281A Samsung Refrigerator Crisper Draw Backorder SMG DA63-04281A $188.66

11

DA67-02058B Samsung Refrigerator Handle Cap A Backorder SMG DA67-02058B $14.03

11

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $24.55

11-1

DA61-03172A Samsung Refrigerator Crisper Draw Backorder SMG DA61-03172A $22.62

11-1

DA61-04977A Samsung Refrigerator Front Foot A Backorder SMG DA61-04977A $4.52

12

DA67-02059B Samsung Refrigerator Handle Cap F Backorder SMG DA67-02059B $14.03

12

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $23.08

12

DA97-05353A Samsung Refrigerator Ice Chute Ca Backorder SMG DA97-05353A $51.28

12-1

DA61-03177A Samsung Refrigerator Vegetable Cr Backorder SMG DA61-03177A $23.99

12-1

DA63-03698A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-03698A $47.50

12-2

DA67-01729A Samsung Refrigerator Ice Chute Ca Backorder SMG DA67-01729A $6.33

13

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $41.86

13

DA97-07547A Samsung Refrigerator Compressor C Backorder SMG DA97-07547A $120.49

13

Refrigerator dispenser cover assembly SMG DA97-06521C Contact Us For Availability

13-1

DA66-00649A Samsung Refrigerator Caster Shaft Backorder SMG DA66-00649A $3.63

13-2

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $4.98

14

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.18

14

Refrigerator Condenser Coil and Fan Motor Ass SMG DA97-05043C Contact Us For Availability

14-4

DA97-03145L Samsung Refrigerator Circuit Moto Backorder SMG DA97-03145L $142.82

15

DA63-03695C Samsung Refrigerator Dispenser Tr Backorder SMG DA63-03695C $5.89

16

DA97-07129C Samsung Refrigerator Water T/Cove Backorder SMG DA97-07129C $143.43

16

Refrigerator freezer door handle mounting blo SMG DA61-04254A Contact Us For Availability

16-1

DA47-00295A Samsung Refrigerator Water Tank H Backorder SMG DA47-00295A $49.14

16-4

DA97-07150A Samsung Refrigerator Water Tank A Backorder SMG DA97-07150A $135.06

17

DA61-04255A Samsung Refrigerator Handle Shaft Backorder SMG DA61-04255A $0.97

17

Refrigerator Compressor SMG BK190CL2C/E02 Contact Us For Availability

17

Refrigerator Drawer Cover SMG DA97-06327A Contact Us For Availability

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $25.77

DA61-04258A Samsung Refrigerator Handle Slide Backorder SMG DA61-04258A $1.81

DA97-02019B Samsung Refrigerator Temperature Backorder SMG DA97-02019B $33.00

DA97-06328A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-06328A $188.66

18-2

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $41.05

19

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $9.50

19

DA97-06324A Samsung Refrigerator Damper Cover Backorder SMG DA97-06324A $116.56

19-1

DA31-00071C Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071C $111.75

19-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $19.45

19-4

DA63-04274A Samsung Refrigerator DC Motor Dam Backorder SMG DA63-04274A $10.40

20

DA39-00154D Samsung Refrigerator Wire Harness Backorder SMG DA39-00154D $47.50

20

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $4.98

20

Refrigerator freezer handle cover, right SMG DA63-04248C Contact Us For Availability

21

DA61-04335B Samsung E Assembly Handle Spring In Stock SMG DA61-04335B $2.26

22

DA97-06317A Samsung Refrigerator Replacement In Stock SMG DA97-06317A $92.48

23

DA97-00918E Samsung Refrigerator Connection P Backorder SMG DA97-00918E $57.75

23

Refrigerator Pantry Drawer Slide Cover Assemb SMG DA97-06399A Contact Us For Availability

24-1

DA63-04275B Samsung Refrigerator Pantry Front Backorder SMG DA63-04275B $51.28

24-2

DA63-04276B Samsung Refrigerator Pantry Trim Backorder SMG DA63-04276B $36.63

24-4

DA61-04290A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04290A $113.15

25

DA97-04049H Samsung Refrigerator Drain Cap As Backorder SMG DA97-04049H $13.07

25-2

DA41-00423C Samsung Refrigerator Printed Circ Backorder SMG DA41-00423C $31.79

25-4

DA97-06448B Samsung Refrigerator Assembly Sli Backorder SMG DA97-06448B $123.85

27-1

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $0.97

27-2

DA27-00019D Samsung Refrigerator EMI Coil Fil Backorder SMG DA27-00019D $93.59

27-4

Refrigerator Power Cord SMG DA39-10165E Contact Us For Availability

28

DA97-11117A Samsung Refrigerator Freezer Ice In Stock SMG DA97-11117A $168.64

29

DA97-05422A Samsung Refrigerator Ice Maker As In Stock SMG DA97-05422A $175.11

31

DA63-03691A Samsung Refrigerator Ice Room Har Backorder SMG DA63-03691A $9.96

31

Refrigerator Electronic Control Board SMG DA41-00538A Contact Us For Availability

32

Refrigerator Inverter SMG DA41-00614F Contact Us For Availability

35

DA62-00914B Samsung Refrigerator Water Inlet In Stock SMG DA62-00914B $99.14
