Model Samsung RF31FMESBSR/AA-04 Refrigerator – Common Parts &amp; Diagrams

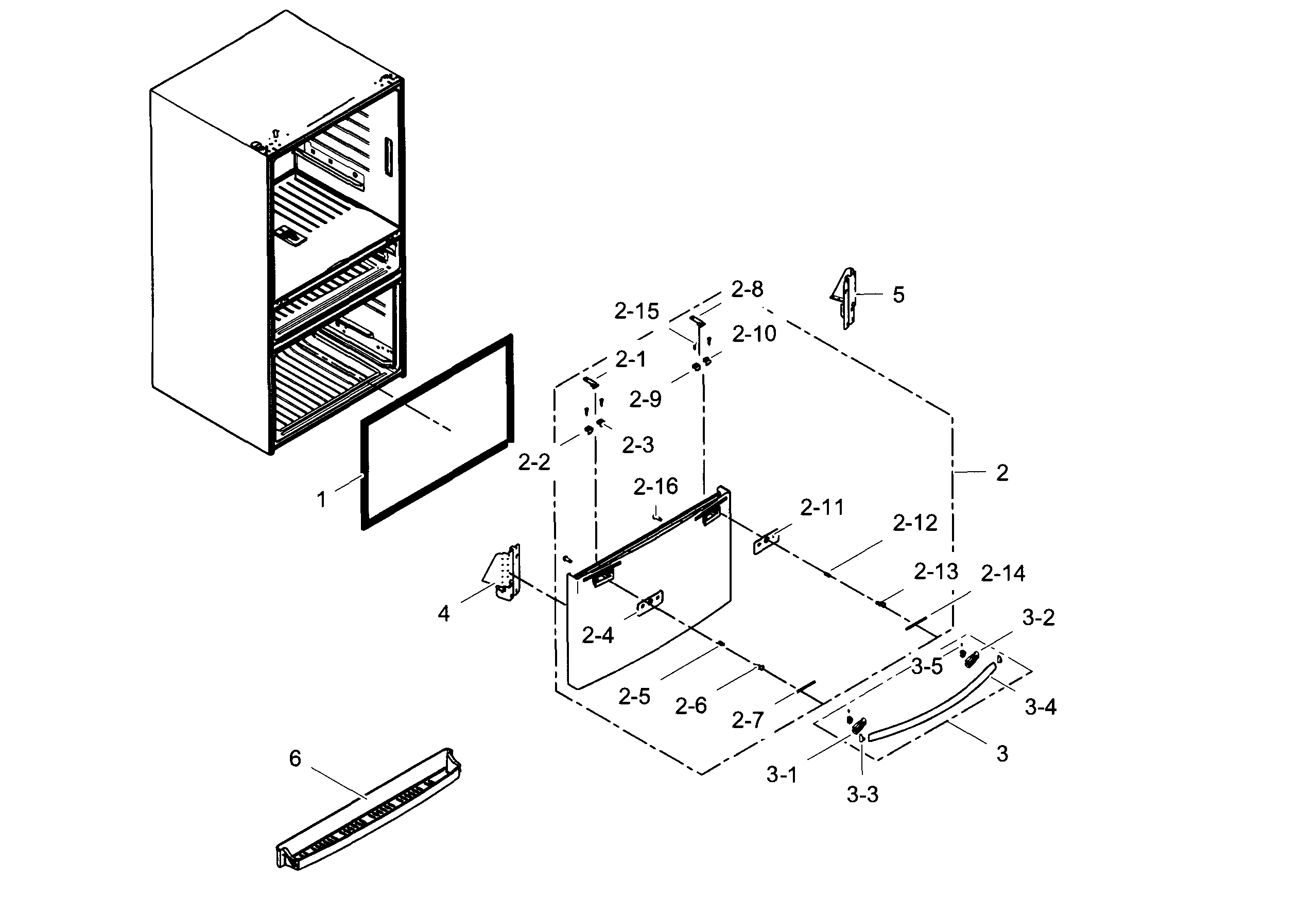

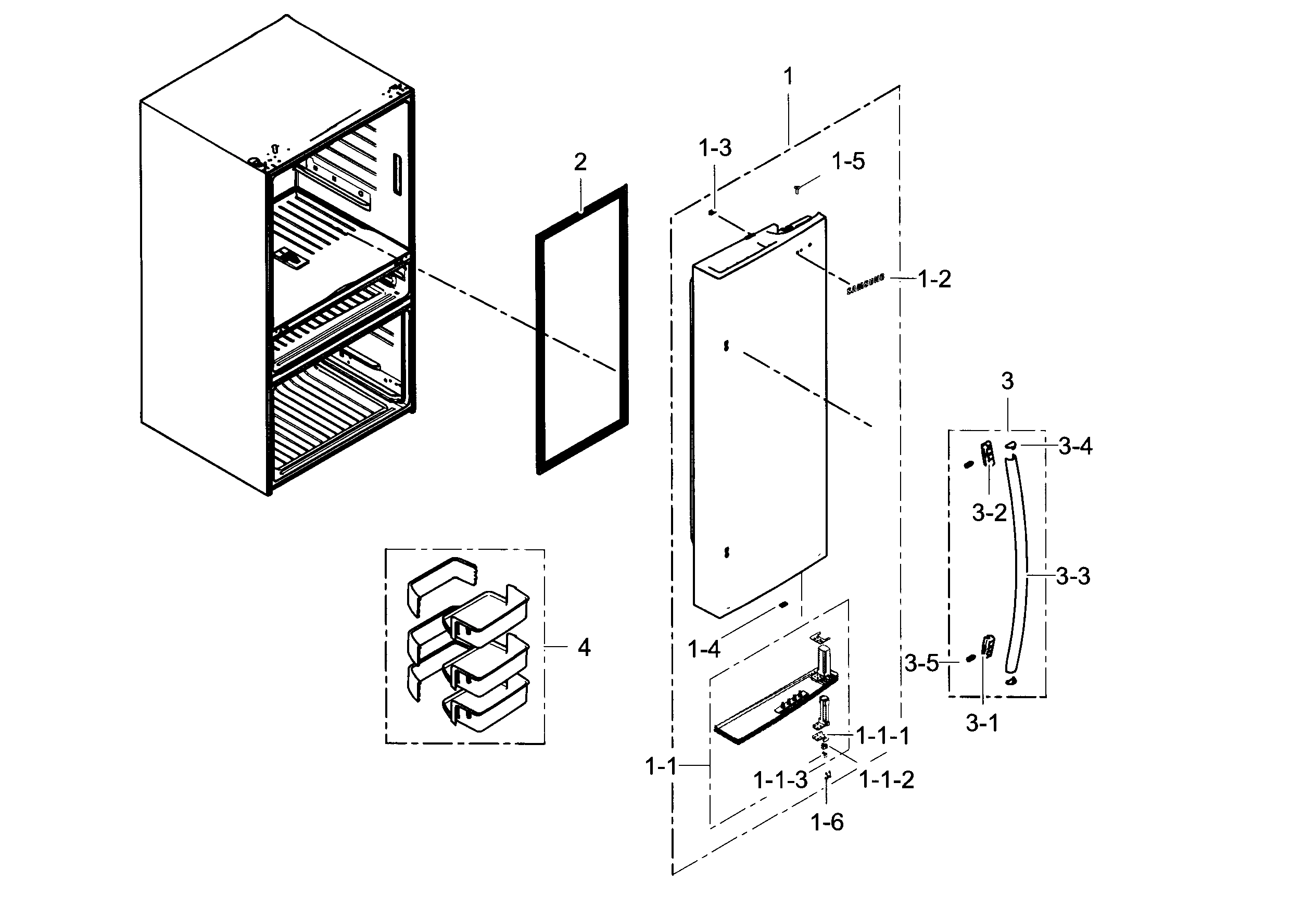

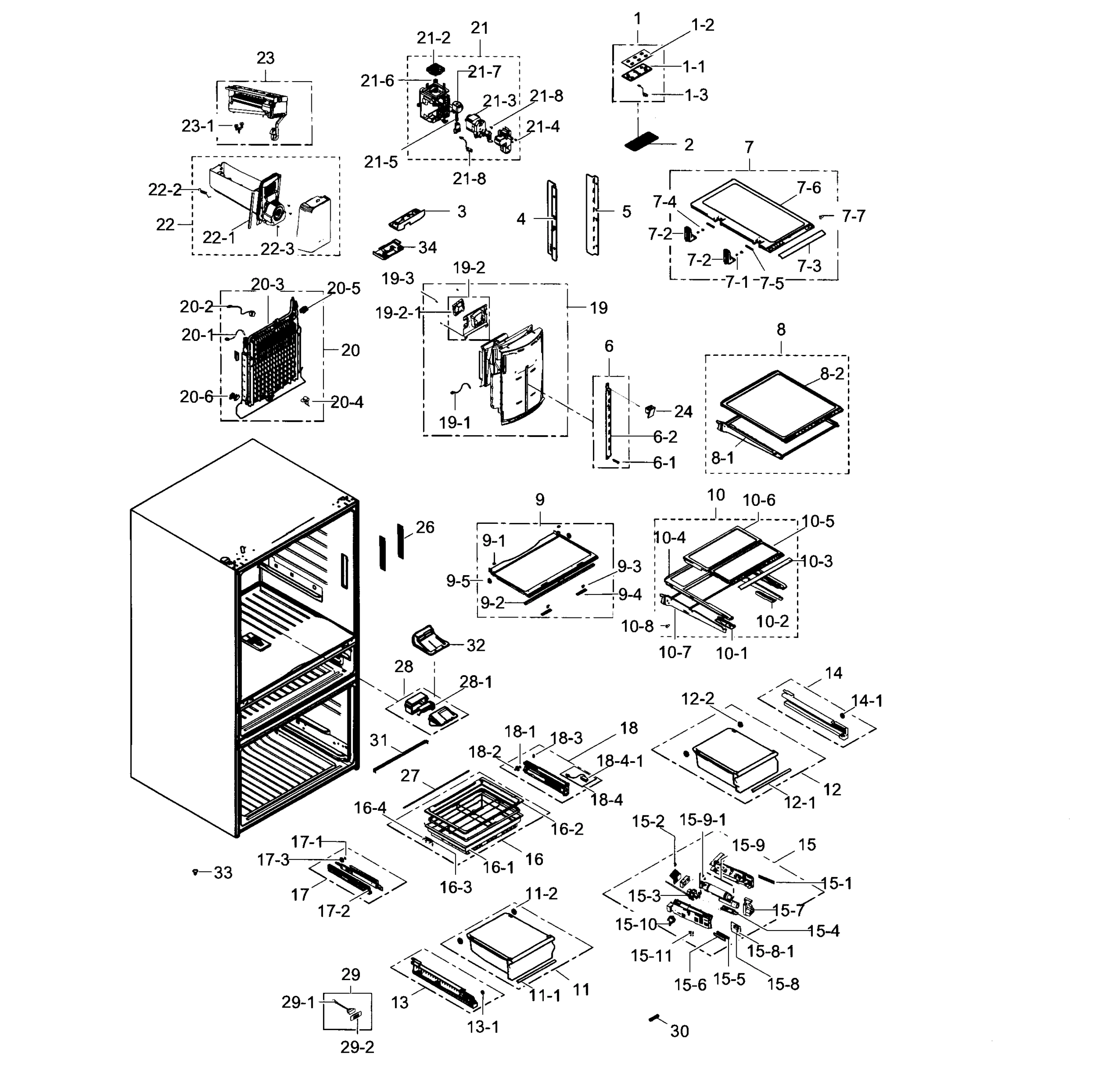

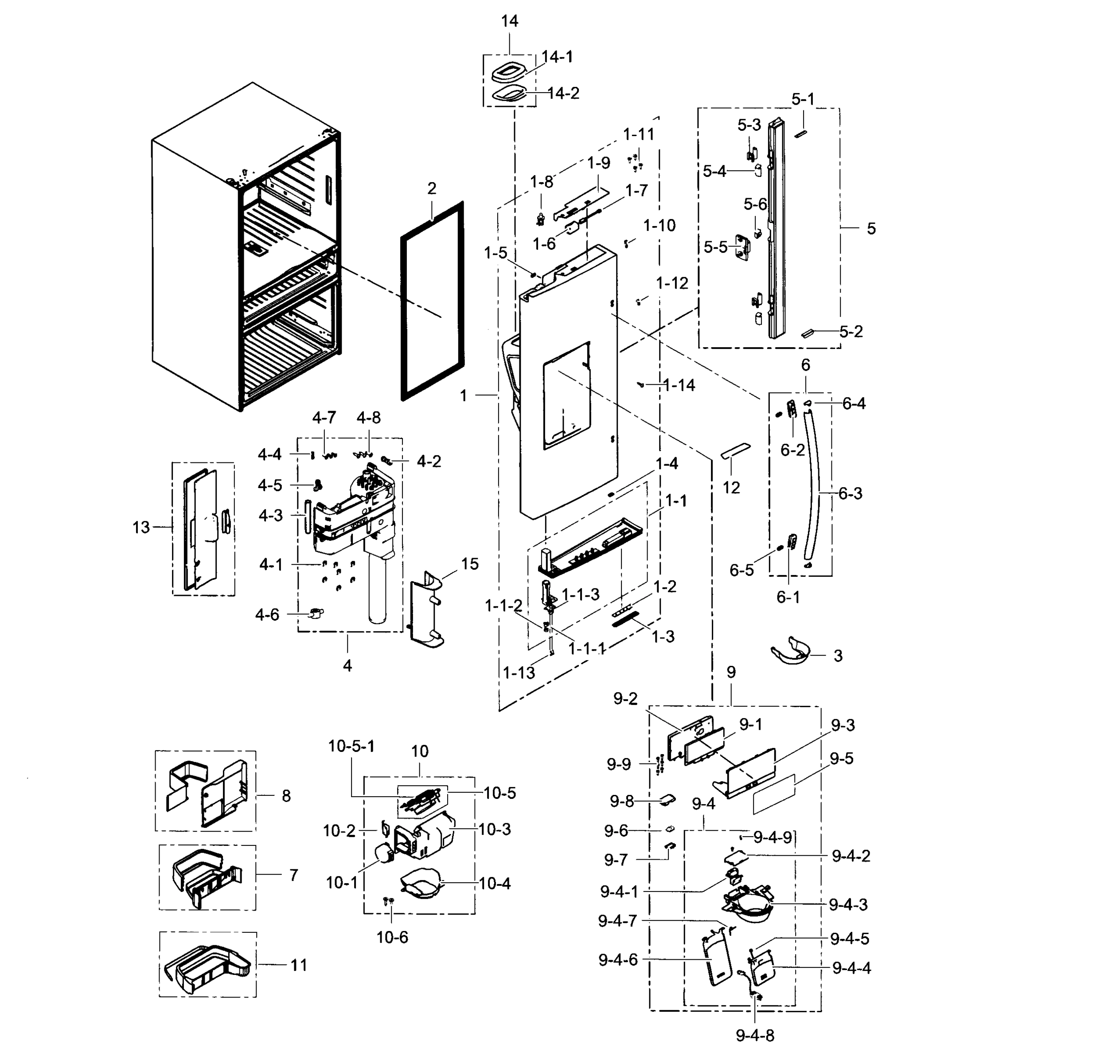

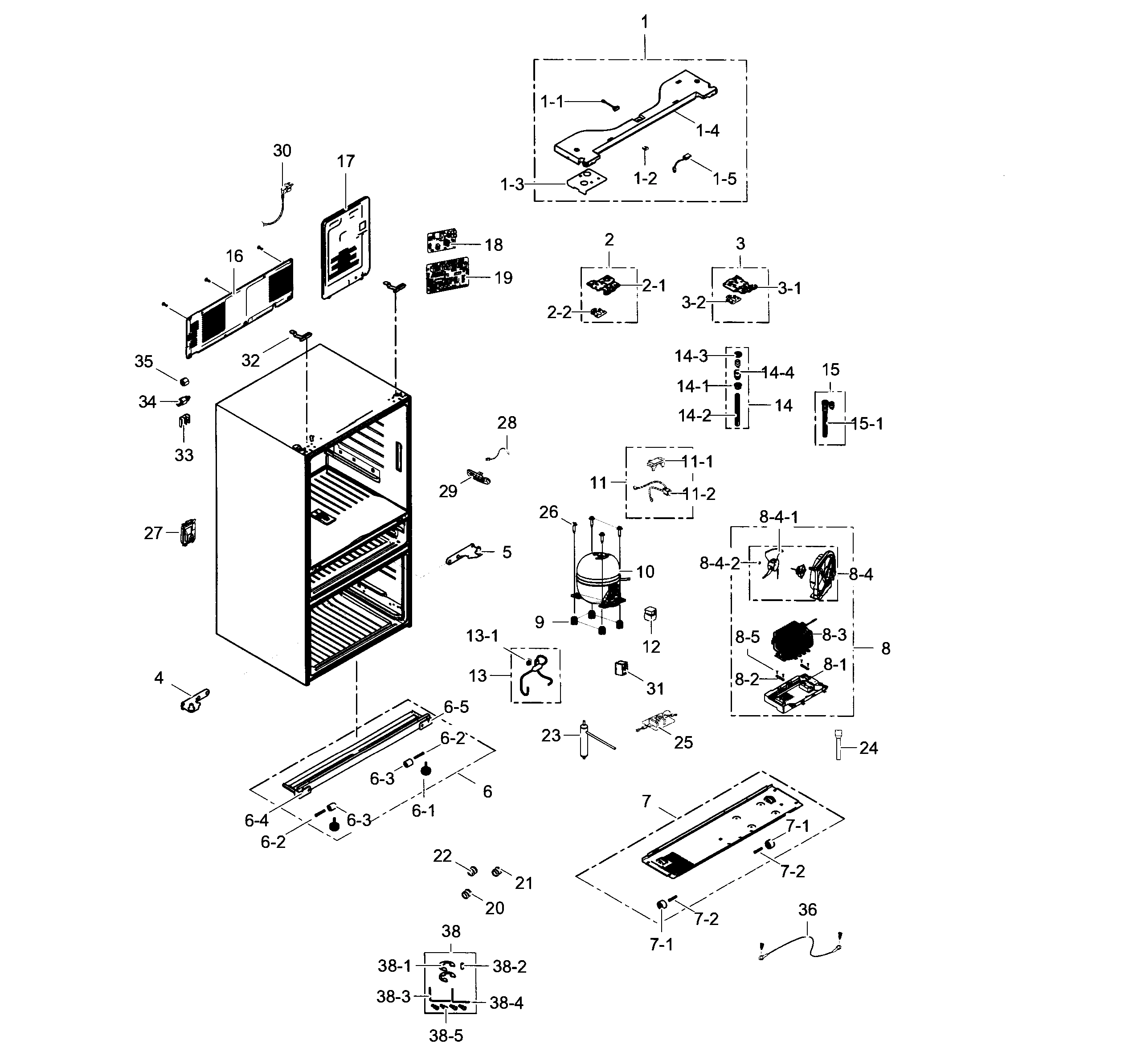

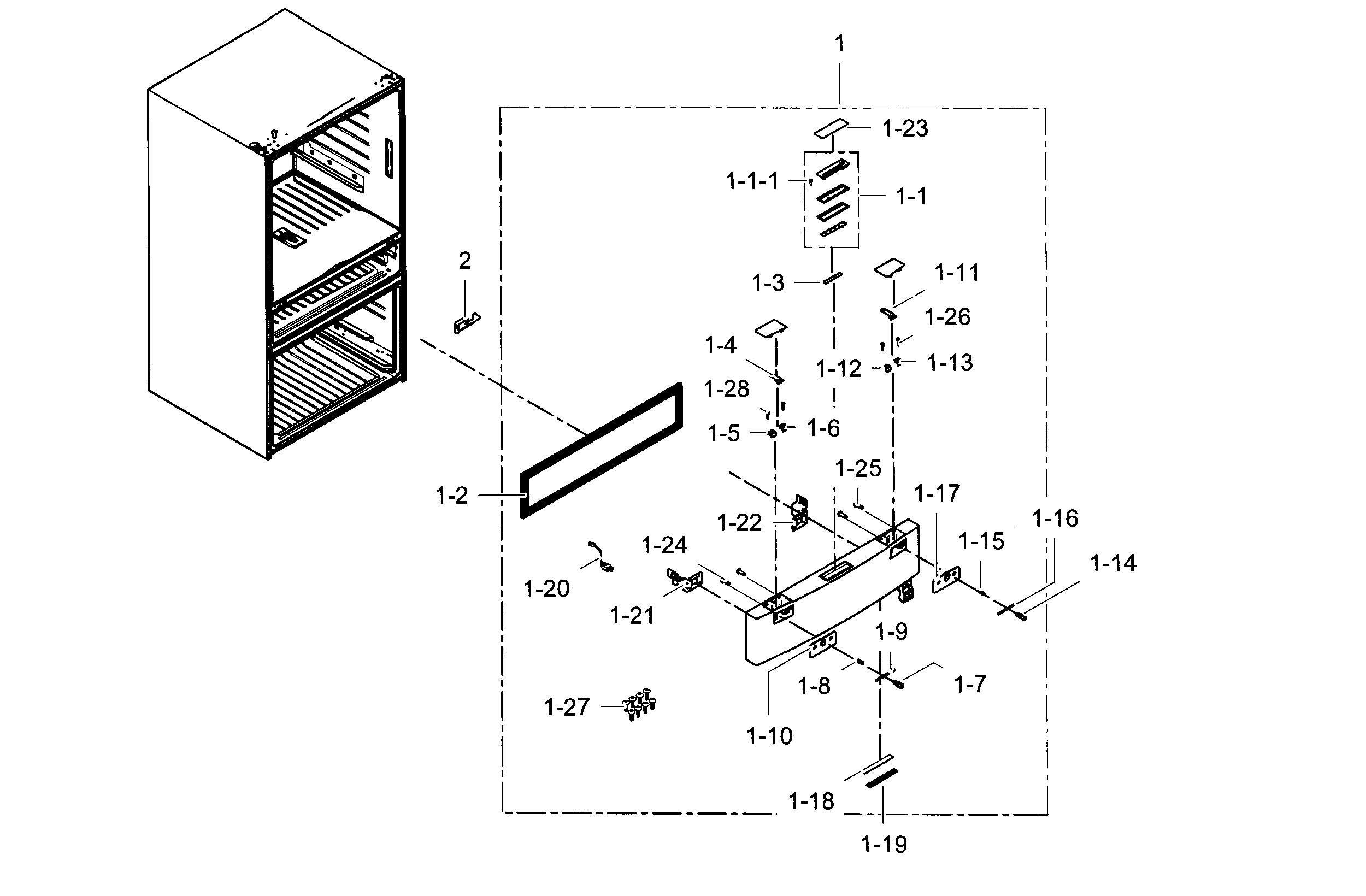

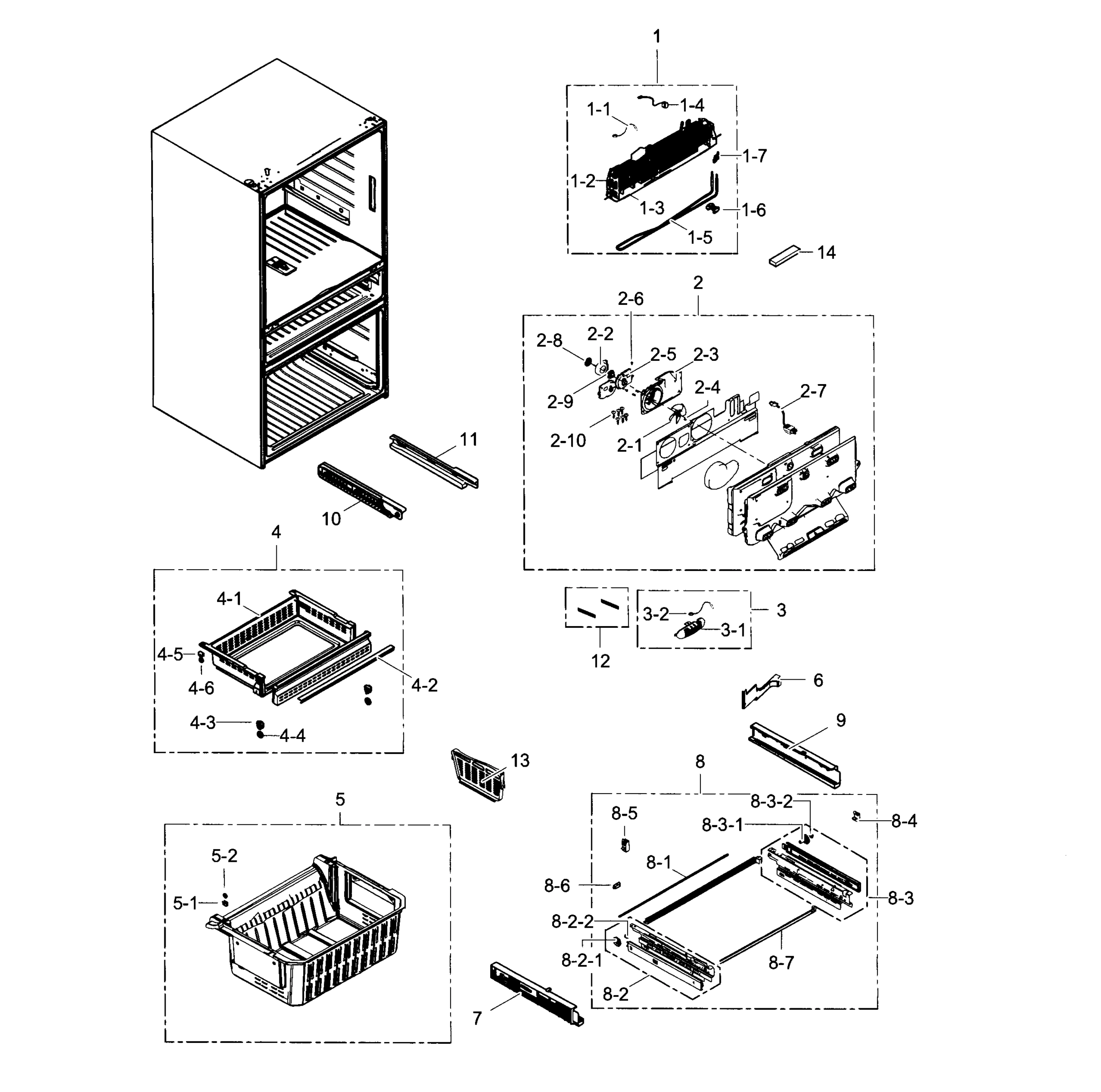

1

DA97-12522S Samsung Refrigerator Gasket Assem Backorder SMG DA97-12522S $116.13

1

DA97-13797A Samsung Refrigerator Middle Door Backorder SMG DA97-13797A $223.29

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $22.86

DA97-10605C Samsung Refrigerator Cover Contro Backorder SMG DA97-10605C $119.54

Refrigerator door hinge, right SMG DA97-13828A Contact Us For Availability

Refrigerator door hinge, left SMG DA97-13827A Contact Us For Availability

1-2

DA41-00676G Samsung Refrigerator LED Lamp PBA In Stock SMG DA41-00676G $39.00

1-2

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $21.70

1-2

DA97-12522Q Samsung Refrigerator Middle Gaske Backorder SMG DA97-12522Q $98.99

1-3

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $13.56

1-3

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

1-4

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.32

1-4

DA64-04477B Samsung Refrigerator Table Top As Backorder SMG DA64-04477B $61.40

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

DA47-00318H Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318H $92.27

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $1.94

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $14.73

1-6

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.14

1-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $6.97

1-7

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $53.75

1-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.36

1-8

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $16.29

1-11

DA61-09173A Samsung Refrigerator Right Door S Backorder SMG DA61-09173A $12.39

1-20

DA96-00641B Samsung Refrigerator Display Wire Backorder SMG DA96-00641B $19.23

1-22

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $29.30

1-23

DA64-04526A Samsung Refrigerator Inlay NLA Backorder SMG DA64-04526A $93.47

2

DA63-05462C Samsung Refrigerator Convection D Backorder SMG DA63-05462C $2.98

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $25.49

2

DA91-04290A Samsung Refrigerator Freezer Door Backorder SMG DA91-04290A $219.30

2

DA97-08434E Samsung Refrigerator Evaporator C Backorder SMG DA97-08434E $150.07

2

DA97-13015C Samsung Refrigerator Gray Door Ga In Stock SMG DA97-13015C $100.42

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $46.37

2-1

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $109.58

2-7

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $15.50

2-8

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.50

2-9

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.09

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.42

3

DA97-08608A Samsung Refrigerator Sensor Cover Backorder SMG DA97-08608A $23.24

3

DA97-12712C Samsung Refrigerator Freezer Door Backorder SMG DA97-12712C $124.88

3

Refrigerator door handle SMG DA97-12714C Contact Us For Availability

3-1

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $8.91

3-1

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.09

3-2

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $17.82

3-2

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $22.09

3-3

DA67-02787A Samsung Refrigerator Freezer Door In Stock SMG DA67-02787A $9.30

3-5

Refrigerator door handle set screw SMG 6009-001526 Contact Us For Availability

4

DA97-12627A Samsung Refrigerator Door Bin She In Stock SMG DA97-12627A $90.59

4

DA97-13947A Samsung Refrigerator Middle Left Backorder SMG DA97-13947A $89.16

4-2

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $18.59

4-3

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $6.97

4-4

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.26

5

DA61-08294A Samsung Refrigerator Front Hanger Backorder SMG DA61-08294A $70.99

5

DA97-12684D Samsung Refrigerator French Door In Stock SMG DA97-12684D $144.29

5

DA97-13793A Samsung Refrigerator Middle Right Backorder SMG DA97-13793A $95.62

5

DA97-13821A Samsung Refrigerator Low Tray Ass Backorder SMG DA97-13821A $101.36

5-3

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.65

5-4

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $3.88

5-5

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $5.82

5-6

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $3.88

6

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $10.47

6

DA63-07512A Samsung Refrigerator Freezer Guar Backorder SMG DA63-07512A $50.36

6

Refrigerator door handle SMG DA97-12715C Contact Us For Availability

6-1

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $5.42

6-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $8.53

6-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.09

6-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $20.92

6-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $6.59

6-4

DA63-06389E Samsung Refrigerator Front Left C Backorder SMG DA63-06389E $3.09

6-4

DA67-02788A Samsung Refrigerator Handle Suppo Backorder SMG DA67-02788A $10.07

6-5

DA63-06405D Samsung Refrigerator Front Right Backorder SMG DA63-06405D $3.09

7

DA63-06952A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-06952A $32.74

7

DA97-12682A Samsung Refrigerator Folding Shel Backorder SMG DA97-12682A $92.04

7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.42

7-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $4.26

8

DA97-12861B Samsung Refrigerator Low Hanger In Stock SMG DA97-12861B $181.09

8

DA97-13806A Samsung Refrigerator Assembly Gua Backorder SMG DA97-13806A $124.14

8-1

DA63-06897A Samsung Refrigerator Drain Water Backorder SMG DA63-06897A $25.16

8-1

DA66-00437F Samsung Gear Shaft Refrigerator Backorder SMG DA66-00437F $46.68

8-3

Refrigerator condenser coil SMG DA97-08464F Contact Us For Availability

8-4

DA97-15765A Samsung Refrigerator Motor Circui Backorder SMG DA97-15765A $97.23

8-6

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.42

8-21

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

8-31

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

8-41

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $18.98

9

DA63-06953A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-06953A $32.74

9

DA97-13809A Samsung Refrigerator Dispenser Co Backorder SMG DA97-13809A $197.95

9-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $0.92

9-1

DA92-00451A Samsung Refrigerator Module Assem Backorder SMG DA92-00451A $153.79

9-2

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $118.03

9-2

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $8.53

9-4

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $4.65

9-4

DA97-12628B Samsung Refrigerator Dispenser Le Backorder SMG DA97-12628B $153.63

9-5

DA97-14447B Samsung Refrigerator Latour Rolle Backorder SMG DA97-14447B $14.33

9-6

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $33.76

9-41

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $11.24

DA61-07328A Samsung Refrigerator Freezer Rail In Stock SMG DA61-07328A $142.03

DA97-13829A Samsung Refrigerator Ice Route Ca Backorder SMG DA97-13829A $143.61

DA97-13835A Samsung Refrigerator Folder Shelf Backorder SMG DA97-13835A $178.46

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $270.76

10-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $74.19

10-2

3405-001117 Samsung Refrigerator Dispenser Sw In Stock SMG 3405-001117 $8.91

10-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $38.39

11

DA61-07329A Samsung Refrigerator Right Hand U In Stock SMG DA61-07329A $138.11

11

DA97-10848N Samsung Refrigerator All Wire Com In Stock SMG DA97-10848N $54.68

11

DA97-12687F Samsung Refrigerator Left Vegetab Backorder SMG DA97-12687F $123.03

11-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $22.05

11-2

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $18.65

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $20.15

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $10.85

DA63-07931D Samsung Refrigerator Dispenser Tr Backorder SMG DA63-07931D $55.71

DA97-12686F Samsung Refrigerator Right Vegeta Backorder SMG DA97-12686F $115.45

13

DA97-11292B Samsung Refrigerator Vegetable Ra Backorder SMG DA97-11292B $29.63

14

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.17

14

DA97-11291B Samsung Refrigerator Right Slide Backorder SMG DA97-11291B $37.15

14

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $48.82

14-1

DA63-06945A Samsung Refrigerator Ice Chute Ca In Stock SMG DA63-06945A $54.04

14-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.30

15

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $22.40

15

DA97-13850A Samsung Refrigerator Filter Tank Backorder SMG DA97-13850A $203.44

15

Refrigerator water reservoir support SMG DA61-09325A Contact Us For Availability

15-1

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $46.37

15-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $3.09

15-2

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $17.44

15-3

DA62-04027A Samsung Refrigerator 2-Way Water Backorder SMG DA62-04027A $138.16

15-8

DA97-08006J Samsung Refrigerator Case Filter Backorder SMG DA97-08006J $80.65

15-9

DA97-11283G Samsung Refrigerator Water Tank A Backorder SMG DA97-11283G $98.37

16

DA97-11930A Samsung Refrigerator Drawer Divid Backorder SMG DA97-11930A $248.16

17

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

18

DA92-00215C Samsung Refrigerator Inverter Pow In Stock SMG DA92-00215C $204.48

18

Refrigerator crisper drawer slide rail SMG DA97-13780A Contact Us For Availability

18-4

DA96-00640A Samsung Refrigerator Wire Harness In Stock SMG DA96-00640A $139.96

19

DA92-00484A Samsung Refrigerator Main PCB Ass In Stock SMG DA92-00484A $244.08

19

DA97-13757A Samsung Refrigerator Evaporator C Backorder SMG DA97-13757A $136.08

19-1

DA32-00011D Samsung Refrigerator Temperature In Stock SMG DA32-00011D $10.30

19-2

DA97-13756A Samsung Refrigerator Motor Case A In Stock SMG DA97-13756A $87.24

20

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.03

20

DA96-00842A Samsung Refrigerator Evaporator A Backorder SMG DA96-00842A $189.45

20-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $17.37

20-3

DA47-00434A Samsung Refrigerator Metal Sheath In Stock SMG DA47-00434A $129.19

20-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.36

20-5

DA61-03683A Samsung Refrigerator Sensor Fixer In Stock SMG DA61-03683A $1.17

20-6

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.65

21

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $219.16

21-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $69.11

21-3

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $165.65

21-7

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $89.76

21-8

DA96-00682D Samsung Refrigerator Auger Motor Backorder SMG DA96-00682D $81.41

22

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $166.66

22-1

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.32

22-2

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $4.65

23

DA97-15217D Samsung Refrigerator Ice Maker As Backorder SMG DA97-15217D $99.55

24

DA97-12654A Samsung Refrigerator Cap Angle As Backorder SMG DA97-12654A $1.99

25

DA27-00022B Samsung Refrigerator Coil Filter In Stock SMG DA27-00022B $87.98

27

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $16.27

28

DA97-08430A Samsung Refrigerator Convection I Backorder SMG DA97-08430A $187.74

28-1

DA31-00101C Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00101C $130.21

29-1

DA34-00043J Samsung Refrigerator Door Reed Sw Backorder SMG DA34-00043J $18.21

30

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $52.52

30

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $32.04

32

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

33

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

34

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $17.06

34

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $39.62

35

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.20

38-1

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $0.92

1051

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $14.73

1510

DA62-04258A Samsung Refrigerator Water Valve Backorder SMG DA62-04258A $115.49

1921

DA31-00287A Samsung Refrigerator Box Fan BLDC Backorder SMG DA31-00287A $105.65

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.17

DA61-03734A Samsung Refrigerator Door Handle In Stock SMG DA61-03734A $2.65

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.17

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.17

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.56

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.71

DA61-08234A Samsung Refrigerator Slider Assem Backorder SMG DA61-08234A $3.50

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.17

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $6.09

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.17

DA97-13386A Samsung Refrigerator Roller Assem Backorder SMG DA97-13386A $10.07
