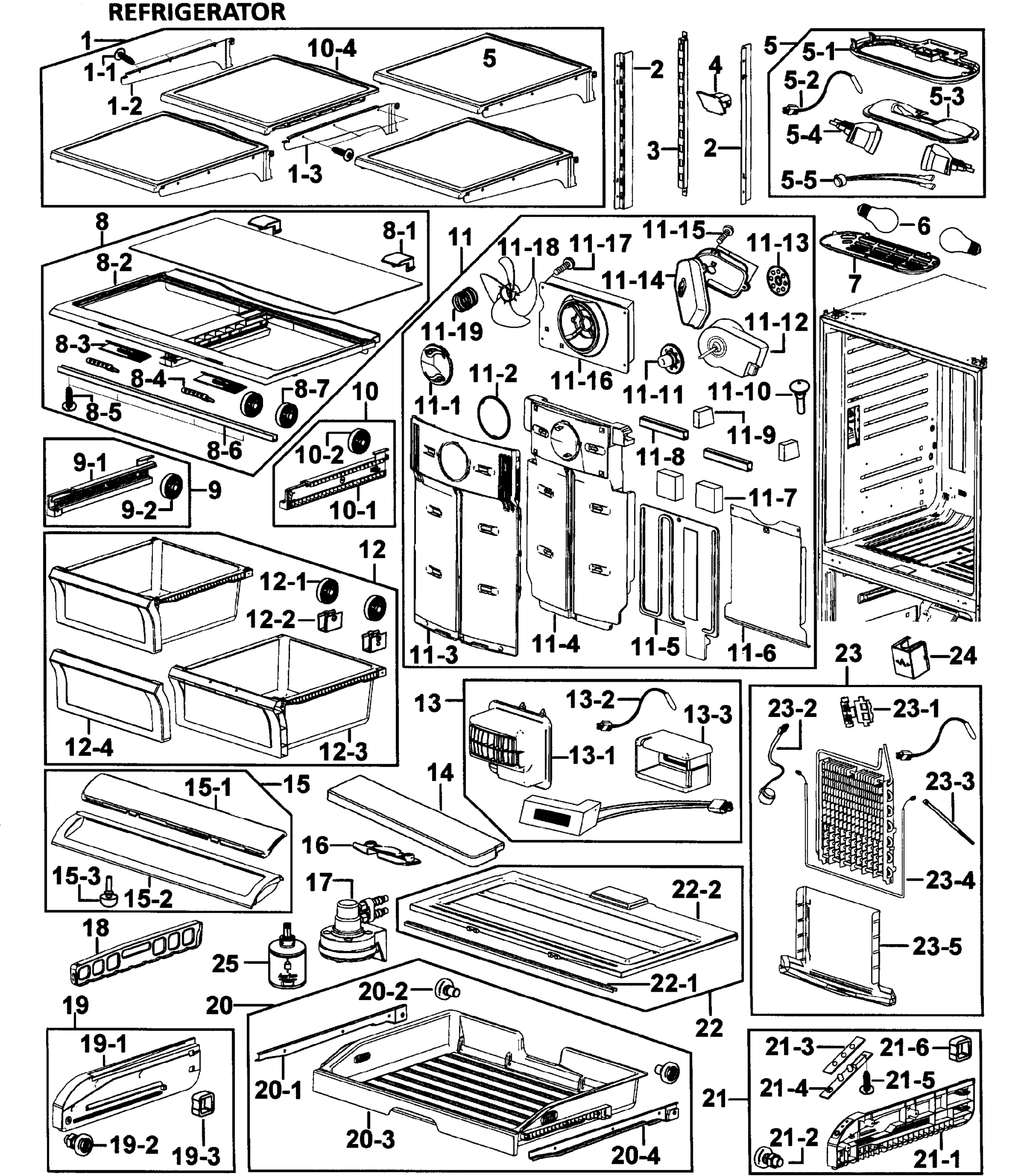

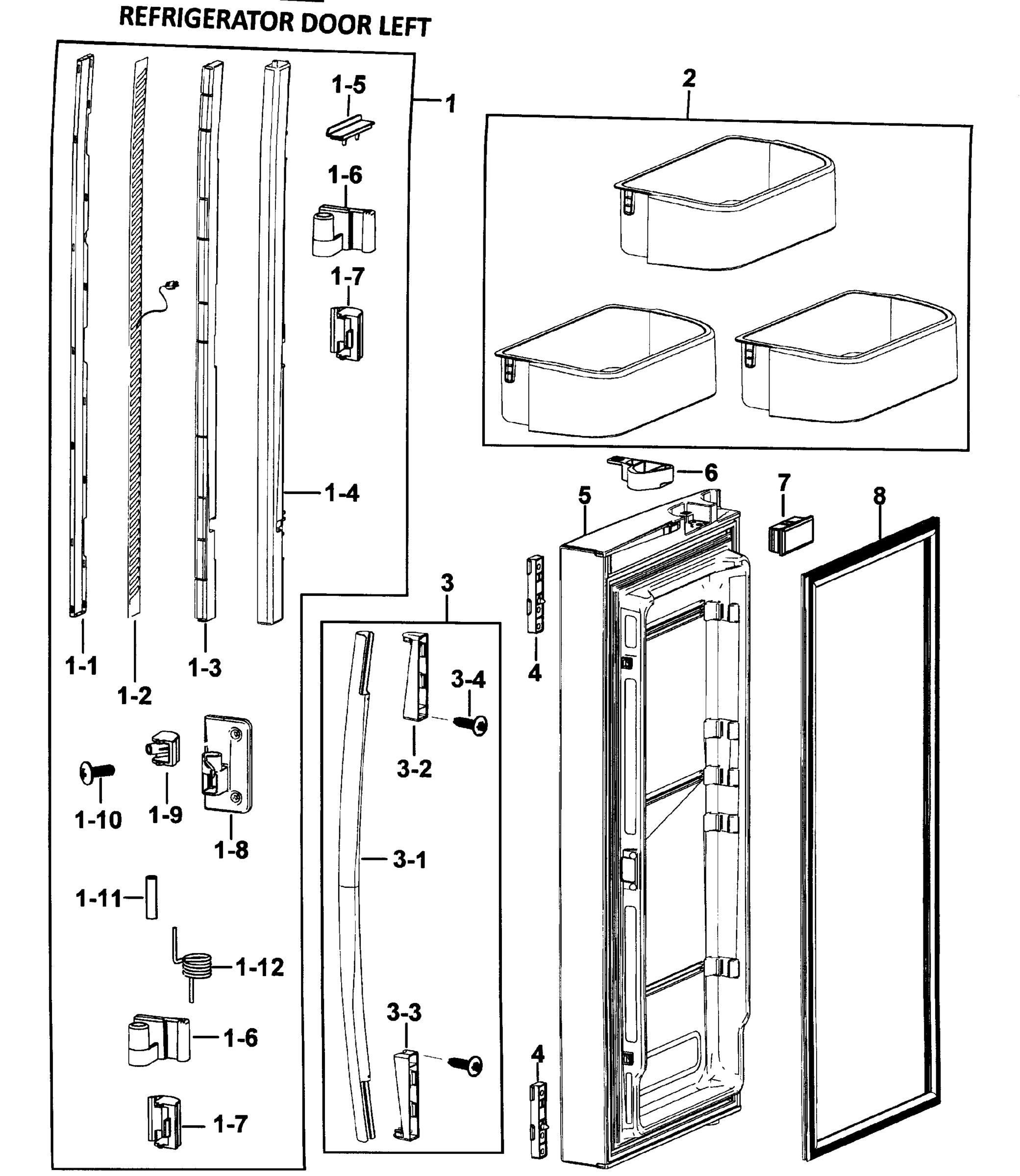

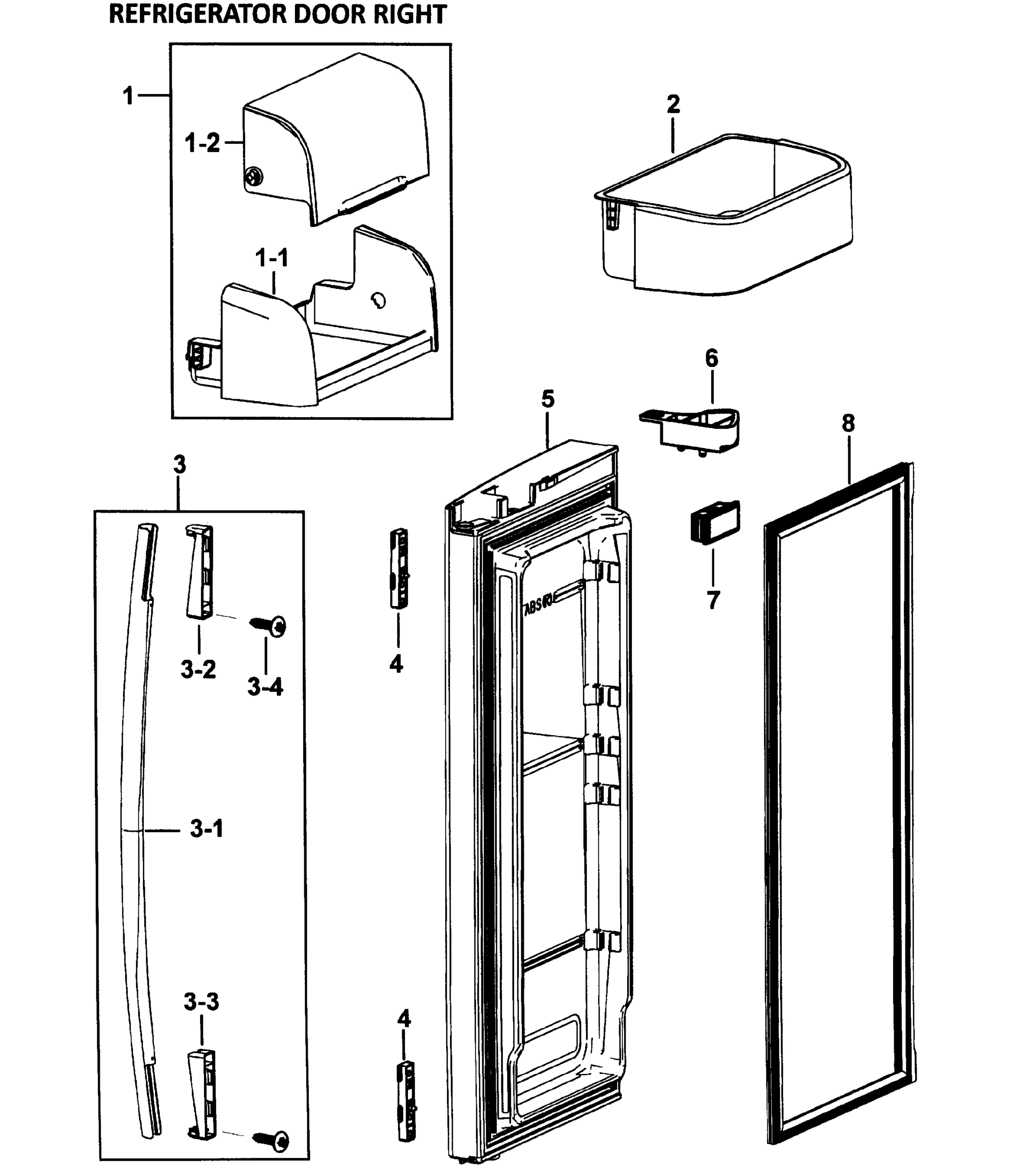

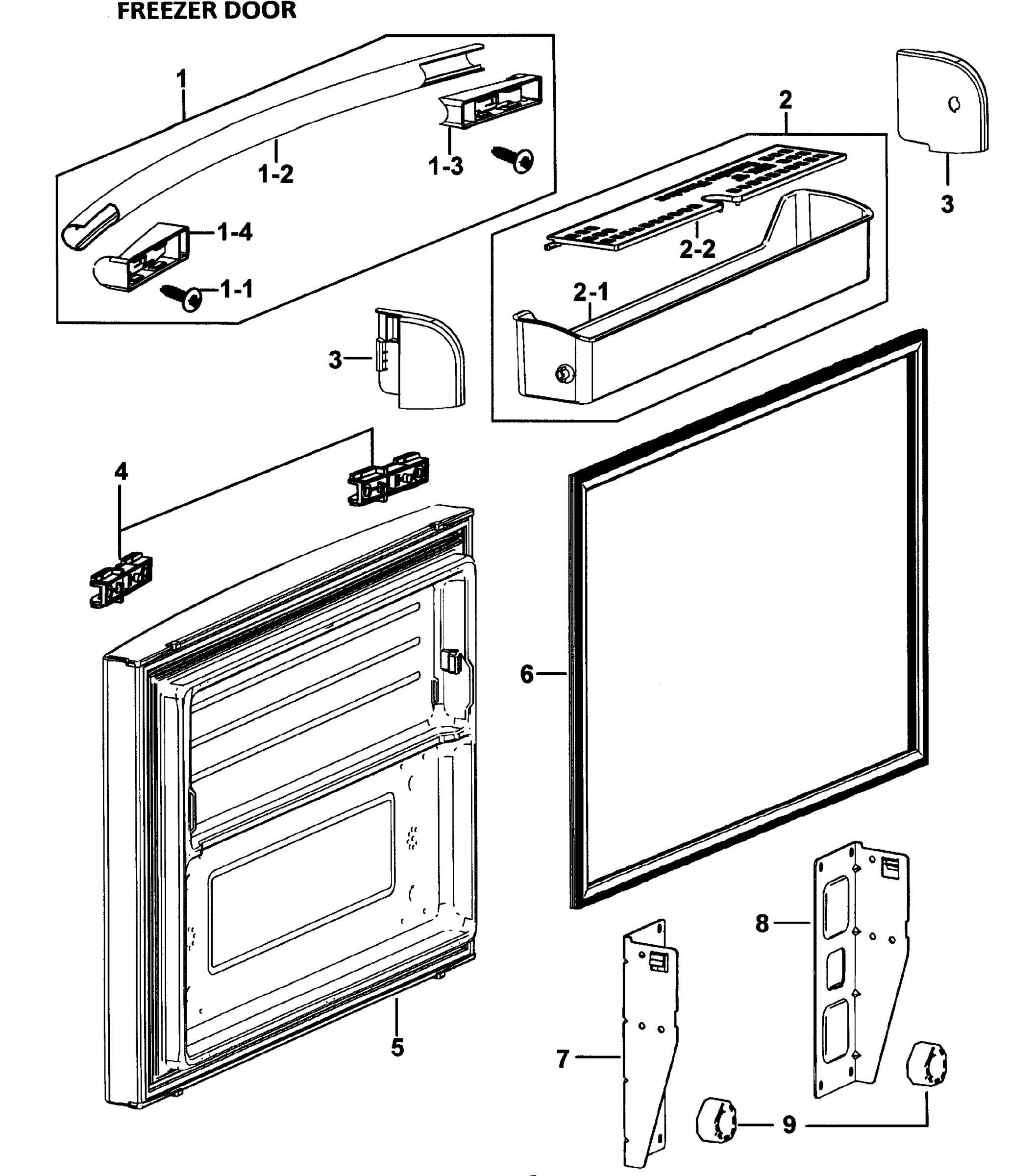

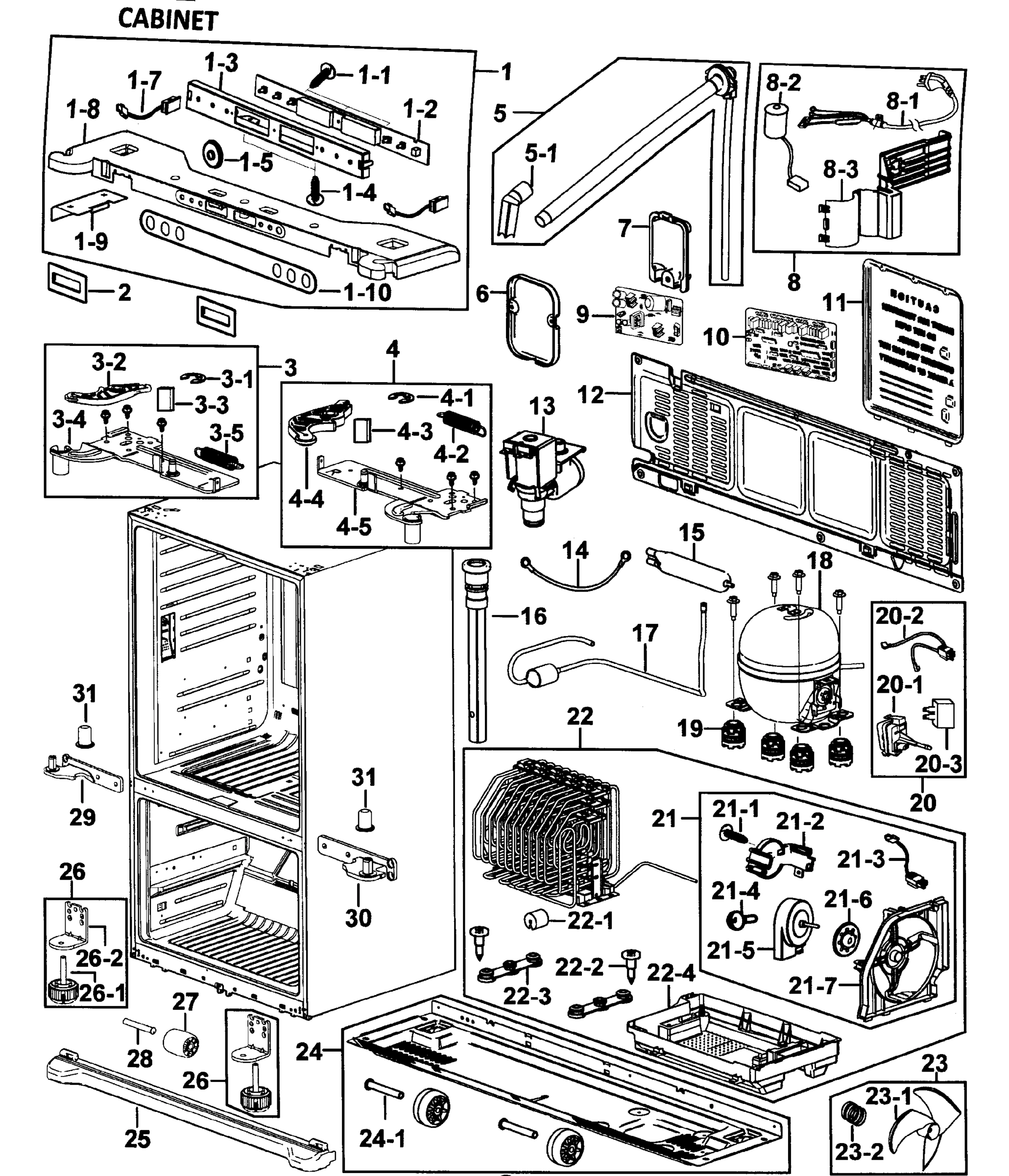

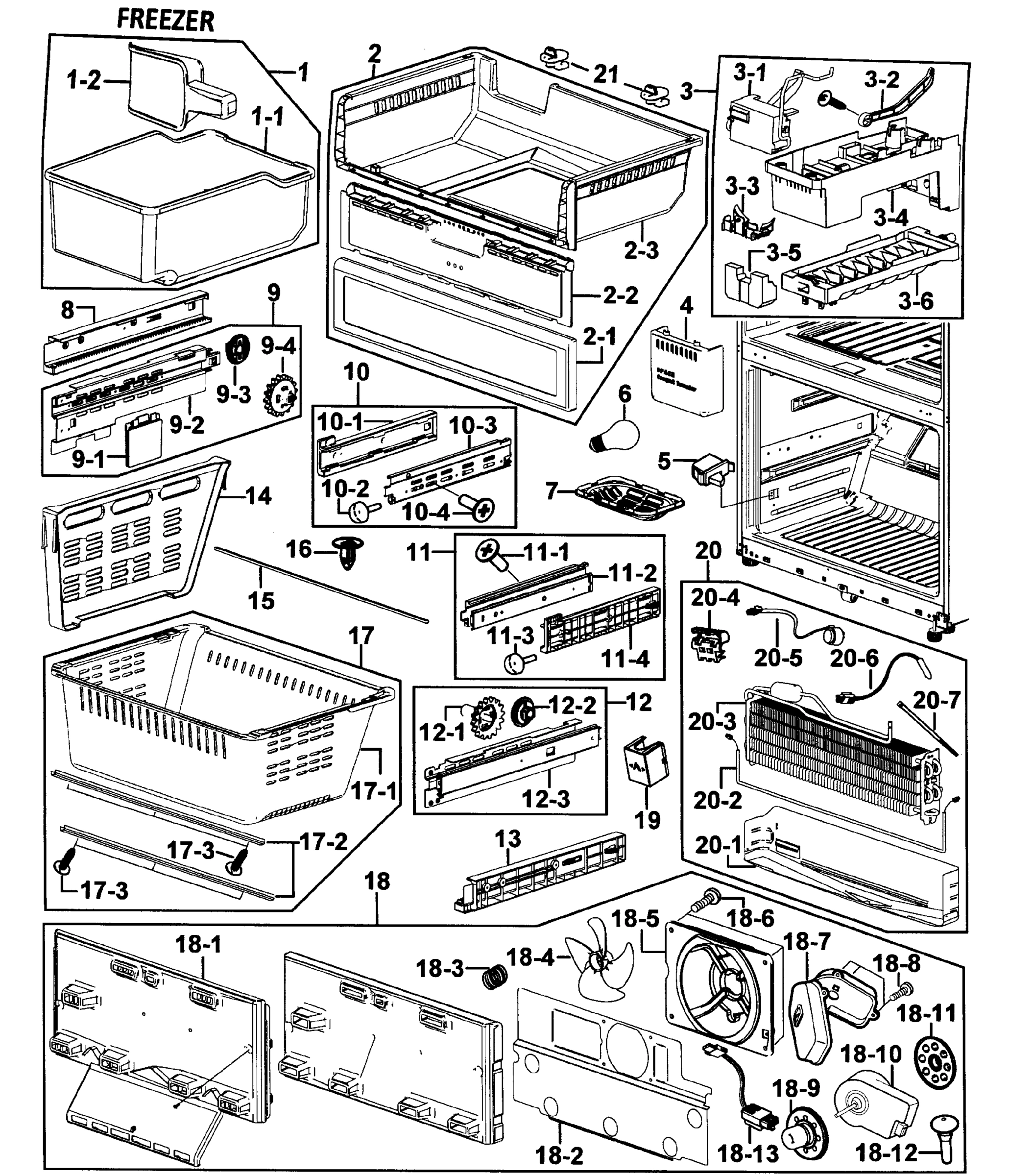

Model Samsung RF265AAWP/XAA-00 Refrigerator – Common Parts &amp; Diagrams

1

Refrigerator ice case SMG DA97-04845A Contact Us For Availability

1

Refrigerator door handle SMG DA97-04869G Contact Us For Availability

1

Refrigerator dairy bin and cover SMG DA97-04881B Contact Us For Availability

1-1

6002-001397 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001397 $0.92

1-1

DA61-03189A Samsung Refrigerator Ice Cube Buc Backorder SMG DA61-03189A $42.40

1-1

DA63-03455A Samsung Refrigerator Dairy Guard Backorder SMG DA63-03455A $29.30

DA47-00245A Samsung Refrigerator French Heate Backorder SMG DA47-00245A $54.66

DA67-01608A Samsung Shelf Hanger Assembly Backorder SMG DA67-01608A $26.19

Refrigerator dairy bin cover SMG DA63-03462A Contact Us For Availability

Refrigerator dispenser display assembly SMG DA41-00412A Contact Us For Availability

1-3

DA61-03234A Samsung Refrigerator French Door Backorder SMG DA61-03234A $45.68

1-3

DA67-01609A Samsung Shelf Hanger Backorder SMG DA67-01609A $26.19

1-3

Refrigerator freezer door handle end cap, lef SMG DA67-01716A Contact Us For Availability

1-4

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

1-4

Refrigerator glass shelf SMG DA67-01606A Contact Us For Availability

1-6

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $2.49

1-7

DA34-00043B Samsung Refrigerator Reed Switch Backorder SMG DA34-00043B $23.61

1-7

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.15

1-8

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.22

1-9

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.15

1-10

Inlay dsp. SMG DA64-02076D Contact Us For Availability

1-11

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $0.92

2

DA61-03180A Samsung Refrigerator Side Angle S Backorder SMG DA61-03180A $46.06

2

DA63-03467A Samsung Refrigerator Guard Backorder SMG DA63-03467A $36.51

2

DA97-04880A Samsung Refrigerator Guard Assemb Backorder SMG DA97-04880A $54.92

3

DA61-03179A Samsung Mid Angle Shelf Backorder SMG DA61-03179A $32.45

3

DA61-03763A Samsung Refrigerator Aw Pjt Suppo Backorder SMG DA61-03763A $9.96

3

DA97-04417N Samsung Refrigerator Bar Handle A Backorder SMG DA97-04417N $73.67

3-1

DA64-01979A Samsung Refrigerator Bar Handle Backorder SMG DA64-01979A $72.33

3-2

DA61-00954B Samsung Refrigerator Full Ice Gui In Stock SMG DA61-00954B $2.07

3-2

Refrigerator door handle end cap, upper SMG DA67-01527E Contact Us For Availability

3-3

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.07

3-3

Refrigerator door handle end cap, lower SMG DA67-01528E Contact Us For Availability

3-4

6002-000215 Samsung Air Conditioner Tapping S In Stock SMG 6002-000215 $0.92

3-5

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $27.65

3-6

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $28.77

4

DA61-02984A Samsung Refrigerator Handle Fixer In Stock SMG DA61-02984A $4.98

4

DA63-03613A Samsung Refrigerator Cover-Ice Ma Backorder SMG DA63-03613A $10.78

4

DA67-01688A Samsung Refrigerator Angle Cap As Backorder SMG DA67-01688A $0.92

5

DA34-10120E Samsung Refrigerator Door Switch Backorder SMG DA34-10120E $28.02

5

DA91-02460A Samsung Assembly Foam Door Backorder SMG DA91-02460A $192.76

5

Refrigerator lamp case SMG DA97-04842C Contact Us For Availability

5

Refrigerator door assembly, right SMG DA91-02461A Contact Us For Availability

5-1

DA61-03163A Samsung Refrigerator Case Lamp Backorder SMG DA61-03163A $21.36

5-2

DA32-00006T Samsung Refrigerator Temperature Backorder SMG DA32-00006T $11.60

5-3

DA61-03169A Samsung Refrigerator Aw Sbhg1 T0. Backorder SMG DA61-03169A $18.21

5-4

Refrigerator lamp holder SMG DA47-40001D Contact Us For Availability

5-5

DA47-00243K Samsung Refrigerator Bi-metal Def In Stock SMG DA47-00243K $40.19

6

DA66-00441A Samsung Auto Close Cam Assembly Backorder SMG DA66-00441A $5.80

6

DA66-00442A Samsung Refrigerator Auto Close C Backorder SMG DA66-00442A $2.71

6

DA97-05557X Samsung Refrigerator Freezer Door Backorder SMG DA97-05557X $174.44

6

Refrigerator light bulb SMG 4713-001223 Contact Us For Availability

7

DA61-02738E Samsung Refrigerator Assembly Mag Backorder SMG DA61-02738E $3.31

7

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $84.55

7

DA63-03420A Samsung Refrigerator Lamp Cover A Backorder SMG DA63-03420A $21.36

7

DA63-03773A Samsung Refrigerator Lamp Cover Backorder SMG DA63-03773A $20.73

8

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $75.95

8

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $34.29

8

DA97-04832A Samsung Refrigerator Cover Assemb Backorder SMG DA97-04832A $182.44

8

DA97-05253A Samsung Refrigerator Door Assembl Backorder SMG DA97-05253A $174.44

8-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $0.92

8-1

Refrigerator power cord SMG DA39-10165E Contact Us For Availability

8-2

DA63-03428A Samsung Refrigerator Vegetable Co Backorder SMG DA63-03428A $106.80

8-3

DA66-00438A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00438A $1.67

8-4

DA64-00817A Samsung Refrigerator Humidity Kno Backorder SMG DA64-00817A $9.96

8-6

DA61-03173A Samsung Vegetable Reinforcement C Backorder SMG DA61-03173A $39.82

9

DA97-04839A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04839A $22.49

9

Refrigerator power control board SMG DA41-00320A Contact Us For Availability

9-1

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $3.33

9-1

DA61-03172A Samsung Refrigerator Crisper Draw Backorder SMG DA61-03172A $20.73

10

DA41-00413B Samsung Refrigerator Main Power C In Stock SMG DA41-00413B $249.00

10

DA97-04840A Samsung Refrigerator Vegetable Dr Backorder SMG DA97-04840A $21.98

10-1

DA61-03177A Samsung Refrigerator Vegetable Cr Backorder SMG DA61-03177A $21.98

11

DA97-04939E Samsung Refrigerator Evaporator C Backorder SMG DA97-04939E $163.72

11-1

DA63-03517A Samsung COVER-EVAP REF SUB;AW-PJT Backorder SMG DA63-03517A $9.68

11-2

DA64-02065A Samsung Refrigerator Evaporator C Backorder SMG DA64-02065A $16.65

11-3

DA63-03430A Samsung Assembly Refrigerator Eva Backorder SMG DA63-03430A $66.52

11-4

Refrigerator evaporator cover insulation pad SMG DA62-01381A Contact Us For Availability

11-5

DA62-01382A Samsung Refrigerator Rear Evapora Backorder SMG DA62-01382A $8.53

11-6

DA61-03186A Samsung Refrigerator Evaporator I Backorder SMG DA61-03186A $23.63

11-7

DA62-01423A Samsung Refrigerator Insulation E Backorder SMG DA62-01423A $0.92

11-8

DA61-03182A Samsung Refrigerator Evaporator G Backorder SMG DA61-03182A $0.92

11-9

DA62-01383A Samsung Refrigerator Evaporator I Backorder SMG DA62-01383A $0.92

12

DA97-04846A Samsung Refrigerator Vegetable Ca Backorder SMG DA97-04846A $115.15

12-1

DA66-00435A Samsung Refrigerator Gear Assembl Backorder SMG DA66-00435A $4.15

12-2

DA71-20145A Samsung Refrigerator Roller Fixer Backorder SMG DA71-20145A $0.92

12-3

DA61-03165A Samsung Refrigerator Vegetable Ca Backorder SMG DA61-03165A $105.02

12-4

DA63-03426A Samsung Refrigerator Vegetable Co Backorder SMG DA63-03426A $25.07

13

DA62-01477A Samsung Refrigerator Water Inlet In Stock SMG DA62-01477A $83.69

13

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $42.77

13

DA97-04856B Samsung Refrigerator Motor Cover Backorder SMG DA97-04856B $96.11

13-1

DA63-03419A Samsung DC Damper Motor Cover Backorder SMG DA63-03419A $9.30

13-2

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $19.49

13-3

DA62-01380A Samsung Refrigerator Damper DC Mo Backorder SMG DA62-01380A $4.98

14

Refrigerator shelf SMG DA67-01605A Contact Us For Availability

15

DA66-00437A Samsung Refrigerator Gear Shaft A Backorder SMG DA66-00437A $32.81

15

Refrigerator pantry drawer door SMG DA97-04831C Contact Us For Availability

15-1

Refrigerator pantry drawer cover insert SMG DA63-03424A Contact Us For Availability

15-2

Refrigerator pantry drawer door frame SMG DA63-03425A Contact Us For Availability

16

DA61-03202A Samsung Refrigerator Guide French Backorder SMG DA61-03202A $4.98

17

DA97-06085A Samsung Refrigerator Suction Conn Backorder SMG DA97-06085A $85.69

17

DA97-06317A Samsung Refrigerator Replacement In Stock SMG DA97-06317A $96.31

18

DA61-03167A Samsung Refrigerator Cool White P Backorder SMG DA61-03167A $11.24

18

Refrigerator evaporator cover SMG DA97-04938A Contact Us For Availability

18-7

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $10.78

18-9

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.31

19

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $3.31

19

Refrigerator pantry shelf rail cover SMG DA97-04830C Contact Us For Availability

19-1

Refrigerator drawer slide rail cover SMG DA63-03422A Contact Us For Availability

20

DA97-04847D Samsung Refrigerator Case Pantry Backorder SMG DA97-04847D $174.44

20-1

DA97-04837A Samsung Pantry Rail Assembly Backorder SMG DA97-04837A $22.49

20-3

2301-001837 Samsung Refrigerator Run Capacito Backorder SMG 2301-001837 $46.99

20-3

Refrigerator case SMG DA61-03164A Contact Us For Availability

20-4

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.24

20-4

DA97-04838A Samsung Refrigerator Right Pantry Backorder SMG DA97-04838A $23.22

20-6

DA32-00006Q Samsung Refrigerator Defrost Temp In Stock SMG DA32-00006Q $20.73

21

DA97-03145L Samsung Refrigerator Circuit Moto Backorder SMG DA97-03145L $156.73

21

DA97-04829C Samsung Assy Cover-Rail Pantry R Backorder SMG DA97-04829C $72.58

21-1

DA63-03423A Samsung COVER-RAIL PANTRY R;AW,HI Backorder SMG DA63-03423A $34.11

21-3

DA96-00042A Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042A $11.60

21-3

Refrigerator panel inlay SMG DA64-02064B Contact Us For Availability

21-4

DA41-00423B Samsung Refrigerator Printed Circ Backorder SMG DA41-00423B $23.77

21-5

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

21-5

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $117.25

21-6

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.73

22

DA97-04841A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-04841A $174.44

22

DA97-05043C Samsung Refrigerator Drain Water Backorder SMG DA97-05043C $173.55

22-1

DA61-03174A Samsung Refrigerator Reinforcemen Backorder SMG DA61-03174A $22.80

22-2

Refrigerator pantry shelf SMG DA67-01604A Contact Us For Availability

23

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $14.09

23

DA96-00364D Samsung Refrigerator Evaporator A Backorder SMG DA96-00364D $143.84

23-1

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

23-2

Refrigerator defrost bi-metal thermostat SMG DA47-00243S Contact Us For Availability

23-3

6501-000123 Samsung Refrigerator Cable Tie Backorder SMG 6501-000123 $0.92

23-4

DA47-00244A Samsung Refrigerator Metal Sheath Backorder SMG DA47-00244A $108.92

23-5

DA61-06186A Samsung Drain Plate Backorder SMG DA61-06186A $116.02

24

DA63-02902B Samsung Refrigerator Housing Fixe In Stock SMG DA63-02902B $6.22

24-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

25

Samsung refrigerator water filter SMG DA29-00003G Contact Us For Availability

28

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

29

DA97-06572A Samsung Refrigerator Mid Left Hin Backorder SMG DA97-06572A $69.36

1116

DA61-03181A Samsung Refrigerator Bubble Pjt A Backorder SMG DA61-03181A $12.02

1118

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

1119

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $0.92

1813

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $119.35

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.24

DA61-03176A Samsung Refrigerator Pantry Suppo Backorder SMG DA61-03176A $1.24

DA61-03301A Samsung Refrigerator Door Auto Cl Backorder SMG DA61-03301A $5.80

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.24

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $11.20

DA97-22036A Samsung Refrigerator Roller Assem Backorder SMG DA97-22036A $4.98
