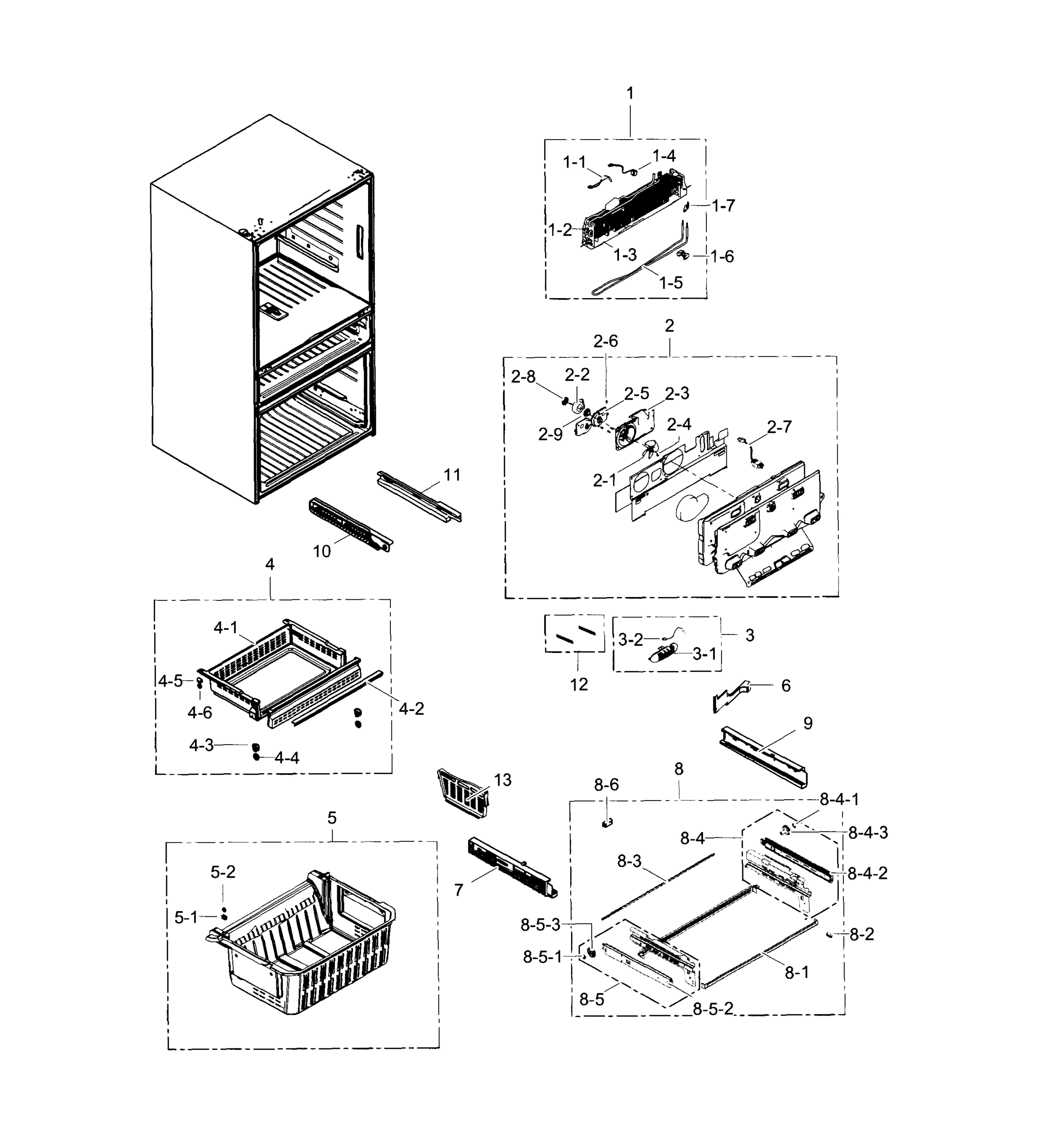

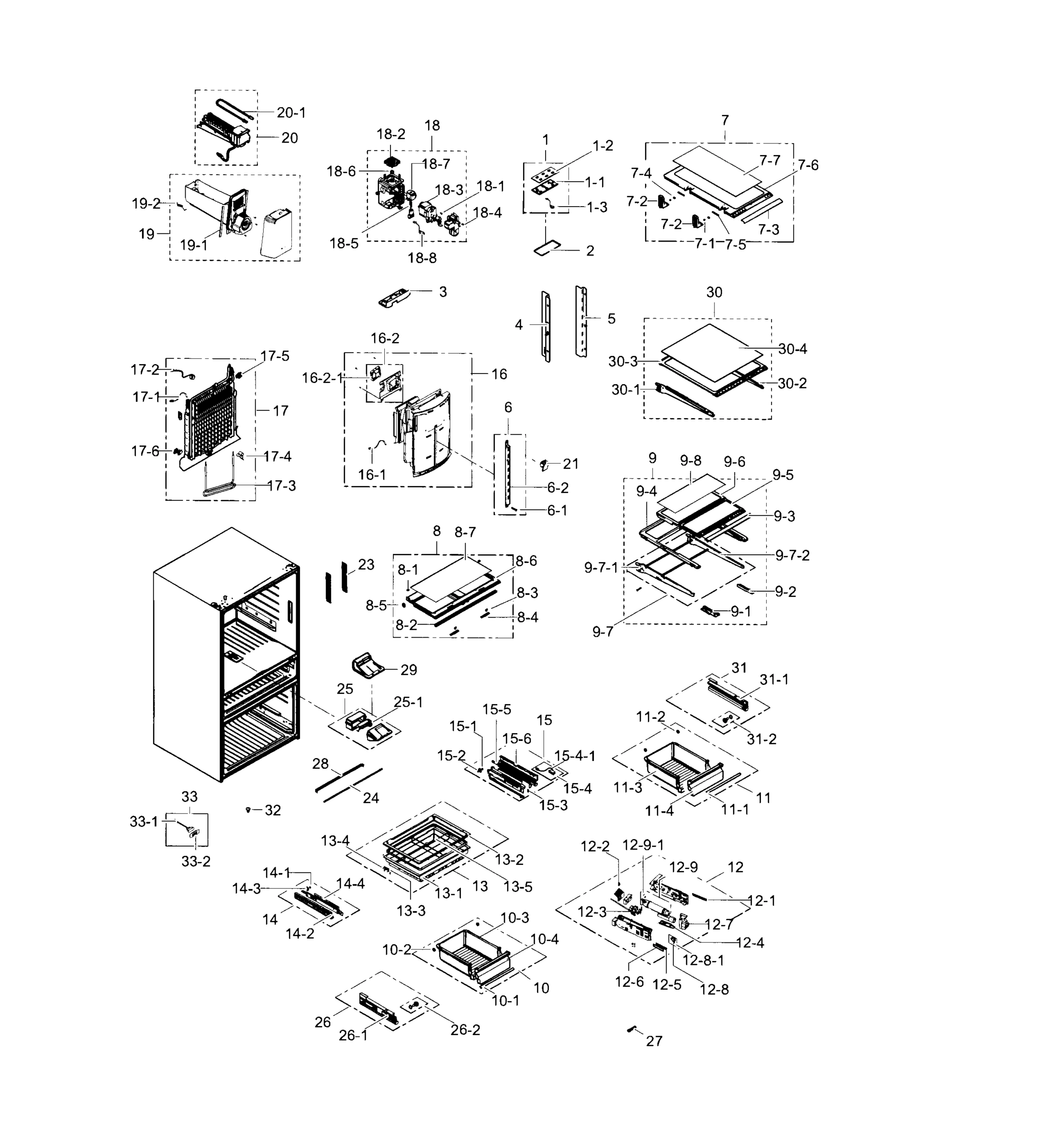

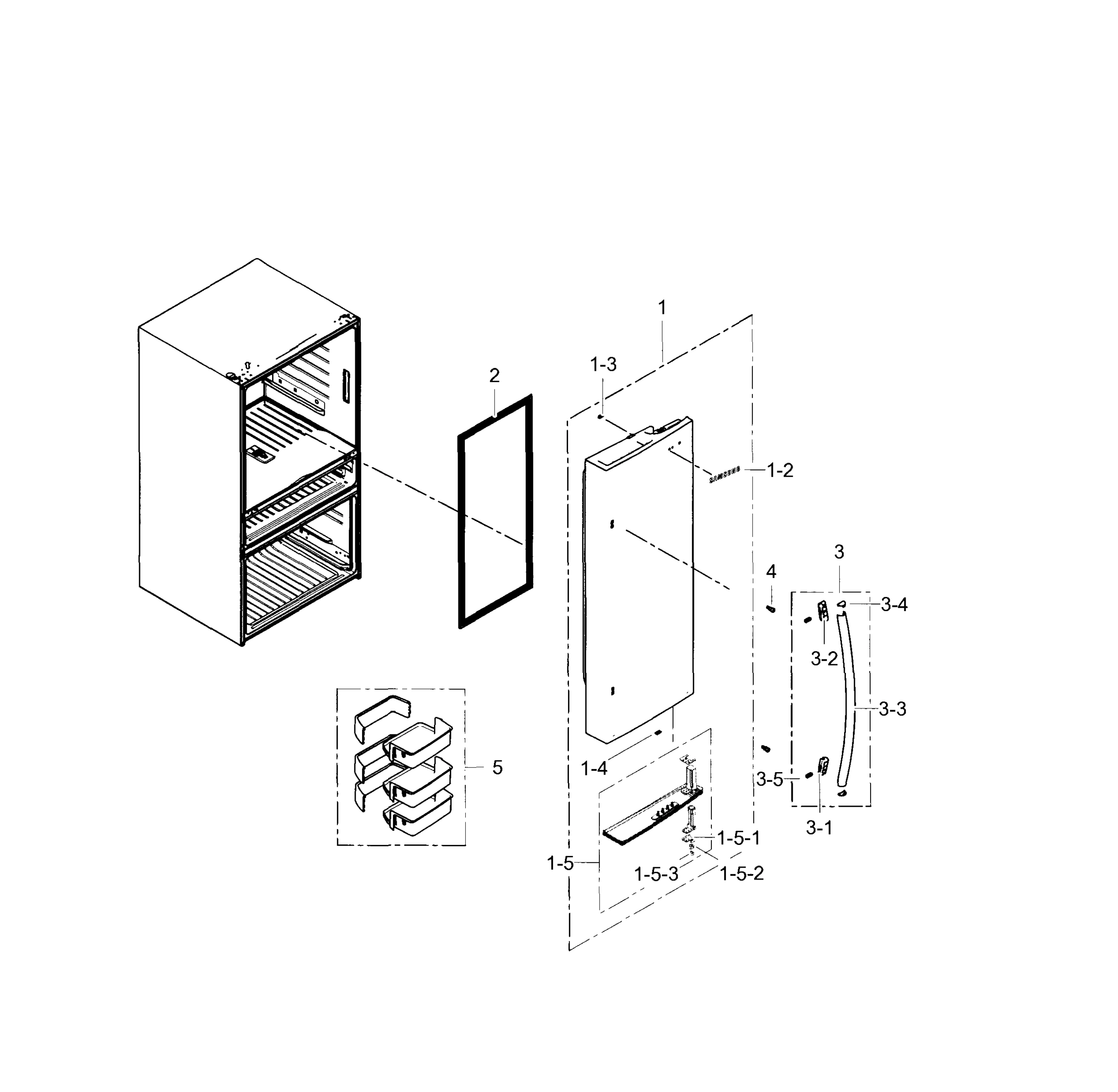

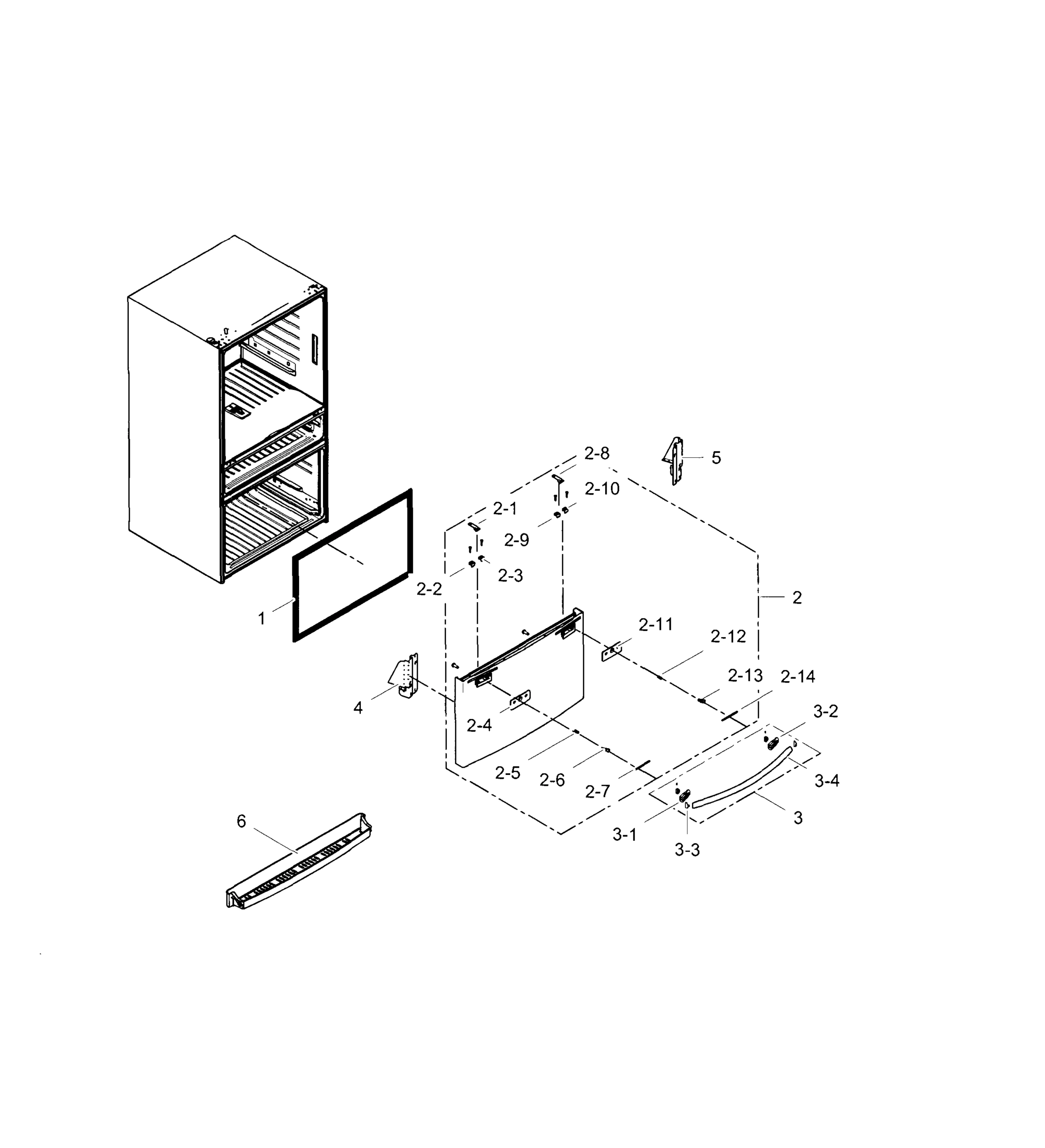

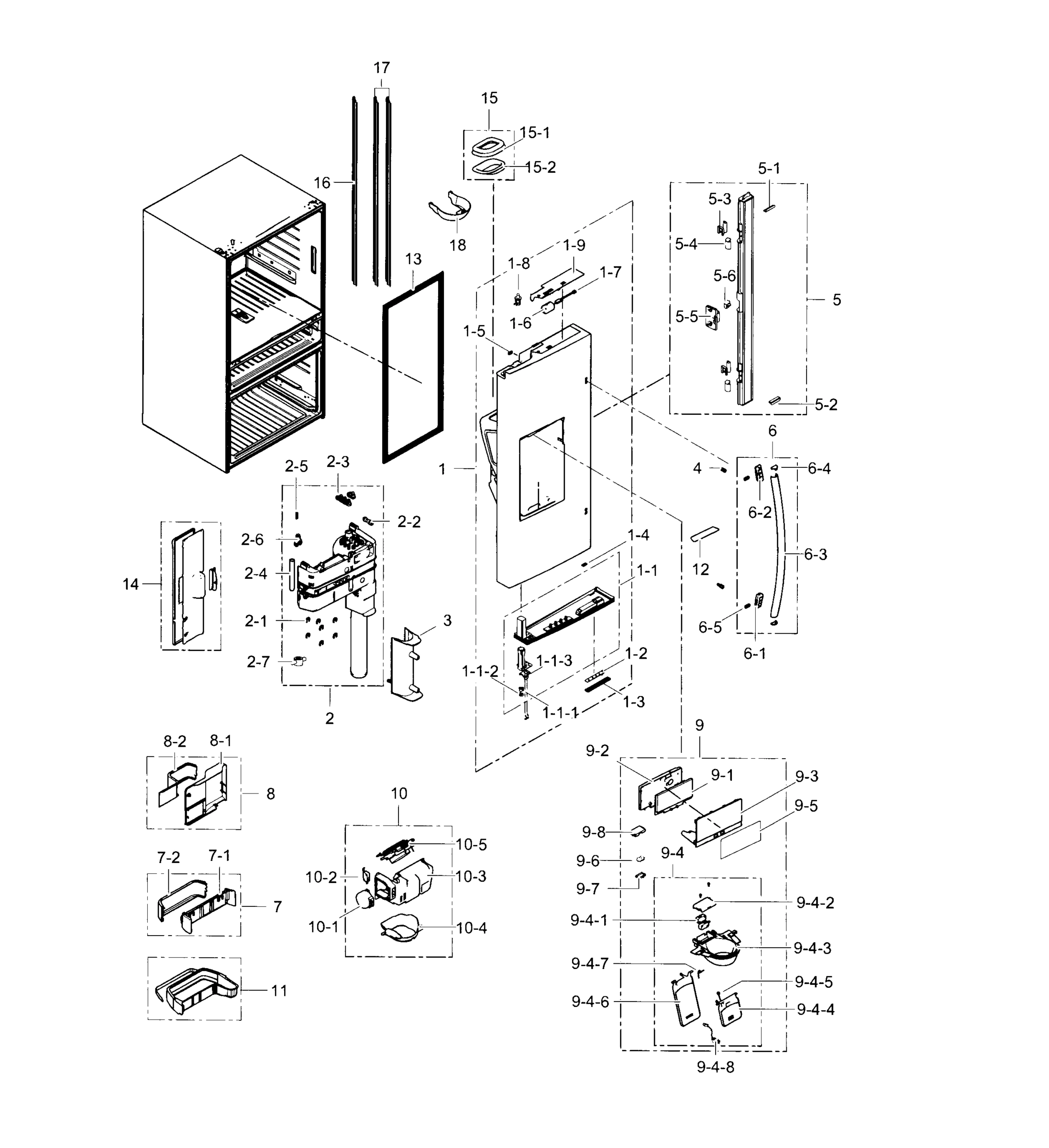

Model Samsung RF23HSESBSR/AA-00 Refrigerator – Common Parts &amp; Diagrams

1

DA96-00631D Samsung Refrigerator Evaporator A Backorder SMG DA96-00631D $206.59

1

Refrigerator door assembly, right SMG DA91-04002A Contact Us For Availability

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $24.47

1-1

DA97-10605C Samsung Refrigerator Cover Contro Backorder SMG DA97-10605C $149.73

1-1

Refrigerator door hinge, left SMG DA97-13827A Contact Us For Availability

1-2

DA41-00676G Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00676G $41.72

1-2

DA64-04021B Samsung MASCOT Assembly Backorder SMG DA64-04021B $23.09

1-2

DA97-12522Q Samsung Refrigerator Middle Gaske Backorder SMG DA97-12522Q $105.92

1-3

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $14.51

1-3

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $42.91

1-3

DA63-05630A Samsung Refrigerator Control Cove Backorder SMG DA63-05630A $9.96

1-4

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.49

1-4

DA64-04477B Samsung Refrigerator Table Top As Backorder SMG DA64-04477B $65.70

DA47-00318H Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318H $98.74

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.07

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $15.76

Refrigerator door hinge, right SMG DA97-13828A Contact Us For Availability

1-5-1

DA61-09173A Samsung Refrigerator Right Door S Backorder SMG DA61-09173A $13.27

1-5-2

DA66-01040A Samsung Cam Auto Close Assembly Backorder SMG DA66-01040A $8.53

1-5-3

Refrigerator door closer cam SMG DA66-01041A Contact Us For Availability

1-6

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $8.71

1-6

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $7.47

1-7

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $56.89

1-7

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $7.87

1-8

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $18.32

1-20

DA96-00641B Samsung Refrigerator Display Wire In Stock SMG DA96-00641B $19.23

1-22

DA61-09249A Samsung Refrigerator Hanger Front Backorder SMG DA61-09249A $31.35

1-23

DA64-04526A Samsung Refrigerator Inlay NLA In Stock SMG DA64-04526A $100.02

2

DA63-05462C Samsung Refrigerator Convection D Backorder SMG DA63-05462C $2.98

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $27.29

2

DA97-08434E Samsung Refrigerator Evaporator C Backorder SMG DA97-08434E $160.59

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $49.61

2-1

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $117.25

2-2

DA60-00258B Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258B $19.89

2-7

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $16.58

2-8

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.73

2-9

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.31

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $5.80

3

DA97-08608A Samsung Refrigerator Sensor Cover In Stock SMG DA97-08608A $24.87

3

Refrigerator door handle SMG DA97-12714C Contact Us For Availability

3

Refrigerator water reservoir support SMG DA61-09325A Contact Us For Availability

3-1

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.31

3-2

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $19.07

3-3

DA64-03756G Samsung Refrigerator Handle Bar A Backorder SMG DA64-03756G $107.71

3-5

Refrigerator door handle set screw SMG 6009-001526 No Longer Available

4

DA97-13947A Samsung Refrigerator Middle Left Backorder SMG DA97-13947A $95.41

4

Refrigerator freezer upper tray SMG DA97-13773A Contact Us For Availability

4-3

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $7.47

4-4

DA66-00554A Samsung Refrigerator Upper Freeze In Stock SMG DA66-00554A $4.56

5

DA97-12684D Samsung Refrigerator French Door In Stock SMG DA97-12684D $154.38

5

DA97-13774A Samsung Refrigerator Lower Tray A Backorder SMG DA97-13774A $118.51

5

DA97-13793A Samsung Refrigerator Middle Right Backorder SMG DA97-13793A $102.32

5

DA97-13805A Samsung Refrigerator Door Shelf B Backorder SMG DA97-13805A $105.29

5-3

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $4.98

5-4

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.15

5-5

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.22

5-6

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.15

6

DA63-07496A Samsung Refrigerator Ice Dispense Backorder SMG DA63-07496A $14.09

6

Refrigerator door handle SMG DA97-12715C Contact Us For Availability

6-1

DA61-07972B Samsung Refrigerator Black Front In Stock SMG DA61-07972B $7.87

6-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $9.11

6-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

6-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $22.38

6-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

6-4

DA67-02788A Samsung Refrigerator Handle Suppo Backorder SMG DA67-02788A $10.78

6-6

DA61-07973B Samsung Refrigerator Black Rear F Backorder SMG DA61-07973B $2.91

6-7

DA97-13807A Samsung Refrigerator Front Suppor Backorder SMG DA97-13807A $35.83

7-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

7-2

DA66-00649A Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649A $3.09

8-1

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $0.92

8-1

DA63-06897A Samsung Refrigerator Drain Water Backorder SMG DA63-06897A $26.92

8-2

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $118.03

8-3

DA66-00437F Samsung Gear Shaft Refrigerator Backorder SMG DA66-00437F $49.94

8-3

Refrigerator condenser coil SMG DA97-08464F Contact Us For Availability

8-4

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $4.98

8-4-1

Refrigerator condenser fan motor SMG DA31-00305C Contact Us For Availability

8-4-2

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $20.31

8-4-2

DA61-08819A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08819A $134.50

8-4-3

DA61-08427A Samsung Refrigerator Motor Circui Backorder SMG DA61-08427A $17.82

8-5-2

DA61-08818A Samsung Refrigerator Low Slide Ra Backorder SMG DA61-08818A $147.30

8-6

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $5.80

9

DA97-13809K Samsung Refrigerator Dispenser As Backorder SMG DA97-13809K $236.88

9-2

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $9.11

9-4

DA97-12628B Samsung Refrigerator Dispenser Le Backorder SMG DA97-12628B $164.40

9-4-1

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $12.02

9-6

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $36.14

10

DA97-13829A Samsung Refrigerator Ice Route Ca Backorder SMG DA97-13829A $153.67

10

DA97-13842B Samsung Refrigerator Left Vegetab Backorder SMG DA97-13842B $120.61

10

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $289.71

10-1

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $79.39

10-3

DA61-09161A Samsung Refrigerator Left Vegetab Backorder SMG DA61-09161A $89.83

10-4

DA63-07552A Samsung Refrigerator Left Front V Backorder SMG DA63-07552A $39.77

10-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $41.07

11

DA97-10848N Samsung Refrigerator All Wire Com In Stock SMG DA97-10848N $58.50

11

DA97-13819A Samsung Refrigerator Lower Door S Backorder SMG DA97-13819A $85.98

11

DA97-13841B Samsung Refrigerator Right Vegeta Backorder SMG DA97-13841B $125.44

11-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $26.31

11-2

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $18.65

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $20.15

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $11.60

DA63-05506A Samsung Assembly Refrigerator Dis In Stock SMG DA63-05506A $24.47

DA97-14528A Samsung Refrigerator Filter Case Backorder SMG DA97-14528A $227.78

12-2

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $18.65

12-3

DA62-04027A Samsung Refrigerator 2-Way Water In Stock SMG DA62-04027A $147.83

13

DA97-13015C Samsung Refrigerator Gray Door Ga In Stock SMG DA97-13015C $107.46

14-3

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

15

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $17.56

15

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $52.25

15-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $3.31

15-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $57.20

15-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $9.96

15-2

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

15-4

DA96-00640B Samsung Refrigerator Wire Harness In Stock SMG DA96-00640B $129.85

16

DA97-13757A Samsung Refrigerator Evaporator C In Stock SMG DA97-13757A $145.26

16-1

DA32-00011D Samsung Refrigerator Temperature In Stock SMG DA32-00011D $10.30

16-2

DA97-13756A Samsung Refrigerator Motor Case A In Stock SMG DA97-13756A $93.34

16-2-1

DA81-06013A Samsung Refrigerator Evaporator F In Stock SMG DA81-06013A $91.18

17

DA63-06618P Samsung Gasket Backorder SMG DA63-06618P $14.33

17

DA96-00842A Samsung Refrigerator Evaporator A Backorder SMG DA96-00842A $228.20

17

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $38.94

17-1

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $18.59

17-3

DA47-00434A Samsung Refrigerator Metal Sheath In Stock SMG DA47-00434A $138.25

17-4

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.87

17-5

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

17-6

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $4.98

18

DA63-07637A Samsung Refrigerator Ice Cover As Backorder SMG DA63-07637A $8.97

18

DA92-00483B Samsung Refrigerator Inverter PCB In Stock SMG DA92-00483B $162.58

18

DA97-12540D Samsung Refrigerator Auger Motor Backorder SMG DA97-12540D $197.24

18-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $73.94

18-3

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $177.25

18-7

DA74-40151G Samsung Refrigerator Ice Dispense In Stock SMG DA74-40151G $96.04

19-1

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.49

20

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $5.38

20

Refrigerator ice maker SMG DA97-18859A No Longer Available

25

DA27-00022B Samsung Refrigerator Coil Filter In Stock SMG DA27-00022B $87.98

25

DA97-08430A Samsung Refrigerator Convection I In Stock SMG DA97-08430A $200.89

25-1

DA31-00101C Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00101C $139.32

26

DA97-13838A Samsung Refrigerator Left Vegetab Backorder SMG DA97-13838A $39.82

27

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $42.16

27

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $17.40

30

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $64.47

30

DA97-13831A Samsung Refrigerator Shelf Folder Backorder SMG DA97-13831A $122.78

32

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $0.92

33

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $6.59

33-1

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $19.49

35

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $18.25

36

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $6.62

37

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $120.19

39-1

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $0.92

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.24

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.17

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $0.92

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.24

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $1.67

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $2.91

DA61-08234A Samsung Refrigerator Slider Assem Backorder SMG DA61-08234A $3.73

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $4.15

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.24

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $7.05

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.24

DA97-13386A Samsung Refrigerator Roller Assem Backorder SMG DA97-13386A $10.07

DA97-14447A Samsung Refrigerator Roller Assem Backorder SMG DA97-14447A $15.76
