Model Bosch REF30QW/01 Range Oven – Common Parts & Diagrams

Common parts from model Bosch REF30QW/01 Range Oven

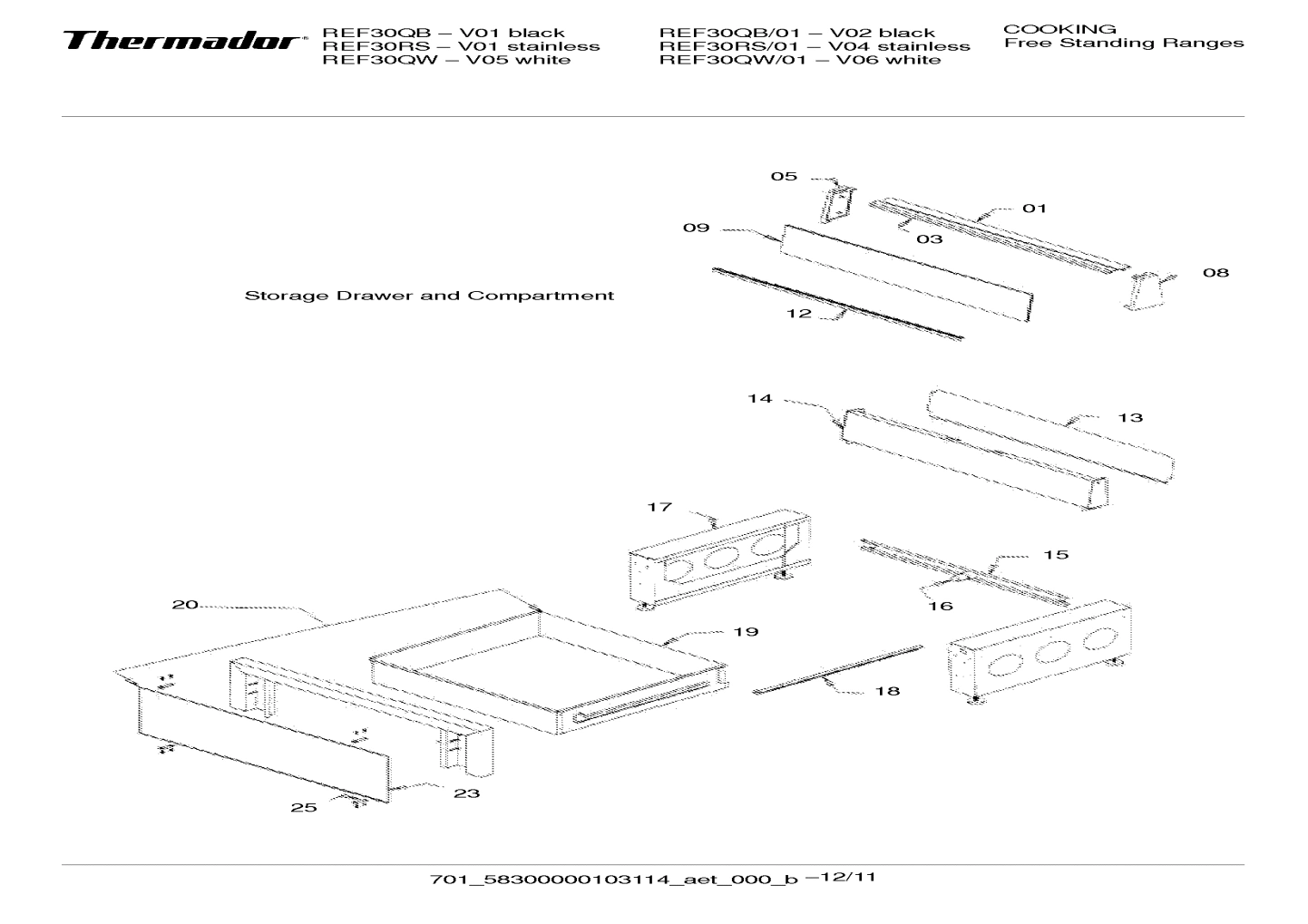

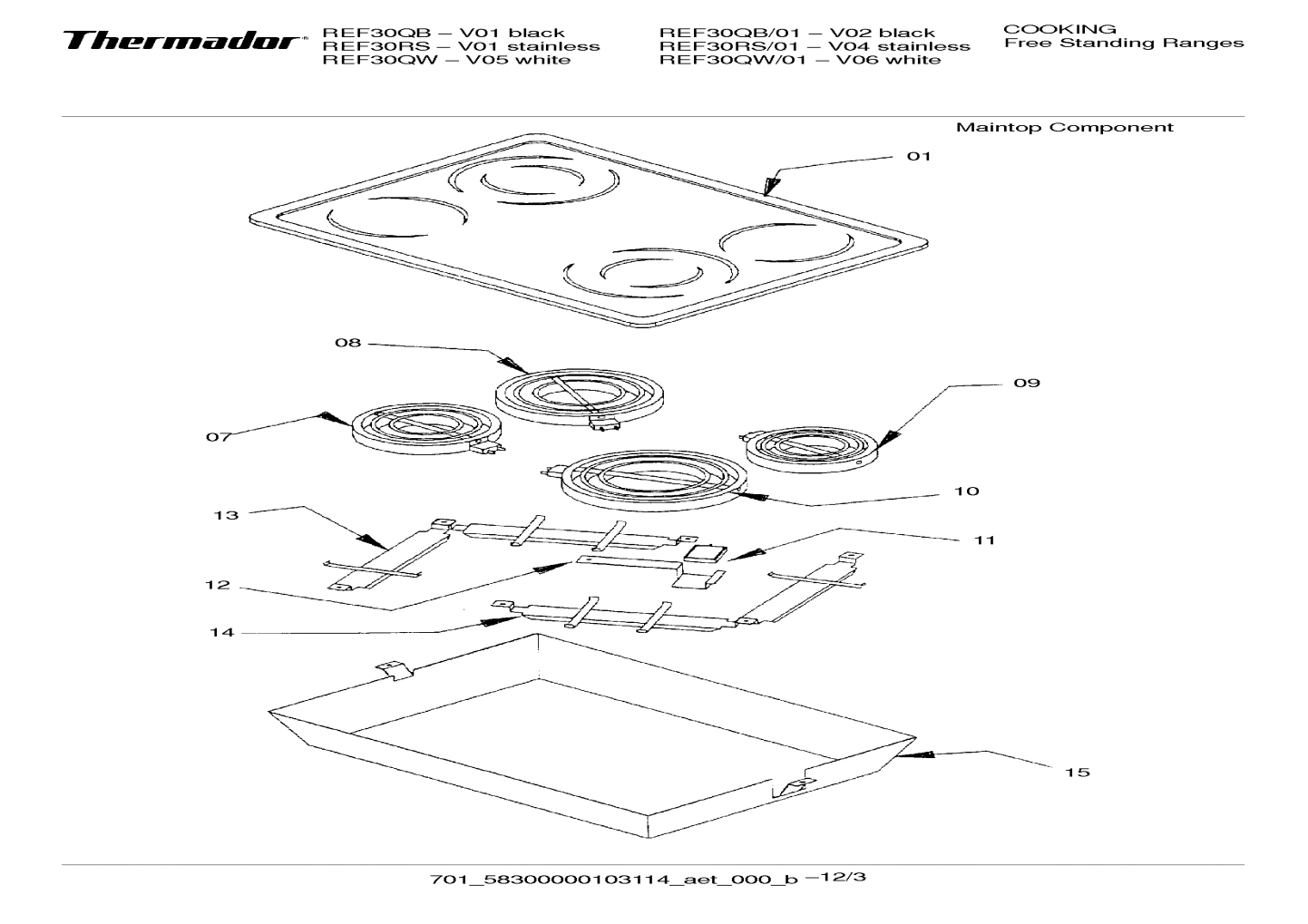

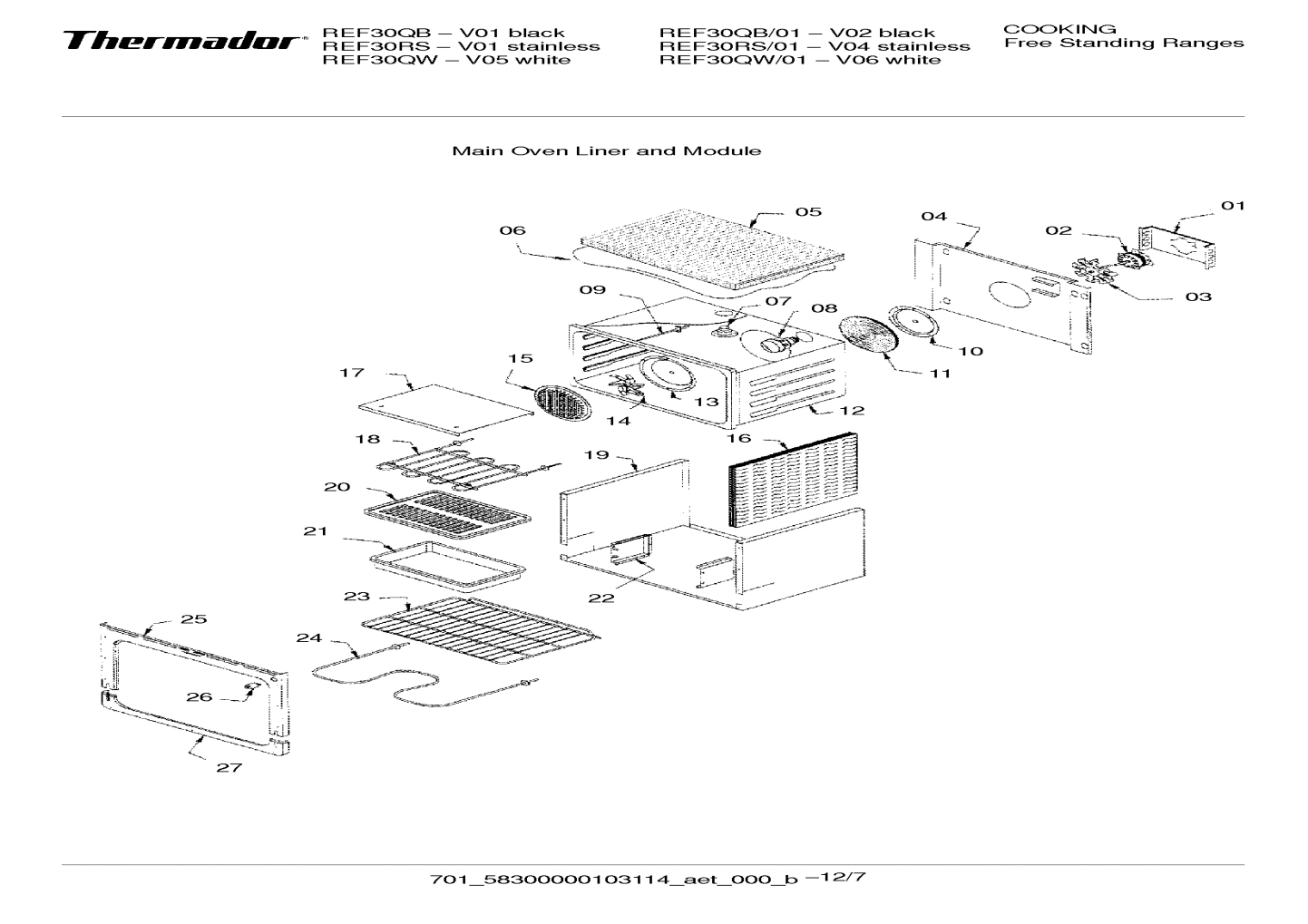

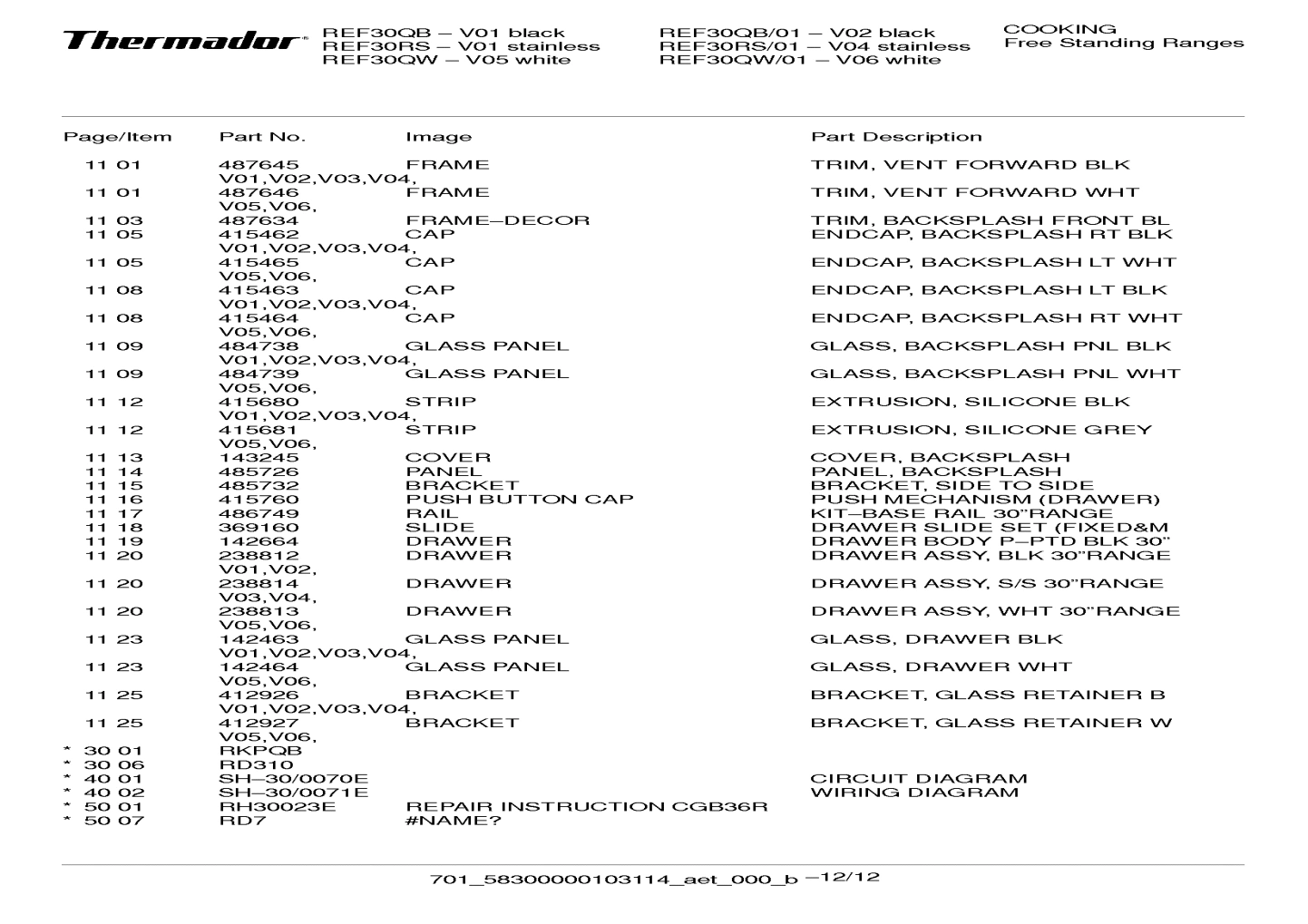

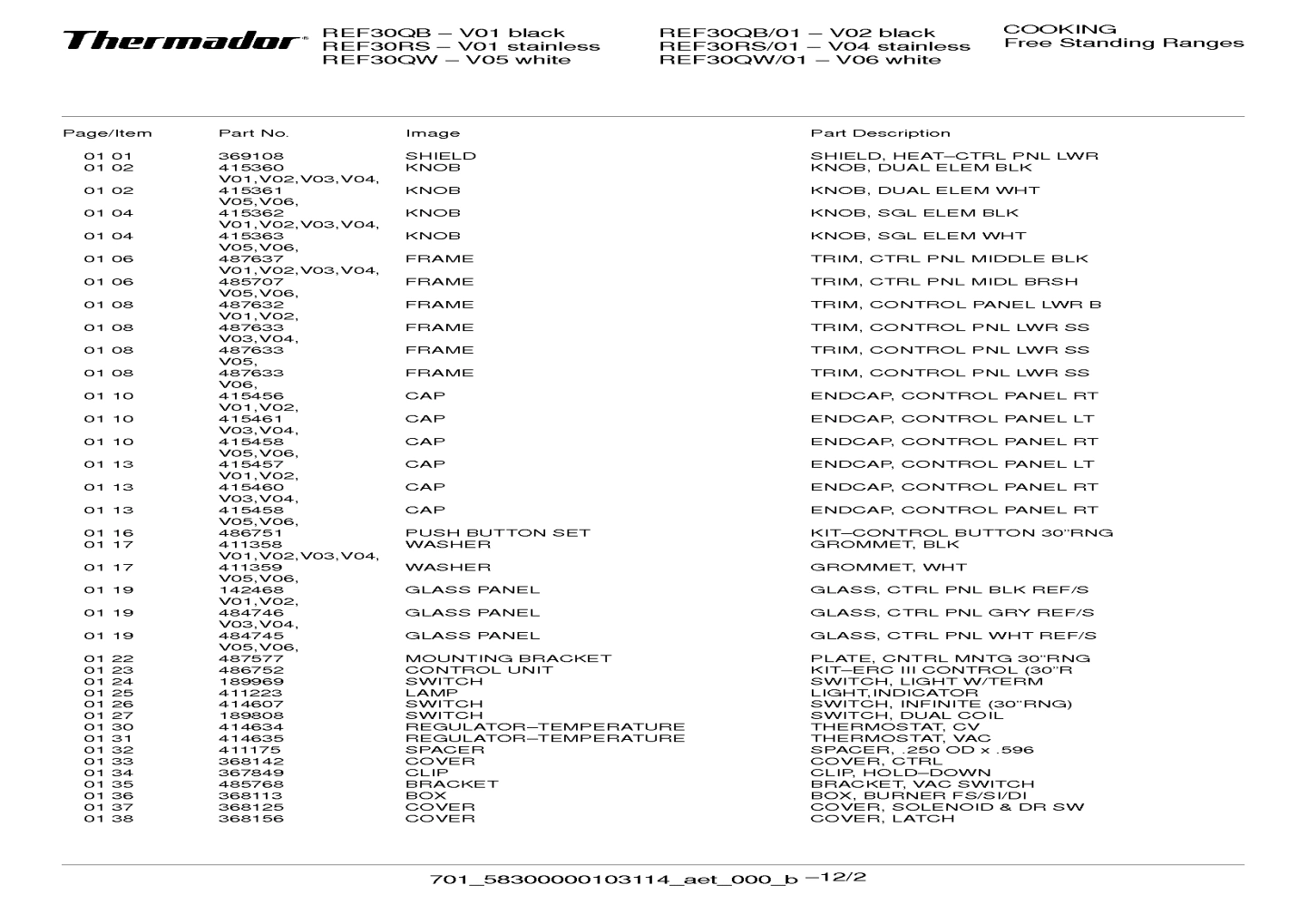

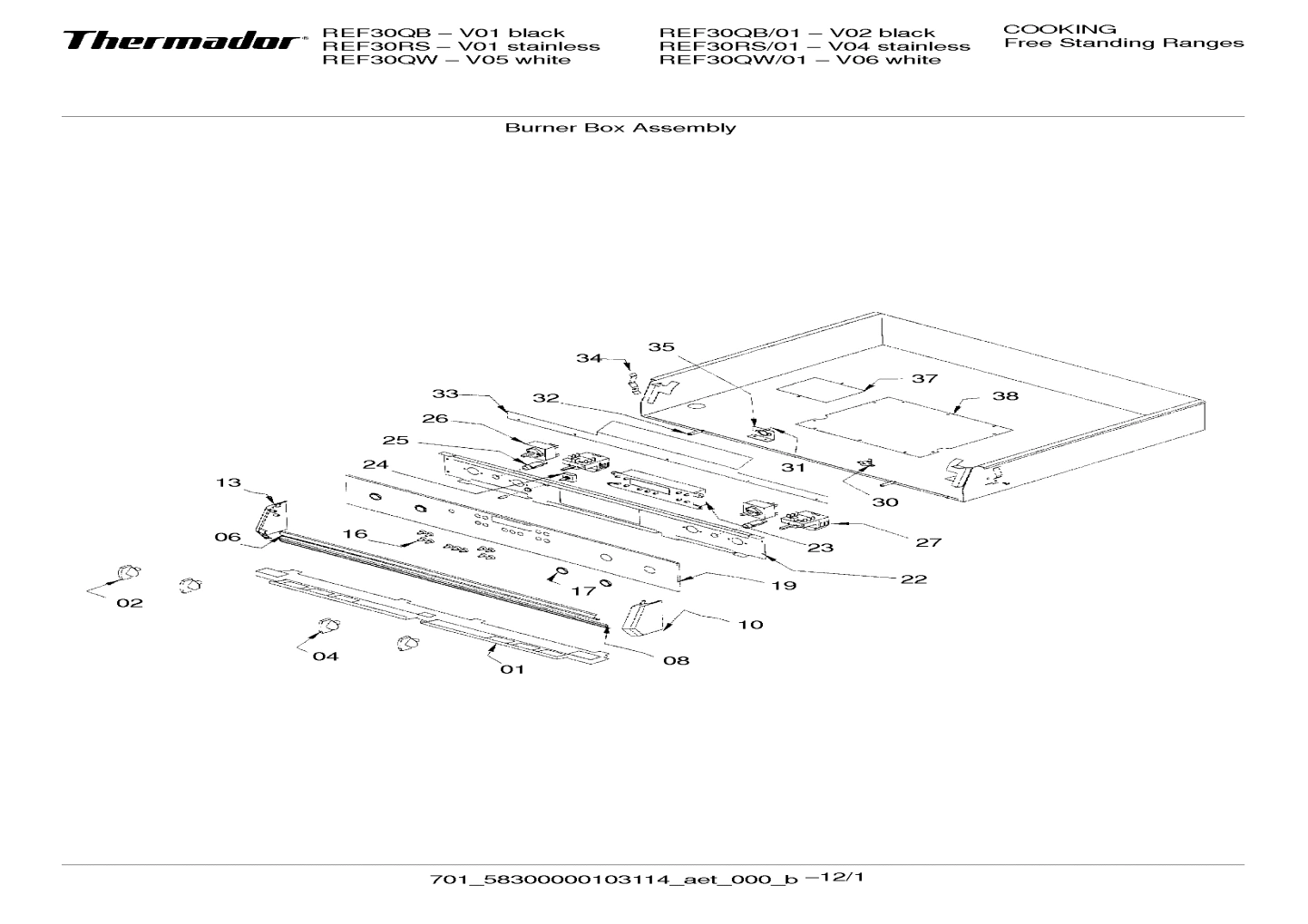

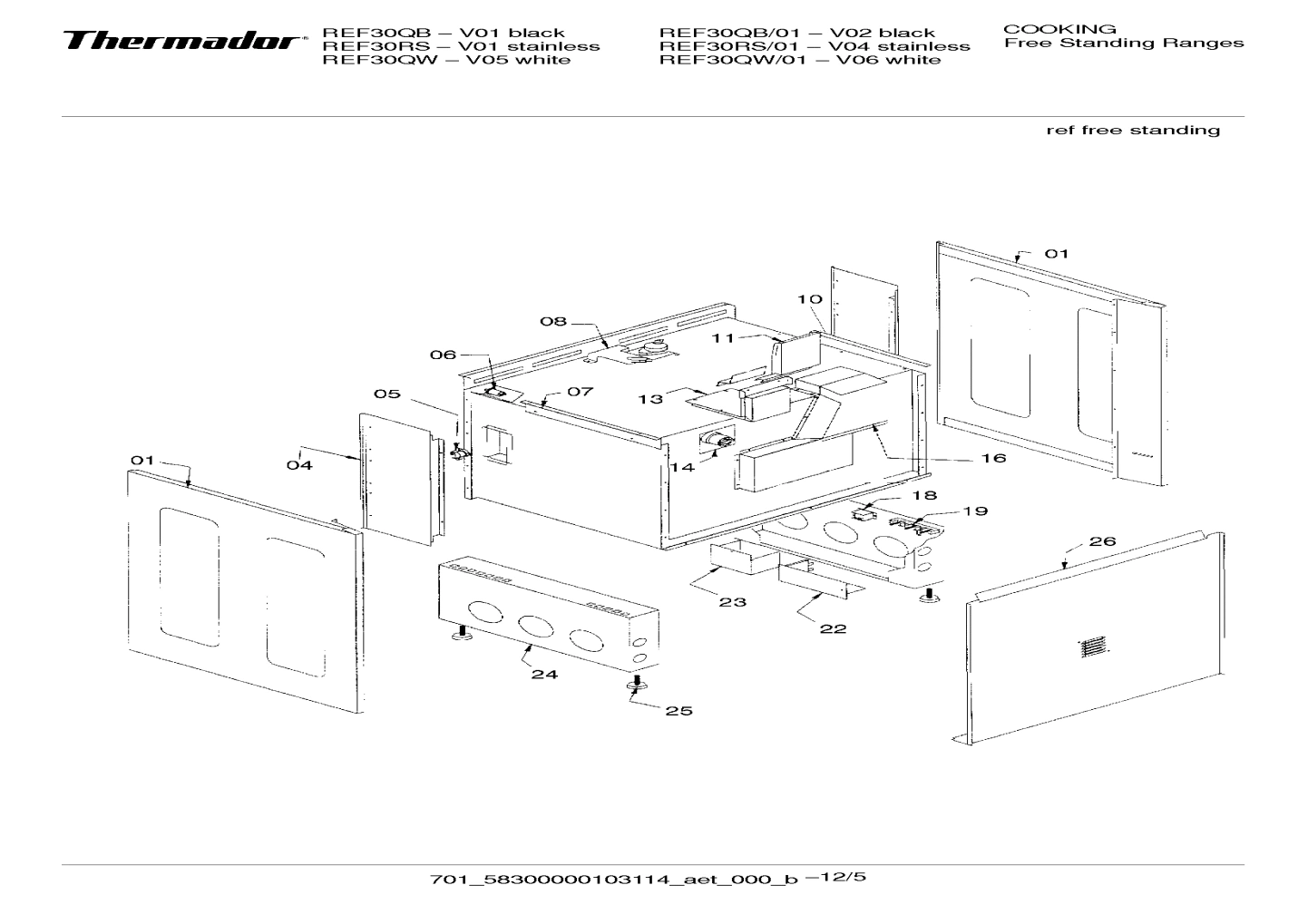

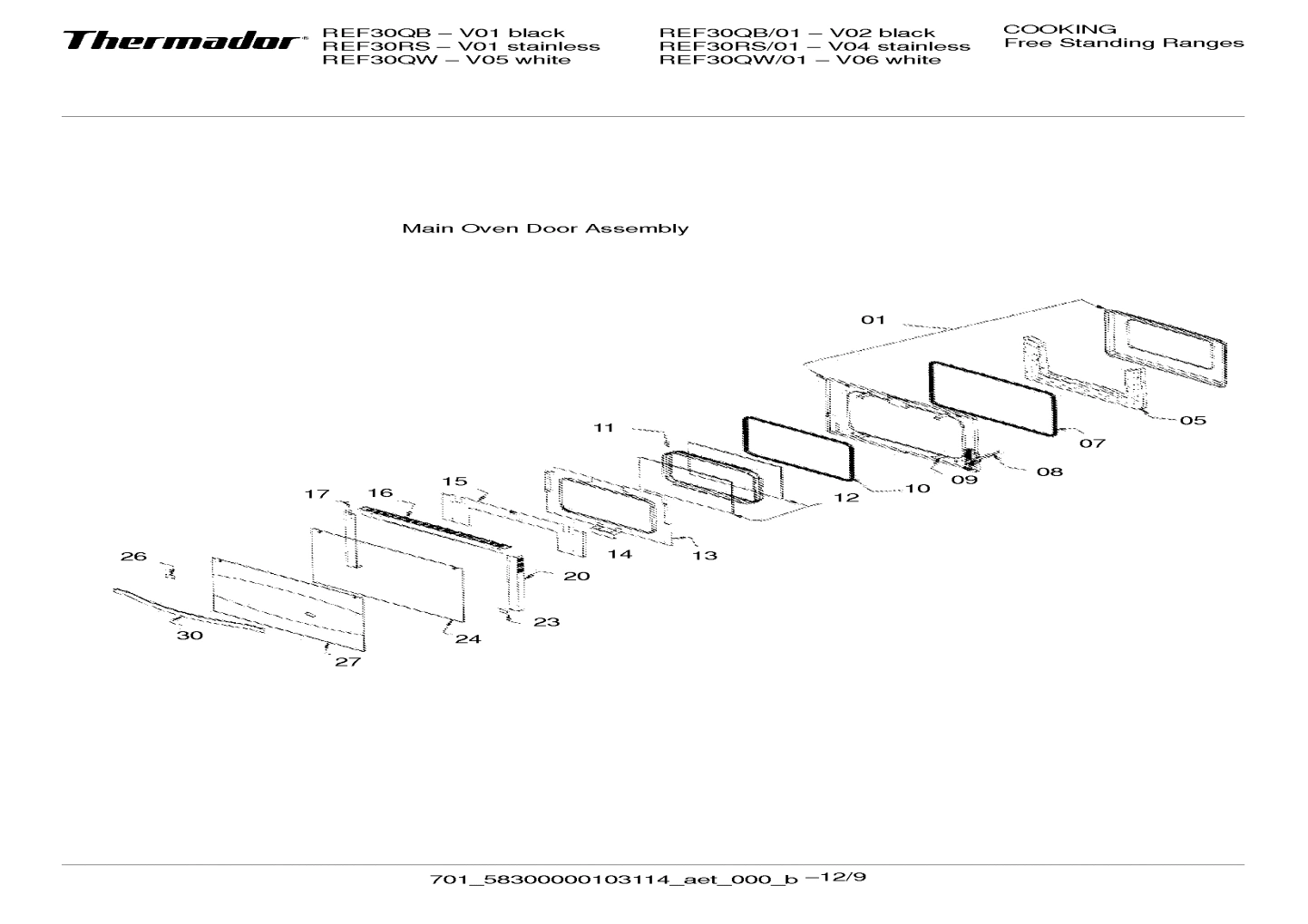

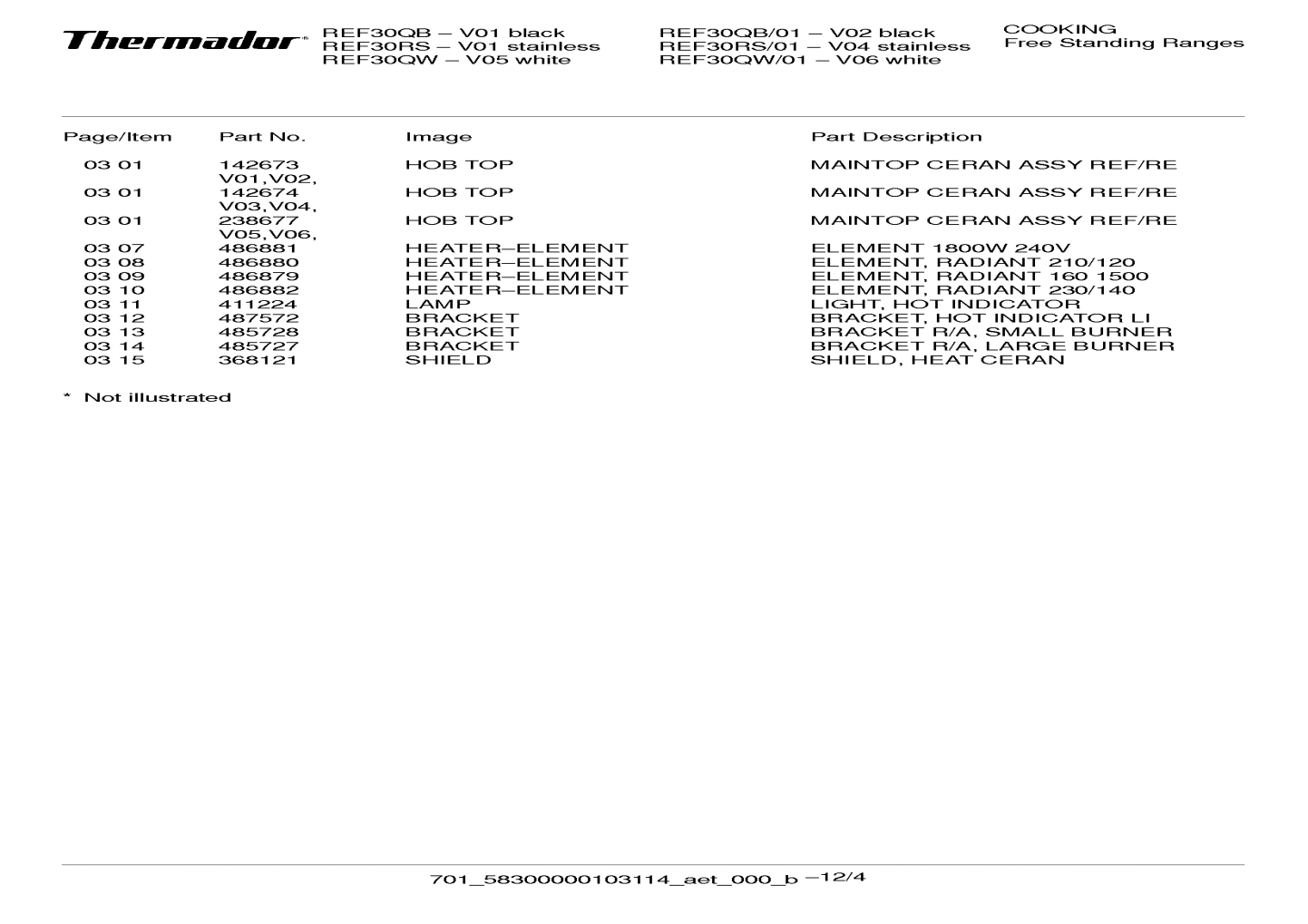

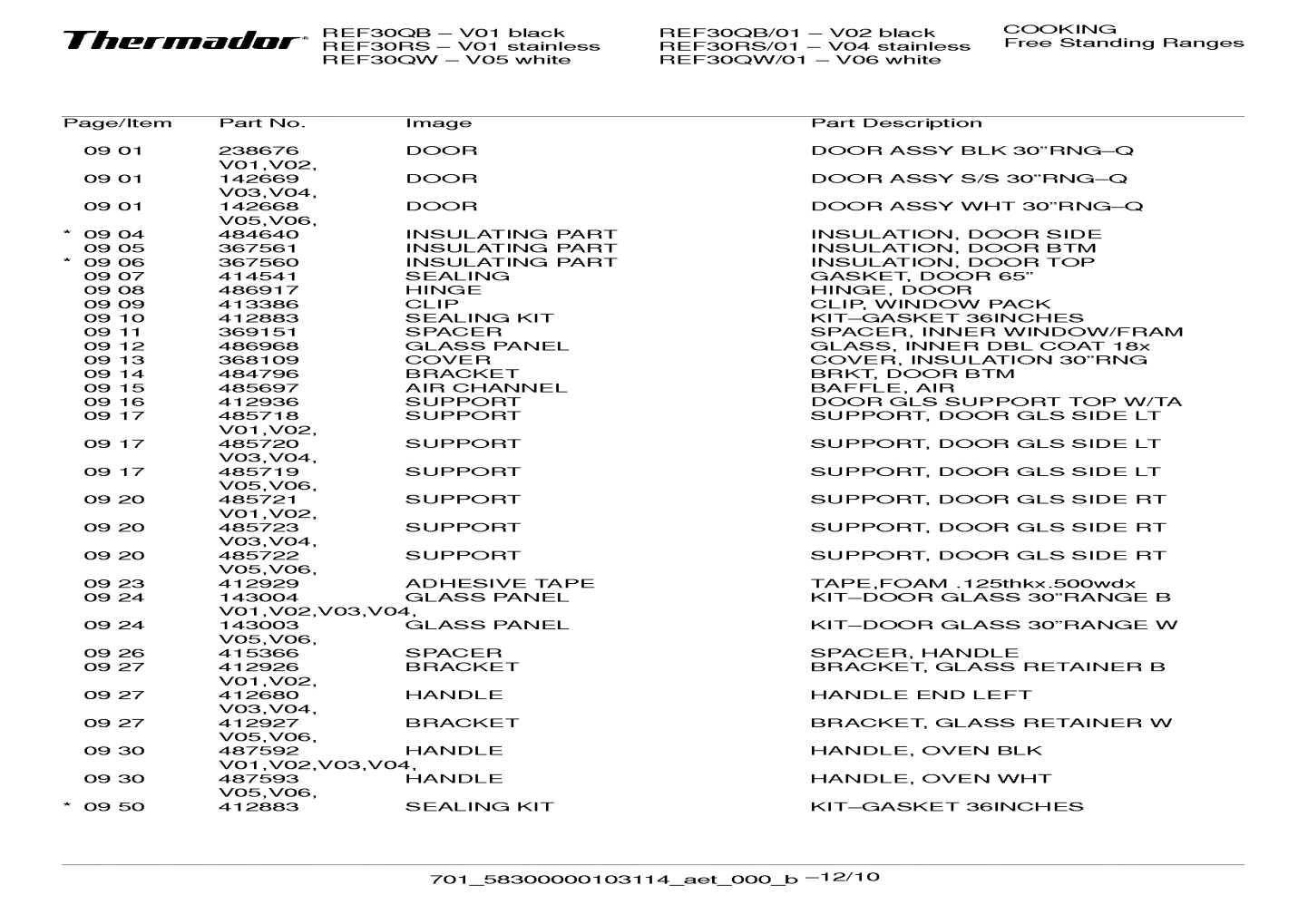

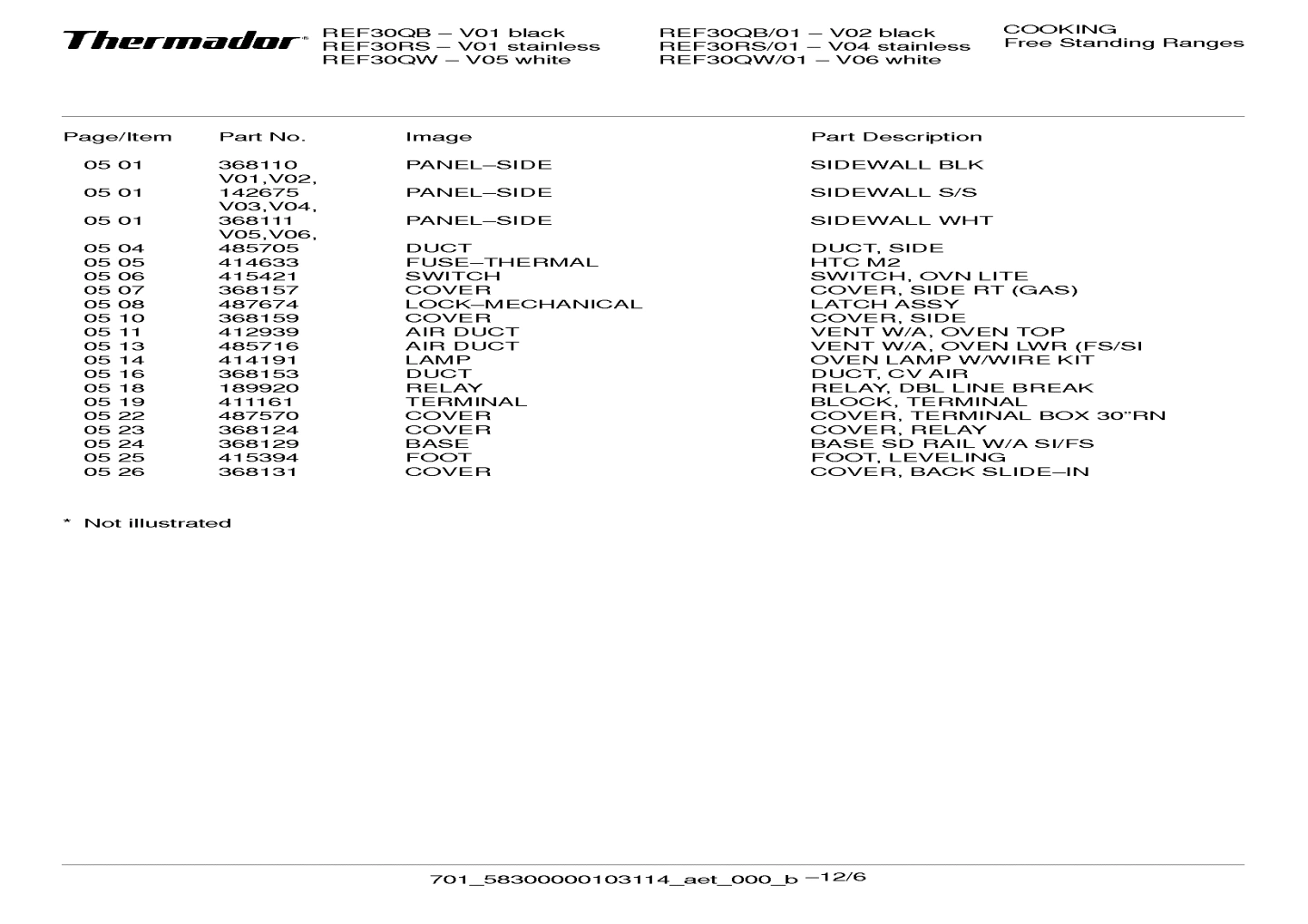

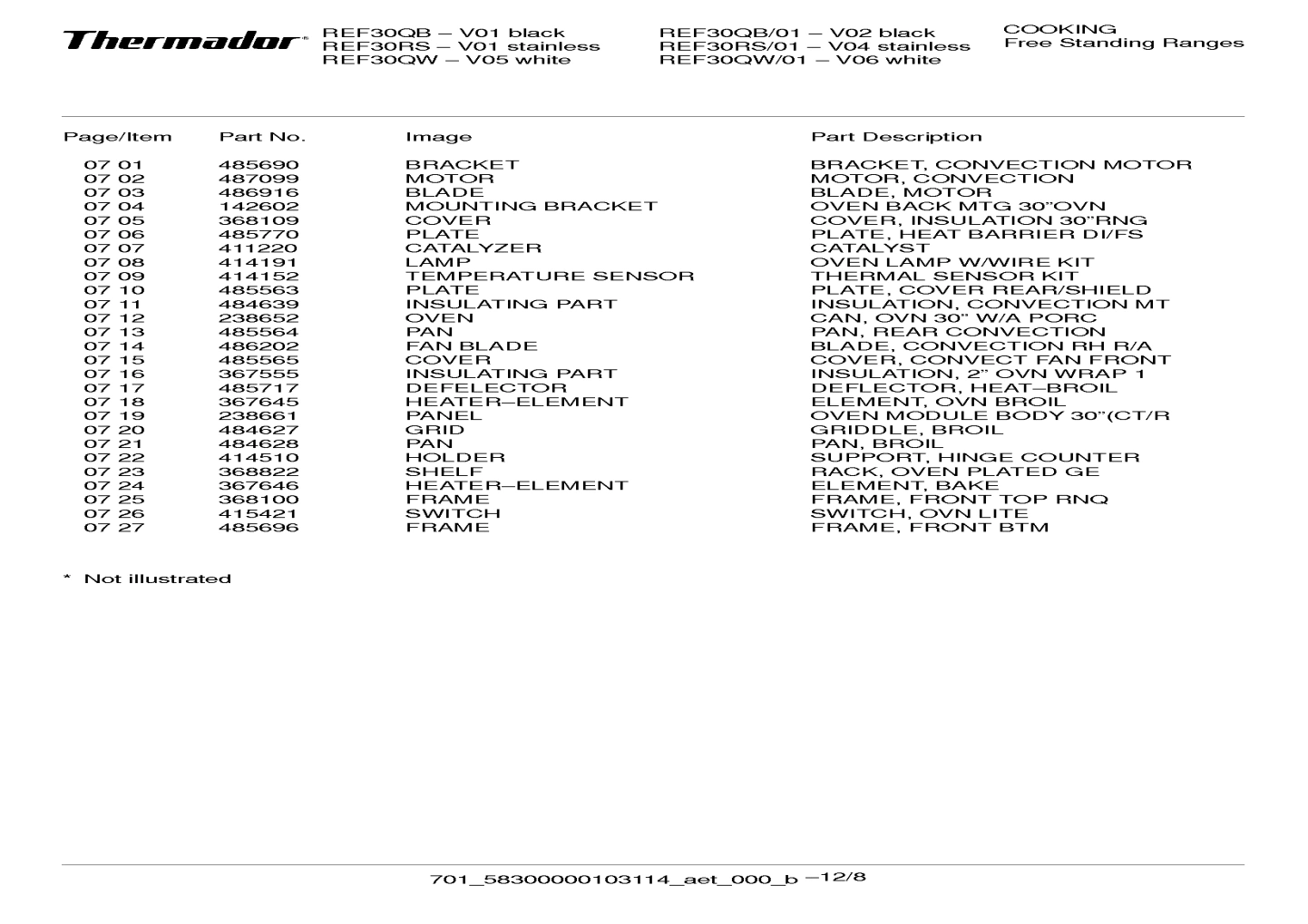

Diagram 1

Print

• This Diagram
• All Diagrams

0119

Panel BOS 00484753 Contact Us For Availability

View on Model

0126

Switch BOS 00414607 Contact Us For Availability

View on Model

0130

Regulator-temperature BOS 00414634 Contact Us For Availability

View on Model

0132

Spacer BOS 00411175 Contact Us For Availability

View on Model

0309

00486879 Bosch Range Heating Element Backorder BOS 00486879 View Details $102.66

View on Model

0310

00486882 Bosch Oven Heating Element Backorder BOS 00486882 View Details $288.30

View on Model

0505

00414633 Bosch Thermal Fuse Backorder BOS 00414633 View Details $39.57

View on Model

0518

Relay BOS 00189920 Contact Us For Availability

View on Model

0702

Motor BOS 00487099 Contact Us For Availability

View on Model

0707

Catalyzer BOS 00411220 Contact Us For Availability

View on Model

0708

Lamp BOS 00414191 Contact Us For Availability

View on Model

0718

Heating element BOS 00367645 Contact Us For Availability

View on Model

0721

Universal pan BOS 00449757 Contact Us For Availability

View on Model

0722

Holder BOS 00414510 Contact Us For Availability

View on Model

0724

Heating element BOS 00367646 Contact Us For Availability

View on Model

0907

Sealing BOS 00414541 Contact Us For Availability

View on Model

0924

Glass panel BOS 00143003 Contact Us For Availability

View on Model

1105

00415465 Bosch Range Cap Backorder BOS 00415465 View Details $33.78

View on Model

1109

Glass panel BOS 00484739 Contact Us For Availability

View on Model

1116

Push button cap BOS 00415760 Contact Us For Availability

View on Model

1118

00369160 Bosch Range Slide Backorder BOS 00369160 View Details $44.39

View on Model

1123

Glass panel BOS 00142464 Contact Us For Availability

View on Model

1125

Bracket BOS 00412927 Contact Us For Availability

View on Model

×
