Model Samsung RB12J8896S4/AA-00 Refrigerator – Common Parts & Diagrams
Cabinet
Door
Freezer
Fridge

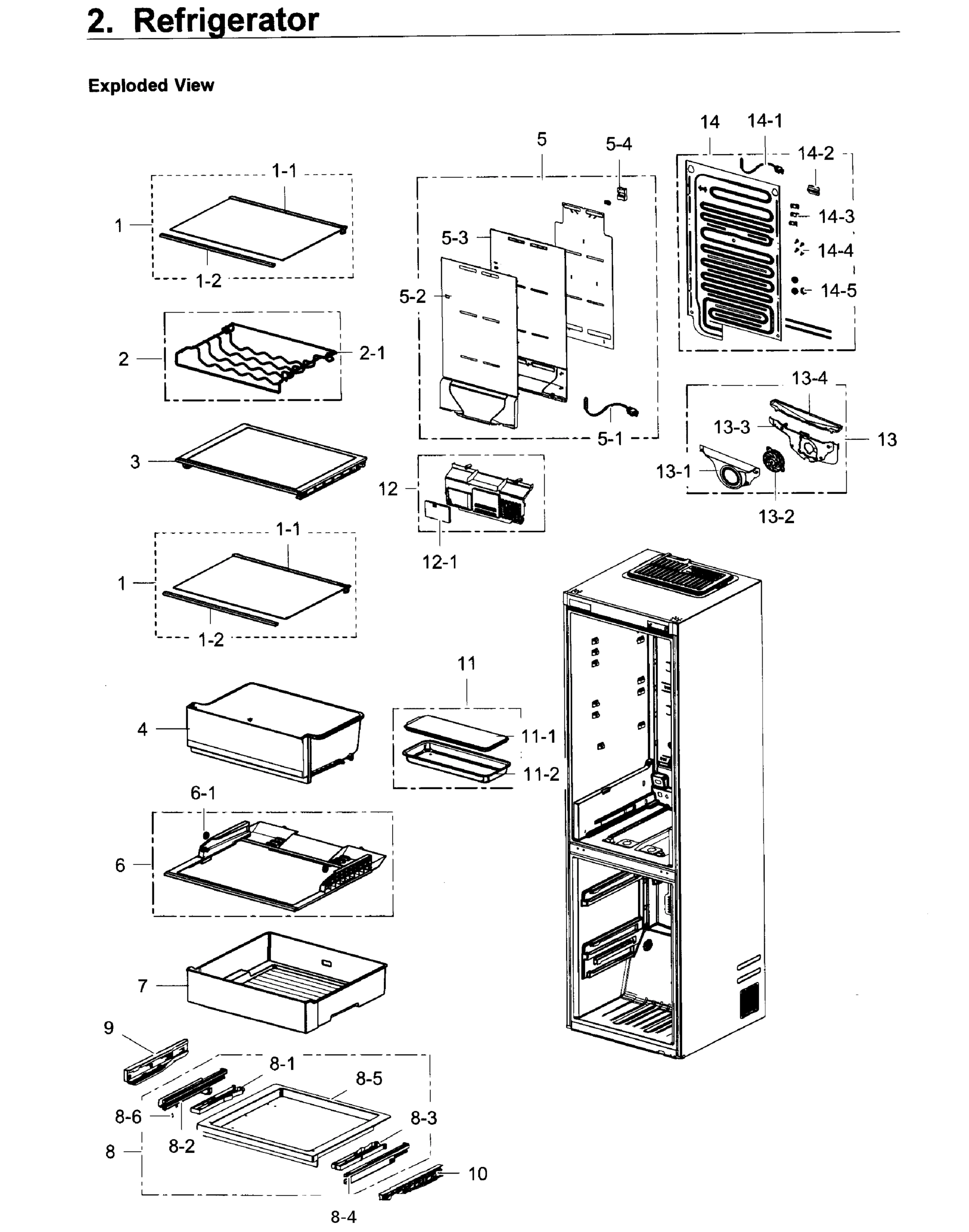

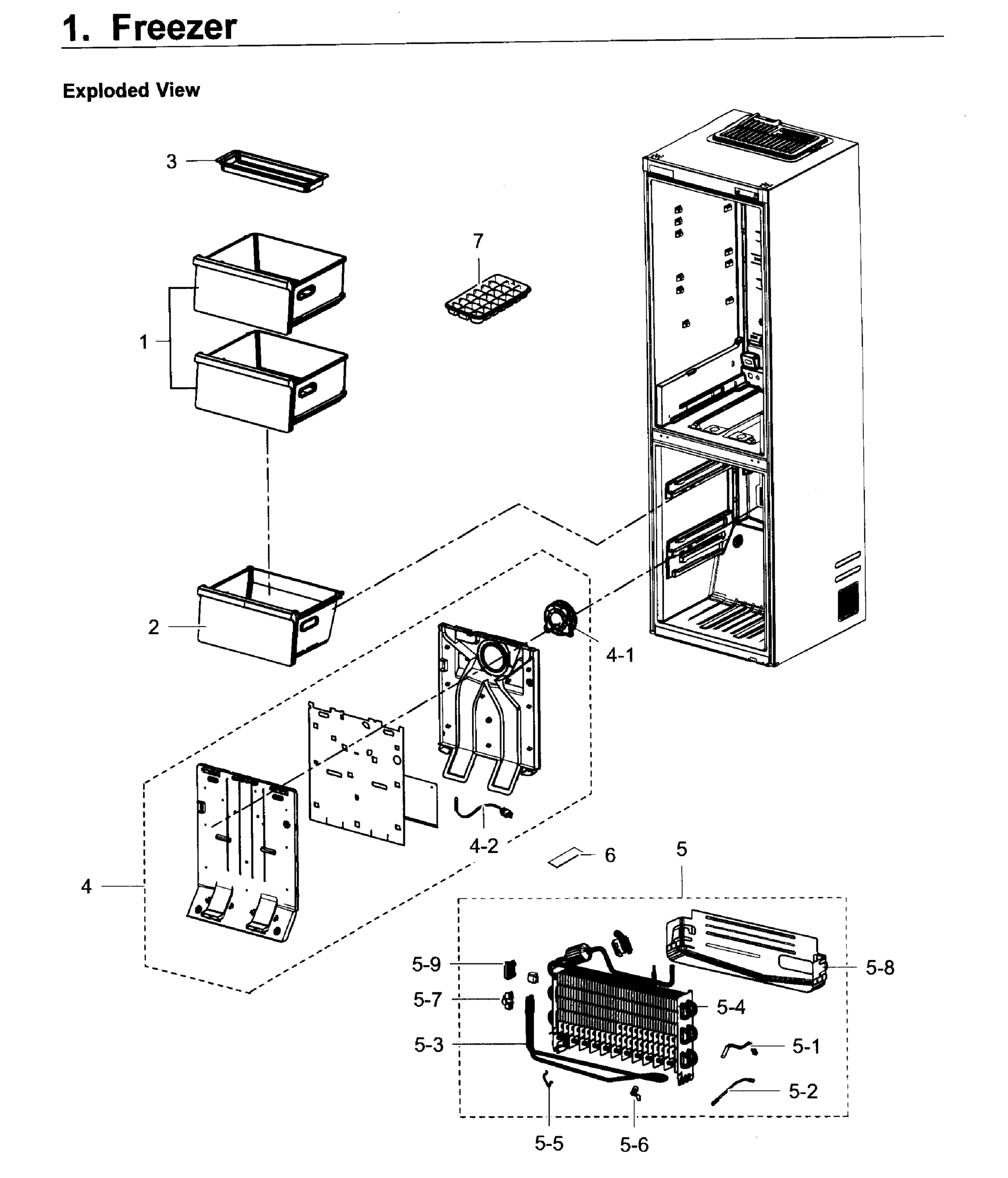

Common parts from model Samsung RB12J8896S4/AA-00 Refrigerator
1
Refrigerator door foam SMG DA91-04411A Contact Us For Availability
1-1
Refrigerator shelf SMG DA67-03995A Contact Us For Availability
1-2
Shelf trim SMG DA64-04407P Contact Us For Availability
1-4
Cap-reed switch SMG DA67-02385L Contact Us For Availability
1-5
Spring etc-earth SMG DA61-03684A Contact Us For Availability
1-8
Cover lamp-ref low SMG DA63-08070A Contact Us For Availability
1-9
Refrigerator led lamp SMG DA96-00392F Contact Us For Availability
2
Case basket-fre low SMG DA97-15511A Contact Us For Availability
2
Wine rack SMG DA97-15743B Contact Us For Availability
2-1
Wine rack SMG DA75-00350A Contact Us For Availability
3
Dairy guard SMG DA97-15479A Contact Us For Availability
3
Tray ice-cube SMG DA63-08120A Contact Us For Availability
3
Shelf deli bin SMG DA97-15544B Contact Us For Availability
3-2
Cover dai SMG DA63-08045A Contact Us For Availability
4
Gasket-ref SMG DA97-13921S Contact Us For Availability
4
Evaporator cover SMG DA97-15501A Contact Us For Availability
4
Case veg-up SMG DA97-15517A Contact Us For Availability
5
Evaporator SMG DA96-01117B Contact Us For Availability
5
Refrigerator evaporator cover SMG DA97-15508A Contact Us For Availability
5-1
Refrigerator temperature sensor SMG DA32-00011W Contact Us For Availability
5-2
Plate cool SMG DA61-10467A Contact Us For Availability
5-3
Metal heater SMG DA47-00474B Contact Us For Availability
5-3
Cover eva SMG DA63-08068A Contact Us For Availability
5-4
Refrigerator evaporator SMG DA59-00573A Contact Us For Availability
5-4
Refrigerator insulation SMG DA62-04553A Contact Us For Availability
5-5
Fixer-evap fre,sub SMG DA61-02526A Contact Us For Availability
5-8
Plate-drain SMG DA61-08936A Contact Us For Availability
6
Shelf cover veg SMG DA97-15542C Contact Us For Availability
7
Bottle guard SMG DA97-15481A Contact Us For Availability
7
Case veg-low SMG DA97-15524A Contact Us For Availability
7-1
Bottle guard SMG DA63-08039A Contact Us For Availability
8
Guard variety SMG DA97-15480A Contact Us For Availability
8
Vegetable tray SMG DA97-15528A Contact Us For Availability
8-1
Rail self close-left SMG DA97-15530A Contact Us For Availability
8-2
Rail-left SMG DA97-15532A Contact Us For Availability
8-3
Rail self close-right SMG DA97-15531A Contact Us For Availability
8-4
Rail-right SMG DA97-15533A Contact Us For Availability
8-5
Tray-low SMG DA97-15526A Contact Us For Availability
9
Rail-ref low left SMG DA61-10434A Contact Us For Availability
9-1
Refrigerator module SMG DA92-00178P Contact Us For Availability
10
Leg-front SMG DA61-07546B Contact Us For Availability
10
Cap door-up SMG DA97-15782A Contact Us For Availability
11
Case sub SMG DA97-15564A Contact Us For Availability
11-1
Tray cover SMG DA63-08048A Contact Us For Availability
11-2
Plate case SMG DA61-10426A Contact Us For Availability
12
Lamp cover SMG DA63-08072A Contact Us For Availability
12
Refrigerator damper cover SMG DA97-15509B Contact Us For Availability
12-1
Samsung cover-conv multi SMG DA63-06337A Contact Us For Availability
13
Cap space-door left SMG DA67-04019A Contact Us For Availability
13
Refrigerator motor case SMG DA97-15460B Contact Us For Availability
13-1
Refrigerator motor case SMG DA61-10409A Contact Us For Availability
13-4
Plate drain-ref SMG DA61-10411A Contact Us For Availability
14
Cap space-door right SMG DA67-04020A Contact Us For Availability
14
Refrigerator evaporator SMG DA96-01112A Contact Us For Availability
14-1
Temperature sensor SMG DA32-00011X Contact Us For Availability
14-3
Fixer wire SMG DA61-10519A Contact Us For Availability
14-5
Grommet-sub cond SMG DA63-01563A Contact Us For Availability
15
Cap control-panel SMG DA61-08932A Contact Us For Availability
16
Cover wire-hinge right SMG DA63-08058A Contact Us For Availability
17
Cover wire-hinge left SMG DA63-08060A Contact Us For Availability
18
Cover control-panel SMG DA97-13615A Contact Us For Availability
19
Hinge-up SMG DA97-15464A Contact Us For Availability
19-1
Hinge-sub SMG DA97-15465A Contact Us For Availability
24
Inverter pcb SMG DA92-00228D Contact Us For Availability
26
Chassis SMG DA97-15476A Contact Us For Availability
26-3
Chassis SMG DA97-15648A Contact Us For Availability
27
Cover wire-door SMG DA63-08057A Contact Us For Availability
28
Sub pcb SMG DA92-00701A Contact Us For Availability
31
Refrigerator cover unit SMG DA63-08062A Contact Us For Availability
33
Support circuit motor SMG DA97-15301A Contact Us For Availability
35
Trim blade SMG DA64-02605F Contact Us For Availability
36
Trim blade SMG DA64-02605E Contact Us For Availability
37
Refrigerator compressor cover SMG DA97-15477B Contact Us For Availability
37-1
Refrigerator holder wire SMG DA61-09324A Contact Us For Availability
40
Refrigerator drain hose SMG DA97-15499B Contact Us For Availability
41
Case pba SMG DA97-15722A Contact Us For Availability
42
Install SMG DA91-04376A Contact Us For Availability
43
Refrigerator accessory SMG DA99-04206A Contact Us For Availability
43-1
Reinf leg-bottom SMG DA61-10671A Contact Us For Availability
43-2
Fixer locker SMG DA61-10679A Contact Us For Availability
44
Refrigerator fixer SMG DA61-10672A Contact Us For Availability
NI
Shaft-hinge SMG DA66-00385A Contact Us For Availability
NI
Grommet-drain hose SMG DA63-00246B Contact Us For Availability
NI
Door stopper SMG DA61-10452A Contact Us For Availability
NI
Refrigerator grommet hinge SMG DA63-08059A Contact Us For Availability
NI
Lever auto close SMG DA66-01147A Contact Us For Availability
NI
Refrigerator tapping screw SMG 6002-000524 Contact Us For Availability
NI
Refrigerator owner's manual SMG DA68-03174Z Contact Us For Availability
× ![]()
