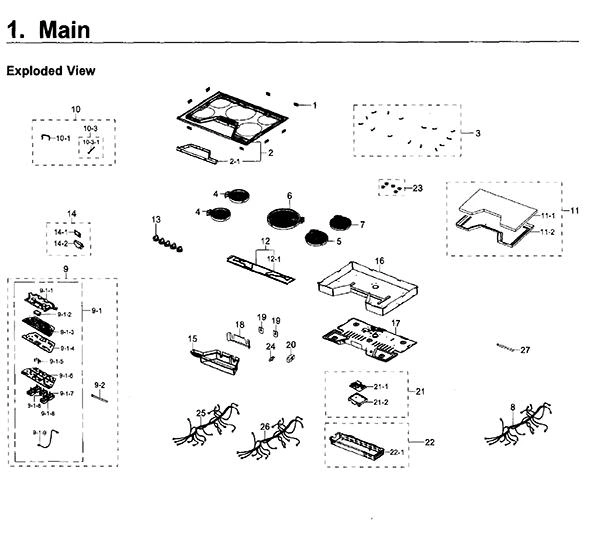

Model Samsung NZ30K6330RG/AA-00 – Common Parts & Diagrams
1
Common parts from model Samsung NZ30K6330RG/AA-00
9-11
Assembly Packing Burner Cap SMG DG67-00122A Contact Us For Availability
9-12
Assembly Nozzle Kit SMG DG61-01124A Contact Us For Availability
9-14
Grate Cent SMG DG61-01118A Contact Us For Availability
9-15
Side Grate SMG DG47-00069A Contact Us For Availability
9-16
Range Surface Burner Grate, Right SMG DG61-01138A Contact Us For Availability
10
Cavity-Coating SMG DG98-01187A Contact Us For Availability
10-3
Range Oven Door Gasket SMG DG97-00087B Contact Us For Availability
11
Burner Bro SMG DG94-01567A Contact Us For Availability
11-1
Holder SMG DG62-00194A Contact Us For Availability
12
Range Oven Light Bulb SMG DG94-01571A Contact Us For Availability
12-1
Brckt Broi SMG DG61-01130A Contact Us For Availability
14
Oven Hinge SMG DG94-01570A Contact Us For Availability
16
Power Cover SMG DG63-00458A Contact Us For Availability
17
Cover SMG DG61-01191A Contact Us For Availability
18
Range Convection Fan Blade SMG DG61-01171A Contact Us For Availability
19
Range Oven Door Outer Panel Pad SMG DG67-00133A Contact Us For Availability
21
Range Oven Door Latch Rod Bracket, Rear SMG DG94-01482A Contact Us For Availability
21-2
Rear Bracket SMG DG61-01123A Contact Us For Availability
22-1
Motor Ac Drive SMG DG63-00463A Contact Us For Availability
24
Holder Pcb SMG DG61-01116A Contact Us For Availability
xx
As SMG DG68-00821A Contact Us For Availability
× ![]()
