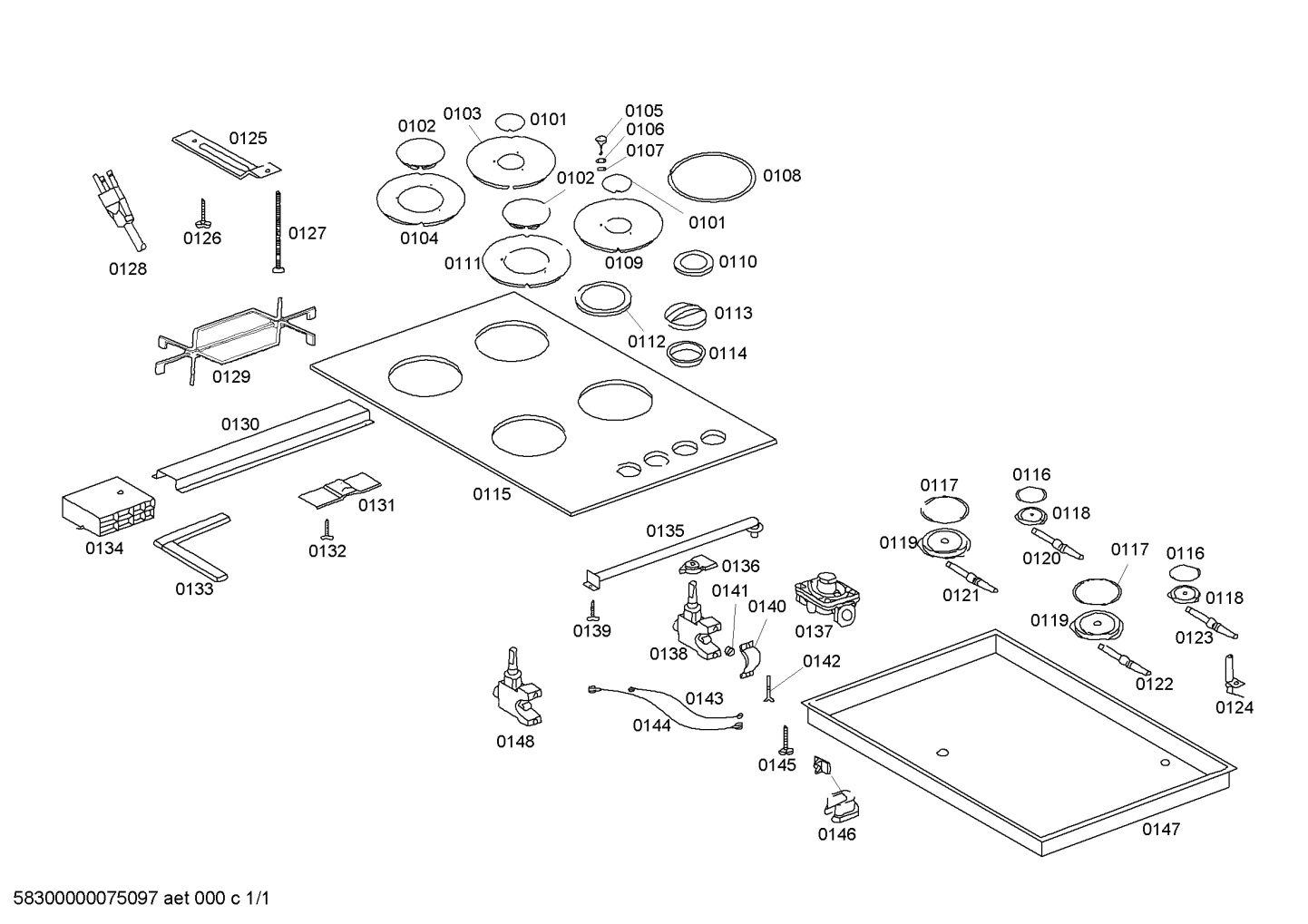

Model Bosch NHT715AUC/01 Range Oven – Common Parts & Diagrams

0102
Burner cap
Burner cap BOS 00421185 Contact Us For Availability
View on Model
0103
Ring
Ring BOS 00421186 Contact Us For Availability
View on Model
0104
Ring
Ring BOS 00421187 Contact Us For Availability
View on Model
0105
Screw
Screw BOS 00421144 Contact Us For Availability
View on Model
0106
Washer
Washer BOS 00421145 Contact Us For Availability
View on Model
0107
Seal
Seal BOS 00421146 Contact Us For Availability
View on Model
0108
Sealing
Sealing BOS 00421189 Contact Us For Availability
View on Model
0109
Ring
Ring BOS 00421190 Contact Us For Availability
View on Model
0110
Burner ring
Burner ring BOS 00421191 Contact Us For Availability
View on Model
0111
Ring
Ring BOS 00421192 Contact Us For Availability
View on Model
0112
Burner ring
Burner ring BOS 00421193 Contact Us For Availability
View on Model
0114
Seal
Seal BOS 00421196 Contact Us For Availability
View on Model
0115
Hob top
Hob top BOS 00471056 Contact Us For Availability
View on Model
0116
Seal
Seal BOS 00421151 Contact Us For Availability
View on Model
0117
Seal
Seal BOS 00491069 Contact Us For Availability
View on Model
0118
Burner
Burner BOS 00421153 Contact Us For Availability
View on Model
0119
Burner
Burner BOS 00491070 Contact Us For Availability
View on Model
0120
Pipe connection piece
Pipe connection piece BOS 00421253 Contact Us For Availability
View on Model
0121
Pipe connection piece
Pipe connection piece BOS 00421254 Contact Us For Availability
View on Model
0122
Pipe connection piece
Pipe connection piece BOS 00421255 Contact Us For Availability
View on Model
0123
Pipe connection piece
Pipe connection piece BOS 00491074 Contact Us For Availability
View on Model
0124
Ignition device
Ignition device BOS 00421156 Contact Us For Availability
View on Model
0125
Bracket
Bracket BOS 00421157 Contact Us For Availability
View on Model
0127
Screw
Screw BOS 00421159 Contact Us For Availability
View on Model
0128
Power cord
Power cord BOS 00421152 Contact Us For Availability
View on Model
0129
Grid
Grid BOS 00491095 Contact Us For Availability
View on Model
0130
Support
Support BOS 00491082 Contact Us For Availability
View on Model
0131
Bracket
Bracket BOS 00421162 Contact Us For Availability
View on Model
0132
Screw
Screw BOS 00421163 Contact Us For Availability
View on Model
0133
Sealing strip
Sealing strip BOS 00421234 Contact Us For Availability
View on Model
0134
Ignition device
Ignition device BOS 00421256 Contact Us For Availability
View on Model
0135
Pipe connection piece
Pipe connection piece BOS 00491119 Contact Us For Availability
View on Model
0136
Ignition device
Ignition device BOS 00421165 Contact Us For Availability
View on Model
0137
Regulator
Regulator BOS 00411327 Contact Us For Availability
View on Model
0138
Valve
Valve BOS 00421166 Contact Us For Availability
View on Model
0139
Screw
Screw BOS 00421164 Contact Us For Availability
View on Model
0140
Clamp
Clamp BOS 00421171 Contact Us For Availability
View on Model
0141
Valve seat
Valve seat BOS 00421170 Contact Us For Availability
View on Model
0142
Screw
Screw BOS 00421172 Contact Us For Availability
View on Model
0143
Ignition cable
Ignition cable BOS 00491092 Contact Us For Availability
View on Model
0144
Ignition cable
Ignition cable BOS 00491093 Contact Us For Availability
View on Model
0145
Screw
Screw BOS 00421158 Contact Us For Availability
View on Model
0146
Stress-relief
Stress-relief BOS 00421183 Contact Us For Availability
View on Model
0147
Housing
Housing BOS 00471057 Contact Us For Availability
View on Model
0148
Valve
Valve BOS 00421167 Contact Us For Availability
View on Model
