Model Maytag MW840BC/XAA MICROWAVE – Common Parts & Diagrams

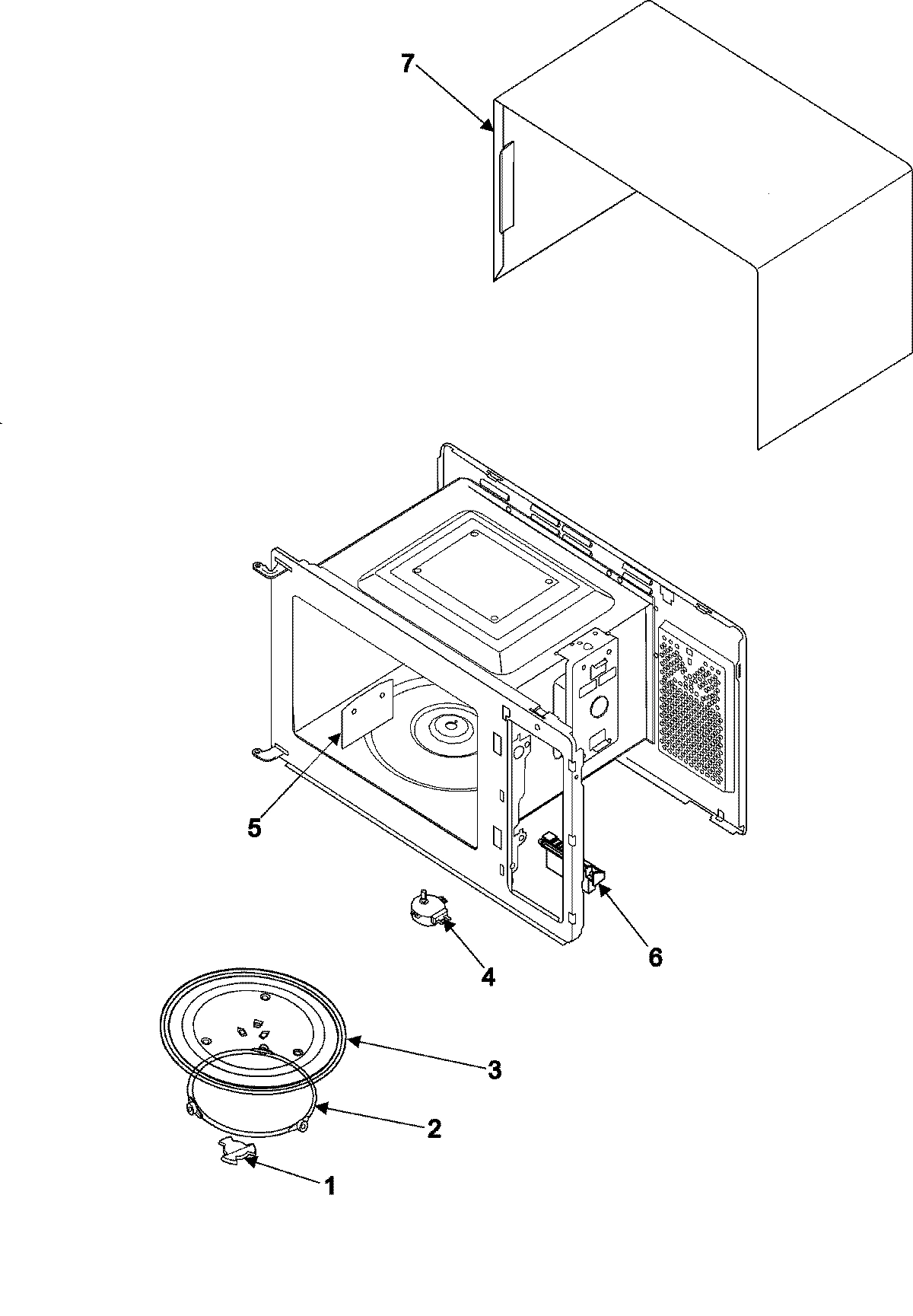

01 - BODY/CAVITY/ELEMENTS

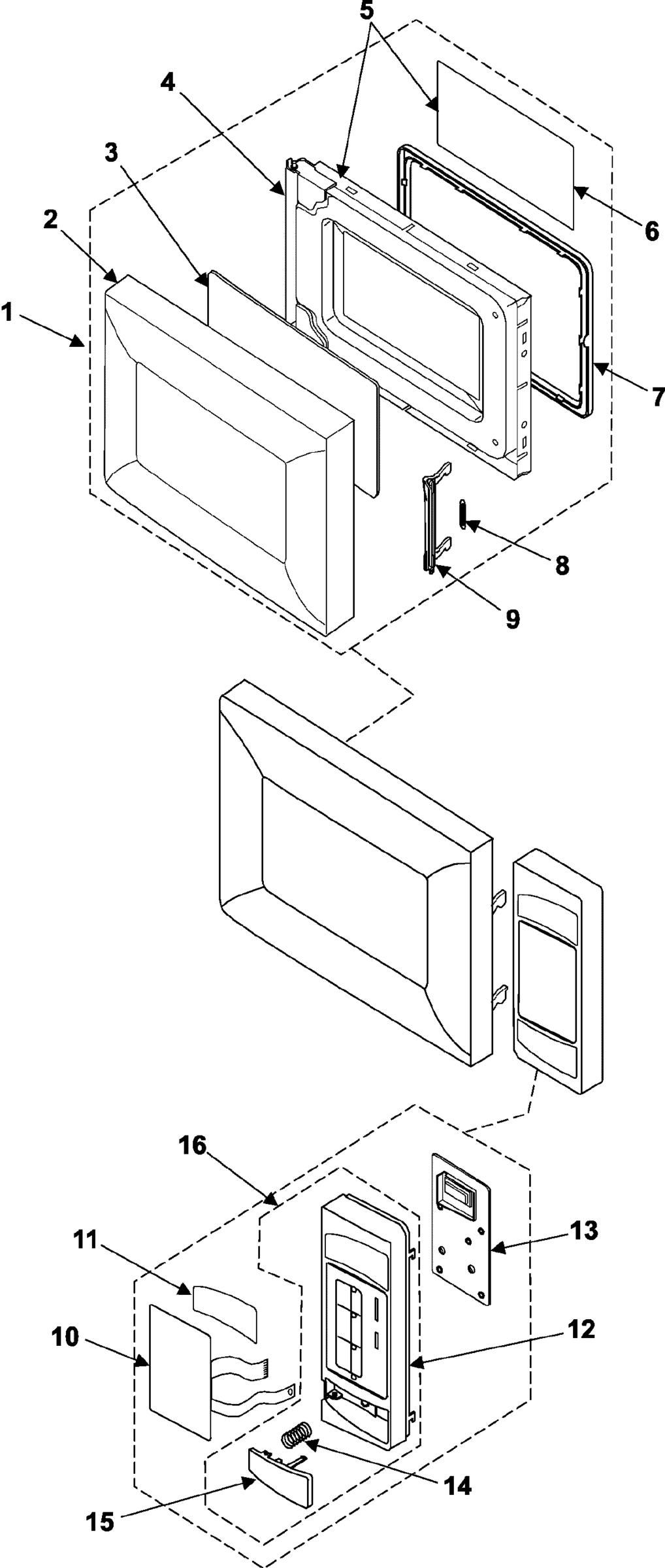

02 - CONTROL PANEL/DOOR ASSEMBLY

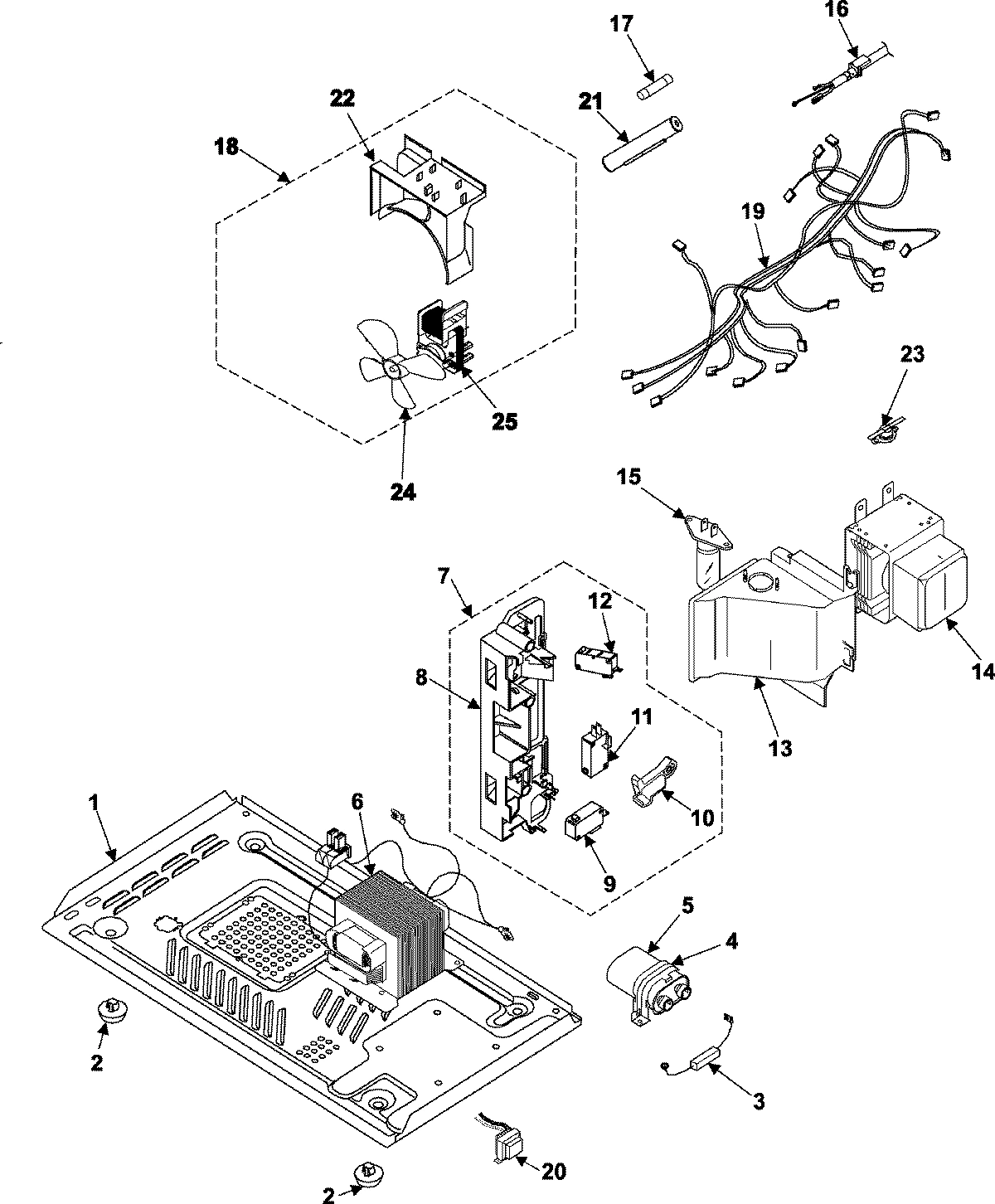

03 - INTERNAL CONTROL/LATCH ASSY/BASE
04 - SUPPLEMENTAL INFORMATION
Common parts from model Maytag MW840BC/XAA MICROWAVE
1
MAY DE80-00023A MAY DE80-00023A Contact Us For Availability
2
FOOT MAY DE61-40066A Contact Us For Availability
4
MOTOR-DRIVE MAY DE31-10154A Contact Us For Availability
4
SEE NOTE BRACKET-HVC CURRENTLY UNAVA MAY Y00000000 Contact Us For Availability
5
MAY DE94-00459A MAY DE94-00459A Contact Us For Availability
6
LEVER-DOOR MAY DE66-90113A Contact Us For Availability
6
MAY DE64-00221B MAY DE64-00221B Contact Us For Availability
6
MAY DE26-00060A MAY DE26-00060A Contact Us For Availability
7
MAY DE64-40008B MAY DE64-40008B Contact Us For Availability
7
MAY DE96-00115A MAY DE96-00115A Contact Us For Availability
8
MAY DE72-00138A MAY DE72-00138A Contact Us For Availability
8
MAY DE61-00198A MAY DE61-00198A Contact Us For Availability
9
MAY DE64-00210A MAY DE64-00210A Contact Us For Availability
9
MAY 3405-001042 MAY 3405-001042 Contact Us For Availability
10
MAY DE34-00141F MAY DE34-00141F Contact Us For Availability
10
MAY DE66-00088A MAY DE66-00088A Contact Us For Availability
11
MAY 3405-001033 MAY 3405-001033 Contact Us For Availability
11
MAY DE64-00533A MAY DE64-00533A Contact Us For Availability
12
MAY DE64-00534B MAY DE64-00534B Contact Us For Availability
13
MAY RA-22LED-53 MAY RA-22LED-53 Contact Us For Availability
13
MAY DE71-60457B MAY DE71-60457B Contact Us For Availability
15
MAY DE64-00532B MAY DE64-00532B Contact Us For Availability
16
MAY DE39-20146E MAY DE39-20146E Contact Us For Availability
17
MAY 3601-001197 MAY 3601-001197 Contact Us For Availability
19
MAY DE39-00269A MAY DE39-00269A Contact Us For Availability
20
MAY DE26-00037A MAY DE26-00037A Contact Us For Availability
22
MAY DE71-00148A MAY DE71-00148A Contact Us For Availability
NI
MAY SAM0041 MAY SAM0041 Contact Us For Availability
× ![]()
