Model Bosch MBBW/01 Microwave – Common Parts & Diagrams
Diagram 1
Diagram 2

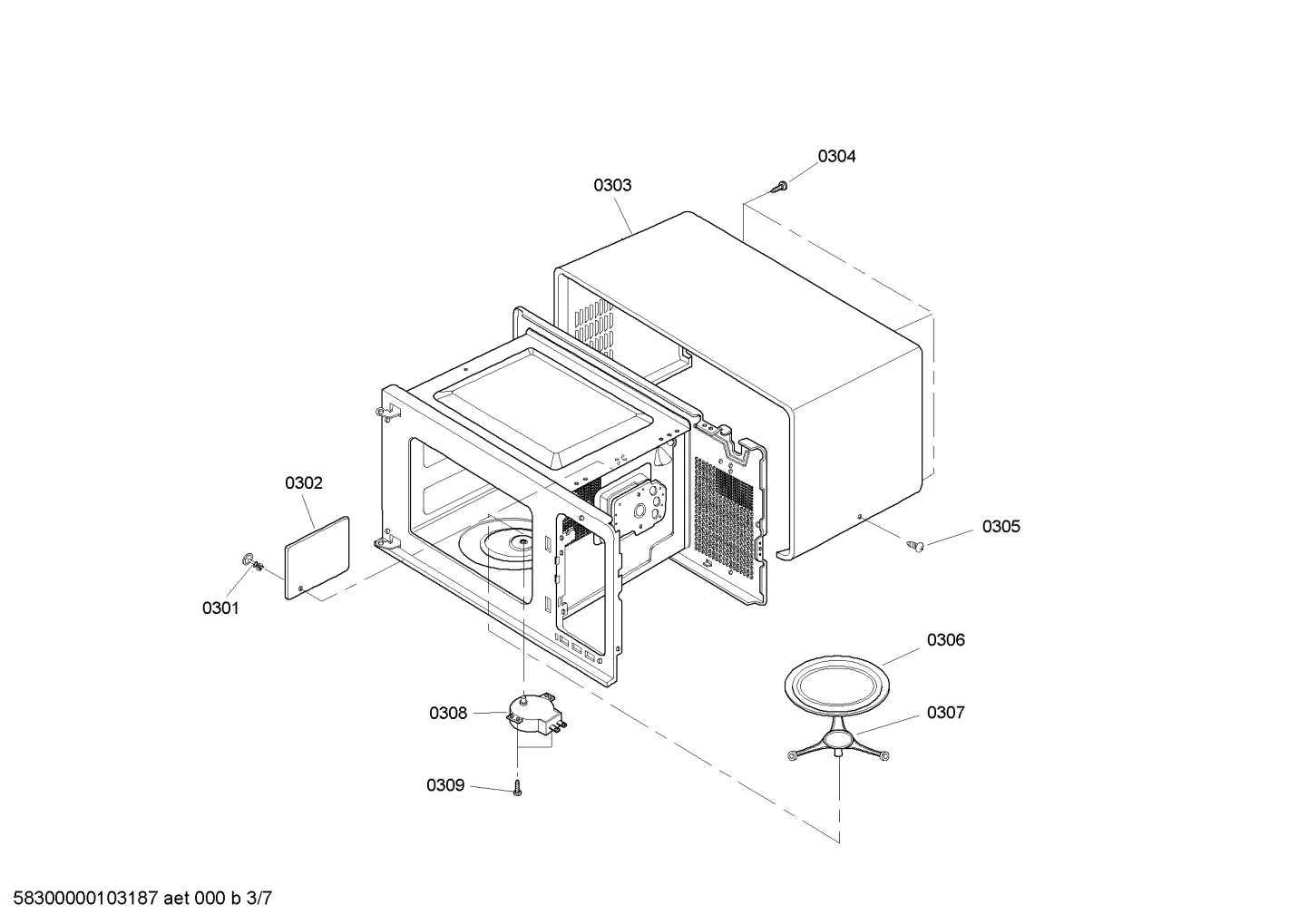

Diagram 3

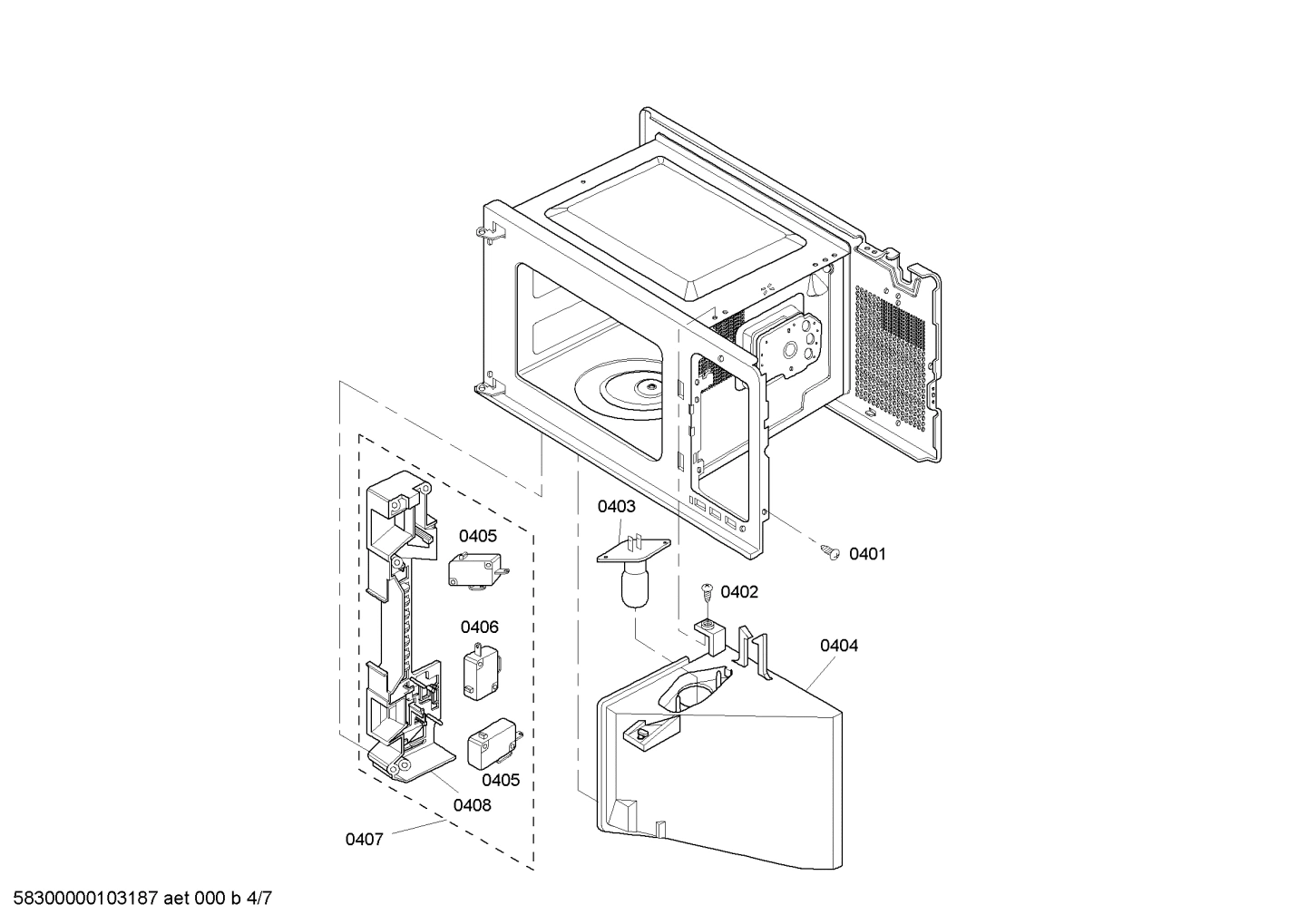

Diagram 4

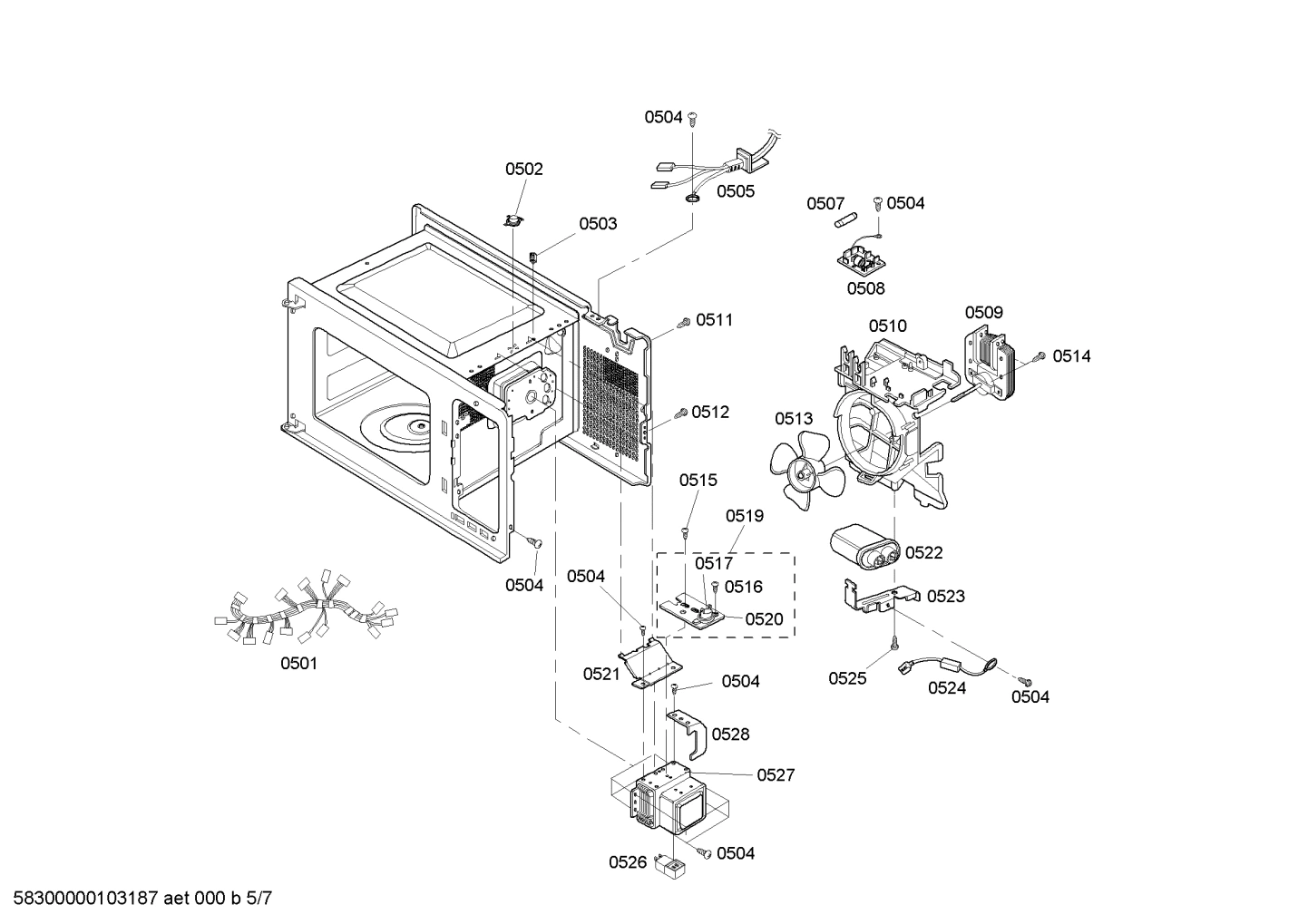

Diagram 5

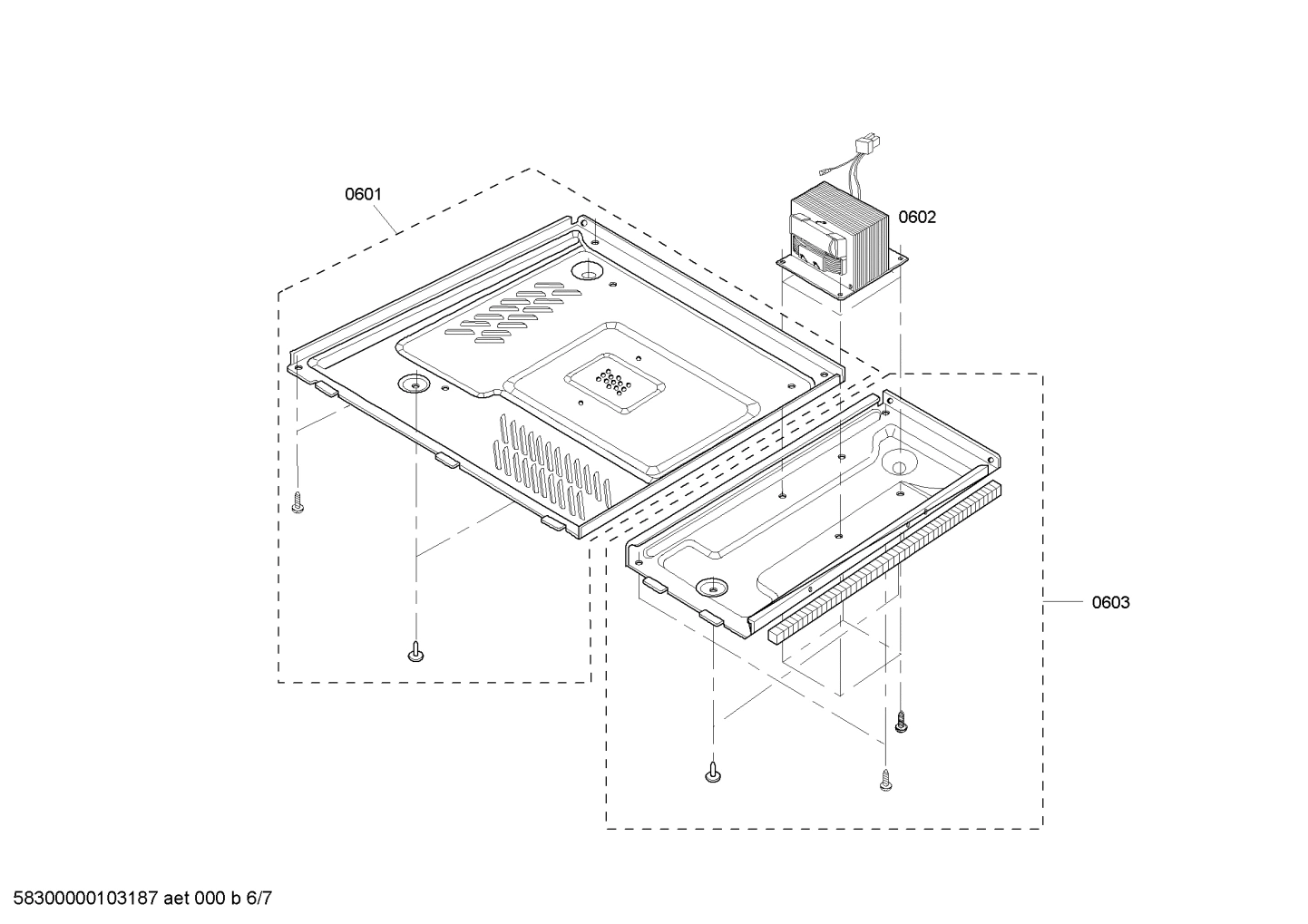

Diagram 6

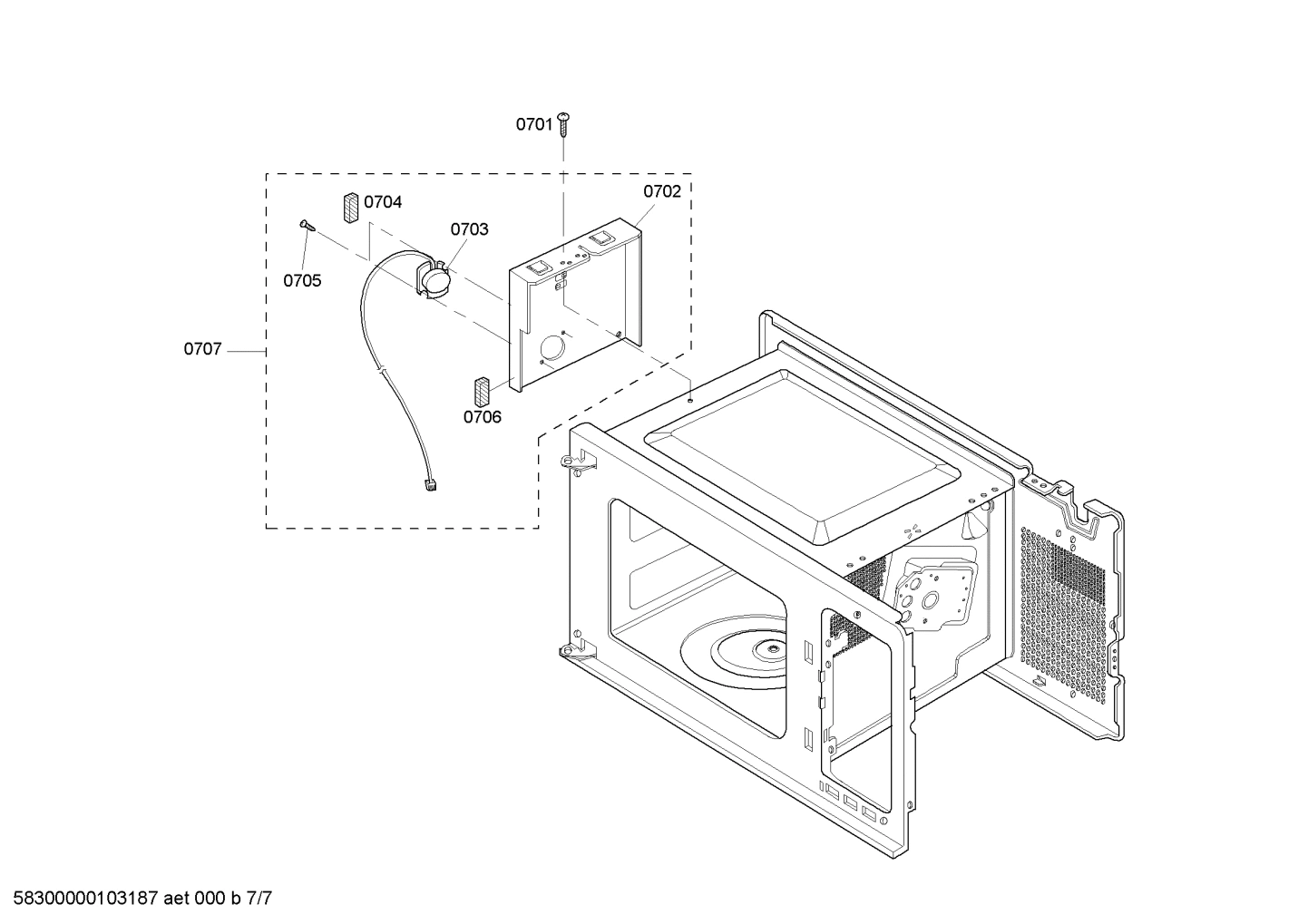

Diagram 7
Common parts from model Bosch MBBW/01 Microwave
0103
Frame BOS 00144395 Contact Us For Availability
0105
Insulating tape BOS 00491129 Contact Us For Availability
0107
Spring BOS 00421266 Contact Us For Availability
0301
Rivet BOS 00421304 Contact Us For Availability
0302
Cover BOS 00491133 Contact Us For Availability
0306
Glass tray BOS 00491157 Contact Us For Availability
0307
Rotating Ring Assembly BOS 00499551 Contact Us For Availability
0308
Motor BOS 00183579 Contact Us For Availability
0403
Lamp BOS 00421309 Contact Us For Availability
0408
Support BOS 00482135 Contact Us For Availability
0508
Filter BOS 00421347 Contact Us For Availability
0517
Temperature sensor BOS 00417862 Contact Us For Availability
0519
Limiter-temperature BOS 00421431 Contact Us For Availability
0520
Plate BOS 00417860 Contact Us For Availability
0521
Bracket BOS 00421342 Contact Us For Availability
0522
Capacitor BOS 00421344 No Longer Available
0523
Holder BOS 00152969 Contact Us For Availability
0524
Diode BOS 00417726 No Longer Available
0525
Screw BOS 00421362 Contact Us For Availability
0526
Filter module BOS 00171387 Contact Us For Availability
0528
Spacer BOS 00421581 Contact Us For Availability
0601
Base BOS 00435380 Contact Us For Availability
0602
Transformer-high voltage BOS 00491161 Contact Us For Availability
0603
Base BOS 00435381 Contact Us For Availability
0650
Base BOS 00435379 Contact Us For Availability
0701
Screw BOS 00421361 Contact Us For Availability
0702
Bracket BOS 00421350 Contact Us For Availability
0704
Filter foam BOS 00421352 Contact Us For Availability
0705
Screw BOS 00421353 Contact Us For Availability
0707
Sensor BOS 00491231 Contact Us For Availability
0750
Microwave oven BOS 00240772 Contact Us For Availability
× ![]()
