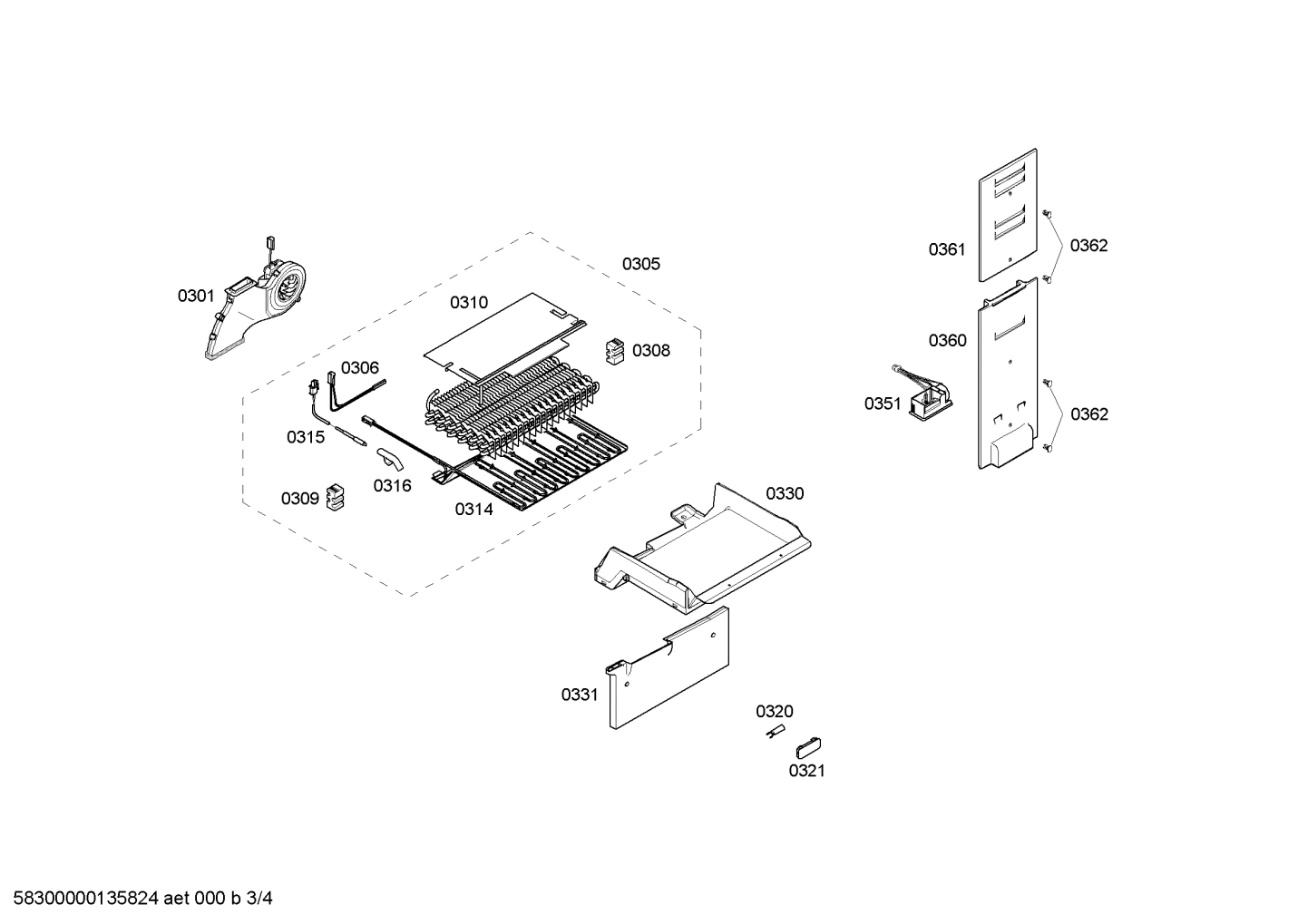

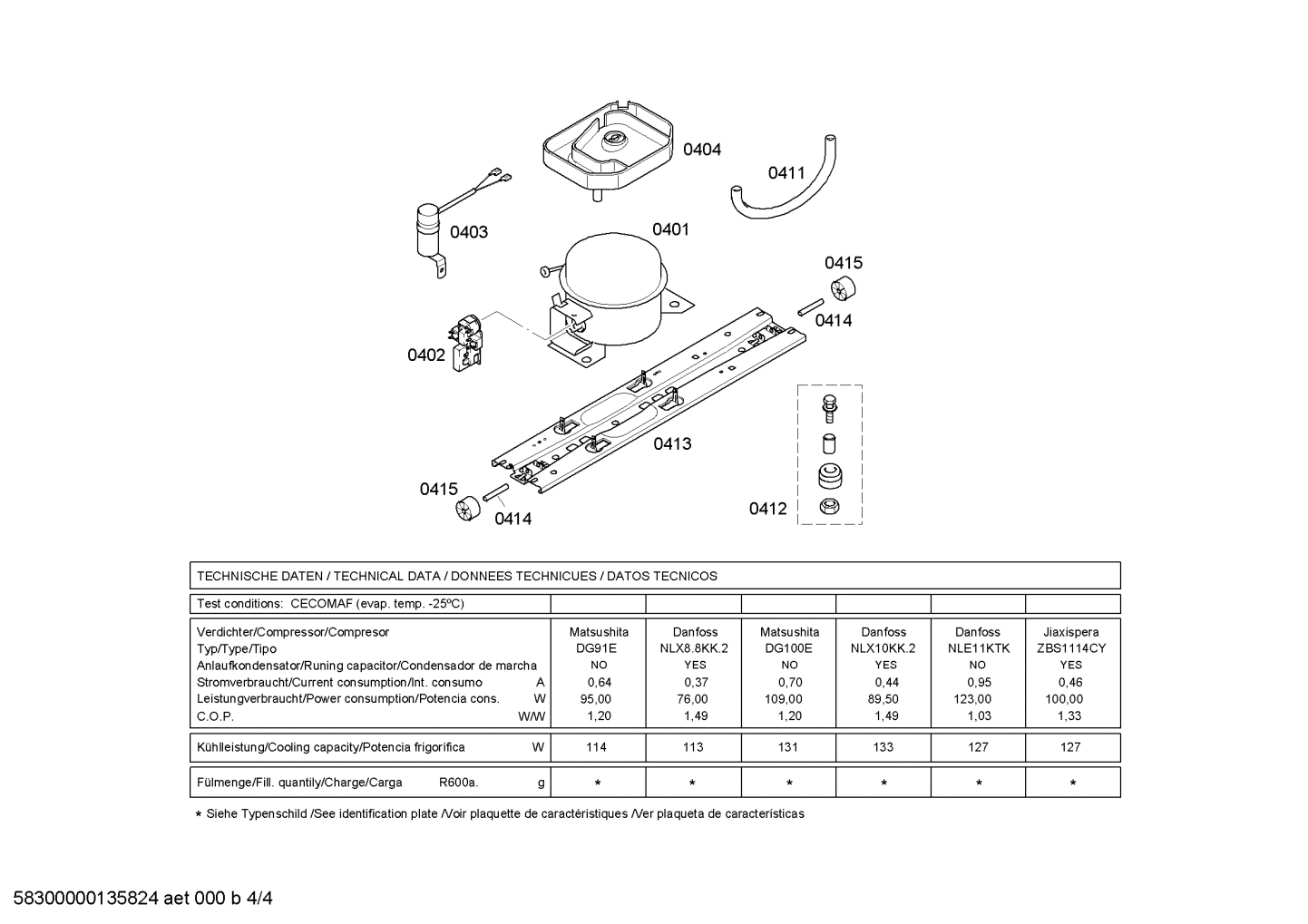

Model Bosch KGN36A04/01 Fridge Freezer – Common Parts & Diagrams

0102
Dryer
Dryer BOS 00093110 Contact Us For Availability
View on Model
0103
Shock absorber
Shock absorber BOS 00605361 Contact Us For Availability
View on Model
0113
Sensor-NTC
Sensor-NTC BOS 00168766 Contact Us For Availability
View on Model
0126
Lamp
Lamp BOS 00602674 Contact Us For Availability
View on Model
0133
Foot
Foot BOS 00611357 Contact Us For Availability
View on Model
0146
Door bearing
Door bearing BOS 00613181 Contact Us For Availability
View on Model
0214
Screw
Screw BOS 00601355 Contact Us For Availability
View on Model
0219
Stop
Stop BOS 00613199 Contact Us For Availability
View on Model
0306
Fuse-thermal
Fuse-thermal BOS 00615792 Contact Us For Availability
View on Model
0310
Plate
Plate BOS 00479167 Contact Us For Availability
View on Model
0321
Cover
Cover BOS 00169176 Contact Us For Availability
View on Model
0331
Back panel
Back panel BOS 00660763 Contact Us For Availability
View on Model
0361
Ventilation duct
Ventilation duct BOS 00667753 Contact Us For Availability
View on Model
0362
Screw
Screw BOS 00604917 Contact Us For Availability
View on Model
0412
Fixing kit
Fixing kit BOS 00427279 Contact Us For Availability
View on Model
0413
Holder
Holder BOS 00666332 Contact Us For Availability
View on Model
0414
Axis
Axis BOS 00152770 Contact Us For Availability
View on Model
0415
Wheel
Wheel BOS 00031961 Contact Us For Availability
View on Model
