Model Bosch KAN58A70/06 Fridge Freezer – Common Parts & Diagrams
Diagram 1
Diagram 2

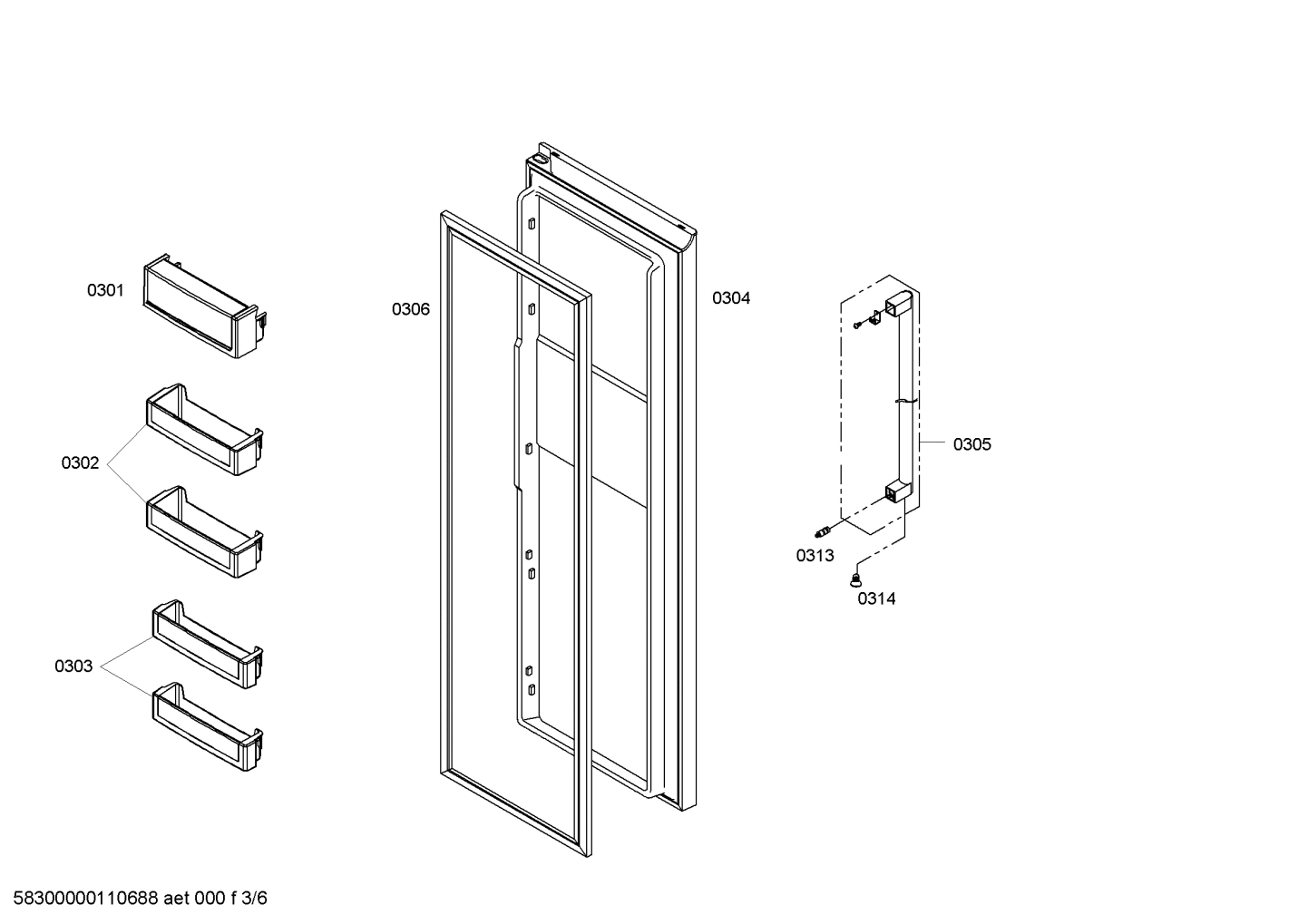

Diagram 3

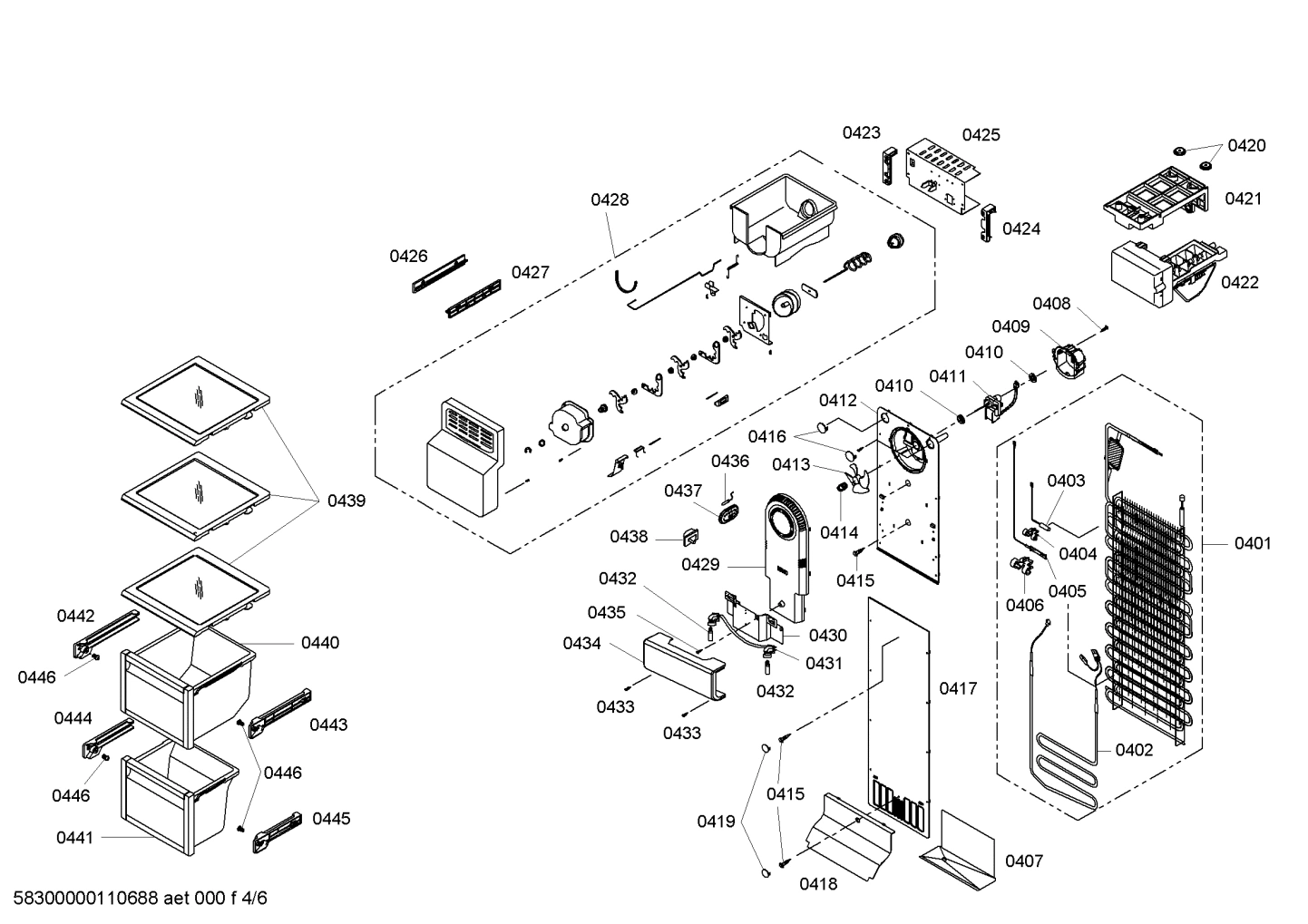

Diagram 4

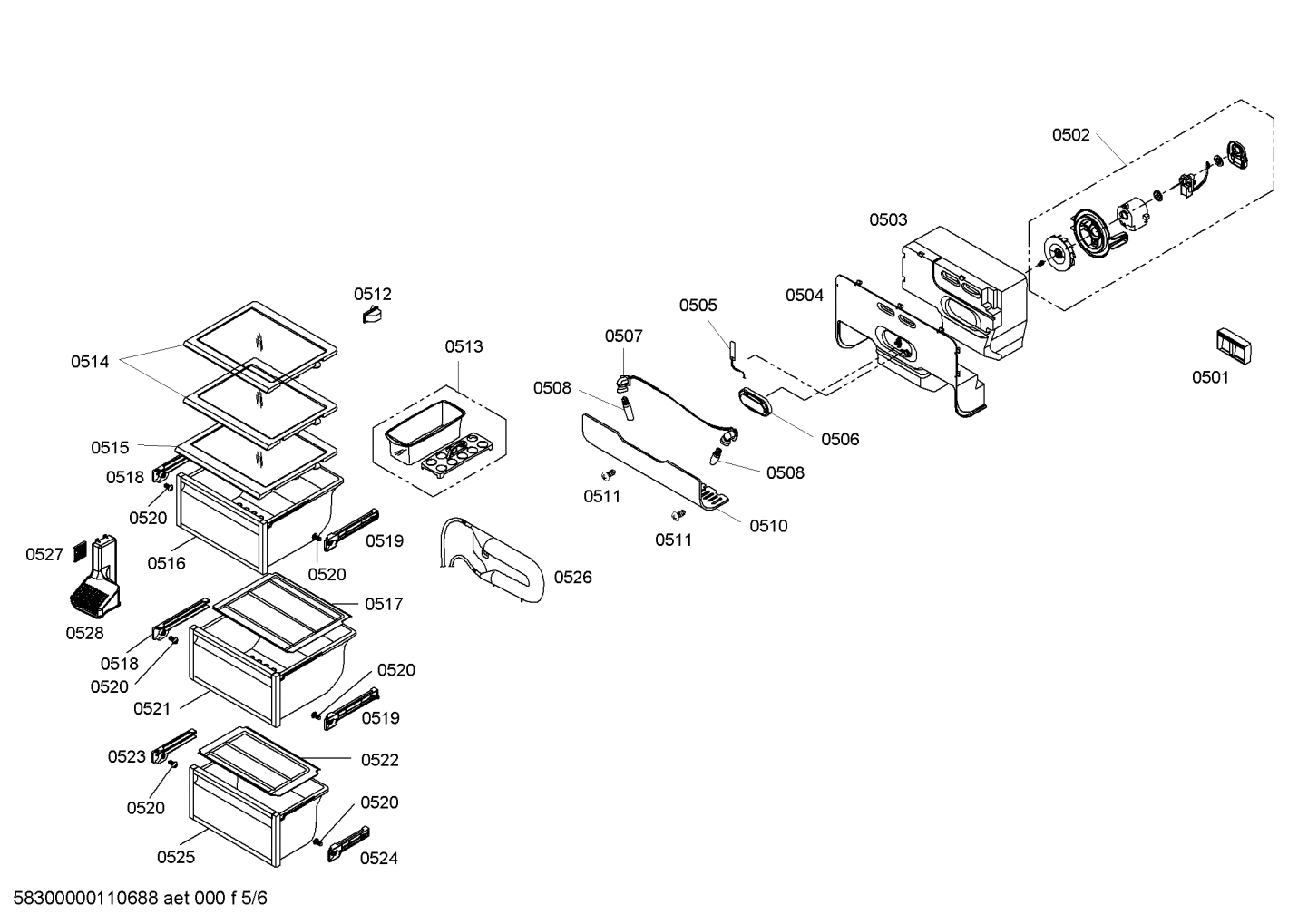

Diagram 5

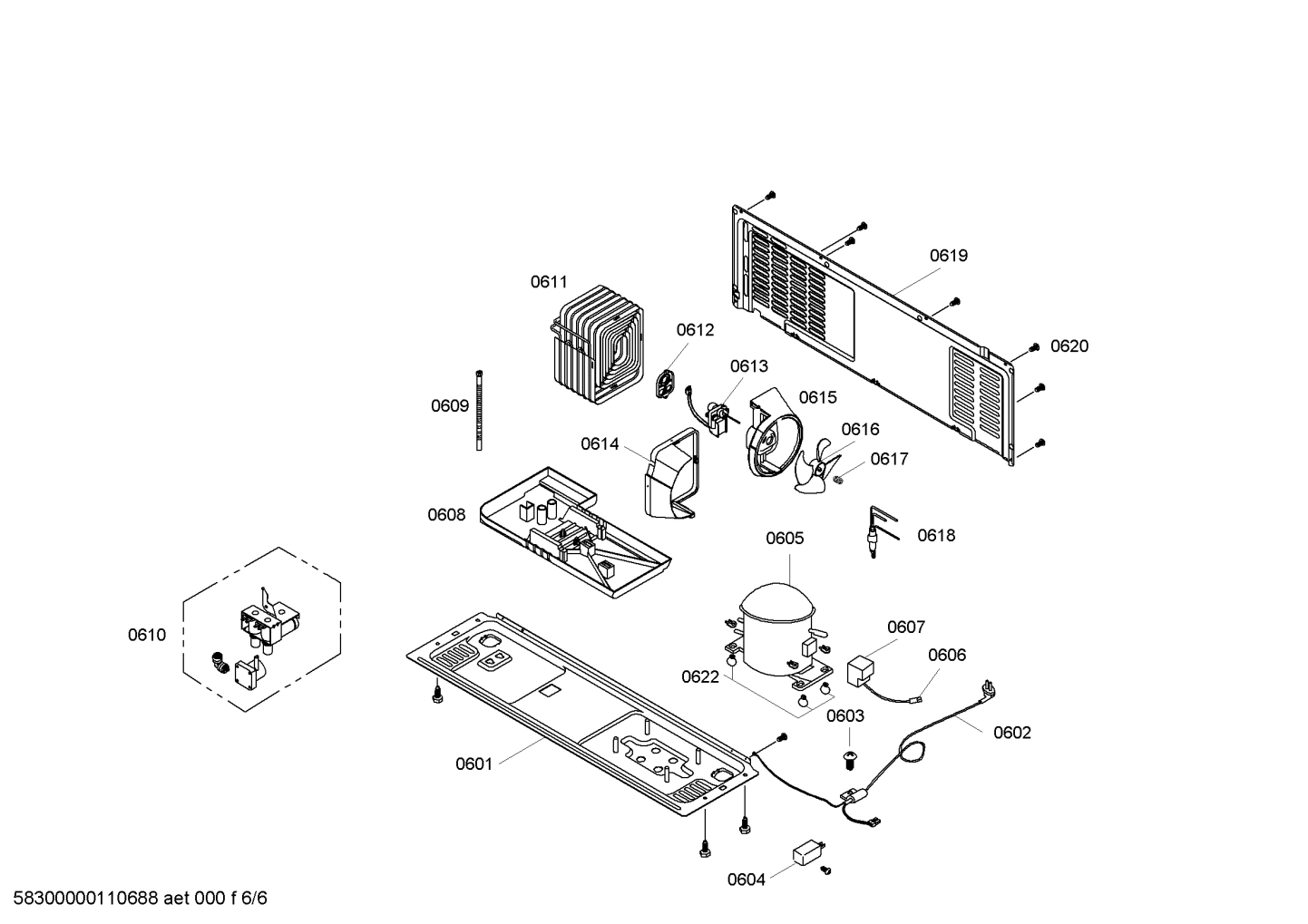

Diagram 6
Common parts from model Bosch KAN58A70/06 Fridge Freezer
0111
Hose-fill BOS 12015217 Contact Us For Availability
0120
Connection piece BOS 00600995 Contact Us For Availability
0122
Screw BOS 00600998 Contact Us For Availability
0201
Tray BOS 00446038 Contact Us For Availability
0209
Lamp BOS 00602674 Contact Us For Availability
0211
Panel BOS 00446127 Contact Us For Availability
0214
Holder BOS 00601296 Contact Us For Availability
0216
Switch BOS 00601302 Contact Us For Availability
0219
Grid BOS 00644816 Contact Us For Availability
0220
Frame BOS 00497892 Contact Us For Availability
0221
Seal-door BOS 00243391 Contact Us For Availability
0302
Tray BOS 00446135 Contact Us For Availability
0314
Screw BOS 00601244 Contact Us For Availability
0403
Sensor BOS 00601059 Contact Us For Availability
0410
Damper BOS 00601066 Contact Us For Availability
0411
Fan motor BOS 00601067 Contact Us For Availability
0417
Cover BOS 00446013 Contact Us For Availability
0424
Rail BOS 00601076 Contact Us For Availability
0429
Cover BOS 00446023 Contact Us For Availability
0432
Lamp BOS 00170218 Contact Us For Availability
0437
Cover BOS 00601088 Contact Us For Availability
0439
Glass plate BOS 00446034 Contact Us For Availability
0501
Frame BOS 00601042 Contact Us For Availability
0514
Glass plate BOS 11047379 Contact Us For Availability
0515
Glass plate BOS 11047378 Contact Us For Availability
0516
Vegetable container BOS 00705814 Contact Us For Availability
0517
Cover BOS 11007411 Contact Us For Availability
0521
Vegetable container BOS 00445990 Contact Us For Availability
0522
Cover BOS 00445995 Contact Us For Availability
0525
Vegetable container BOS 00705817 Contact Us For Availability
0528
Cover BOS 00497860 Contact Us For Availability
0601
Support BOS 00475594 Contact Us For Availability
0608
Salver BOS 00445947 Contact Us For Availability
0609
Outlet hose BOS 00497829 Contact Us For Availability
0613
Fan motor BOS 00601016 Contact Us For Availability
0615
Housing BOS 00497837 Contact Us For Availability
0618
Dryer BOS 00093110 Contact Us For Availability
0619
Back panel BOS 00475605 Contact Us For Availability
0620
Screw BOS 00600979 Contact Us For Availability
× ![]()
