Bosch KAD62V00/03 Fridge Freezer Parts List

0109

Push button switch BOS 00174364 No Longer Available

View on Model

0110

Door hinge BOS 00612224 Contact Us For Availability

View on Model

0111

00612225 Bosch Refrigerator Door Hinge Backorder BOS 00612225 $32.03

View on Model

0112

00612791 Bosch Refrigerator Adjusting Screw In Stock BOS 00612791 $10.98

View on Model

0113

00612789 Bosch Refrigerator Screw Backorder BOS 00612789 $3.66

View on Model

0114

Rubber foot BOS 00612790 Contact Us For Availability

View on Model

0118

00647490 Bosch Refrigerator Control Module In Stock BOS 00647490 $209.82

View on Model

0121

Hose connection inlet BOS 00632034 Contact Us For Availability

View on Model

0125

Cover BOS 00615386 Contact Us For Availability

View on Model

0129

Door bearing BOS 00615892 Contact Us For Availability

View on Model

0199

00616387 Bosch Refrigerator Retaining Washer Backorder BOS 00616387 $4.58

View on Model

0201

Tray BOS 00674274 Contact Us For Availability

View on Model

0202

Tray BOS 00671184 Contact Us For Availability

View on Model

0203

Tray BOS 00671182 Contact Us For Availability

View on Model

0205

Seal-door BOS 00710413 Contact Us For Availability

View on Model

0207

Cooling accu BOS 00646941 Contact Us For Availability

View on Model

0215

00654160 Bosch Refrigerator Damper In Stock BOS 00654160 $265.76

View on Model

0216

00647484 Bosch Freezer Display Module Backorder BOS 00647484 $430.32

View on Model

0217

00615388 Bosch Refrigerator Outlet Backorder BOS 00615388 $8.24

View on Model

0218

00654153 Bosch Refrigerator Support Backorder BOS 00654153 $80.55

View on Model

0219

00646943 Bosch Refrigerator Worktop Backorder BOS 00646943 $20.13

View on Model

0220

00649769 Bosch Refrigerator Tube Backorder BOS 00649769 $18.30

View on Model

0222

Switch BOS 00607712 Contact Us For Availability

View on Model

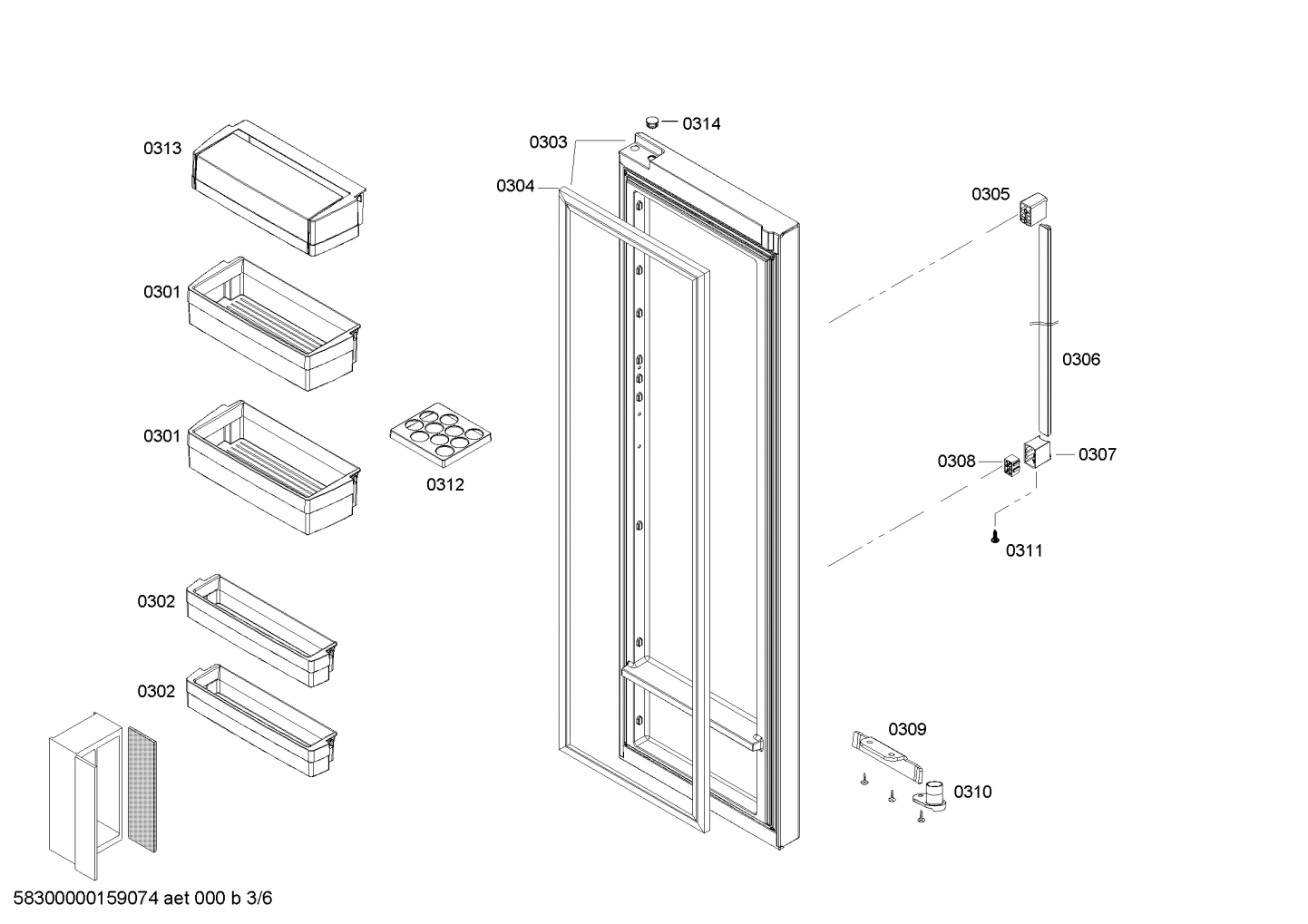

0301

00671179 Bosch Refrigerator Tray In Stock BOS 00671179 $57.92

View on Model

0302

Tray BOS 00671181 Contact Us For Availability

View on Model

0309

00623346 Bosch Refrigerator Stop Backorder BOS 00623346 $19.22

View on Model

0310

00611904 Bosch Refrigerator Door Bearing In Stock BOS 00611904 $12.81

View on Model

0312

Egg Container BOS 00613586 Contact Us For Availability

View on Model

0313

Tray BOS 00671180 Contact Us For Availability

View on Model

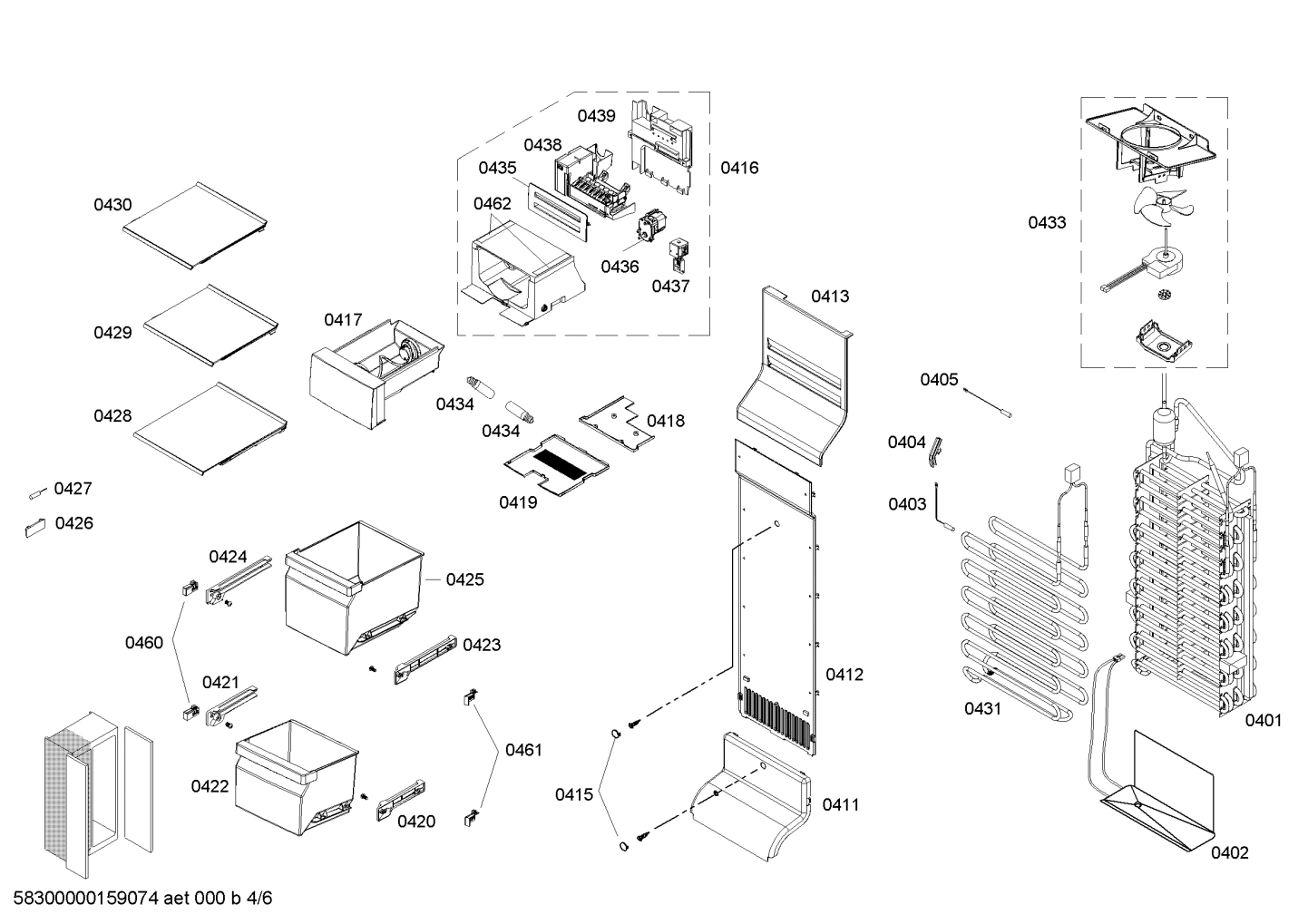

0412

Cover BOS 00249316 Contact Us For Availability

View on Model

0413

Cover BOS 00672958 Contact Us For Availability

View on Model

0417

00673127 Bosch Refrigerator Ice Crusher Backorder BOS 00673127 $300.08

View on Model

0423

Rail BOS 12009453 Contact Us For Availability

View on Model

0424

Rail BOS 12009454 Contact Us For Availability

View on Model

0425

Drawer BOS 00798907 Contact Us For Availability

View on Model

0426

Cover BOS 00352963 Contact Us For Availability

View on Model

0428

Glass plate BOS 00669804 Contact Us For Availability

View on Model

0429

Shelf BOS 00674276 Contact Us For Availability

View on Model

0430

Shelf BOS 00674275 Contact Us For Availability

View on Model

0433

00647519 Bosch Refrigerator Fan Backorder BOS 00647519 $129.94

View on Model

0435

00675265 Bosch Refrigerator Flap Backorder BOS 00675265 $20.13

View on Model

0460

Clip BOS 00620044 Contact Us For Availability

View on Model

0461

Clip BOS 00620045 Contact Us For Availability

View on Model

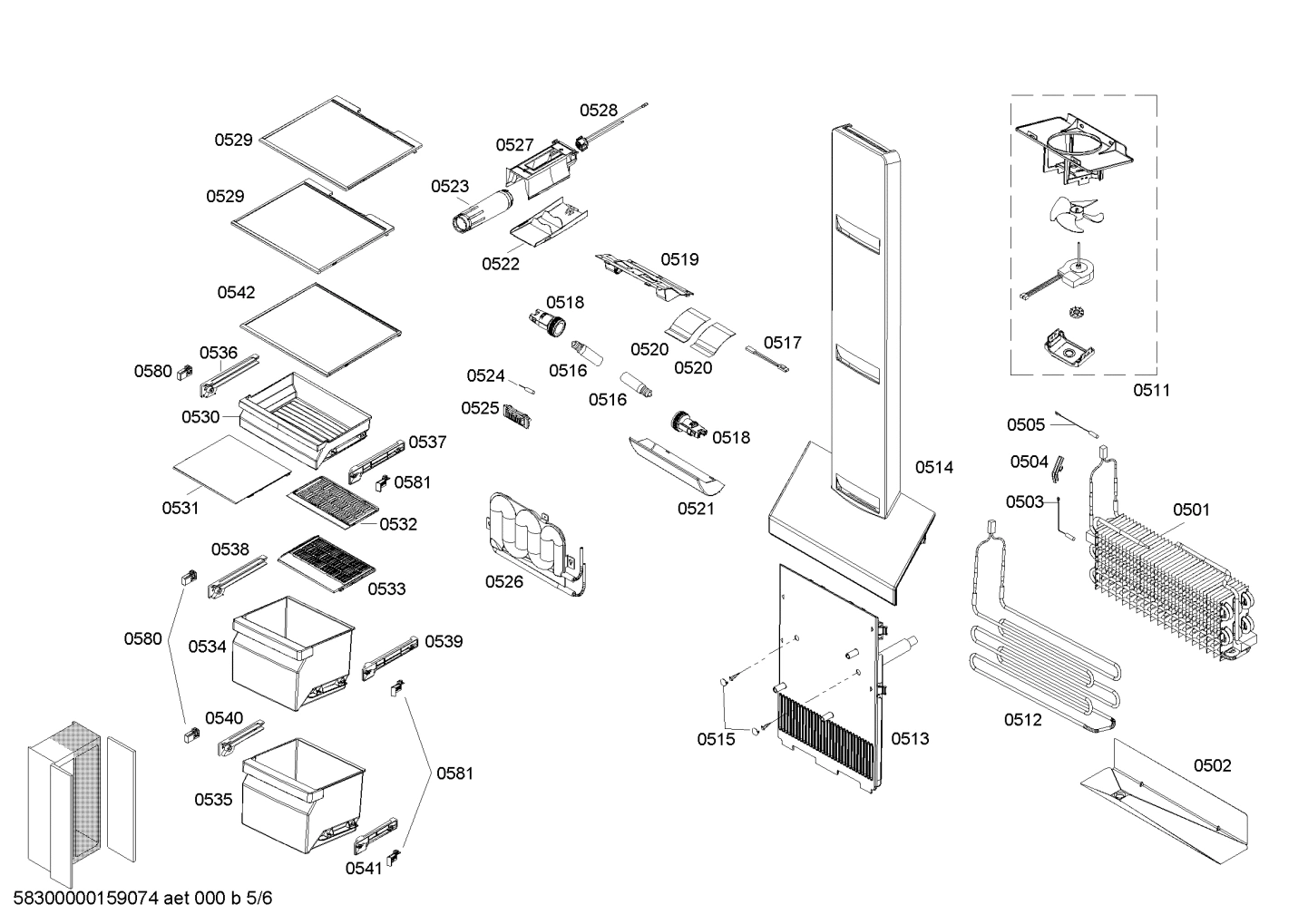

0503

00612240 Bosch Refrigerator Evaporator Temper In Stock BOS 00612240 $57.02

View on Model

0511

00647520 Bosch Refrigerator Fan Backorder BOS 00647520 $129.94

View on Model

0513

00670060 Bosch Refrigerator Cover Backorder BOS 00670060 $106.79

View on Model

0517

Lighting-unit BOS 00612236 Contact Us For Availability

View on Model

0524

00612819 Bosch Refrigerator Chamber Temperatu Backorder BOS 00612819 $47.58

View on Model

0525

Cover BOS 00615390 Contact Us For Availability

View on Model

0526

Tank BOS 00672953 Contact Us For Availability

View on Model

0527

00672002 Bosch Refrigerator Support Backorder BOS 00672002 $19.22

View on Model

0528

00615389 Bosch Refrigerator Hose In Stock BOS 00615389 $196.24

View on Model

0529

Glass plate BOS 00669806 Contact Us For Availability

View on Model

0530

Drawer BOS 00248095 Contact Us For Availability

View on Model

0531

Glass plate BOS 00669805 Contact Us For Availability

View on Model

0532

Filter BOS 00646951 Contact Us For Availability

View on Model

0535

Vegetable container BOS 00247382 Contact Us For Availability

View on Model

0536

Rail BOS 12009456 Contact Us For Availability

View on Model

0537

12009455 Bosch Refrigerator Rail Backorder BOS 12009455 $85.98

View on Model

0539

11008131 Bosch Refrigerator Rail Backorder BOS 11008131 $74.21

View on Model

0540

11000562 Bosch Refrigerator Rail Backorder BOS 11000562 $62.45

View on Model

0541

11000563 Bosch Refrigerator Rail Backorder BOS 11000563 $62.45

View on Model

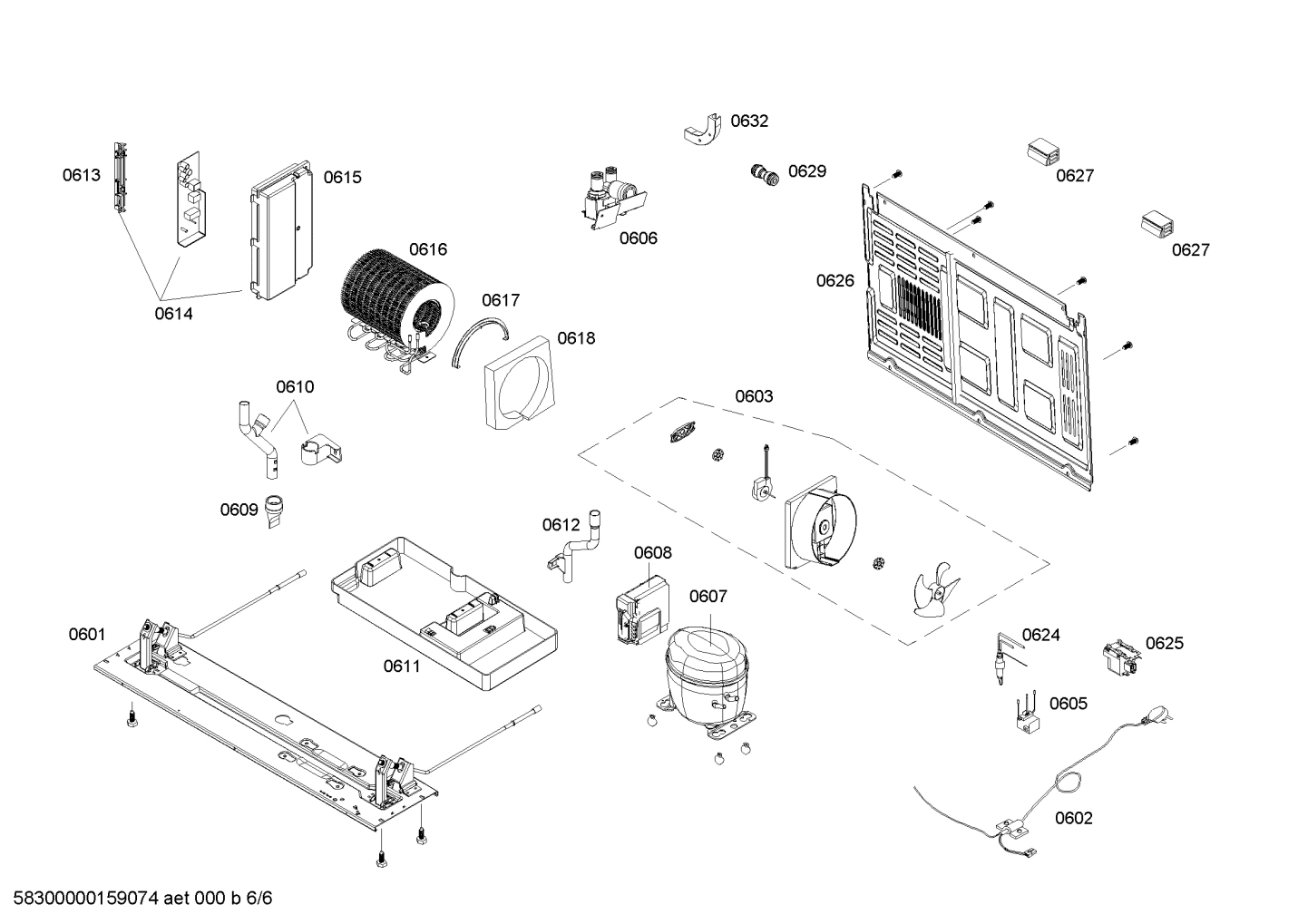

0603

00647518 Bosch Refrigerator Fan Backorder BOS 00647518 $134.55

View on Model

0609

Drain gutter BOS 00623870 Contact Us For Availability

View on Model

0610

Outlet hose BOS 12014409 Contact Us For Availability

View on Model

0611

00645713 Bosch Refrigerator Shelf Backorder BOS 00645713 $47.58

View on Model

0616

12012163 Bosch Refrigerator Condenser Backorder BOS 12012163 $145.07

View on Model

0617

Fixture BOS 00645709 Contact Us For Availability

View on Model

0624

00645714 Bosch Refrigerator Dryer In Stock BOS 00645714 $43.92

View on Model

0625

Capacitor-interference suppre. BOS 00623842 Contact Us For Availability

View on Model

0626

00680772 Bosch Refrigerator Back Panel Backorder BOS 00680772 $56.11

View on Model

Model Bosch KAD62V00/03 Fridge Freezer – Common Parts & Diagrams

Common parts from model Bosch KAD62V00/03 Fridge Freezer
