Model Bosch KAD62V00/01 Fridge Freezer – Common Parts & Diagrams
Diagram 1
Diagram 2

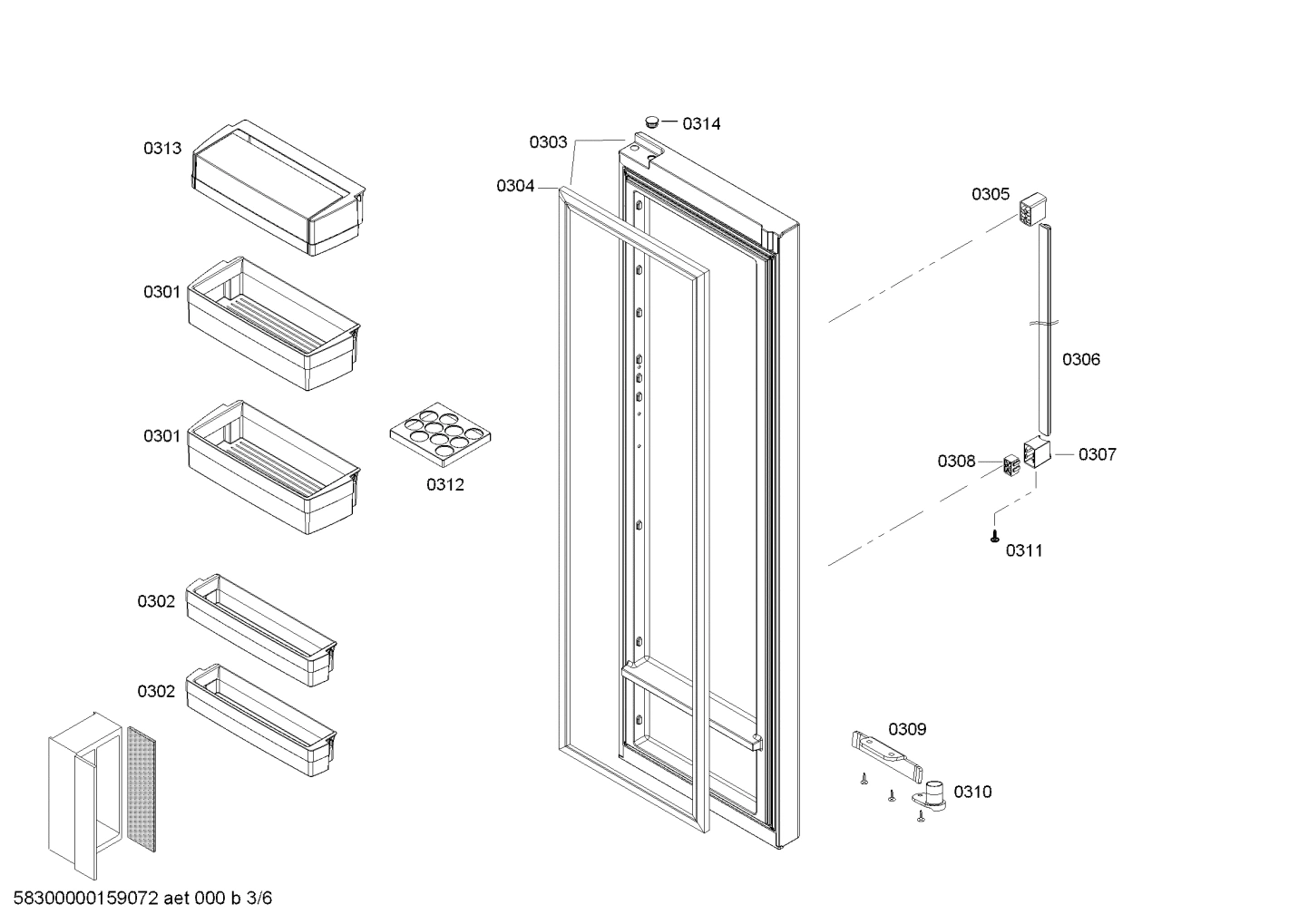

Diagram 3

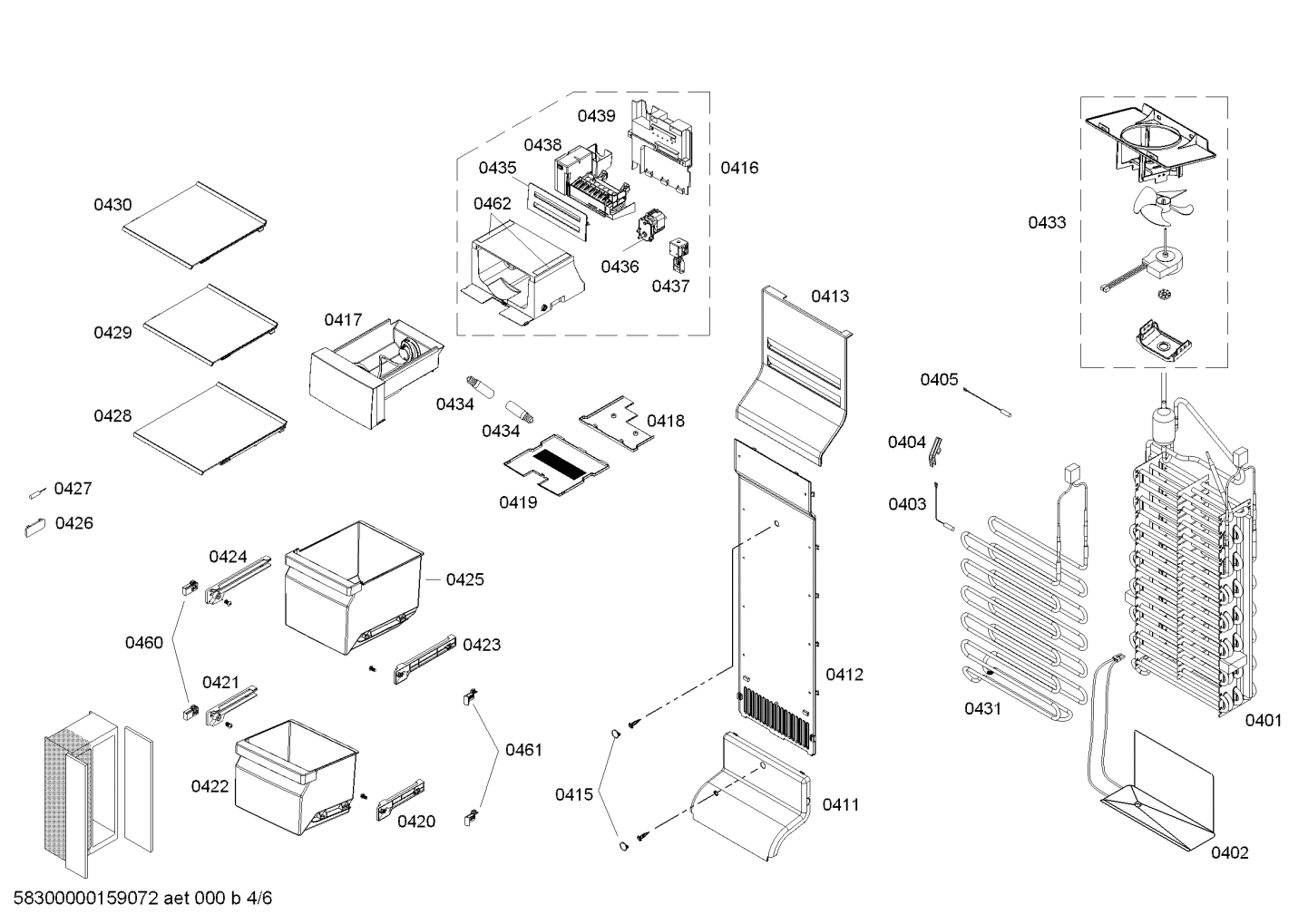

Diagram 4

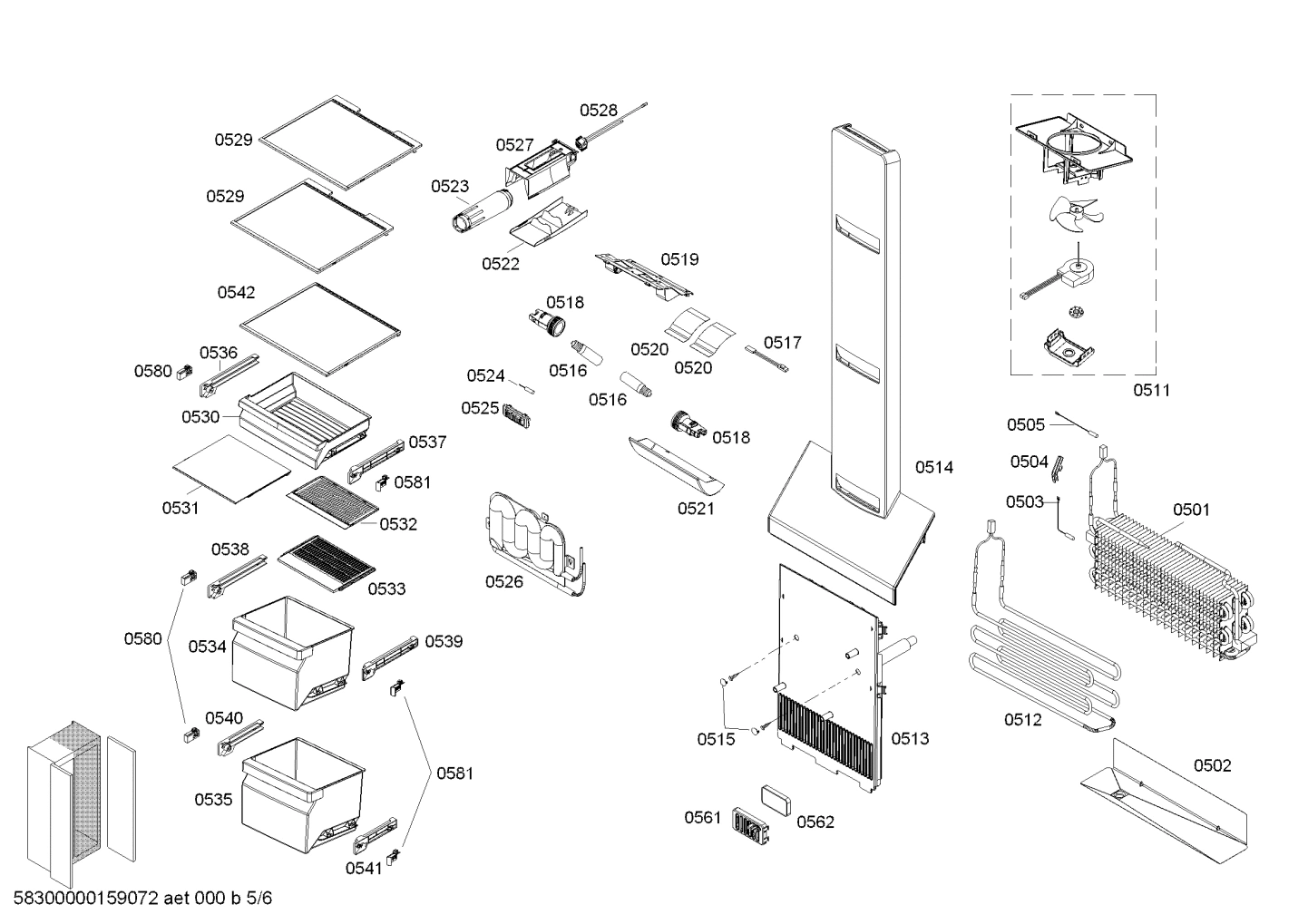

Diagram 5

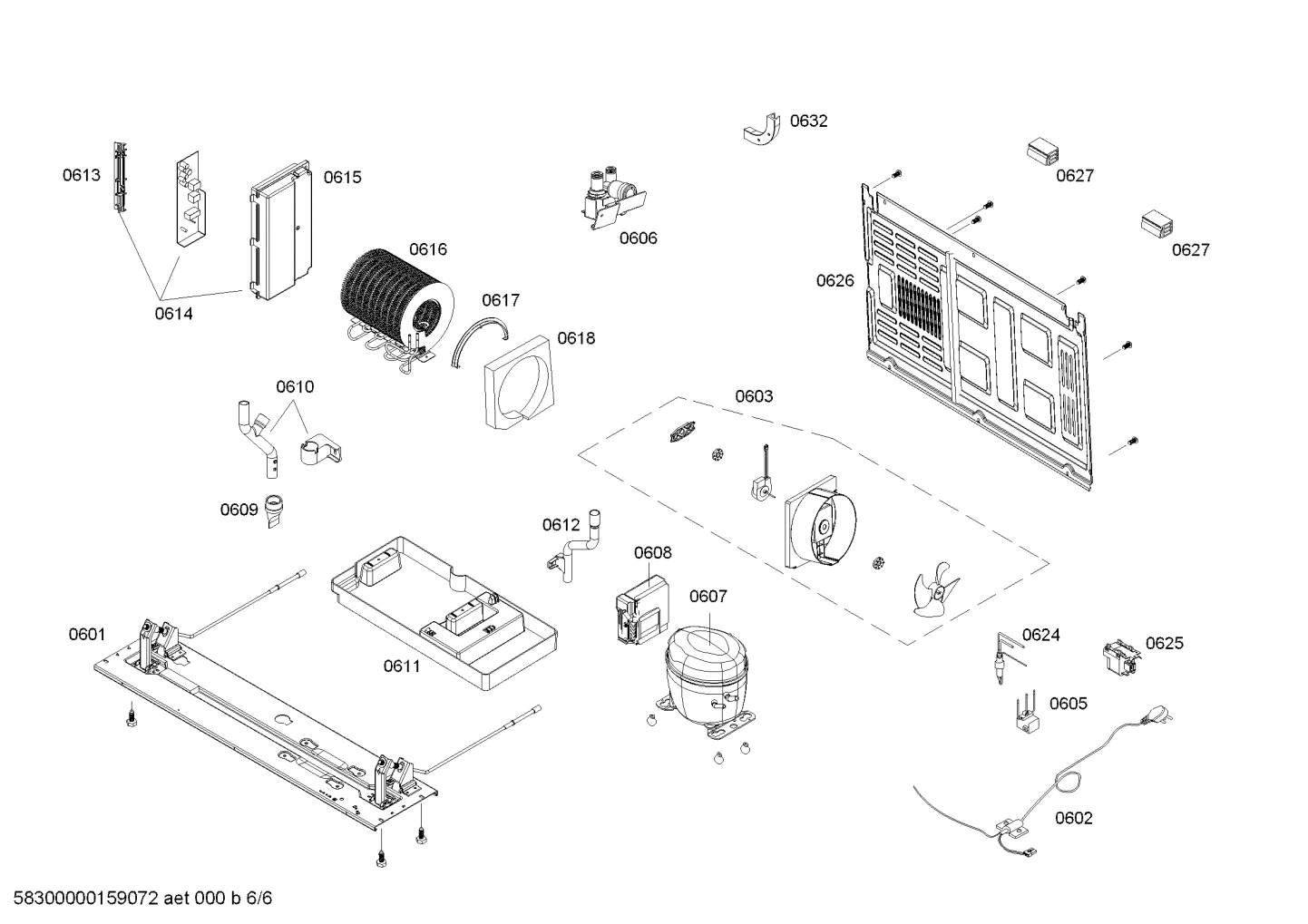

Diagram 6
Common parts from model Bosch KAD62V00/01 Fridge Freezer
0109
Push button switch BOS 00174364 Contact Us For Availability
0110
Door hinge BOS 00612224 Contact Us For Availability
0111
Door hinge BOS 00612225 Contact Us For Availability
0112
Screw-adjust BOS 00612791 Contact Us For Availability
0113
Screw BOS 00612789 Contact Us For Availability
0114
Rubber foot BOS 00612790 Contact Us For Availability
0118
Control module BOS 00647490 Contact Us For Availability
0121
Hose connection inlet BOS 00632034 Contact Us For Availability
0125
Cover BOS 00615386 Contact Us For Availability
0129
Door bearing BOS 00615892 Contact Us For Availability
0199
Retaining washer BOS 00616387 Contact Us For Availability
0201
Tray BOS 00674274 Contact Us For Availability
0202
Tray BOS 00671184 Contact Us For Availability
0203
Tray BOS 00671182 Contact Us For Availability
0205
Seal-door BOS 00710413 Contact Us For Availability
0206
Cover BOS 00647633 Contact Us For Availability
0207
Cooling accu BOS 00646941 Contact Us For Availability
0215
Damper BOS 00654160 Contact Us For Availability
0216
Display module BOS 00647484 Contact Us For Availability
0217
Outlet BOS 00615388 Contact Us For Availability
0218
Support BOS 00654153 Contact Us For Availability
0219
Worktop BOS 00646943 Contact Us For Availability
0220
Tube BOS 00649769 Contact Us For Availability
0222
Switch BOS 00607712 Contact Us For Availability
0301
Drawer BOS 00671179 Contact Us For Availability
0302
Tray BOS 00671181 Contact Us For Availability
0309
Stop BOS 00623346 Contact Us For Availability
0310
Door bearing BOS 00611904 Contact Us For Availability
0312
Egg Container BOS 00613586 Contact Us For Availability
0313
Tray BOS 00671180 Contact Us For Availability
0412
Cover BOS 00249316 Contact Us For Availability
0413
Cover BOS 00672958 Contact Us For Availability
0417
Ice-Crusher BOS 00673127 Contact Us For Availability
0423
Rail BOS 12009453 Contact Us For Availability
0424
Rail BOS 12009454 Contact Us For Availability
0425
Drawer BOS 00798907 Contact Us For Availability
0426
Cover BOS 00352963 Contact Us For Availability
0428
Glass plate BOS 00669804 Contact Us For Availability
0429
Shelf BOS 00674276 Contact Us For Availability
0430
Shelf BOS 00674275 Contact Us For Availability
0433
Fan BOS 00647519 Contact Us For Availability
0435
Flap BOS 00675265 Contact Us For Availability
0503
Evaporator temperature sensor BOS 00612240 Contact Us For Availability
0511
Fan BOS 00647520 Contact Us For Availability
0513
Cover BOS 00670060 Contact Us For Availability
0517
Lighting-unit BOS 00612236 Contact Us For Availability
0524
Chamber temperature sensor BOS 00612819 Contact Us For Availability
0525
Cover BOS 00615390 Contact Us For Availability
0527
Support BOS 00672002 Contact Us For Availability
0528
Hose BOS 00615389 Contact Us For Availability
0529
Glass plate BOS 00669806 Contact Us For Availability
0530
Drawer BOS 00248095 Contact Us For Availability
0531
Glass plate BOS 00669805 Contact Us For Availability
0532
Filter BOS 00646951 Contact Us For Availability
0535
Vegetable container BOS 00247382 Contact Us For Availability
0536
Rail BOS 12009456 Contact Us For Availability
0537
Rail BOS 12009455 Contact Us For Availability
0539
Rail BOS 11008131 Contact Us For Availability
0540
Rail BOS 11000562 Contact Us For Availability
0541
Rail BOS 11000563 Contact Us For Availability
0580
Clip BOS 00620044 Contact Us For Availability
0581
Clip BOS 00620045 Contact Us For Availability
0603
Fan BOS 00647518 Contact Us For Availability
0609
Drain gutter BOS 00623870 Contact Us For Availability
0610
Outlet hose BOS 12014409 Contact Us For Availability
0611
Salver BOS 00645713 Contact Us For Availability
0616
Condenser BOS 12012163 Contact Us For Availability
0617
Fixture BOS 00645709 Contact Us For Availability
0624
Dryer BOS 00645714 Contact Us For Availability
0625
Capacitor-interference suppre. BOS 00623842 Contact Us For Availability
0626
Back panel BOS 00680772 Contact Us For Availability
× ![]()
