Bosch HMV9306/01 Parts List

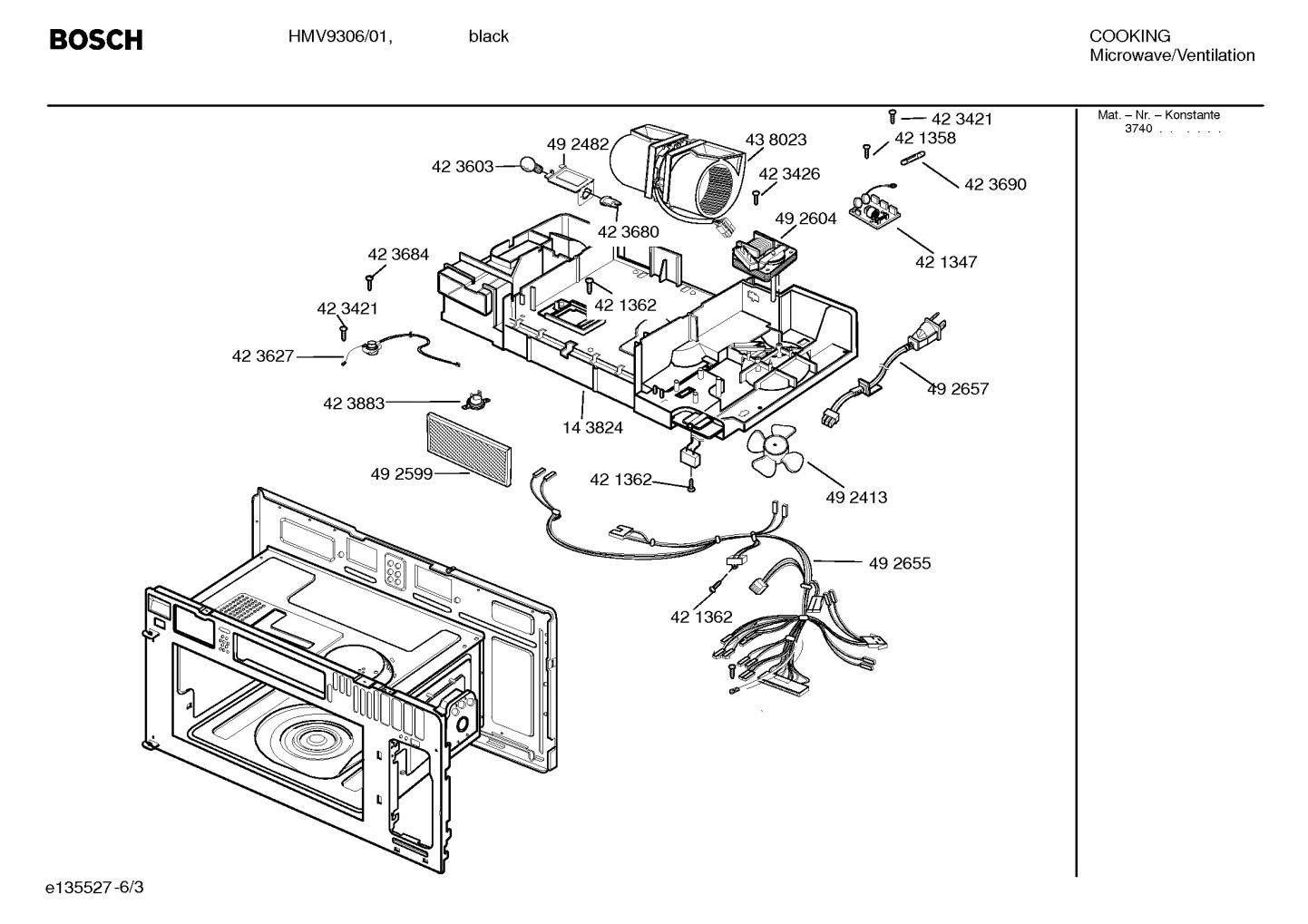

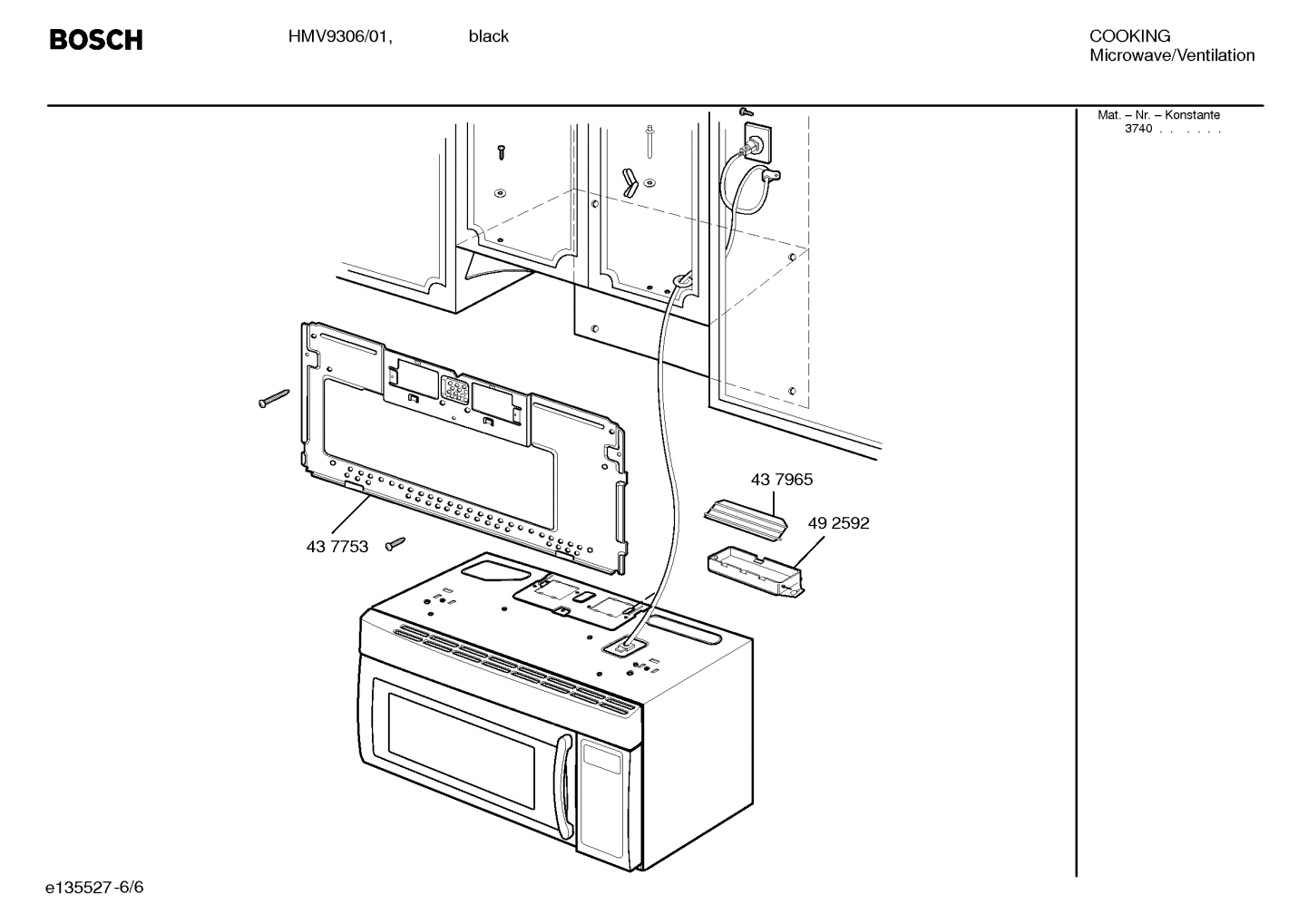

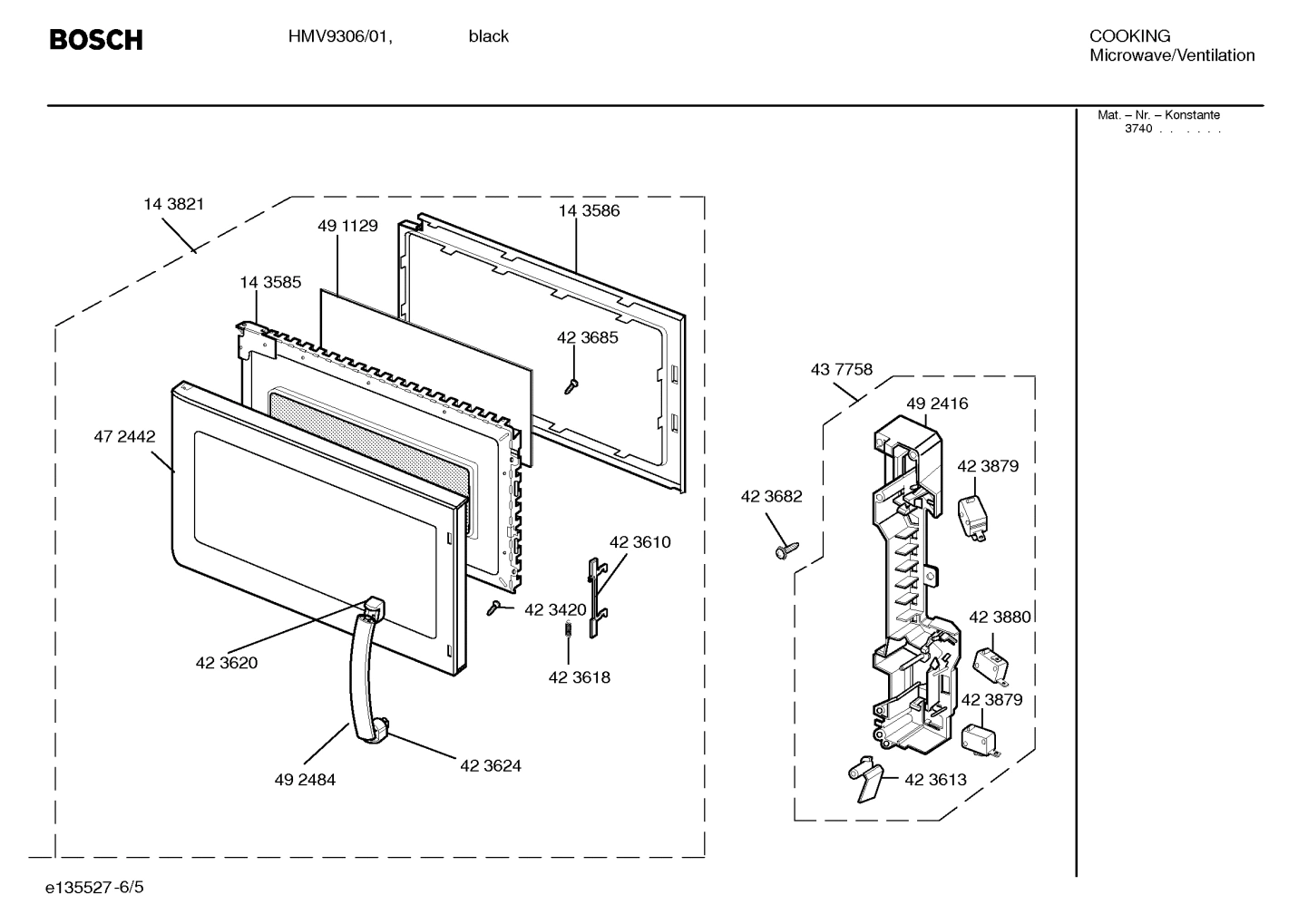

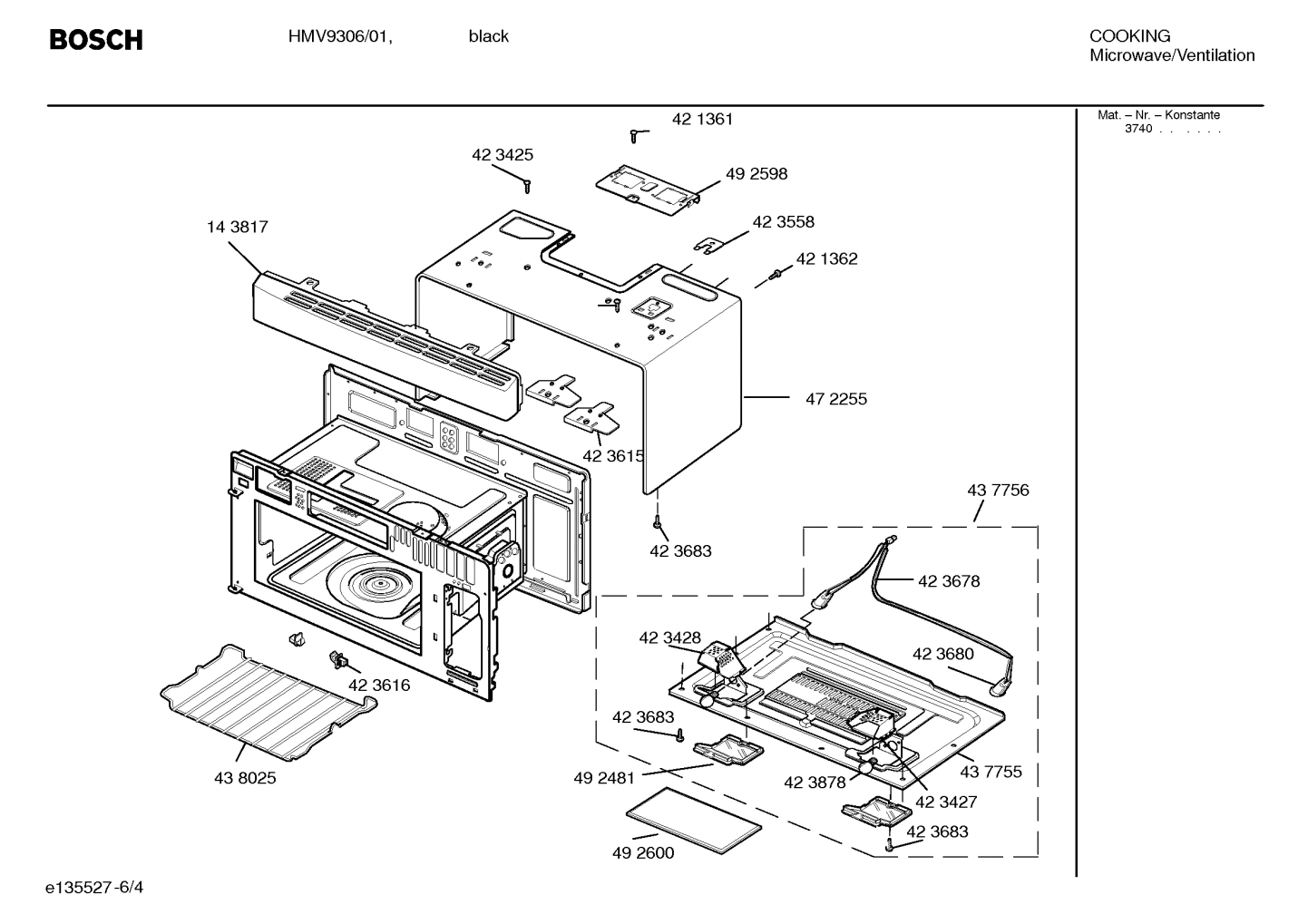

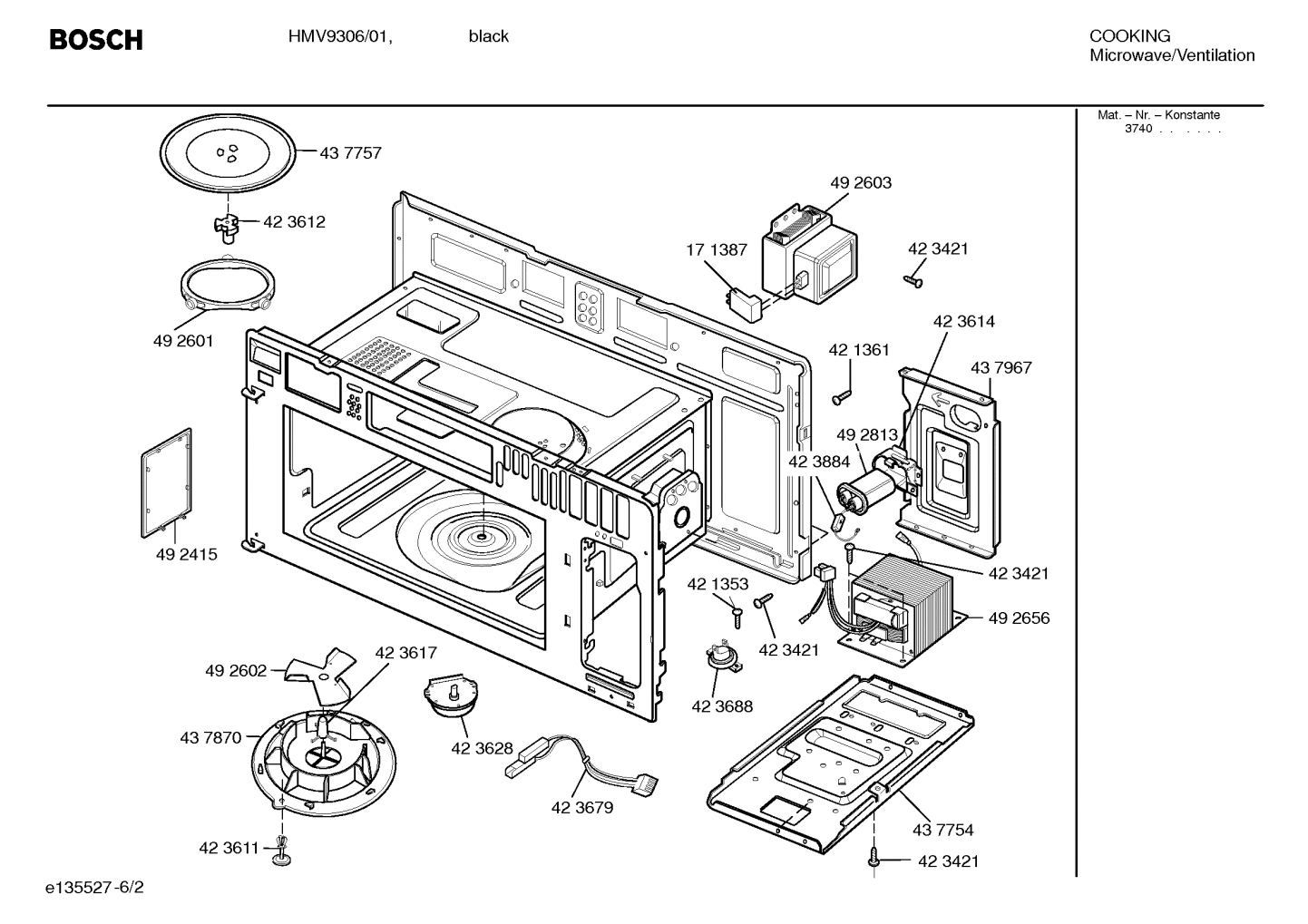

Model Bosch HMV9306/01 Microwave – Common Parts & Diagrams

Common parts from model Bosch HMV9306/01 Microwave

Ring

Ring BOS 00492601 Contact Us For Availability

00491180 Bosch Oven Magnetron

00491180 Bosch Oven Magnetron In Stock BOS 00491180 $166.09

Capacitor-high voltage

Capacitor-high voltage BOS 00492813 Contact Us For Availability

00423884 Bosch Microwave Cable

00423884 Bosch Microwave Cable Backorder BOS 00423884 $52.16

00423885 Bosch Microwave Thermistor

00423885 Bosch Microwave Thermistor Backorder BOS 00423885 $23.79

00423628 Bosch Microwave Motor

00423628 Bosch Microwave Motor Backorder BOS 00423628 $59.73

00605916 Bosch Oven Fuse

00605916 Bosch Oven Fuse Backorder BOS 00605916 $17.39

Motor

Motor BOS 00438023 Contact Us For Availability

00423426 Bosch Microwave Screw

00423426 Bosch Microwave Screw Backorder BOS 00423426 $4.58

00423883 Bosch Microwave Thermistor

00423883 Bosch Microwave Thermistor Backorder BOS 00423883 $34.77

00492599 Bosch Microwave Filter

00492599 Bosch Microwave Filter In Stock BOS 00492599 $46.67

Impeller jug

Impeller jug BOS 00059109 Contact Us For Availability

00423878 Bosch Microwave Lamp

00423878 Bosch Microwave Lamp In Stock BOS 00423878 $25.62

00423683 Bosch Microwave Screw

00423683 Bosch Microwave Screw Backorder BOS 00423683 $4.58

Frame

Frame BOS 00144395 Contact Us For Availability

00423618 Bosch Microwave Spring

00423618 Bosch Microwave Spring Backorder BOS 00423618 $17.39

Hook

Hook BOS 00189077 Contact Us For Availability

00614767 Bosch Oven Microswitch

00614767 Bosch Oven Microswitch In Stock BOS 00614767 $19.22

00437965 Bosch Microwave Damper

00437965 Bosch Microwave Damper Backorder BOS 00437965 $17.39

00492592 Bosch Microwave Bracket

00492592 Bosch Microwave Bracket Backorder BOS 00492592 $22.88
