Bosch HGS5L53UC/09 Range Oven

0102

00620326 Bosch Range Knob Backorder BOS 00620326 $109.45

View on Model

0105

00684136 Bosch Range Panel Backorder BOS 00684136 $220.86

View on Model

0106

Control unit BOS 00676931 Contact Us For Availability

View on Model

0107

00676822 Bosch Range Cover Sheet In Stock BOS 00676822 $33.84

View on Model

0115

00248797 Bosch Range Cover Backorder BOS 00248797 $84.15

View on Model

0201

Manifold BOS 00705508 Contact Us For Availability

View on Model

0202

00649225 Bosch Range Valve Backorder BOS 00649225 $209.42

View on Model

0203

00651132 Bosch Range Valve Backorder BOS 00651132 $144.16

View on Model

0204

00651130 Bosch Range Valve Backorder BOS 00651130 $151.28

View on Model

0205

00651129 Bosch Range Valve Backorder BOS 00651129 $133.48

View on Model

0206

00654061 Bosch Range Cable Harness Backorder BOS 00654061 $161.07

View on Model

0207

00631765 Bosch Range Ignition Device Backorder BOS 00631765 $159.29

View on Model

0208

00649300 Bosch Range Burner Backorder BOS 00649300 $128.14

View on Model

0209

00649237 Bosch Range Burner Backorder BOS 00649237 $108.56

View on Model

0211

00649239 Bosch Range Burner Backorder BOS 00649239 $76.91

View on Model

0212

00651717 Bosch Range Burner Backorder BOS 00651717 $183.90

View on Model

0213

00651718 Bosch Range Ignition Device Backorder BOS 00651718 $204.14

View on Model

0215

00651720 Bosch Range Ignition Device Backorder BOS 00651720 $189.18

View on Model

0216

00652469 Bosch Range Ignition Device Backorder BOS 00652469 $226.14

View on Model

0219

00655056 Bosch Range Pressure Regulator Backorder BOS 00655056 $177.09

View on Model

0222

00752411 Bosch Range Safety Valve Backorder BOS 00752411 $316.78

View on Model

0224

00649265 Bosch Range Igniter In Stock BOS 00649265 $394.22

View on Model

0231

00676872 Bosch Range Igniter In Stock BOS 00676872 $302.70

View on Model

0232

00617833 Bosch Range Screw In Stock BOS 00617833 $21.94

View on Model

0234

00617836 Bosch Range Burner Tip Backorder BOS 00617836 $42.99

View on Model

0235

00617837 Bosch Range Burner Tip Backorder BOS 00617837 $27.43

View on Model

0236

00617838 Bosch Range Burner Tip Backorder BOS 00617838 $42.07

View on Model

0240

00651128 Bosch Range Valve Backorder BOS 00651128 $143.27

View on Model

0296

00617840 Bosch Range Liquid Gas Nozzle Set Backorder BOS 00617840 $164.63

View on Model

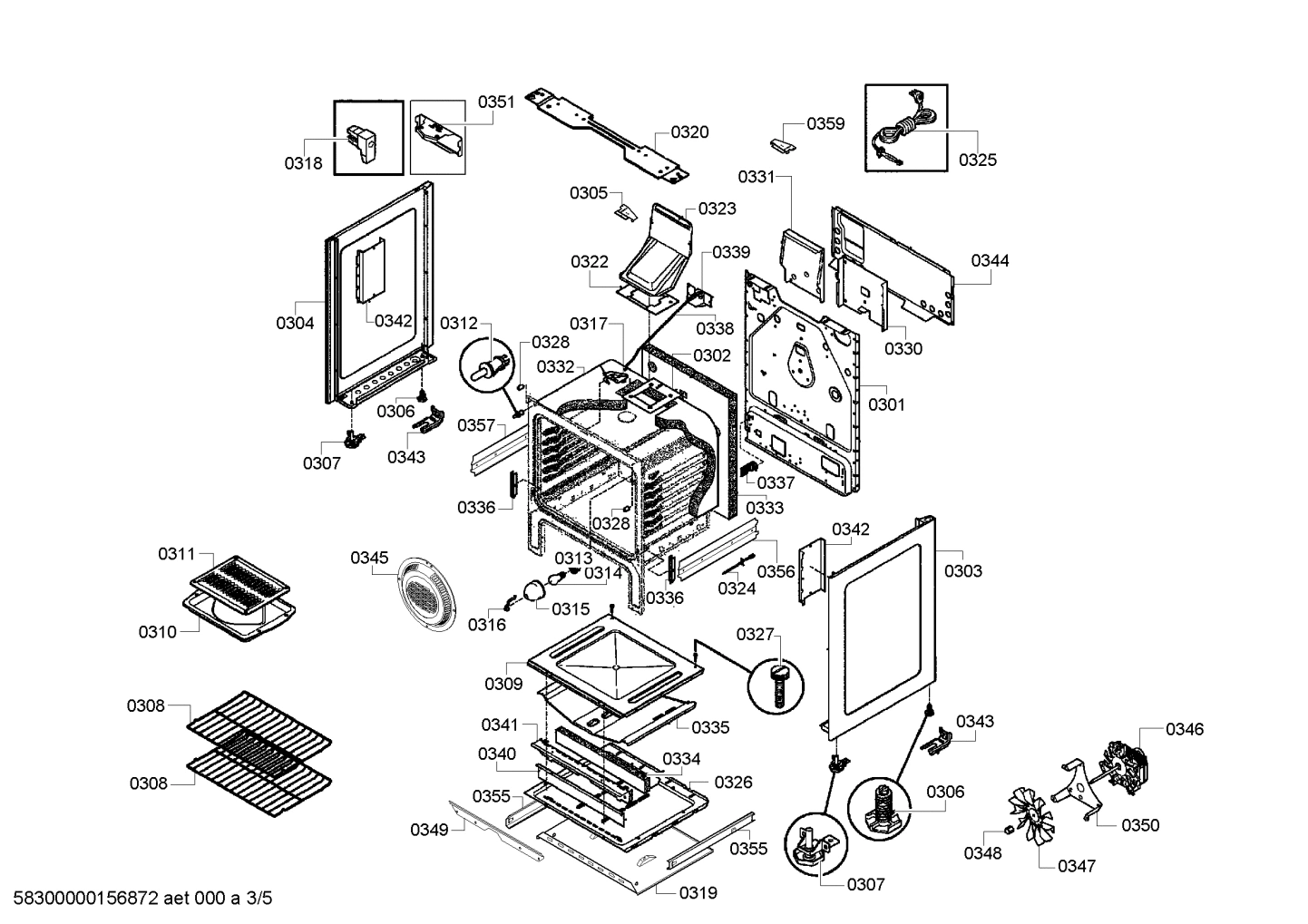

0304

00248787 Bosch Range Panel Backorder BOS 00248787 $184.78

View on Model

0306

00617697 Bosch Range Screw Backorder BOS 00617697 $17.37

View on Model

0308

00676823 Bosch Range Shelf In Stock BOS 00676823 $123.69

View on Model

0309

00684128 Bosch Range Panel Backorder BOS 00684128 $213.82

View on Model

0310

00676722 Bosch Range Pan Backorder BOS 00676722 $177.98

View on Model

0312

00617699 Bosch Range Switch Backorder BOS 00617699 $111.23

View on Model

0313

00617700 Bosch Range Light Socket Backorder BOS 00617700 $112.12

View on Model

0314

00617701 Bosch Range Lamp Backorder BOS 00617701 $33.84

View on Model

0322

00649272 Bosch Range Seal Backorder BOS 00649272 $15.54

View on Model

0324

00617708 Bosch Range Temperature Sensor In Stock BOS 00617708 $125.47

View on Model

0337

Bracket BOS 00617845 Contact Us For Availability

View on Model

0338

00649274 Bosch Range Rod Backorder BOS 00649274 $100.44

View on Model

0339

00649160 Bosch Range Latch Backorder BOS 00649160 $236.70

View on Model

0340

Cover BOS 00676883 Contact Us For Availability

View on Model

0341

Cover BOS 00676884 Contact Us For Availability

View on Model

0342

Cover BOS 00751102 Contact Us For Availability

View on Model

0343

00628089 Bosch Range Fixing Kit Backorder BOS 00628089 $33.84

View on Model

0344

00684155 Bosch Range Panel Backorder BOS 00684155 $141.49

View on Model

0345

Cover BOS 00676825 Contact Us For Availability

View on Model

0346

00678631 Bosch Range Motor Backorder BOS 00678631 $243.74

View on Model

0347

00676827 Bosch Range Fan Blade Backorder BOS 00676827 $84.15

View on Model

0348

00617802 Bosch Nut Backorder BOS 00617802 $27.43

View on Model

0349

Bracket BOS 00649305 Contact Us For Availability

View on Model

0350

Bracket BOS 00676824 Contact Us For Availability

View on Model

0351

Bracket BOS 00654030 Contact Us For Availability

View on Model

0354

Clip BOS 00621822 Contact Us For Availability

View on Model

0355

00653940 Bosch Rail Backorder BOS 00653940 $97.72

View on Model

0356

Panel side BOS 00704090 Contact Us For Availability

View on Model

0357

Panel side BOS 00704091 Contact Us For Availability

View on Model

0358

Cable harness BOS 00752412 Contact Us For Availability

View on Model

0359

00622900 Bosch Range Bracket Backorder BOS 00622900 $41.16

View on Model

0360

Screw BOS 00617810 Contact Us For Availability

View on Model

0361

00623193 Bosch Range Screw Backorder BOS 00623193 $21.94

View on Model

0362

Screw BOS 00617729 Contact Us For Availability

View on Model

0363

Screw BOS 00617717 Contact Us For Availability

View on Model

0364

Screw BOS 00617722 Contact Us For Availability

View on Model

0365

Cover BOS 00676828 Contact Us For Availability

View on Model

0366

00649276 Bosch Holder Backorder BOS 00649276 $8.22

View on Model

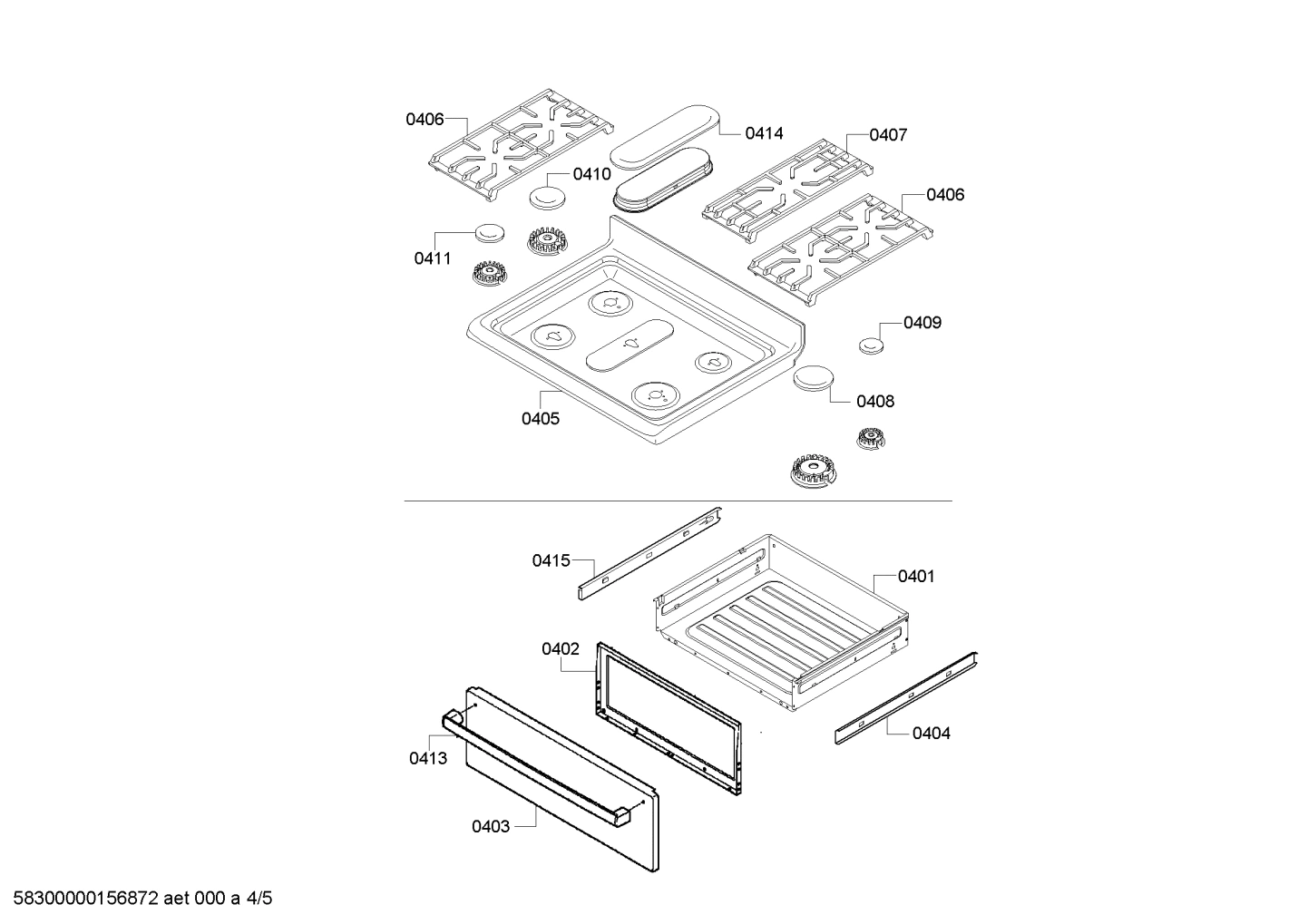

0401

00710376 Bosch Range Drawer Backorder BOS 00710376 $162.85

View on Model

0402

Panel BOS 00703182 Contact Us For Availability

View on Model

0403

Panel BOS 00688077 Contact Us For Availability

View on Model

0404

00653941 Bosch Range Slide Backorder BOS 00653941 $87.77

View on Model

0405

00711548 Bosch Range Panel Backorder BOS 00711548 $509.50

View on Model

0407

Grill grid BOS 00685329 Contact Us For Availability

View on Model

0408

00622486 Bosch Range Cap Backorder BOS 00622486 $125.47

View on Model

0409

00622482 Bosch Range Cap Backorder BOS 00622482 $44.82

View on Model

0410

00622485 Bosch Range Cap Backorder BOS 00622485 $97.72

View on Model

0411

00622483 Bosch Range Cap Backorder BOS 00622483 $43.90

View on Model

0413

Handle BOS 00676769 Contact Us For Availability

View on Model

0414

00652468 Bosch Range Cap Backorder BOS 00652468 $101.34

View on Model

0415

00653939 Bosch Range Slide Backorder BOS 00653939 $79.62

View on Model

0451

Screw BOS 00617694 Contact Us For Availability

View on Model

0453

Screw BOS 00617696 Contact Us For Availability

View on Model

0454

Screw BOS 00617755 Contact Us For Availability

View on Model

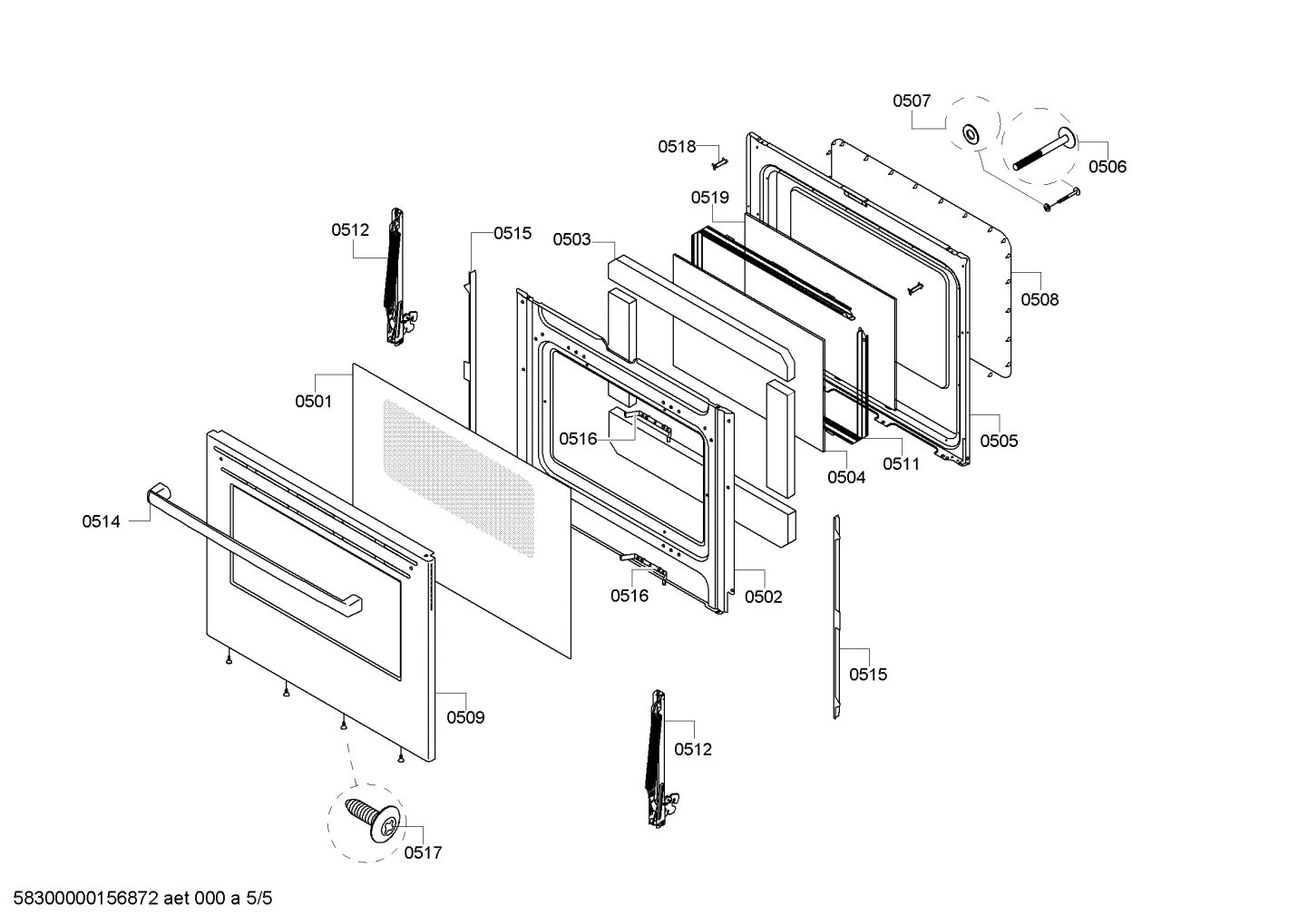

0502

Cover BOS 00676891 Contact Us For Availability

View on Model

0503

00676892 Bosch Range Damper Backorder BOS 00676892 $182.14

View on Model

0504

Glass plate BOS 00684076 Contact Us For Availability

View on Model

0505

00676893 Bosch Range Frame Backorder BOS 00676893 $194.46

View on Model

0506

00617738 Bosch Range Screw Backorder BOS 00617738 $24.69

View on Model

0507

Washer BOS 00617756 Contact Us For Availability

View on Model

0508

00649284 Bosch Range Seal Backorder BOS 00649284 $304.46

View on Model

0509

Panel BOS 00688078 Contact Us For Availability

View on Model

0511

00684079 Bosch Range Spacer Backorder BOS 00684079 $85.96

View on Model

0515

Connector strip BOS 00676912 Contact Us For Availability

View on Model

0516

Bracket BOS 00649199 Contact Us For Availability

View on Model

0517

00617695 Bosch Range Screw Backorder BOS 00617695 $21.94

View on Model

0518

00617760 Bosch Spacer Backorder BOS 00617760 $27.43

View on Model

0519

Inner glass BOS 00684078 Contact Us For Availability

View on Model

0550

SCREW Backorder BOS 00617739 $21.94

View on Model

0551

Screw BOS 00617737 Contact Us For Availability

View on Model
