Model Bosch HGS5053UC/13 Range Oven – Common Parts & Diagrams
Diagram 1
Diagram 2

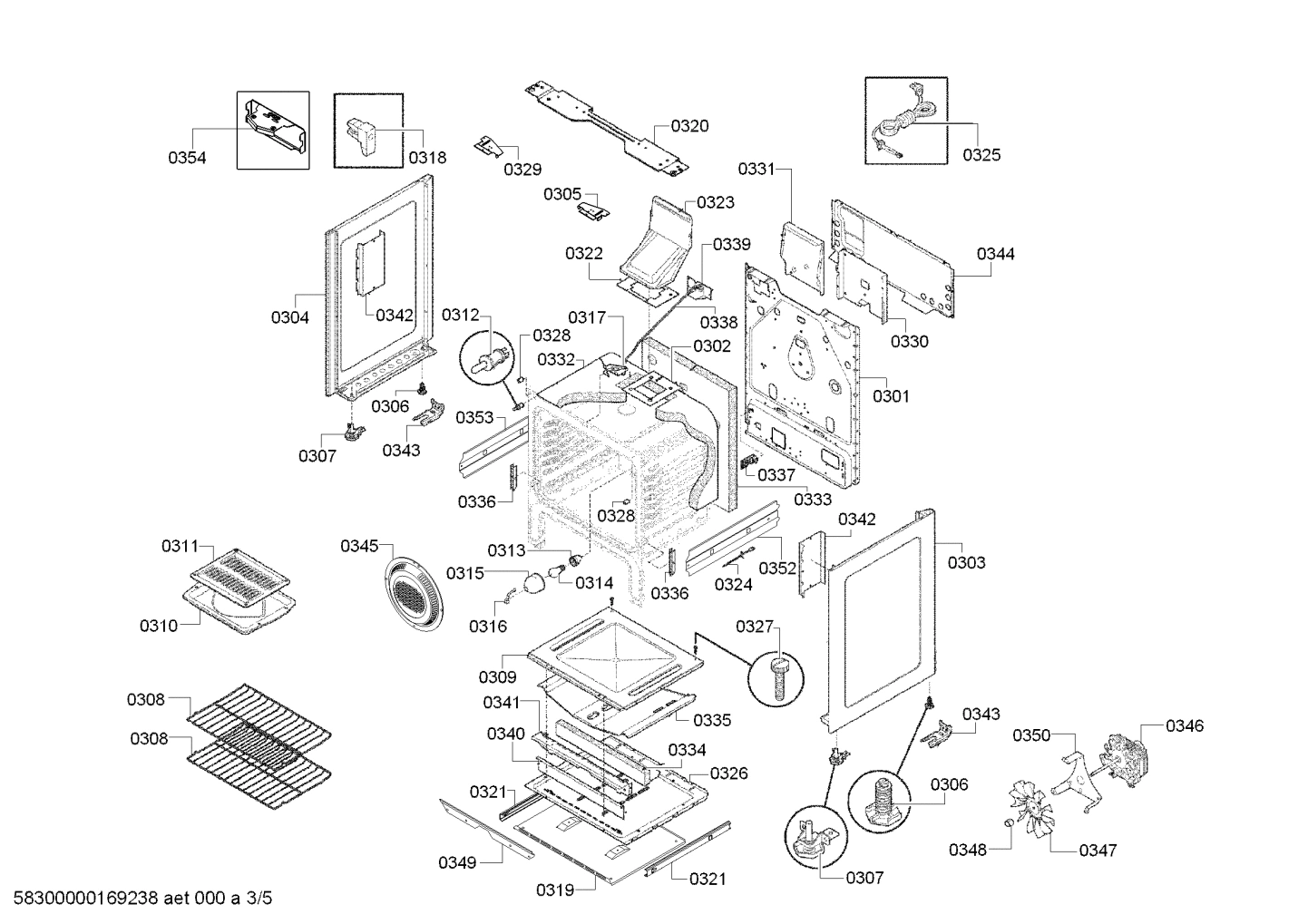

Diagram 3

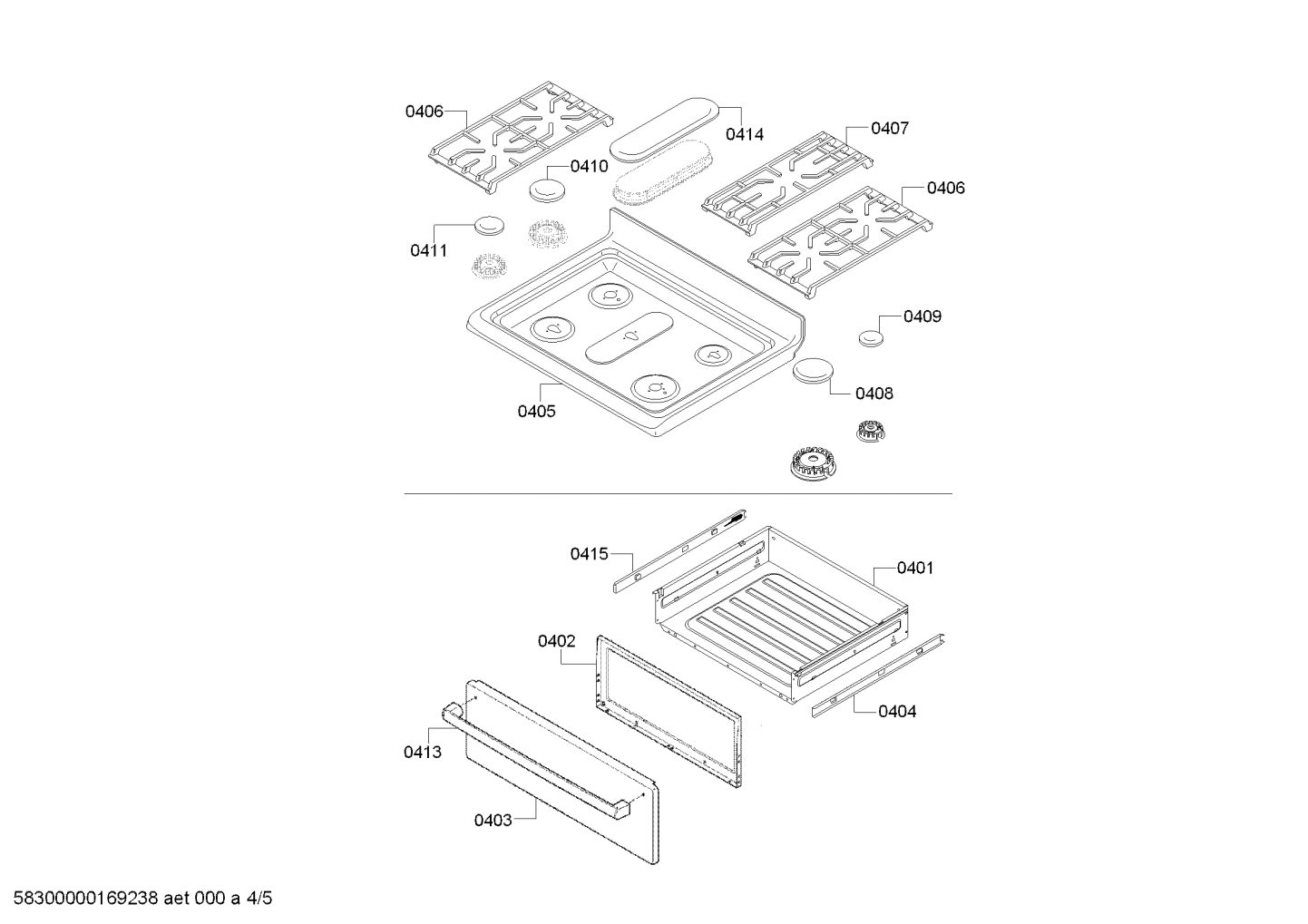

Diagram 4

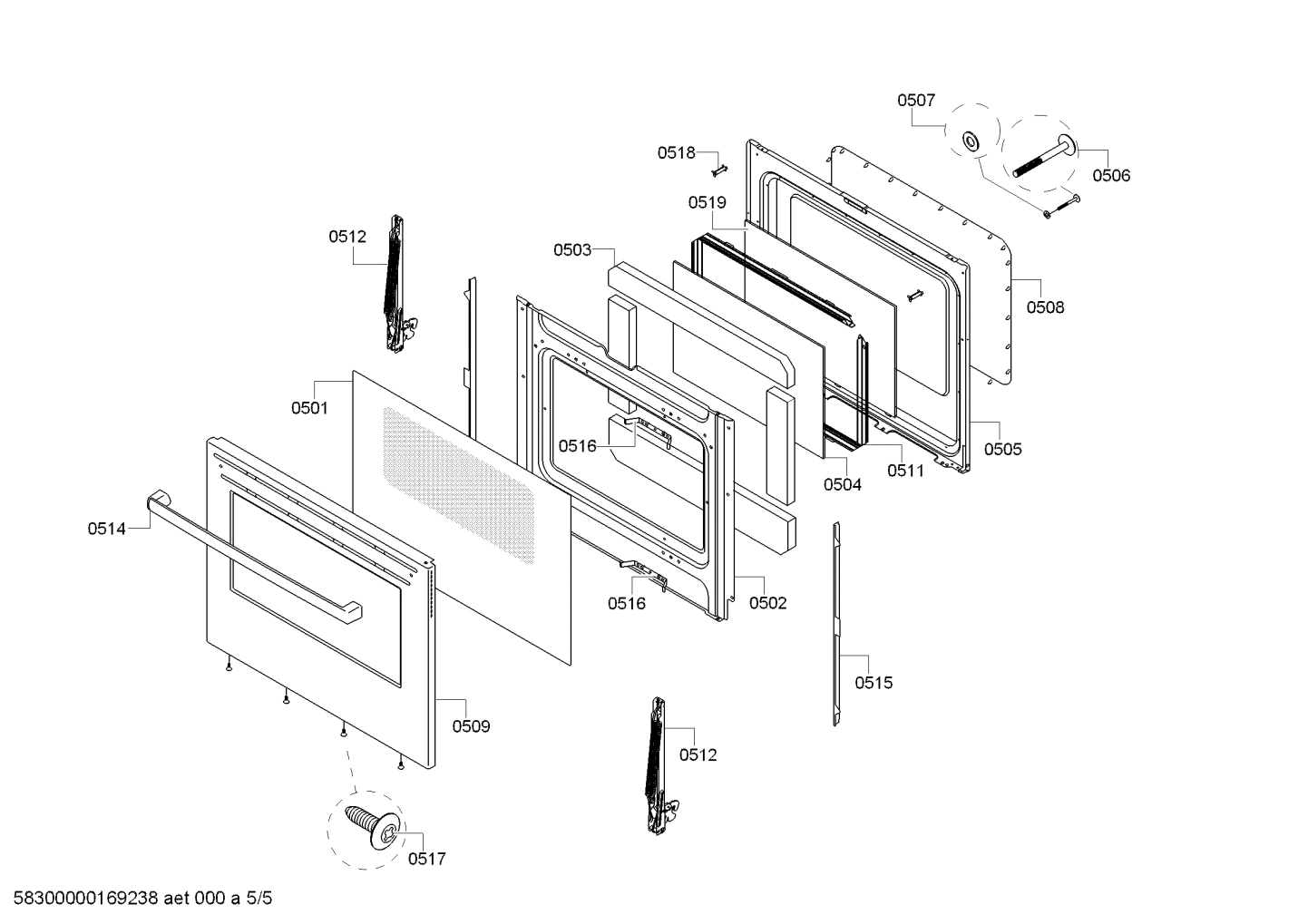

Diagram 5
Common parts from model Bosch HGS5053UC/13 Range Oven
0106
Control unit BOS 00676931 Contact Us For Availability
0115
Cover BOS 00248797 Contact Us For Availability
0201
Manifold BOS 00705508 Contact Us For Availability
0202
Valve BOS 00659953 Contact Us For Availability
0204
Valve BOS 00651130 Contact Us For Availability
0208
Burner BOS 00649300 Contact Us For Availability
0209
Burner BOS 00649237 Contact Us For Availability
0212
Burner BOS 00651717 Contact Us For Availability
0213
Ignition device BOS 00651718 Contact Us For Availability
0215
Ignition device BOS 00651720 Contact Us For Availability
0216
Ignition device BOS 00652469 Contact Us For Availability
0224
Igniter BOS 00649265 Contact Us For Availability
0232
Screw BOS 00617833 Contact Us For Availability
0234
Burner tip BOS 00617836 Contact Us For Availability
0235
Burner tip BOS 00617837 Contact Us For Availability
0236
Burner tip BOS 00617838 Contact Us For Availability
0240
Valve BOS 00651128 Contact Us For Availability
0296
Liquid Propane (LP) Conversion Kit BOS 00617840 Contact Us For Availability
0305
Bracket BOS 00622900 Contact Us For Availability
0306
Screw BOS 00617697 Contact Us For Availability
0309
Panel BOS 00684128 Contact Us For Availability
0310
Pan BOS 00676722 Contact Us For Availability
0312
Switch BOS 00617699 Contact Us For Availability
0313
Light socket BOS 00617700 Contact Us For Availability
0322
Seal BOS 00649272 Contact Us For Availability
0336
Hinge-plate BOS 00617721 Contact Us For Availability
0339
Latch BOS 00649160 Contact Us For Availability
0347
Fan blade BOS 00676827 Contact Us For Availability
0348
Nut BOS 00617802 Contact Us For Availability
0349
Bracket BOS 00649305 Contact Us For Availability
0350
Bracket BOS 00676824 Contact Us For Availability
0351
Clip BOS 00621822 Contact Us For Availability
0352
Panel side BOS 00704090 Contact Us For Availability
0353
Panel side BOS 00704091 Contact Us For Availability
0354
Bracket BOS 00654030 Contact Us For Availability
0360
Cable harness BOS 00752412 Contact Us For Availability
0362
Screw BOS 00617717 Contact Us For Availability
0363
Screw BOS 00617722 Contact Us For Availability
0364
Cover BOS 00676828 Contact Us For Availability
0365
Holder BOS 00649276 Contact Us For Availability
0367
Screw BOS 00617810 Contact Us For Availability
0402
Panel BOS 00703182 Contact Us For Availability
0403
Panel BOS 00688077 Contact Us For Availability
0404
Slide BOS 00653941 Contact Us For Availability
0405
Panel BOS 00248806 Contact Us For Availability
0407
Grill grid BOS 00685329 Contact Us For Availability
0411
Cap BOS 00622483 Contact Us For Availability
0412
Pin BOS 00617849 Contact Us For Availability
0415
Slide BOS 00653939 Contact Us For Availability
0451
Screw BOS 00617729 Contact Us For Availability
0502
Cover BOS 00676891 Contact Us For Availability
0503
Damper BOS 00676892 Contact Us For Availability
0504
Glass plate BOS 00684076 Contact Us For Availability
0505
Frame BOS 00677838 Contact Us For Availability
0506
Screw BOS 00617755 Contact Us For Availability
0507
Washer BOS 00617756 Contact Us For Availability
0509
Panel BOS 00688078 Contact Us For Availability
0514
Handle BOS 00676769 Contact Us For Availability
0515
Connector strip BOS 00676912 Contact Us For Availability
0516
Bracket BOS 00649199 Contact Us For Availability
0517
Screw BOS 00617695 Contact Us For Availability
0518
Spacer BOS 00617760 Contact Us For Availability
0519
Inner glass BOS 00684078 Contact Us For Availability
0550
Screw BOS 00617737 Contact Us For Availability
0551
Screw BOS 00617694 Contact Us For Availability
× ![]()
