Bosch HGS3023UC/08 Range Oven

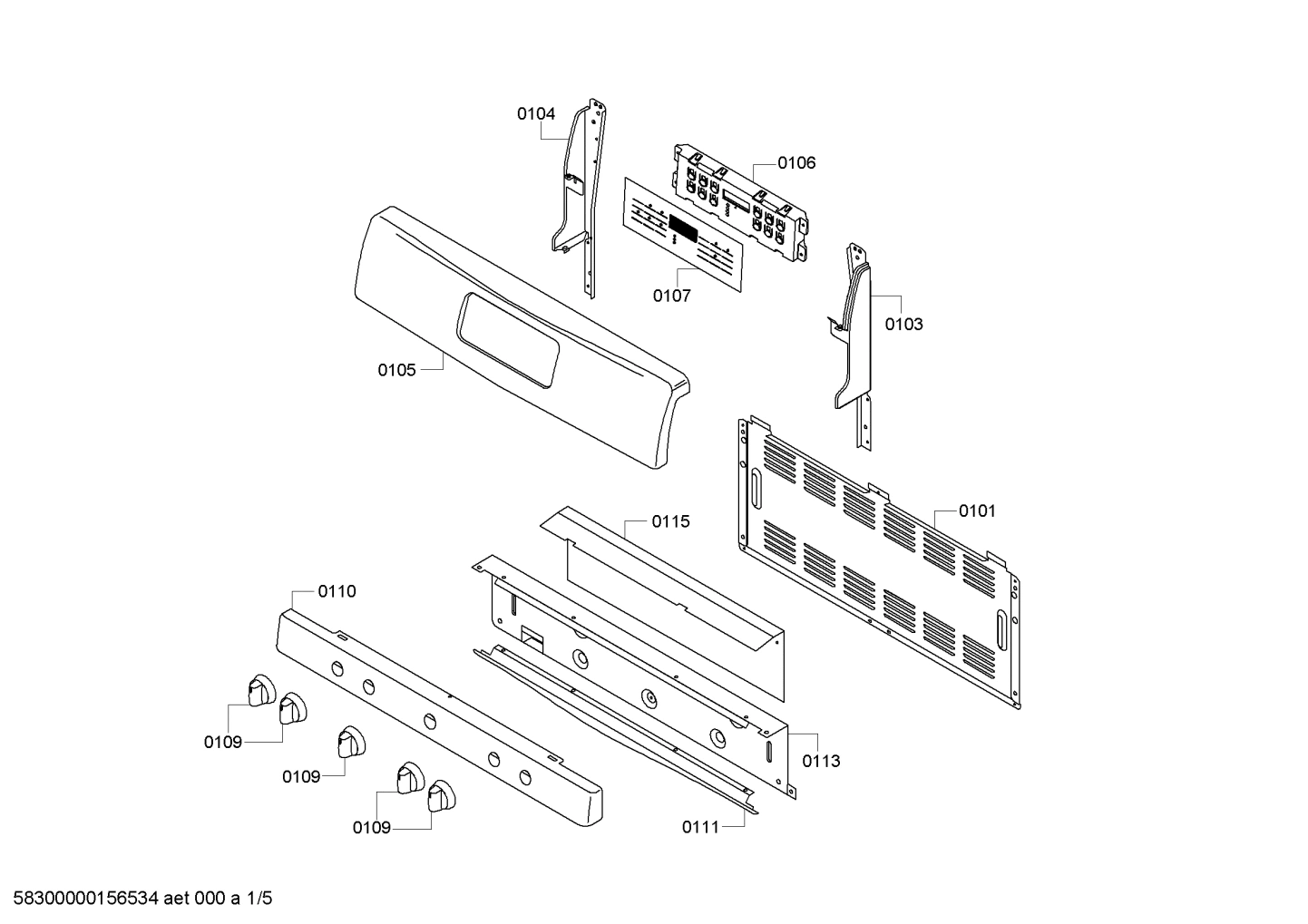

0106

00676846 Bosch Range Control Unit Backorder BOS 00676846 $247.26

View on Model

0107

Cover sheet BOS 00676710 Contact Us For Availability

View on Model

0115

00248797 Bosch Range Cover Backorder BOS 00248797 $77.81

View on Model

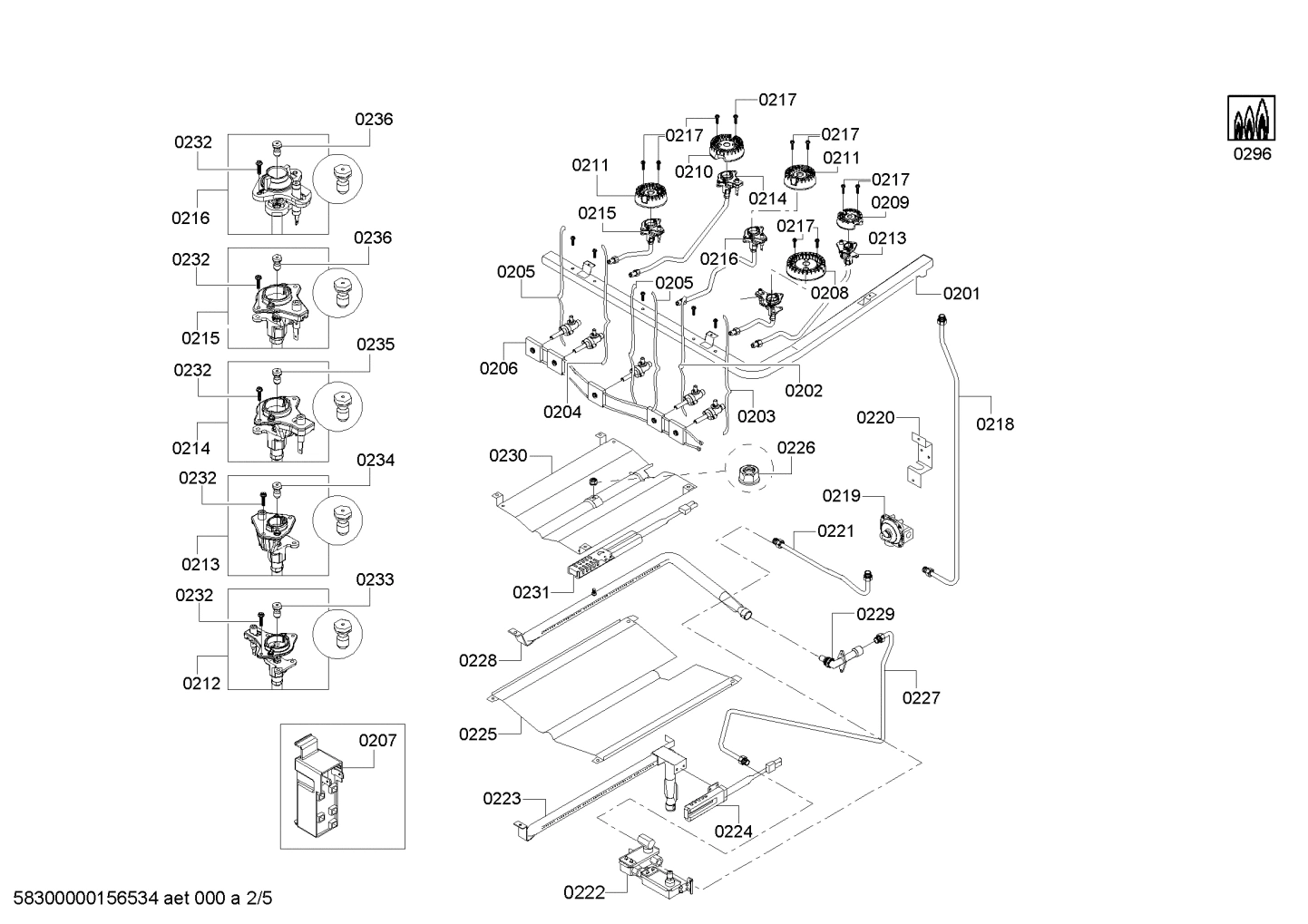

0202

00651131 Bosch Range Valve In Stock BOS 00651131 $78.72

View on Model

0203

00651132 Bosch Range Valve Backorder BOS 00651132 $133.48

View on Model

0204

00651130 Bosch Range Valve Backorder BOS 00651130 $140.18

View on Model

0205

00651129 Bosch Range Valve Backorder BOS 00651129 $123.27

View on Model

0206

00654708 Bosch Range Cable Harness In Stock BOS 00654708 $161.96

View on Model

0207

00631765 Bosch Range Ignition Device Backorder BOS 00631765 $147.72

View on Model

0209

00649237 Bosch Range Burner Backorder BOS 00649237 $102.25

View on Model

0210

00649238 Bosch Range Burner Backorder BOS 00649238 $102.72

View on Model

0211

00649239 Bosch Range Burner Backorder BOS 00649239 $71.04

View on Model

0213

00651718 Bosch Range Ignition Device Backorder BOS 00651718 $188.30

View on Model

0214

00651719 Bosch Range Ignition Device Backorder BOS 00651719 $183.48

View on Model

0215

00651720 Bosch Range Ignition Device Backorder BOS 00651720 $177.09

View on Model

0216

00652469 Bosch Range Ignition Device Backorder BOS 00652469 $209.42

View on Model

0222

00649262 Bosch Range Valve Backorder BOS 00649262 $549.10

View on Model

0224

00649265 Bosch Range Igniter In Stock BOS 00649265 $365.18

View on Model

0231

00676872 Bosch Range Igniter In Stock BOS 00676872 $280.28

View on Model

0232

00617833 Bosch Range Screw In Stock BOS 00617833 $20.59

View on Model

0234

00617836 Bosch Range Burner Tip Backorder BOS 00617836 $39.33

View on Model

0235

00617837 Bosch Range Burner Tip Backorder BOS 00617837 $25.60

View on Model

0236

00617838 Bosch Range Burner Tip Backorder BOS 00617838 $38.41

View on Model

0296

00617840 Bosch Range Liquid Gas Nozzle Set In Stock BOS 00617840 $152.64

View on Model

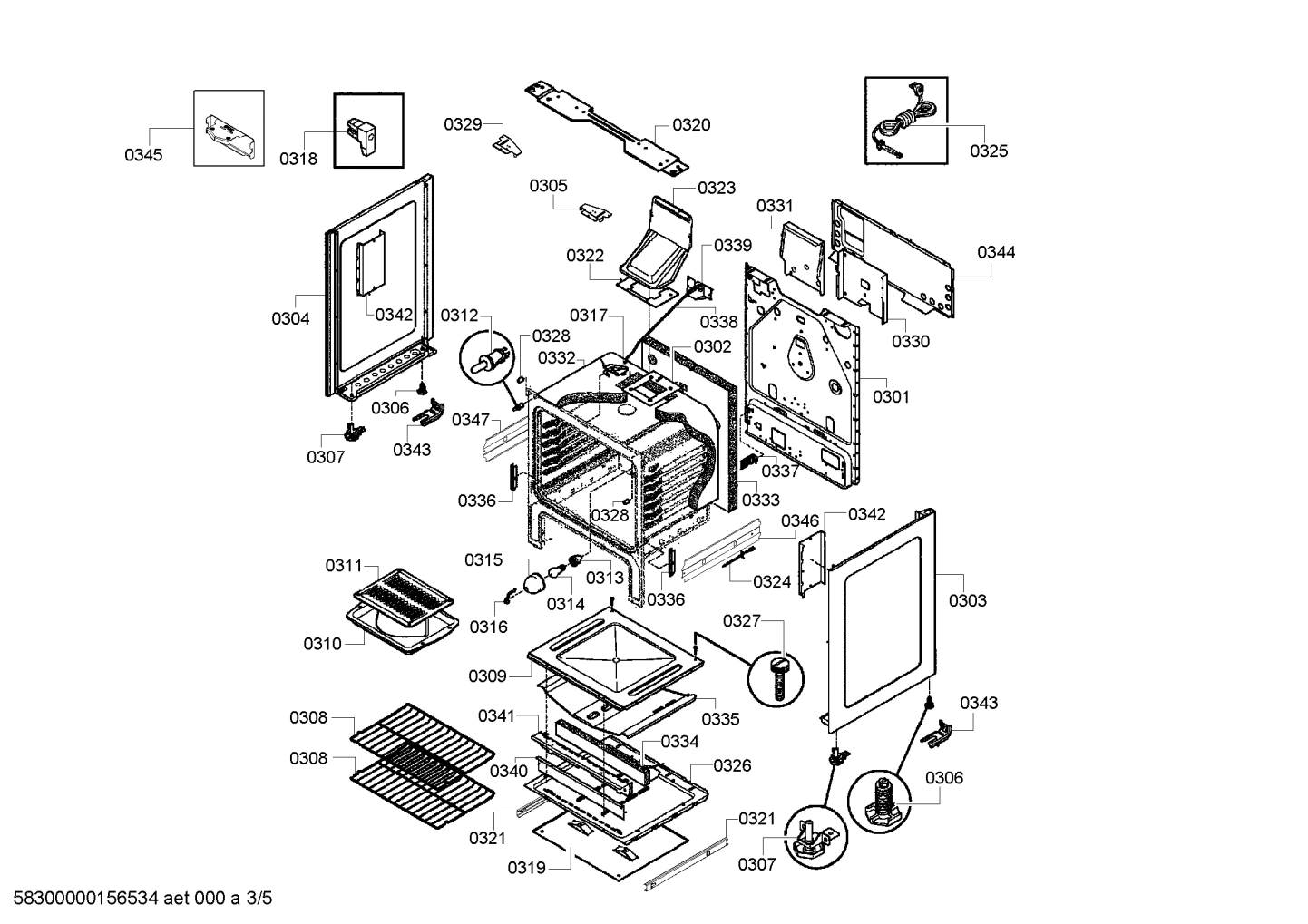

0305

00622900 Bosch Range Bracket Backorder BOS 00622900 $37.52

View on Model

0306

00617697 Bosch Range Screw Backorder BOS 00617697 $16.01

View on Model

0308

00676823 Bosch Range Shelf In Stock BOS 00676823 $114.79

View on Model

0309

00684128 Bosch Range Panel Backorder BOS 00684128 $197.56

View on Model

0310

00676722 Bosch Range Pan Backorder BOS 00676722 $164.63

View on Model

0312

00617699 Bosch Range Switch Backorder BOS 00617699 $104.06

View on Model

0313

00617700 Bosch Range Light Socket Backorder BOS 00617700 $105.87

View on Model

0314

00617701 Bosch Range Lamp Backorder BOS 00617701 $31.09

View on Model

0322

00649272 Bosch Range Seal Backorder BOS 00649272 $14.18

View on Model

0324

00617708 Bosch Range Temperature Sensor In Stock BOS 00617708 $116.57

View on Model

0335

00684133 Bosch Cover Backorder BOS 00684133 $158.40

View on Model

0336

00617721 Bosch Range Plate Hinge Backorder BOS 00617721 $49.39

View on Model

0337

Bracket BOS 00617845 Contact Us For Availability

View on Model

0338

00649274 Bosch Range Rod Backorder BOS 00649274 $92.76

View on Model

0339

00649160 Bosch Range Latch Backorder BOS 00649160 $219.10

View on Model

0340

Cover BOS 00676883 Contact Us For Availability

View on Model

0341

Cover BOS 00676884 Contact Us For Availability

View on Model

0342

Cover BOS 00676742 Contact Us For Availability

View on Model

0343

00628089 Bosch Range Fixing Kit Backorder BOS 00628089 $31.57

View on Model

0344

Panel BOS 00684129 Contact Us For Availability

View on Model

0345

Bracket BOS 00622901 Contact Us For Availability

View on Model

0346

Panel side BOS 00704090 Contact Us For Availability

View on Model

0347

Panel side BOS 00704091 Contact Us For Availability

View on Model

0350

Clip BOS 00621822 Contact Us For Availability

View on Model

0351

Cable harness BOS 00654059 Contact Us For Availability

View on Model

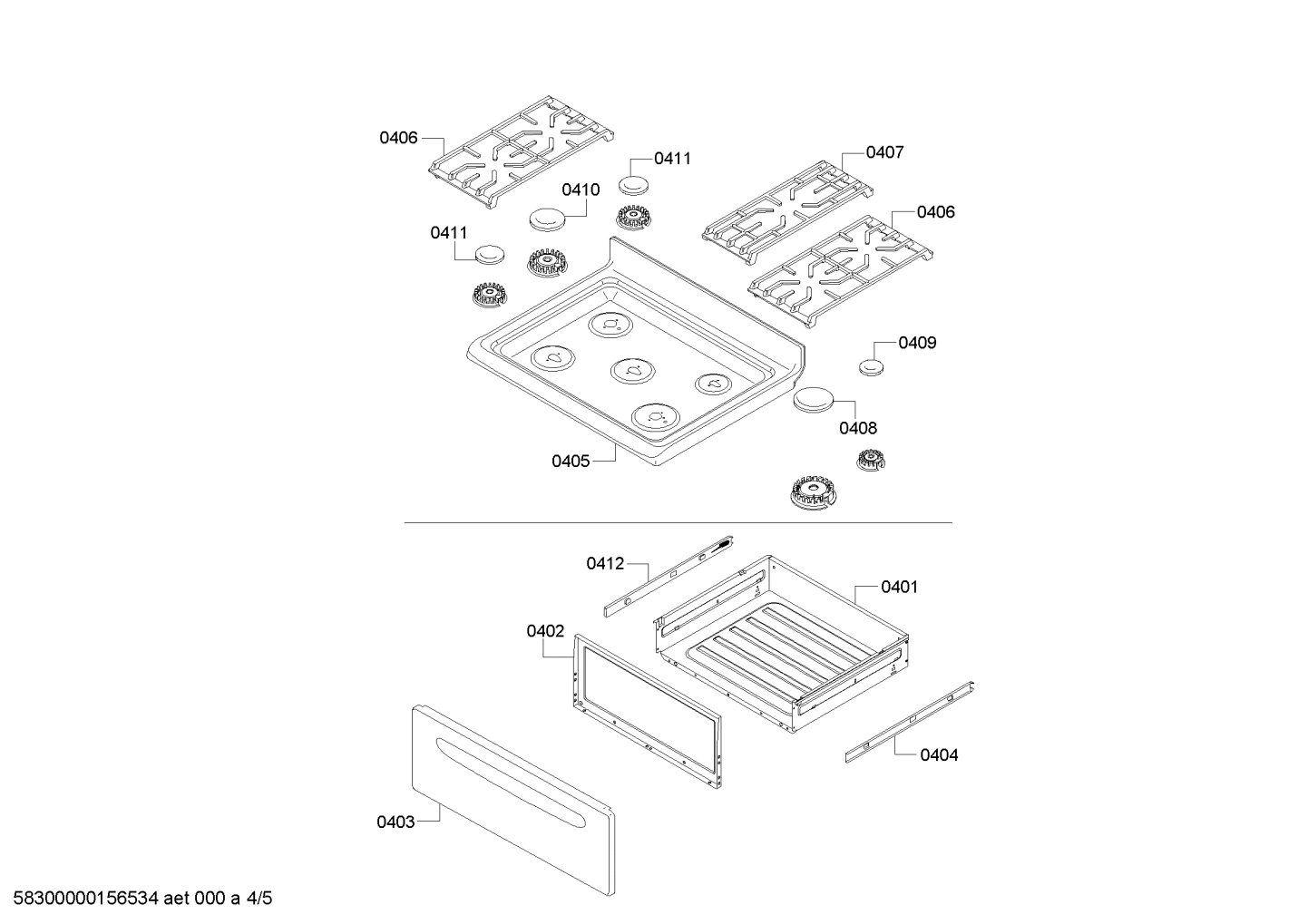

0401

00710376 Bosch Range Drawer Backorder BOS 00710376 $150.39

View on Model

0402

Panel BOS 00703182 Contact Us For Availability

View on Model

0403

Panel BOS 00684135 Contact Us For Availability

View on Model

0404

00653941 Bosch Range Slide Backorder BOS 00653941 $81.00

View on Model

0405

00248800 Bosch Range Panel Backorder BOS 00248800 $216.04

View on Model

0407

Grill grid BOS 00685329 Contact Us For Availability

View on Model

0408

00622485 Bosch Range Cap Backorder BOS 00622485 $90.48

View on Model

0409

00622482 Bosch Range Cap Backorder BOS 00622482 $41.16

View on Model

0410

00622484 Bosch Range Cap Backorder BOS 00622484 $62.43

View on Model

0411

00622483 Bosch Range Cap Backorder BOS 00622483 $40.72

View on Model

0412

00653939 Bosch Range Slide Backorder BOS 00653939 $73.76

View on Model

0451

Screw BOS 00617696 Contact Us For Availability

View on Model

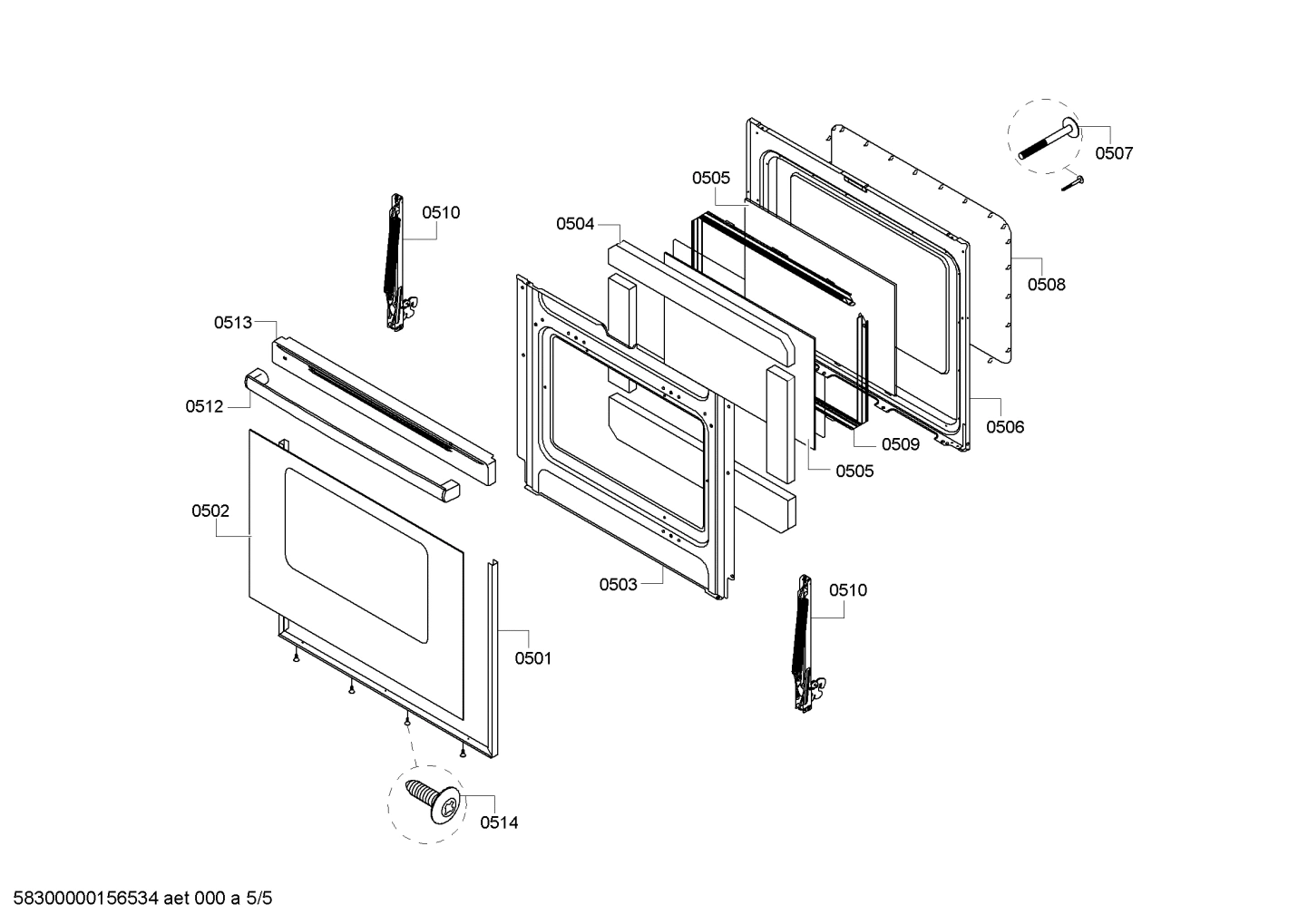

0501

Cover strip BOS 00676889 Contact Us For Availability

View on Model

0503

Cover BOS 00676891 Contact Us For Availability

View on Model

0504

00676892 Bosch Range Damper Backorder BOS 00676892 $169.97

View on Model

0505

00684076 Bosch Range Glass Plate Backorder BOS 00684076 $292.60

View on Model

0506

00677838 Bosch Range Frame Backorder BOS 00677838 $187.42

View on Model

0507

00617738 Bosch Range Screw Backorder BOS 00617738 $22.42

View on Model

0508

00649284 Bosch Range Seal Backorder BOS 00649284 $282.04

View on Model

0509

00684079 Bosch Range Spacer Backorder BOS 00684079 $79.62

View on Model

0510

Hinge BOS 00649762 Contact Us For Availability

View on Model

0511

Screw BOS 00617739 Contact Us For Availability

View on Model

0513

Cap BOS 00649183 Contact Us For Availability

View on Model

0514

00617695 Bosch Range Screw Backorder BOS 00617695 $20.59

View on Model

All Categories

Brands

Model Bosch HGS3023UC/08 Range Oven – Common Parts & Diagrams

Common parts from model Bosch HGS3023UC/08 Range Oven
