Model Bosch HES5053C/05 Range Oven – Common Parts & Diagrams
Diagram 1
Diagram 2

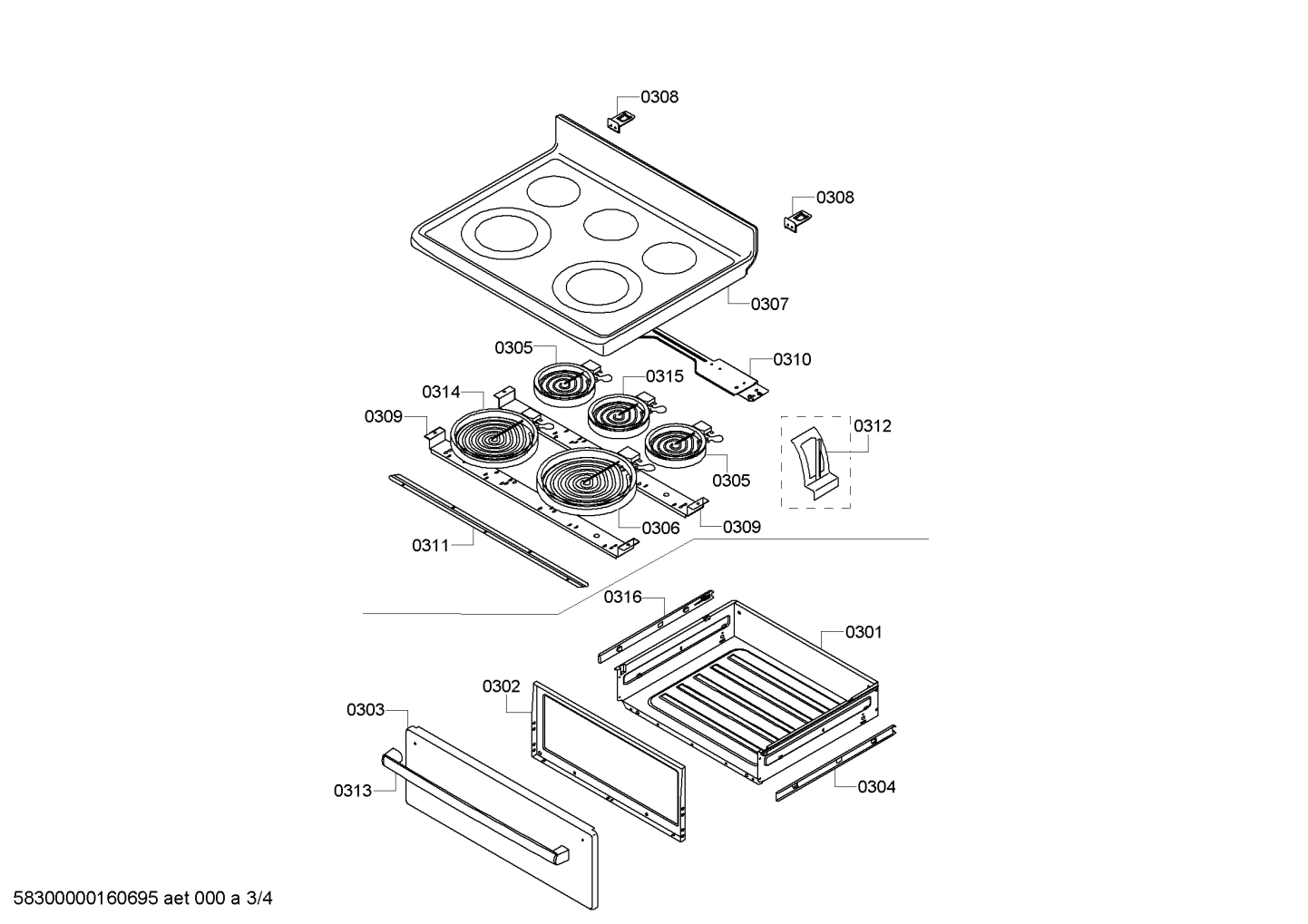

Diagram 3

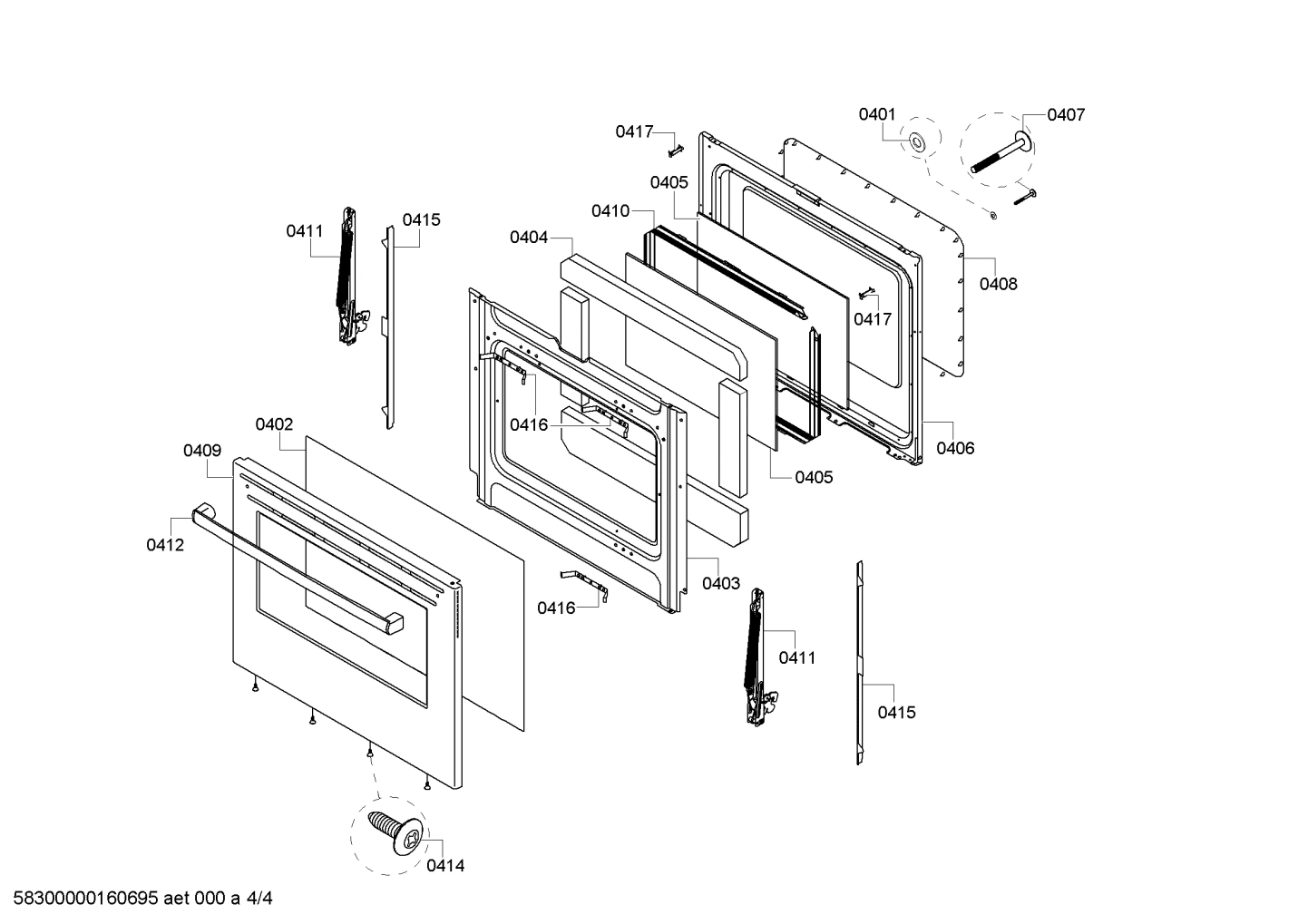

Diagram 4
Common parts from model Bosch HES5053C/05 Range Oven
0105
Back panel BOS 00684106 Contact Us For Availability
0229
Insulating part BOS 00684047 Contact Us For Availability
0230
Tube BOS 00676734 Contact Us For Availability
0231
Tube BOS 00676735 Contact Us For Availability
0233
Bracket BOS 00617719 Contact Us For Availability
0236
Support BOS 00676740 Contact Us For Availability
0237
Cover BOS 00711279 Contact Us For Availability
0239
Bracket BOS 00617723 Contact Us For Availability
0240
Rod BOS 00684048 Contact Us For Availability
0242
Cover BOS 00676742 Contact Us For Availability
0244
Bracket BOS 00676824 Contact Us For Availability
0245
Cover BOS 00676825 Contact Us For Availability
0246
Blower motor BOS 00649558 Contact Us For Availability
0247
Fan blade BOS 00655299 Contact Us For Availability
0249
Panel side BOS 00704089 Contact Us For Availability
0250
Panel BOS 00686412 Contact Us For Availability
0251
Screw BOS 00617722 Contact Us For Availability
0252
Bracket BOS 00654030 Contact Us For Availability
0302
Front panel BOS 00686411 Contact Us For Availability
0303
Panel BOS 00684092 Contact Us For Availability
0308
Hinge BOS 00621189 Contact Us For Availability
0309
Support BOS 00676748 Contact Us For Availability
0311
Support BOS 00684063 Contact Us For Availability
0312
Clip BOS 00617734 Contact Us For Availability
0313
Handle BOS 00676769 Contact Us For Availability
0315
Surface burner BOS 00676843 Contact Us For Availability
0401
Washer BOS 00617756 Contact Us For Availability
0404
Damper BOS 00684075 Contact Us For Availability
0405
Glass plate BOS 00686969 Contact Us For Availability
0406
Frame BOS 00684077 Contact Us For Availability
0416
Bracket BOS 00649199 Contact Us For Availability
× ![]()
