Model Bosch HES3053C/03 Range Oven – Common Parts & Diagrams
Diagram 1
Diagram 2

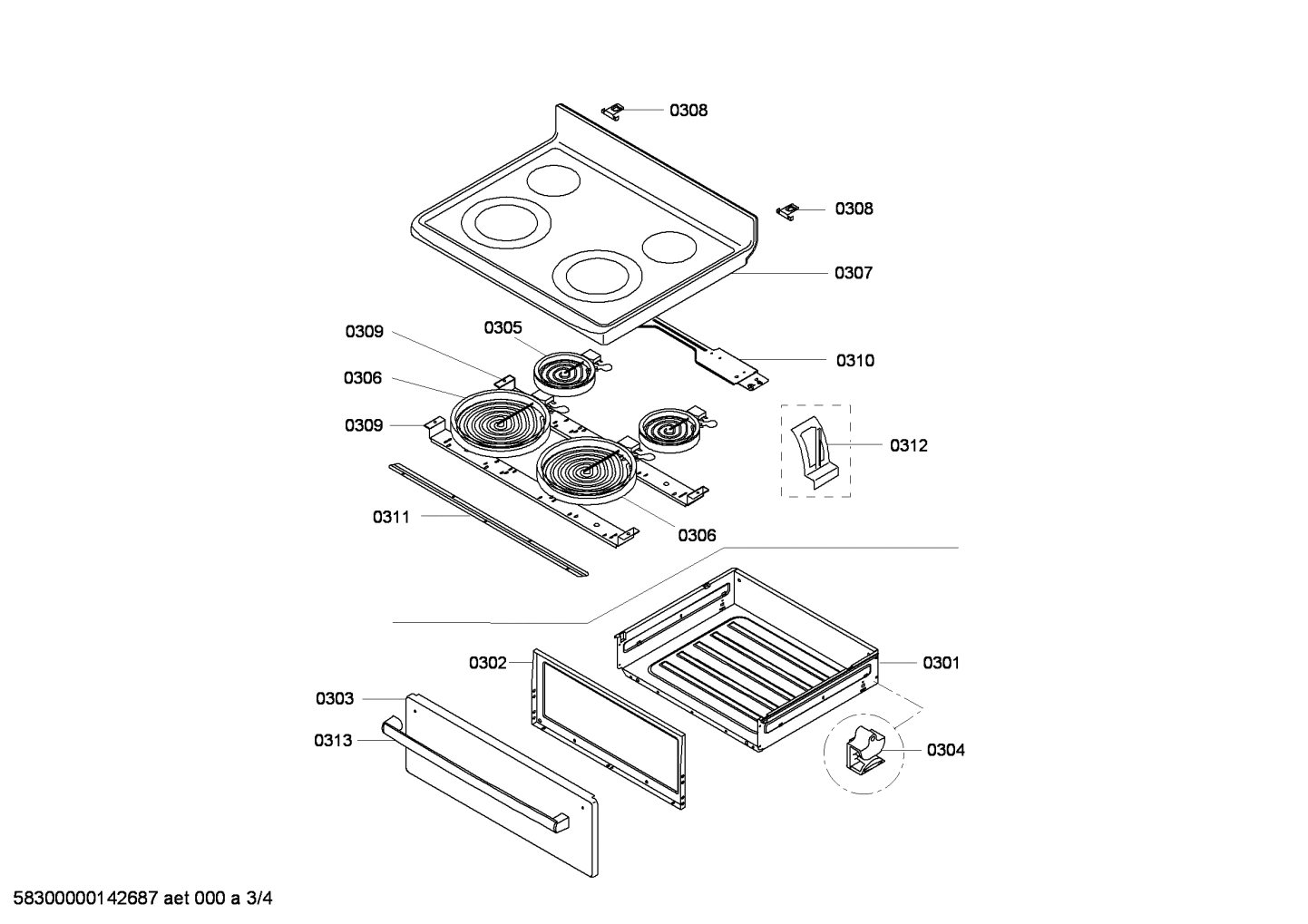

Diagram 3
Diagram 4
Common parts from model Bosch HES3053C/03 Range Oven
0226
Cover BOS 00649151 Contact Us For Availability
0227
Damper BOS 00684044 Contact Us For Availability
0228
Insulating part BOS 00684045 Contact Us For Availability
0229
Insulating part BOS 00684047 Contact Us For Availability
0231
Tube BOS 00676735 Contact Us For Availability
0233
Bracket BOS 00617719 Contact Us For Availability
0236
Support BOS 00676740 Contact Us For Availability
0237
Cover BOS 00248774 Contact Us For Availability
0238
Hinge-plate BOS 00617844 Contact Us For Availability
0303
Panel BOS 00684092 Contact Us For Availability
0304
Slide BOS 00617732 Contact Us For Availability
0307
Hob top BOS 00684093 Contact Us For Availability
0309
Support BOS 00676748 Contact Us For Availability
0311
Support BOS 00684063 Contact Us For Availability
0312
Clip BOS 00617734 Contact Us For Availability
0313
Handle BOS 00676769 Contact Us For Availability
0401
Washer BOS 00617756 Contact Us For Availability
0403
Frame BOS 00684074 Contact Us For Availability
0404
Damper BOS 00684075 Contact Us For Availability
0405
Glass plate BOS 00684076 Contact Us For Availability
0406
Frame BOS 00684077 Contact Us For Availability
0416
Bracket BOS 00649199 Contact Us For Availability
× ![]()
