Model Bosch HES3023U/06 Range Oven – Common Parts & Diagrams
Diagram 1
Diagram 2

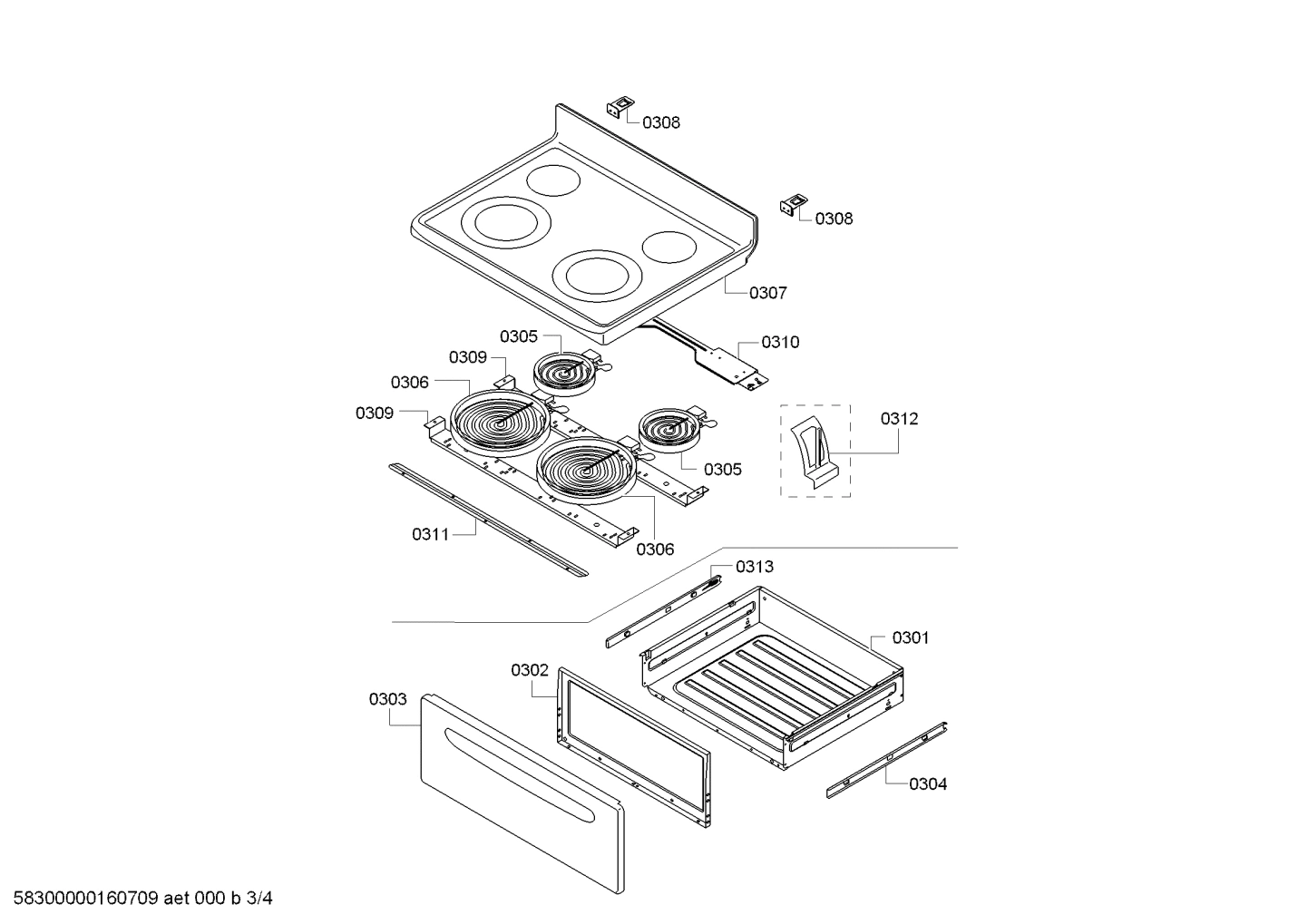

Diagram 3

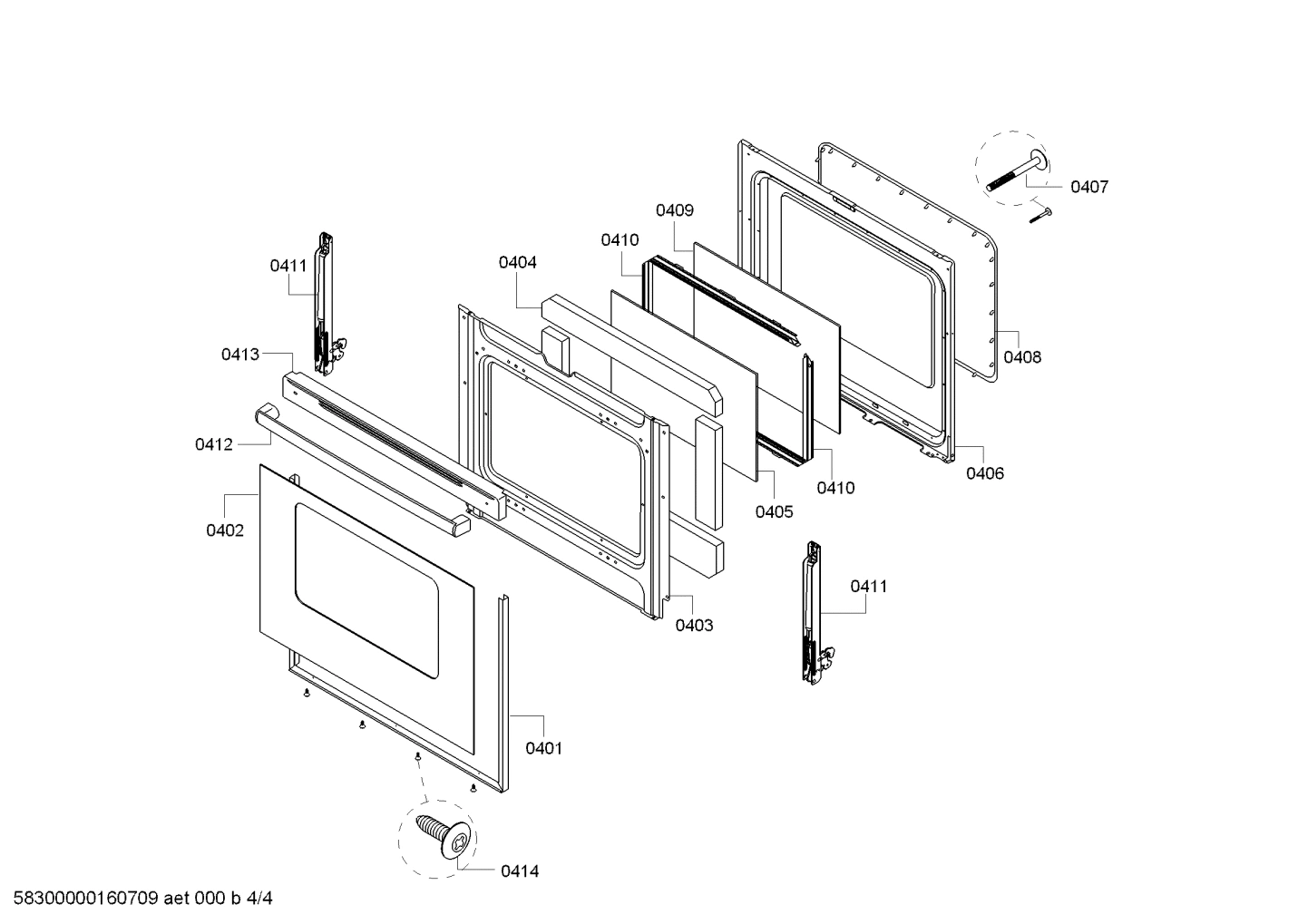

Diagram 4
Common parts from model Bosch HES3023U/06 Range Oven
0106
Controller unit BOS 00707325 Contact Us For Availability
0107
Cover sheet BOS 00676710 Contact Us For Availability
0111
Switch BOS 00617691 Contact Us For Availability
0112
Switch BOS 00623913 Contact Us For Availability
0204
Screw BOS 00617697 Contact Us For Availability
0207
Panel BOS 00684042 Contact Us For Availability
0209
Pan BOS 00676722 Contact Us For Availability
0211
Switch BOS 00617699 Contact Us For Availability
0212
Light socket BOS 00617700 Contact Us For Availability
0226
Cover BOS 00657165 Contact Us For Availability
0227
Damper BOS 00684044 Contact Us For Availability
0228
Insulating part BOS 00705910 Contact Us For Availability
0229
Insulating part BOS 00684047 Contact Us For Availability
0230
Tube BOS 00676734 Contact Us For Availability
0231
Tube BOS 00676735 Contact Us For Availability
0232
Terminal box BOS 00649186 Contact Us For Availability
0233
Bracket BOS 00617742 Contact Us For Availability
0234
Heating element BOS 00676737 Contact Us For Availability
0236
Support BOS 00676740 Contact Us For Availability
0237
Cover BOS 00711279 Contact Us For Availability
0238
Hinge-plate BOS 00617721 Contact Us For Availability
0239
Bracket BOS 00617723 Contact Us For Availability
0240
Rod BOS 00684048 Contact Us For Availability
0241
Latch BOS 00649160 Contact Us For Availability
0242
Cover BOS 00676742 Contact Us For Availability
0244
Bracket BOS 00654030 Contact Us For Availability
0245
Panel side BOS 00704089 Contact Us For Availability
0246
Panel BOS 00686412 Contact Us For Availability
0250
Cable harness BOS 00656279 Contact Us For Availability
0302
Front panel BOS 00686411 Contact Us For Availability
0303
Panel BOS 00684050 Contact Us For Availability
0304
Slide BOS 00653938 Contact Us For Availability
0306
Surface burner BOS 00653734 Contact Us For Availability
0307
Heater-top BOS 00684053 Contact Us For Availability
0308
Hinge BOS 00617733 Contact Us For Availability
0309
Support BOS 00676748 Contact Us For Availability
0310
Support BOS 00684061 Contact Us For Availability
0311
Support BOS 00684063 Contact Us For Availability
0312
Clip BOS 00617734 Contact Us For Availability
0313
Slide BOS 00653939 Contact Us For Availability
0401
Insulating tape BOS 00649180 Contact Us For Availability
0403
Frame BOS 00685565 Contact Us For Availability
0404
Damper BOS 00684075 Contact Us For Availability
0405
Glass plate BOS 00686969 Contact Us For Availability
0406
Frame BOS 00684077 Contact Us For Availability
0407
Screw BOS 00617738 Contact Us For Availability
0408
Seal-door BOS 00649181 Contact Us For Availability
0409
Inner glass BOS 00684775 Contact Us For Availability
0410
Spacer BOS 00684776 Contact Us For Availability
0411
Hinge BOS 00657164 Contact Us For Availability
0413
Cap BOS 00649183 Contact Us For Availability
0414
Screw BOS 00617695 Contact Us For Availability
× ![]()
