Model Bosch HEN380751/01 Range Oven – Common Parts & Diagrams
Diagram 1
Diagram 2

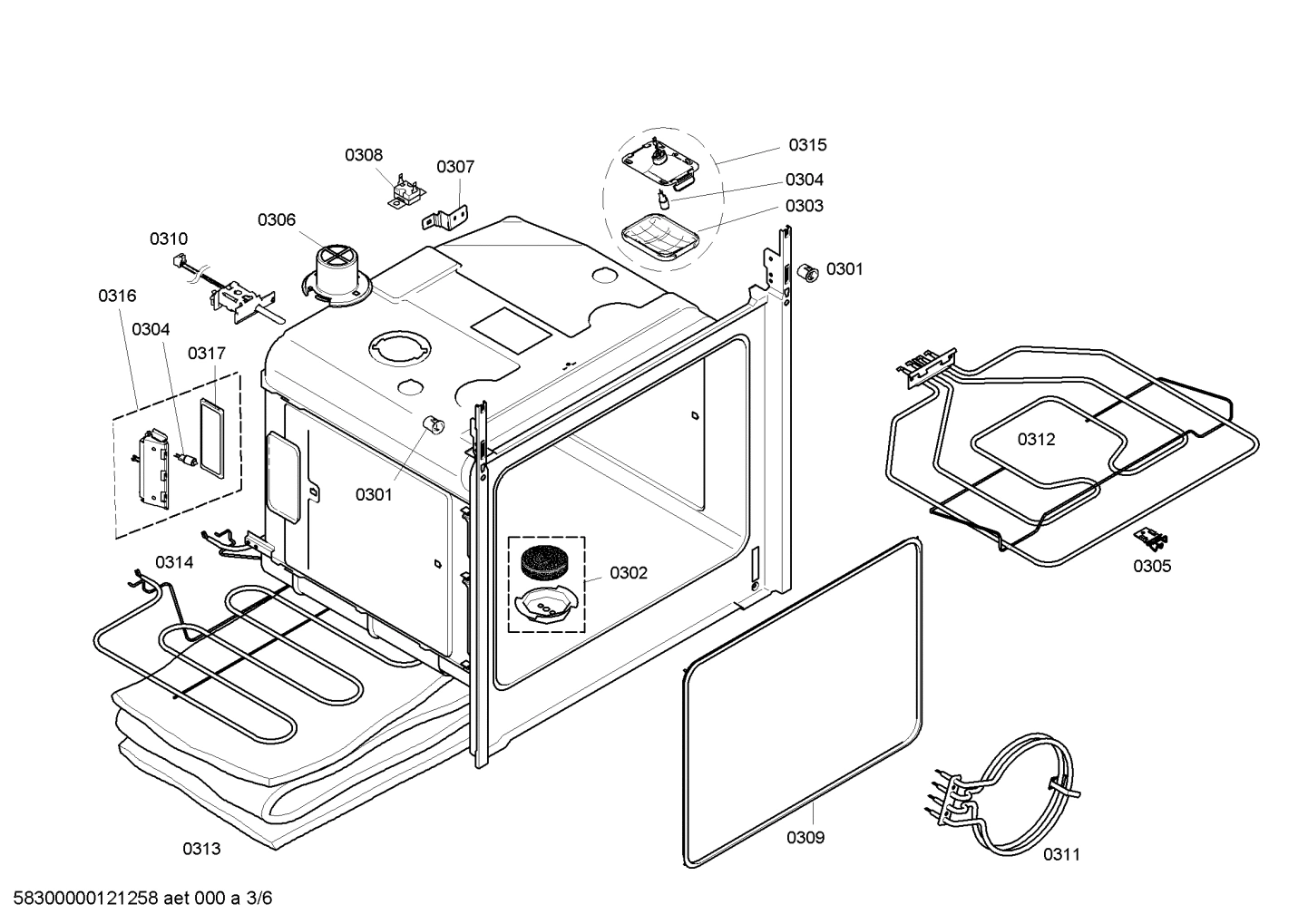

Diagram 3

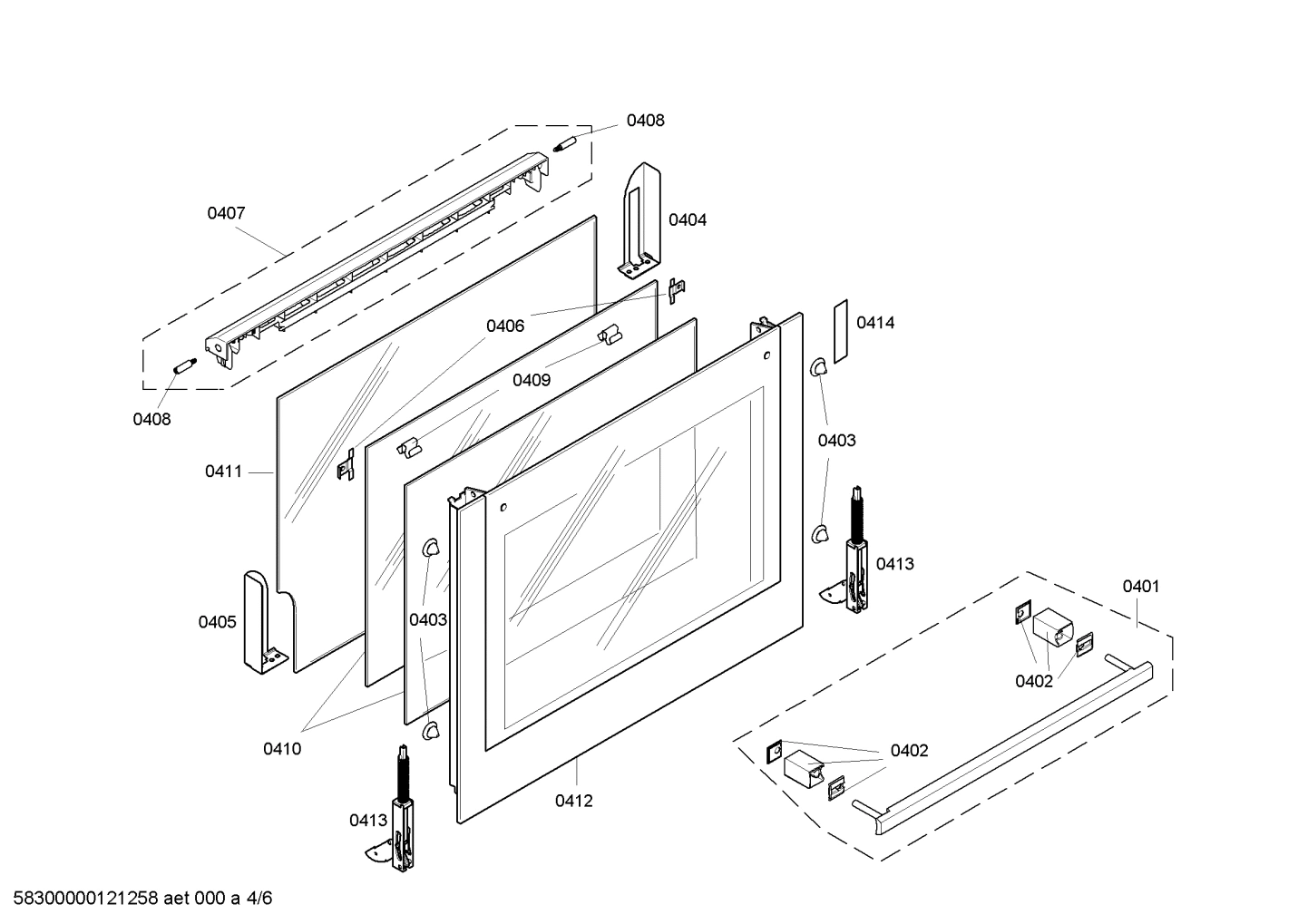

Diagram 4

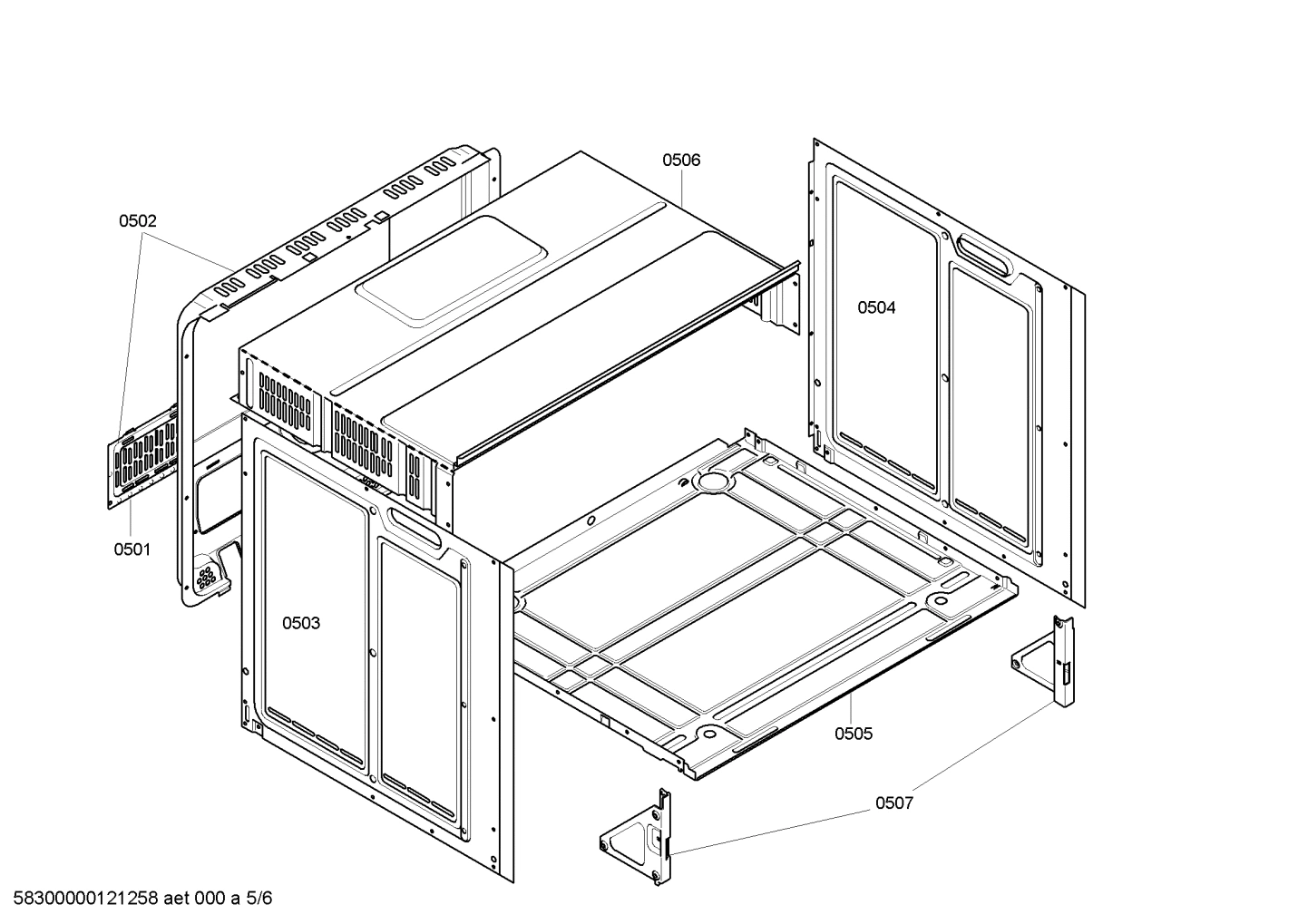

Diagram 5

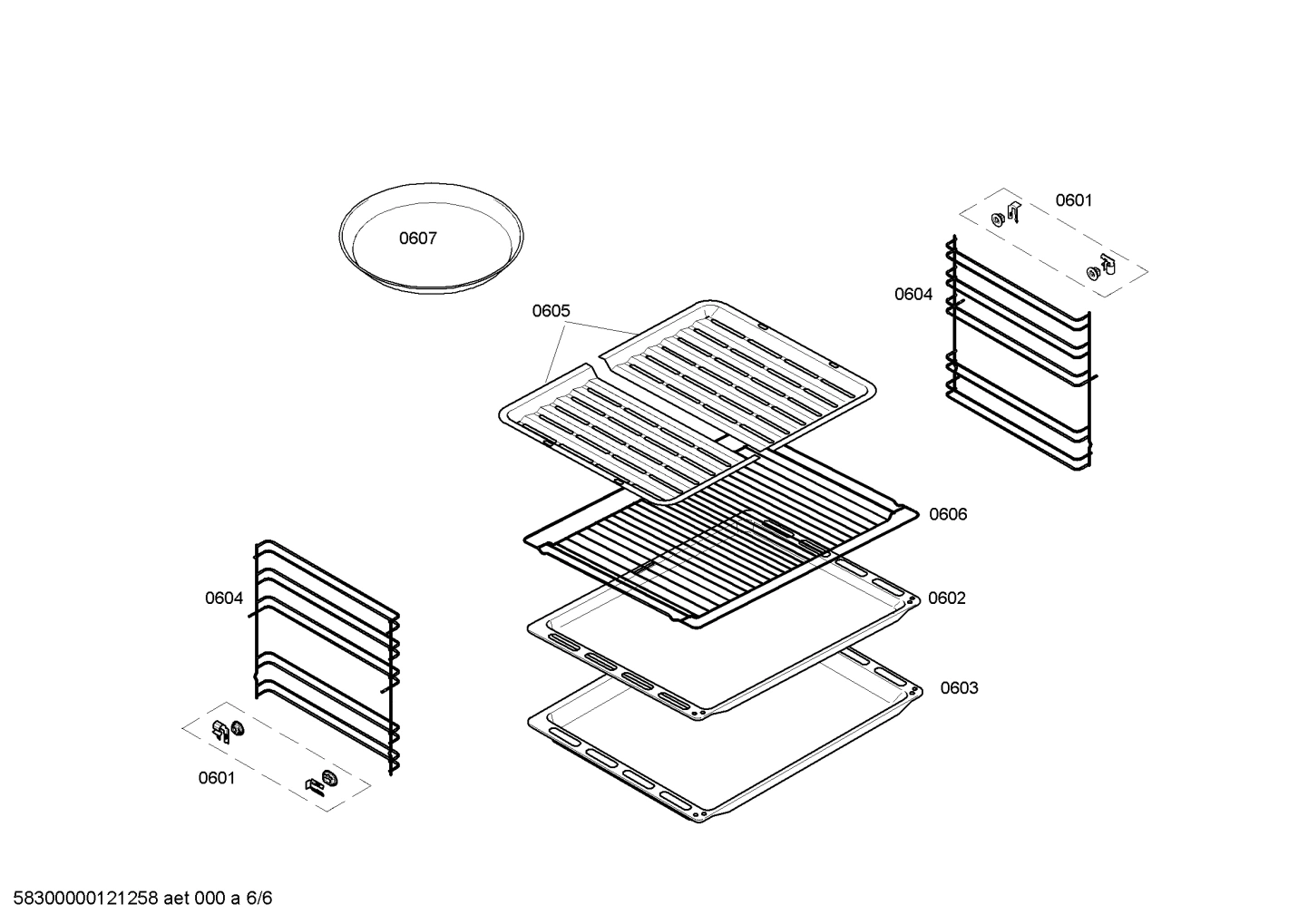

Diagram 6
Common parts from model Bosch HEN380751/01 Range Oven
0215
PC board assembly-mains power BOS 00651994 Contact Us For Availability
0216
Fan blade BOS 00752255 Contact Us For Availability
0303
Glass light cover BOS 00187384 Contact Us For Availability
0304
Halogen Lamp BOS 00157311 Contact Us For Availability
0310
Sensor-PTC BOS 00423842 Contact Us For Availability
0315
Halogen lamp complete BOS 00491988 Contact Us For Availability
0317
Glass light cover BOS 00422740 Contact Us For Availability
0403
Spacer BOS 00420735 Contact Us For Availability
0404
Panel BOS 00612595 Contact Us For Availability
0405
Panel BOS 00612596 Contact Us For Availability
0408
Screw BOS 00605886 Contact Us For Availability
0414
Identification plate BOS 00633848 Contact Us For Availability
0607
Pizza Pan BOS 11041554 Contact Us For Availability
× ![]()
