Model Bosch HEG73B450/45 Range Oven – Common Parts & Diagrams

0225
Blower motor
Blower motor BOS 00651461 Contact Us For Availability
View on Model
0226
Fan blade
Fan blade BOS 00752255 Contact Us For Availability
View on Model
0279
PC board assembly-mains power
PC board assembly-mains power BOS 00651994 Contact Us For Availability
View on Model
0325
Spacer
Spacer BOS 00427919 Contact Us For Availability
View on Model

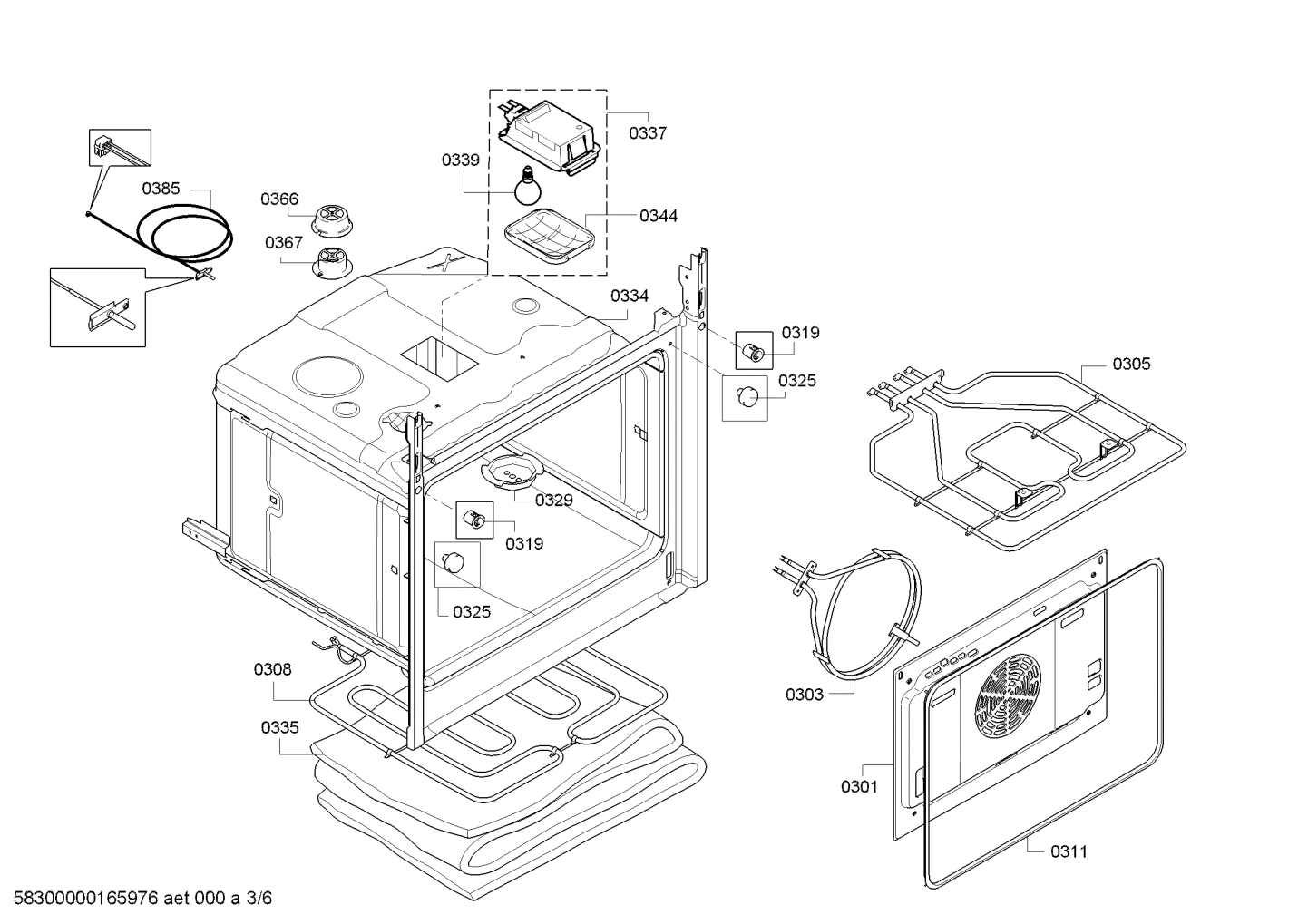

0344
Glass light cover
Glass light cover BOS 00187384 Contact Us For Availability
View on Model
0385
Sensor-PTC
Sensor-PTC BOS 00423842 Contact Us For Availability
View on Model

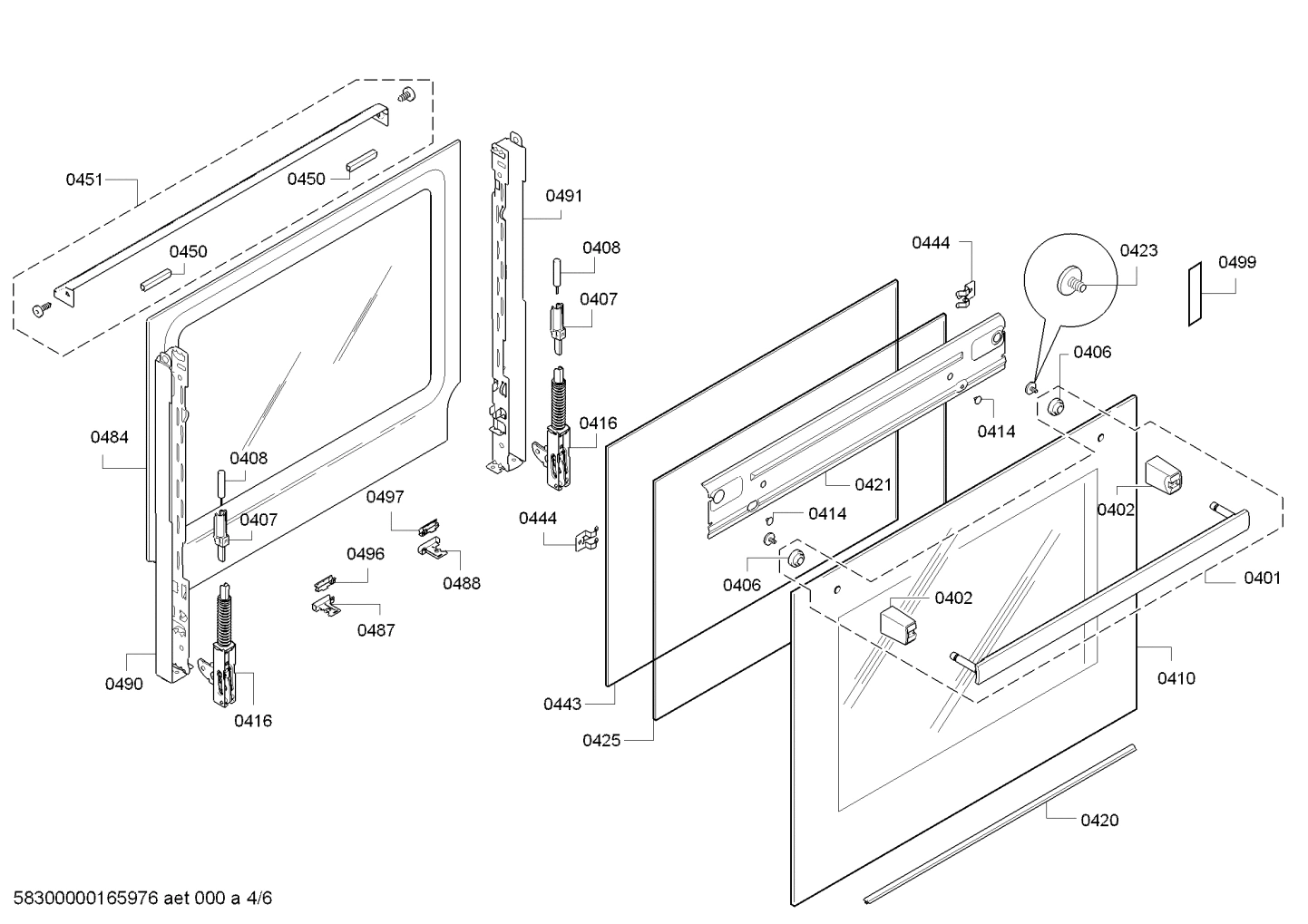

0406
Sealing
Sealing BOS 00606677 Contact Us For Availability
View on Model
0414
Spacer
Spacer BOS 00420735 Contact Us For Availability
View on Model
0499
Identification plate
Identification plate BOS 00633848 Contact Us For Availability
View on Model

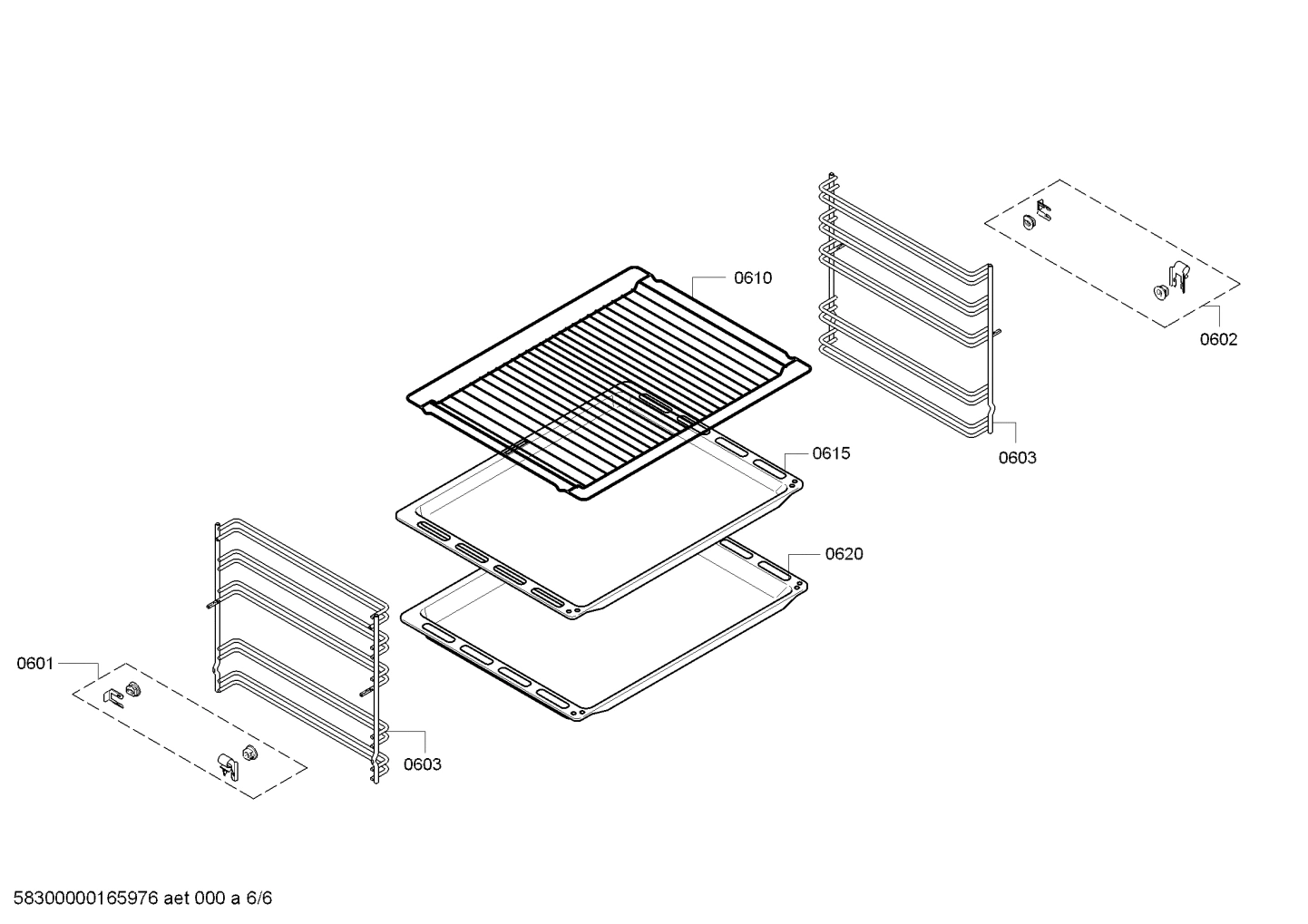

0610
Wire Rack
Wire Rack BOS 00574876 Contact Us For Availability
View on Model
