Model Bosch HBN77P750/02 Range Oven – Common Parts & Diagrams

Common parts from model Bosch HBN77P750/02 Range Oven

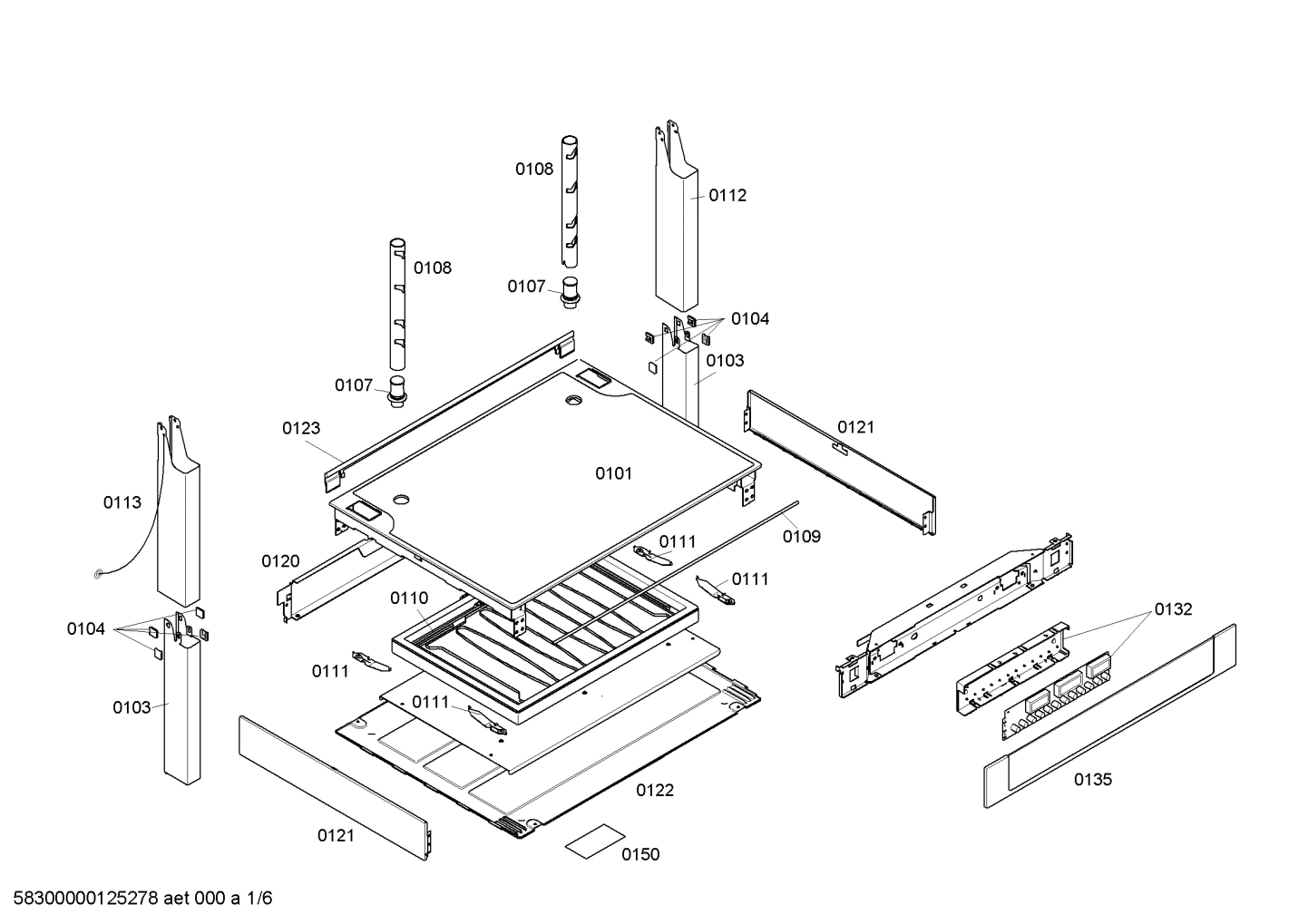

Diagram 1

Print

• This Diagram
• All Diagrams

0111

Fixture BOS 00490359 Contact Us For Availability

View on Model

0112

Cover BOS 00448308 Contact Us For Availability

View on Model

0121

Cover BOS 00448244 Contact Us For Availability

View on Model

0150

IDENTIFICATION PLATE Backorder BOS 00633848 View Details $35.67

View on Model

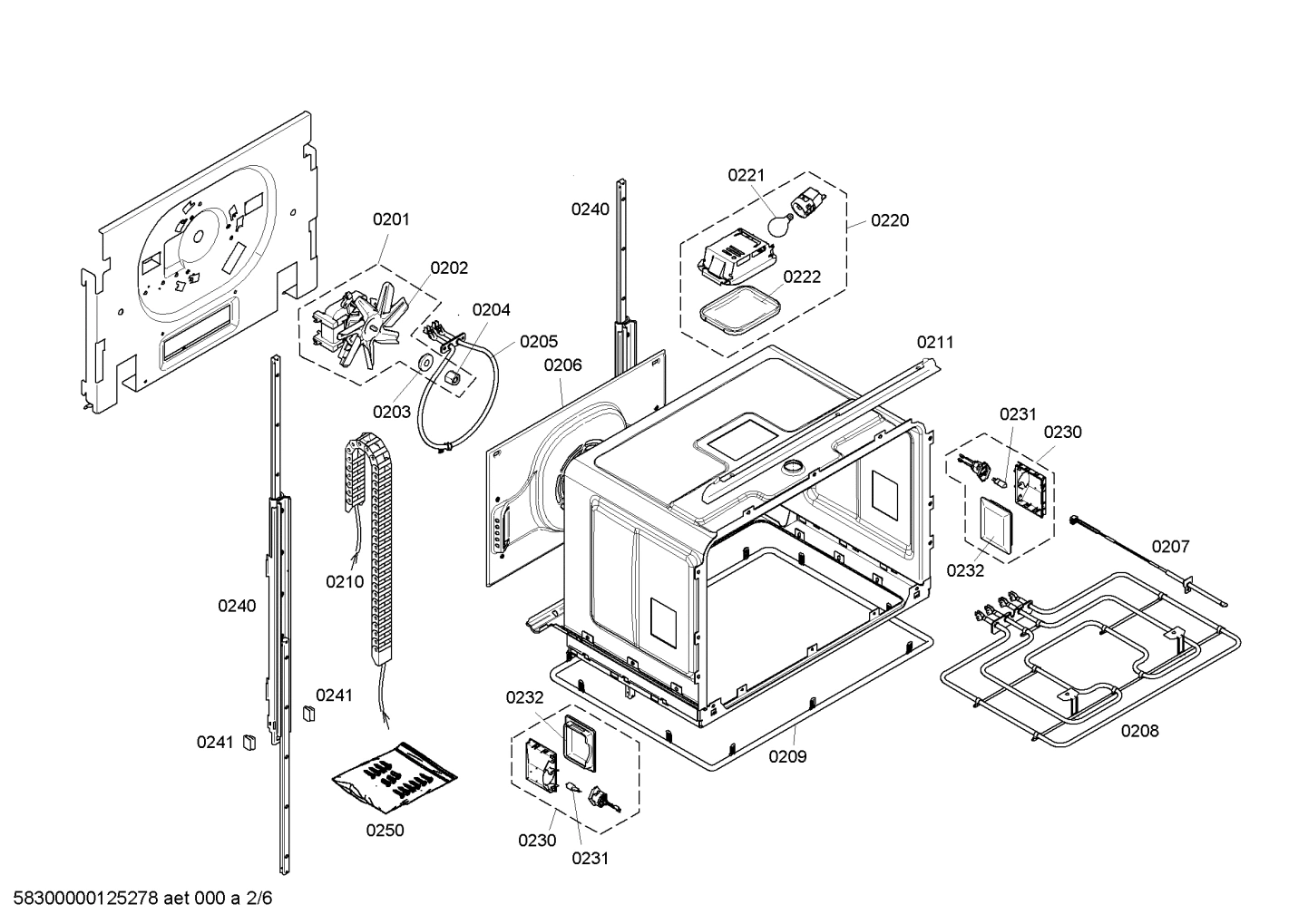

0203

00603860 Bosch Oven Spacer Backorder BOS 00603860 View Details $11.88

View on Model

0204

00619246 Bosch Oven Nut Backorder BOS 00619246 View Details $4.56

View on Model

0220

Lamp complete BOS 00499649 Contact Us For Availability

View on Model

0221

00057874 Bosch Lamp Backorder BOS 00057874 View Details $16.45

View on Model

0222

GLASS LIGHT COVER Backorder BOS 00187384 View Details $21.94

View on Model

0231

00157311 Bosch Halogen Lamp In Stock BOS 00157311 View Details $33.84

View on Model

0232

00422740 Bosch Range Light Cover Backorder BOS 00422740 View Details $15.54

View on Model

0241

Guide BOS 00603642 Contact Us For Availability

View on Model

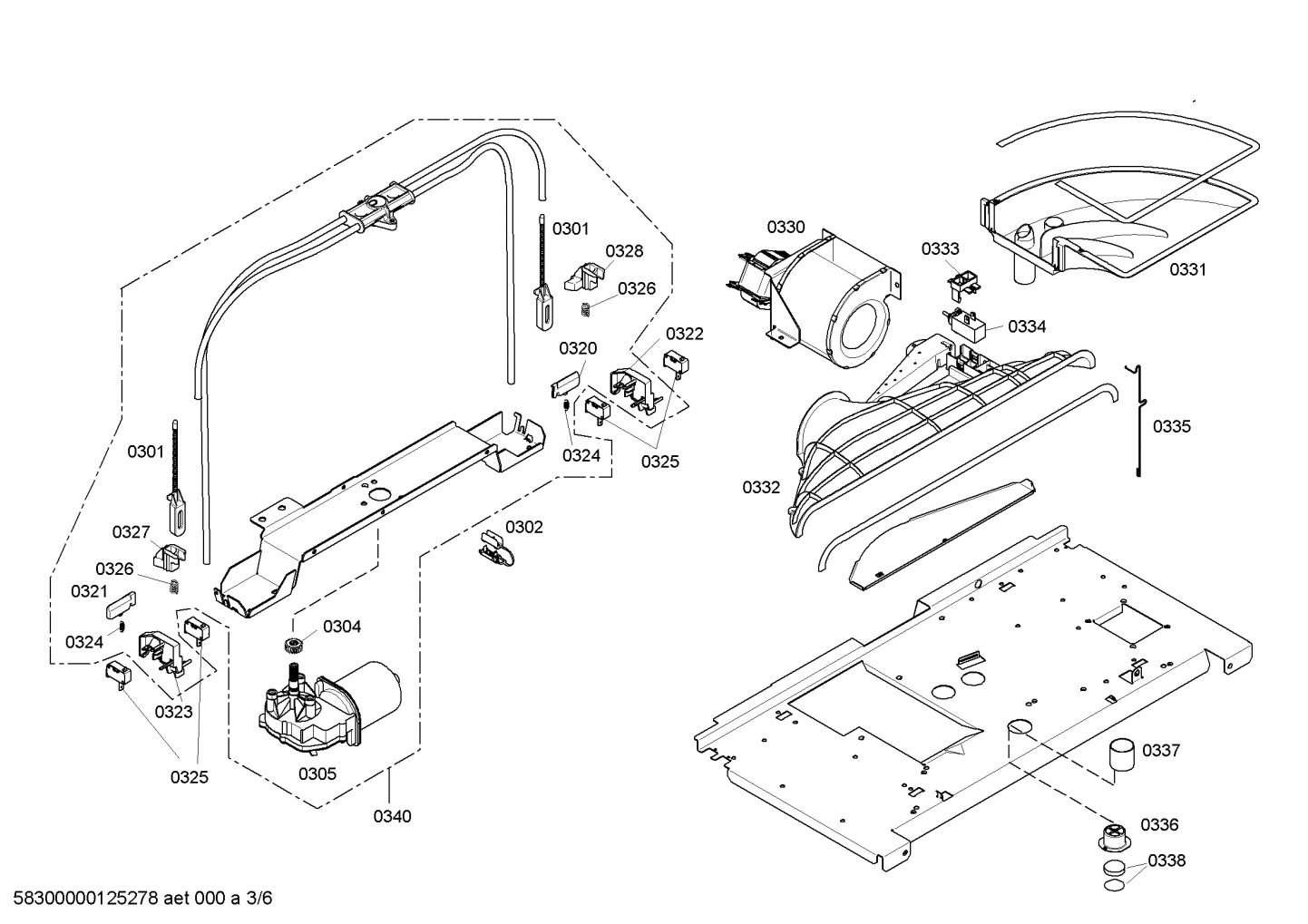

0304

Gear / spur gear BOS 00603644 Contact Us For Availability

View on Model

0322

Case-switch BOS 00603519 Contact Us For Availability

View on Model

0323

Case-switch BOS 00603520 Contact Us For Availability

View on Model

0325

MICROSWITCH Backorder BOS 00030689 View Details $68.76

View on Model

0334

Switch BOS 00603543 Contact Us For Availability

View on Model

0336

FILTERING JUG Backorder BOS 00420760 View Details $16.45

View on Model

0338

Filter BOS 00603643 Contact Us For Availability

View on Model

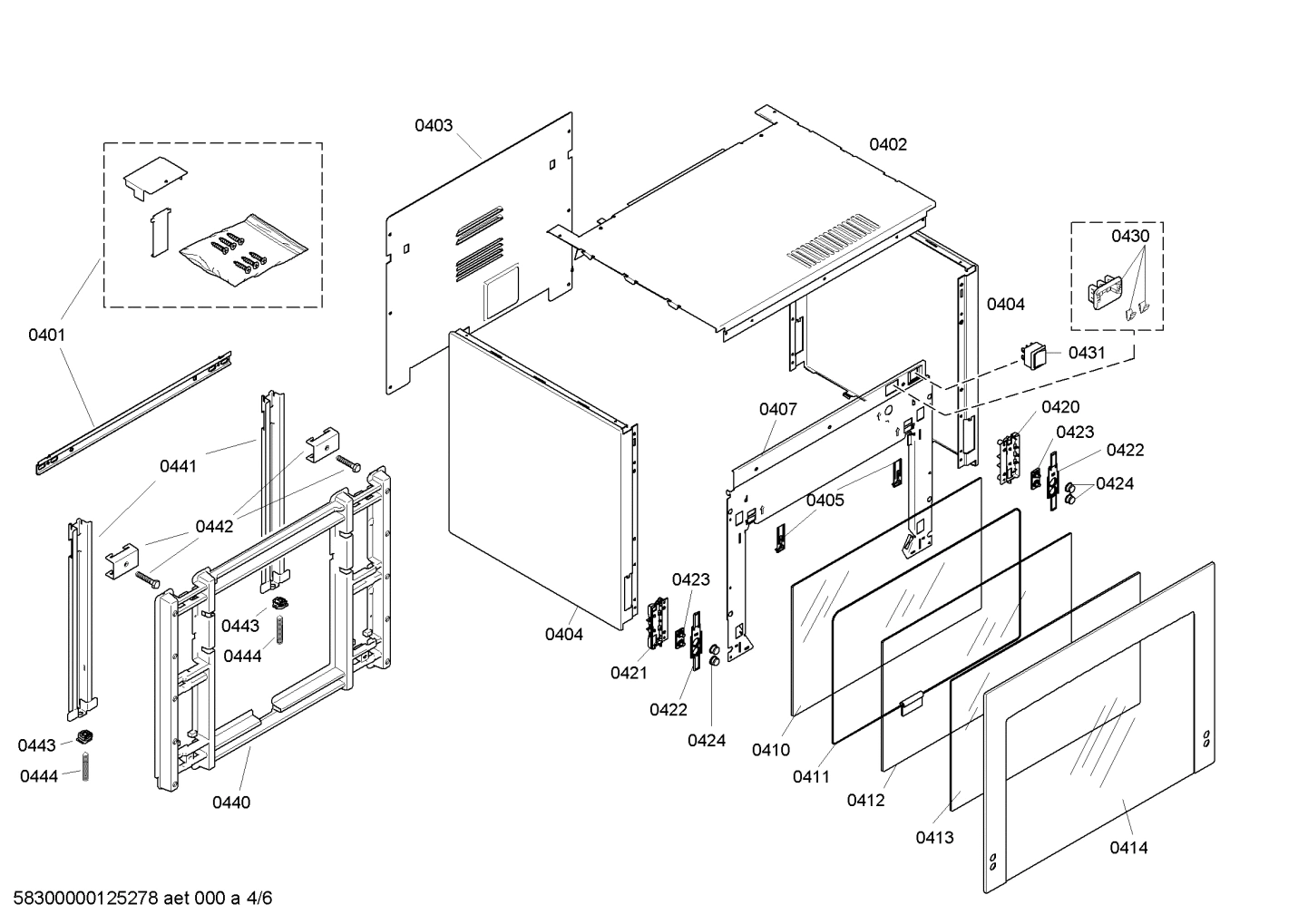

0401

00448357 Bosch Range Holder Backorder BOS 00448357 View Details $55.19

View on Model

0412

Inner glass BOS 00448356 Contact Us For Availability

View on Model

0413

Intermediate panel BOS 00448058 Contact Us For Availability

View on Model

0423

Key BOS 00603504 Contact Us For Availability

View on Model

0442

Clip BOS 00617392 Contact Us For Availability

View on Model

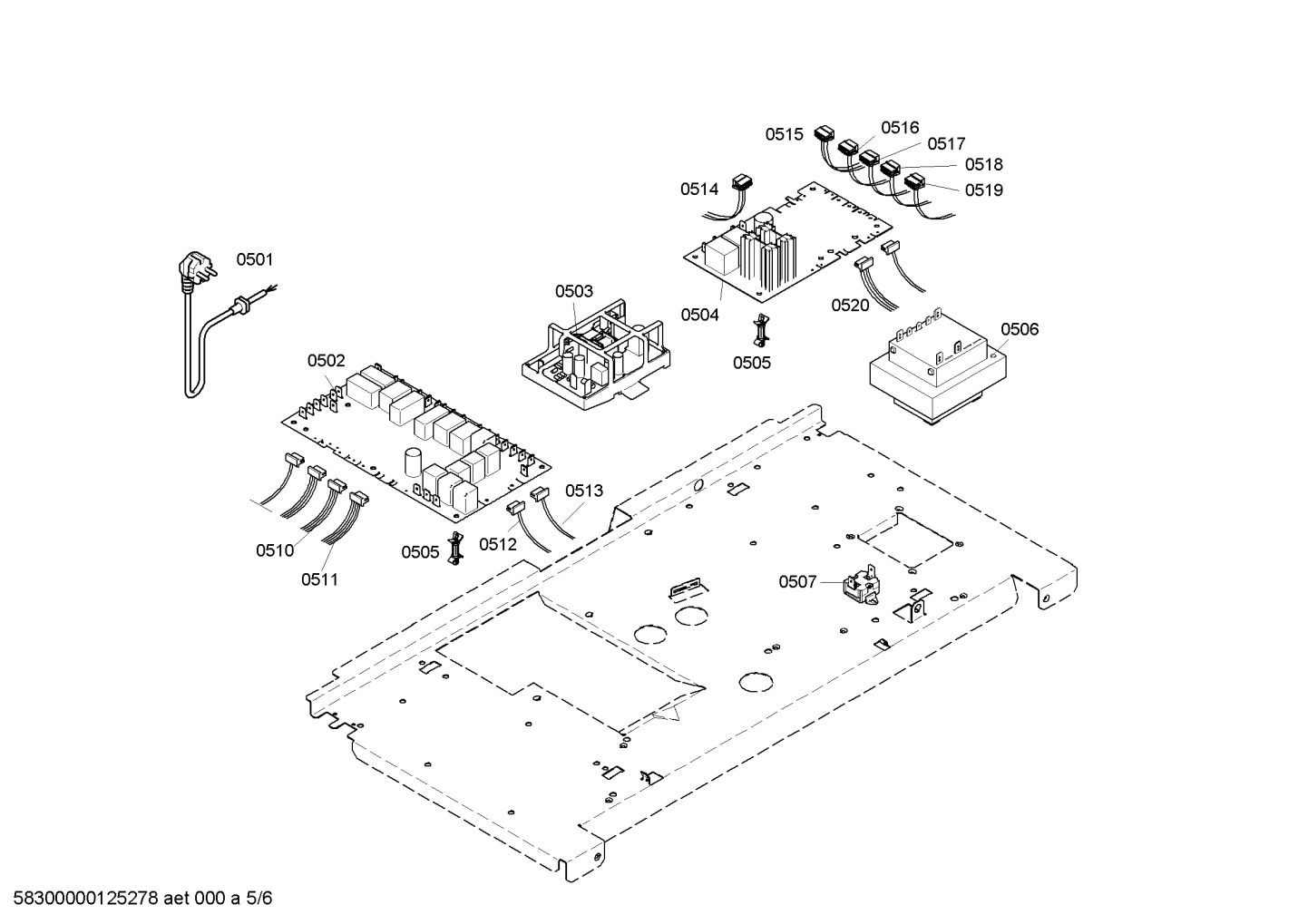

0503

00651994 Bosch Oven Power Mains PCB Assembly Backorder BOS 00651994 View Details $139.71

View on Model

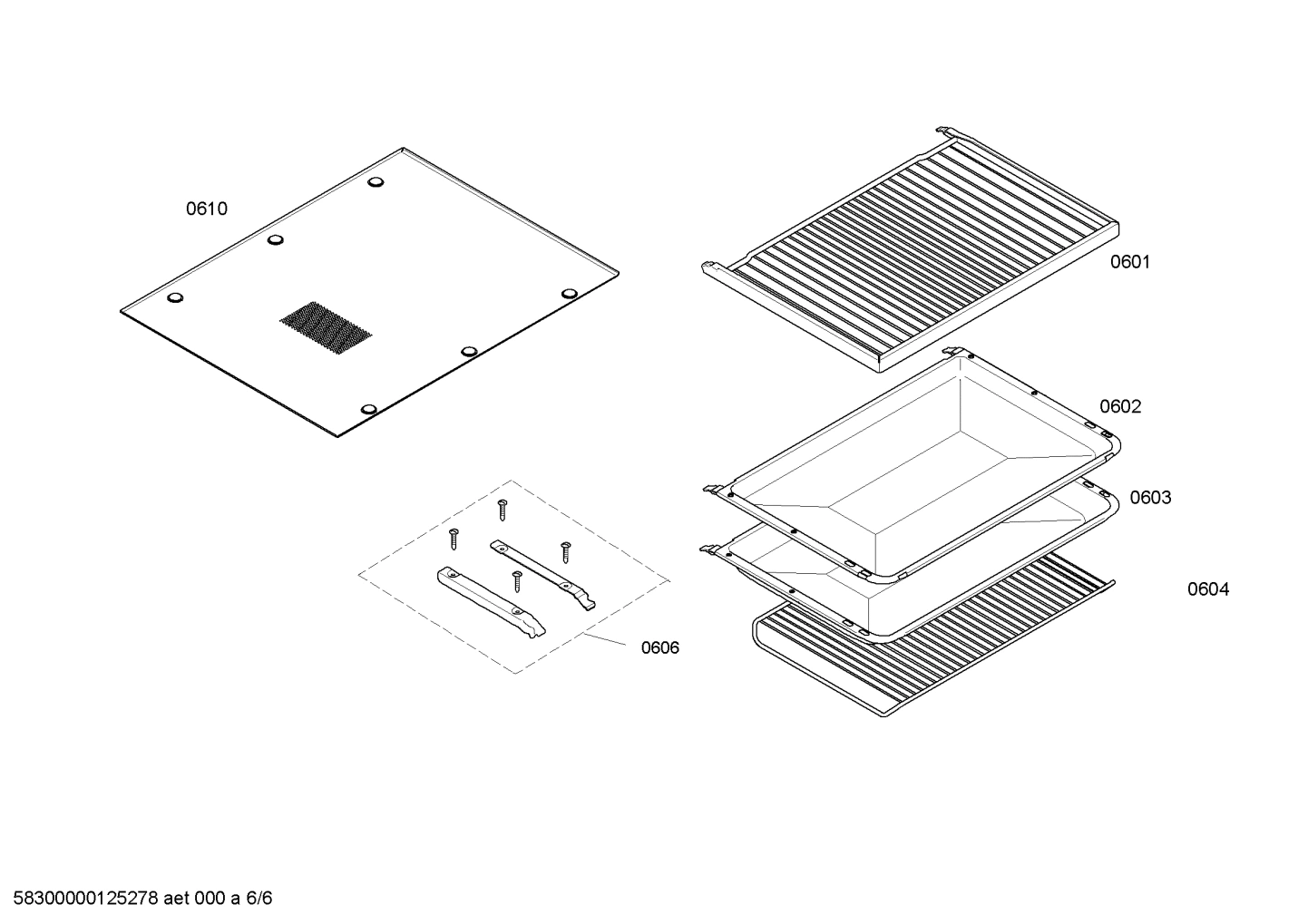

0601

Multi-use wire shelf BOS 00476505 Contact Us For Availability

View on Model

0603

Baking tray enamel BOS 00476504 Contact Us For Availability

View on Model

0606

Installation set BOS 00640092 Contact Us For Availability

View on Model

×
