Model Bosch HBN745AUC/01 Range Oven – Common Parts & Diagrams

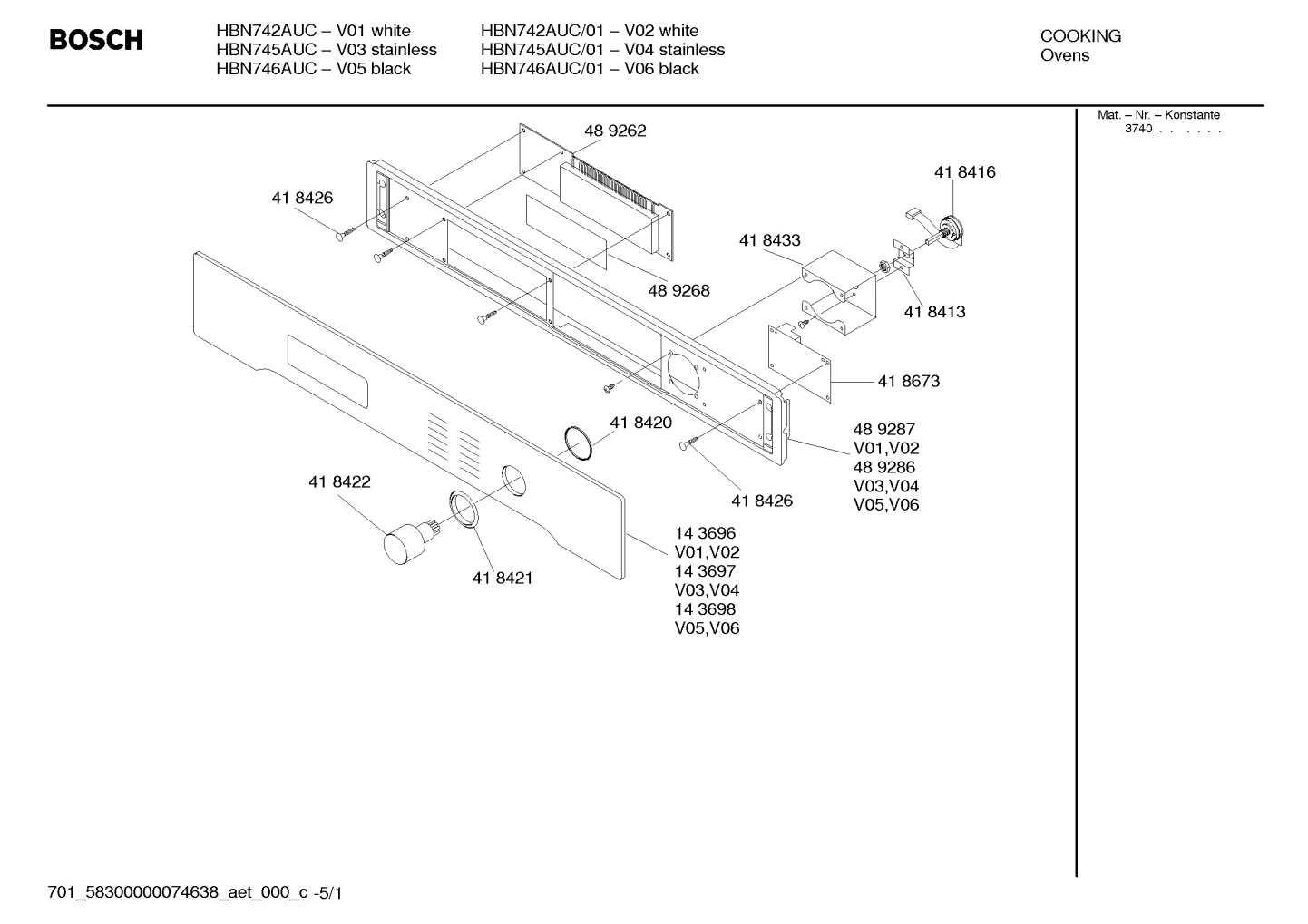

Diagram 1

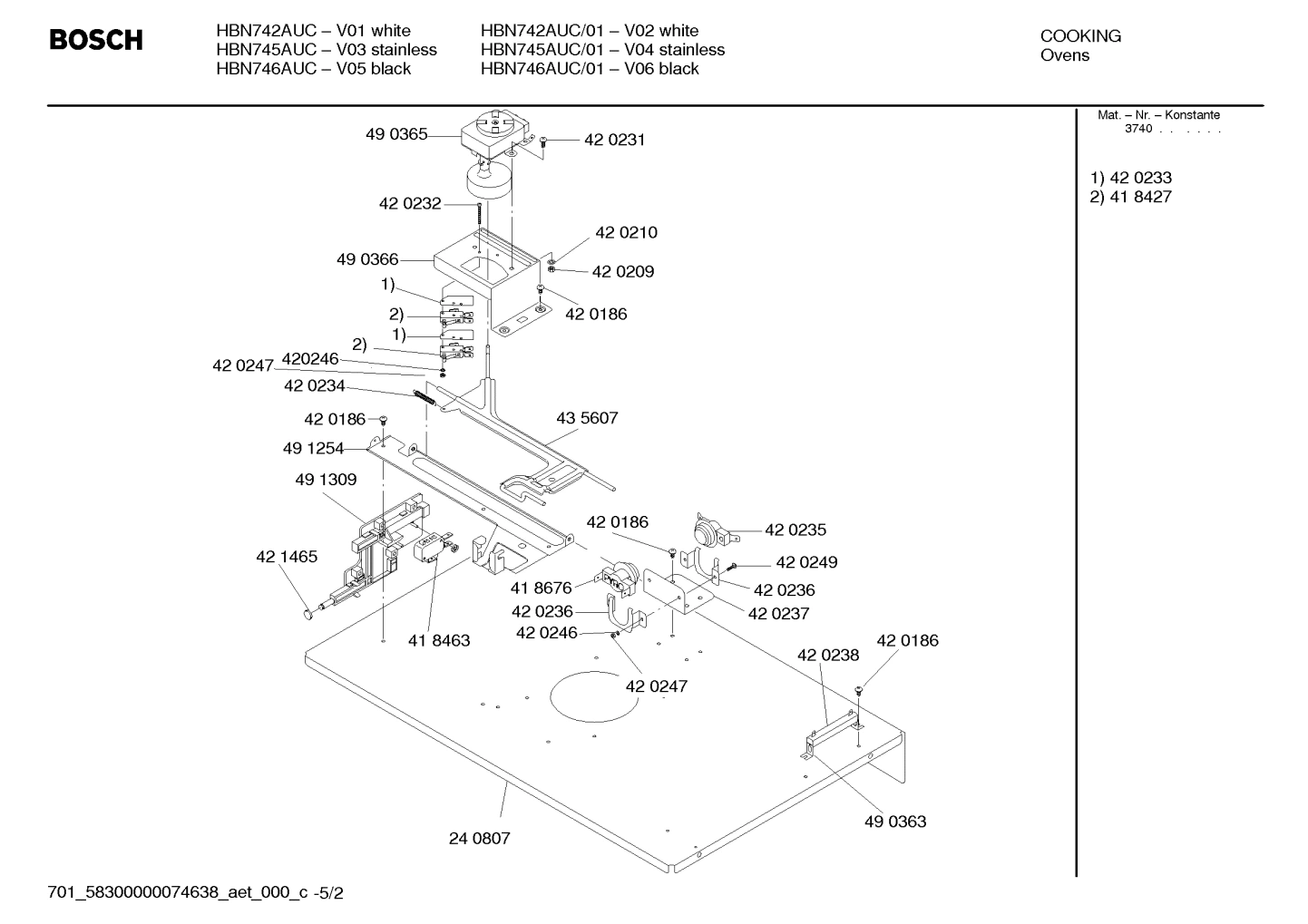

Diagram 2

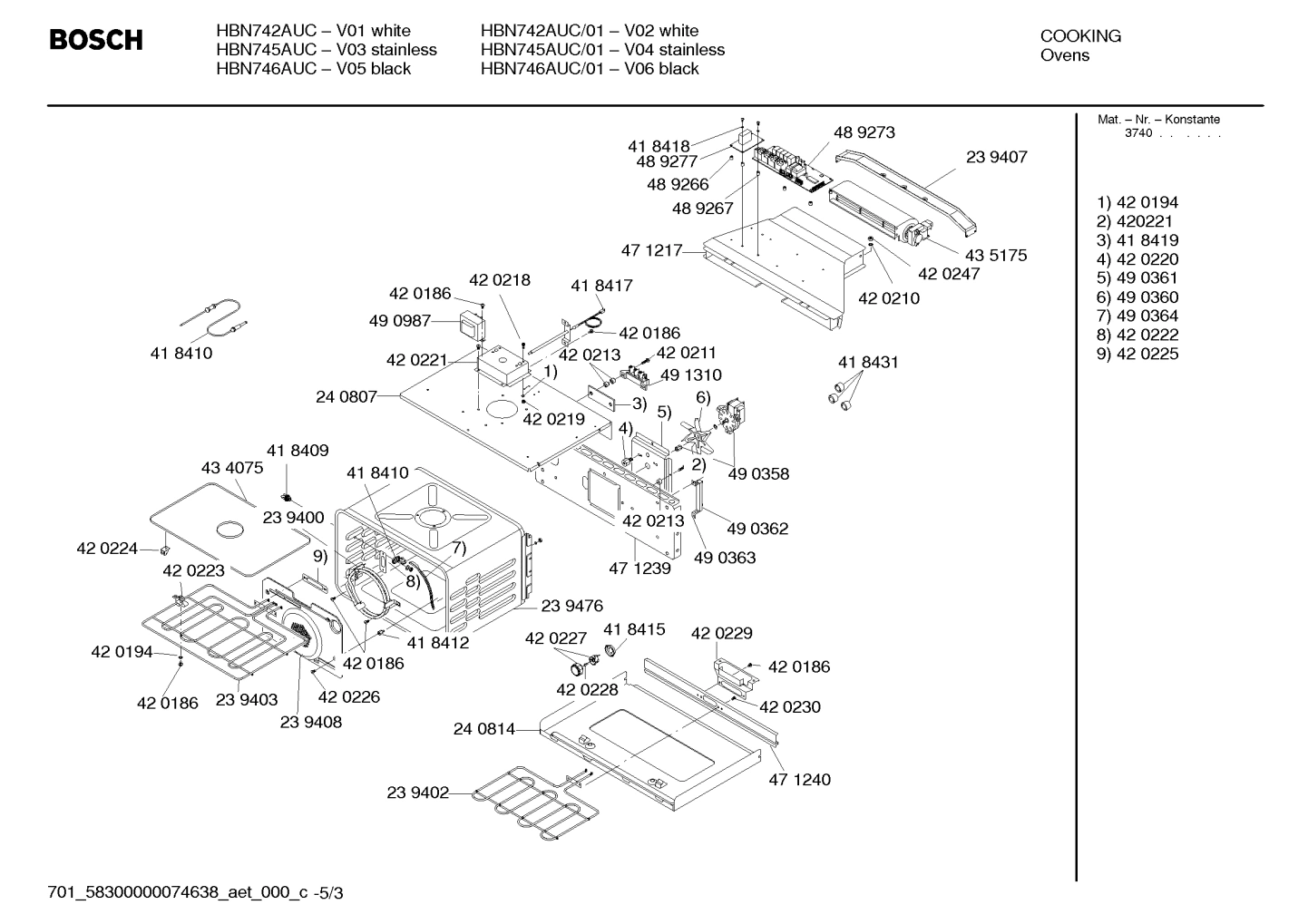

Diagram 3

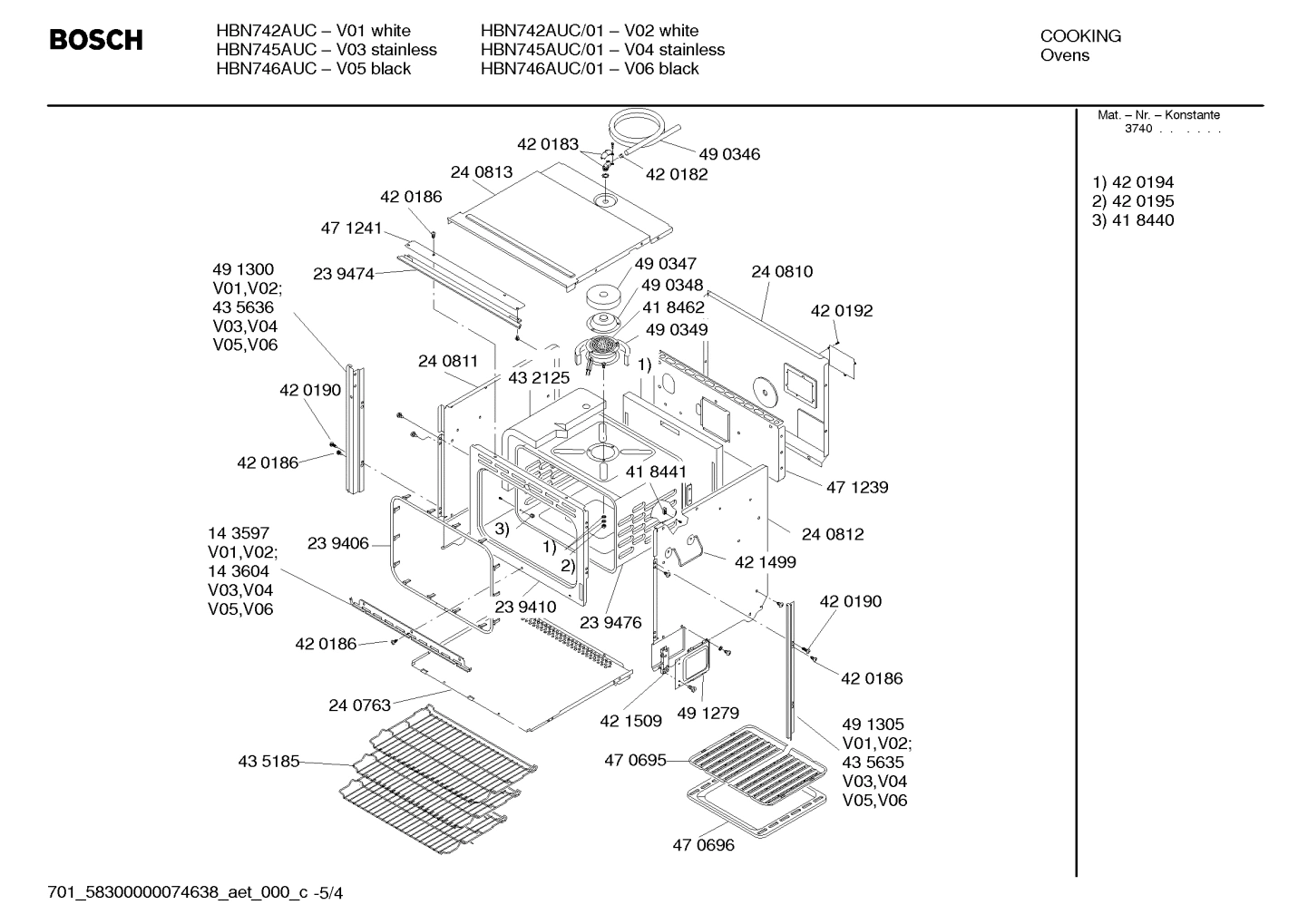

Diagram 4

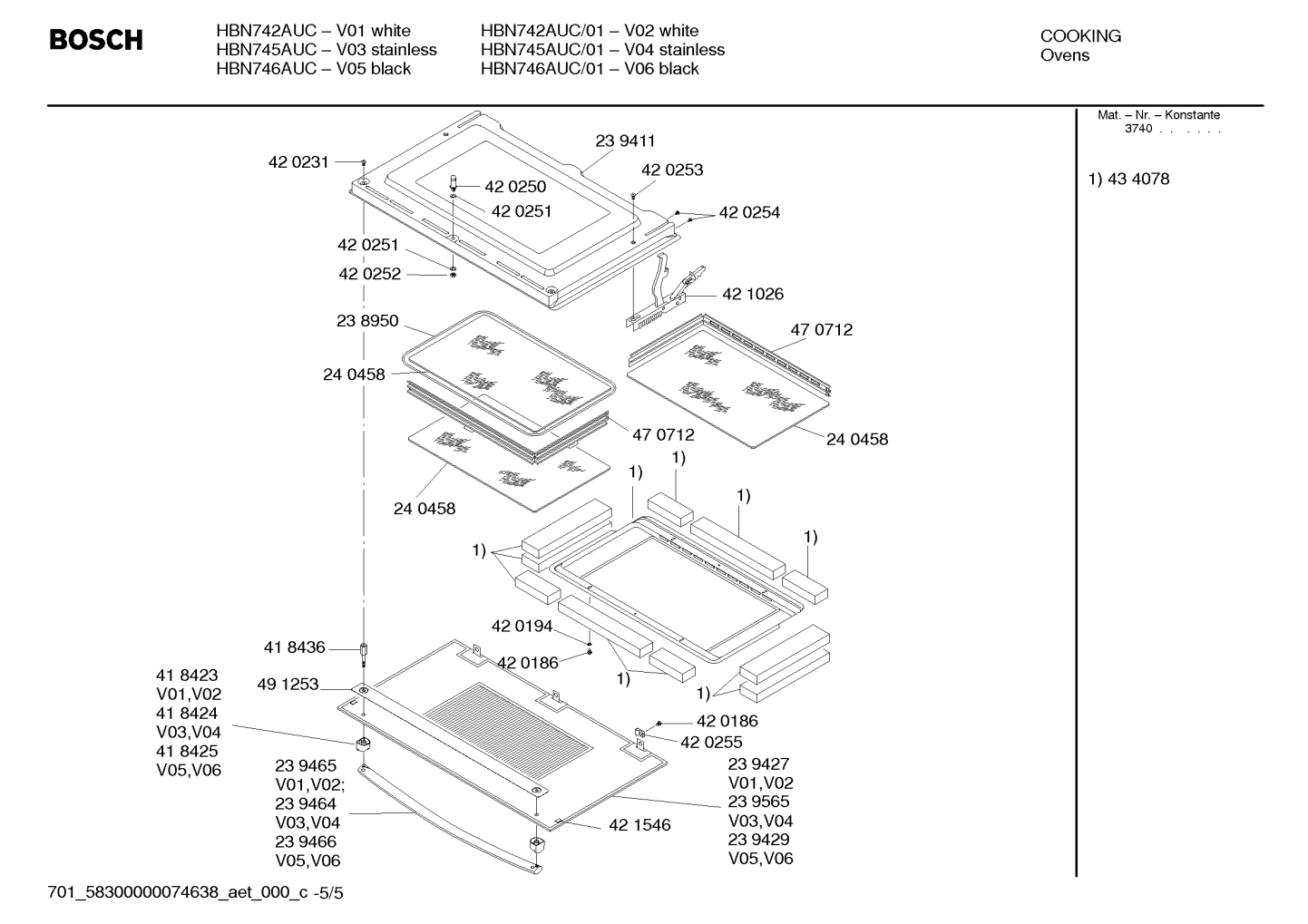

Diagram 5
Common parts from model Bosch HBN745AUC/01 Range Oven
0106
Display-film strip BOS 00489268 Contact Us For Availability
0111
Relay BOS 00489261 Contact Us For Availability
0201
Motor BOS 00490365 Contact Us For Availability
0214
Temperature sensor BOS 00418676 Contact Us For Availability
0225
Switch BOS 00600145 Contact Us For Availability
0302
Cover BOS 00240807 Contact Us For Availability
0303
Connection piece BOS 00418409 Contact Us For Availability
0304
Reflector BOS 00434075 Contact Us For Availability
0306
Clip BOS 00420224 Contact Us For Availability
0307
Clip BOS 00420223 Contact Us For Availability
0310
Heating element BOS 00239403 Contact Us For Availability
0311
Cover BOS 00239408 Contact Us For Availability
0312
Heating element BOS 00239402 Contact Us For Availability
0313
Tray BOS 00240814 Contact Us For Availability
0314
Screw BOS 00420226 Contact Us For Availability
0315
Screw BOS 00418412 Contact Us For Availability
0317
Lamp housing BOS 00420227 Contact Us For Availability
0320
Spacer BOS 00420213 Contact Us For Availability
0321
Nut BOS 00420219 Contact Us For Availability
0322
Screw BOS 00420221 Contact Us For Availability
0323
Transformer BOS 00418461 Contact Us For Availability
0324
Screw BOS 00420218 Contact Us For Availability
0325
Temperature sensor BOS 00418417 Contact Us For Availability
0326
Ventilation duct BOS 00471217 Contact Us For Availability
0327
Spacer BOS 00489267 Contact Us For Availability
0328
Spacer BOS 00489266 Contact Us For Availability
0329
Relay BOS 00489277 Contact Us For Availability
0330
Washer BOS 00418418 Contact Us For Availability
0331
Control unit BOS 00489259 Contact Us For Availability
0332
Retaining plate BOS 00239407 Contact Us For Availability
0333
Blower motor BOS 00435175 Contact Us For Availability
0334
Nut BOS 00420247 Contact Us For Availability
0335
Retaining washer BOS 00420210 Contact Us For Availability
0336
Frequency filter BOS 00418431 Contact Us For Availability
0337
Screw BOS 00420211 Contact Us For Availability
0338
Terminal BOS 00491310 Contact Us For Availability
0339
Fan motor BOS 00490358 Contact Us For Availability
0340
Resistor BOS 00490362 Contact Us For Availability
0341
Support BOS 00490363 Contact Us For Availability
0342
Cover BOS 00418415 Contact Us For Availability
0343
Bracket BOS 00420229 Contact Us For Availability
0344
Screw BOS 00420230 Contact Us For Availability
0345
Strip-decor BOS 00471240 Contact Us For Availability
0346
Insulating part BOS 00418419 Contact Us For Availability
0347
Screw BOS 00420220 Contact Us For Availability
0348
Support BOS 00490361 Contact Us For Availability
0349
Fan BOS 00497261 Contact Us For Availability
0350
Ventilation duct BOS 00490364 Contact Us For Availability
0351
Seal BOS 00420222 Contact Us For Availability
0352
Sealing BOS 00420225 Contact Us For Availability
0402
Strip BOS 00471241 Contact Us For Availability
0403
Spacer BOS 00239474 Contact Us For Availability
0404
Support BOS 00435636 Contact Us For Availability
0405
Screw BOS 00420190 Contact Us For Availability
0406
Seal-door BOS 00239406 Contact Us For Availability
0407
Strip-decor BOS 00143604 Contact Us For Availability
0408
Cover BOS 00240763 Contact Us For Availability
0409
Shelf BOS 00445289 Contact Us For Availability
0410
Frying pan BOS 00470695 Contact Us For Availability
0411
Hinge-plate BOS 00600169 Contact Us For Availability
0412
Spare part BOS 00239476 Contact Us For Availability
0413
Frame BOS 00239410 Contact Us For Availability
0414
Pin BOS 00418441 Contact Us For Availability
0415
Insulating part BOS 00432125 Contact Us For Availability
0416
Cover BOS 00240811 Contact Us For Availability
0417
Panel BOS 00240813 Contact Us For Availability
0418
Connection piece BOS 00420183 Contact Us For Availability
0419
Hose-vent BOS 00490346 Contact Us For Availability
0420
Sleeve BOS 00420182 Contact Us For Availability
0421
Insulating part BOS 00490347 Contact Us For Availability
0422
Cover BOS 00490348 Contact Us For Availability
0423
Catalyzer BOS 00418462 Contact Us For Availability
0424
Insulating part BOS 00490349 Contact Us For Availability
0425
Case-rear part BOS 00240810 Contact Us For Availability
0426
Screw BOS 00420192 Contact Us For Availability
0427
Panel BOS 00471239 Contact Us For Availability
0428
Cover BOS 00240812 Contact Us For Availability
0429
Handle BOS 00421499 Contact Us For Availability
0430
Box BOS 00497236 Contact Us For Availability
0431
Support BOS 00435635 Contact Us For Availability
0432
Drip pan BOS 00470696 Contact Us For Availability
0434
Nut BOS 00420195 Contact Us For Availability
0435
Pin BOS 00418440 Contact Us For Availability
0501
Screw BOS 00420231 Contact Us For Availability
0502
Washer BOS 00420251 Contact Us For Availability
0503
Nut BOS 00420252 Contact Us For Availability
0504
Seal BOS 00238950 Contact Us For Availability
0505
Glass panel BOS 00240458 Contact Us For Availability
0506
Screw BOS 00418436 Contact Us For Availability
0507
Strip BOS 00491253 Contact Us For Availability
0508
Spacer BOS 00418424 Contact Us For Availability
0509
Handle-door BOS 00239464 Contact Us For Availability
0510
Seal-door BOS 00421546 Contact Us For Availability
0511
Screw BOS 00420186 Contact Us For Availability
0512
Retaining washer BOS 00420194 Contact Us For Availability
0513
Spacer BOS 00470712 Contact Us For Availability
0514
Pin BOS 00420250 Contact Us For Availability
0515
Frame BOS 00239411 Contact Us For Availability
0516
Screw BOS 00420253 Contact Us For Availability
0517
Screw BOS 00420254 Contact Us For Availability
0518
Door hinge BOS 00421026 Contact Us For Availability
0519
Clip BOS 00420255 Contact Us For Availability
0520
Door BOS 00239565 Contact Us For Availability
0521
Insulating part BOS 00434078 Contact Us For Availability
× ![]()
