Model Bosch HBN452AUC/01 Range Oven – Common Parts & Diagrams

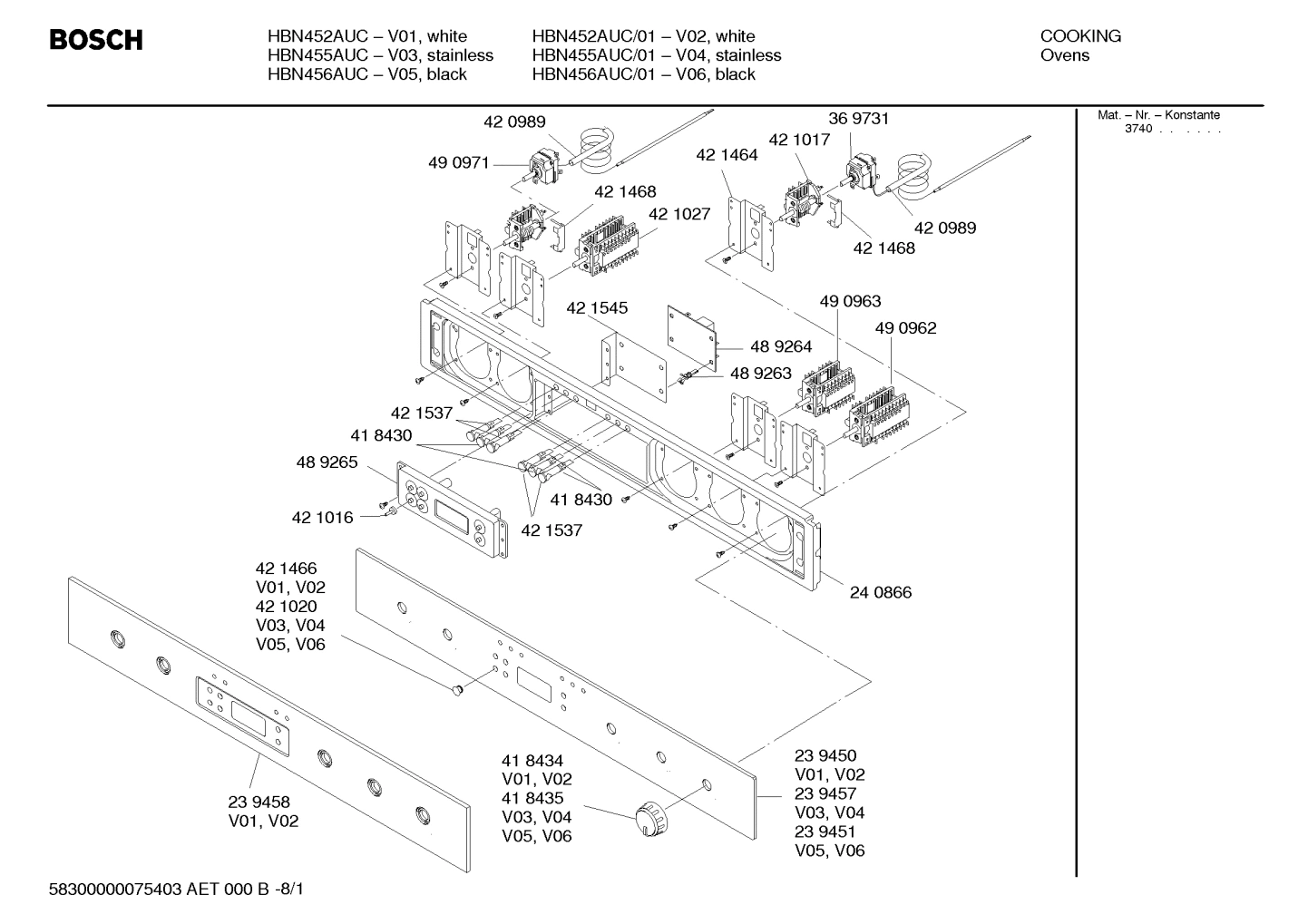

Diagram 1

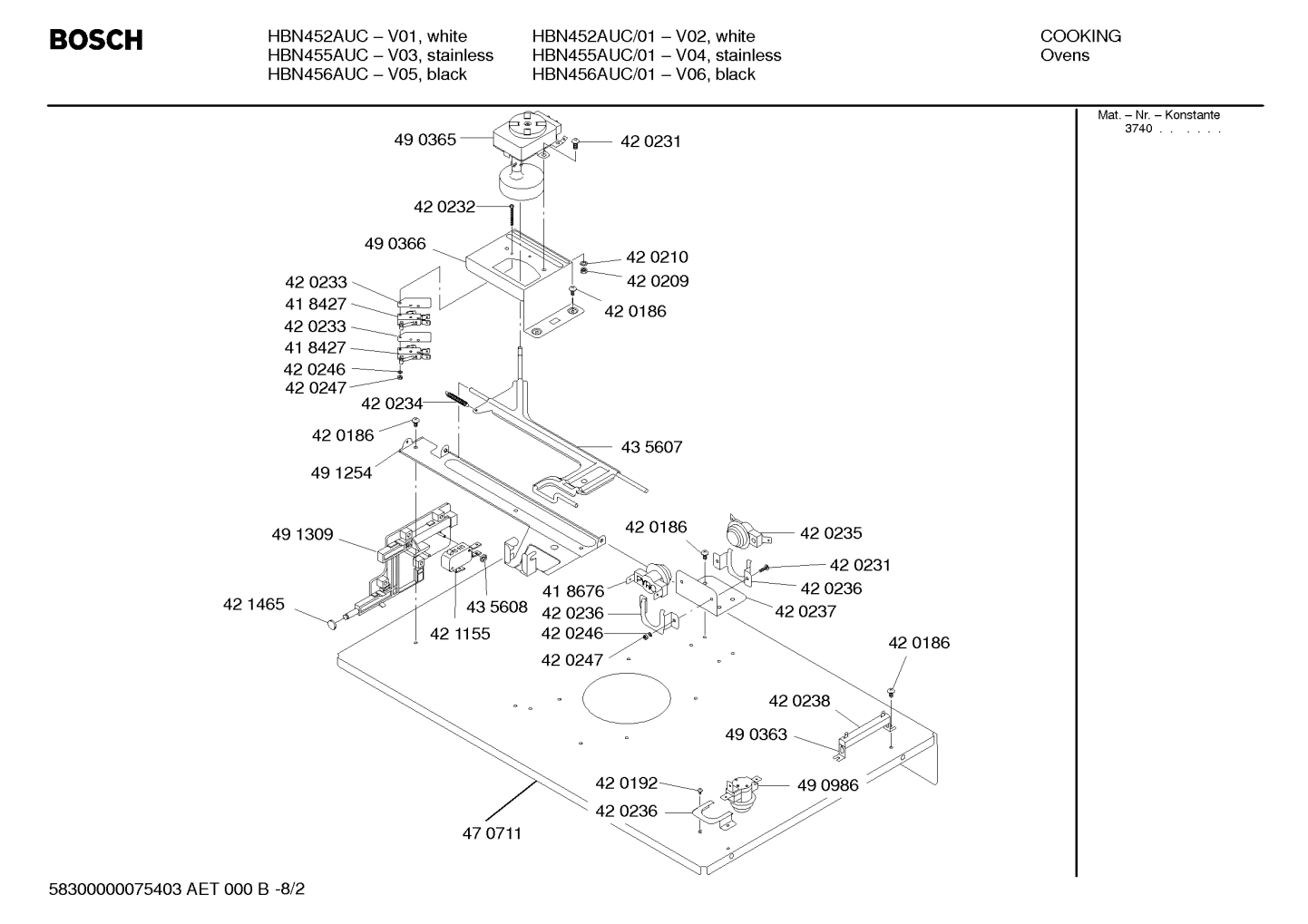

Diagram 2

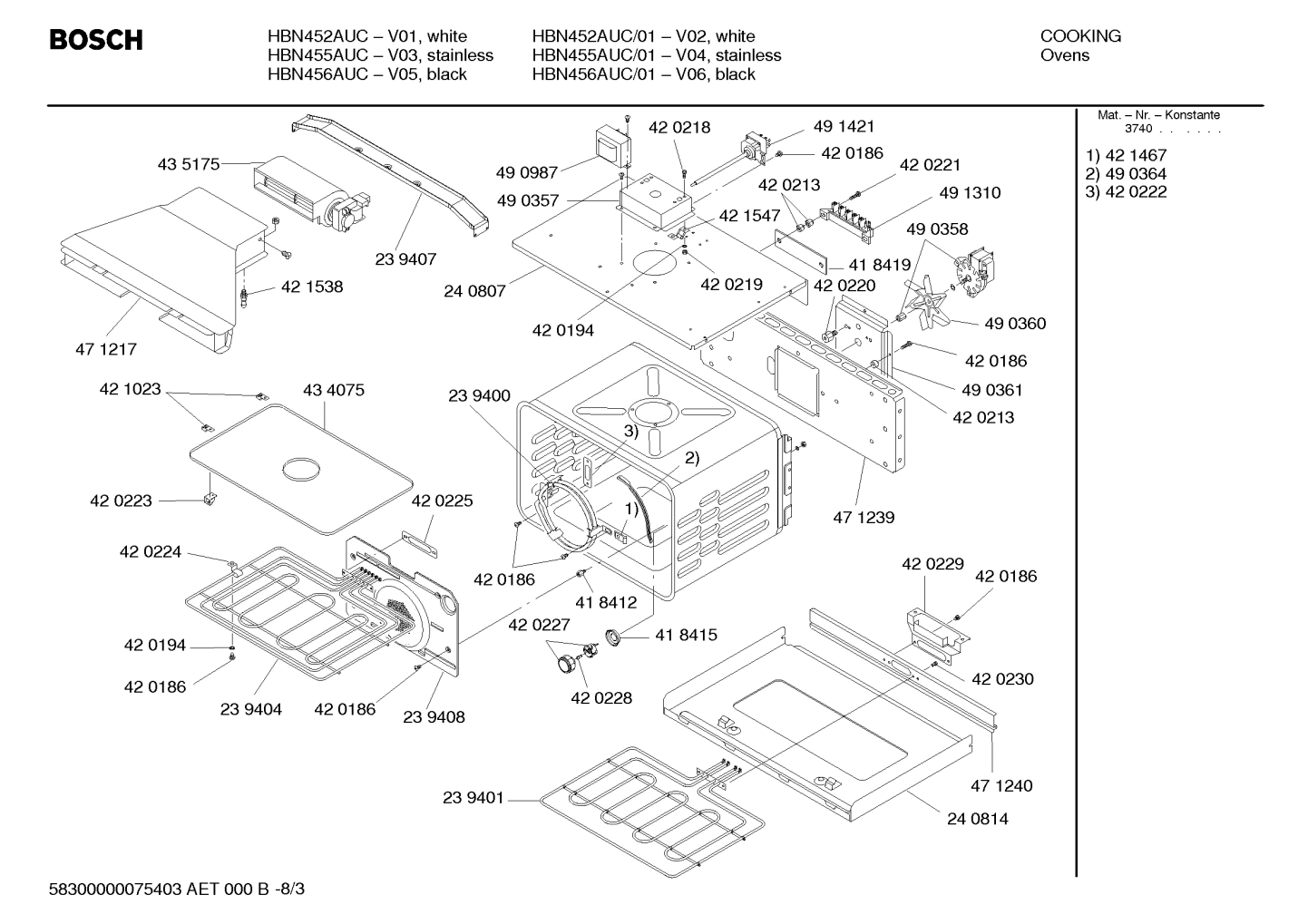

Diagram 3

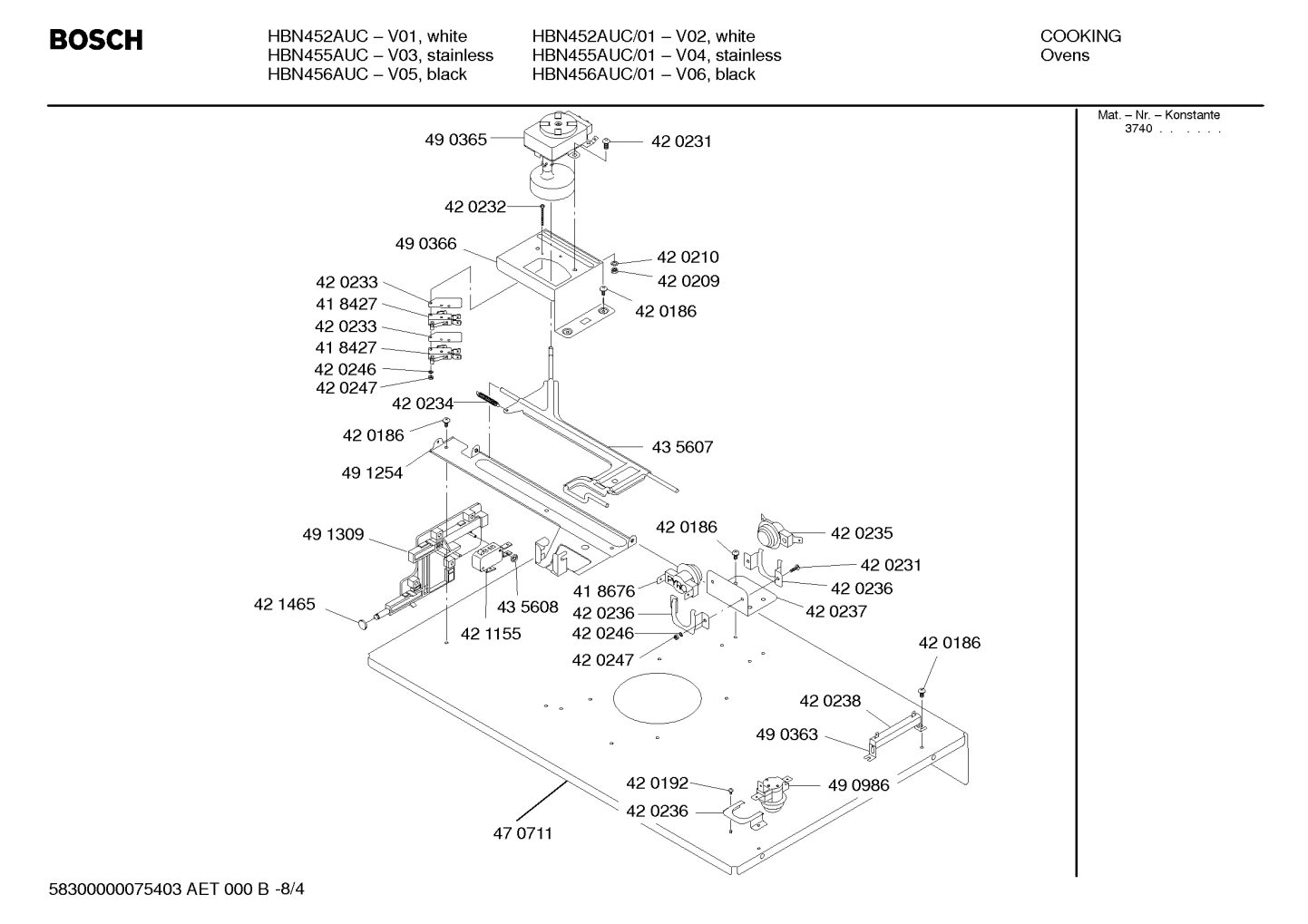

Diagram 4

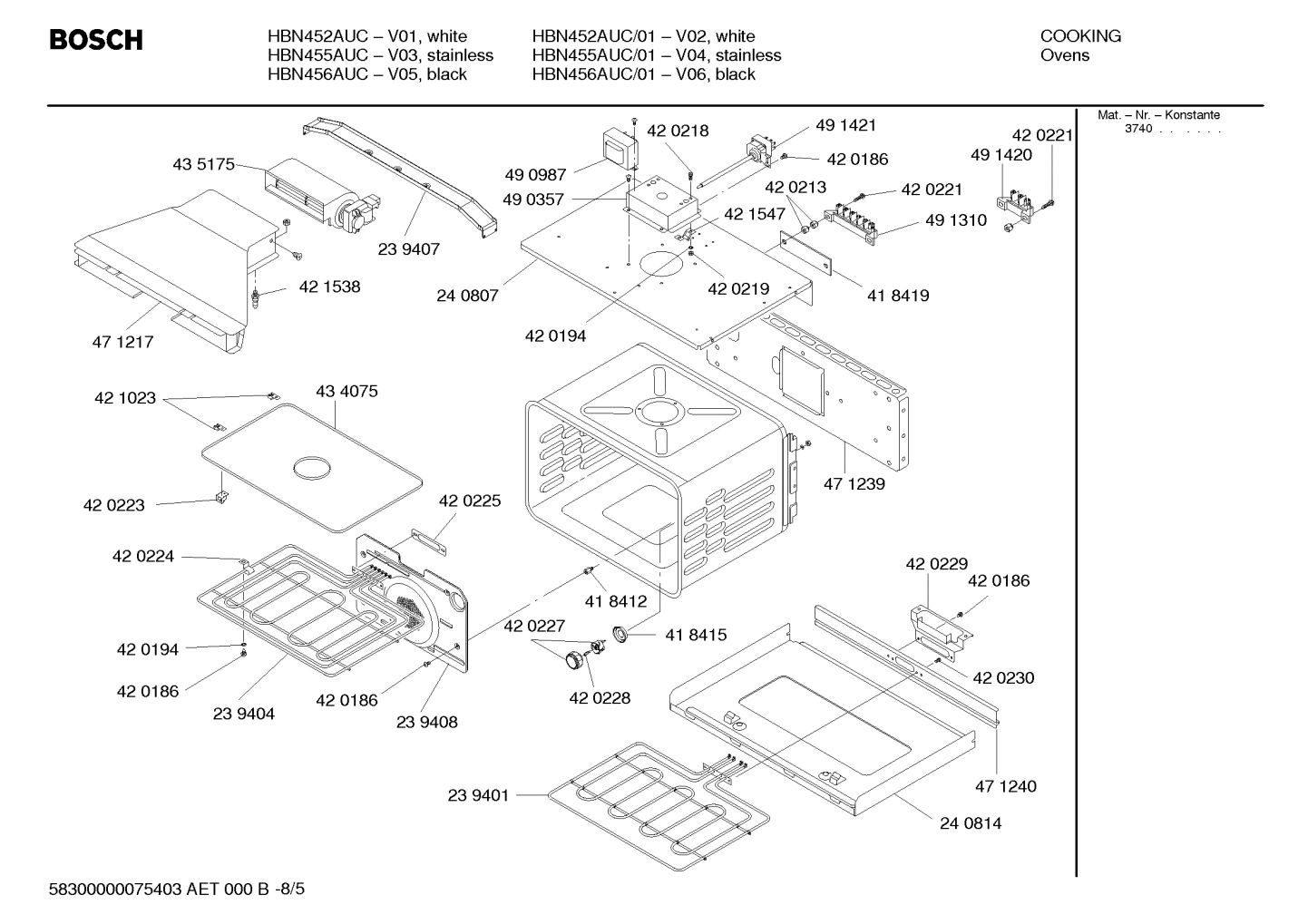

Diagram 5

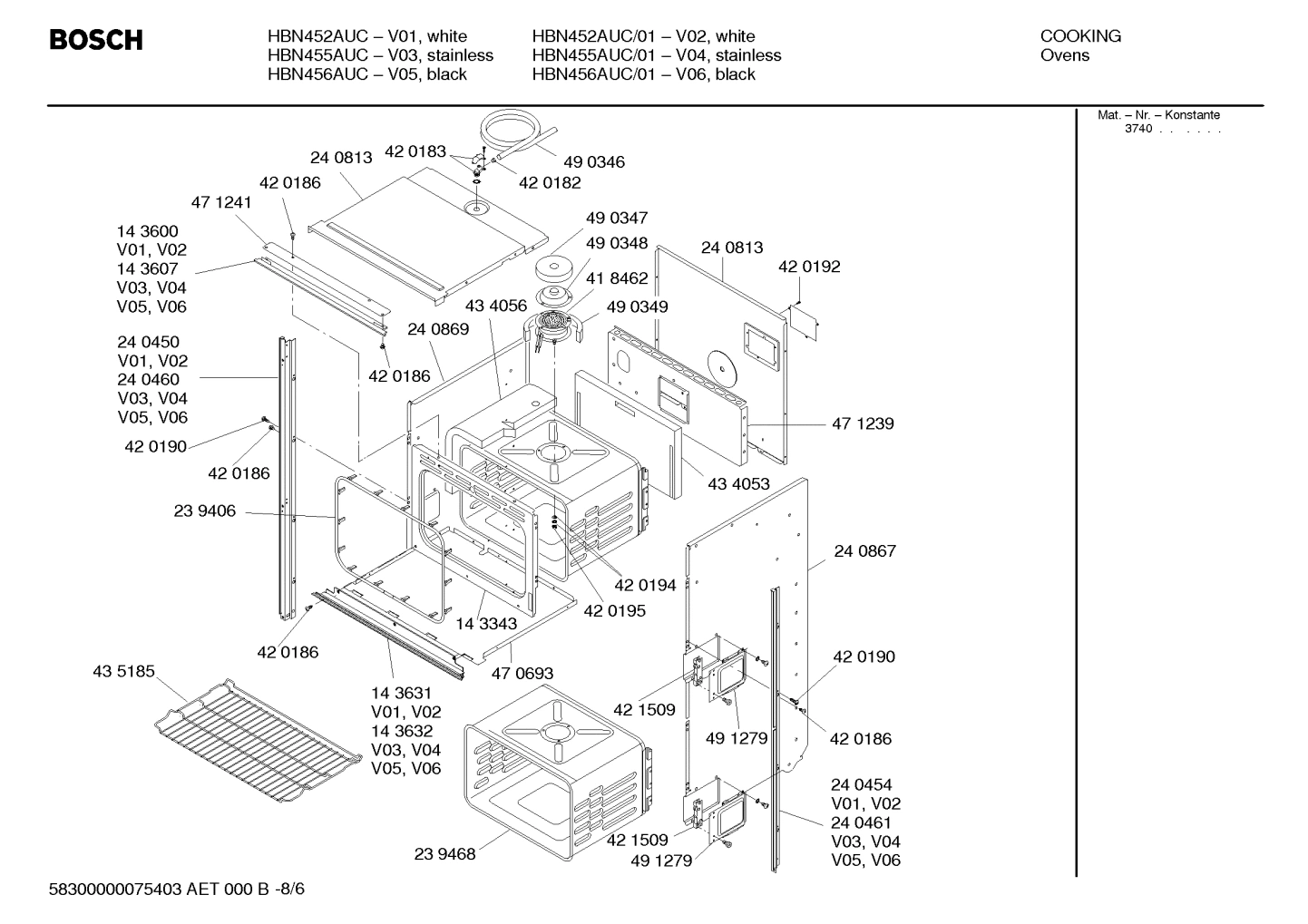

Diagram 6

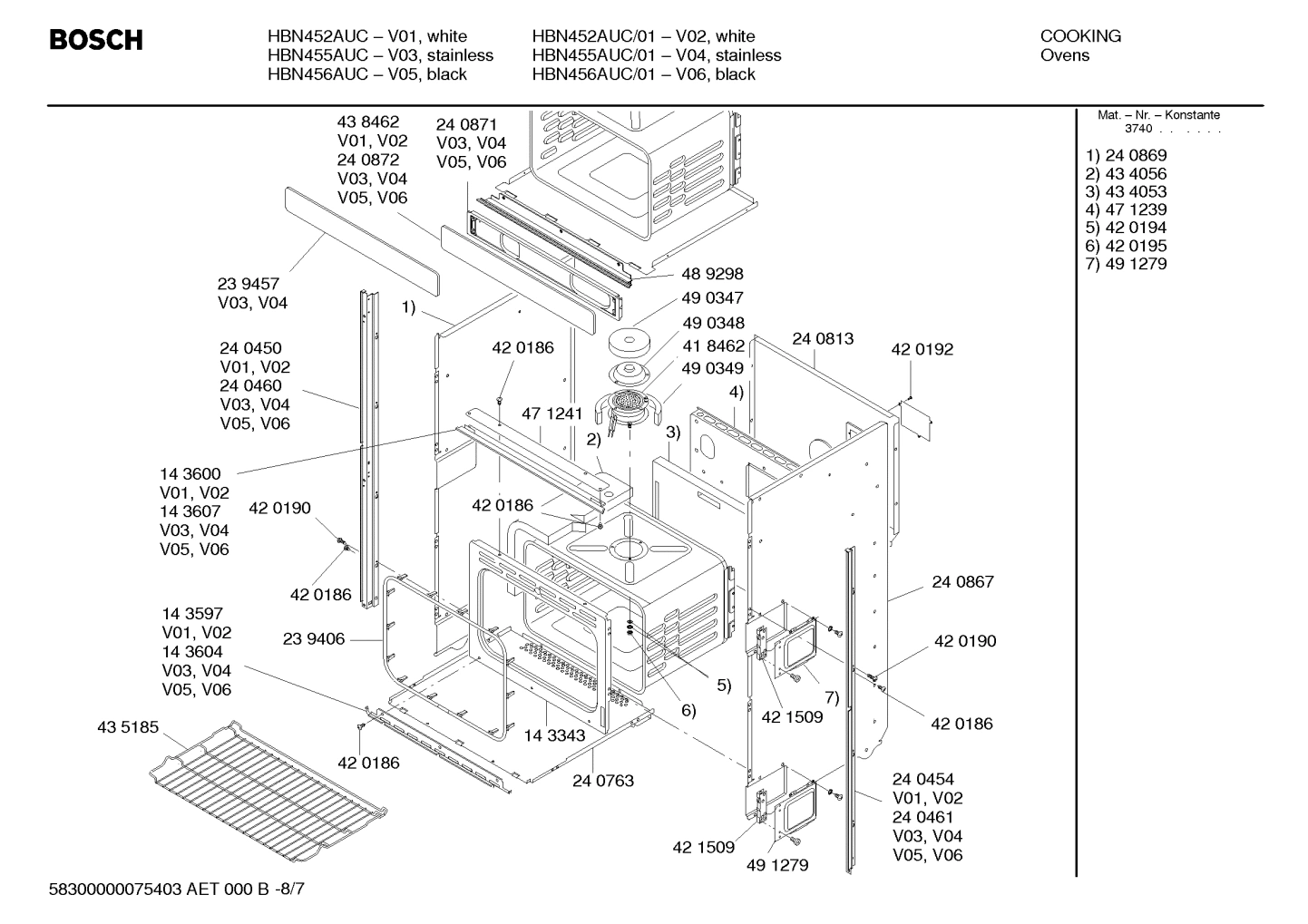

Diagram 7

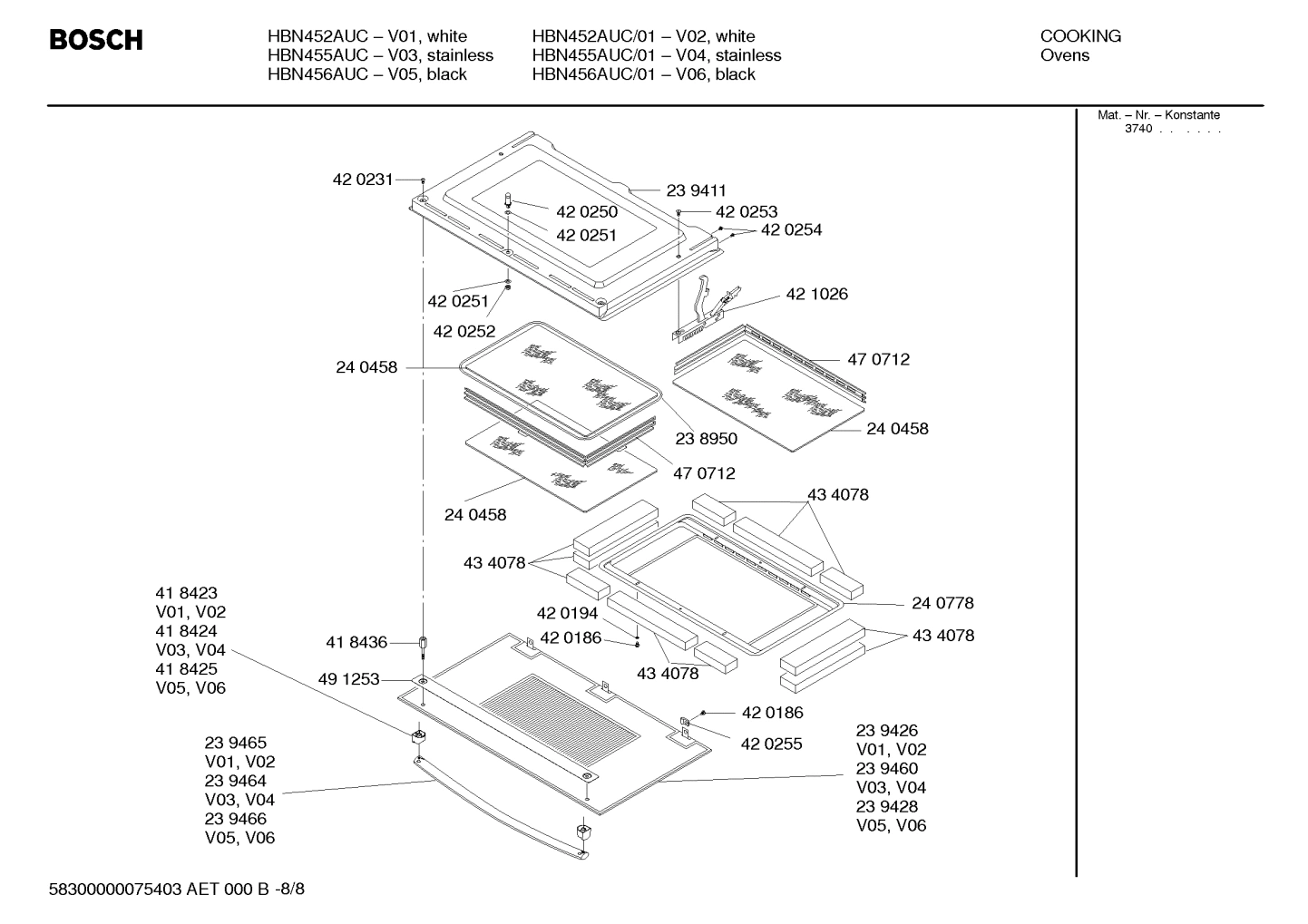

Diagram 8
Common parts from model Bosch HBN452AUC/01 Range Oven
0009
Heating element BOS 00239404 Contact Us For Availability
0010
Lamp housing BOS 00420227 Contact Us For Availability
0013
Push button cap BOS 00421466 Contact Us For Availability
0020
Time switch BOS 00489265 Contact Us For Availability
0031
Switch-door BOS 00421155 Contact Us For Availability
0035
Fan motor BOS 00490358 Contact Us For Availability
0038
Glass panel BOS 00240458 Contact Us For Availability
0042
Temperature sensor BOS 00418676 Contact Us For Availability
0044
Hinge-plate BOS 00600169 Contact Us For Availability
0048
Insulating part BOS 00490347 Contact Us For Availability
0049
Insulating part BOS 00491419 Contact Us For Availability
0050
Knob BOS 00418434 Contact Us For Availability
0051
Retaining washer BOS 00420246 Contact Us For Availability
0052
Retaining washer BOS 00420194 Contact Us For Availability
0053
Retaining washer BOS 00420210 Contact Us For Availability
0054
Switch BOS 00600145 Contact Us For Availability
0055
Housing BOS 00490366 Contact Us For Availability
0056
Motor BOS 00490365 Contact Us For Availability
0057
Nut BOS 00420247 Contact Us For Availability
0058
Nut BOS 00420219 Contact Us For Availability
0059
Nut BOS 00420209 Contact Us For Availability
0060
Nut BOS 00420252 Contact Us For Availability
0062
Shelf BOS 00445289 Contact Us For Availability
0063
Spare part BOS 00239473 Contact Us For Availability
0064
Spare part BOS 00239472 Contact Us For Availability
0065
Ventilation duct BOS 00490364 Contact Us For Availability
0066
Handle-door BOS 00239465 Contact Us For Availability
0067
Glass panel BOS 00239450 Contact Us For Availability
0068
Frame BOS 00239410 Contact Us For Availability
0069
Frame BOS 00239411 Contact Us For Availability
0070
Insulating part BOS 00432125 Contact Us For Availability
0071
Insulating part BOS 00432126 Contact Us For Availability
0072
Door BOS 00239426 Contact Us For Availability
0073
Temperature sensor BOS 00369731 Contact Us For Availability
0074
Cable harness BOS 00489290 Contact Us For Availability
0075
Cover BOS 00240807 Contact Us For Availability
0076
Cover BOS 00240868 Contact Us For Availability
0077
Pin BOS 00421538 Contact Us For Availability
0078
Switch-selector BOS 00490962 Contact Us For Availability
0079
Switch-selector BOS 00421027 Contact Us For Availability
0080
Hose BOS 00420989 Contact Us For Availability
0081
Support BOS 00240450 Contact Us For Availability
0082
Support BOS 00240454 Contact Us For Availability
0083
Panel BOS 00471239 Contact Us For Availability
0084
Cover BOS 00239408 Contact Us For Availability
0085
Case-rear part BOS 00240810 Contact Us For Availability
0087
Reflector BOS 00434075 Contact Us For Availability
0088
Relay BOS 00489264 Contact Us For Availability
0089
Support BOS 00490363 Contact Us For Availability
0090
Resistor BOS 00420238 Contact Us For Availability
0092
Screw BOS 00420226 Contact Us For Availability
0093
Screw BOS 00420220 Contact Us For Availability
0094
Screw BOS 00420192 Contact Us For Availability
0095
Screw BOS 00420249 Contact Us For Availability
0096
Screw BOS 00420232 Contact Us For Availability
0097
Screw BOS 00420254 Contact Us For Availability
0098
Screw BOS 00420218 Contact Us For Availability
0099
Screw BOS 00421544 Contact Us For Availability
0100
Screw BOS 00420230 Contact Us For Availability
0101
Screw BOS 00420190 Contact Us For Availability
0102
Screw BOS 00420221 Contact Us For Availability
0103
Screw BOS 00420211 Contact Us For Availability
0104
Screw BOS 00420186 Contact Us For Availability
0105
Screw BOS 00420231 Contact Us For Availability
0106
Screw BOS 00420253 Contact Us For Availability
0107
Sealing BOS 00420225 Contact Us For Availability
0108
Seal BOS 00238950 Contact Us For Availability
0109
Seal BOS 00420222 Contact Us For Availability
0110
Plate BOS 00420233 Contact Us For Availability
0111
Cover BOS 00240869 Contact Us For Availability
0112
Cover BOS 00240867 Contact Us For Availability
0113
Strip BOS 00491253 Contact Us For Availability
0114
Sleeve BOS 00420182 Contact Us For Availability
0115
Latch BOS 00435607 Contact Us For Availability
0116
Spacer BOS 00420213 Contact Us For Availability
0117
Spacer BOS 00489263 Contact Us For Availability
0118
Spacer BOS 00470712 Contact Us For Availability
0119
Spacer BOS 00418423 Contact Us For Availability
0120
Clip BOS 00420255 Contact Us For Availability
0121
Spring BOS 00420234 Contact Us For Availability
0122
Latch BOS 00435608 Contact Us For Availability
0124
Panel BOS 00240870 Contact Us For Availability
0125
Support BOS 00490361 Contact Us For Availability
0126
Support BOS 00490357 Contact Us For Availability
0127
Retaining plate BOS 00239407 Contact Us For Availability
0128
Seating BOS 00491309 Contact Us For Availability
0129
Bracket BOS 00421545 Contact Us For Availability
0130
Seal-door BOS 00421546 Contact Us For Availability
0131
Clip BOS 00421547 Contact Us For Availability
0132
Terminal BOS 00491420 Contact Us For Availability
0133
Terminal BOS 00491310 Contact Us For Availability
0134
Temperature sensor BOS 00490986 Contact Us For Availability
0135
Thermometer BOS 00491311 Contact Us For Availability
0136
Thermometer BOS 00491421 Contact Us For Availability
0137
Screw BOS 00418412 Contact Us For Availability
0138
Screw BOS 00418436 Contact Us For Availability
0139
Switch-selector BOS 00490963 Contact Us For Availability
0140
Panel BOS 00240813 Contact Us For Availability
0141
Transformer BOS 00418461 Contact Us For Availability
0142
Tray BOS 00240814 Contact Us For Availability
0143
Strip-decor BOS 00471240 Contact Us For Availability
0144
Spacer BOS 00143600 Contact Us For Availability
0145
Strip-decor BOS 00143631 Contact Us For Availability
0146
Strip BOS 00471241 Contact Us For Availability
0147
Thermometer BOS 00490971 Contact Us For Availability
0148
Washer BOS 00420251 Contact Us For Availability
× ![]()
