Model Bosch HBL755AUC/01 Range Oven – Common Parts & Diagrams

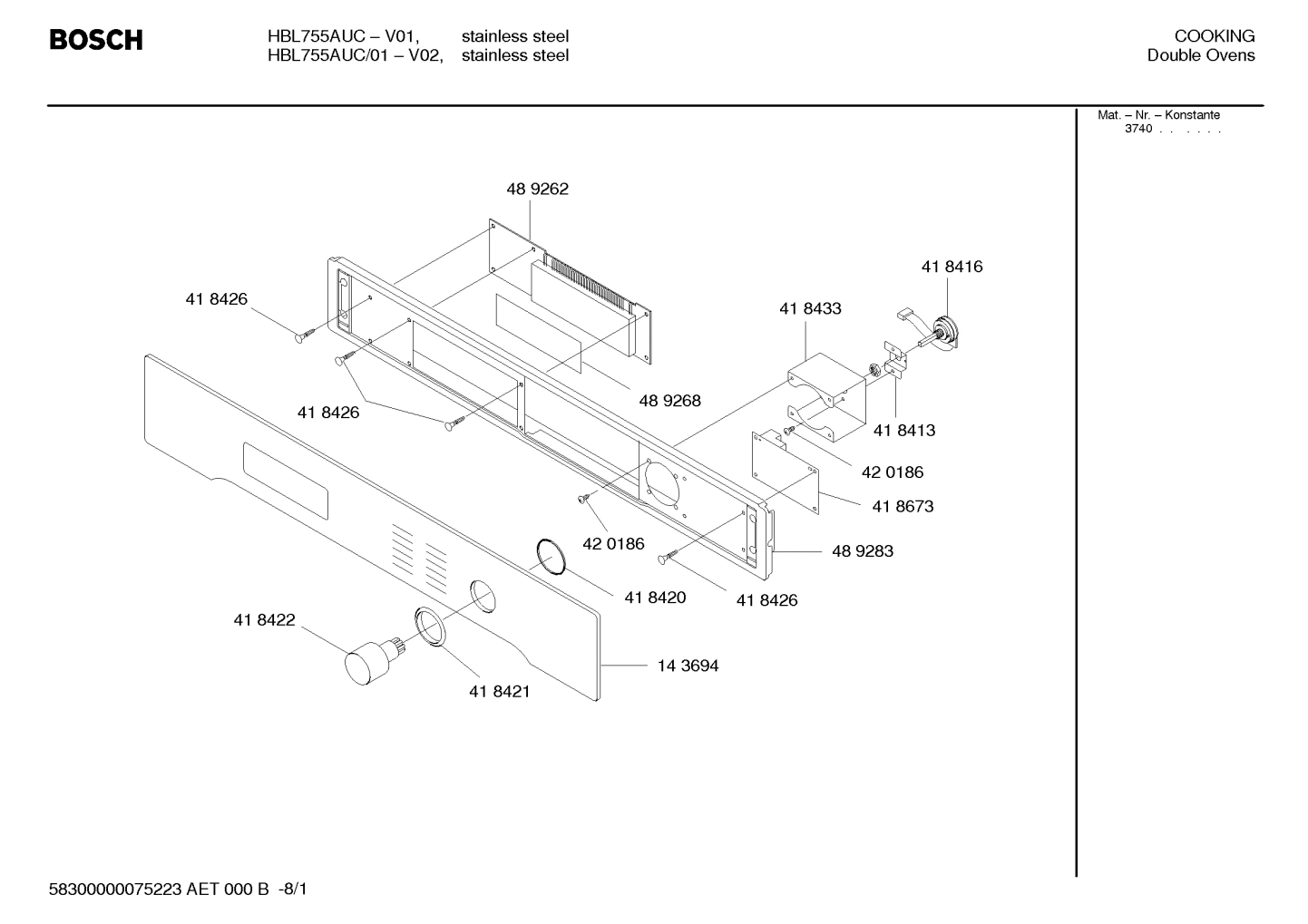

Diagram 1

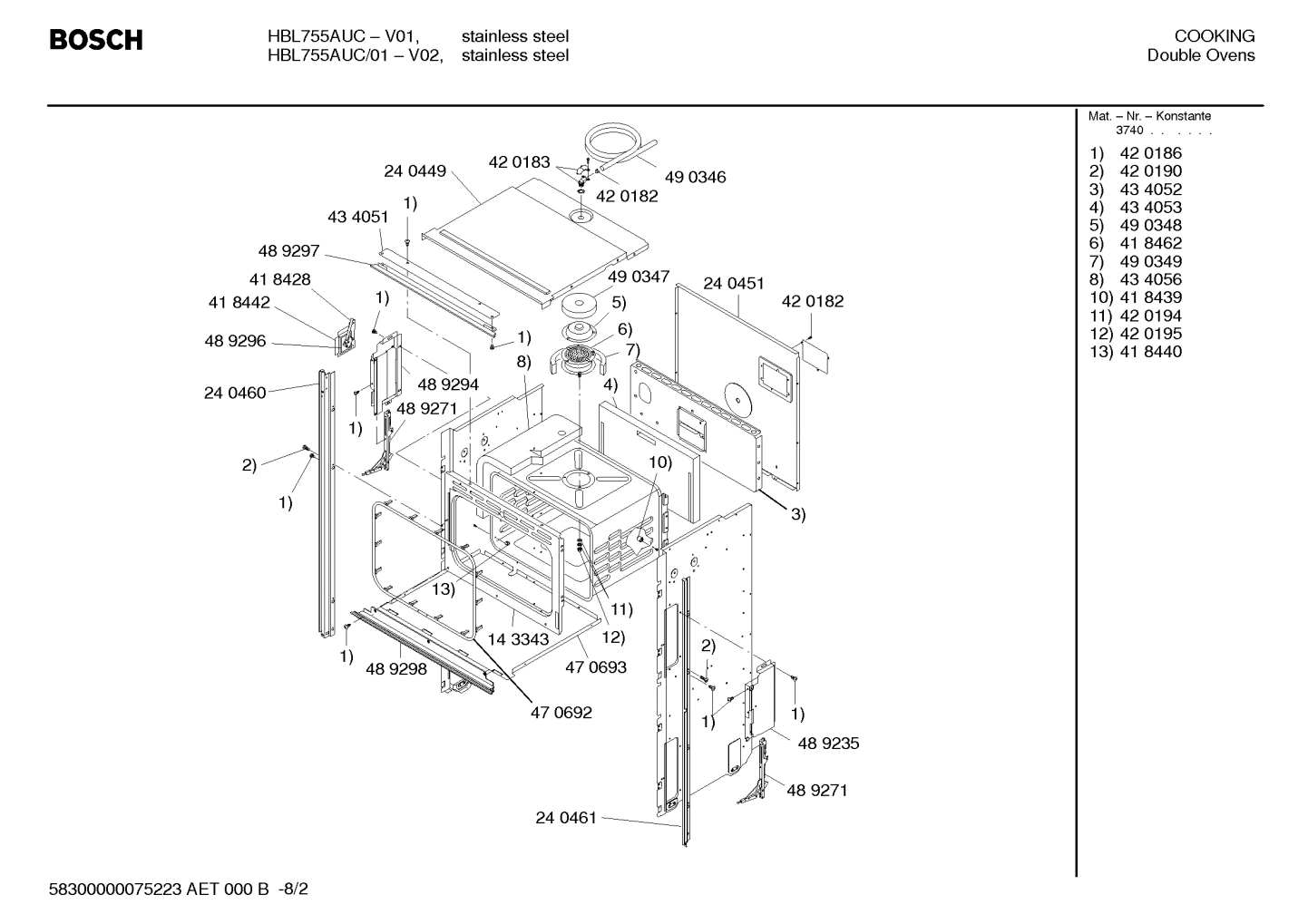

Diagram 2

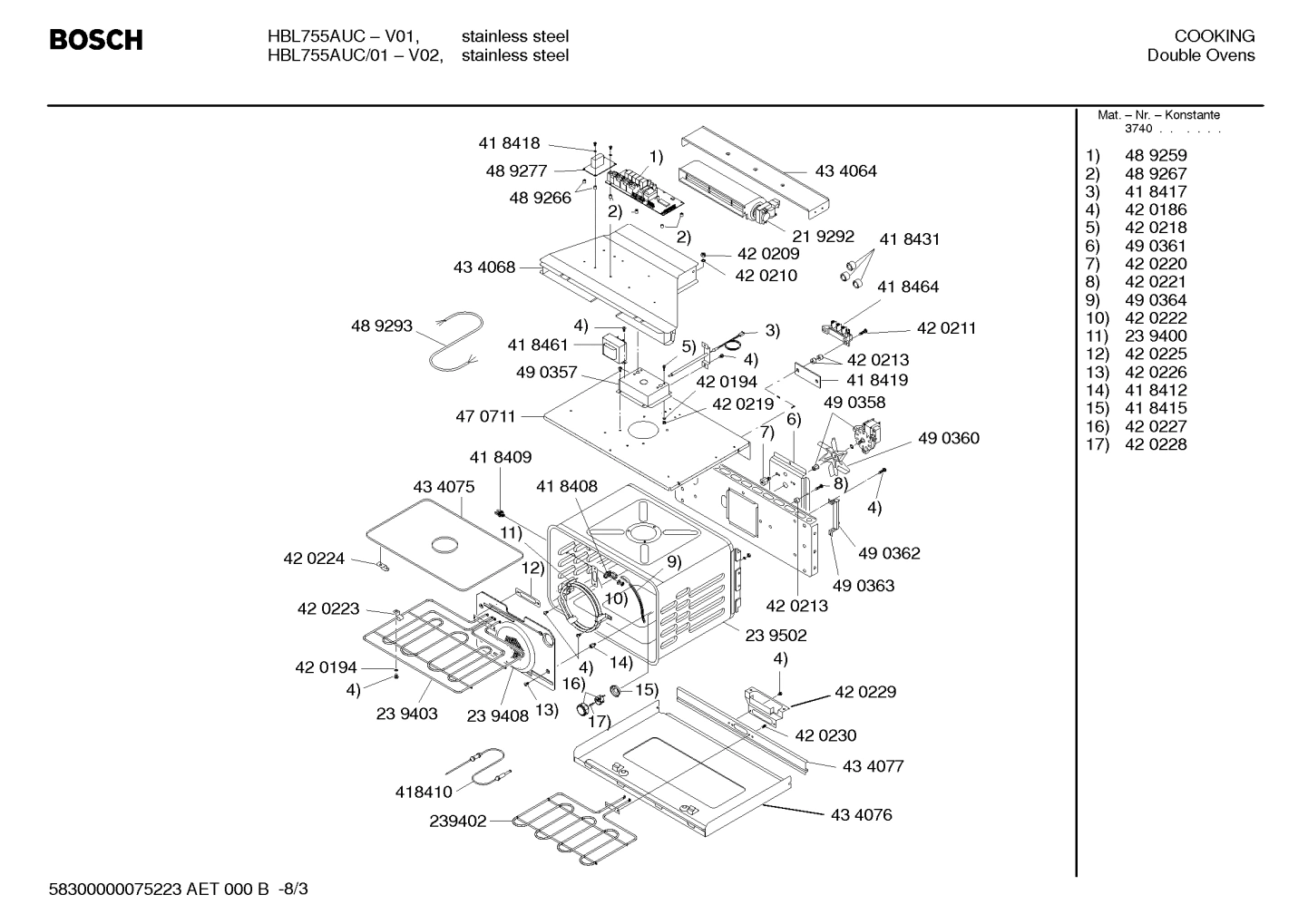

Diagram 3

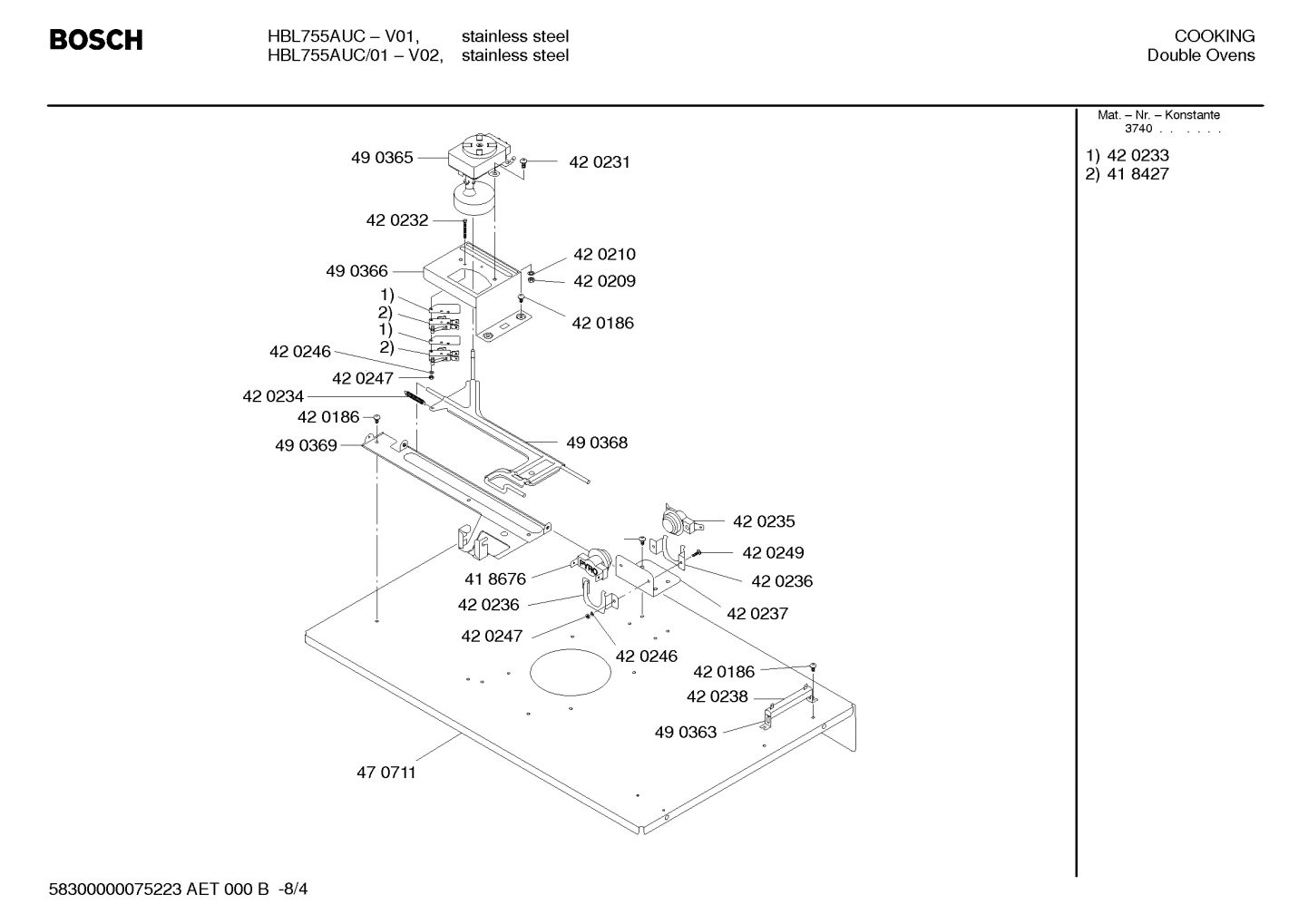

Diagram 4

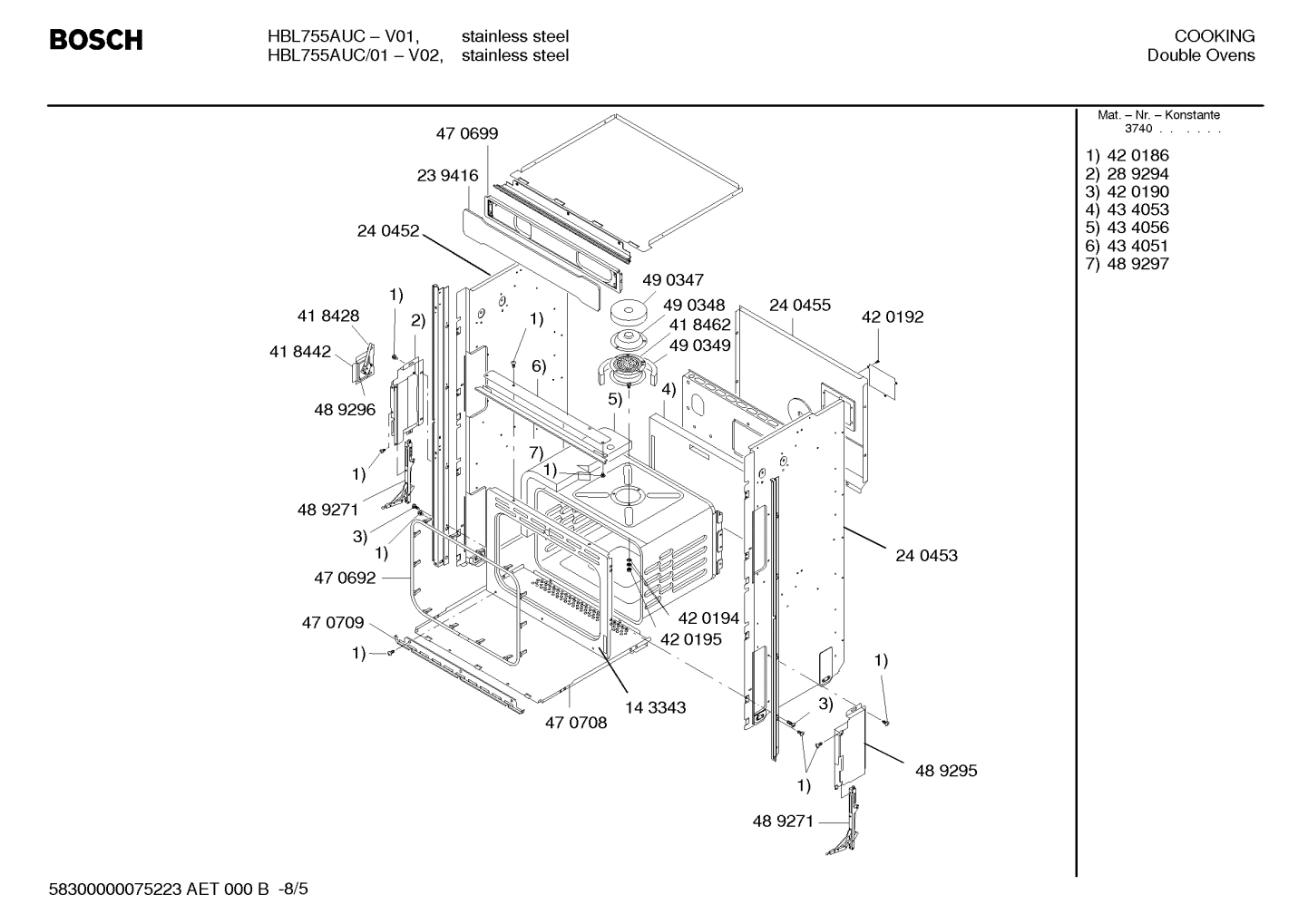

Diagram 5

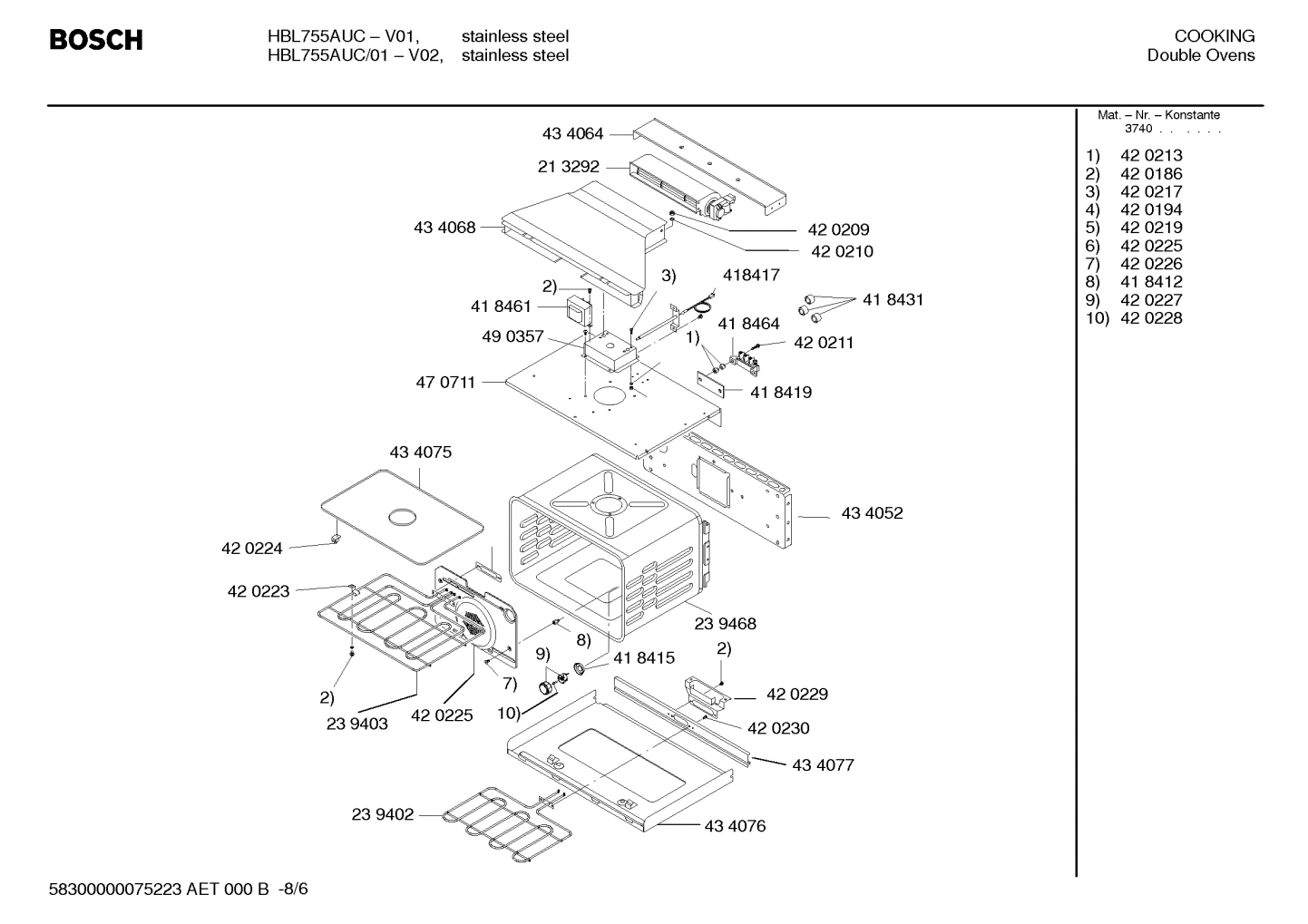

Diagram 6

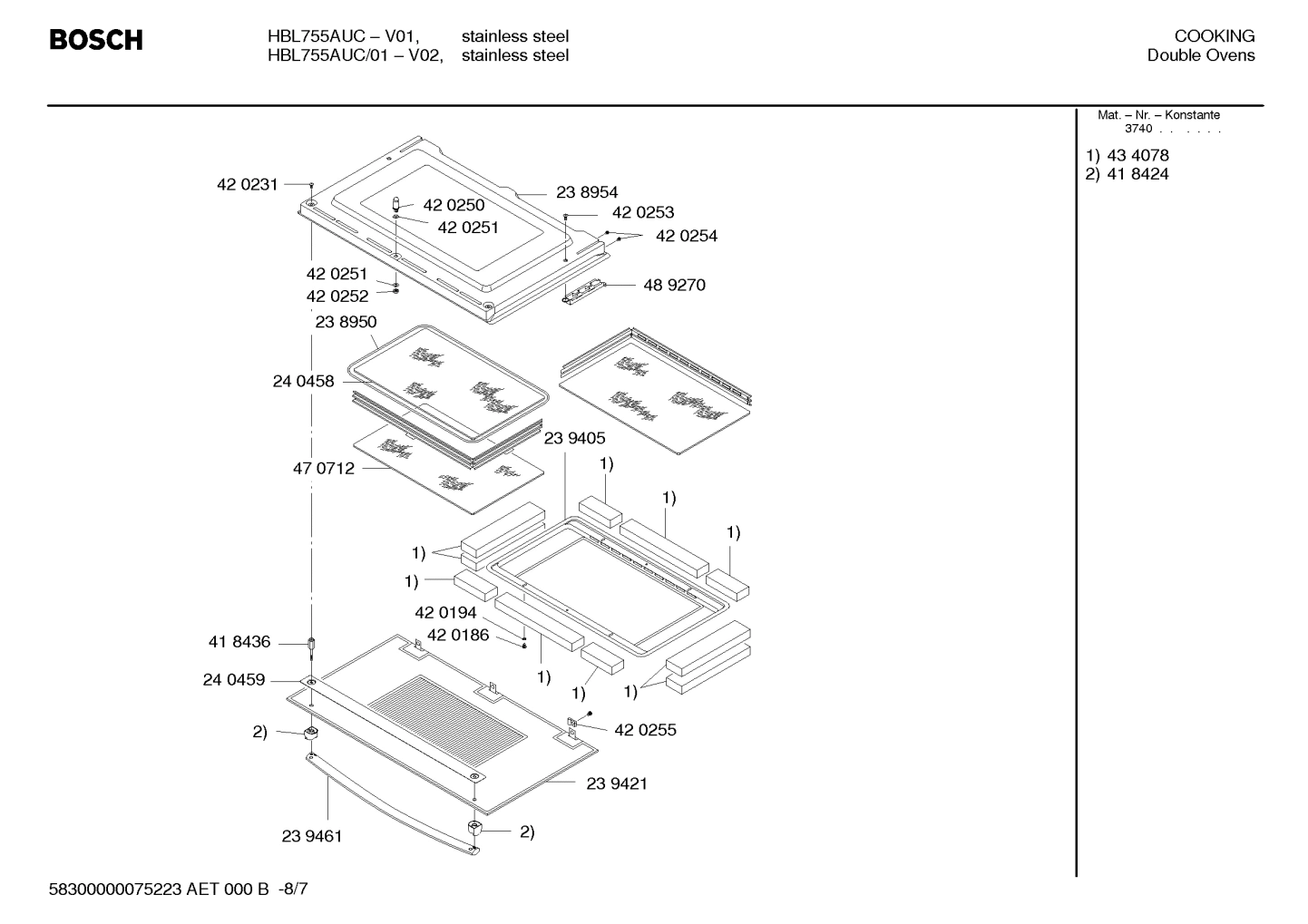

Diagram 7

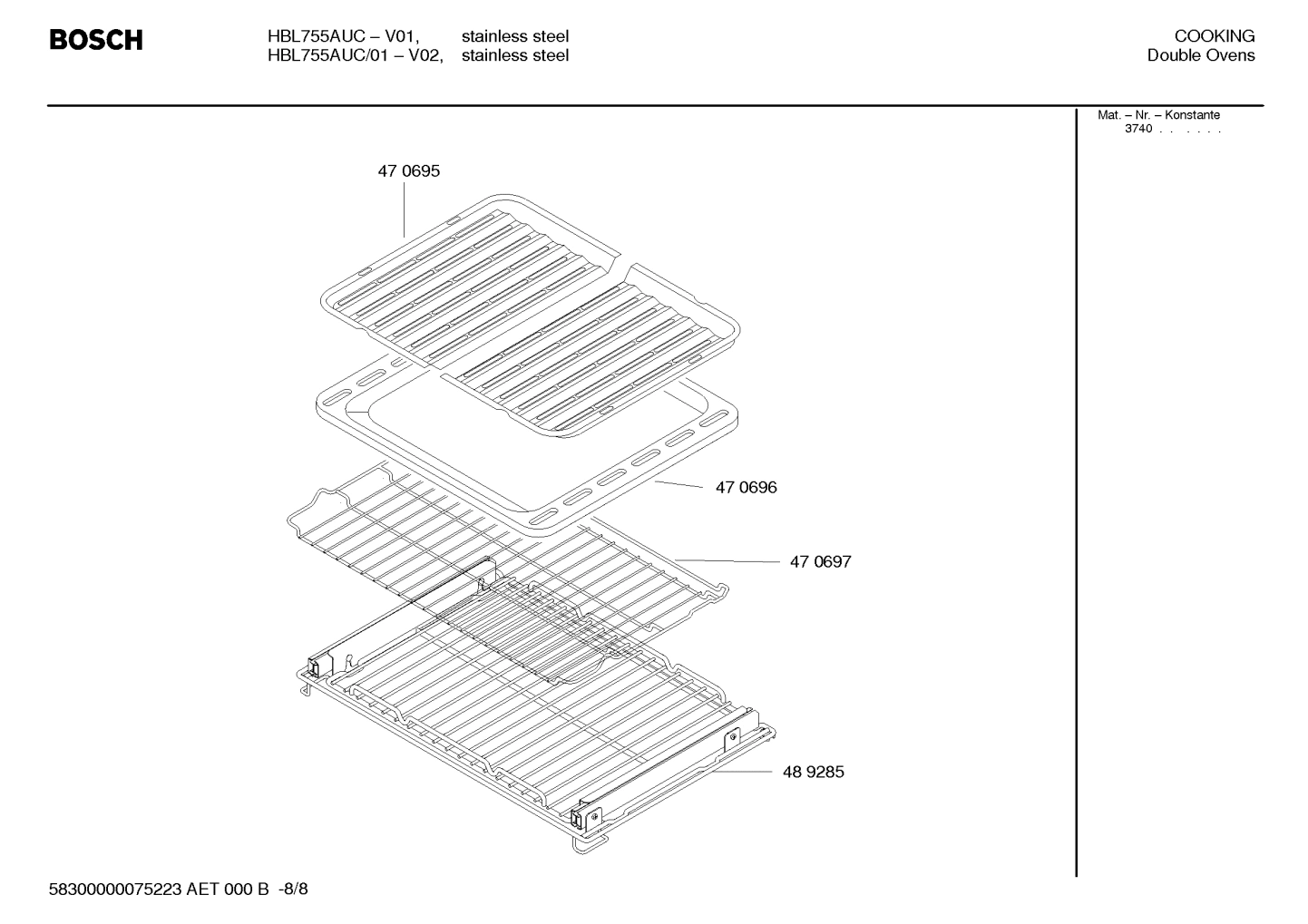

Diagram 8
Common parts from model Bosch HBL755AUC/01 Range Oven
0106
Relay BOS 00489261 Contact Us For Availability
0108
Display-film strip BOS 00489268 Contact Us For Availability
0305
Fan BOS 00219292 Contact Us For Availability
0317
Fan motor BOS 00490358 Contact Us For Availability
0320
Connection piece BOS 00418409 Contact Us For Availability
0335
Temperature sensor BOS 00418410 Contact Us For Availability
0340
Control unit BOS 00489259 Contact Us For Availability
0341
Spacer BOS 00489267 Contact Us For Availability
0344
Screw BOS 00420218 Contact Us For Availability
0345
Support BOS 00490361 Contact Us For Availability
0346
Screw BOS 00420220 Contact Us For Availability
0347
Screw BOS 00420221 Contact Us For Availability
0348
Ventilation duct BOS 00490364 Contact Us For Availability
0349
Seal BOS 00420222 Contact Us For Availability
0412
Guide BOS 00490369 Contact Us For Availability
0414
Temperature sensor BOS 00420235 Contact Us For Availability
0415
Screw BOS 00420249 Contact Us For Availability
0501
Cover BOS 00470699 Contact Us For Availability
0502
Glass panel BOS 00239416 Contact Us For Availability
0503
Panel side BOS 00240452 Contact Us For Availability
0504
Insulating part BOS 00490347 Contact Us For Availability
0505
Switch BOS 00418428 Contact Us For Availability
0506
Cover BOS 00490348 Contact Us For Availability
0508
Case-rear part BOS 00240455 Contact Us For Availability
0509
Catalyzer BOS 00418462 Contact Us For Availability
0510
Screw BOS 00420192 Contact Us For Availability
0511
Support BOS 00418442 Contact Us For Availability
0513
Insulating part BOS 00490349 Contact Us For Availability
0514
Insulating part BOS 00489296 Contact Us For Availability
0515
Door hinge BOS 00493358 Contact Us For Availability
0516
Panel side BOS 00240453 Contact Us For Availability
0517
Seal-door BOS 00470692 Contact Us For Availability
0519
Strip-decor BOS 00470709 Contact Us For Availability
0520
Nut BOS 00420195 Contact Us For Availability
0521
Frame BOS 00145540 Contact Us For Availability
0522
Case-bottom BOS 00470708 Contact Us For Availability
0523
Door hinge BOS 00493360 Contact Us For Availability
0526
Screw BOS 00420190 Contact Us For Availability
0527
Insulating part BOS 00434053 Contact Us For Availability
0528
Insulating part BOS 00434056 Contact Us For Availability
0529
Strip BOS 00434051 Contact Us For Availability
0530
Spacer BOS 00489297 Contact Us For Availability
0601
Sheet BOS 00434064 Contact Us For Availability
0603
Ventilation duct BOS 00434068 Contact Us For Availability
0604
Insulating part BOS 00418419 Contact Us For Availability
0605
Reflector BOS 00434075 Contact Us For Availability
0607
Temperature sensor BOS 00418417 Contact Us For Availability
0608
Transformer BOS 00418461 Contact Us For Availability
0609
Frequency filter BOS 00418431 Contact Us For Availability
0610
Terminal box BOS 00418464 Contact Us For Availability
0611
Support BOS 00490357 Contact Us For Availability
0612
Screw BOS 00420211 Contact Us For Availability
0614
Panel BOS 00434052 Contact Us For Availability
0615
Clip BOS 00420224 Contact Us For Availability
0616
Clip BOS 00420223 Contact Us For Availability
0617
Oven cavity BOS 00239468 Contact Us For Availability
0618
Cover BOS 00418415 Contact Us For Availability
0619
Bracket BOS 00420229 Contact Us For Availability
0620
Heating element BOS 00239403 Contact Us For Availability
0622
Screw BOS 00420230 Contact Us For Availability
0623
Strip-decor BOS 00434077 Contact Us For Availability
0624
Heating element BOS 00239402 Contact Us For Availability
0625
Tray BOS 00434076 Contact Us For Availability
0627
Spacer BOS 00420213 Contact Us For Availability
0631
Nut BOS 00420219 Contact Us For Availability
0632
Sealing BOS 00420225 Contact Us For Availability
0633
Screw BOS 00420226 Contact Us For Availability
0634
Screw BOS 00418412 Contact Us For Availability
0635
Lamp housing BOS 00420227 Contact Us For Availability
0701
Motor BOS 00490365 Contact Us For Availability
0703
Screw BOS 00420232 Contact Us For Availability
0705
Housing BOS 00490366 Contact Us For Availability
0706
Nut BOS 00420209 Contact Us For Availability
0709
Nut BOS 00420247 Contact Us For Availability
0710
Spring BOS 00420234 Contact Us For Availability
0711
Latch BOS 00490368 Contact Us For Availability
0712
Temperature sensor BOS 00418676 Contact Us For Availability
0713
Support BOS 00420237 Contact Us For Availability
0714
Bracket BOS 00420236 Contact Us For Availability
0715
Retaining washer BOS 00420246 Contact Us For Availability
0716
Resistor BOS 00420238 Contact Us For Availability
0717
Support BOS 00490363 Contact Us For Availability
0718
Dividing wall BOS 00470711 Contact Us For Availability
0719
Plate BOS 00420233 Contact Us For Availability
0720
Switch BOS 00600145 Contact Us For Availability
0801
Screw BOS 00420231 Contact Us For Availability
0802
Pin BOS 00420250 Contact Us For Availability
0803
Door-inner BOS 00238954 Contact Us For Availability
0804
Screw BOS 00420253 Contact Us For Availability
0805
Washer BOS 00420251 Contact Us For Availability
0806
Screw BOS 00420254 Contact Us For Availability
0807
Nut BOS 00420252 Contact Us For Availability
0808
Screw BOS 00420186 Contact Us For Availability
0809
Seal BOS 00238950 Contact Us For Availability
0810
Glass panel BOS 00240458 Contact Us For Availability
0811
Reflector BOS 00239405 Contact Us For Availability
0812
Spacer BOS 00470712 Contact Us For Availability
0813
Retaining washer BOS 00420194 Contact Us For Availability
0814
Screw BOS 00418436 Contact Us For Availability
0815
Retaining plate BOS 00240459 Contact Us For Availability
0816
Clip BOS 00420255 Contact Us For Availability
0817
Hinge BOS 00489270 Contact Us For Availability
0819
Door BOS 00239421 Contact Us For Availability
0820
Handle-door BOS 00239461 Contact Us For Availability
0821
Insulating part BOS 00434078 Contact Us For Availability
0822
Spacer BOS 00418424 Contact Us For Availability
0901
Frying pan BOS 00470695 Contact Us For Availability
0902
Drip pan BOS 00470696 Contact Us For Availability
0903
Grill grid BOS 00470697 Contact Us For Availability
0904
Grid BOS 00489288 Contact Us For Availability
0906
Retaining washer BOS 00420210 Contact Us For Availability
× ![]()
