Model Bosch HBL655AUC/01 Range Oven – Common Parts & Diagrams

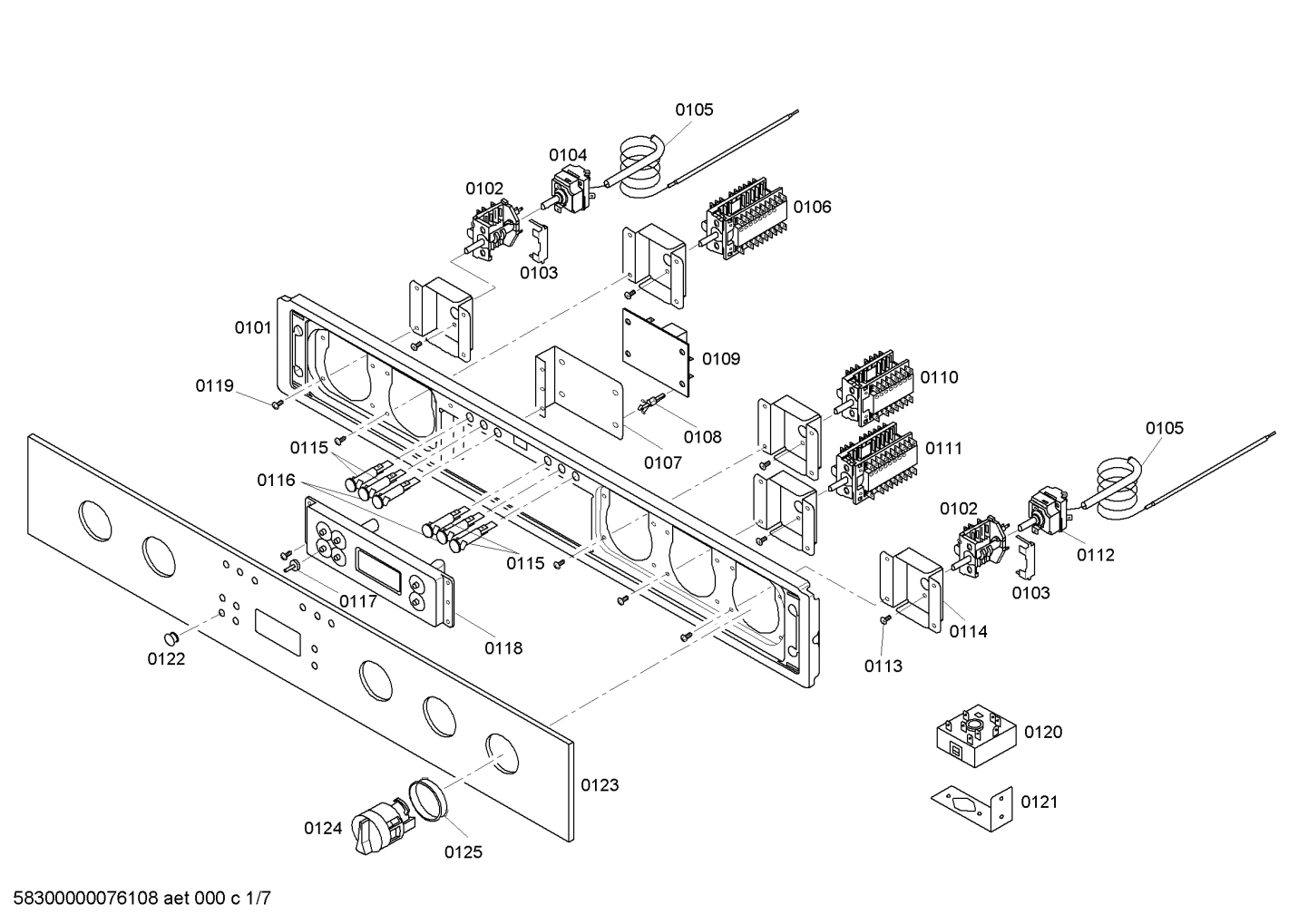

Diagram 1

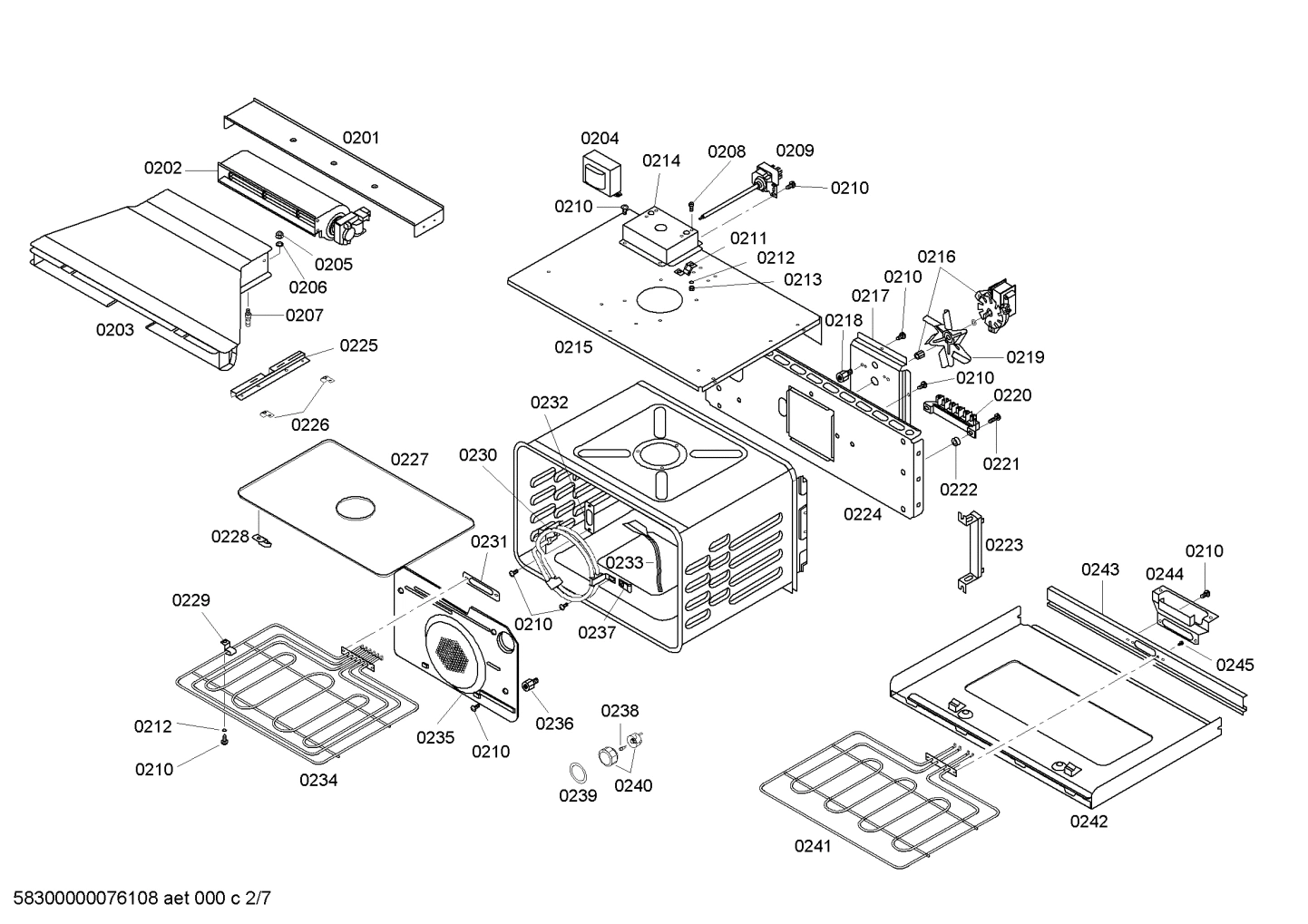

Diagram 2

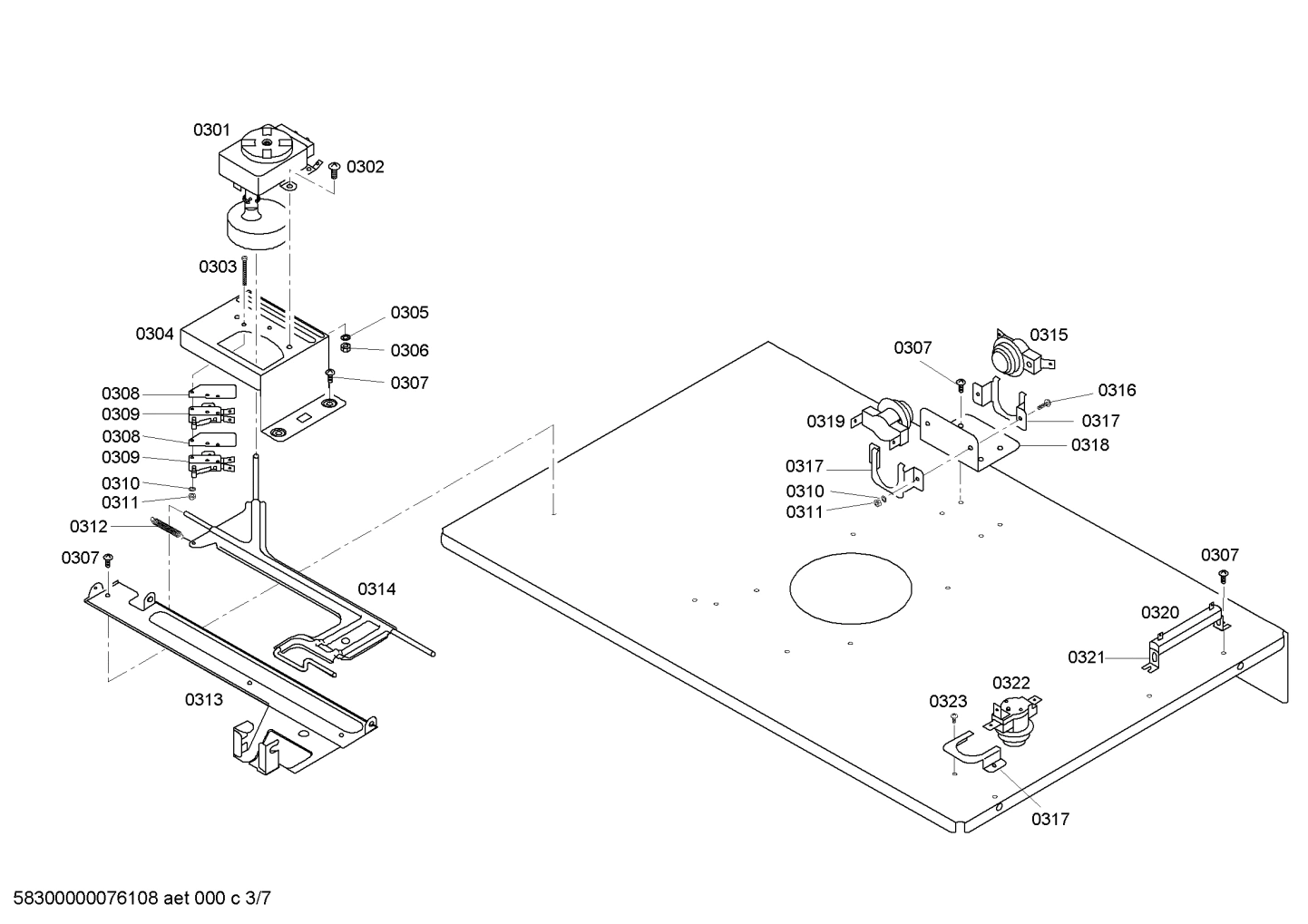

Diagram 3

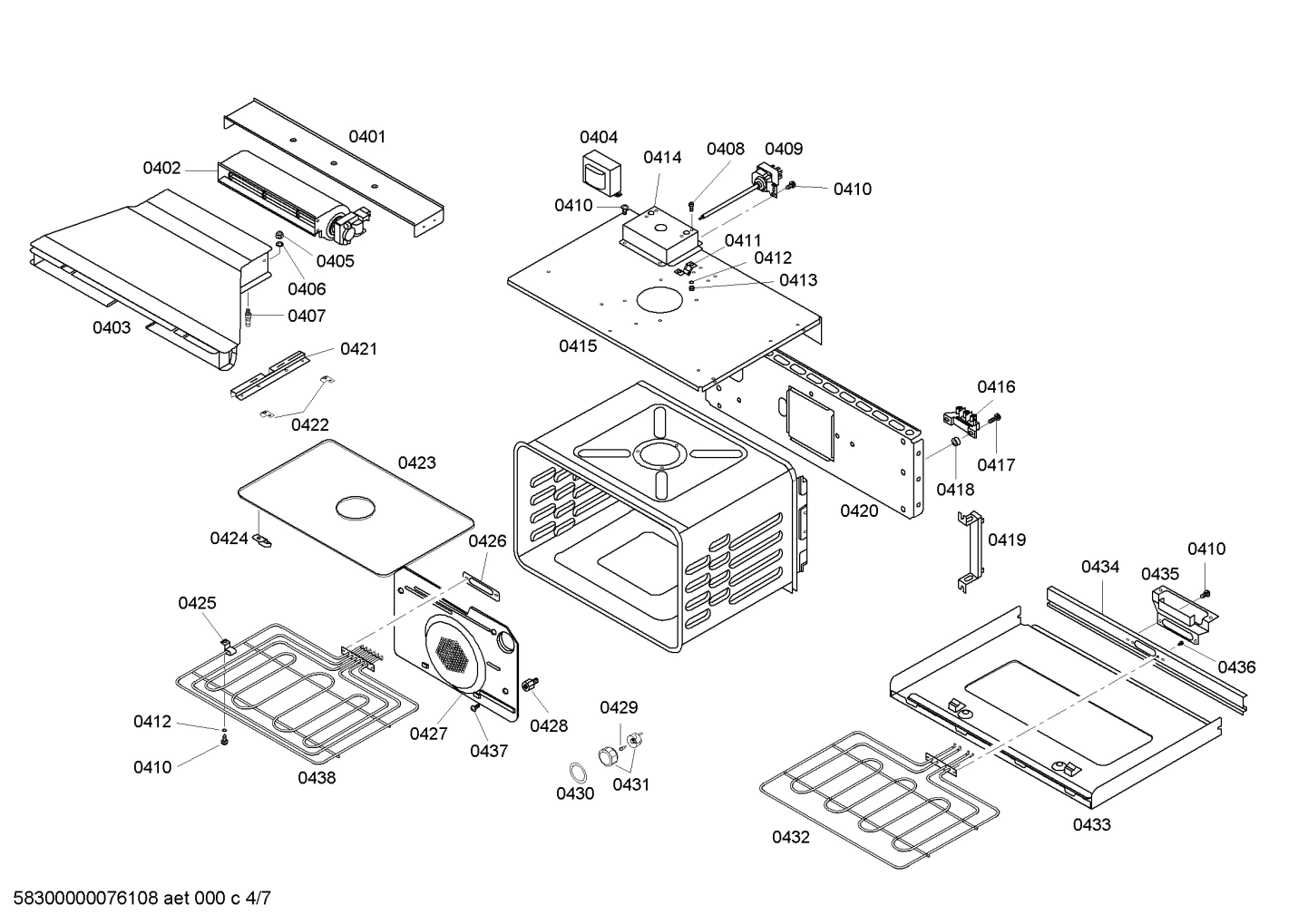

Diagram 4

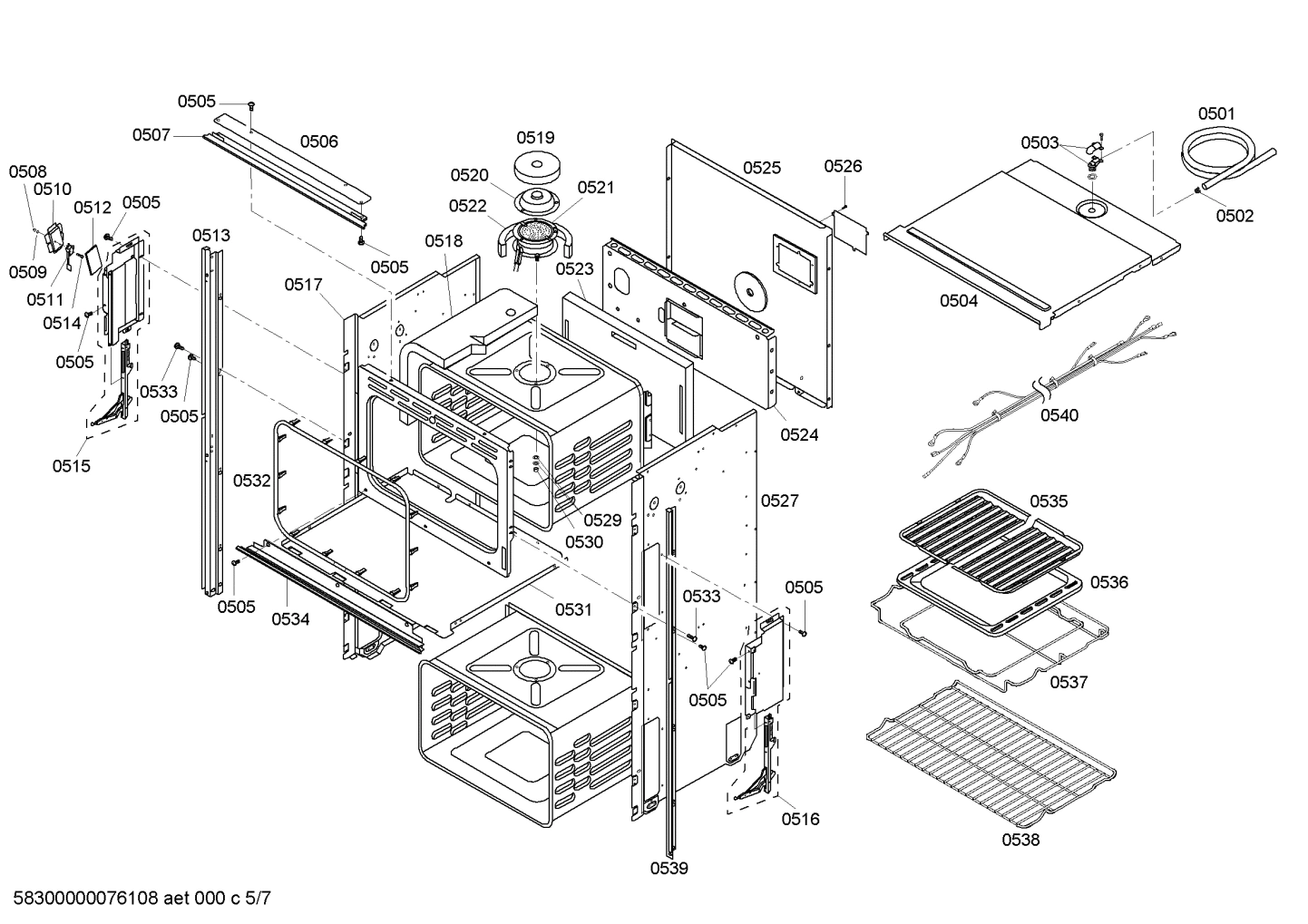

Diagram 5

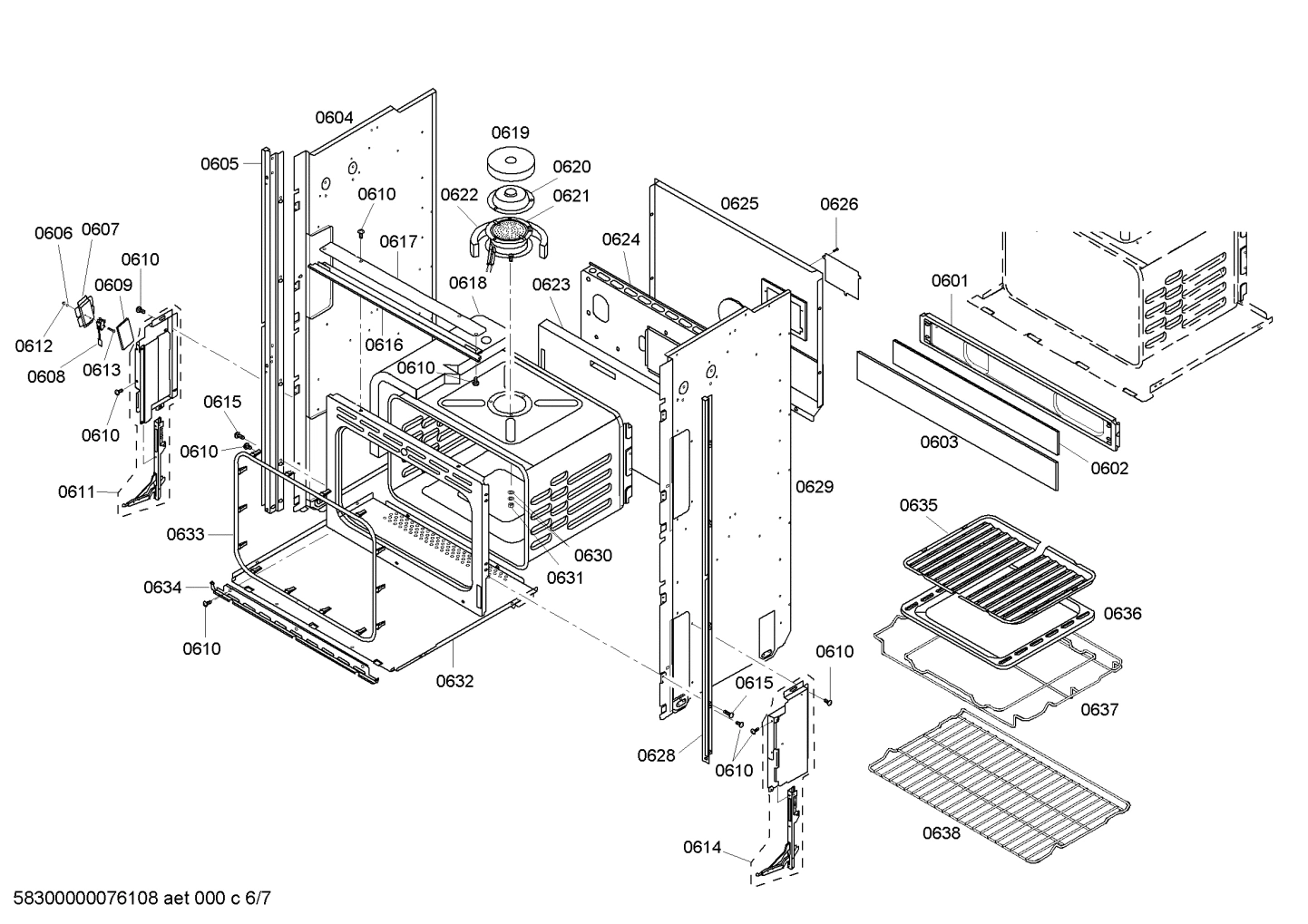

Diagram 6

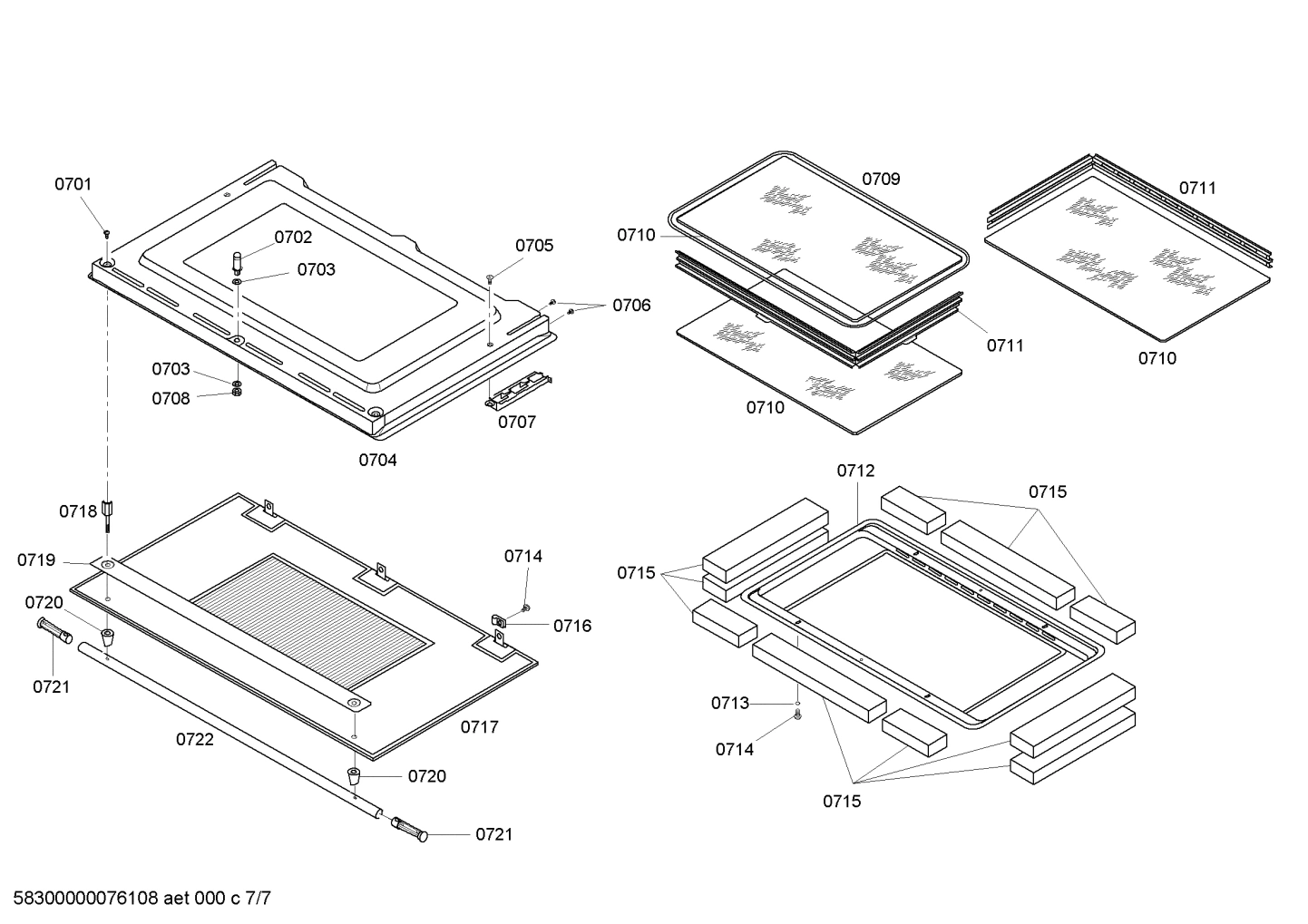

Diagram 7
Common parts from model Bosch HBL655AUC/01 Range Oven
0104
Thermometer BOS 00421029 Contact Us For Availability
0109
Relay BOS 00489264 Contact Us For Availability
0111
Switch-selector BOS 00490962 Contact Us For Availability
0118
Time switch BOS 00489265 Contact Us For Availability
0122
Push button cap BOS 00421020 Contact Us For Availability
0202
Fan BOS 00219292 Contact Us For Availability
0217
Screw BOS 00420221 Contact Us For Availability
0219
Fan motor BOS 00490358 Contact Us For Availability
0220
Support BOS 00490361 Contact Us For Availability
0221
Screw BOS 00420220 Contact Us For Availability
0222
Fan BOS 00497261 Contact Us For Availability
0223
Terminal BOS 00491310 Contact Us For Availability
0230
Clamp BOS 00424151 Contact Us For Availability
0233
Seal BOS 00420222 Contact Us For Availability
0234
Ventilation duct BOS 00490364 Contact Us For Availability
0235
Heating element BOS 00438527 Contact Us For Availability
0238
Clamp BOS 00421467 Contact Us For Availability
0241
Lamp housing BOS 00420227 Contact Us For Availability
0242
Heater-bottom BOS 00435178 Contact Us For Availability
0301
Motor BOS 00490365 Contact Us For Availability
0303
Screw BOS 00420232 Contact Us For Availability
0304
Housing BOS 00490366 Contact Us For Availability
0308
Plate BOS 00420233 Contact Us For Availability
0309
Switch BOS 00600145 Contact Us For Availability
0312
Spring BOS 00420234 Contact Us For Availability
0313
Guide BOS 00490369 Contact Us For Availability
0314
Latch BOS 00490368 Contact Us For Availability
0315
Temperature sensor BOS 00420235 Contact Us For Availability
0316
Screw BOS 00420231 Contact Us For Availability
0317
Bracket BOS 00420236 Contact Us For Availability
0318
Support BOS 00420237 Contact Us For Availability
0319
Temperature sensor BOS 00418676 Contact Us For Availability
0320
Resistor BOS 00420238 Contact Us For Availability
0321
Support BOS 00490363 Contact Us For Availability
0322
Temperature sensor BOS 00490986 Contact Us For Availability
0401
Sheet BOS 00434064 Contact Us For Availability
0403
Ventilation duct BOS 00434068 Contact Us For Availability
0404
Transformer BOS 00418461 Contact Us For Availability
0405
Nut BOS 00420209 Contact Us For Availability
0406
Retaining washer BOS 00420210 Contact Us For Availability
0407
Pin BOS 00421653 Contact Us For Availability
0408
Screw BOS 00420218 Contact Us For Availability
0409
Thermometer BOS 00421010 Contact Us For Availability
0411
Clip BOS 00421682 Contact Us For Availability
0413
Nut BOS 00420219 Contact Us For Availability
0414
Support BOS 00490357 Contact Us For Availability
0415
Dividing wall BOS 00470711 Contact Us For Availability
0416
Terminal BOS 00491420 Contact Us For Availability
0417
Screw BOS 00420211 Contact Us For Availability
0418
Spacer BOS 00420213 Contact Us For Availability
0419
Resistor BOS 00490362 Contact Us For Availability
0421
Sleeve BOS 00421024 Contact Us For Availability
0422
Bracket BOS 00421023 Contact Us For Availability
0423
Reflector BOS 00434075 Contact Us For Availability
0424
Clip BOS 00420223 Contact Us For Availability
0425
Clip BOS 00420224 Contact Us For Availability
0426
Sealing BOS 00420225 Contact Us For Availability
0427
Cover BOS 00435184 Contact Us For Availability
0428
Spacer BOS 00424265 Contact Us For Availability
0430
Seal BOS 00421025 Contact Us For Availability
0433
Tray BOS 00434076 Contact Us For Availability
0434
Strip-decor BOS 00434077 Contact Us For Availability
0435
Bracket BOS 00420229 Contact Us For Availability
0436
Screw BOS 00420230 Contact Us For Availability
0437
Screw BOS 00420226 Contact Us For Availability
0438
Heating element BOS 00239404 Contact Us For Availability
0501
Hose-vent BOS 00490346 Contact Us For Availability
0503
Connection piece BOS 00420183 Contact Us For Availability
0504
Case-upper part BOS 00240449 Contact Us For Availability
0515
Door hinge BOS 00493358 Contact Us For Availability
0525
Case-rear part BOS 00240451 Contact Us For Availability
0531
Case-bottom BOS 00470693 Contact Us For Availability
0534
Strip-decor BOS 00472720 Contact Us For Availability
0540
Cable harness BOS 00493796 Contact Us For Availability
0601
Cover BOS 00470699 Contact Us For Availability
0602
Insulating part BOS 00438476 Contact Us For Availability
0603
Insert BOS 00241719 Contact Us For Availability
0604
Panel side BOS 00240452 Contact Us For Availability
0605
Support BOS 00240460 Contact Us For Availability
0606
Retaining washer BOS 00420246 Contact Us For Availability
0607
Housing part BOS 00421627 Contact Us For Availability
0608
Switch-door BOS 00421154 Contact Us For Availability
0609
Insulating part BOS 00421630 Contact Us For Availability
0611
Door hinge BOS 00493359 Contact Us For Availability
0612
Nut BOS 00420247 Contact Us For Availability
0613
Screw BOS 00421628 Contact Us For Availability
0614
Door hinge BOS 00493360 Contact Us For Availability
0615
Screw BOS 00420190 Contact Us For Availability
0616
Spacer BOS 00491422 Contact Us For Availability
0617
Strip BOS 00434051 Contact Us For Availability
0618
Insulating part BOS 00434056 Contact Us For Availability
0619
Insulating part BOS 00490347 Contact Us For Availability
0620
Cover BOS 00490348 Contact Us For Availability
0621
Catalyzer BOS 00493054 Contact Us For Availability
0622
Insulating part BOS 00490349 Contact Us For Availability
0623
Insulating part BOS 00434053 Contact Us For Availability
0624
Panel BOS 00434052 Contact Us For Availability
0625
Case-rear part BOS 00240455 Contact Us For Availability
0626
Screw BOS 00420192 Contact Us For Availability
0628
Support BOS 00240461 Contact Us For Availability
0629
Panel side BOS 00240453 Contact Us For Availability
0631
Nut BOS 00420195 Contact Us For Availability
0632
Case-bottom BOS 00470708 Contact Us For Availability
0633
Seal-door BOS 00470692 Contact Us For Availability
0634
Strip-decor BOS 00143620 Contact Us For Availability
0635
Pan lid BOS 00435183 Contact Us For Availability
0636
Pan BOS 00435182 Contact Us For Availability
0637
Grid BOS 00438526 Contact Us For Availability
0638
Grill grid BOS 00470697 Contact Us For Availability
0702
Pin BOS 00420250 Contact Us For Availability
0703
Washer BOS 00420251 Contact Us For Availability
0704
Door-inner BOS 00241540 Contact Us For Availability
0705
Screw BOS 00420253 Contact Us For Availability
0706
Screw BOS 00420254 Contact Us For Availability
0707
Hinge-plate BOS 00612612 Contact Us For Availability
0708
Nut BOS 00420252 Contact Us For Availability
0709
Seal BOS 00238950 Contact Us For Availability
0710
Glass panel BOS 00240458 Contact Us For Availability
0711
Spacer BOS 00470712 Contact Us For Availability
0712
Reflector BOS 00239405 Contact Us For Availability
0713
Retaining washer BOS 00420194 Contact Us For Availability
0714
Screw BOS 00420186 Contact Us For Availability
0715
Insulating part BOS 00434078 Contact Us For Availability
0716
Clip BOS 00420255 Contact Us For Availability
0717
Door-outer BOS 00470974 Contact Us For Availability
0718
Screw BOS 00424153 Contact Us For Availability
0719
Retaining plate BOS 00240459 Contact Us For Availability
0720
Spacer BOS 00421022 Contact Us For Availability
0721
Handle-cap shaped BOS 00421021 Contact Us For Availability
0722
Handle-door BOS 00435172 Contact Us For Availability
× ![]()
