Model Bosch EB290600/01 Range Oven – Common Parts & Diagrams

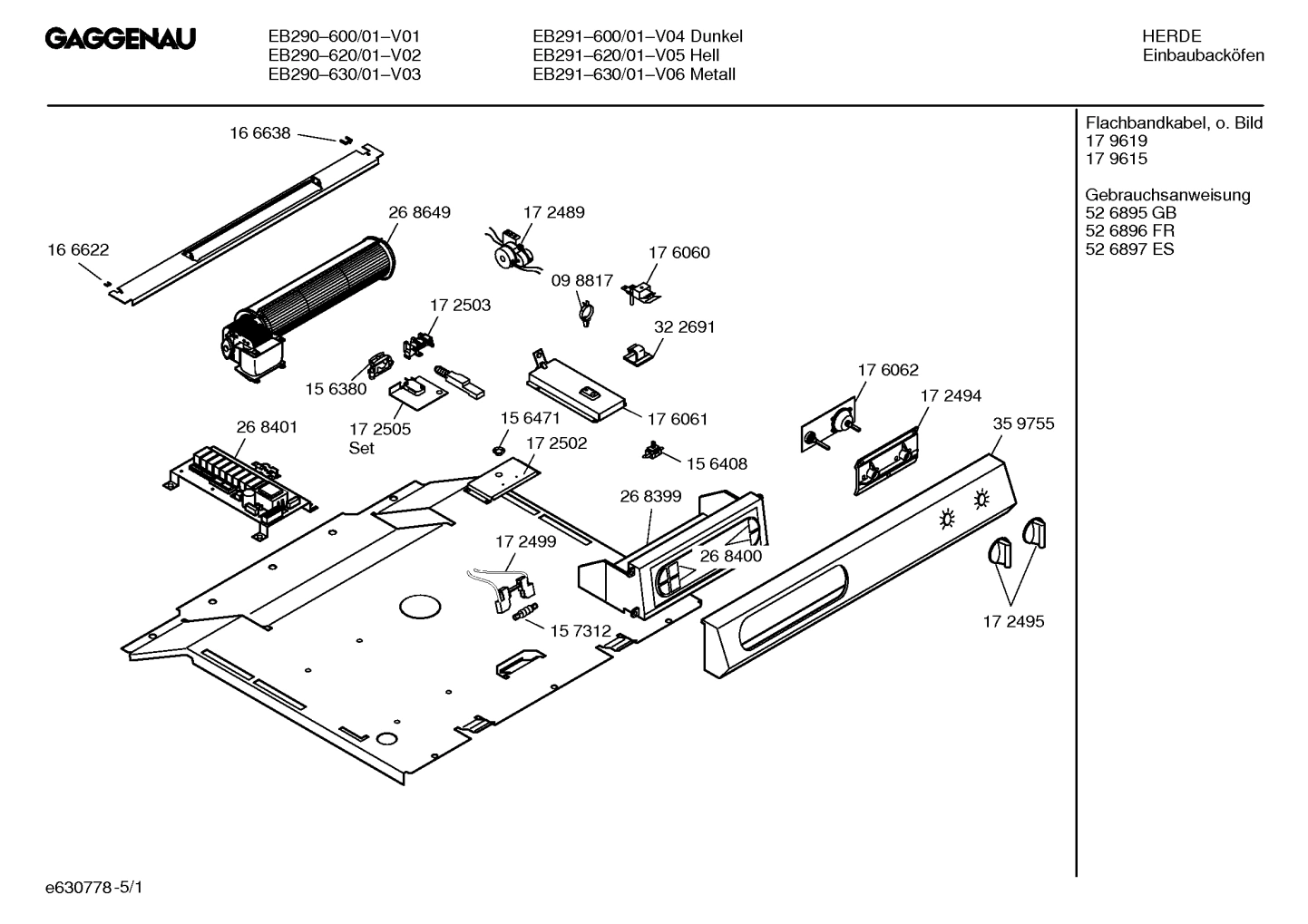

Diagram 1

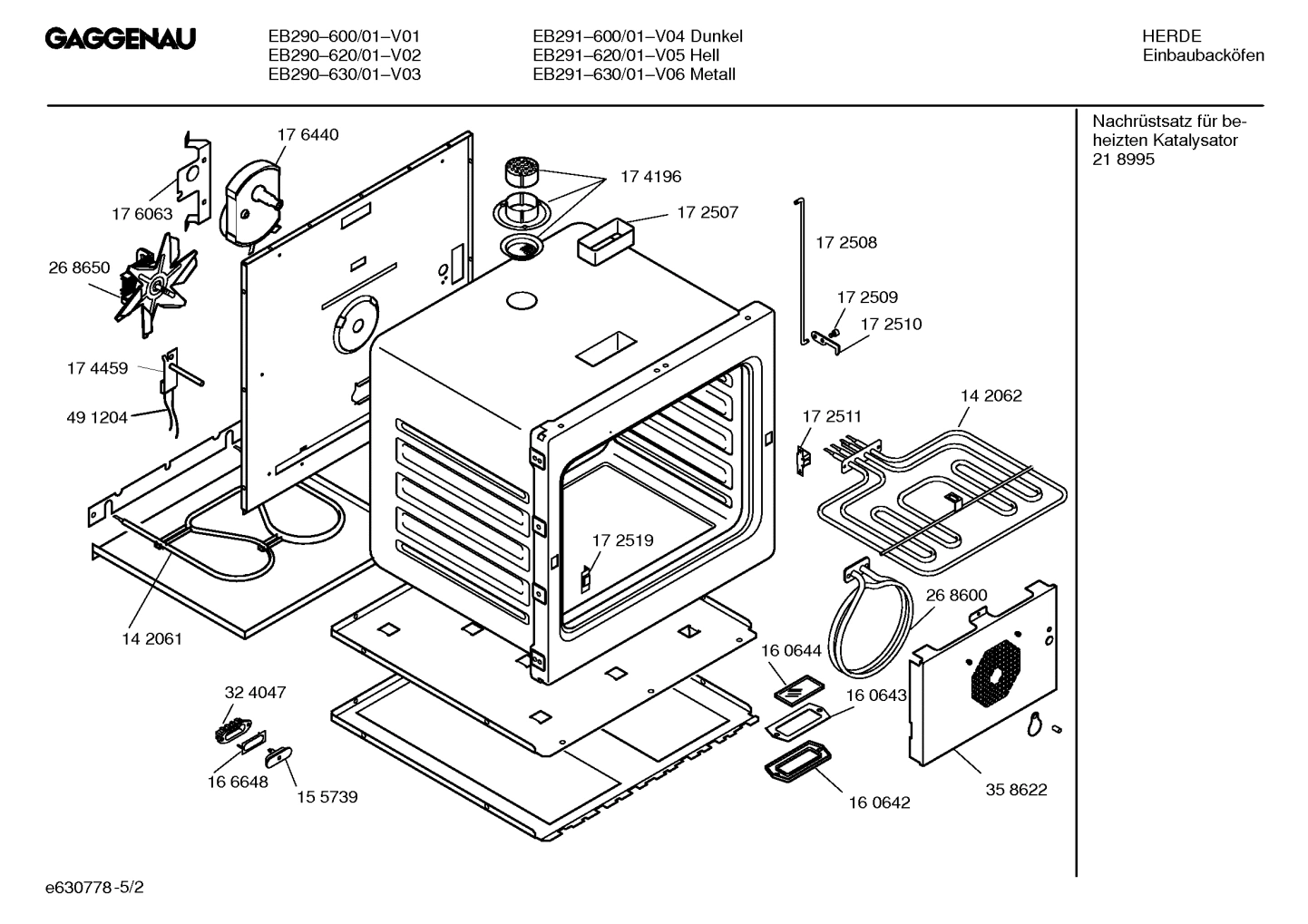

Diagram 2

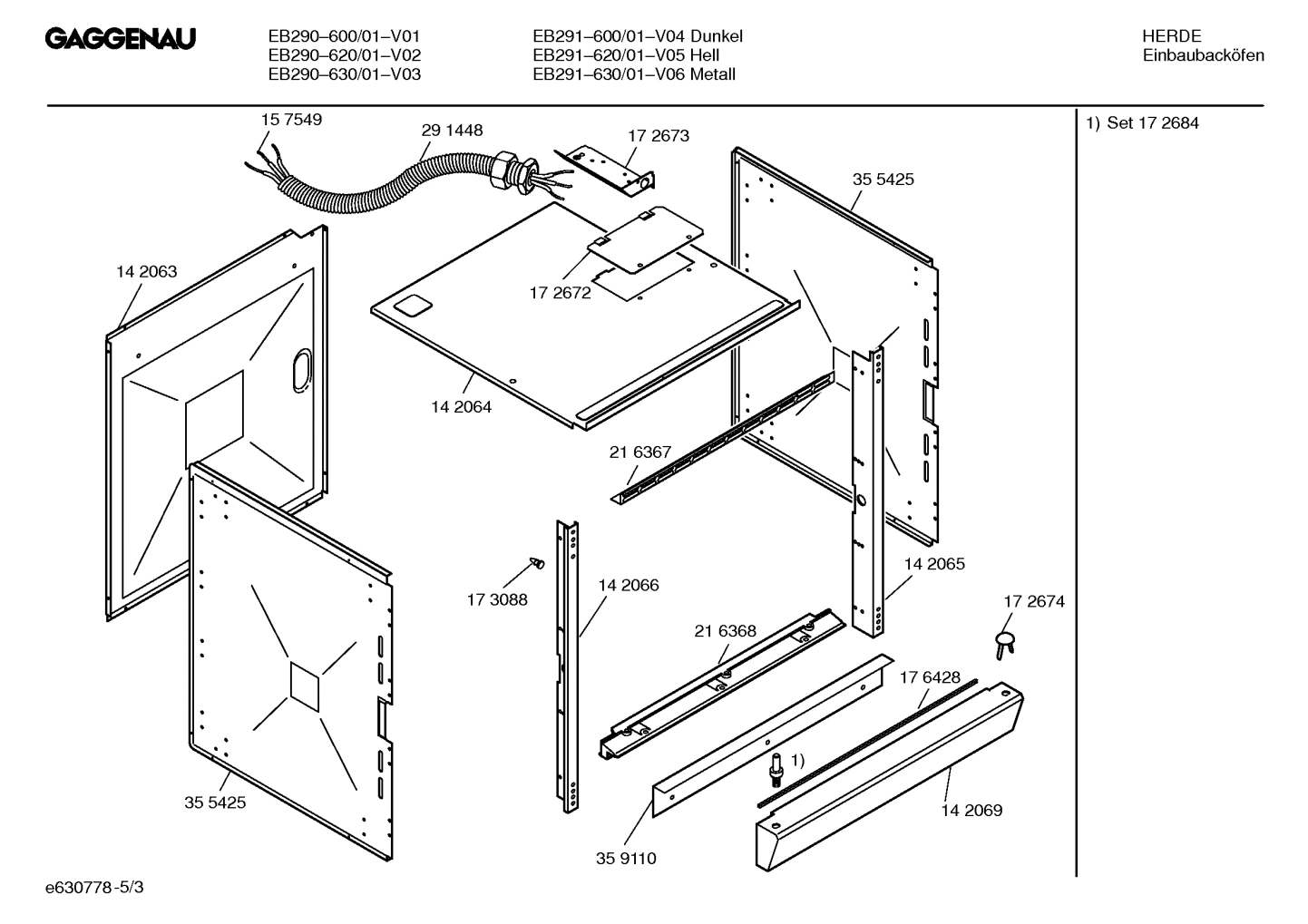

Diagram 3

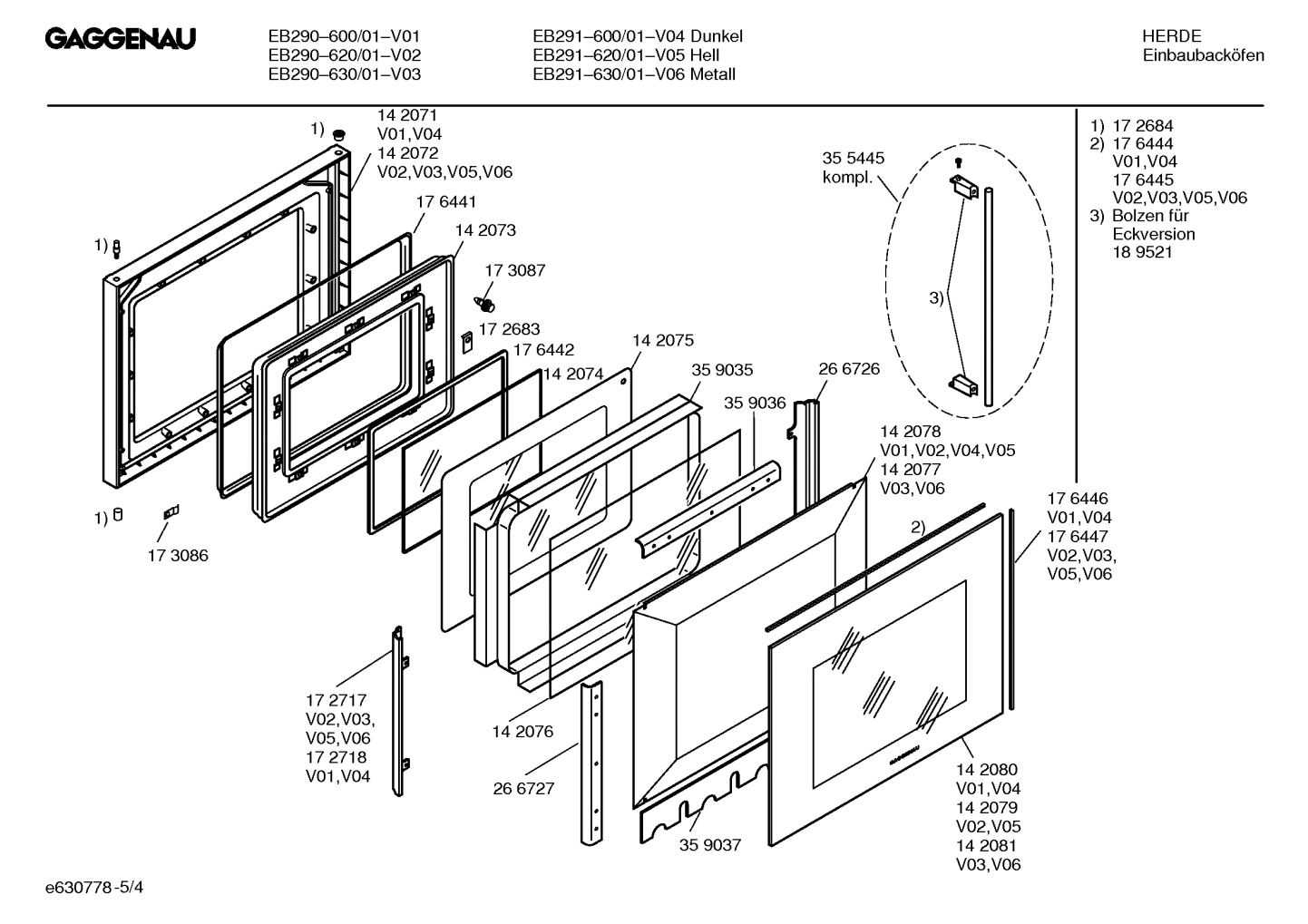

Diagram 4

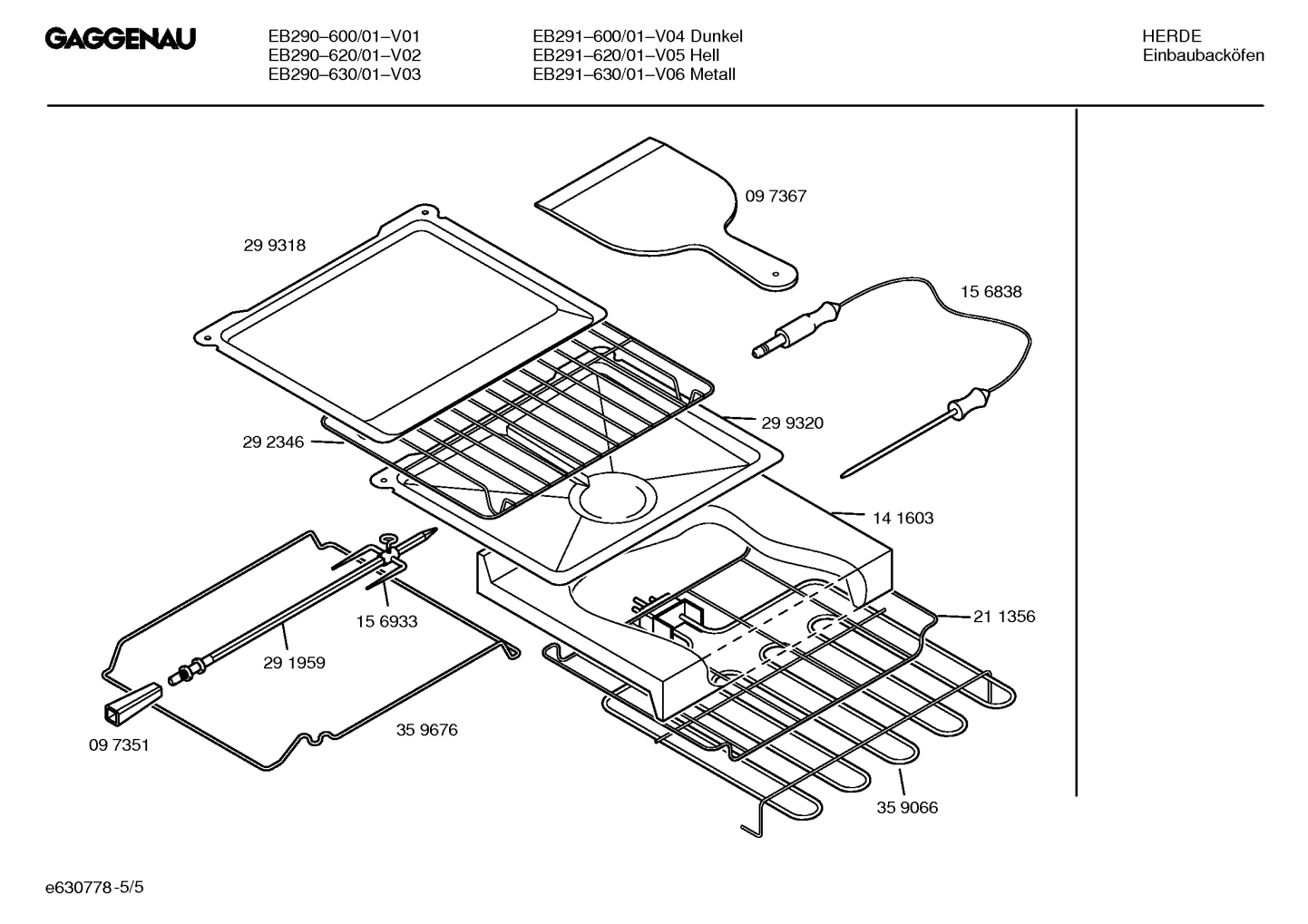

Diagram 5
Common parts from model Bosch EB290600/01 Range Oven
0102
Fan motor BOS 00268649 Contact Us For Availability
0111
Time switch BOS 00664681 Contact Us For Availability
0118
Bolt BOS 00172509 Contact Us For Availability
0122
Grill heating element BOS 00142062 Contact Us For Availability
0123
Heater-ring BOS 00268600 Contact Us For Availability
0129
Power module BOS 00268401 Contact Us For Availability
0130
Switch-door BOS 00611092 Contact Us For Availability
0132
Terminal BOS 10005596 Contact Us For Availability
0135
Motor BOS 00176440 Contact Us For Availability
0137
Blower motor BOS 00263384 Contact Us For Availability
0142
Holder BOS 00156828 Contact Us For Availability
0145
Power cord BOS 00359612 Contact Us For Availability
0161
Installation set BOS 00172684 Contact Us For Availability
0163
Bolt BOS 00173087 Contact Us For Availability
0166
Sealing BOS 00176442 Contact Us For Availability
0167
Glass panel BOS 00142074 Contact Us For Availability
0170
Glass panel BOS 00142076 Contact Us For Availability
0188
Multi-use wire shelf BOS 00292346 Contact Us For Availability
0195
Handle BOS 00097351 Contact Us For Availability
× ![]()
