Model LG DVDR3320V/37 – Common Parts & Diagrams
Diagram 0
Diagram 1

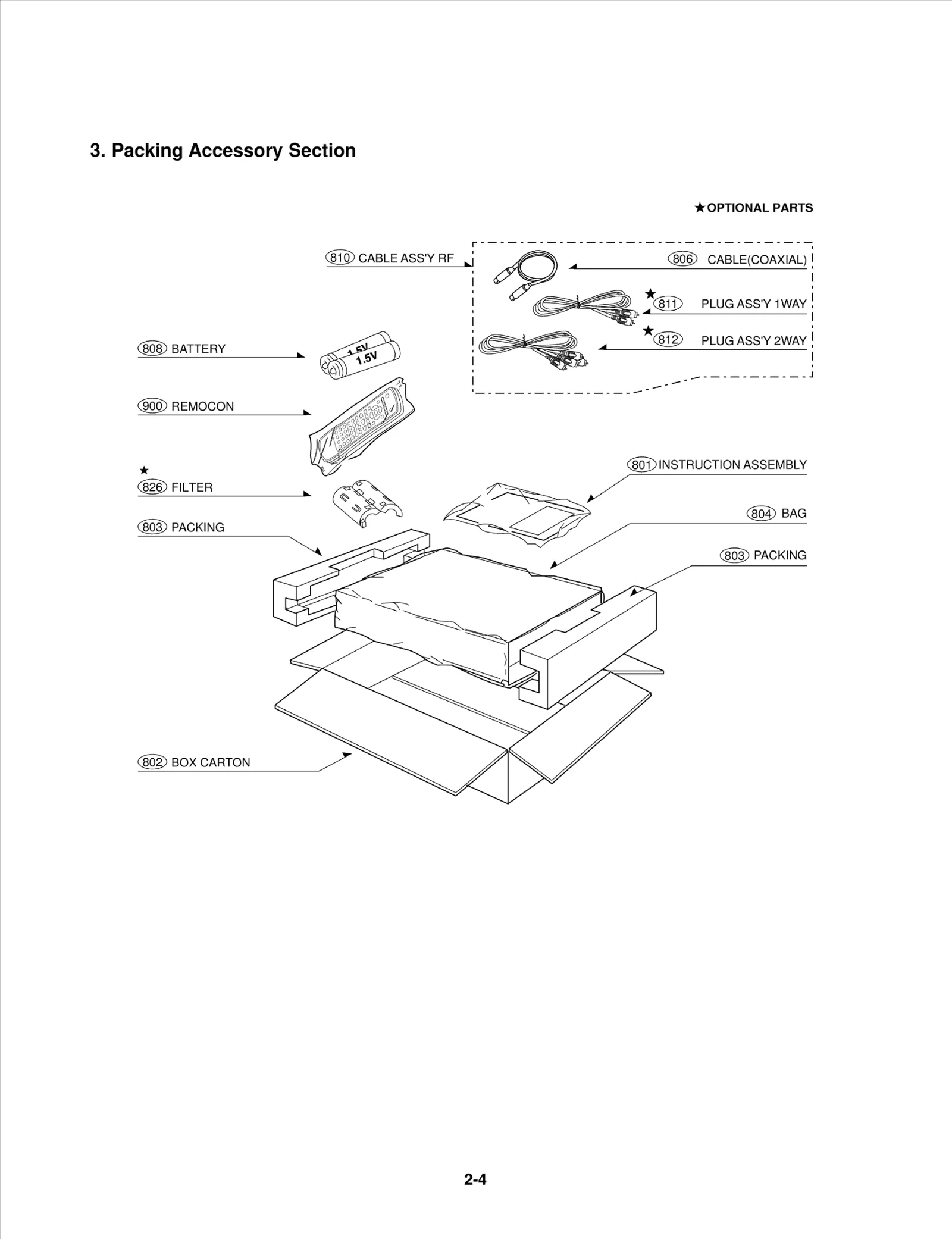

Diagram 2

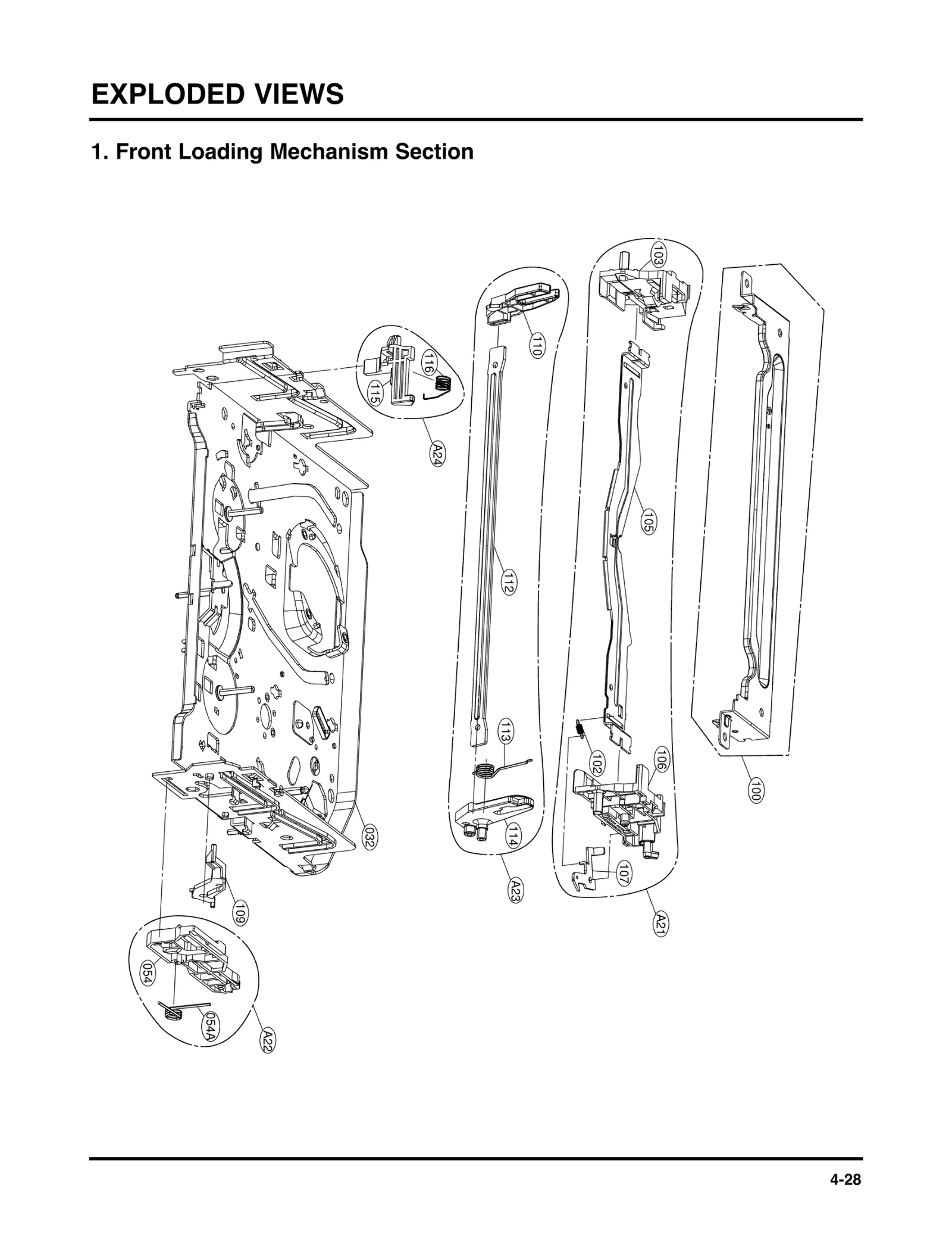

Diagram 3

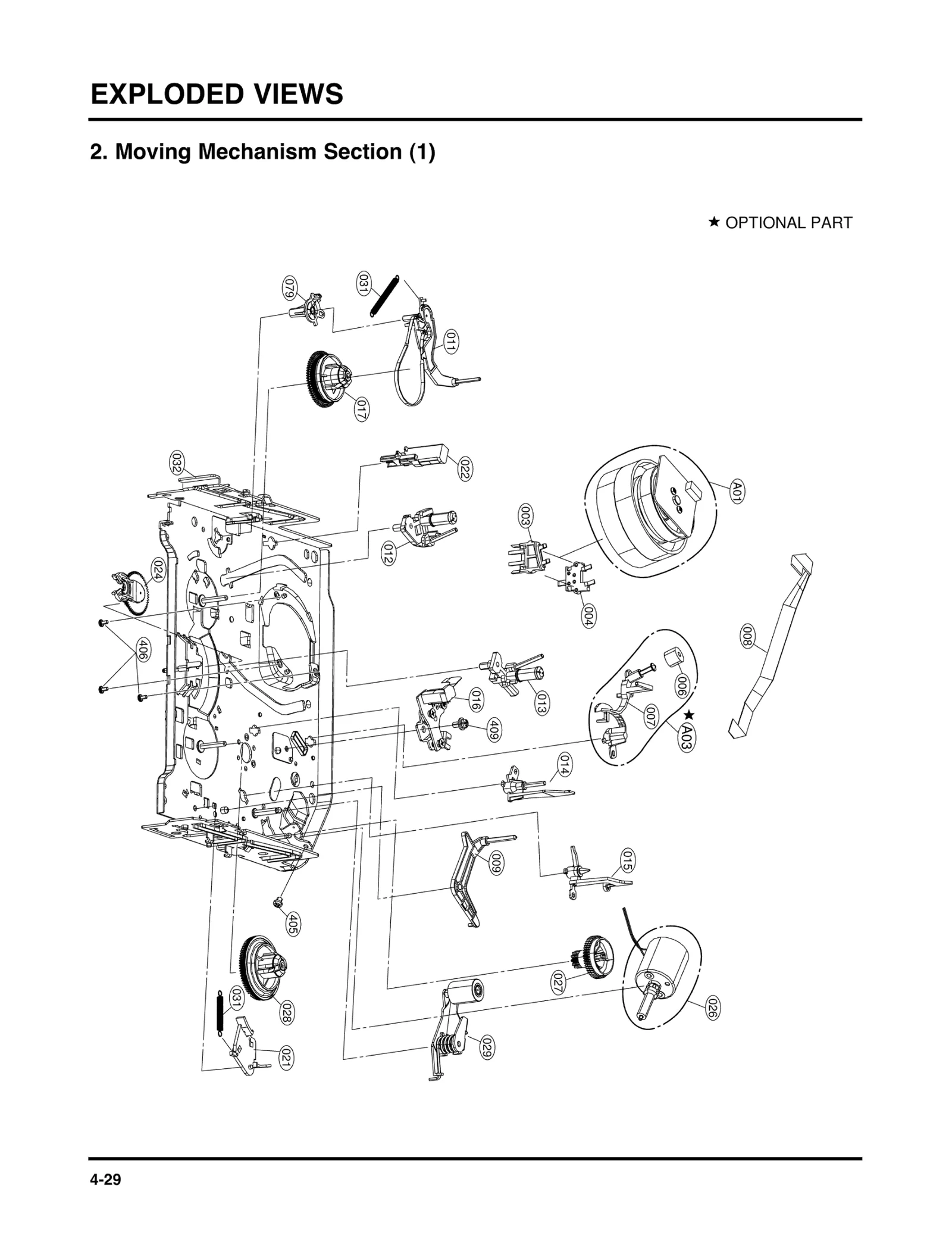

Diagram 4

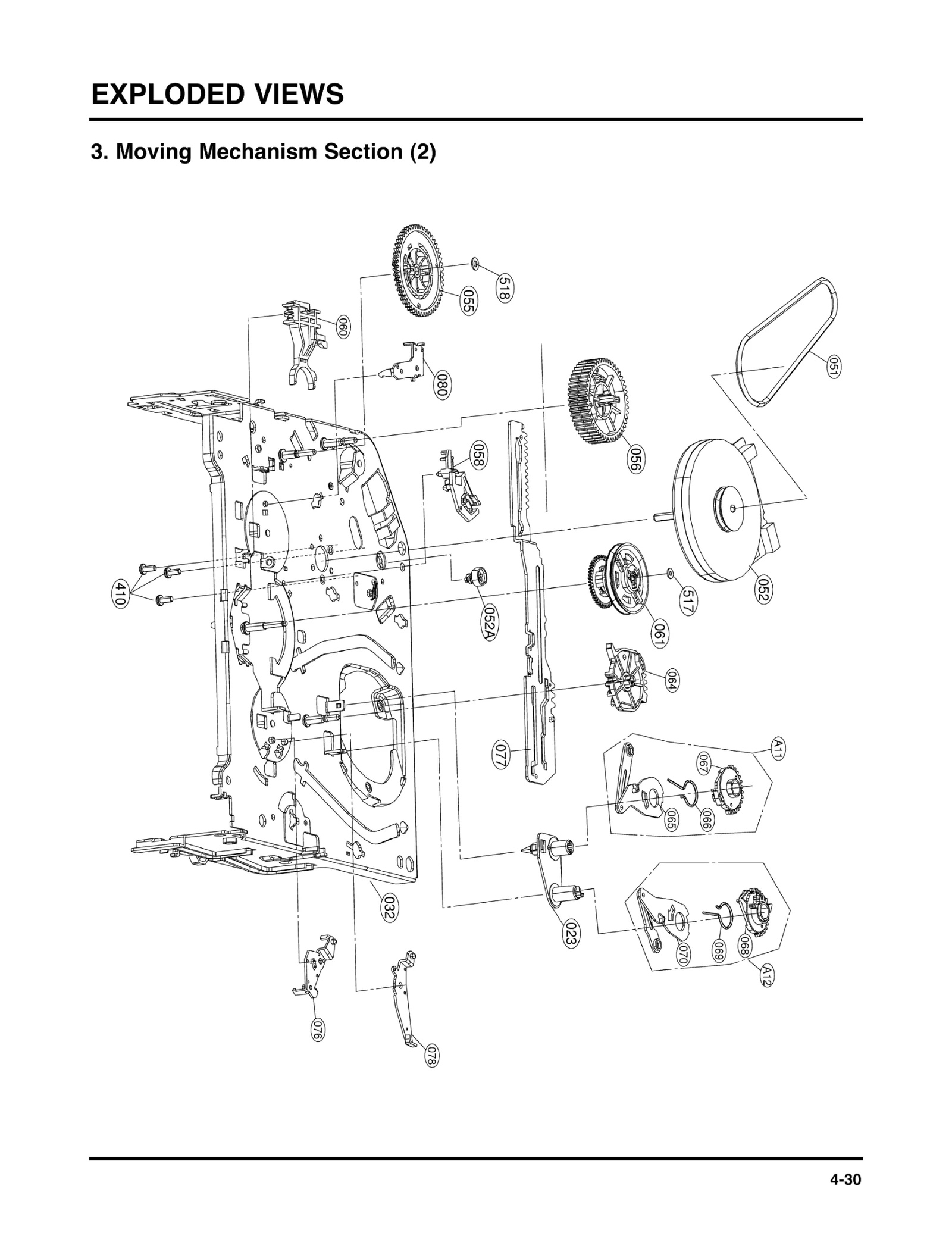

Diagram 5
Diagram 6
Common parts from model LG DVDR3320V/37
003
HOLDER LGE 4930R-0449A Contact Us For Availability
004
CAP LGE 5006R-0045A Contact Us For Availability
008
CABLE,FLAT LGE 6850R-HG18Y Contact Us For Availability
009
ARM LGE 4260R-0056A Contact Us For Availability
011
ARM ASSEMBLY LGE 4261R-0040A Contact Us For Availability
012
BASE ASSEMBLY LGE 3041R-M037A Contact Us For Availability
012
BASE ASSEMBLY LGE 3041R-M037B Contact Us For Availability
013
BASE ASSEMBLY LGE 3041R-M038B Contact Us For Availability
013
BASE ASSEMBLY LGE 3041R-M038A Contact Us For Availability
014
BASE ASSEMBLY LGE 3041R-M039A Contact Us For Availability
015
OPENER LGE 5870R-0007A Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-M036E Contact Us For Availability
016
BASE ASSEMBLY LGE 3041R-M036D Contact Us For Availability
017
REEL LGE 4408R-0005B Contact Us For Availability
017
REEL LGE 4408R-0005A Contact Us For Availability
021
BRAKE ASSEMBLY LGE 4421R-M002A Contact Us For Availability
022
HEAD(CIRC) LGE 6520D00006A Contact Us For Availability
022
HEAD(CIRC) LGE 6520D00004B Contact Us For Availability
023
BASE LGE 3040R-M056A Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0041A Contact Us For Availability
026
MOTOR ASSEMBLY LGE 4681RF0039C Contact Us For Availability
026
MOTOR ASSEMBLY LGE 4681RF0039A Contact Us For Availability
027
GEAR LGE 4470R-0133A Contact Us For Availability
028
REEL LGE 4408R-0006A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037C Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0037B Contact Us For Availability
031
SPRING LGE 4970R-0175A Contact Us For Availability
032
CHASSIS ASSEMBLY LGE 3141R-M002A Contact Us For Availability
052
LGE 4680R-A017A LGE 4680R-A017A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A015A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A016A Contact Us For Availability
052A
SUPPORTER LGE 4980R-0029A Contact Us For Availability
054
GEAR LGE 4470R-0136A Contact Us For Availability
054A
SPRING LGE 4970R-0171A Contact Us For Availability
055
GEAR LGE 4470R-0140A Contact Us For Availability
056
GEAR LGE 4470R-0139A Contact Us For Availability
058
BRAKE ASSEMBLY LGE 4421R-M001A Contact Us For Availability
060
LEVER LGE 4510R-0065A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0008A Contact Us For Availability
064
GEAR LGE 4470R-0141A Contact Us For Availability
065
ARM ASSEMBLY LGE 4261R-0044A Contact Us For Availability
067
GEAR LGE 4470R-0135A Contact Us For Availability
068
GEAR LGE 4470R-0134A Contact Us For Availability
070
ARM ASSEMBLY LGE 4261R-0043A Contact Us For Availability
076
LEVER LGE 4510R-0063A Contact Us For Availability
077
PLATE LGE 3300R-M203A Contact Us For Availability
078
LEVER LGE 4510R-0062A Contact Us For Availability
079
BASE LGE 3040R-M057A Contact Us For Availability
080
LEVER LGE 4510R-0064A Contact Us For Availability
100
PLATE ASSEMBLY LGE 3301R-M193A Contact Us For Availability
102
SPRING LGE 4970R-0173A Contact Us For Availability
103
HOLDER LGE 4930R-0452A Contact Us For Availability
105
HOLDER LGE 4930R-0450A Contact Us For Availability
106
HOLDER LGE 4930R-0451A Contact Us For Availability
107
LEVER LGE 4510R-0061A Contact Us For Availability
109
OPENER LGE 5870R-0008A Contact Us For Availability
110
ARM LGE 4260R-0051A Contact Us For Availability
113
SPRING LGE 4970R-0169A Contact Us For Availability
114
ARM LGE 4260R-0052A Contact Us For Availability
115
LEVER LGE 4510R-0070A Contact Us For Availability
116
SPRING LGE 4970R-0163A Contact Us For Availability
250
CASE LGE 3110R-V033B Contact Us For Availability
255
CASE LGE 3110R-V020B Contact Us For Availability
256
COVER LGE 3550R-0522A Contact Us For Availability
257
COVER LGE 3550R-0563B Contact Us For Availability
260
Frame LGE 3210R-V013A Contact Us For Availability
261
RUBBER LGE 5040R-0069D Contact Us For Availability
263
HOLDER LGE 4930R-0506A Contact Us For Availability
264
FAN,DC LGE 5900R-D004C Contact Us For Availability
265
HOLDER LGE 4930R-0384A Contact Us For Availability
266
HOLDER LGE 4930R-0512A Contact Us For Availability
274
PLATE LGE 3300R-V128A Contact Us For Availability
276
HOLDER LGE 4930R-0505A Contact Us For Availability
278
Bracket LGE 4810R-0262A Contact Us For Availability
280
PANEL,VIDEO LGE 3720R-F265H Contact Us For Availability
283
DOOR LGE 3580R-V129B Contact Us For Availability
285
DOOR LGE 3580R-T164A Contact Us For Availability
300
POWER CORD LGE 6410RAHP02D Contact Us For Availability
320
CHASSIS LGE 3140R-V012A Contact Us For Availability
321
CASE LGE 3110R-V013A Contact Us For Availability
323
CASE ASSEMBLY LGE 3111R-0089E Contact Us For Availability
405
SCREW MACHINE,PAN HE LGE 1MPC0301270 Contact Us For Availability
470
SCREW,DRAWING LGE 1SZZR-0098K Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RV0040M Contact Us For Availability
802
BOX LGE 3890R-C323D Contact Us For Availability
803
PACKING LGE 3920R-E117A Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-CAA8E Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90010A Contact Us For Availability
810
CABLE ASSEMBLY LGE 6851R-0039B Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA8F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA8H Contact Us For Availability
900
REMOTE CONTROLLER AS LGE 6711R2N052H Contact Us For Availability
1001
PLATE LGE 3300R-D049A Contact Us For Availability
1002
MAGNET LGE 5016R-1001A Contact Us For Availability
1003
CLAMP LGE 4860R-0029A Contact Us For Availability
1005
HOLDER LGE 4930R-0504A Contact Us For Availability
1006
CABLE,FLAT LGE 6850R-EA08Z Contact Us For Availability
1009
CUSHION LGE 4850R-0076B Contact Us For Availability
1011
Base LGE 3040R-D010A Contact Us For Availability
1012
GUIDE LGE 4974R-0065A Contact Us For Availability
1013
SPRING LGE 4970R-0217A Contact Us For Availability
1014
LEVER LGE 4510R-1054A Contact Us For Availability
1015
BELT LGE 4400R-1012A Contact Us For Availability
1016
PULLEY LGE 4560R-1015A Contact Us For Availability
1017
GEAR LGE 4470R-0175A Contact Us For Availability
1018
MOTOR ASSEMBLY LGE 4681R-A011E Contact Us For Availability
1018A
Pulley LGE 4560R-0008A Contact Us For Availability
1018A
PULLEY LGE 4560R-1016A Contact Us For Availability
1018B
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
1018C
SWITCH,MICRO LGE 6600KW3004C Contact Us For Availability
1018D
CONNECTOR (CIRC),FFC LGE 6630R-FB10E Contact Us For Availability
1018E
PWB(PCB) LGE 6870R7681HB Contact Us For Availability
1019
CUSHION LGE 4850R-0075A Contact Us For Availability
1020
BASE LGE 3040R-D007A Contact Us For Availability
1021
MOTOR(MECH) LGE 4680HP5011F Contact Us For Availability
1024
RUBBER LGE 5040R-0134B Contact Us For Availability
1025
RUBBER LGE 5040R-1081B Contact Us For Availability
1026
TRAY LGE 3390R-0027A Contact Us For Availability
1027
HOLDER LGE 4930R-1002A Contact Us For Availability
1029
SHAFT LGE 4370R-0136A Contact Us For Availability
1030
CABLE,FLAT LGE 6850R-GE08A Contact Us For Availability
1032
SPRING LGE 4970R-1001A Contact Us For Availability
1033
GUIDE LGE 4974R-0054A Contact Us For Availability
1038
RUBBER LGE 5040R-0135A Contact Us For Availability
1041
PLATE LGE 3300R-D045A Contact Us For Availability
1042
PLATE LGE 3300R-D046A Contact Us For Availability
1432
SCREW,DRAWING LGE 1SZZR-0087A Contact Us For Availability
1433
SCREW LGE 1SZZH-1011B Contact Us For Availability
1434
SCREW, LGE 1SZZR-0012A Contact Us For Availability
1436
SCREW LGE 4000H-1006B Contact Us For Availability
1437
SCREW, LGE 1SZZH-1003C Contact Us For Availability
A00
DECK ASSEMBLY,VIDEO LGE 6721RF0944K Contact Us For Availability
A000
DECK ASSEMBLY,DVD LGE 6721RFD016A Contact Us For Availability
A001
CLAMP ASSEMBLY LGE 4861R-0020C Contact Us For Availability
A002
BASE ASSEMBLY LGE 3041R-D021C Contact Us For Availability
A004
PWB(PCB) ASSEMBLY,TO LGE 6871R-7681G Contact Us For Availability
A01
DRUM(CIRC) ASSEMBLY LGE 6723R-0603E Contact Us For Availability
A11
GEAR ASSEMBLY LGE 4471R-0017A Contact Us For Availability
A12
GEAR ASSEMBLY LGE 4471R-0015A Contact Us For Availability
A21
HOLDER ASSEMBLY LGE 4931R-0084A Contact Us For Availability
A22
GEAR ASSEMBLY LGE 4471R-0016A Contact Us For Availability
A23
ARM ASSEMBLY LGE 4261R-0038A Contact Us For Availability
A24
LEVER ASSEMBLY LGE 4511R-0005A Contact Us For Availability
A43
PANEL ASSEMBLY,FRONT LGE 3721R-F417J Contact Us For Availability
A44
CHASSIS ASSEMBLY LGE 3141R-D071K Contact Us For Availability
A46
BOARD ASSEMBLY LGE 3501R-1735E Contact Us For Availability
A47
BOARD ASSEMBLY LGE 3501R-3290B Contact Us For Availability
A48
BOARD ASSEMBLY LGE 3501R-2725A Contact Us For Availability
A50
PWB(PCB) ASSEMBLY,TO LGE 6871R-2715A Contact Us For Availability
A52
SUB PWB(PCB) ASSEMBL LGE 6885R-2585D Contact Us For Availability
A60
DECK ASSEMBLY,DVD LGE 6721RFN016G Contact Us For Availability
BC101
COIL LGE 636-004D Contact Us For Availability
BC411
CAPACITOR,FIXED CERA LGE 0CH4222K416 Contact Us For Availability
BD101
DIODE,RECTIFIERS LGE 0DRVH00060A Contact Us For Availability
C101
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
C101
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C103
CAPACITOR,FIXED ELEC LGE 0CE277JR6A0 Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C112
Capacitor,Ceramic,Axial LGE 0CN2220K518 Contact Us For Availability
C116
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE228BF630 Contact Us For Availability
C130
Capacitor,AL,Radial LGE 0CE227CH618 Contact Us For Availability
C133
Capacitor,AL,Radial LGE 0CE2276F638 Contact Us For Availability
C135
Capacitor,AL,Radial LGE 0CE1043K638 Contact Us For Availability
C139
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C141
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C142
CAPACITOR LGE 624-087D Contact Us For Availability
C152
CAPACITOR,FIXED CERA LGE 0CH4390K442 Contact Us For Availability
C154
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C303
Capacitor,AL,Radial LGE 0CE3344K638 Contact Us For Availability
C304
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C313
Capacitor,Film,DIP LGE 0CQ2231N409 Contact Us For Availability
C501
Capacitor,Ceramic,Chip LGE 0CH4360K412 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4240K412 Contact Us For Availability
C618
Capacitor,Ceramic,Chip LGE 0CH4101K462 Contact Us For Availability
C708
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C819
Capacitor,AL,Radial LGE 0CE2244K638 Contact Us For Availability
C823
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
CABLE15
CABLE,FLAT LGE 6850R-G007Z Contact Us For Availability
CABLE30
CABLE,FLAT LGE 6850R-G409C Contact Us For Availability
CE257
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8476C611 Contact Us For Availability
CE308
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
CE334
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
CE403
CAPACITOR,CHIP[AL. E LGE 0CH8476F611 Contact Us For Availability
CE404
CAPACITOR,CHIP[AL. E LGE 0CH8335K611 Contact Us For Availability
CE405
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8226F611 Contact Us For Availability
CE424
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
CONNECTOR
CONNECTOR ASSEMBLY LGE 6631R-E070A Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D121
DIODE,RECTIFIERS LGE 0DRSD00210A Contact Us For Availability
D122
DIODE,SWITCHING LGE 0DSNH00020B Contact Us For Availability
D122
DIODE,SWITCHING LGE 0DSKE00141B Contact Us For Availability
D126
DIODE,SWITCHING LGE 0DSGF00040A Contact Us For Availability
DIG601
DIGITRON LGE 6302R-V238B Contact Us For Availability
ES501
HOLDER ASSEMBLY LGE 4931R-0085C Contact Us For Availability
F606
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
FB505
INDUCTOR,CHIP LGE 0LCCE00004R Contact Us For Availability
IC101
IC,LINEAR LGE 0ILNRCI007A Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMGIH005A Contact Us For Availability
IC104
IC,POWER MANAGEMENT LGE 0IPMGFF001A Contact Us For Availability
IC107
SENSOR,PHOTO LGE 6500RDB010A Contact Us For Availability
IC107
IC,PHILIPS LGE 0IPH740400F Contact Us For Availability
IC151
IC,POWER MANAGEMENT LGE 0IPMGFA050A Contact Us For Availability
IC154
IC,POWER MANAGEMENT LGE 0IPMGKE022B Contact Us For Availability
IC154
IC,POWER MANAGEMENT LGE 0IPMGGM003A Contact Us For Availability
IC154
IC,POWER MANAGEMENT LGE 0IPMGFA046A Contact Us For Availability
IC157
IC,POWER MANAGEMENT LGE 0IPMGFA031A Contact Us For Availability
IC157
IC,POWER MANAGEMENT LGE 0IPMGKE048A Contact Us For Availability
IC160
IC,POWER MANAGEMENT LGE 0IPMGSH016A Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNRCI008A Contact Us For Availability
IC202
IC,MEMORIES LGE 0IMMRFU016A Contact Us For Availability
IC202
IC,MEMORIES LGE 0IMMRMR024D Contact Us For Availability
IC204
IC MEMORIES LGE 0IMMRHY001E Contact Us For Availability
IC204
IC,MEMORIES LGE 0IMMREB004D Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRHI009B Contact Us For Availability
IC302
IC,POWER MANAGEMENT LGE 0IPMGJR012A Contact Us For Availability
IC303
IC,Video Decode LGE 0ILNRTI027A Contact Us For Availability
IC401
IC,STANDARD LOGIC LGE 0ISTLTI071A Contact Us For Availability
IC402
IC,PERIPHERALS LGE 0IPRP00015A Contact Us For Availability
IC403
IC,LINEAR LGE 0ILNRON005A Contact Us For Availability
IC404
IC,PERIPHERALS LGE 0IPRPCI013A Contact Us For Availability
IC501
IC,PERIPHERALS LGE 0IPRPTI044A Contact Us For Availability
IC501
IC,MICRO CONTROLLER LGE 0IMCR02082B Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC601
IC,PERIPHERALS LGE 0IPRPMT008A Contact Us For Availability
IC602
IC,JRC LGE 0IJR223400D Contact Us For Availability
IC801
IC,Hi,Fi LGE 0ILNRMA001A Contact Us For Availability
JK601
JACK,RCA LGE 6612J00025E Contact Us For Availability
JK761
JACK,DIN LGE 6612B00010A Contact Us For Availability
JK762
JACK,RCA LGE 6612JH002ND Contact Us For Availability
JK763
JACK,RCA LGE 6612JH002NE Contact Us For Availability
JK764
JACK,RCA LGE 6612JH002NF Contact Us For Availability
JK765
CONNECTOR (CIRC),USB LGE 6630SD01104 Contact Us For Availability
L102
FILTER(CIRC),EMC LGE 6200JB8013R Contact Us For Availability
L122
COIL,RF LGE 6140R-C011A Contact Us For Availability
L123
COIL,RF LGE 6140RCC009A Contact Us For Availability
L300
INDUCTOR RADIAL LEAD LGE 0LR0392K035 Contact Us For Availability
L303
INDUCTOR,RADIAL LEAD LGE 0LR1500J025 Contact Us For Availability
L307
INDUCTOR,RADIAL LEAD LGE 0LR0122J035 Contact Us For Availability
L510
INDUCTOR RADIAL LEAD 68M K 6X6 LGE 0LR0682K035 Contact Us For Availability
L522
INDUCTOR,CHIP LGE 0LCCE00004L Contact Us For Availability
L601
INDUCTOR RADIAL LEAD LGE 0LR8200J025 Contact Us For Availability
L608
INDUCTOR,RADIAL LEAD LGE 0LR0101K035 Contact Us For Availability
L702
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L803
INDUCTOR,RADIAL LEAD LGE 0LR1000J0N5 Contact Us For Availability
L803
Inductor,Wire Wound,Radial LGE 0LR1000J025 Contact Us For Availability
LAR202
Resistor,Array LGE 0RR1500Q621 Contact Us For Availability
LAR304
Resistor,Array LGE 0RRZVTA001F Contact Us For Availability
LAR310
Resistor,Array LGE 0RRZVTA001V Contact Us For Availability
LC211
Capacitor,Ceramic,Chip LGE 0CK106EDD7A Contact Us For Availability
LC230
Capacitor,Ceramic,Chip LGE 0CH1272K512 Contact Us For Availability
LC234
Capacitor,Ceramic,Chip LGE 0CK334CH94A Contact Us For Availability
LC245
Capacitor,Ceramic,Chip LGE 0CH1333K512 Contact Us For Availability
LC264
Capacitor,Ceramic,Chip LGE 0CH1682K562 Contact Us For Availability
LC291
Capacitor,Ceramic,Chip LGE 0CH1392K512 Contact Us For Availability
LC335
Capacitor,Ceramic,Chip LGE 0CH1472K512 Contact Us For Availability
LC358
Capacitor,Ceramic,Chip LGE 0CH1475D946 Contact Us For Availability
LC535
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
LCN201
CONNECTOR (CIRC),FFC LGE 6630HXE440E Contact Us For Availability
LCN301
Connector,FFC/FPC/PIC LGE 6630R-FB06D Contact Us For Availability
LCN302
Connector,Wafer LGE 6630VK20704 Contact Us For Availability
LCN502
Connector,FFC/FPC/PIC LGE 6630R-FB06M Contact Us For Availability
LCN504
Connector,FFC/FPC/PIC LGE 6630R-FB06E Contact Us For Availability
LD501
HOLDER ASSEMBLY LGE 4931R-0089C Contact Us For Availability
LED605
LED LGE 0DLAU0190AA Contact Us For Availability
LED607
Optic Element,Unclassified LGE 0DL112000AJ Contact Us For Availability
LIC201
IC,LINEAR LGE 0ILNRNE019A Contact Us For Availability
LIC202
IC,Gate LGE 0ISTLKE014A Contact Us For Availability
LIC203
IC,POWER MANAGEMENT LGE 0IPMGTR057A Contact Us For Availability
LIC205
IC,Multiplexer LGE 0IPRPFA011A Contact Us For Availability
LIC301
IC,LINEAR LGE 0ILNRNE018A Contact Us For Availability
LIC302
IC,MEMORIES LGE 0IMMR00027A Contact Us For Availability
LIC302
IC,EEPROM LGE 0IMMRAL007A Contact Us For Availability
LIC302
IC,MEMORIES LGE 0IMMR00047A Contact Us For Availability
LIC303
IC,Reset LGE 0IPMGA1007A Contact Us For Availability
LIC304
IC,MEMORIES LGE 0IMMREB006C Contact Us For Availability
LIC502
IC,LINEAR LGE 0ILNRRH034A Contact Us For Availability
LIC504
IC,STANDARD LOGIC LGE 0ISTLPH074A Contact Us For Availability
LIC505
IC,LDO Voltage Regulator LGE 0IPMGRH013A Contact Us For Availability
LQ302
TR,Array LGE 0TRRH80059A Contact Us For Availability
LR530
Resistor,Chip LGE 0RH0181D622 Contact Us For Availability
LX301
RESONATOR,CERAMIC LGE 6212BB3241A Contact Us For Availability
MS501
LGE 6600JB8005C LGE 6600JB8005C Contact Us For Availability
MS501
SWITCH,MODE LGE 6600JR3002D Contact Us For Availability
P3D01
CONNECTOR(CIRC),DRAWING LGE 561-234S Contact Us For Availability
P6M03
CONNECTOR(CIRC),DRAW LGE 561-844D Contact Us For Availability
P101
Connector,Wafer LGE 561-036N Contact Us For Availability
P104
CONNECTOR (CIRC),HOU LGE 561-661B Contact Us For Availability
P6602
Harness,Single LGE 6631R-E001N Contact Us For Availability
P6603
Connector,Wafer LGE 561-036C Contact Us For Availability
PM602
CONNECTOR (CIRC) LGE 561-843D Contact Us For Availability
PMC01
CONNECTOR (CIRC),BOA LGE 6630BK01612 Contact Us For Availability
PMD01
CONNECTOR (CIRC),FFC LGE 6630R-FB10O Contact Us For Availability
PMD02
CONNECTOR (CIRC),FFC LGE 6630R-FB104 Contact Us For Availability
PMF01
Connector,Wafer LGE 561-036I Contact Us For Availability
PMP01
Harness,Single LGE 6631R-E035B Contact Us For Availability
PN302
Connector,Wafer LGE 6630R3S006M Contact Us For Availability
Q111
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q121
TRANSISTOR LGE 0TR220309AF Contact Us For Availability
Q301
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q301
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q302
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q303
TR,Bipolar LGE 0TR124009AP Contact Us For Availability
Q303
TRANSISTOR,BIPOLARS LGE 0TRAU80002A Contact Us For Availability
Q307
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q701
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0152F608 Contact Us For Availability
R107
Resistor,Fusible LGE 0RF0200F708 Contact Us For Availability
R109
RESISTOR,FIXED METAL LGE 0RS0600K619 Contact Us For Availability
R155
RESISTOR FIX METAL FILM 120 1W LGE 0RS1200J619 Contact Us For Availability
R161
Resistor,Metal Film LGE 0RN1801F408 Contact Us For Availability
R167
Resistor,Metal Film LGE 0RN3601F408 Contact Us For Availability
R339
Resistor,Chip LGE 0RJ6804C677 Contact Us For Availability
R351
INDUCTOR,CHIP LGE 0LCCE00005T Contact Us For Availability
R816
RESISTOR,METAL GLAZED(CHIP) LGE 0RH1804C622 Contact Us For Availability
RC601
REMOTE CONTROLLER RE LGE 6712R1038GA Contact Us For Availability
RC601
Receiver Module LGE 6712R1638GA Contact Us For Availability
RS501
SENSOR LGE 6500RAB008A Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW23H Contact Us For Availability
T102
TRANSFORMER,SMPS[COI LGE 6170RNGW23B Contact Us For Availability
TU701
TUNER LGE 6700NFNL05A Contact Us For Availability
X301
RESONATOR,CRYSTAL LGE 6212AB2143C Contact Us For Availability
X301
RESONATOR,CRYSTAL LGE 6212AA2357H Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
X502
RESONATOR,CRYSTAL LGE 6212AA2148F Contact Us For Availability
ZD101
DIODE,ZENER LGE 0DZ202609AA Contact Us For Availability
ZD101
DIODE,ZENER LGE 0DZ220009ED Contact Us For Availability
ZD151
LGE 0DZ330009BF LGE 0DZ330009BF Contact Us For Availability
ZD151
LGE 0DZ330009CD LGE 0DZ330009CD Contact Us For Availability
ZD153
DIODE,ZENERS LGE 0DZ300000MB Contact Us For Availability
ZD201
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
× ![]()
Login and Registration Form
