Model Samsung DV665JW/XAA-00 Dryer – Common Parts & Diagrams
Door Assembly
Front Frame

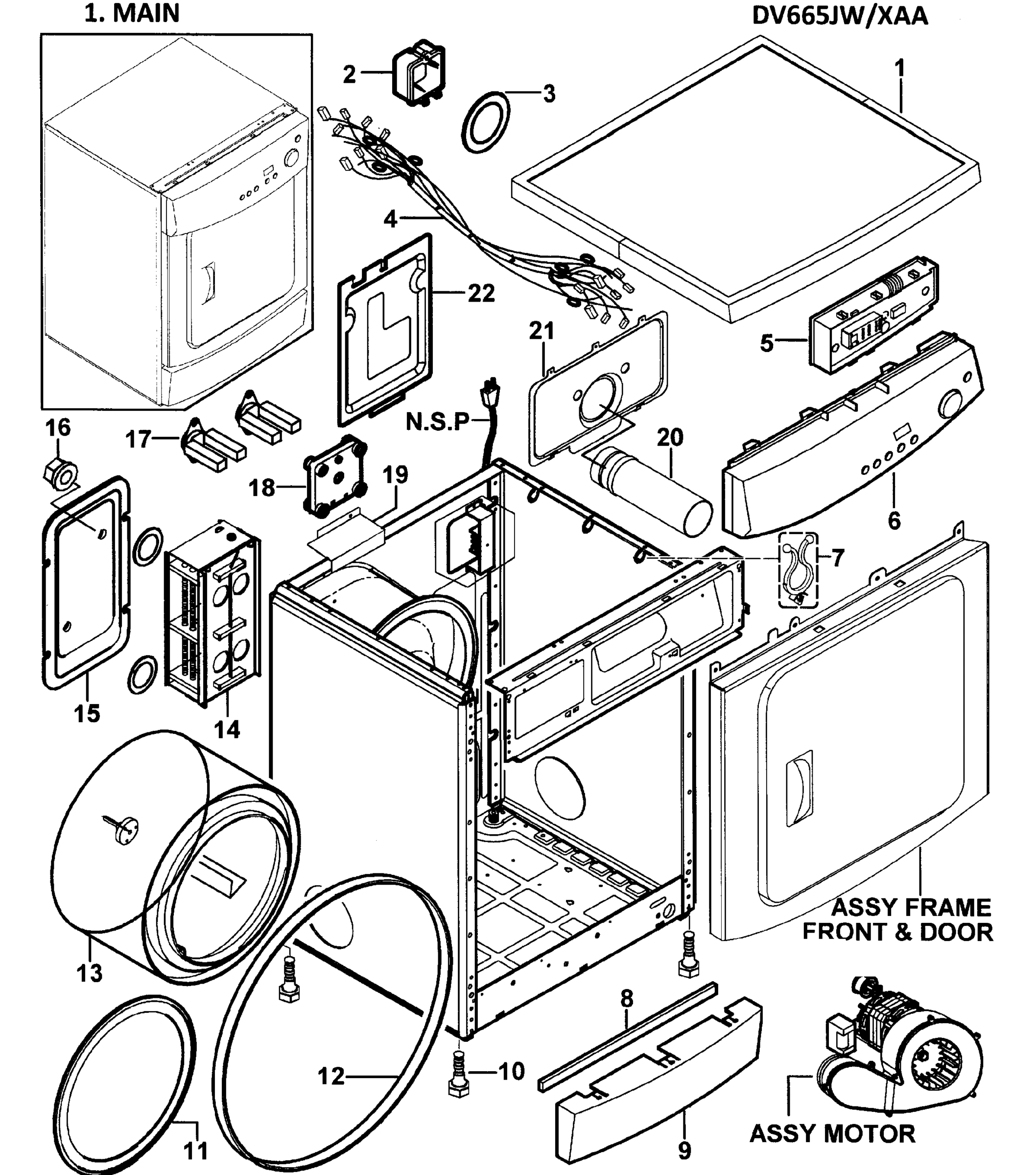

Main Assembly

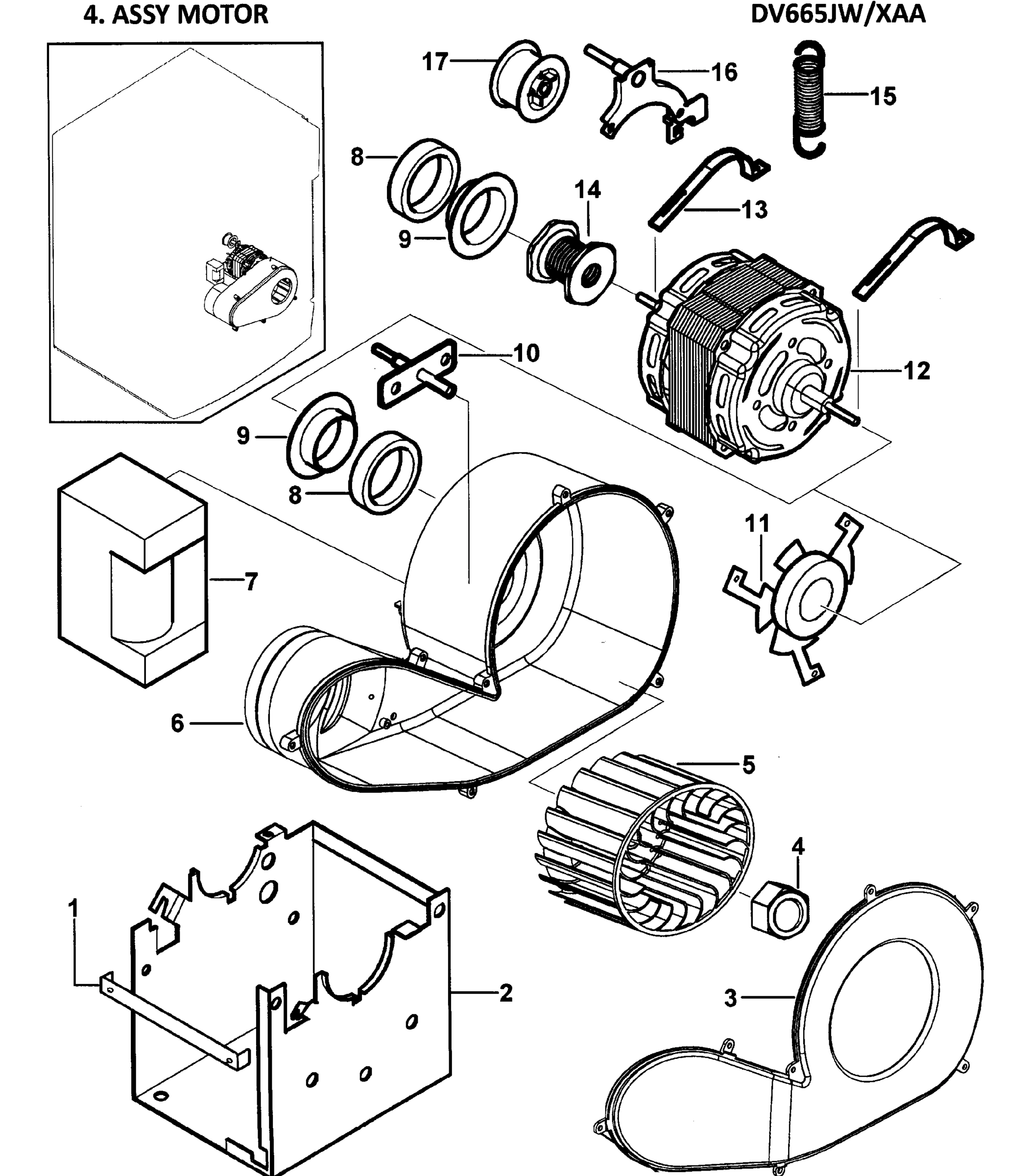

Motor Assembly
Common parts from model Samsung DV665JW/XAA-00 Dryer
1
Samsung cover SMG DC97-11372F Contact Us For Availability
1
Bracket SMG DC61-00301A Contact Us For Availability
2
Samsung dryer drum front support gasket SMG DC69-00154A Contact Us For Availability
2
Cover SMG DC63-00045A Contact Us For Availability
2
Bracket SMG DC61-00217A Contact Us For Availability
3
Samsung dryer drum front cover SMG DC61-00210B Contact Us For Availability
3
Samsung washer SMG DC60-60003A Contact Us For Availability
3
Duct cover SMG DC63-00554A Contact Us For Availability
4
Front frame SMG DC61-00216A Contact Us For Availability
4
Dryer harness SMG DC96-00832A Contact Us For Availability
4
Hex nut SMG DC60-50148A Contact Us For Availability
5
Dryer cover SMG DC63-00058A Contact Us For Availability
5
Door switch SMG DC64-00129A Contact Us For Availability
5
Dryer electronic control board SMG MFS-DV665-00 Contact Us For Availability
6
Hinge SMG DC97-01490A Contact Us For Availability
6
Guide lever SMG DC97-01429A Contact Us For Availability
6
Dryer control panel SMG DC97-11376H Contact Us For Availability
6
Duct fan SMG DC67-00146A Contact Us For Availability
7
Samsung condenser SMG DC62-00070P Contact Us For Availability
7
Plate SMG DC63-00108B Contact Us For Availability
7
Laundry appliance wire harness retainer SMG DC61-40081A Contact Us For Availability
8
Duct SMG DC63-00062A Contact Us For Availability
8
Plate SMG DC63-00108A Contact Us For Availability
8
Cushion SMG DC61-00304A Contact Us For Availability
9
Duct front SMG DC62-00069A Contact Us For Availability
9
Samsung front cover SMG DC61-10672A Contact Us For Availability
9
Motor bushing SMG DC66-00111A Contact Us For Availability
10
Dryer thermistor SMG DC90-10128G Contact Us For Availability
10
Duct SMG DC63-00063A Contact Us For Availability
10
Samsung leg SMG DC61-00214A Contact Us For Availability
11
Support SMG DC61-00244A Contact Us For Availability
12
Dryer drive motor SMG DC31-00019D Contact Us For Availability
13
Drum SMG DC97-01424B Contact Us For Availability
13
Fixer motor SMG DC61-00218A Contact Us For Availability
14
Holder SMG DC61-01328A Contact Us For Availability
15
Samsung heater cover SMG DC63-00059A Contact Us For Availability
15
Spring SMG DC61-01308B Contact Us For Availability
16
Flange nut SMG DC60-50019A Contact Us For Availability
16
Bracket SMG DC96-01013A Contact Us For Availability
17
Dryer idler pulley SMG DC97-07509B Contact Us For Availability
17
Samsung dryer high-limit thermostat SMG DC47-00002C Contact Us For Availability
18
Shaft bushing SMG DC66-00062A Contact Us For Availability
19
Bracket SMG DC61-00300A Contact Us For Availability
20
Outlet SMG DC62-00060C Contact Us For Availability
21
Cover SMG DC63-00050A Contact Us For Availability
× ![]()
