Model Maytag DV316BGC/XAA GAS DRYER – Common Parts & Diagrams
01 - BLOWER/HEATER/MOTOR
02 - CABINET

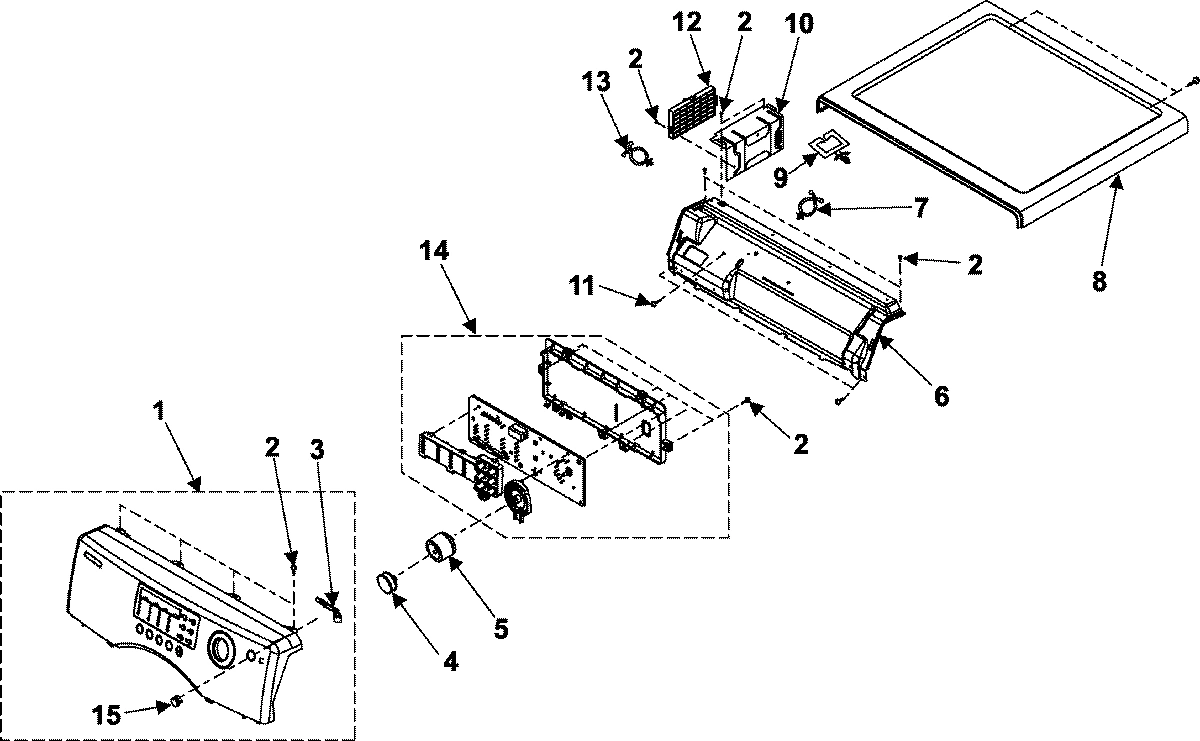

03 - CONTROL PANEL

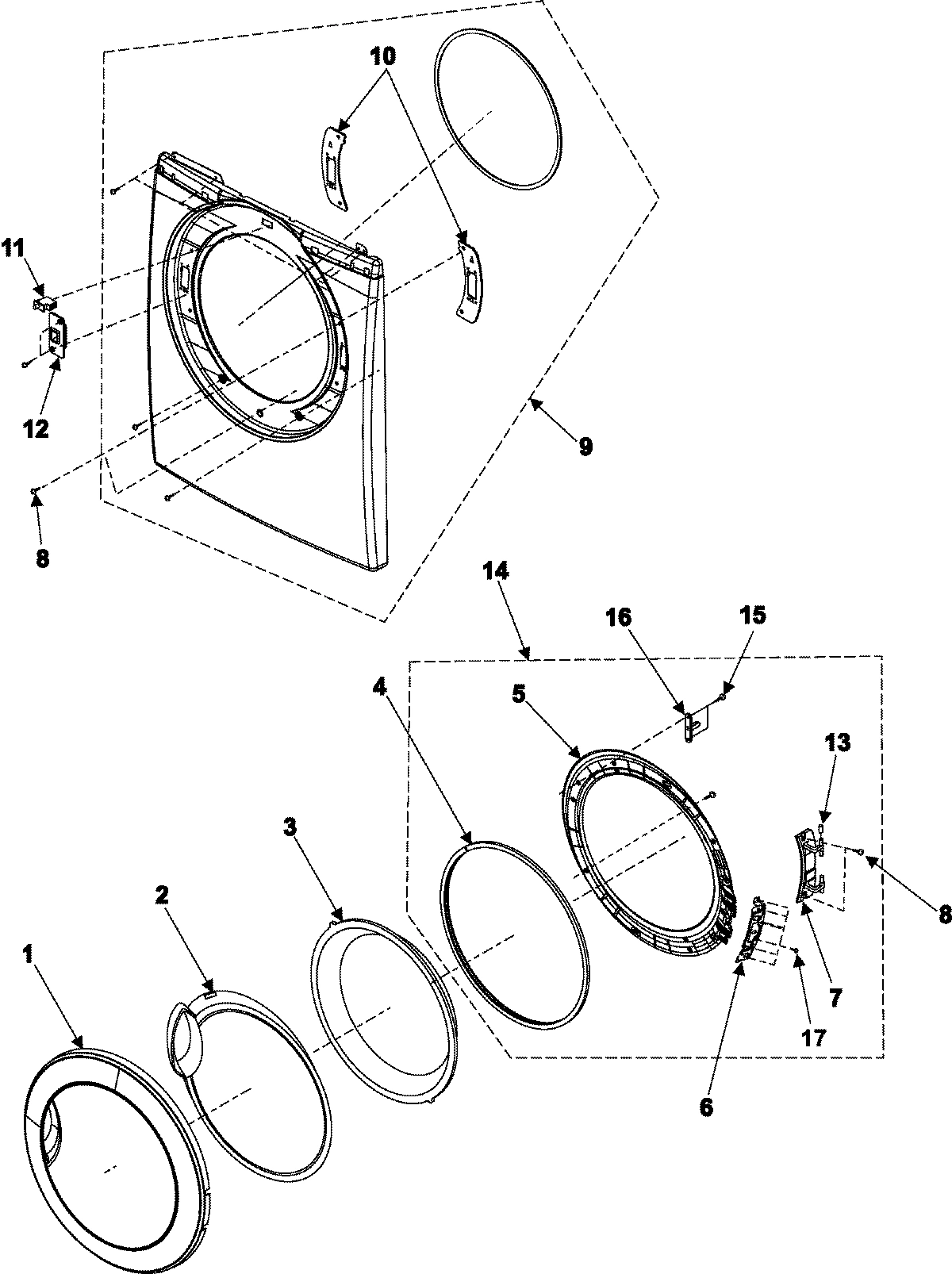

04 - DOOR

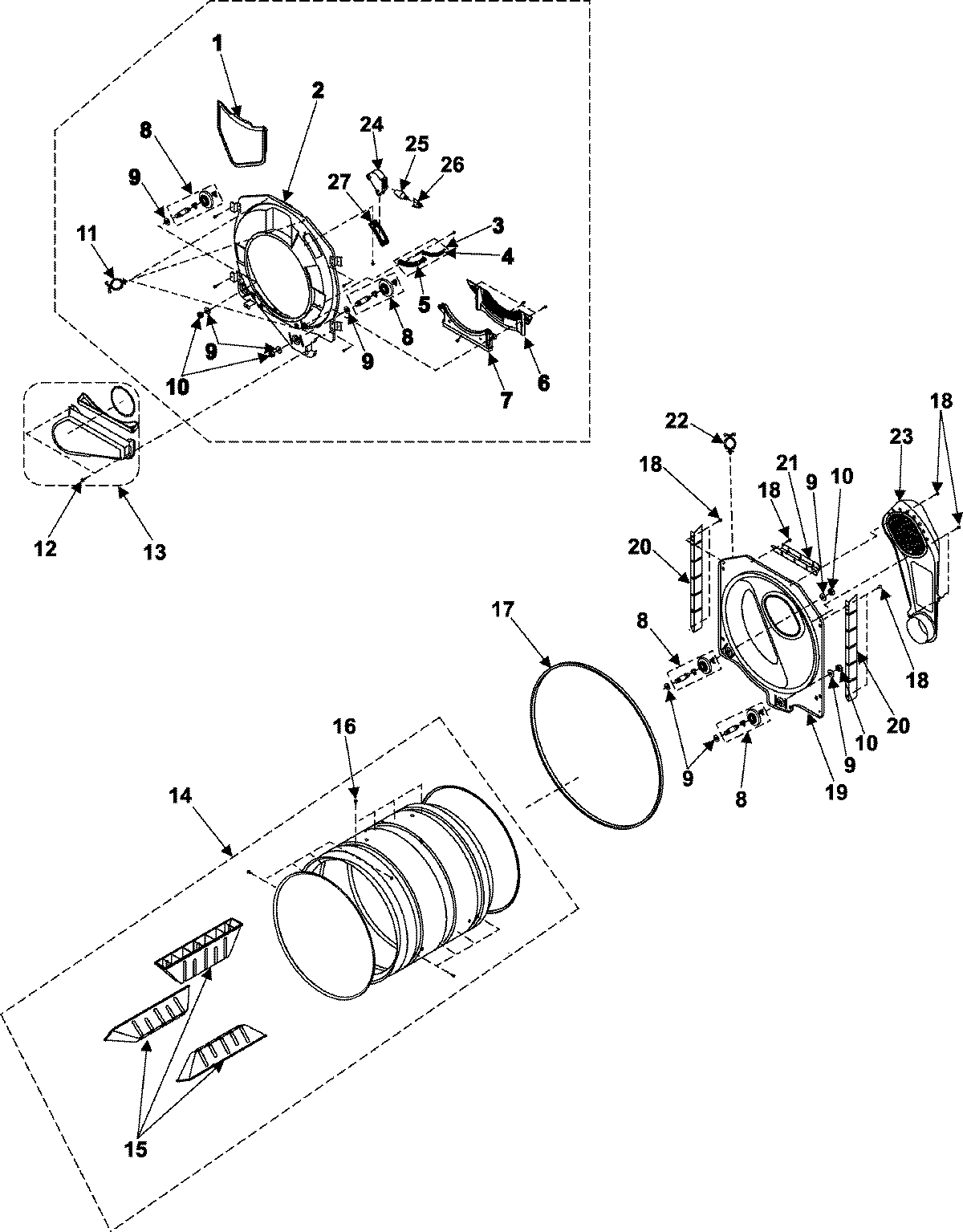

05 - DRUM
06 - SUPPLEMENTAL INFORMATION
Common parts from model Maytag DV316BGC/XAA GAS DRYER
1
MAY DC99-00507A MAY DC99-00507A Contact Us For Availability
1
MAY DC97-07516H MAY DC97-07516H Contact Us For Availability
1
MAY DC97-10866D MAY DC97-10866D Contact Us For Availability
1
MAY DC63-00674B MAY DC63-00674B Contact Us For Availability
1
MAY DC61-01521A MAY DC61-01521A Contact Us For Availability
2
MAY DC47-00017A MAY DC47-00017A Contact Us For Availability
2
MAY DC64-01120A MAY DC64-01120A Contact Us For Availability
2
MAY DC97-10362A MAY DC97-10362A Contact Us For Availability
3
MAY DC96-00806A MAY DC96-00806A Contact Us For Availability
3
MAY DC97-08855A MAY DC97-08855A Contact Us For Availability
3
MAY DC66-00413A MAY DC66-00413A Contact Us For Availability
3
MAY DC64-00993A MAY DC64-00993A Contact Us For Availability
3
MAY DC97-08889A MAY DC97-08889A Contact Us For Availability
4
MAY DC97-07602B MAY DC97-07602B Contact Us For Availability
4
MAY DC64-01132C MAY DC64-01132C Contact Us For Availability
4
MAY DC62-00198B MAY DC62-00198B Contact Us For Availability
4
MAY DC61-01231A MAY DC61-01231A Contact Us For Availability
5
MAY DC63-00534B MAY DC63-00534B Contact Us For Availability
5
MAY DC97-10526A MAY DC97-10526A Contact Us For Availability
5
MAY DC61-01523A MAY DC61-01523A Contact Us For Availability
5
MAY DC61-01235A MAY DC61-01235A Contact Us For Availability
6
MAY DC97-07895A MAY DC97-07895A Contact Us For Availability
6
MAY DC61-01522A MAY DC61-01522A Contact Us For Availability
6
SEE NOTE SUPPORT-HINGE CURRENTLY UNAVAILAB MAY Y00000000 Contact Us For Availability
6
MAY DC63-00675A MAY DC63-00675A Contact Us For Availability
7
MAY 6021-001201 MAY 6021-001201 Contact Us For Availability
7
MAY DC97-07519A MAY DC97-07519A Contact Us For Availability
7
MAY DC61-01532A MAY DC61-01532A Contact Us For Availability
7
MAY DC63-00538A MAY DC63-00538A Contact Us For Availability
8
MAY DC67-00180A MAY DC67-00180A Contact Us For Availability
8
MAY DC61-01233A MAY DC61-01233A Contact Us For Availability
8
MAY DC63-00523F MAY DC63-00523F Contact Us For Availability
8
MAY 6001-001773 MAY 6001-001773 Contact Us For Availability
9
MAY DC31-00055A MAY DC31-00055A Contact Us For Availability
9
MAY DC61-60074A MAY DC61-60074A Contact Us For Availability
9
MAY DC96-00763A MAY DC96-00763A Contact Us For Availability
9
MAY DC97-10353C MAY DC97-10353C Contact Us For Availability
9
MAY DC60-60060A MAY DC60-60060A Contact Us For Availability
10
MAY DC61-01214A MAY DC61-01214A Contact Us For Availability
10
MAY DC96-00766A MAY DC96-00766A Contact Us For Availability
10
MAY DC61-01229A MAY DC61-01229A Contact Us For Availability
10
MAY DC61-01222A MAY DC61-01222A Contact Us For Availability
10
MAY DC60-50145A MAY DC60-50145A Contact Us For Availability
11
MAY 6009-001342 MAY 6009-001342 Contact Us For Availability
11
MAY DC96-00765C MAY DC96-00765C Contact Us For Availability
11
MAY 6006-001170 MAY 6006-001170 Contact Us For Availability
11
MAY DC64-00828A MAY DC64-00828A Contact Us For Availability
11
MAY 6046-000310 MAY 6046-000310 Contact Us For Availability
12
MAY 6002-000231 MAY 6002-000231 Contact Us For Availability
12
MAY 3405-001077 MAY 3405-001077 Contact Us For Availability
12
MAY DC61-01212A MAY DC61-01212A Contact Us For Availability
12
MAY MFS-FTDT-00 MAY MFS-FTDT-00 Contact Us For Availability
12
MAY DC61-01239B MAY DC61-01239B Contact Us For Availability
13
MAY DC66-00401A MAY DC66-00401A Contact Us For Availability
13
MAY DC66-00402A MAY DC66-00402A Contact Us For Availability
13
MAY DC97-07509B MAY DC97-07509B Contact Us For Availability
13
MAY DC61-01226A MAY DC61-01226A Contact Us For Availability
13
MAY 6502-000127 MAY 6502-000127 Contact Us For Availability
13
MAY DC97-07526A MAY DC97-07526A Contact Us For Availability
14
MAY DC61-01228A MAY DC61-01228A Contact Us For Availability
14
MAY YMFSF12DBS0 MAY YMFSF12DBS0 Contact Us For Availability
14
MAY DC97-10342B MAY DC97-10342B Contact Us For Availability
14
MAY DC97-10355A MAY DC97-10355A Contact Us For Availability
15
MAY DC96-00882B MAY DC96-00882B Contact Us For Availability
15
MAY DC64-01105C MAY DC64-01105C Contact Us For Availability
15
MAY 6002-000444 MAY 6002-000444 Contact Us For Availability
15
MAY DC66-00436A MAY DC66-00436A Contact Us For Availability
16
MAY DC61-01215A MAY DC61-01215A Contact Us For Availability
16
MAY DC66-00395A MAY DC66-00395A Contact Us For Availability
16
MAY 6002-001204 MAY 6002-001204 Contact Us For Availability
17
MAY DC61-01213A MAY DC61-01213A Contact Us For Availability
17
MAY 6002-000213 MAY 6002-000213 Contact Us For Availability
17
MAY 6602-001314 MAY 6602-001314 Contact Us For Availability
18
MAY DC61-01241A MAY DC61-01241A Contact Us For Availability
19
MAY DC63-00536A MAY DC63-00536A Contact Us For Availability
19
MAY DC66-00398B MAY DC66-00398B Contact Us For Availability
20
MAY 6002-000470 MAY 6002-000470 Contact Us For Availability
20
MAY DC61-01238A MAY DC61-01238A Contact Us For Availability
21
MAY DC32-00007A MAY DC32-00007A Contact Us For Availability
21
MAY DC61-01237A MAY DC61-01237A Contact Us For Availability
22
MAY DC61-01240A MAY DC61-01240A Contact Us For Availability
22
MAY DC61-40081A MAY DC61-40081A Contact Us For Availability
23
MAY DC47-00016A MAY DC47-00016A Contact Us For Availability
23
MAY DC97-07521C MAY DC97-07521C Contact Us For Availability
24
MAY DC61-01232A MAY DC61-01232A Contact Us For Availability
24
MAY DC61-01220A MAY DC61-01220A Contact Us For Availability
25
MAY DC62-00200A MAY DC62-00200A Contact Us For Availability
25
MAY 4713-001199 MAY 4713-001199 Contact Us For Availability
26
MAY DC32-00008A MAY DC32-00008A Contact Us For Availability
26
MAY DC47-00021A MAY DC47-00021A Contact Us For Availability
27
MAY DC67-00136B MAY DC67-00136B Contact Us For Availability
27
MAY DC63-00531A MAY DC63-00531A Contact Us For Availability
28
MAY DC67-00137B MAY DC67-00137B Contact Us For Availability
29
MAY DC47-00022A MAY DC47-00022A Contact Us For Availability
30
MAY DC63-00623A MAY DC63-00623A Contact Us For Availability
31
MAY DC62-00201A MAY DC62-00201A Contact Us For Availability
32
MAY 6021-001130 MAY 6021-001130 Contact Us For Availability
NI
MAY SAM0109 MAY SAM0109 Contact Us For Availability
× ![]()
