Model Maytag DDW160/MN02 DISHWASHER – Common Parts & Diagrams

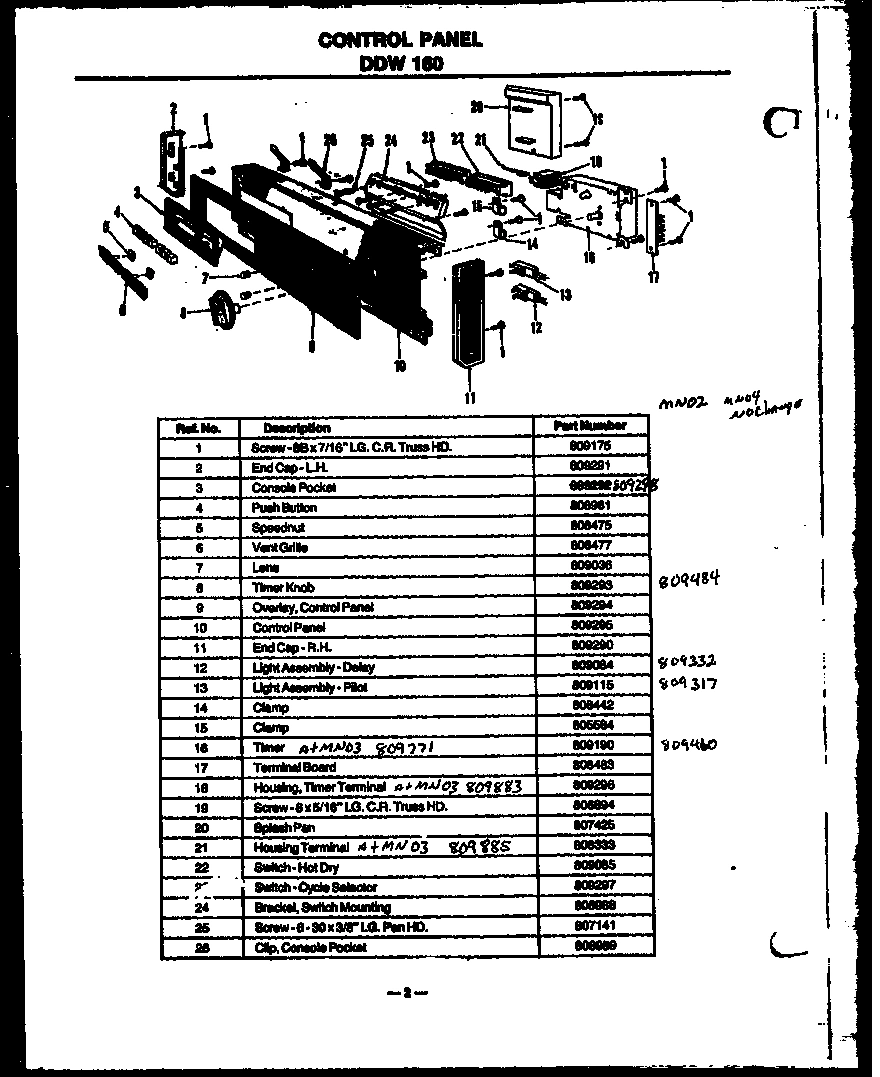

01 - CONTROL PANEL

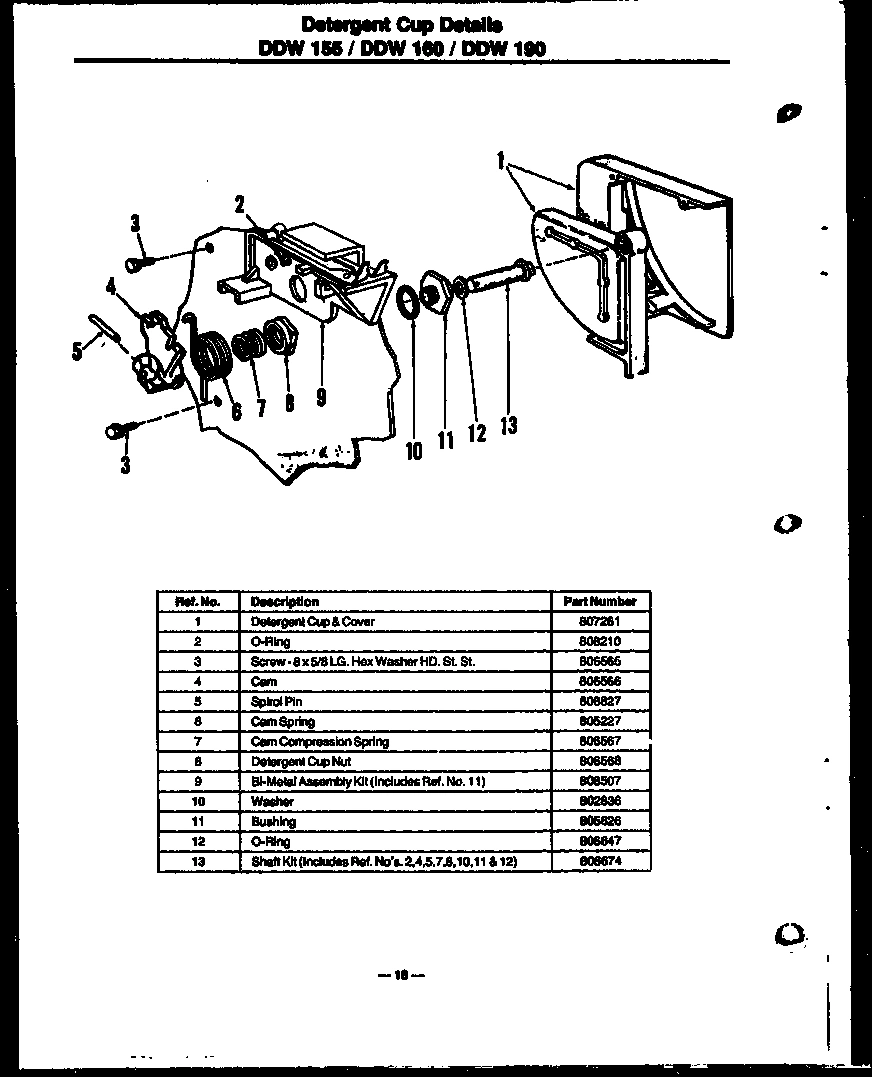

02 - DETERGENT CUP DETAILS

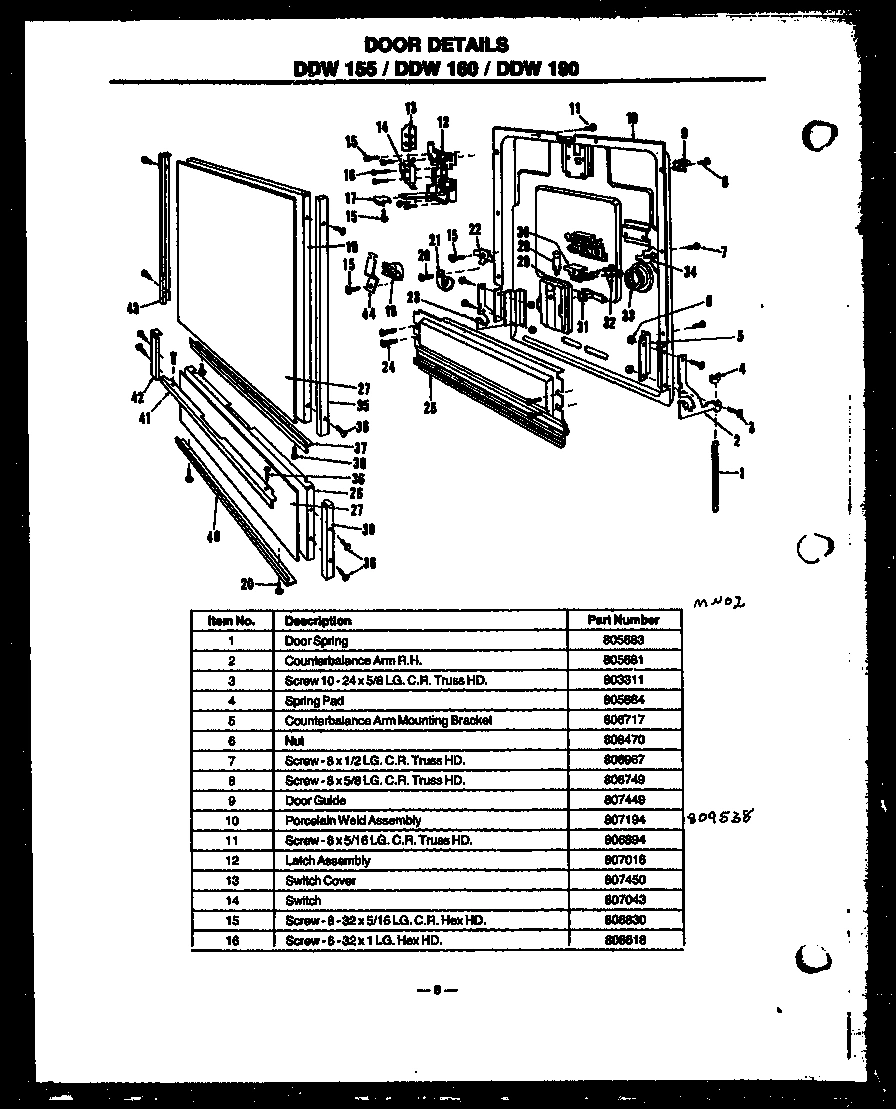

03 - DOOR DETAILS

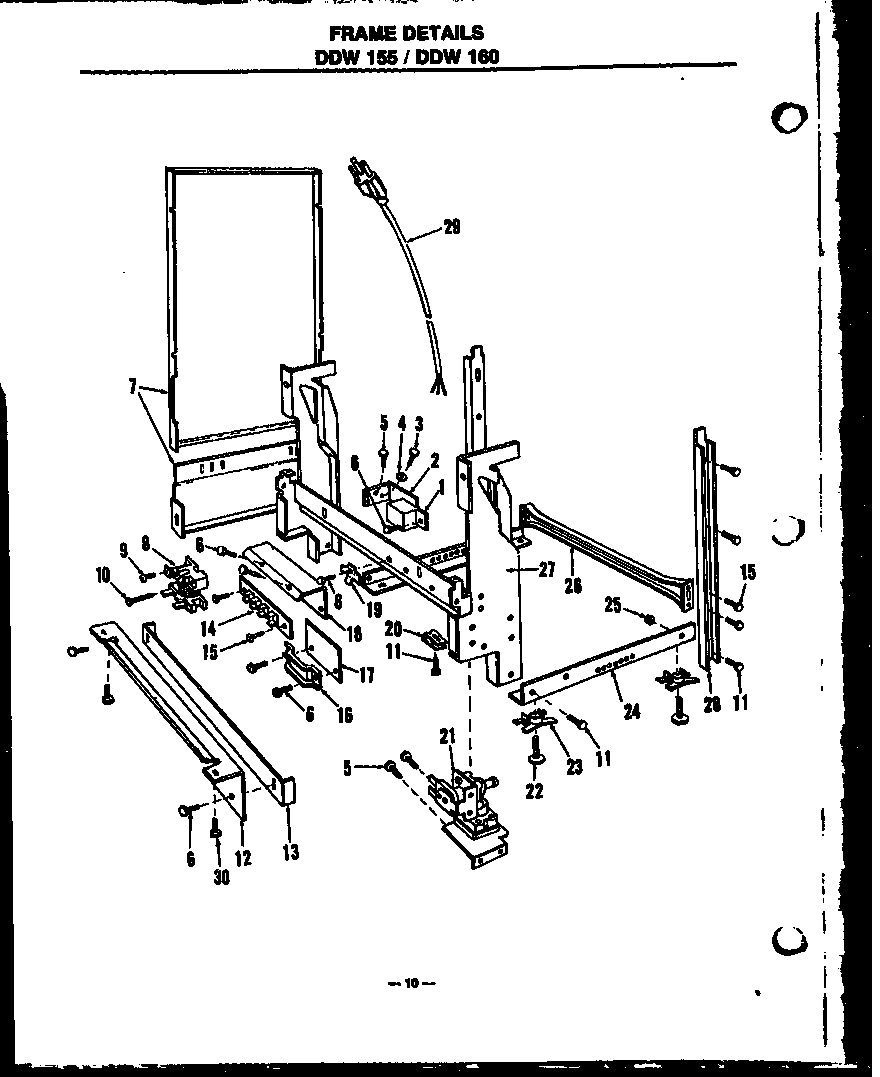

04 - FRAME DETAILS

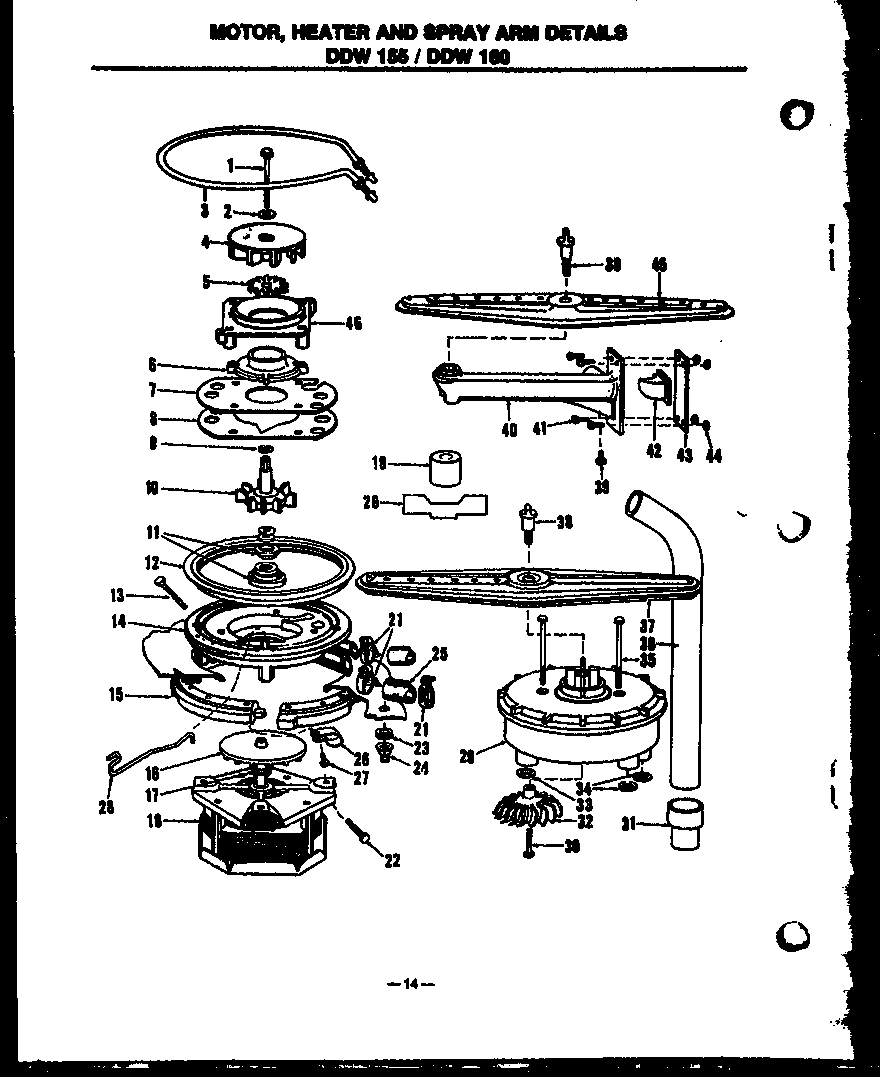

05 - MOTOR

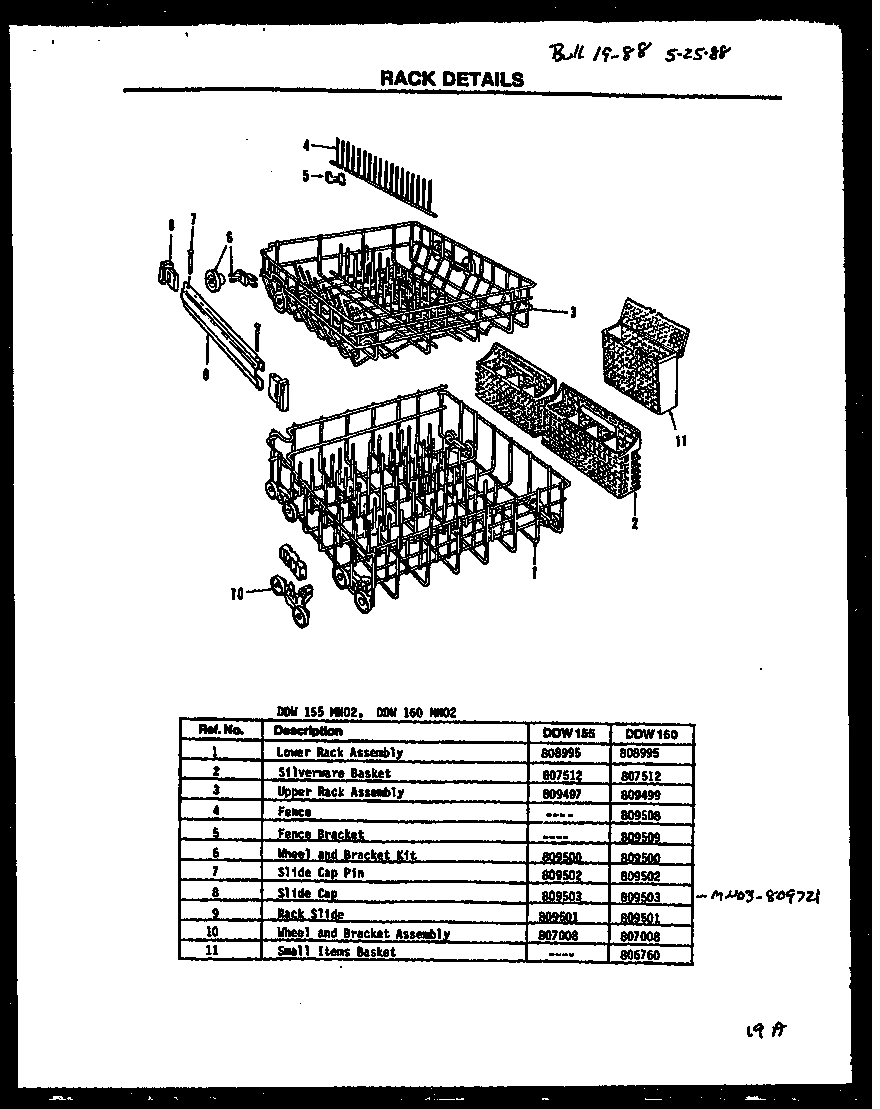

06 - RACK DETAILS

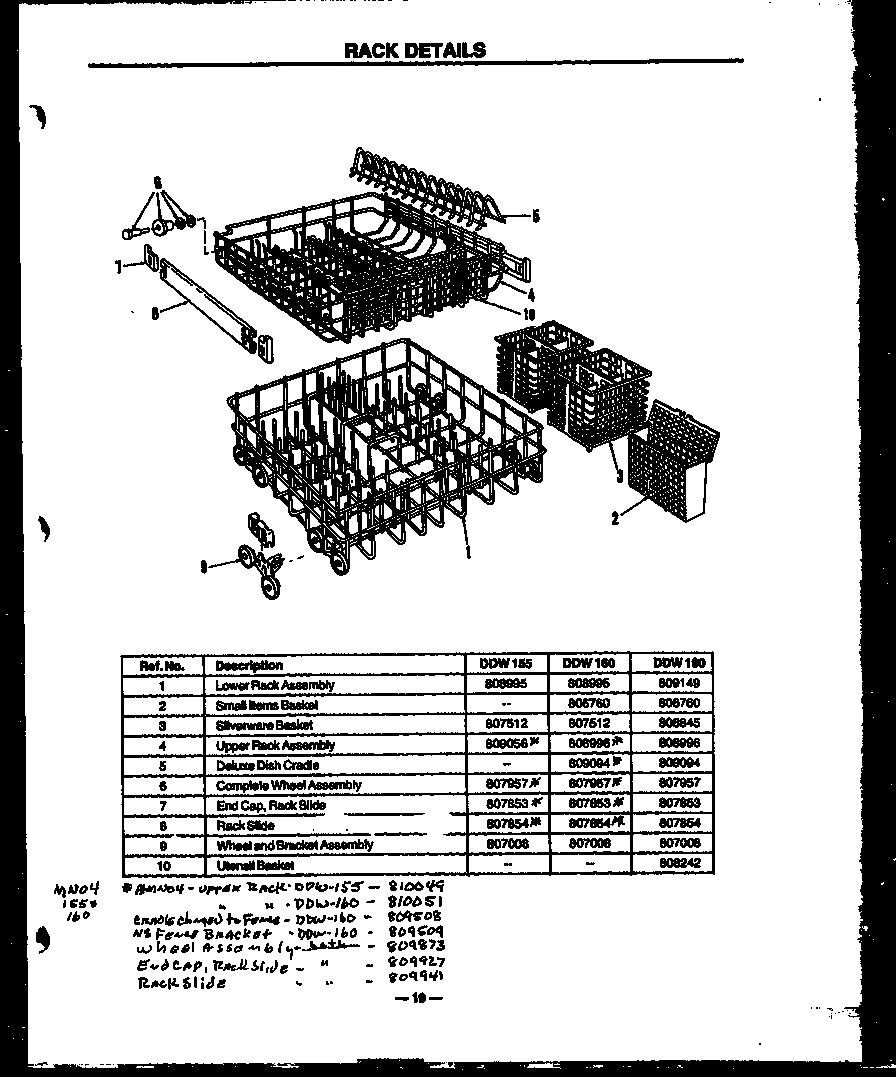

07 - RACK DETAILS

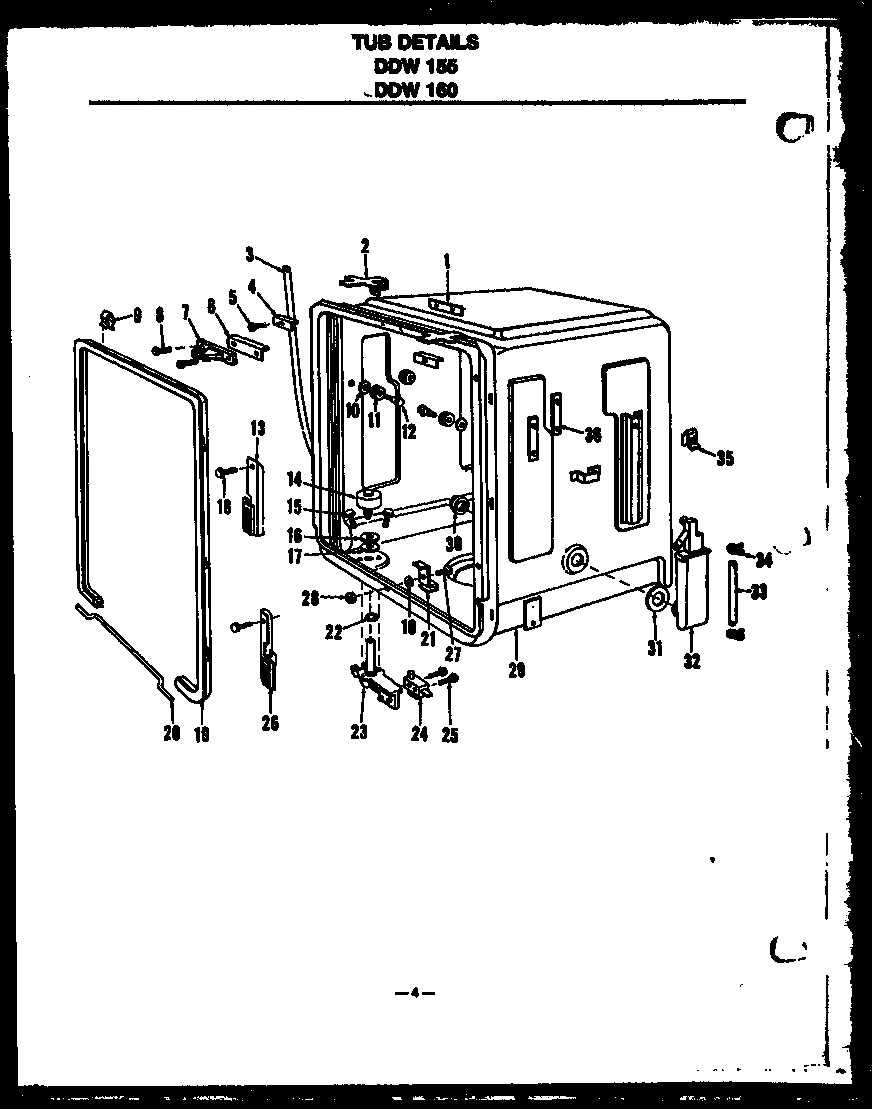

08 - TUB DETAILS
Common parts from model Maytag DDW160/MN02 DISHWASHER
1
MAY 0809175 MAY 0809175 Contact Us For Availability
1
MAY 0807261 MAY 0807261 Contact Us For Availability
1
MAY Y0805683 MAY Y0805683 Contact Us For Availability
1
MAY 0800222 MAY 0800222 Contact Us For Availability
1
MAY Y0806353 MAY Y0806353 Contact Us For Availability
1
MAY Y0808995 MAY Y0808995 Contact Us For Availability
1
MAY 0808868 MAY 0808868 Contact Us For Availability
2
MAY 0809291 MAY 0809291 Contact Us For Availability
2
MAY Y0805681 MAY Y0805681 Contact Us For Availability
2
MAY 0807019 MAY 0807019 Contact Us For Availability
2
MAY 0803367 MAY 0803367 Contact Us For Availability
2
MAY Y0807512 MAY Y0807512 Contact Us For Availability
2
MAY 0808289 MAY 0808289 Contact Us For Availability
3
MAY 0809298 MAY 0809298 Contact Us For Availability
3
MAY 0806565 MAY 0806565 Contact Us For Availability
3
MAY 0803311 MAY 0803311 Contact Us For Availability
3
MAY 0807951 MAY 0807951 Contact Us For Availability
3
MAY 0809004 MAY 0809004 Contact Us For Availability
3
MAY 0809499 MAY 0809499 Contact Us For Availability
3
MAY Y0809112 MAY Y0809112 Contact Us For Availability
4
MAY 0808981 MAY 0808981 Contact Us For Availability
4
MAY Y0806566 MAY Y0806566 Contact Us For Availability
4
MAY 0805884 MAY 0805884 Contact Us For Availability
4
MAY 0807373 MAY 0807373 Contact Us For Availability
4
MAY Y0809005 MAY Y0809005 Contact Us For Availability
4
MAY 0808996 MAY 0808996 Contact Us For Availability
4
MAY 0809508 MAY 0809508 Contact Us For Availability
4
MAY Y0808366 MAY Y0808366 Contact Us For Availability
5
MAY Y0808475 MAY Y0808475 Contact Us For Availability
5
MAY Y0808827 MAY Y0808827 Contact Us For Availability
5
MAY Y0806717 MAY Y0806717 Contact Us For Availability
5
MAY Y0807950 MAY Y0807950 Contact Us For Availability
5
MAY 0808075 MAY 0808075 Contact Us For Availability
5
MAY 0809094 MAY 0809094 Contact Us For Availability
5
MAY 0809509 MAY 0809509 Contact Us For Availability
5
MAY 0806976 MAY 0806976 Contact Us For Availability
6
MAY Y0808477 MAY Y0808477 Contact Us For Availability
6
MAY Y0805227 MAY Y0805227 Contact Us For Availability
6
MAY Y0808470 MAY Y0808470 Contact Us For Availability
6
MAY Y0808658 MAY Y0808658 Contact Us For Availability
6
MAY Y0806267 MAY Y0806267 Contact Us For Availability
6
MAY Y0807957 MAY Y0807957 Contact Us For Availability
6
MAY Y0809500 MAY Y0809500 Contact Us For Availability
6
MAY 0807073 MAY 0807073 Contact Us For Availability
7
MAY 0809036 MAY 0809036 Contact Us For Availability
7
MAY 0806567 MAY 0806567 Contact Us For Availability
7
MAY 0806967 MAY 0806967 Contact Us For Availability
7
MAY 0808880 MAY 0808880 Contact Us For Availability
7
MAY 0808884 MAY 0808884 Contact Us For Availability
7
SIDE PANEL KIT MAY 808881 Contact Us For Availability
7
SIDE PANEL KIT MAY 808882 Contact Us For Availability
7
SIDE PANEL KIT MAY 808883 Contact Us For Availability
7
MAY 0809006 MAY 0809006 Contact Us For Availability
7
MAY Y0807853 MAY Y0807853 Contact Us For Availability
7
MAY 0809502 MAY 0809502 Contact Us For Availability
7
MAY Y0807015 MAY Y0807015 Contact Us For Availability
8
MAY 0809484 MAY 0809484 Contact Us For Availability
8
MAY Y0806568 MAY Y0806568 Contact Us For Availability
8
MAY Y0808749 MAY Y0808749 Contact Us For Availability
8
MAY 0805255 MAY 0805255 Contact Us For Availability
8
MAY Y0809007 MAY Y0809007 Contact Us For Availability
8
MAY 0807854 MAY 0807854 Contact Us For Availability
8
MAY 0809503 MAY 0809503 Contact Us For Availability
8
MAY Y0806890 MAY Y0806890 Contact Us For Availability
9
MAY 0809294 MAY 0809294 Contact Us For Availability
9
MAY Y0808507 MAY Y0808507 Contact Us For Availability
9
MAY 0807449 MAY 0807449 Contact Us For Availability
9
MAY Y0806593 MAY Y0806593 Contact Us For Availability
9
MAY Y0806521 MAY Y0806521 Contact Us For Availability
9
MAY 0809501 MAY 0809501 Contact Us For Availability
9
MAY Y0805763 MAY Y0805763 Contact Us For Availability
10
MAY 0809295 MAY 0809295 Contact Us For Availability
10
MAY 0802836 MAY 0802836 Contact Us For Availability
10
MAY Y0809538 MAY Y0809538 Contact Us For Availability
10
MAY 0804672 MAY 0804672 Contact Us For Availability
10
MAY Y0809110 MAY Y0809110 Contact Us For Availability
10
MAY Y0807008 MAY Y0807008 Contact Us For Availability
10
MAY 0809044 MAY 0809044 Contact Us For Availability
11
MAY 0809290 MAY 0809290 Contact Us For Availability
11
MAY 0806894 MAY 0806894 Contact Us For Availability
11
MAY 0805626 MAY 0805626 Contact Us For Availability
11
MAY 0807001 MAY 0807001 Contact Us For Availability
11
MAY Y0803903 MAY Y0803903 Contact Us For Availability
11
MAY 806760 MAY 806760 Contact Us For Availability
11
MAY 0807180 MAY 0807180 Contact Us For Availability
12
MAY 0809332 MAY 0809332 Contact Us For Availability
12
MAY Y0806647 MAY Y0806647 Contact Us For Availability
12
MAY Y0807016 MAY Y0807016 Contact Us For Availability
12
MAY 0809304 MAY 0809304 Contact Us For Availability
12
MAY Y0809008 MAY Y0809008 Contact Us For Availability
12
MAY 0808564 MAY 0808564 Contact Us For Availability
13
MAY 0809317 MAY 0809317 Contact Us For Availability
13
MAY Y0806674 MAY Y0806674 Contact Us For Availability
13
MAY 0807450 MAY 0807450 Contact Us For Availability
13
MAY 0809303 MAY 0809303 Contact Us For Availability
13
MAY Y0807470 MAY Y0807470 Contact Us For Availability
14
MAY Y0807043 MAY Y0807043 Contact Us For Availability
14
MAY 0807486 MAY 0807486 Contact Us For Availability
14
MAY Y0809009 MAY Y0809009 Contact Us For Availability
14
MAY Y0804630 MAY Y0804630 Contact Us For Availability
15
MAY Y0805584 MAY Y0805584 Contact Us For Availability
15
MAY 0806830 MAY 0806830 Contact Us For Availability
15
MAY Y0807501 MAY Y0807501 Contact Us For Availability
15
MAY Y0807268 MAY Y0807268 Contact Us For Availability
15
MAY Y0807712 MAY Y0807712 Contact Us For Availability
16
MAY Y0809460 MAY Y0809460 Contact Us For Availability
16
MAY 0808618 MAY 0808618 Contact Us For Availability
16
MAY 0806723 MAY 0806723 Contact Us For Availability
16
MAY 0808899 MAY 0808899 Contact Us For Availability
16
MAY Y0809366 MAY Y0809366 Contact Us For Availability
16
MAY Y0808064 MAY Y0808064 Contact Us For Availability
17
MAY Y0808483 MAY Y0808483 Contact Us For Availability
17
MAY 0808698 MAY 0808698 Contact Us For Availability
17
MAY 0809144 MAY 0809144 Contact Us For Availability
17
MAY 0808898 MAY 0808898 Contact Us For Availability
17
MAY Y0808063 MAY Y0808063 Contact Us For Availability
18
MAY 0809296 MAY 0809296 Contact Us For Availability
18
MAY Y0808956 MAY Y0808956 Contact Us For Availability
18
MAY 0807849 MAY 0807849 Contact Us For Availability
18
MAY Y0809100 MAY Y0809100 Contact Us For Availability
18
MAY 0806539 MAY 0806539 Contact Us For Availability
19
MAY 0807262 MAY 0807262 Contact Us For Availability
19
MAY 0807213 MAY 0807213 Contact Us For Availability
19
MAY Y0803923 MAY Y0803923 Contact Us For Availability
19
MAY Y0808959 MAY Y0808959 Contact Us For Availability
20
MAY 0807425 MAY 0807425 Contact Us For Availability
20
MAY 0808170 MAY 0808170 Contact Us For Availability
20
MAY 0807077 MAY 0807077 Contact Us For Availability
20
MAY 0808344 MAY 0808344 Contact Us For Availability
21
MAY 0808333 MAY 0808333 Contact Us For Availability
21
MAY Y0809240 MAY Y0809240 Contact Us For Availability
21
MAY Y0808186 MAY Y0808186 Contact Us For Availability
21
MAY 0808115 MAY 0808115 Contact Us For Availability
22
MAY Y0809085 MAY Y0809085 Contact Us For Availability
22
MAY 0809422 MAY 0809422 Contact Us For Availability
22
MAY Y0809022 MAY Y0809022 Contact Us For Availability
22
MAY Y0807759 MAY Y0807759 Contact Us For Availability
23
MAY Y0809297 MAY Y0809297 Contact Us For Availability
23
MAY 0805682 MAY 0805682 Contact Us For Availability
23
MAY 0807671 MAY 0807671 Contact Us For Availability
23
MAY Y0806833 MAY Y0806833 Contact Us For Availability
23
MAY Y0807677 MAY Y0807677 Contact Us For Availability
24
MAY 0808988 MAY 0808988 Contact Us For Availability
24
MAY 0806810 MAY 0806810 Contact Us For Availability
24
MAY 0809526 MAY 0809526 Contact Us For Availability
24
MAY 0806834 MAY 0806834 Contact Us For Availability
24
MAY Y0807680 MAY Y0807680 Contact Us For Availability
25
MAY 0807141 MAY 0807141 Contact Us For Availability
25
MAY Y0809243 MAY Y0809243 Contact Us For Availability
25
MAY Y0804619 MAY Y0804619 Contact Us For Availability
25
MAY 0805674 MAY 0805674 Contact Us For Availability
25
MAY 0804594 MAY 0804594 Contact Us For Availability
26
MAY Y0808442 MAY Y0808442 Contact Us For Availability
26
MAY 0808989 MAY 0808989 Contact Us For Availability
26
MAY 0809108 MAY 0809108 Contact Us For Availability
26
MAY Y0807852 MAY Y0807852 Contact Us For Availability
26
MAY Y0807471 MAY Y0807471 Contact Us For Availability
27
MAY 0808908 MAY 0808908 Contact Us For Availability
27
MAY 0808909 MAY 0808909 Contact Us For Availability
27
MAY 0808912 MAY 0808912 Contact Us For Availability
27
MAY 0808913 MAY 0808913 Contact Us For Availability
27
MAY 0808914 MAY 0808914 Contact Us For Availability
27
DOOR TRIM MAY 808910 Contact Us For Availability
27
DOOR TRIM MAY 808911 Contact Us For Availability
27
DOOR TRIM MAY 808916 Contact Us For Availability
27
MAY 0807848 MAY 0807848 Contact Us For Availability
27
MAY 0807270 MAY 0807270 Contact Us For Availability
27
MAY Y0803319 MAY Y0803319 Contact Us For Availability
28
MAY Y0806753 MAY Y0806753 Contact Us For Availability
28
MAY 0808670 MAY 0808670 Contact Us For Availability
28
MAY 0809010 MAY 0809010 Contact Us For Availability
28
MAY 0803346 MAY 0803346 Contact Us For Availability
29
MAY 0806757 MAY 0806757 Contact Us For Availability
29
MAY Y0808395 MAY Y0808395 Contact Us For Availability
29
MAY Y0809011 MAY Y0809011 Contact Us For Availability
29
MAY 809262 MAY 809262 Contact Us For Availability
30
MAY Y0809109 MAY Y0809109 Contact Us For Availability
30
MAY Y0803416 MAY Y0803416 Contact Us For Availability
30
SCREW MAY 0809073 Contact Us For Availability
30
MAY 0805669 MAY 0805669 Contact Us For Availability
31
MAY Y0807673 MAY Y0807673 Contact Us For Availability
31
MAY Y0806989 MAY Y0806989 Contact Us For Availability
31
MAY Y0803573 MAY Y0803573 Contact Us For Availability
32
MAY Y0809014 MAY Y0809014 Contact Us For Availability
32
MAY Y0806470 MAY Y0806470 Contact Us For Availability
33
MAY 0805631 MAY 0805631 Contact Us For Availability
33
MAY Y0809016 MAY Y0809016 Contact Us For Availability
33
MAY 0807891 MAY 0807891 Contact Us For Availability
34
MAY 0806863 MAY 0806863 Contact Us For Availability
34
MAY 0809015 MAY 0809015 Contact Us For Availability
34
MAY Y0807813 MAY Y0807813 Contact Us For Availability
35
MAY 0809305 MAY 0809305 Contact Us For Availability
35
MAY 0809012 MAY 0809012 Contact Us For Availability
35
MAY 0806291 MAY 0806291 Contact Us For Availability
36
MAY 0809352 MAY 0809352 Contact Us For Availability
36
MAY 0807151 MAY 0807151 Contact Us For Availability
36
MAY 0807038 MAY 0807038 Contact Us For Availability
37
MAY 0809309 MAY 0809309 Contact Us For Availability
37
MAY 809017 MAY 809017 Contact Us For Availability
38
MAY Y0809018 MAY Y0809018 Contact Us For Availability
39
MAY 0809307 MAY 0809307 Contact Us For Availability
39
MAY Y0806656 MAY Y0806656 Contact Us For Availability
40
MAY Y0808105 MAY Y0808105 Contact Us For Availability
40
MAY 0809019 MAY 0809019 Contact Us For Availability
41
MAY 0809310 MAY 0809310 Contact Us For Availability
41
MAY Y0805106 MAY Y0805106 Contact Us For Availability
42
MAY 0809308 MAY 0809308 Contact Us For Availability
42
MAY 0805781 MAY 0805781 Contact Us For Availability
43
MAY 0809306 MAY 0809306 Contact Us For Availability
43
MAY 0805782 MAY 0805782 Contact Us For Availability
44
MAY Y0808210 MAY Y0808210 Contact Us For Availability
44
MAY 0809097 MAY 0809097 Contact Us For Availability
45
MAY Y0809021 MAY Y0809021 Contact Us For Availability
46
MAY Y0809020 MAY Y0809020 Contact Us For Availability
NI
MAY 0808926 MAY 0808926 Contact Us For Availability
NI
MAY 0808936 MAY 0808936 Contact Us For Availability
NI
MAY 0807359 MAY 0807359 Contact Us For Availability
NI
MAY 0809512 MAY 0809512 Contact Us For Availability
× ![]()
