Model Bosch CM301BS/01 Range Oven – Common Parts & Diagrams

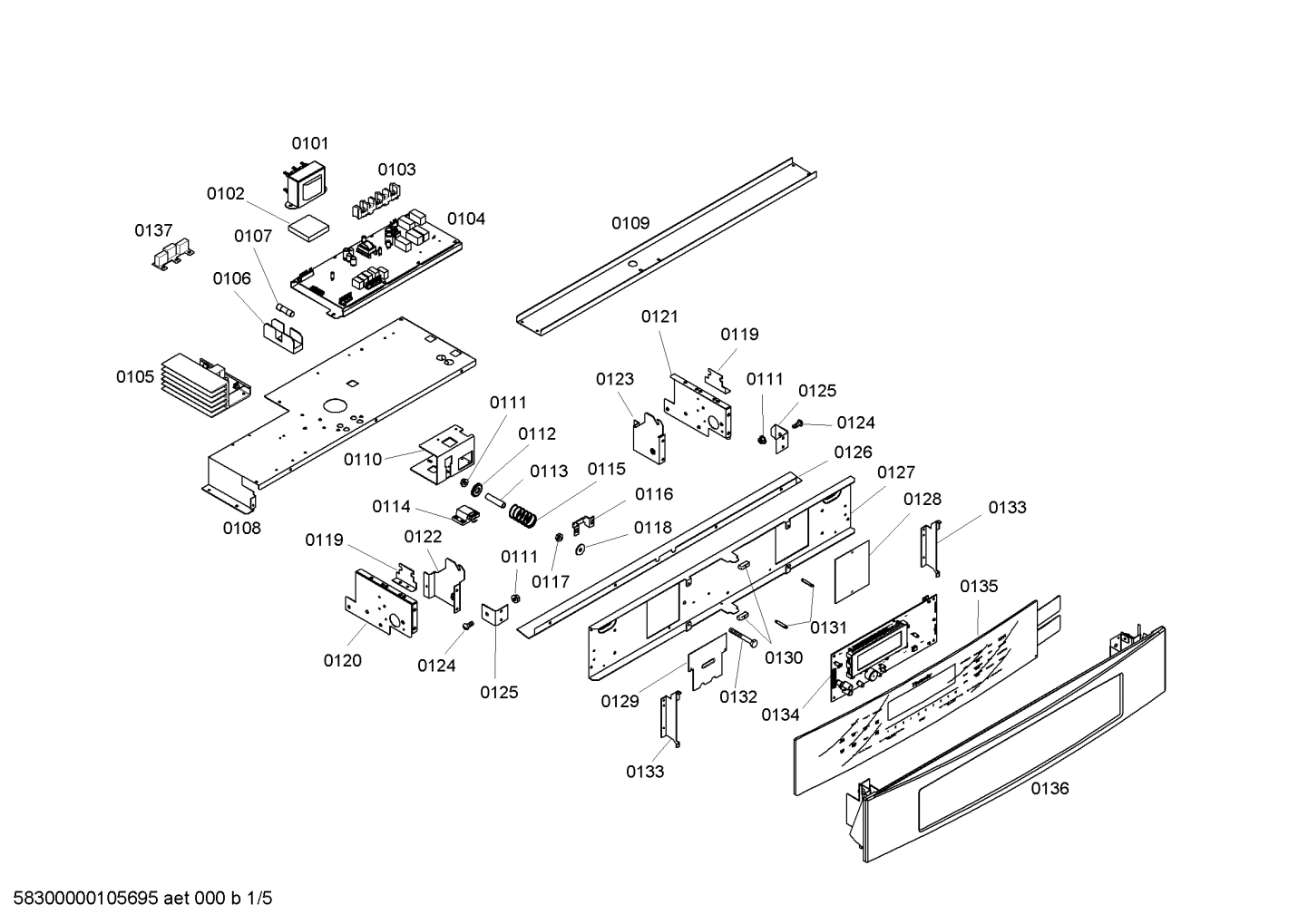

Diagram 1

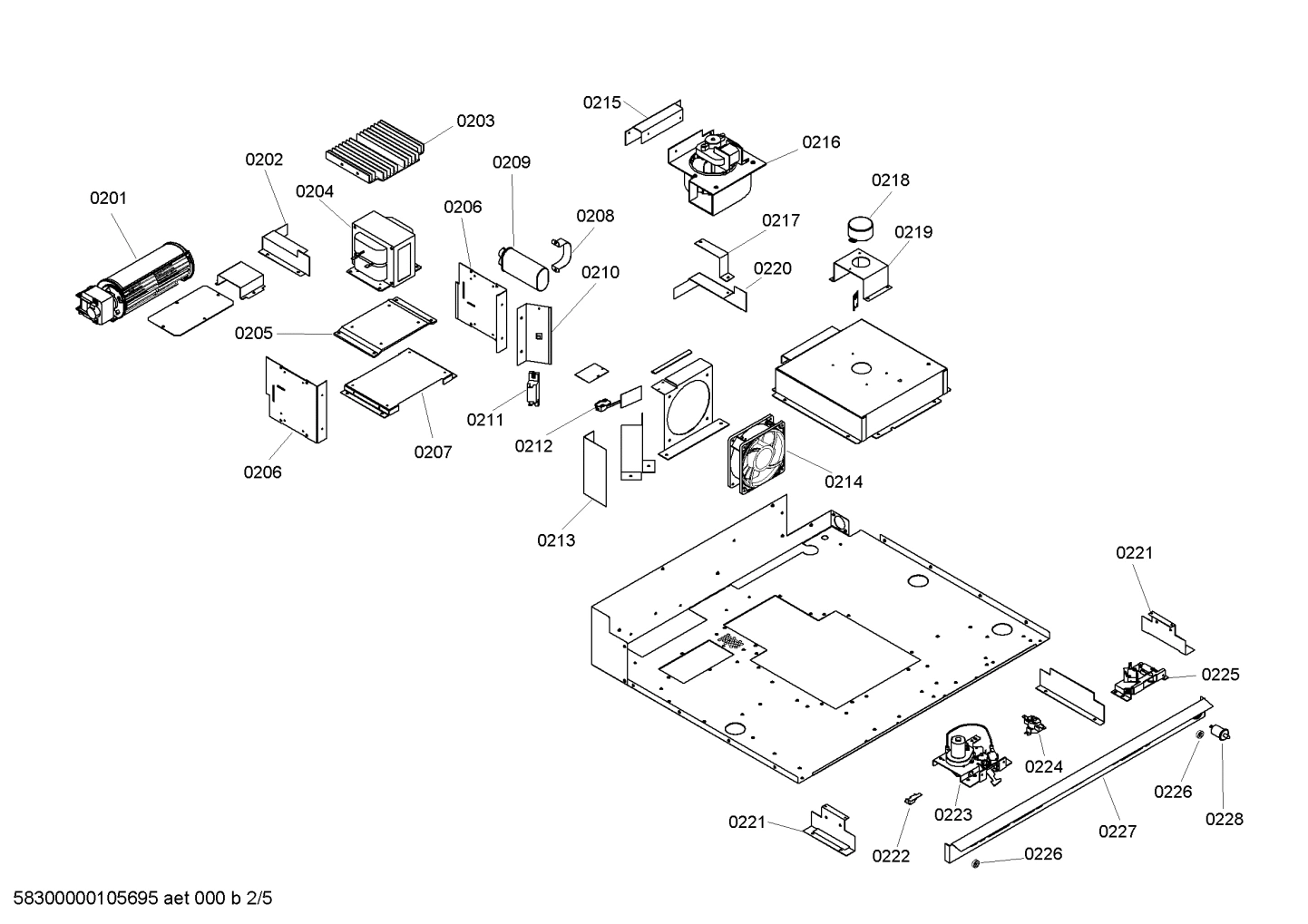

Diagram 2

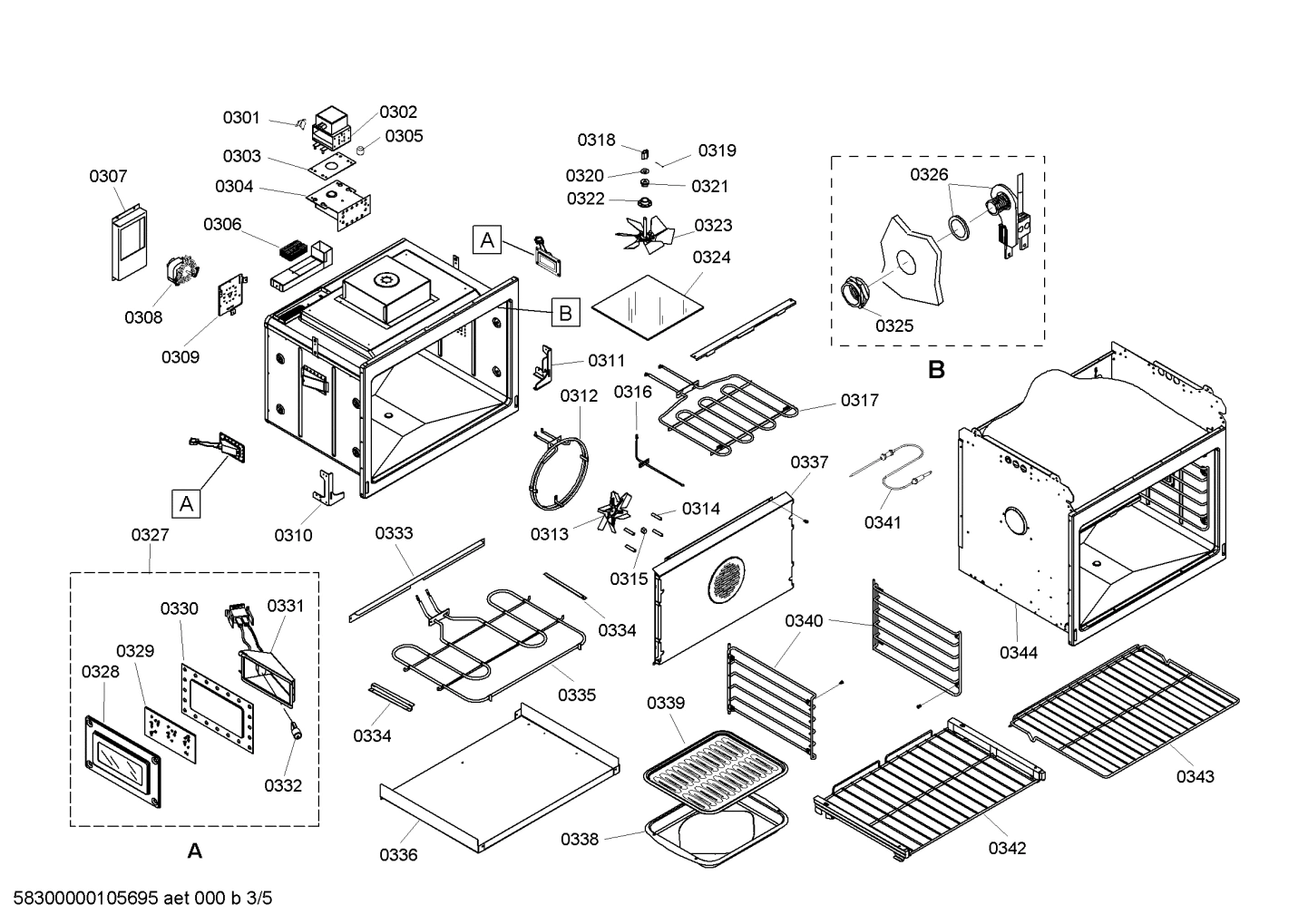

Diagram 3

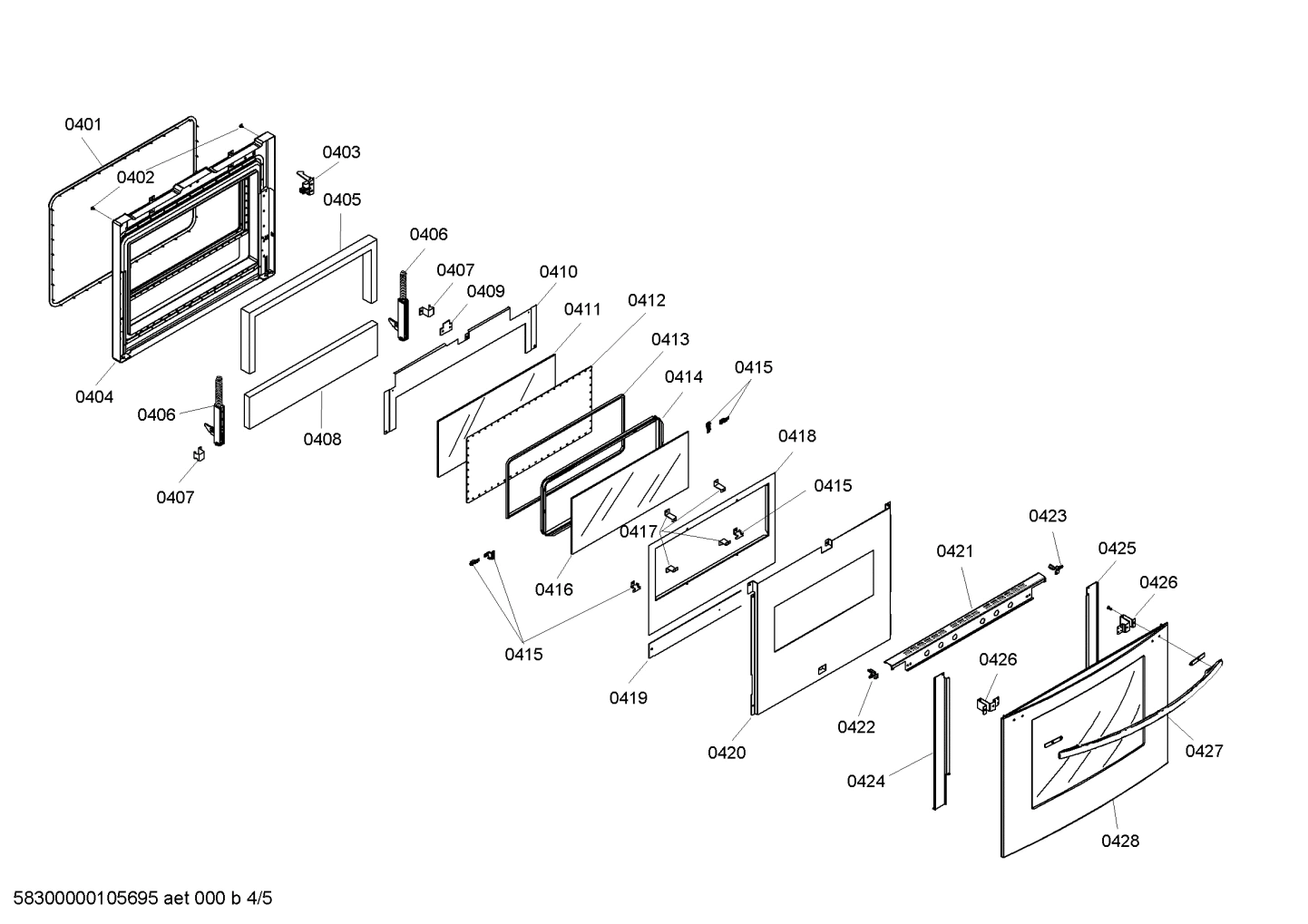

Diagram 4

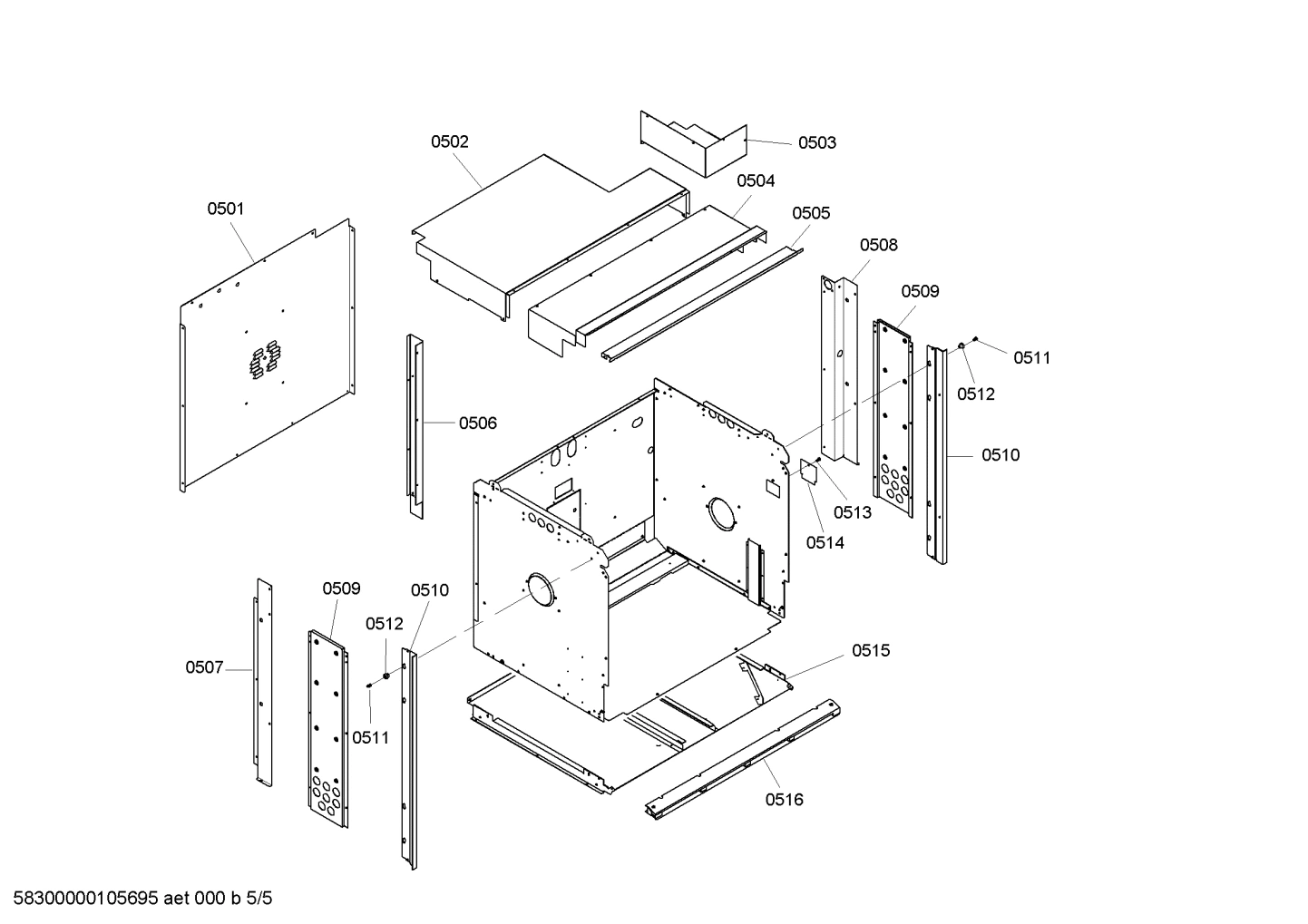

Diagram 5
Common parts from model Bosch CM301BS/01 Range Oven
0104
Relay BOS 00427198 Contact Us For Availability
0105
PC board BOS 00369947 Contact Us For Availability
0114
Latch BOS 00416809 Contact Us For Availability
0136
Panel-facia BOS 00368443 Contact Us For Availability
0137
Capacitor BOS 00496550 Contact Us For Availability
0154
Cable harness BOS 00499092 Contact Us For Availability
0204
Transformer BOS 00486335 Contact Us For Availability
0212
Switch BOS 00413593 Contact Us For Availability
0216
Motor BOS 00487748 Contact Us For Availability
0223
Latch BOS 00607134 Contact Us For Availability
0227
Plate BOS 00144160 Contact Us For Availability
0250
Heat conducting paste BOS 00427901 Contact Us For Availability
0251
Cable harness BOS 00663505 Contact Us For Availability
0252
Cable harness BOS 00640591 Contact Us For Availability
0253
Cable harness BOS 00496773 Contact Us For Availability
0254
Cable harness BOS 00496774 Contact Us For Availability
0256
Cable harness BOS 00496776 Contact Us For Availability
0257
Cable harness BOS 00496777 Contact Us For Availability
0258
Cable harness BOS 00496778 Contact Us For Availability
0259
Cable harness BOS 00496779 Contact Us For Availability
0301
Regulator-temperature BOS 00413605 Contact Us For Availability
0302
Magnetron BOS 00489459 Contact Us For Availability
0304
Housing part BOS 00437517 Contact Us For Availability
0305
Nut BOS 00428872 Contact Us For Availability
0306
Catalyzer BOS 00489410 Contact Us For Availability
0307
Cover BOS 00485982 Contact Us For Availability
0308
Motor BOS 00494266 Contact Us For Availability
0312
Heating element BOS 00484612 Contact Us For Availability
0314
Spacer BOS 00413128 Contact Us For Availability
0316
Temperature sensor BOS 00428873 Contact Us For Availability
0317
Heating element BOS 00484613 Contact Us For Availability
0319
Pin BOS 00411531 Contact Us For Availability
0320
Washer BOS 00413488 Contact Us For Availability
0321
Bearing BOS 00415208 Contact Us For Availability
0322
Plate BOS 00414675 Contact Us For Availability
0323
Fan blade BOS 00486303 Contact Us For Availability
0324
Glass tray BOS 00487568 Contact Us For Availability
0325
Nut BOS 00422750 Contact Us For Availability
0328
Frame BOS 00413577 Contact Us For Availability
0329
Glass plate BOS 00487599 Contact Us For Availability
0330
Screening BOS 00486280 Contact Us For Availability
0334
Bracket BOS 00425280 Contact Us For Availability
0335
Heating element BOS 00440215 Contact Us For Availability
0337
Ventilation duct BOS 00368281 Contact Us For Availability
0338
Universal pan BOS 00449757 Contact Us For Availability
0339
Grill tray BOS 00449756 Contact Us For Availability
0340
Seating BOS 00368467 Contact Us For Availability
0342
Shelf BOS 00143983 Contact Us For Availability
0343
Shelf BOS 00478315 Contact Us For Availability
0344
Oven cavity BOS 00243045 Contact Us For Availability
0350
Cable harness BOS 00496780 Contact Us For Availability
0351
Insulating part BOS 00144233 Contact Us For Availability
0352
Insulating part BOS 00144234 Contact Us For Availability
0353
Insulating part BOS 00144235 Contact Us For Availability
0354
Insulating part BOS 00144236 Contact Us For Availability
0355
Insulating part BOS 00144237 Contact Us For Availability
0356
Insulating part BOS 00144238 Contact Us For Availability
0357
Insulating part BOS 00144239 Contact Us For Availability
0358
Insulating part BOS 00144240 Contact Us For Availability
0359
Insulating part BOS 00144241 Contact Us For Availability
0360
Insulating part BOS 00368273 Contact Us For Availability
0401
Seal-door BOS 00414543 Contact Us For Availability
0402
Screw BOS 00413477 Contact Us For Availability
0403
Actuator BOS 00486319 Contact Us For Availability
0404
Door BOS 00243046 Contact Us For Availability
0405
Insulating part BOS 00144206 Contact Us For Availability
0406
Door hinge BOS 00496768 Contact Us For Availability
0407
Clip BOS 00425272 Contact Us For Availability
0408
Insulating part BOS 00444281 Contact Us For Availability
0410
Cover BOS 00144207 Contact Us For Availability
0411
Glass panel BOS 00238878 Contact Us For Availability
0412
Screening BOS 00368865 Contact Us For Availability
0413
Sealing BOS 00491899 Contact Us For Availability
0415
Clip BOS 00416278 Contact Us For Availability
0417
Bearing bracket BOS 00432350 Contact Us For Availability
0418
Covering BOS 00368457 Contact Us For Availability
0420
Ventilation duct BOS 00243047 Contact Us For Availability
0421
Frame-decor BOS 00440615 Contact Us For Availability
0422
Cover BOS 00413565 Contact Us For Availability
0423
Cover BOS 00413566 Contact Us For Availability
0424
Bracket BOS 00440616 Contact Us For Availability
0425
Bracket BOS 00440617 Contact Us For Availability
0426
Bracket BOS 00425589 Contact Us For Availability
0427
Handle-door BOS 00473709 Contact Us For Availability
0428
Glass panel BOS 00243050 Contact Us For Availability
0450
Sleeve BOS 00413124 Contact Us For Availability
0501
Cover BOS 00243051 Contact Us For Availability
0502
Cover BOS 00475071 Contact Us For Availability
0503
Cover BOS 00440613 Contact Us For Availability
0504
Cover BOS 00144208 Contact Us For Availability
0505
Frame-decor BOS 00473705 Contact Us For Availability
0506
Duct BOS 00444283 Contact Us For Availability
0507
Cover BOS 00444284 Contact Us For Availability
0508
Cover BOS 00444285 Contact Us For Availability
0509
Duct BOS 00440611 Contact Us For Availability
0510
Frame-decor BOS 00440612 Contact Us For Availability
0511
Screw BOS 00189249 Contact Us For Availability
0514
Plate BOS 00425302 Contact Us For Availability
0515
Base BOS 00241973 Contact Us For Availability
0516
Trimplate BOS 00664798 Contact Us For Availability
× ![]()
