Model Bosch C272UB/01 Range Oven – Common Parts & Diagrams

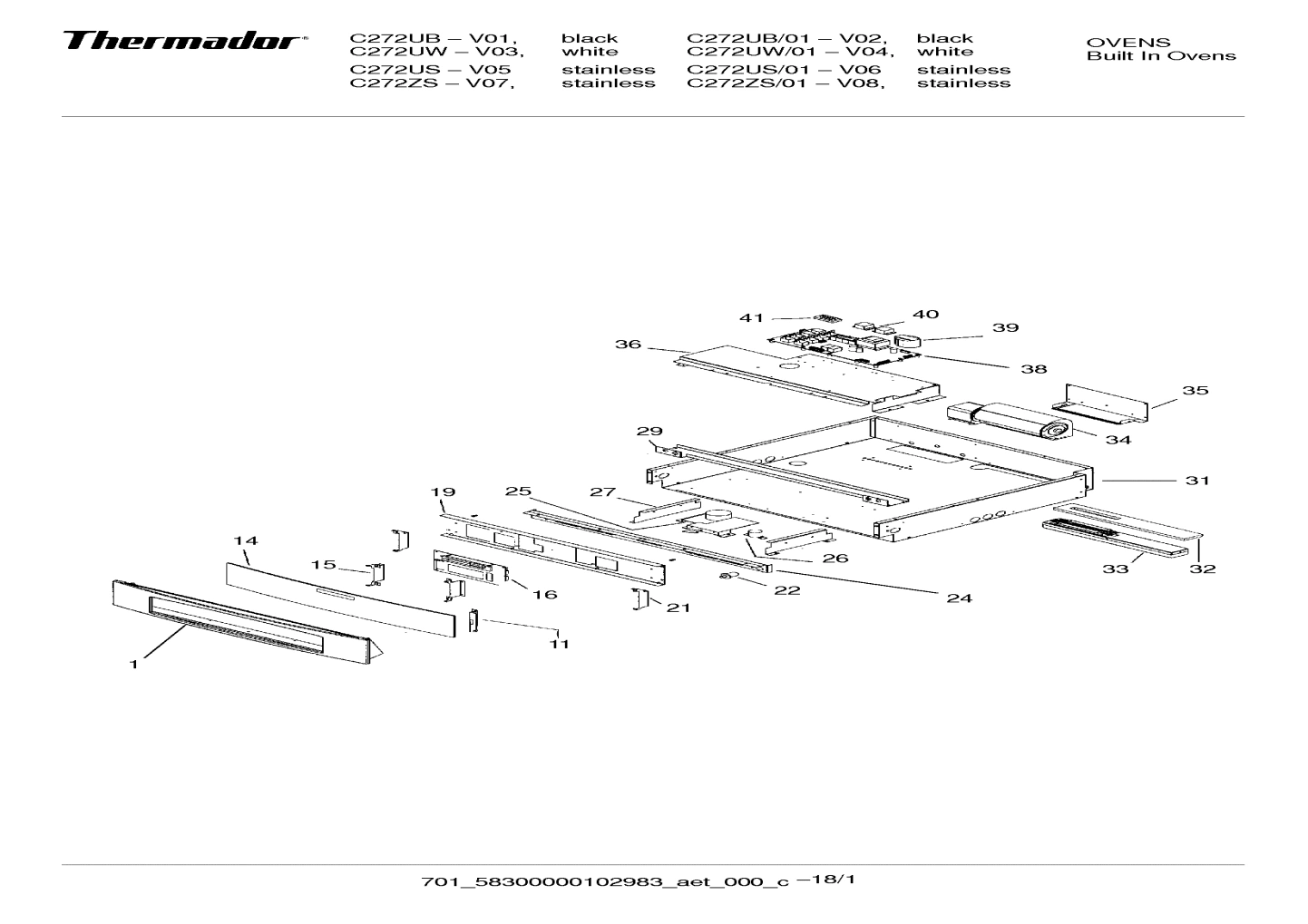

Diagram 1
Common parts from model Bosch C272UB/01 Range Oven
0116
Display BOS 00144001 Contact Us For Availability
0138
PC board assembly-mains power BOS 00486909 Contact Us For Availability
0140
Relay BOS 00413562 Contact Us For Availability
0141
Terminal BOS 00484615 Contact Us For Availability
0703
Installation set BOS 00431492 Contact Us For Availability
0704
Electric lock BOS 00489102 Contact Us For Availability
0713
Stud BOS 00411007 Contact Us For Availability
0714
Spring BOS 00417550 Contact Us For Availability
0903
Reflector BOS 00368265 Contact Us For Availability
0908
Catalyzer BOS 00411220 Contact Us For Availability
0911
Heating element BOS 00367647 Contact Us For Availability
0917
Holder BOS 00414510 Contact Us For Availability
0923
Temperature sensor BOS 00414152 Contact Us For Availability
0928
Plate BOS 00485563 Contact Us For Availability
0929
Motor BOS 00494266 Contact Us For Availability
0930
Fan blade BOS 00487019 Contact Us For Availability
0950
Sealing kit BOS 00412883 Contact Us For Availability
1102
Door-inner BOS 00470537 Contact Us For Availability
1106
Hinge BOS 00487747 Contact Us For Availability
1108
Bracket BOS 00486281 Contact Us For Availability
1109
Spacer BOS 00369152 Contact Us For Availability
1110
Frame-decor BOS 00440630 Contact Us For Availability
1112
Cover BOS 00413565 Contact Us For Availability
1113
Cover BOS 00413566 Contact Us For Availability
1115
Insulating part BOS 00368287 Contact Us For Availability
1117
Screening BOS 00368440 Contact Us For Availability
1124
Handle BOS 00487594 Contact Us For Availability
1128
Spacer BOS 00411060 Contact Us For Availability
1129
Glass panel BOS 00144083 Contact Us For Availability
1301
Frame BOS 00486301 Contact Us For Availability
1307
Frame BOS 00486784 Contact Us For Availability
1502
Bracket BOS 00413575 Contact Us For Availability
1503
Cover BOS 00486275 Contact Us For Availability
1504
Air duct BOS 00488406 Contact Us For Availability
1505
Duct BOS 00368450 Contact Us For Availability
1508
Covering BOS 00142865 Contact Us For Availability
1510
Frame BOS 00368501 Contact Us For Availability
1511
Duct BOS 00368448 Contact Us For Availability
1512
Cover BOS 00485975 Contact Us For Availability
1702
Braising pan BOS 00368065 Contact Us For Availability
1705
Cable harness BOS 00413579 Contact Us For Availability
1706
Cable harness BOS 00189954 Contact Us For Availability
1707
Cable harness BOS 00189956 Contact Us For Availability
1708
Cable harness BOS 00189957 Contact Us For Availability
1709
Cable harness BOS 00189958 Contact Us For Availability
1710
Cable harness BOS 00413580 Contact Us For Availability
1711
Cable harness BOS 00413581 Contact Us For Availability
1712
Cable harness BOS 00189959 Contact Us For Availability
1714
Cable harness BOS 00189946 Contact Us For Availability
1715
Cable harness BOS 00189960 Contact Us For Availability
1717
Cable harness BOS 00189945 Contact Us For Availability
1718
Cable harness BOS 00189947 Contact Us For Availability
1719
Cable harness BOS 00189949 Contact Us For Availability
1720
Cable harness BOS 00189950 Contact Us For Availability
1721
Cable harness BOS 00189961 Contact Us For Availability
1722
Cable harness BOS 00484546 Contact Us For Availability
1723
Cable harness BOS 00484536 Contact Us For Availability
1724
Cable harness BOS 00484537 Contact Us For Availability
1725
Cable harness BOS 00189953 Contact Us For Availability
1727
Cable harness BOS 00189955 Contact Us For Availability
1729
Cable harness BOS 00413594 Contact Us For Availability
1730
Cable harness BOS 00189934 Contact Us For Availability
1731
Cable harness BOS 00413123 Contact Us For Availability
1733
Cable harness BOS 00189964 Contact Us For Availability
1734
Cable harness BOS 00189962 Contact Us For Availability
1735
Wire BOS 00488413 Contact Us For Availability
1901
Base BOS 00219354 Contact Us For Availability
1903
Switch BOS 00488400 Contact Us For Availability
1904
Bracket BOS 00416807 Contact Us For Availability
1905
Panel-base BOS 00369985 Contact Us For Availability
1906
Cable harness BOS 00488401 Contact Us For Availability
× ![]()
