Model Bosch BUC11700UC/01 Vacuum – Common Parts & Diagrams
Diagram 1

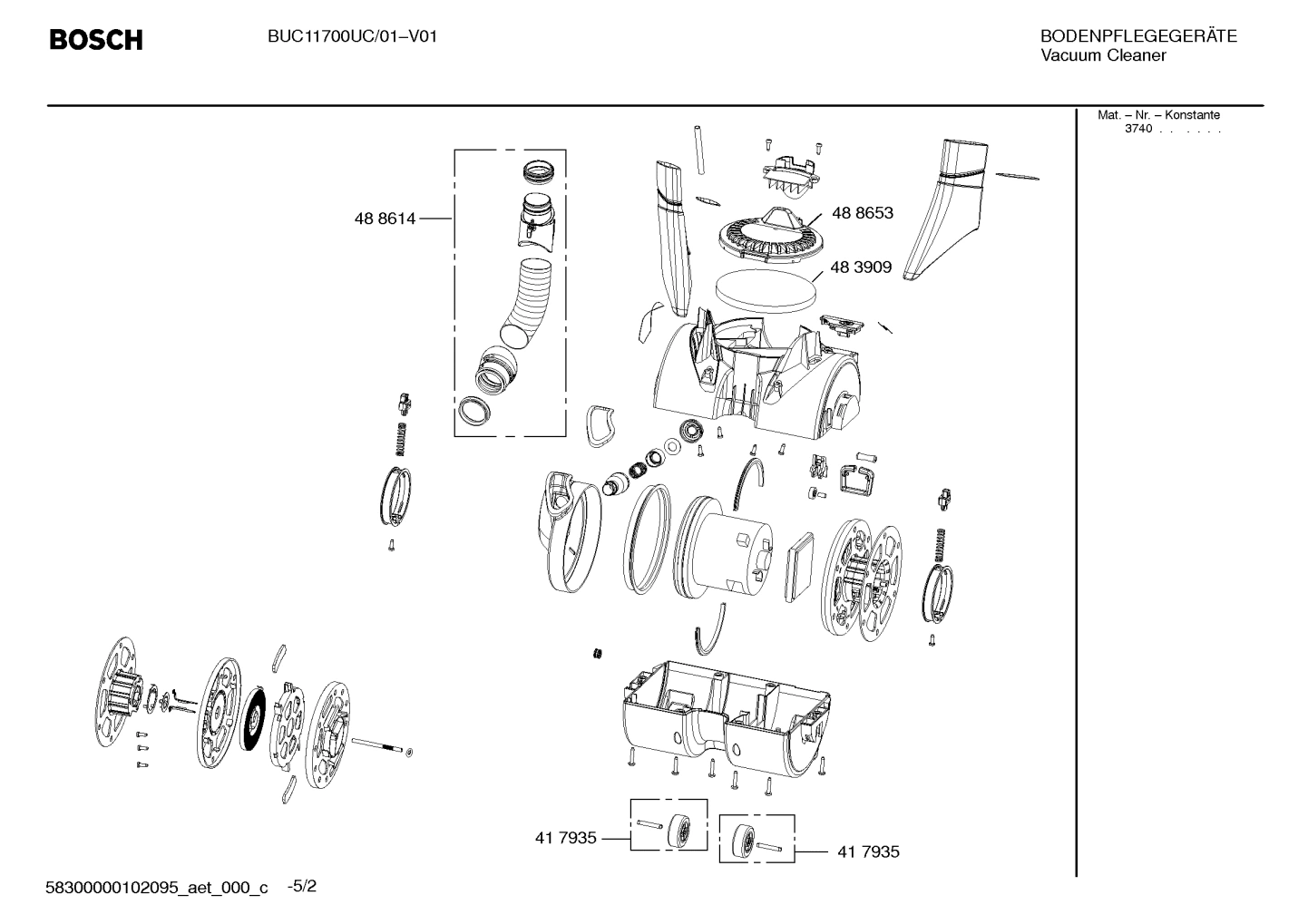

Diagram 2

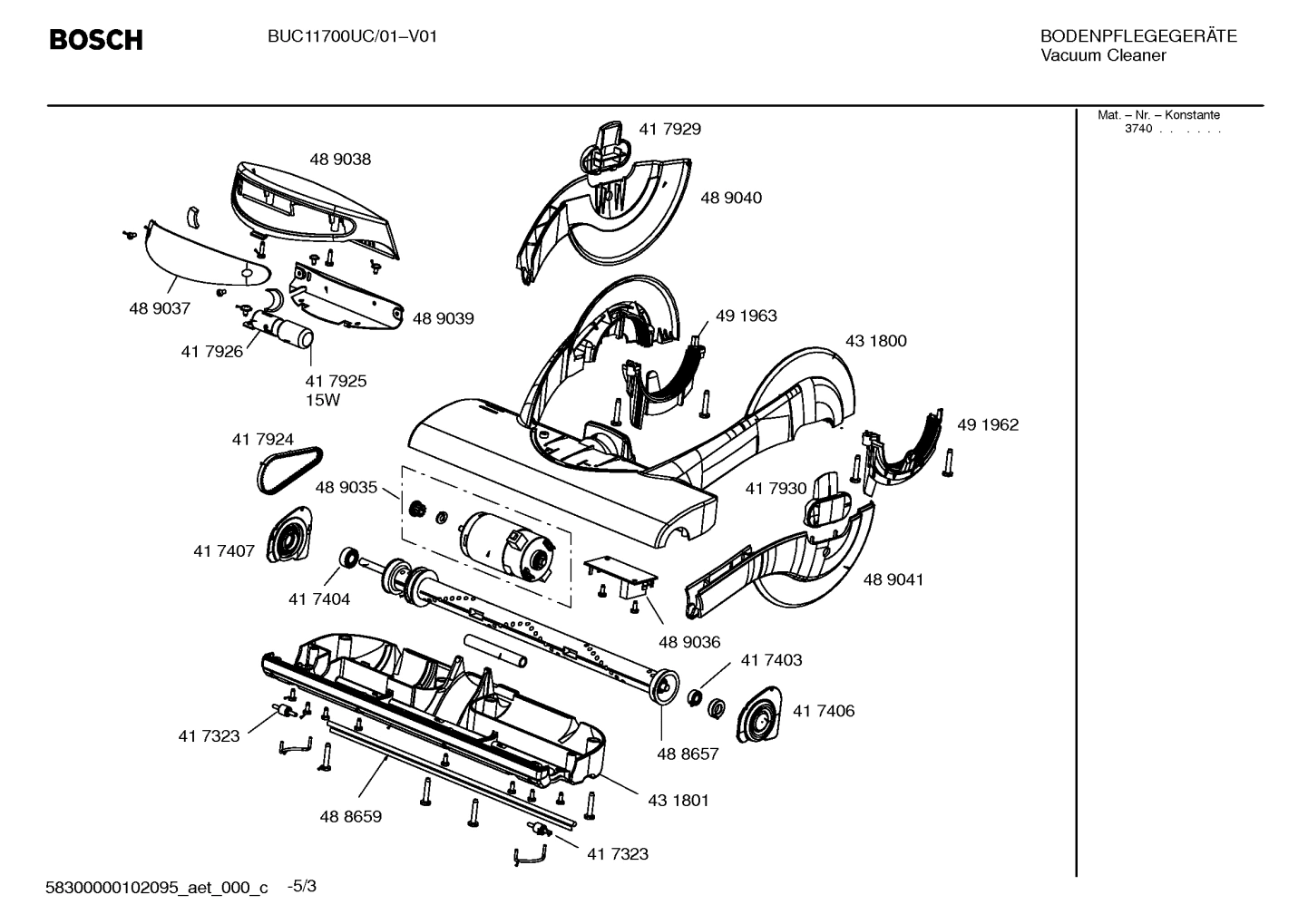

Diagram 3

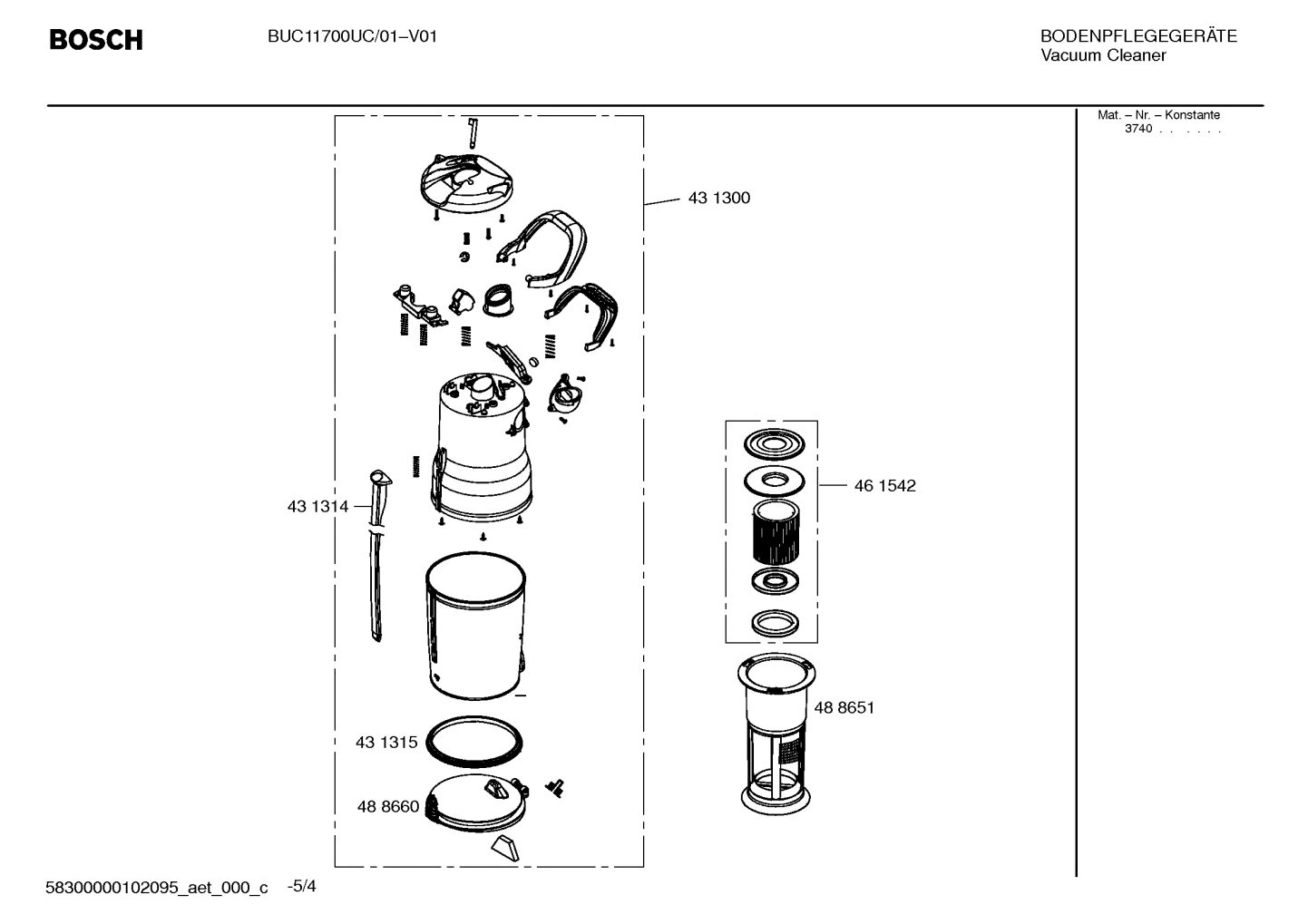

Diagram 4

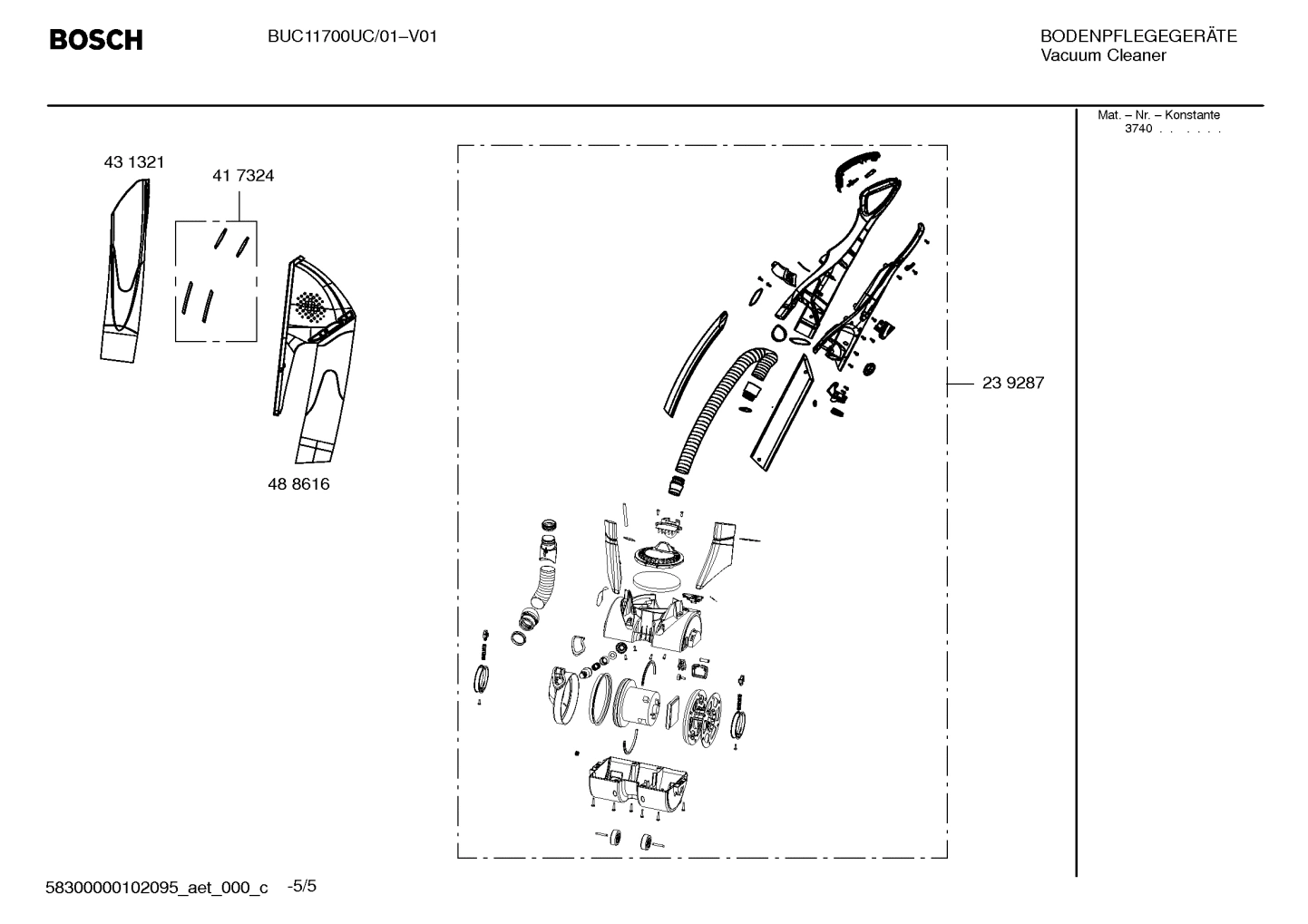

Diagram 5
Common parts from model Bosch BUC11700UC/01 Vacuum
0006
Connection piece BOS 00417397 Contact Us For Availability
0007
Hose BOS 00431246 Contact Us For Availability
0008
Hose BOS 00488614 Contact Us For Availability
0009
Cover BOS 00488653 Contact Us For Availability
0010
Motor protective filter BOS 00483909 Contact Us For Availability
0012
Latch BOS 00417929 Contact Us For Availability
0013
Panel BOS 00489040 Contact Us For Availability
0014
Case-upper part BOS 00431800 Contact Us For Availability
0015
Clip BOS 00491963 Contact Us For Availability
0016
Clip BOS 00491962 Contact Us For Availability
0017
Latch BOS 00417930 Contact Us For Availability
0018
Panel BOS 00489041 Contact Us For Availability
0019
Motor module BOS 00489036 Contact Us For Availability
0021
Holder BOS 00417406 Contact Us For Availability
0023
Case-bottom BOS 00431801 Contact Us For Availability
0024
Wheel BOS 00417323 Contact Us For Availability
0025
Rail BOS 00488659 Contact Us For Availability
0028
Belt-drive BOS 00417924 Contact Us For Availability
0029
Motor BOS 00489035 Contact Us For Availability
0030
Lamp BOS 00417925 Contact Us For Availability
0031
Holder BOS 00417926 Contact Us For Availability
0032
Glass panel BOS 00489037 Contact Us For Availability
0033
Cover BOS 00489038 Contact Us For Availability
0034
Reflector BOS 00489039 Contact Us For Availability
0037
Flap BOS 00488660 Contact Us For Availability
0038
Seal-lid BOS 00431315 Contact Us For Availability
0039
Slide BOS 00431314 Contact Us For Availability
0040
Container BOS 00431300 Contact Us For Availability
0041
Corner nozzle BOS 00431321 Contact Us For Availability
0042
Thread lifter BOS 00417324 Contact Us For Availability
0043
Furniture brush BOS 00488616 Contact Us For Availability
0044
Spare part BOS 00239287 Contact Us For Availability
0046
Instruction manual BOS 00583809 Contact Us For Availability
× ![]()
