Model Bosch BBS5024SU/02 Vacuum – Common Parts & Diagrams

Common parts from model Bosch BBS5024SU/02 Vacuum

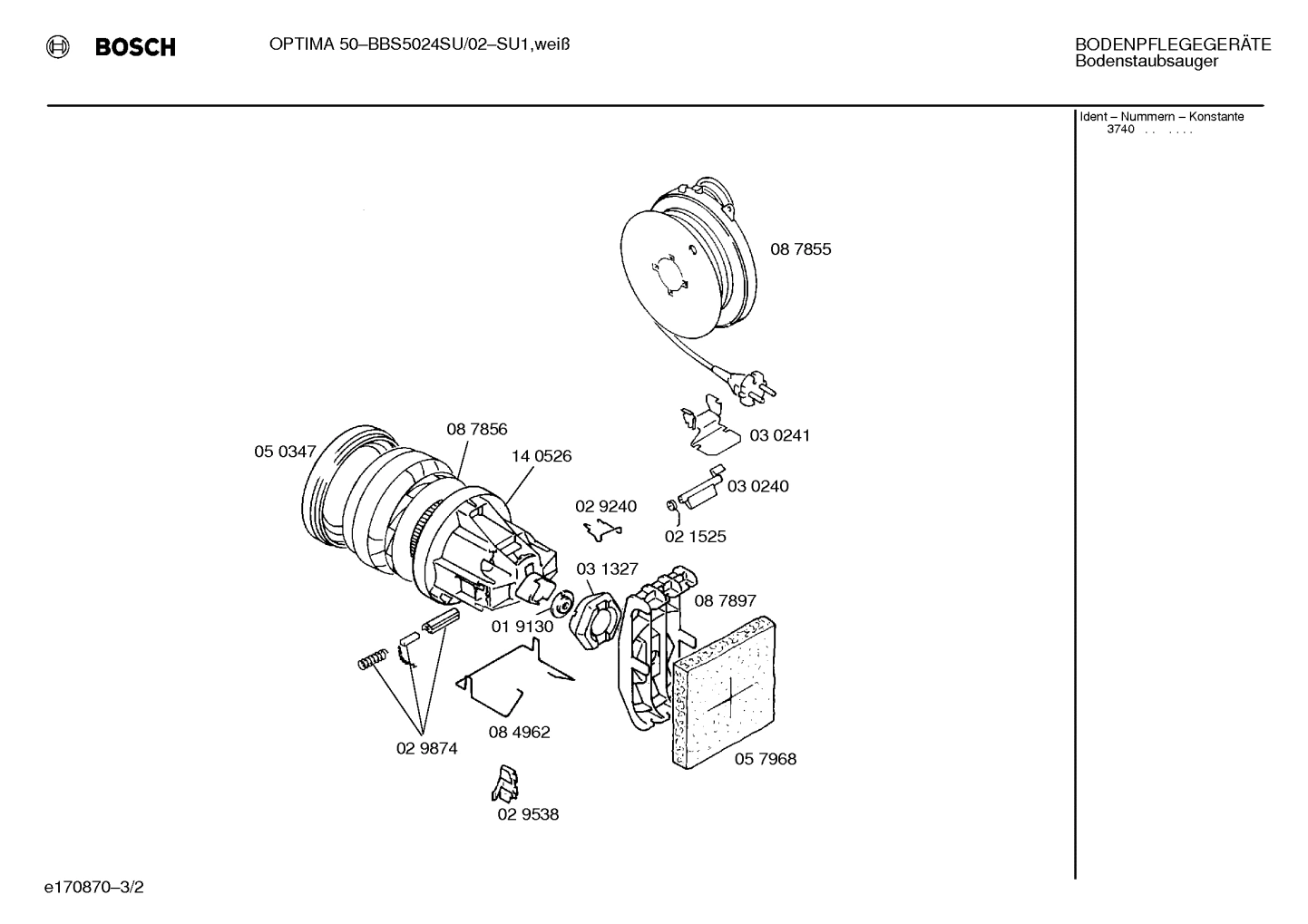

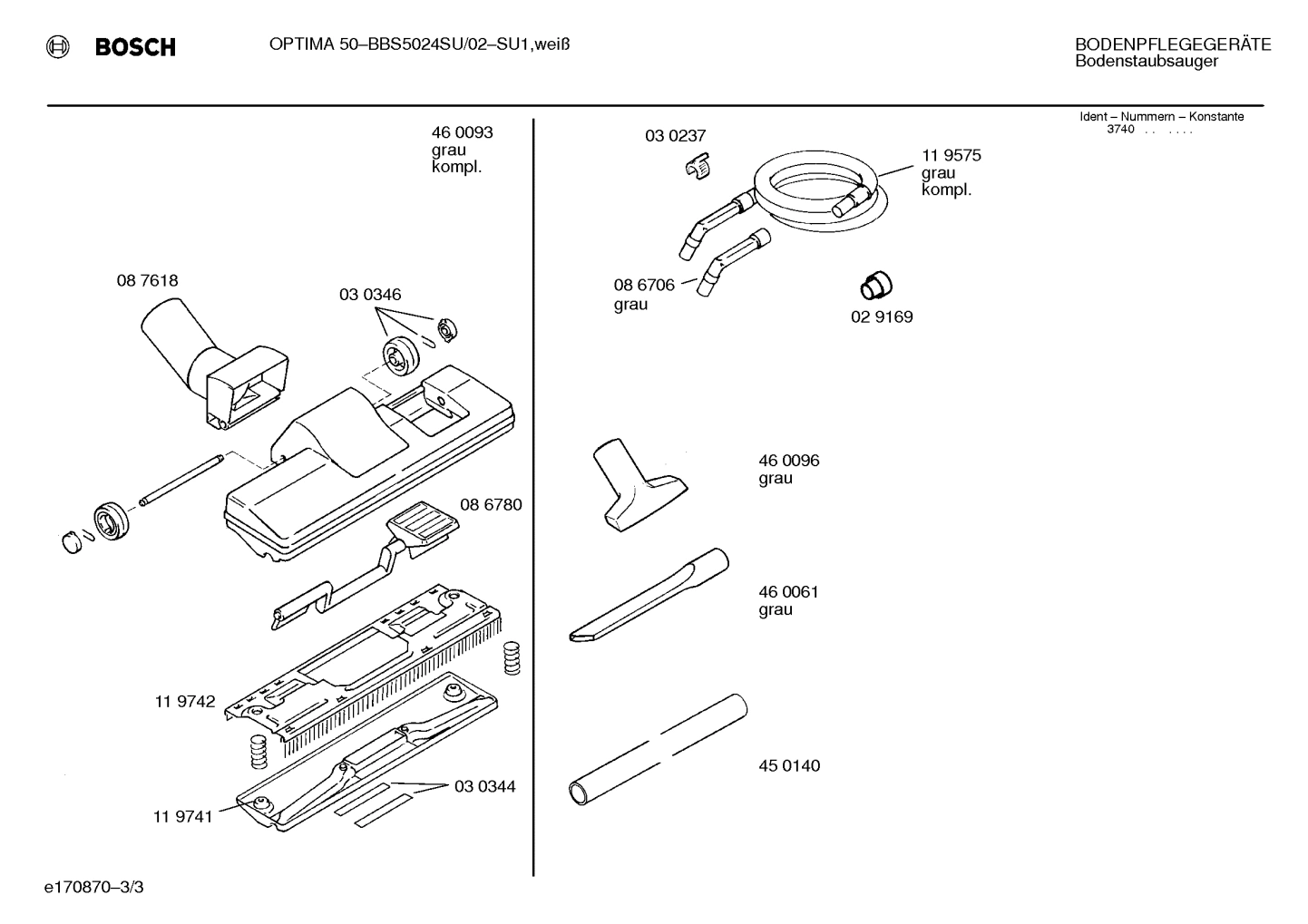

Diagram 1

Print

• This Diagram
• All Diagrams

0001

Bearing BOS 00019130 Contact Us For Availability

View on Model

0008

Spring BOS 00029240 Contact Us For Availability

View on Model

0012

10003191 Bosch Small Appliance Reel Backorder BOS 10003191 View Details $18.34

View on Model

0025

Latch BOS 00059772 Contact Us For Availability

View on Model

0028

Insulating plate BOS 00057968 Contact Us For Availability

View on Model

0052

Stud BOS 00029169 Contact Us For Availability

View on Model

0055

Hose BOS 00450759 Contact Us For Availability

View on Model

0056

00352512 Bosch Small Appliance Suction Tube Backorder BOS 00352512 View Details $25.57

View on Model

0057

Corner nozzle BOS 00460379 Contact Us For Availability

View on Model

0058

Floor nozzle BOS 00577342 Contact Us For Availability

View on Model

0060

Stud BOS 00087618 Contact Us For Availability

View on Model

0061

Roller set BOS 00168949 Contact Us For Availability

View on Model

0062

Adjusting device BOS 00086780 Contact Us For Availability

View on Model

0063

Plate BOS 00119742 Contact Us For Availability

View on Model

0064

Plate BOS 00119741 Contact Us For Availability

View on Model

0065

Thread lifter BOS 00030344 Contact Us For Availability

View on Model

0066

Support BOS 00460378 Contact Us For Availability

View on Model

×
