Model Electrolux 856-2288-10/02 MICROWAVE – Common Parts & Diagrams

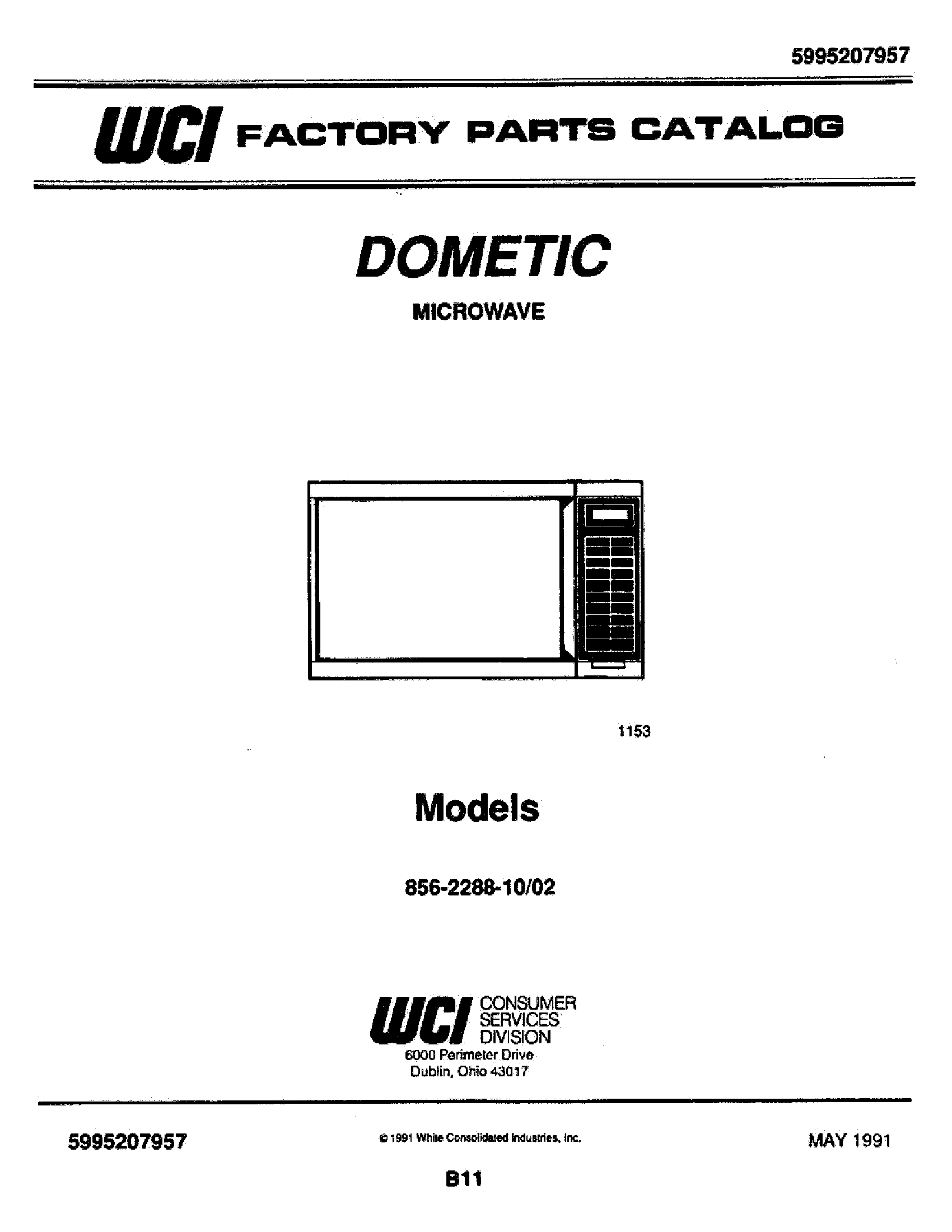

01 - COVER

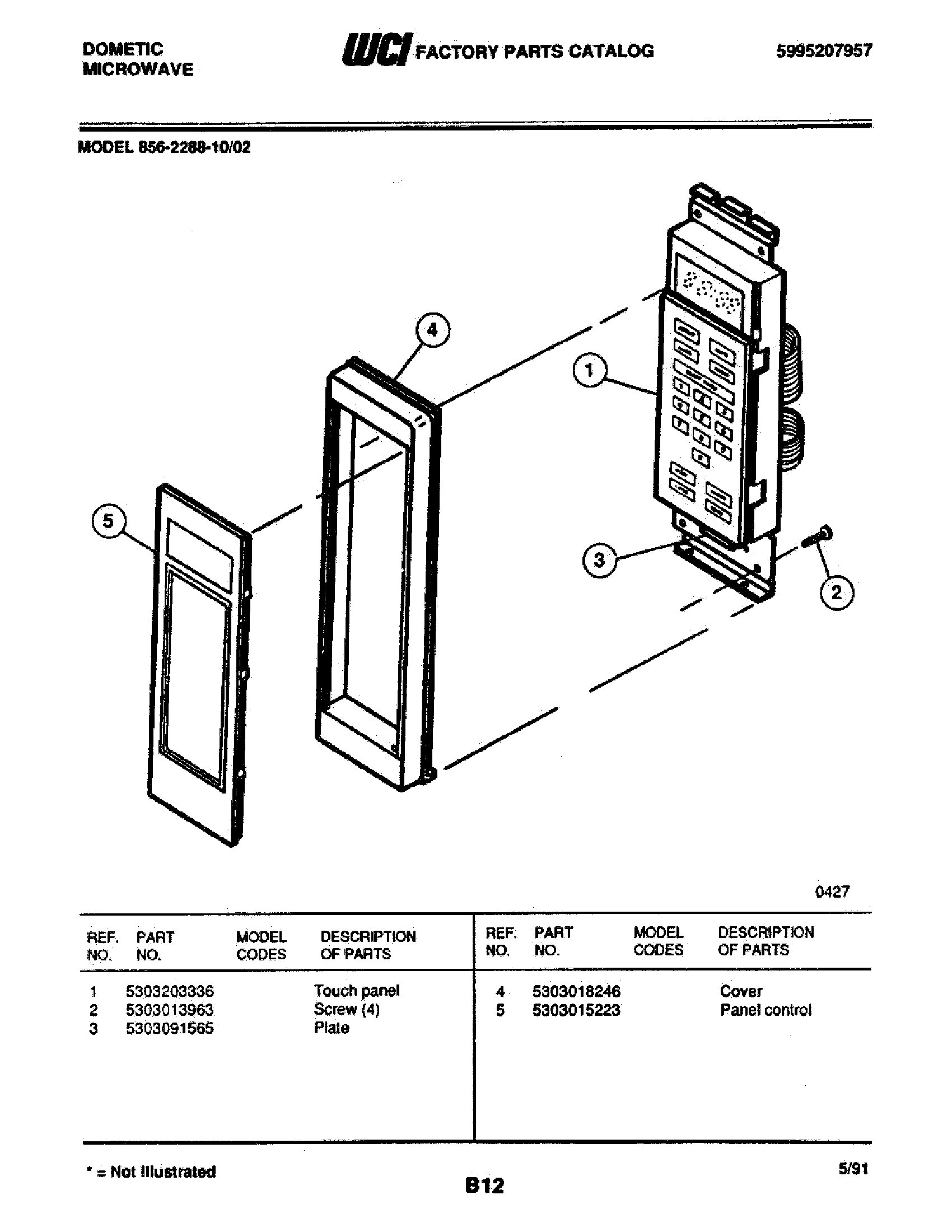

02 - CONTROL PANEL

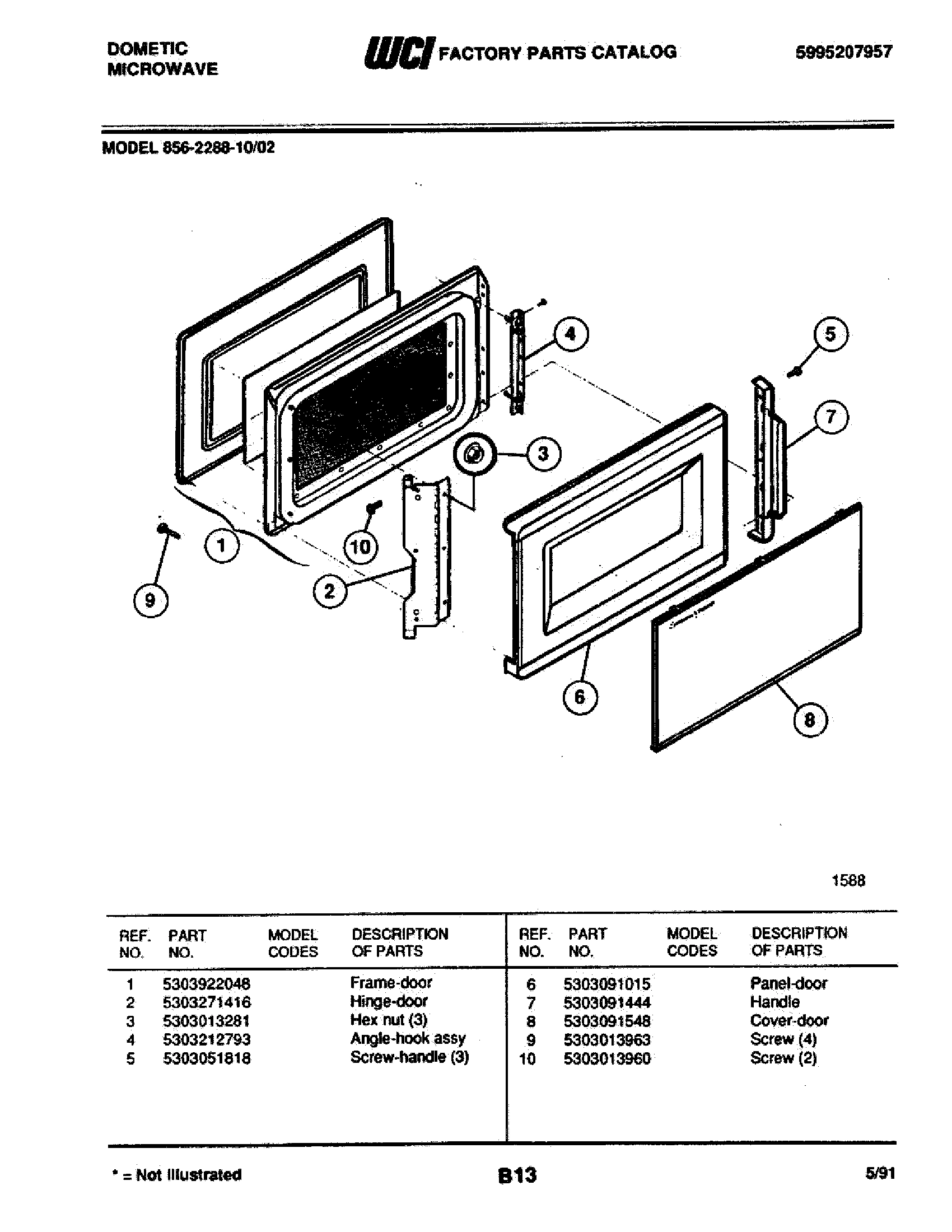

03 - DOOR

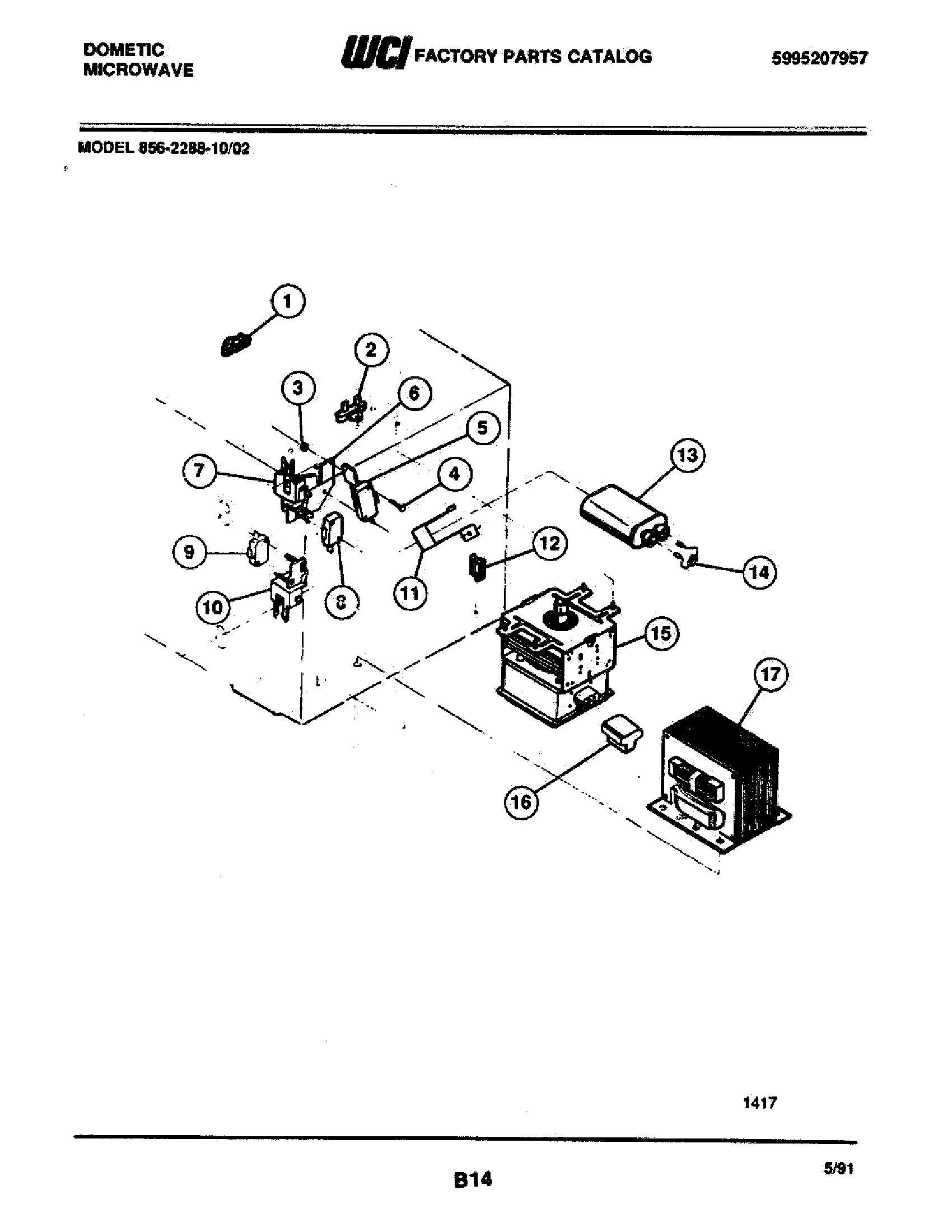

04 - TRANSFORMER

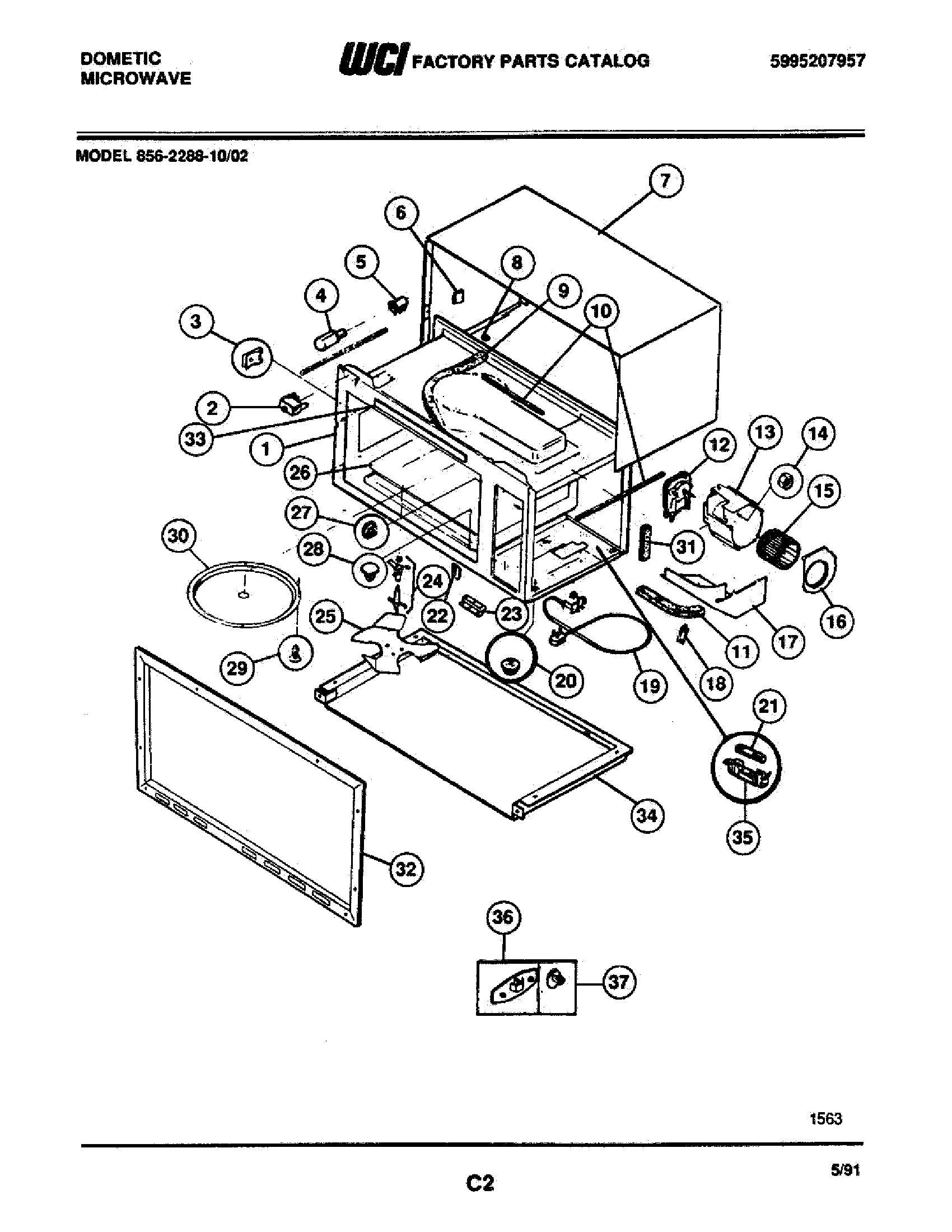

06 - WRAPPER
Common parts from model Electrolux 856-2288-10/02 MICROWAVE
WCI 5303203600 WCI 5303203600 Contact Us For Availability
1
WCI 5303203336 WCI 5303203336 Contact Us For Availability
1
FRAME-DOOR WCI 5303922048 Contact Us For Availability
1
WCI 5303203011 WCI 5303203011 Contact Us For Availability
1
LINER-WHITE WCI N/A Contact Us For Availability
2
HINGE-DOOR WCI 5303271416 Contact Us For Availability
2
WCI 5303091280 WCI 5303091280 Contact Us For Availability
2
WCI 5303269913 WCI 5303269913 Contact Us For Availability
3
PLATE WCI 5303091565 Contact Us For Availability
3
HEX NUT WCI 5303013281 Contact Us For Availability
3
NUT WCI 5303091072 Contact Us For Availability
4
WCI 5303018246 WCI 5303018246 Contact Us For Availability
4
ANGLE-HOOK ASSY WCI 5303212793 Contact Us For Availability
4
SCREW WCI 5303203212 Contact Us For Availability
5
WCI 5303015223 WCI 5303015223 Contact Us For Availability
5
WCI 5308037796 WCI 5308037796 Contact Us For Availability
5
WCI 5308037736 WCI 5308037736 Contact Us For Availability
6
WCI 5303091015 WCI 5303091015 Contact Us For Availability
6
BRACKET WCI 5308037795 Contact Us For Availability
6
CLIP - WRAPPER WCI 5303012322 Contact Us For Availability
7
WCI 5303091444 WCI 5303091444 Contact Us For Availability
7
WRAPPER-WOODGRAIN WCI 3201765 Contact Us For Availability
8
WCI 5303091548 WCI 5303091548 Contact Us For Availability
8
SPACER WCI 5308037724 Contact Us For Availability
9
SCREW WCI 5303013963 Contact Us For Availability
9
SWITCH WCI 3011689 Contact Us For Availability
9
WCI 5303202843 WCI 5303202843 Contact Us For Availability
10
SCREW WCI 5303013960 Contact Us For Availability
10
BRACKET WCI 5303011556 Contact Us For Availability
10
TAPE-FOAM SEAL WCI 5303017864 Contact Us For Availability
11
CLAMP WCI 5303013771 Contact Us For Availability
11
TAPE-FOAM SEAL WCI 5303017865 Contact Us For Availability
12
MOTOR-FAN WCI 5303011667 Contact Us For Availability
13
WCI 5308037761 WCI 5308037761 Contact Us For Availability
13
WCI 5308037732 WCI 5308037732 Contact Us For Availability
14
WCI 5303091303 WCI 5303091303 Contact Us For Availability
14
HEX NUT WCI 5303013270 Contact Us For Availability
15
WCI 5303011673 WCI 5303011673 Contact Us For Availability
15
WHEEL-BLOWER WCI 5303091501 Contact Us For Availability
16
WCI 5303091146 WCI 5303091146 Contact Us For Availability
16
COVER-BLOWER HSG WCI 5303091309 Contact Us For Availability
17
WCI 5303205330 WCI 5303205330 Contact Us For Availability
17
WCI 5308037626 WCI 5308037626 Contact Us For Availability
17
WCI 5303018201 WCI 5303018201 Contact Us For Availability
18
CLIP-WIRE WCI 5308037677 Contact Us For Availability
19
POWER CORD WCI 5308037798 Contact Us For Availability
20
FOOT WCI 5303014097 Contact Us For Availability
21
FUSE WCI 5303011670 Contact Us For Availability
22
BEZEL-LATCH WCI 5303212767 Contact Us For Availability
23
BRACKET WCI 5303011555 Contact Us For Availability
24
KIT-STIRRER SUPPORT WCI 5303922010 Contact Us For Availability
25
FAN-STIRRER WCI 5303202397 Contact Us For Availability
26
TRAY - GLASS WCI 5303091188 Contact Us For Availability
27
PLUG-BUTTON WCI 5303201365 Contact Us For Availability
28
PLUG - BUTTON TRAY WCI 5308037665 Contact Us For Availability
29
RIVET - COVER WCI 5303013807 Contact Us For Availability
30
COVER-STIRRER WCI 5303200541 Contact Us For Availability
31
DUCT-FOAM MAG WCI 5303091131 Contact Us For Availability
32
WCI 5303091554 WCI 5303091554 Contact Us For Availability
33
LABEL-COOKING GUIDE WCI 5303271795 Contact Us For Availability
34
WCI 5303017793 WCI 5303017793 Contact Us For Availability
35
RECEPTACLE WCI 5303203121 Contact Us For Availability
36
PLUG-BUTTON WCI 5303013626 Contact Us For Availability
37
PLUG BUTTON WCI 5308037664 Contact Us For Availability
× ![]()
