Model Electrolux 856-2287-10/02 MICROWAVE – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

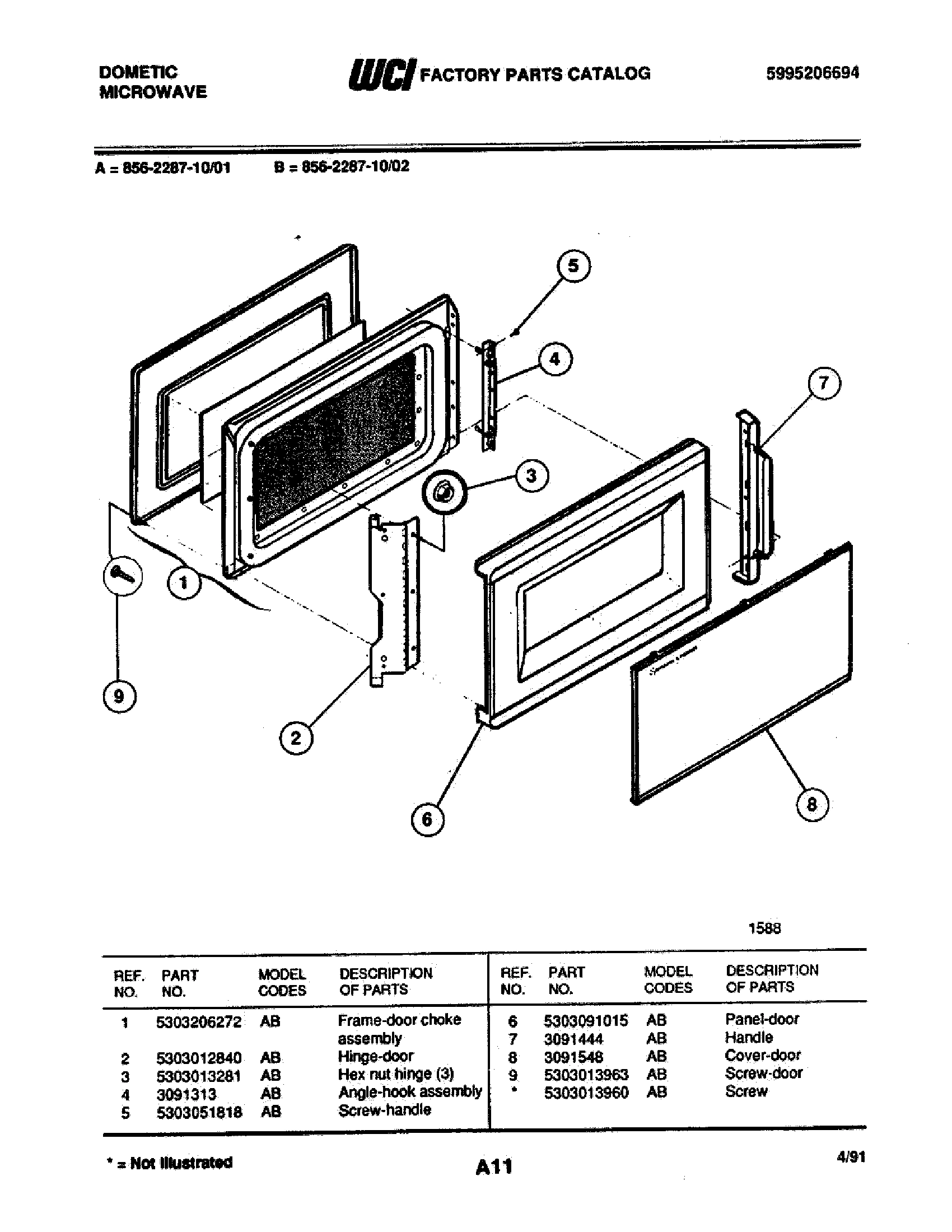

03 - DOOR
04 - TRANSFORMER

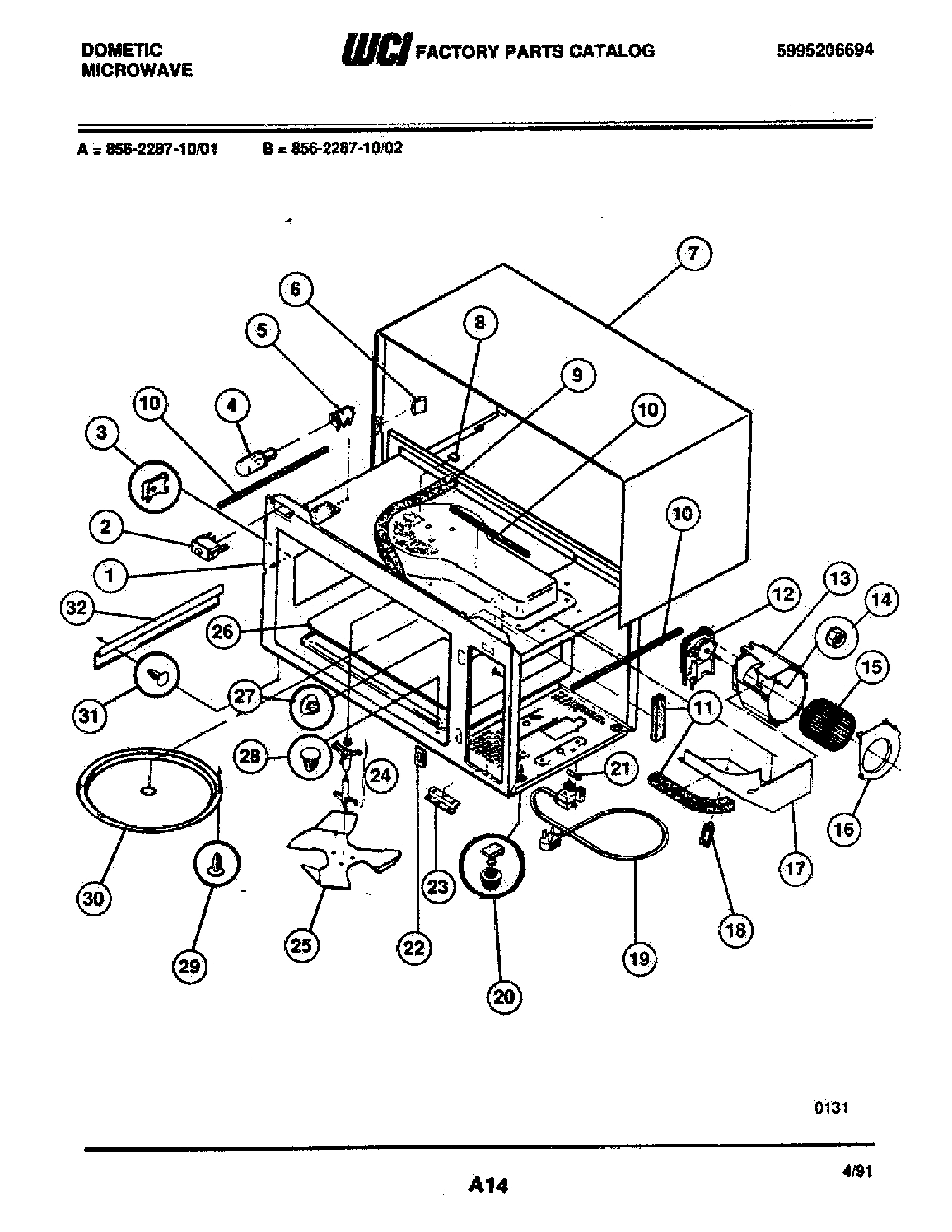

06 - CABINET
Common parts from model Electrolux 856-2287-10/02 MICROWAVE
SCREW WCI 5303013960 Contact Us For Availability
DUCT-FOAM MAG WCI 3091131 Contact Us For Availability
WCI 3091554 WCI 3091554 Contact Us For Availability
WCI 3091568 WCI 3091568 Contact Us For Availability
LABEL-COOK GUIDE WCI 5303016166 Contact Us For Availability
WCI 5303017867 WCI 5303017867 Contact Us For Availability
1
WCI 5303206272 WCI 5303206272 Contact Us For Availability
1
WCI 5303011673 WCI 5303011673 Contact Us For Availability
1
WCI N/A WCI N/A Contact Us For Availability
2
WCI 5303012840 WCI 5303012840 Contact Us For Availability
2
WCI 5308037626 WCI 5308037626 Contact Us For Availability
2
WCI 5303011694 WCI 5303011694 Contact Us For Availability
3
WCI 3091565 WCI 3091565 Contact Us For Availability
3
HEX NUT HINGE WCI 5303013281 Contact Us For Availability
3
WCI 3091303 WCI 3091303 Contact Us For Availability
3
SCREW - HINGE WCI 5303013882 Contact Us For Availability
4
WCI 3091540 WCI 3091540 Contact Us For Availability
4
ANGLE-HOOK ASSY WCI 3091313 Contact Us For Availability
4
CAPACITOR-HV WCI 5308037761 Contact Us For Availability
5
WCI 3091007 WCI 3091007 Contact Us For Availability
5
WCI 5303013771 WCI 5303013771 Contact Us For Availability
5
WCI 5308037736 WCI 5308037736 Contact Us For Availability
6
WCI 5303091015 WCI 5303091015 Contact Us For Availability
6
FASTENER-WRAPPER CLIP WCI 5303012322 Contact Us For Availability
7
WCI 3091444 WCI 3091444 Contact Us For Availability
7
SCREW-WRAPPER WCI 5303091100 Contact Us For Availability
7
WCI 3201765 WCI 3201765 Contact Us For Availability
8
WCI 3091548 WCI 3091548 Contact Us For Availability
8
WCI 5303091280 WCI 5303091280 Contact Us For Availability
8
WCI 3091269 WCI 3091269 Contact Us For Availability
9
SCREW - DOOR WCI 5303013963 Contact Us For Availability
9
DUCT-AIR (FOAM) WCI 5303011667 Contact Us For Availability
10
SWITCH-UPPER WCI 5308037692 Contact Us For Availability
10
TAPE-FOAM SEAL 29`` 1/4``X1/4``PER FOOT WCI 5303017864 Contact Us For Availability
11
SWITCH-LOWER WCI 3011689 Contact Us For Availability
11
TAPE-FOAM SEAL 9-1/2 (1/2``X3/4``PER FOOT) WCI 5303017865 Contact Us For Availability
12
SCREW-MOTOR WCI 5303013874 Contact Us For Availability
12
BRACKET (LOWER) WCI 5303011556 Contact Us For Availability
12
MOTOR - FAN WCI 5303011677 Contact Us For Availability
13
WCI 5308037732 WCI 5308037732 Contact Us For Availability
14
HEX NUT-MOTOR MTG WCI 5303013270 Contact Us For Availability
15
WHEEL-BLOWER WCI 5303091501 Contact Us For Availability
16
COVER-BLOWER HSG WCI 5303091309 Contact Us For Availability
17
WCI 5303018201 WCI 5303018201 Contact Us For Availability
18
FASTENER-WIRE CLIP WCI 5308037677 Contact Us For Availability
19
WCI 5308037798 WCI 5308037798 Contact Us For Availability
20
FOOT WCI 5303014097 Contact Us For Availability
21
FUSE WCI 5303011670 Contact Us For Availability
22
BEZEL-LATCH WCI 3091410 Contact Us For Availability
23
BRACKET WCI 5303011555 Contact Us For Availability
24
KIT-STIRRER SUPPORT WCI 5303922010 Contact Us For Availability
25
WCI 3012289 WCI 3012289 Contact Us For Availability
26
WCI 3091188 WCI 3091188 Contact Us For Availability
27
WCI 5303013629 WCI 5303013629 Contact Us For Availability
28
PLUG - BUTTON TRAY WCI 5308037665 Contact Us For Availability
29
RIVET, ACCORDIAN, STIRRER COVER WCI 5303013807 Contact Us For Availability
30
COVER-STIRRER WCI 3091416 Contact Us For Availability
31
WCI 5303012309 WCI 5303012309 Contact Us For Availability
32
WCI 5303091289 WCI 5303091289 Contact Us For Availability
× ![]()
