Model Electrolux 56-2272-10/02 MICROWAVE – Common Parts & Diagrams

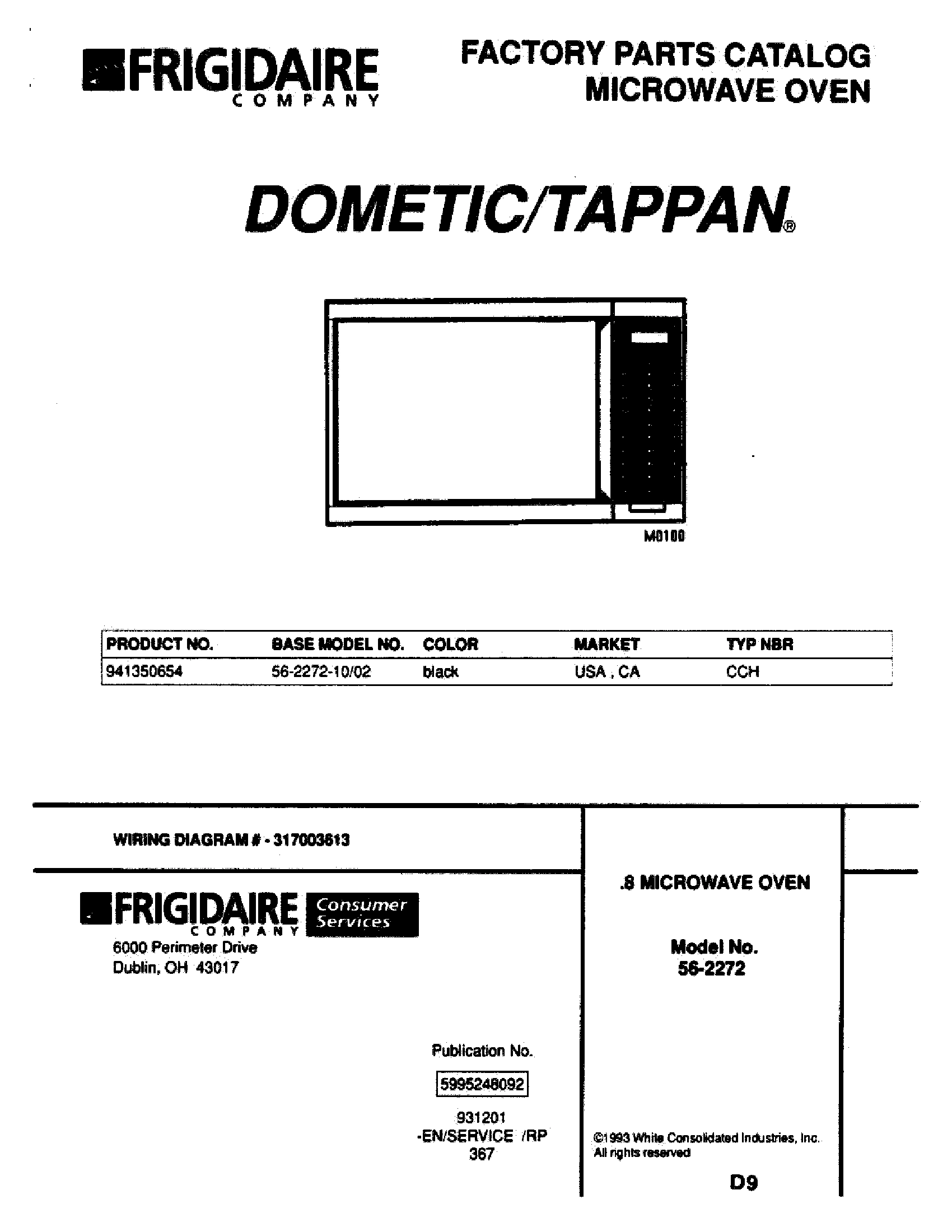

01 - COVER

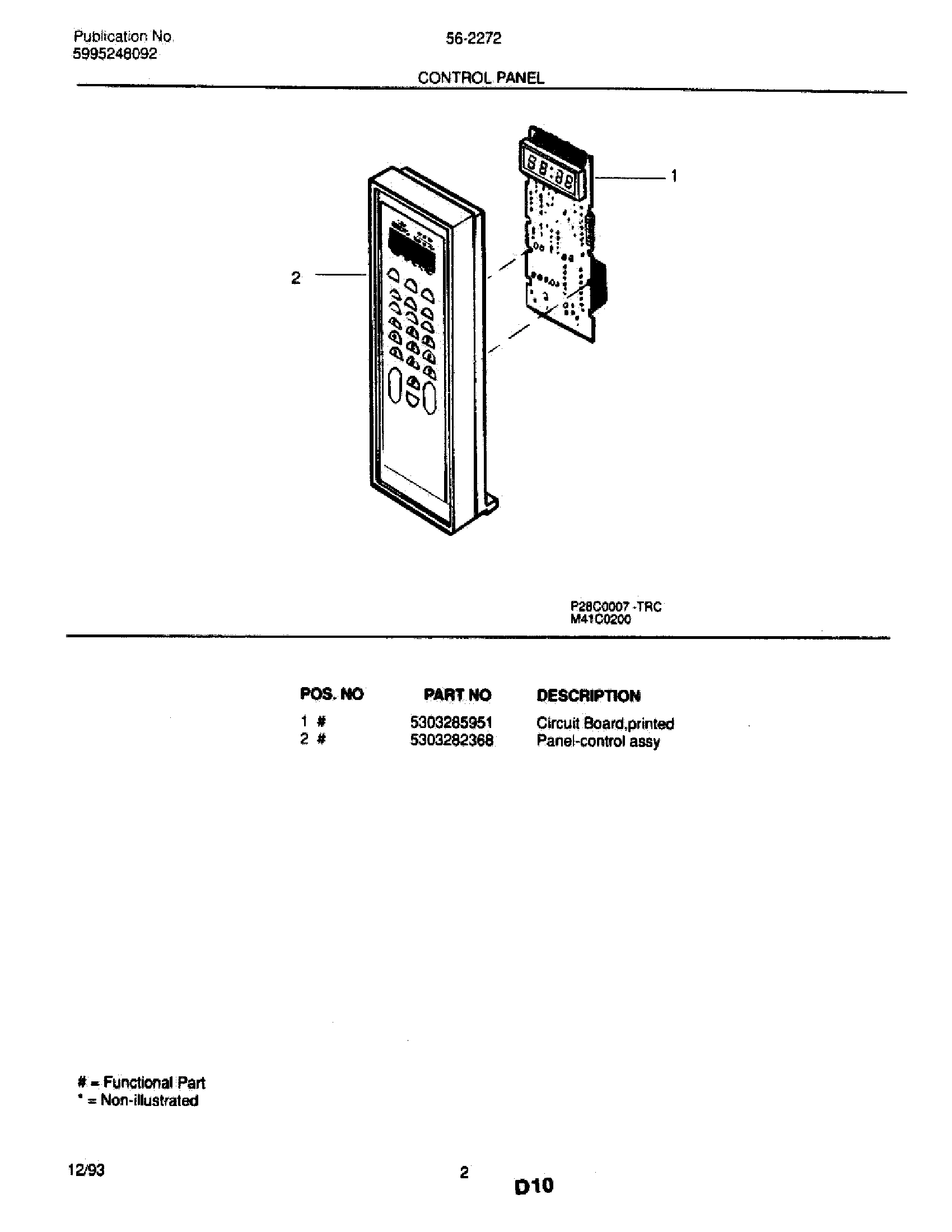

02 - CONTROL PANEL

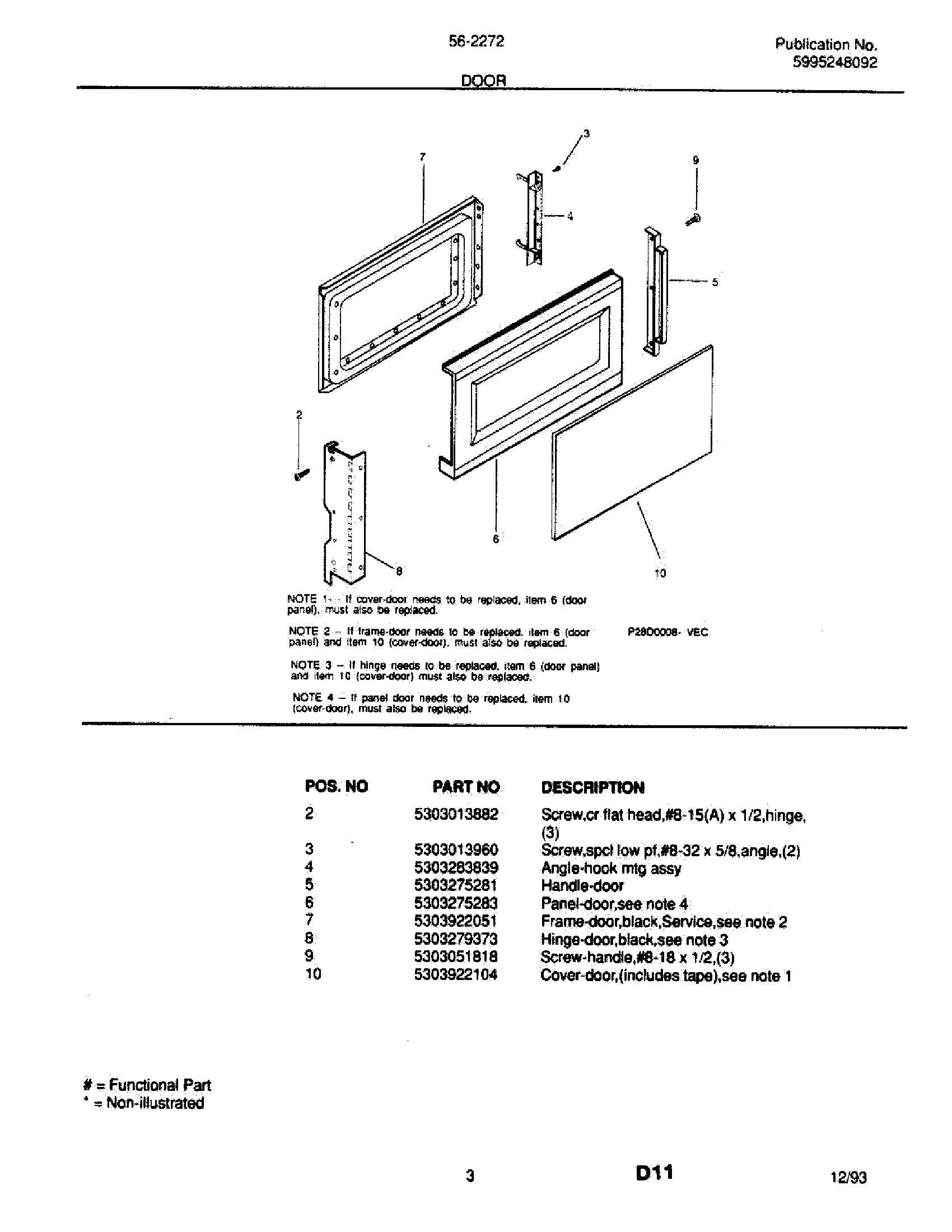

03 - DOOR

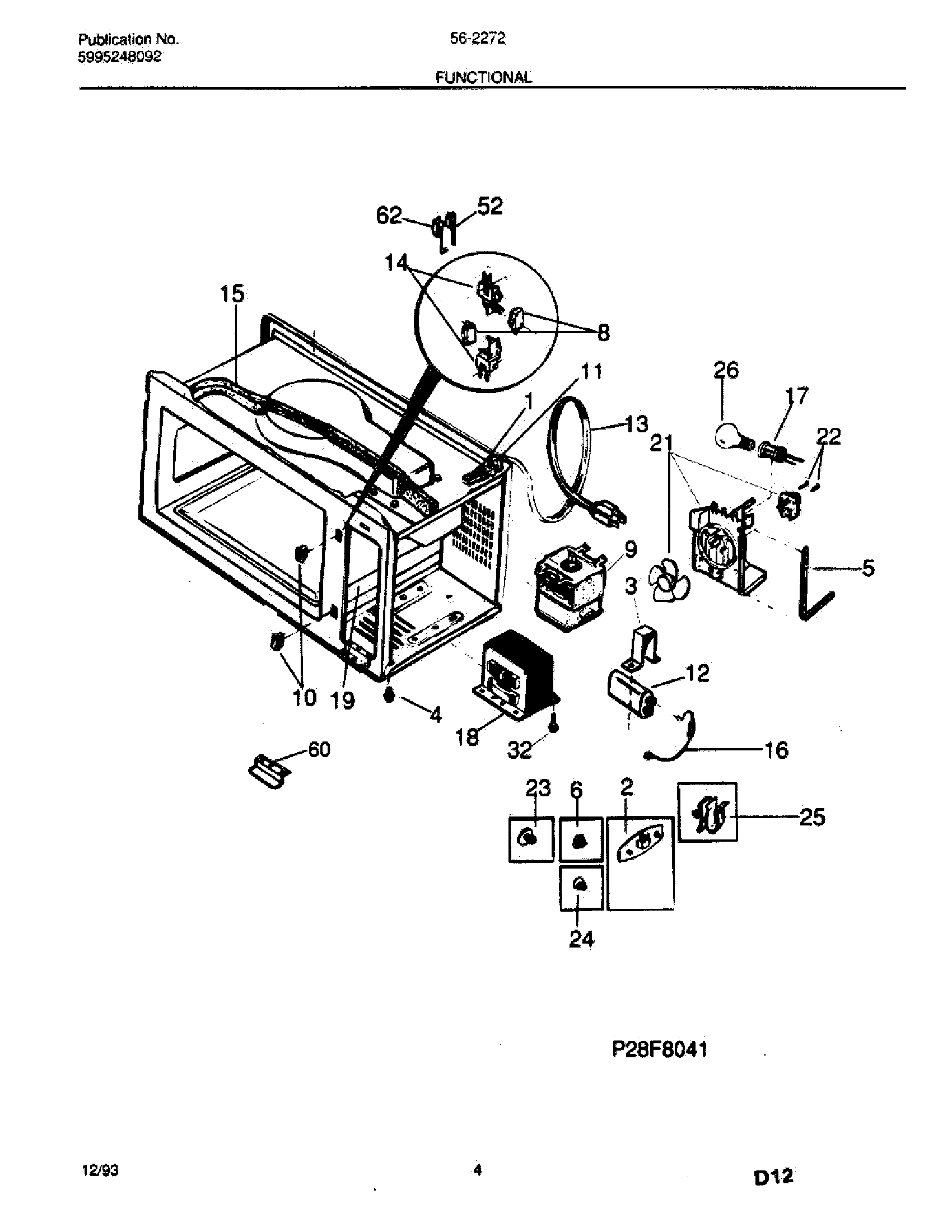

05 - FUNCTIONAL PARTS

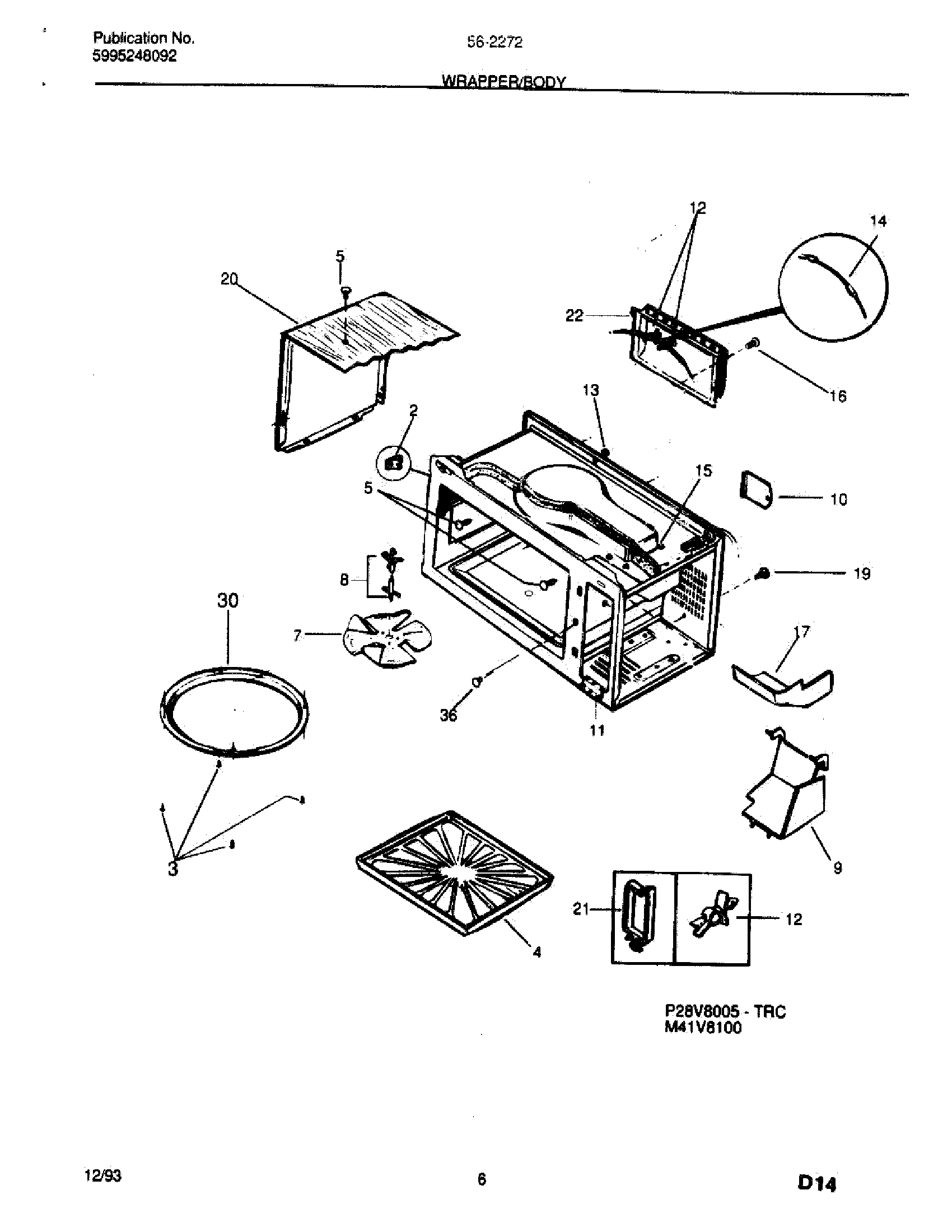

07 - WRAPPER

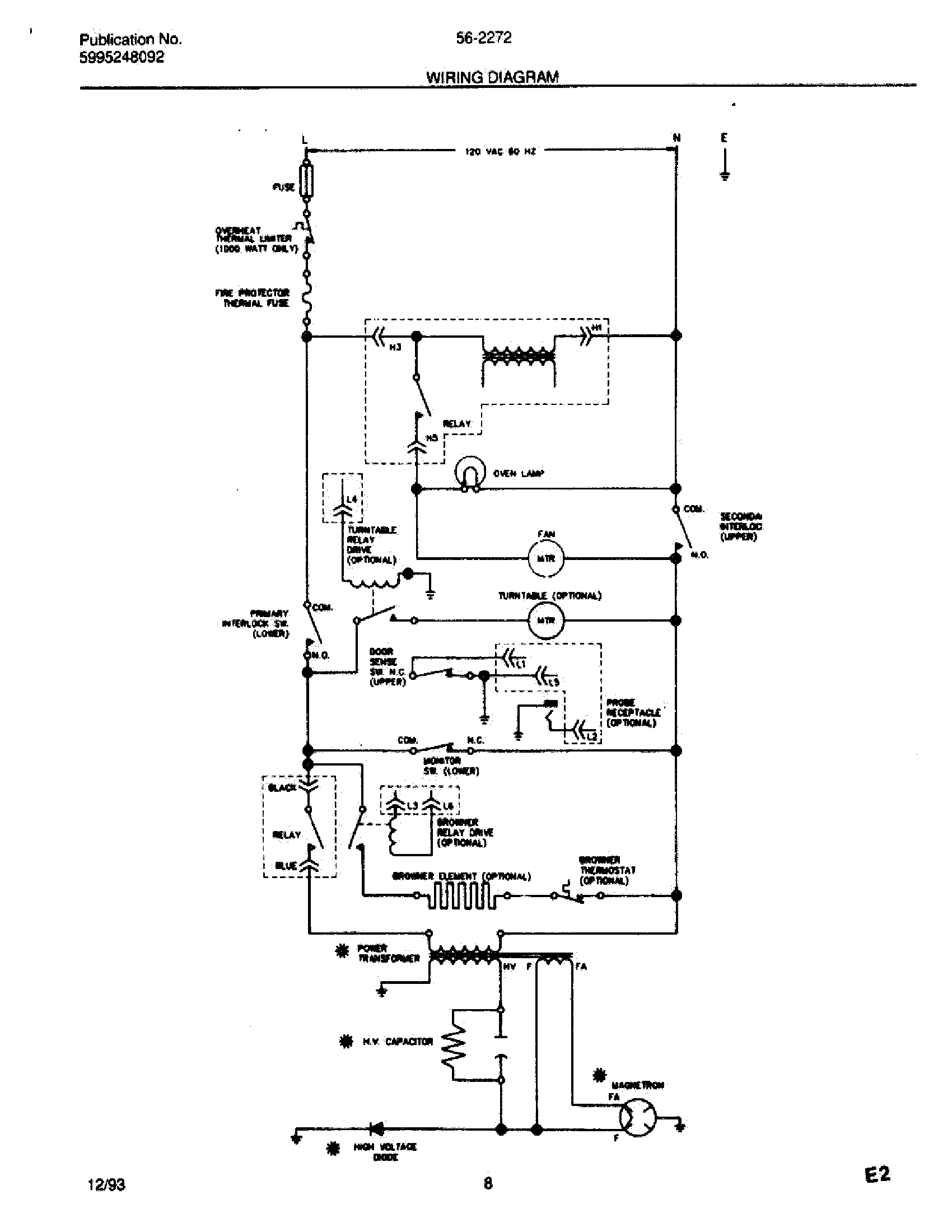

08 - WIRING DIAGRAM
Common parts from model Electrolux 56-2272-10/02 MICROWAVE
WCI 317000329 WCI 317000329 Contact Us For Availability
WCI 5303212809 WCI 5303212809 Contact Us For Availability
1
WCI 5308037723 WCI 5308037723 Contact Us For Availability
2
WCI 5303282368 WCI 5303282368 Contact Us For Availability
2
SCREW, CR FLAT HEAD, 8-15(A) X 1/2, HINGE WCI 5303013882 Contact Us For Availability
2
PLUG BUTTON (BROWNER) WCI 5303013626 Contact Us For Availability
3
SCREW, SPCL LOW PF, 8-32 X 5/8, ANGLE WCI 5303013960 Contact Us For Availability
3
WCI 5303013771 WCI 5303013771 Contact Us For Availability
3
RIVET, ACCORDIAN, STIRRER COVER WCI 5303013807 Contact Us For Availability
4
WCI 5303283839 WCI 5303283839 Contact Us For Availability
4
SPACER, FOOT WCI 5303295314 Contact Us For Availability
4
WCI 5303091188 WCI 5303091188 Contact Us For Availability
5
WCI 5303275281 WCI 5303275281 Contact Us For Availability
5
WCI 5303017864 WCI 5303017864 Contact Us For Availability
5
PLUG-BUTTON, BLACK WCI 5303271414 Contact Us For Availability
5
WCI 5303291811 WCI 5303291811 Contact Us For Availability
6
PANEL-DOOR (NOTE 4) WCI 5303275283 Contact Us For Availability
6
WCI 5303201365 WCI 5303201365 Contact Us For Availability
7
FRAME-DOOR, BLACK, SERVICE(NOTE 2) WCI 5303922051 Contact Us For Availability
7
WCI 5303202397 WCI 5303202397 Contact Us For Availability
8
HINGE-DOOR, BLACK(NOTE 3) WCI 5303279373 Contact Us For Availability
8
WCI 5303203636 WCI 5303203636 Contact Us For Availability
8
WCI 5303922010 WCI 5303922010 Contact Us For Availability
9
WCI 5303206781 WCI 5303206781 Contact Us For Availability
9
WCI 317000801 WCI 317000801 Contact Us For Availability
10
COVER-DOOR, (INCLUDES TAPE)(NOTE 1) WCI 5303922104 Contact Us For Availability
10
BEZEL-LATCH WCI 5303212767 Contact Us For Availability
10
WCI 5303212775 WCI 5303212775 Contact Us For Availability
11
WCI 5303212769 WCI 5303212769 Contact Us For Availability
11
WCI 5303270384 WCI 5303270384 Contact Us For Availability
11
SCREW, BRACKET MTG, 8-18(AB) X 3/8, CONTROL P WCI 5303273916 Contact Us For Availability
12
WCI 5303212773 WCI 5303212773 Contact Us For Availability
12
SUPPORT, THRM PROTECTOR WCI 5303212788 Contact Us For Availability
13
CORD-ELECTRIC POWER, CANADIAN WCI 317005402 Contact Us For Availability
13
WCI 5303280263 WCI 5303280263 Contact Us For Availability
14
BRACKET-SWITCH WCI 317000702 Contact Us For Availability
14
WCI 5303212800 WCI 5303212800 Contact Us For Availability
15
WCI 5303212803 WCI 5303212803 Contact Us For Availability
15
WCI 5303212783 WCI 5303212783 Contact Us For Availability
16
WCI 5303212799 WCI 5303212799 Contact Us For Availability
16
SCREW, TAMPER PROOF, 8-15(A) X 1/2 WCI 394027600 Contact Us For Availability
17
WCI 5303212810 WCI 5303212810 Contact Us For Availability
17
WCI 5303273488 WCI 5303273488 Contact Us For Availability
18
WCI 317016901 WCI 317016901 Contact Us For Availability
19
WCI 5303212845 WCI 5303212845 Contact Us For Availability
19
WCI 5303271581 WCI 5303271581 Contact Us For Availability
20
HANG KIT, .8, CANADIAN WCI 317008601 Contact Us For Availability
20
SCREW-WRAPPER, 8-18 X 1/2 WCI 5303273263 Contact Us For Availability
20
WCI 5303284343 WCI 5303284343 Contact Us For Availability
21
MOTOR-FAN,120V,INCL.MOTOR,FAN DUCT,FAN BLADE, WCI 5303922053 Contact Us For Availability
21
CLIP, WIRES WCI 5308037677 Contact Us For Availability
22
SCREW, THREAD FORMING, 8-32 X 1/2, FAN MOTOR WCI 317004703 Contact Us For Availability
22
WCI 5303269958 WCI 5303269958 Contact Us For Availability
23
PLUG-BUTTON, WHITE, RACK WCI 5308037664 Contact Us For Availability
24
PLUG-BUTTON, WHITE, TRAY WCI 5308037665 Contact Us For Availability
25
WCI 5303212787 WCI 5303212787 Contact Us For Availability
26
WCI 5303272172 WCI 5303272172 Contact Us For Availability
30
WCI 5303200541 WCI 5303200541 Contact Us For Availability
32
SCREW, HX SERR WSHR HD, 1/4-20 X 1/2, TRANFOR WCI 5303013944 Contact Us For Availability
36
WCI 5303282074 WCI 5303282074 Contact Us For Availability
52
WCI 317005104 WCI 317005104 Contact Us For Availability
60
WCI 5303283612 WCI 5303283612 Contact Us For Availability
62
SWITCH-MONITOR WCI 317005103 Contact Us For Availability
× ![]()
