Model Whirlpool 1069608610/SKR501W0 Refrigerator (Kenmore 1069608610/SKR501W0) – Common Parts & Diagrams
SHELF
UNIT

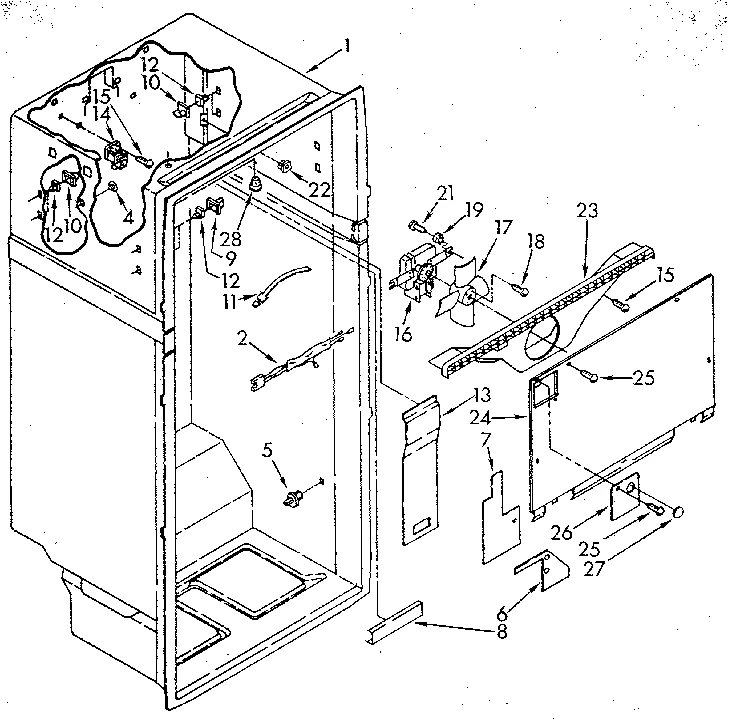

LINER

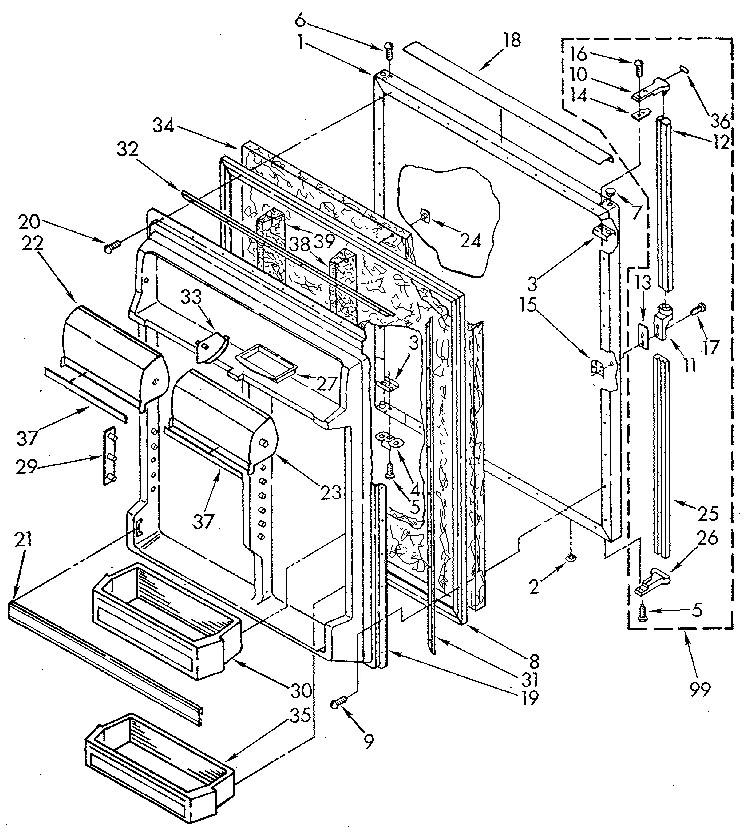

REFRIGERATOR DOOR
All Parts

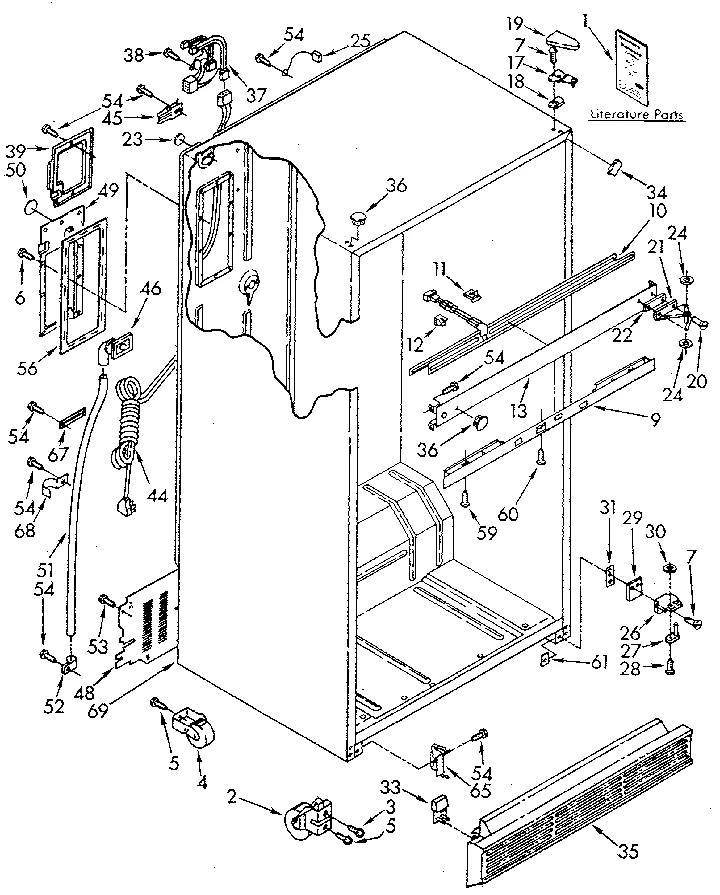

CABINET

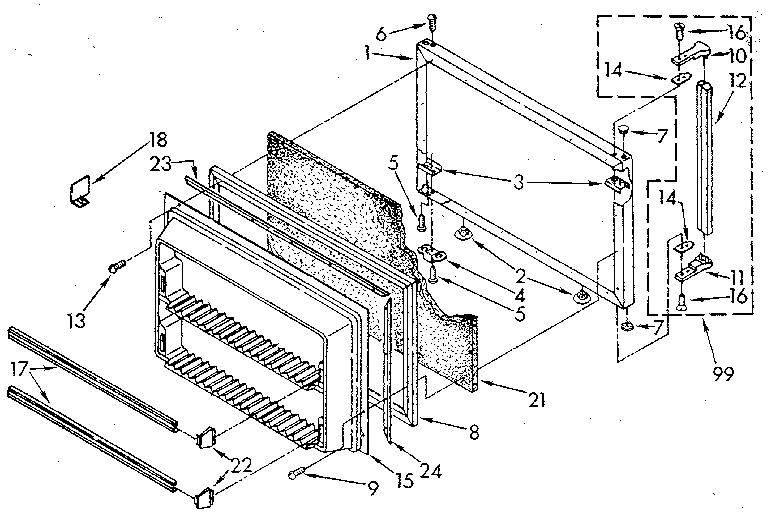

FREEZER DOOR

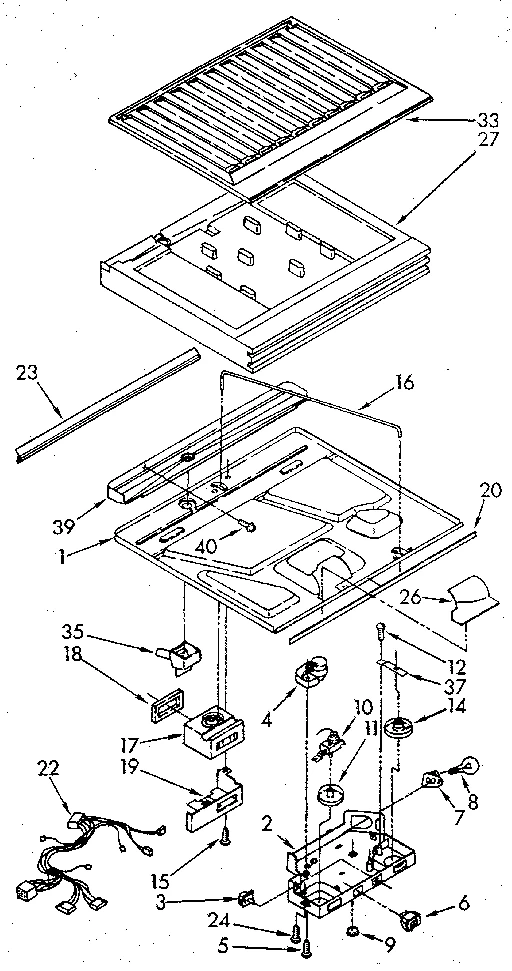

COMPARTMENT SEPARATOR
Common parts from model Whirlpool 1069608610/SKR501W0 Refrigerator (Kenmore 1069608610/SKR501W0)
1
FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability
1
Panl W T WPL 1116575 Contact Us For Availability
1
Panl W T WPL 1116586 Contact Us For Availability
1
Bottom-sep WPL 1116561 Contact Us For Availability
1A
Refrigerator Owner's Manual WPL LIT1126872 Contact Us For Availability
1B
LABEL, MITI APPROVAL WPL LIT2147711 Contact Us For Availability
1C
LABEL, TEMPERATURE CONTROL WPL LIT2147713 Contact Us For Availability
1D
Refrigerator Technical Sheet WPL LIT1127854 Contact Us For Availability
1E
Refrigerator Owner's Manual WPL LIT2147716 Contact Us For Availability
1F
Refrigerator Parts List WPL LIT2147751 Contact Us For Availability
1G
Owner's Manual WPL LIT787808 Contact Us For Availability
1H
Ice Maker Repair Manual WPL LIT787316 Contact Us For Availability
2
Refrigerator Wire Harness WPL 1114721 Contact Us For Availability
2
Plug (White) WPL 534927 Contact Us For Availability
2
Roller WPL 981128 Contact Us For Availability
2
Refrigerator Control Box WPL 1105455 Contact Us For Availability
3
Screw WPL 488681 Contact Us For Availability
4
Door Bracket (Black) WPL 1115910 Contact Us For Availability
4
Refrigerator Bracket WPL 944035 Contact Us For Availability
4
Defrost Timer WPL 1105267 Contact Us For Availability
5
Refrigerator Shelf Stud WPL 1106612 Contact Us For Availability
5
Screw WPL 488454 Contact Us For Availability
5A
Refrigerator Screw WPL 488930 Contact Us For Availability
6
Refrigerator Shield WPL 1116559 Contact Us For Availability
6
Switch-pm WPL 1106601 Contact Us For Availability
7
Refrigerator Shield WPL 1123211 Contact Us For Availability
7
Refrigerator Door Hinge Screw, Upper WPL 489327 Contact Us For Availability
7A
Screw WPL 489297 Contact Us For Availability
8
Refrigerator Shield WPL 1106892 Contact Us For Availability
8
Refrigerator Door Gasket WPL 1116734 Contact Us For Availability
8
Refrigerator Door Gasket WPL 1116735 Contact Us For Availability
9
Stud WPL 946356 Contact Us For Availability
9
Refrigerator Cover WPL 1123352 Contact Us For Availability
9
Refrigerator Control Panel Hole Plug WPL 940014 Contact Us For Availability
10
Refrigerator Cap WPL 944304 Contact Us For Availability
10
Refrigerator Heater WPL 1116548 Contact Us For Availability
10
Refrigerator Cap WPL 944302 Contact Us For Availability
11
Refrigerator Wire Tie WPL 1123230 Contact Us For Availability
11
Refrigerator Cap WPL 987870 Contact Us For Availability
11
Clip Mullion WPL 1106779 Contact Us For Availability
11
Refrigerator Cap WPL 944303 Contact Us For Availability
11
Refrigerator Thermostat Knob WPL 1123051 Contact Us For Availability
12
Stud WPL 946355 Contact Us For Availability
12
Refrigerator Door Handle WPL 1123136 Contact Us For Availability
12
Refrigerator Spacer WPL 940024 Contact Us For Availability
12
Refrigerator Door Handle WPL 1123142 Contact Us For Availability
13
Refrigerator Duct Cover WPL 1116558 Contact Us For Availability
13
Refrigerator Shim WPL 987872 Contact Us For Availability
13
Center Rail WPL 1116540 Contact Us For Availability
14
Refrigerator Heater WPL 1127759 Contact Us For Availability
14
Block WPL 942842 Contact Us For Availability
14
Refrigerator Spacer WPL 944320 Contact Us For Availability
14
Refrigerator Knob WPL 1123052 Contact Us For Availability
15
Interior Panel WPL 1116610 Contact Us For Availability
16
Refrigerator Shield WPL 1116636 Contact Us For Availability
16
Evaporator Motor WPL 1129407 Contact Us For Availability
16
Refrigerator Rod WPL 1116565 Contact Us For Availability
17
Clamp WPL 1127590 Contact Us For Availability
17
Refrigerator Door Hinge WPL 1123514 Contact Us For Availability
17
Refrigerator Door Trim WPL 1121077 Contact Us For Availability
17
Refrigerator Diffuser WPL 1123221 Contact Us For Availability
18
Refrigerator Door Trim WPL 1118064 Contact Us For Availability
18
Refrigerator Shim WPL 1123517 Contact Us For Availability
18
Refrigerator Divider WPL 1123293 Contact Us For Availability
18
Refrigerator Gasket WPL 1114325 Contact Us For Availability
19
Dampener WPL 510769 Contact Us For Availability
19
Grommet WPL 531933 Contact Us For Availability
19
Interior Panel WPL 1123129 Contact Us For Availability
19
Refrigerator Cover WPL 1108176 Contact Us For Availability
20
Clamp WPL 510716 Contact Us For Availability
20
Refrigerator Screw WPL 489179 Contact Us For Availability
20
Refrigerator Gasket WPL 1116567 Contact Us For Availability
21
Foam Slab WPL 876029 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Refrigerator Door Trim WPL 1121063 Contact Us For Availability
21
Refrigerator Hinge WPL 836153 Contact Us For Availability
22
Refrigerator Start Relay WPL 1105209 Contact Us For Availability
22
Grommet WPL 848445 Contact Us For Availability
22
Refrigerator Complete Door WPL 1128639 Contact Us For Availability
22
Refrigerator Shim WPL 836194 Contact Us For Availability
22
Refrigerator Wire Harness WPL 1127762 Contact Us For Availability
22A
Refrigerator Start Relay WPL 1108066 Contact Us For Availability
22A
Refrigerator Shim WPL 836195 Contact Us For Availability
23
Refrigerator Overload WPL 1118946 Contact Us For Availability
23
Refrigerator Fan Scroll WPL 1116598 Contact Us For Availability
23
Refrigerator Complete Door WPL 1128637 Contact Us For Availability
23
Refrigerator Retainer WPL 1115137 Contact Us For Availability
23
Hole Seal WPL 1129056 Contact Us For Availability
23
Refrigerator Gasket WPL 1116566 Contact Us For Availability
23A
Refrigerator Overload WPL 1108067 Contact Us For Availability
24
Refrigerator Evaporator Cover WPL 1116599 Contact Us For Availability
24
Refrigerator Retainer WPL 1115138 Contact Us For Availability
25
Refrigerator Terminal Cover WPL 1105221 Contact Us For Availability
25
Refrigerator Extension WPL 1123154 Contact Us For Availability
25
Refrigerator Ground Wire WPL 1129406 Contact Us For Availability
26
Refrigerator Retainer WPL 1105222 Contact Us For Availability
26
Refrigerator End Cap WPL 1123210 Contact Us For Availability
26
Refrigerator Door Hinge (Black) WPL 1123378 Contact Us For Availability
26
Refrigerator Filler WPL 942817 Contact Us For Availability
27
Refrigerator Door Hinge Pin, Lower WPL 654366 Contact Us For Availability
27
Plug WPL 1103725 Contact Us For Availability
27
Refrigerator Insulation WPL 1116569 Contact Us For Availability
28
Refrigerator Door Hinge Pin Screw WPL 488714 Contact Us For Availability
28
Grommet WPL 509812 Contact Us For Availability
28
Refrigerator Grommet WPL 1110779 Contact Us For Availability
29
Refrigerator Pin Plate WPL 1116986 Contact Us For Availability
29
Refrigerator Shim WPL 1123379 Contact Us For Availability
30
Refrigerator Door Hinge Pin Washer WPL 489200 Contact Us For Availability
30
Strap WPL 851095 Contact Us For Availability
31
Clip WPL 548744 Contact Us For Availability
31
Refrigerator Retainer WPL 1115136 Contact Us For Availability
31
Refrigerator Shim WPL 1121117 Contact Us For Availability
32
Clip WPL 548745 Contact Us For Availability
33
Refrigerator Filler (Black) WPL 1118078 Contact Us For Availability
33
Refrigerator Separator WPL 1116570 Contact Us For Availability
34
Refrigerator Muffler WPL 1121121 Contact Us For Availability
34
Filler (White) WPL 1118058 Contact Us For Availability
35
Rail Unit WPL 1116622 Contact Us For Availability
35
Refrigerator Cantilever Shelf WPL 1115079 Contact Us For Availability
35
Refrigerator Grille (Black) WPL 1118079 Contact Us For Availability
35
Refrigerator Cup WPL 937065 Contact Us For Availability
36
Refrigerator Nameplate WPL 1119250 Contact Us For Availability
36
Refrigerator Button Plug (White) WPL 1129062 Contact Us For Availability
37
Refrigerator Door Trim WPL 1121004 Contact Us For Availability
37
Refrigerator Wire Harness WPL 1118814 Contact Us For Availability
37
Refrigerator Bracket Knob WPL 1105457 Contact Us For Availability
38
Refrigerator Clip WPL 1115141 Contact Us For Availability
38
Suport-pnl WPL 1118008 Contact Us For Availability
39
Suport-pnl WPL 1118007 Contact Us For Availability
39
Refrigerator Wire Cover WPL 1105606 Contact Us For Availability
39
Refrigerator Drip Pan WPL 1116602 Contact Us For Availability
40
Refrigerator Air Baffle WPL 1114768 Contact Us For Availability
41
Refrigerator Motor Bracket WPL 1115132 Contact Us For Availability
44
Refrigerator Power Cord WPL 1129405 Contact Us For Availability
45
Refrigerator Fan Blade WPL 1115135 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Refrigerator Fitting WPL 937062 Contact Us For Availability
47
Refrigerator Evaporator Tray WPL 1116604 Contact Us For Availability
48
Refrigerator Baffle WPL 1118017 Contact Us For Availability
48
Refrigerator Cover Unit WPL 1116613 Contact Us For Availability
49
Cabinet Plug WPL 2147326 Contact Us For Availability
50
Hole Seal WPL 1120224 Contact Us For Availability
52
Refrigerator Clamp WPL 836077 Contact Us For Availability
56
Refrigerator Gasket WPL 1114548 Contact Us For Availability
61
Refrigerator Plate WPL 2147310 Contact Us For Availability
67
Refrigerator Tube Clamp WPL 1105607 Contact Us For Availability
68
Refrigerator Tube Clamp WPL 1110564 Contact Us For Availability
99
Refrigerator Door Handle WPL 1121719 Contact Us For Availability
NI
Refrigerator Service Valve WPL 978029 Contact Us For Availability
NI
Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability
NI
Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability
NI
Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
NI
Thinner WPL 350941 Contact Us For Availability
NI
Adhesive WPL 542639 Contact Us For Availability
NI
Epoxy WPL 799833 Contact Us For Availability
NI
Refrigerator Service Valve WPL 978028 Contact Us For Availability
NI
Refrigerator Glass Panel Cleaner (Black) WPL 978849 Contact Us For Availability
× ![]()
