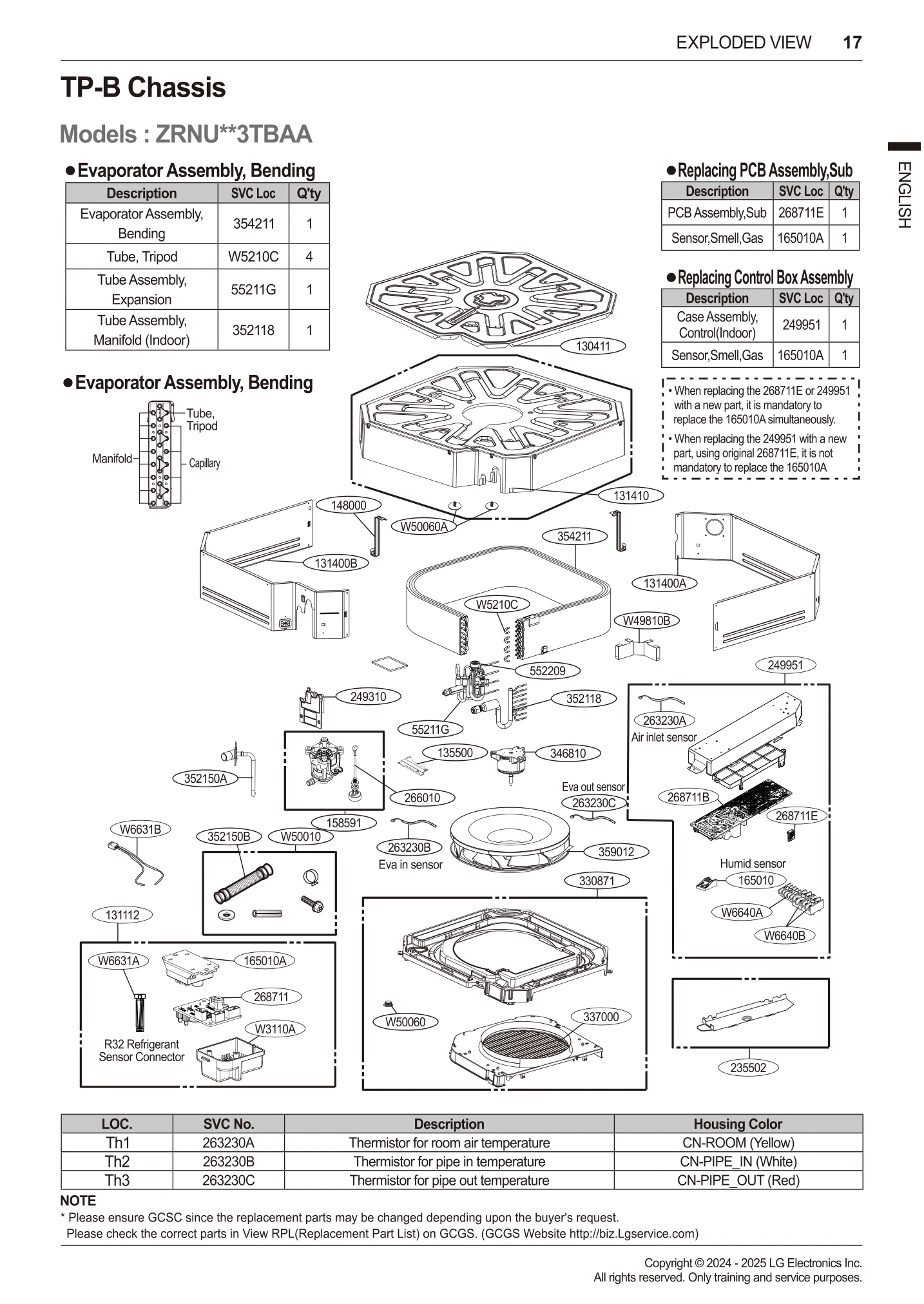

Model LG ZRNU153TBAA Multi V_I/D_Cassette – Common Parts & Diagrams

55211G
Tube Assembly,Expansion
Tube Assembly,Expansion LGE AJR74225408 Contact Us For Availability
View on Model
130411
Base Assembly,Indoor
Base Assembly,Indoor LGE AAN31579010 Contact Us For Availability
View on Model
131400A
Cabinet
Cabinet LGE MBH65042404 Contact Us For Availability
View on Model
131400B
Cabinet
Cabinet LGE MBH65062104 Contact Us For Availability
View on Model
131410
Cabinet Assembly
Cabinet Assembly LGE ABJ76147102 Contact Us For Availability
View on Model
148000
Supporter
Supporter LGE MJH66075702 Contact Us For Availability
View on Model
165010
Sensor Assembly
Sensor Assembly LGE EBD62905701 Contact Us For Availability
View on Model
235502
Cover
Cover LGE MCK71515201 Contact Us For Availability
View on Model
249310
Holder Assembly
Holder Assembly LGE AEJ75620001 Contact Us For Availability
View on Model
249951
Case Assembly,Control(Onboarding)
Case Assembly,Control(Onboarding) LGE ABQ30344475 Contact Us For Availability
View on Model
268711E
SVC PCB Assembly,Onboarding
SVC PCB Assembly,Onboarding LGE CSP30275265 Contact Us For Availability
View on Model
330871
Pan Assembly,Drain
Pan Assembly,Drain LGE AGK74230507 Contact Us For Availability
View on Model
337000
Mesh,Metal
Mesh,Metal LGE MFN55272306 Contact Us For Availability
View on Model
346810
Motor Assembly,DC,Indoor
Motor Assembly,DC,Indoor LGE 4681A20168G Contact Us For Availability
View on Model
352118
Tube Assembly,Manifold(Indoor)
Tube Assembly,Manifold(Indoor) LGE AJR30107601 Contact Us For Availability
View on Model
352150B
Hose Assembly,Drain
Hose Assembly,Drain LGE AEM33024002 Contact Us For Availability
View on Model
354211
Evaporator Assembly,Bending
Evaporator Assembly,Bending LGE ADL73841803 Contact Us For Availability
View on Model
359012
Fan Assembly,Turbo
Fan Assembly,Turbo LGE ADP75513502 Contact Us For Availability
View on Model
552209
Valve Module,Gear Expansion
Valve Module,Gear Expansion LGE MJX65072202 Contact Us For Availability
View on Model
W3110A
Case
Case LGE MBN66613701 Contact Us For Availability
View on Model
W5210C
Tube,Tripod
Tube,Tripod LGE MJU62167507 Contact Us For Availability
View on Model
W6631A
Harness,Single
Harness,Single LGE EAD64646924 Contact Us For Availability
View on Model
W6640A
Connector,Terminal Block
Connector,Terminal Block LGE EAG63452303 Contact Us For Availability
View on Model
W6640B
Connector,Terminal Block
Connector,Terminal Block LGE EAG38884446 Contact Us For Availability
View on Model
W49810B
Supporter Assembly
Supporter Assembly LGE AJJ76438401 Contact Us For Availability
View on Model
W50010
Accessory Assembly
Accessory Assembly LGE AAA30464901 Contact Us For Availability
View on Model
W50060A
Cap
Cap LGE MBL64919401 Contact Us For Availability
View on Model
