Model LG ZQ10A10B WINDOW AC – Common Parts & Diagrams

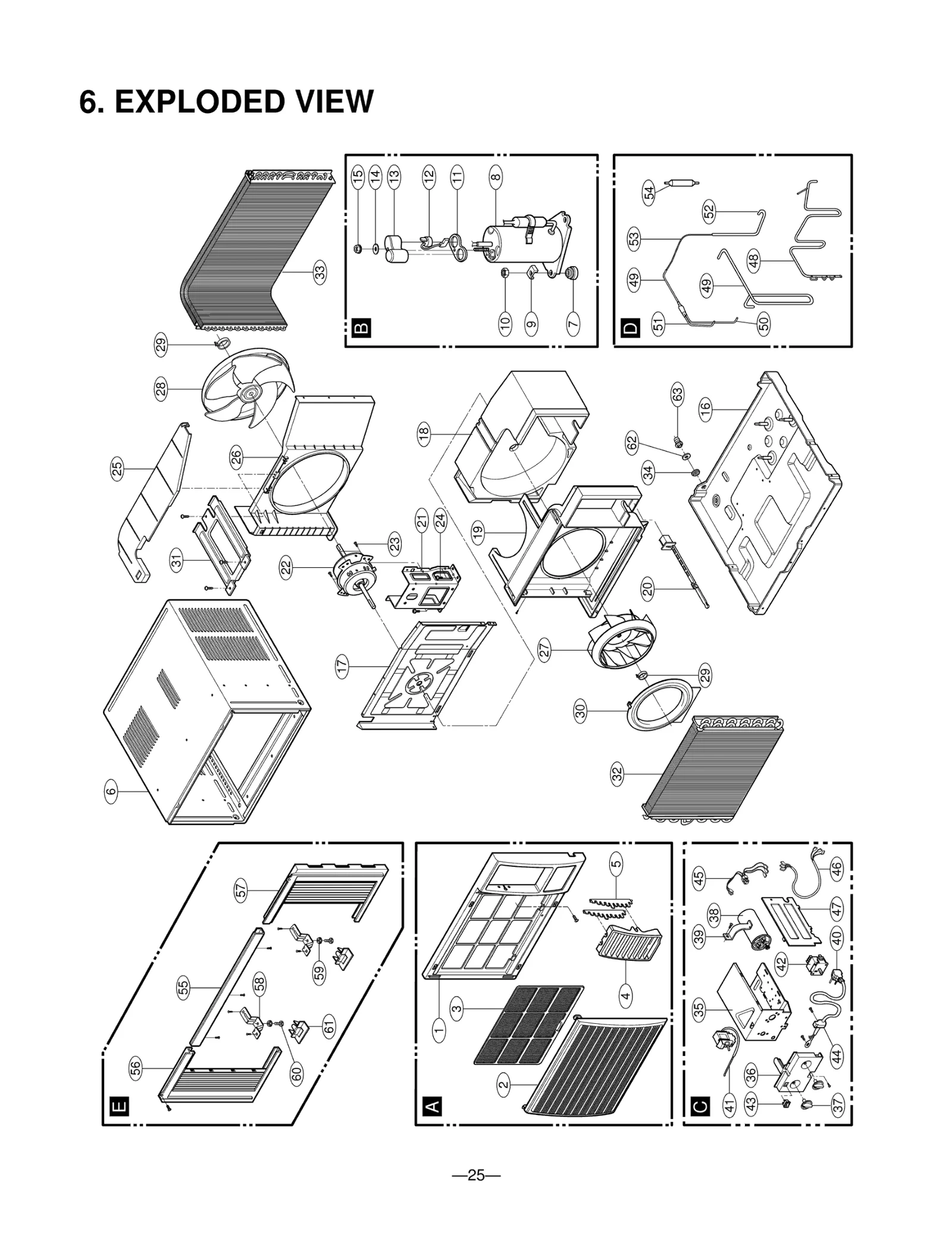

Diagram 0
Common parts from model LG ZQ10A10B WINDOW AC
132110-1
CURTAIN ASSY LW-B0811CL B0810C LGE 4959AR3402A Contact Us For Availability
132110-2
CURTAIN LW-B0811CL B0810C LGE 4959AR3402B Contact Us For Availability
135302
GRILLE,FRONT LGE 3530A10026A Contact Us For Availability
135312
LGE 3531A20034C LGE 3531A20034C Contact Us For Availability
135313
GRILLE,INLET LGE 3530A10028A Contact Us For Availability
137215
PANEL ASSY,CONTROL LGE 3721A20037B Contact Us For Availability
147581
LOUVER,HORIZONTAL LGE 4758A20002A Contact Us For Availability
147582
LOUVER,VERTICAL LGE 4758A30008A Contact Us For Availability
149410
KNOB ASSY LGE 4941A30011A Contact Us For Availability
149980
SHROUD LGE 4998A10010A Contact Us For Availability
249940
LGE 4994A10006B LGE 4994A10006B Contact Us For Availability
249950
CONTROL BOX ASSY,SINGLE LGE 4995A20118N Contact Us For Availability
264110
POWER CORD ASSY LGE 2H00677R Contact Us For Availability
266002
SWITCH,ROCKER LGE 2H01316C Contact Us For Availability
266003
ROTARY SWITCH 20A 125/250V SHA_2H00598F IS NO LGE 2H00598E Contact Us For Availability
269310
THERMOSTAT LGE 2H01109L Contact Us For Availability
330720
SCROLL LGE 3072A20004A Contact Us For Availability
346811
MOTOR ASSY,SINGLE LGE 4681A20027J Contact Us For Availability
349480
ORIFICE LGE 4948A30007A Contact Us For Availability
352111
TUBE ASSEMBLY,CONNECTOR LGE 5211AR7059Y Contact Us For Availability
352113
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211AR2930Z Contact Us For Availability
352380
AIR GUIDE LGE 5238A10006A Contact Us For Availability
352390
AIR GUIDE ASSY LGE 5239A30002D Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20061F Contact Us For Availability
359012
FAN,TURBO LGE 5900A20016A Contact Us For Availability
552111
TUBE ASSEMBLY,CAPILLARY LGE 5211A20598B Contact Us For Availability
554031
CONDENSER ASSY,BENT LGE 5403A20043B Contact Us For Availability
554160
COMPRESSOR SET LGE 2520UKLC2CA Contact Us For Availability
558511
DRIER ASSEMBLY LGE 5851A30001F Contact Us For Availability
648600
CLAMP CAPACITOR L=85 LW-A0512C LGE 4H00442N Contact Us For Availability
731273
INSTALL PART ASSY LGE 3127AR3403M Contact Us For Availability
749740-2
FRAME GUIDE PP LW-B0811CL,B081 LGE 3210AR3337A Contact Us For Availability
W0CZZ
CAPACITOR,DRAWING LGE 0CZZA20001V Contact Us For Availability
W1BHD
HEXAGON HEAD BOLT M COARSE 1 LGE 1BHD1004006 Contact Us For Availability
W1NZZ
HEXAGON NUTS 3 (2DRZ6074 06/2 LGE 1NHC1000006 Contact Us For Availability
W4004
CLIP CORD, GA-1830FC LGE 4H01762A Contact Us For Availability
W4810-2
BRACKET SILL SUPPORT "WC" FOR LGE 4810AR3240A Contact Us For Availability
W6631-1
CONNECTOR ASSEMBLY LGE 6631AR3843P Contact Us For Availability
W52106
TUBE,EVAPORATOR LGE 5210A21847B Contact Us For Availability
× ![]()
