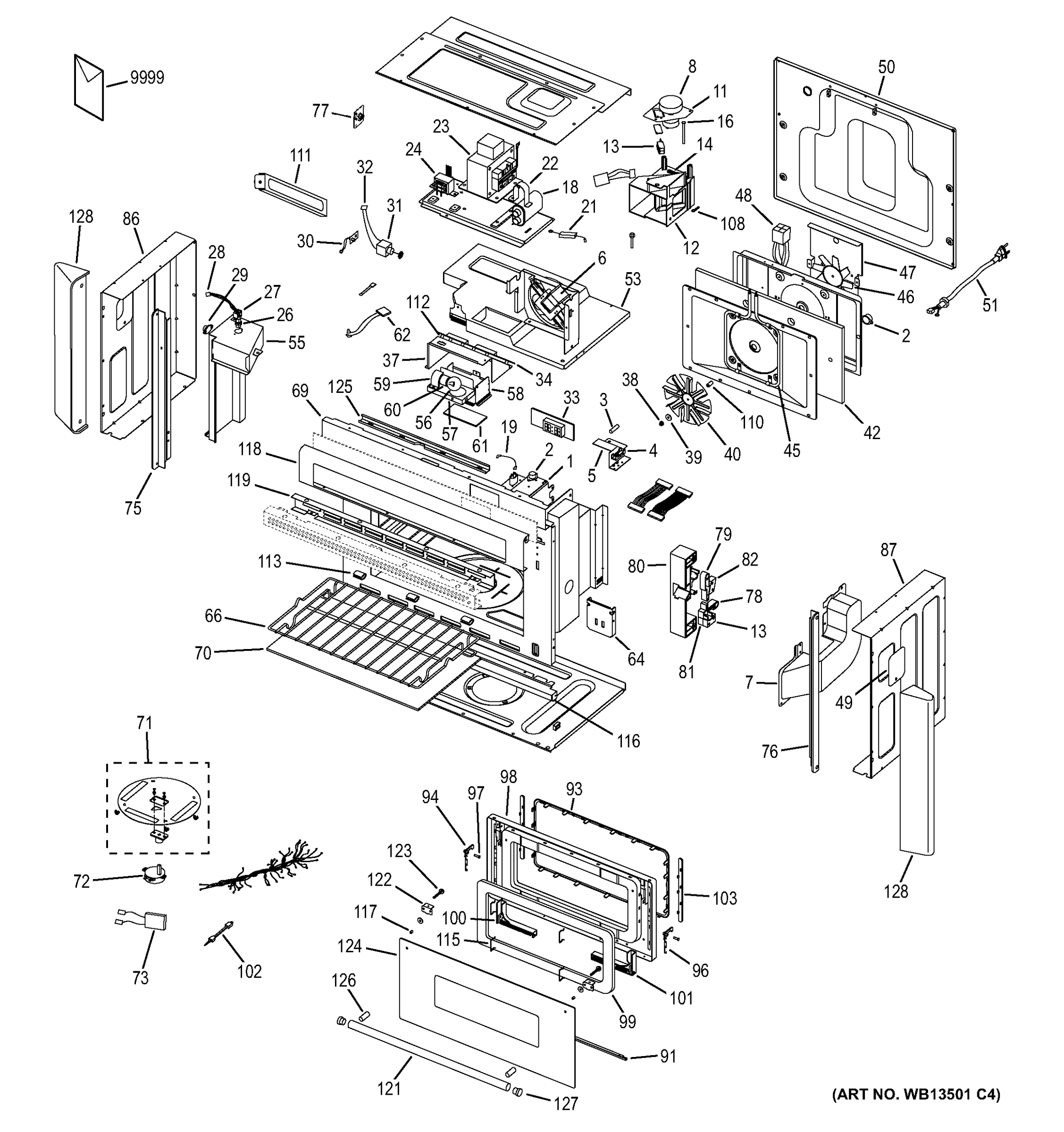

Model GE ZMC1095SF03 – Common Parts & Diagrams
MICROWAVE
Common parts from model GE ZMC1095SF03
2
THERMOSTAT GEN WB24X10041 Contact Us For Availability
13
SECONDARY SWITCH GEN WB24X0806 Contact Us For Availability
14
LEVER-DAMPER GEN WB01X1472 Contact Us For Availability
16
PIN-DAMPER GEN WB01X1473 Contact Us For Availability
19
WIRE LEAD-A GEN WB18X0455 Contact Us For Availability
22
BRACKET-HVC GEN WB06X10200 Contact Us For Availability
24
TRANS-L V GEN WB27X1109 Contact Us For Availability
27
BRACKET-COVER GEN WB06X0345 Contact Us For Availability
28
WIRE HARNESS-H GEN WB18X0540 Contact Us For Availability
29
THERMOSTAT GEN WB24X0807 Contact Us For Availability
30
THERMOSTAT ASM GEN WB27X0877 Contact Us For Availability
31
SOCKET-PROBE GEN WB08X0302 Contact Us For Availability
32
WIRE HARNESS-G GEN WB18X0543 Contact Us For Availability
33
ASSY PCB SUB GEN WB27X1055 Contact Us For Availability
34
PCB ASSY GEN WB27X10300 Contact Us For Availability
37
BRACKET-PCB GEN WB06X10201 Contact Us For Availability
38
NUT-L GEN WB01X1416 Contact Us For Availability
40
BLADE-FAN GEN WB06X0376 Contact Us For Availability
42
ADIABATIC-CONVECTION GEN WB53X0294 Contact Us For Availability
45
HEATER-CONVECTION GEN WB44X10025 Contact Us For Availability
46
BLADE-FAN GEN WB06X0347 Contact Us For Availability
47
MOTOR-SYNCHRONOUS GEN WB26X0164 Contact Us For Availability
48
WIRE HARNESS-D GEN WB18X0547 Contact Us For Availability
49
COVER-OVEN LAMP GEN WB53X0306 Contact Us For Availability
50
WIRE-SADDLE GEN WB02X9330 Contact Us For Availability
51
POWER CORD ASM GEN WB18X0545 Contact Us For Availability
53
BASE-PLATE GEN WB53X0297 Contact Us For Availability
55
DUCT EXHAUST ASSY GEN WB06X10202 Contact Us For Availability
57
COVER-OVEN LAMP GEN WB04X0144 Contact Us For Availability
58
BRACKET-LAMP GEN WB04X0145 Contact Us For Availability
59
HOLDER-LAMP GEN WB04X0146 Contact Us For Availability
60
SOCKET-LAMP GEN WB08X0300 Contact Us For Availability
61
GLASS-LAMP GEN WB36X0867 Contact Us For Availability
62
WIRE HARNESS-B GEN WB18X0544 Contact Us For Availability
64
BRACKET-HINGE GEN WB04X0147 Contact Us For Availability
66
RACK-WIRE GEN WB48X0225 Contact Us For Availability
69
BRACKET-PANEL GEN WB04X0148 Contact Us For Availability
70
TRAY CERAMIC ASM GEN WB49X0678 Contact Us For Availability
71
BLADE STIRRER ASM GEN WB06X0349 Contact Us For Availability
72
STIRRER MOTOR GEN WB26X0154 Contact Us For Availability
73
WIRE HARNESS-C GEN WB18X0539 Contact Us For Availability
75
TRIMMER-SIDE-L GEN WB07X10246 Contact Us For Availability
76
TRIMMER-SIDE-R GEN WB07X10247 Contact Us For Availability
77
NOISE FILTER GEN WB02X11245 Contact Us For Availability
78
LEVER-SLIDER-A GEN WB04X0149 Contact Us For Availability
79
LEVER-SLIDER-B GEN WB04X0150 Contact Us For Availability
80
BODY-LATCH GEN WB04X0151 Contact Us For Availability
81
SWITCH-MICRO GEN WB24X0428 Contact Us For Availability
82
SWITCH-MICRO GEN WB24X10042 Contact Us For Availability
86
CABINET-L GEN WB53X0301 Contact Us For Availability
87
CABINET-R GEN WB53X0302 Contact Us For Availability
91
BRACKET-DOOR GEN WB04X10012 Contact Us For Availability
93
DOOR-C GEN WB55X0830 Contact Us For Availability
94
DOOR-KEY GEN WB04X0154 Contact Us For Availability
96
SPRING-KEY GEN WB01X1475 Contact Us For Availability
97
PIN-DOOR KEY GEN WB02X9766 Contact Us For Availability
98
LINER&CHOKE ASM W\GLASS GEN WB55X0831 Contact Us For Availability
99
ADIABATIC-DOOR GEN WB53X10009 Contact Us For Availability
100
LATCH(L) ASM GEN WB04X0155 Contact Us For Availability
101
LATCH(R) GEN WB04X0157 Contact Us For Availability
102
GEN WB20X0159 GEN WB20X0159 Contact Us For Availability
103
GEN WB55X0861 GEN WB55X0861 Contact Us For Availability
108
GEN WB02X9357 GEN WB02X9357 Contact Us For Availability
110
GEN WB01X1486 GEN WB01X1486 Contact Us For Availability
111
GEN WB04X10008 GEN WB04X10008 Contact Us For Availability
115
GEN WB02X10600 GEN WB02X10600 Contact Us For Availability
116
GEN WB07X10248 GEN WB07X10248 Contact Us For Availability
117
GEN WB04X0187 GEN WB04X0187 Contact Us For Availability
118
GEN WB07X10249 GEN WB07X10249 Contact Us For Availability
119
GEN WB04X0162 GEN WB04X0162 Contact Us For Availability
121
GEN WB15X10061 GEN WB15X10061 Contact Us For Availability
122
GEN WB14X0177 GEN WB14X0177 Contact Us For Availability
123
GEN WB01X10087 GEN WB01X10087 Contact Us For Availability
124
GEN WB36X10122 GEN WB36X10122 Contact Us For Availability
125
GEN WB04X10013 GEN WB04X10013 Contact Us For Availability
126
GEN WB02X10693 GEN WB02X10693 Contact Us For Availability
127
GEN WB02X10694 GEN WB02X10694 Contact Us For Availability
128
GEN WB07X10490 GEN WB07X10490 Contact Us For Availability
9999
GEN 3120088 GEN 3120088 Contact Us For Availability
9999
GEN 4940362 GEN 4940362 Contact Us For Availability
9999
GEN 498978 GEN 498978 Contact Us For Availability
× ![]()
