Model GE ZMC1095BF001 Microwave Or Advantium – Common Parts & Diagrams

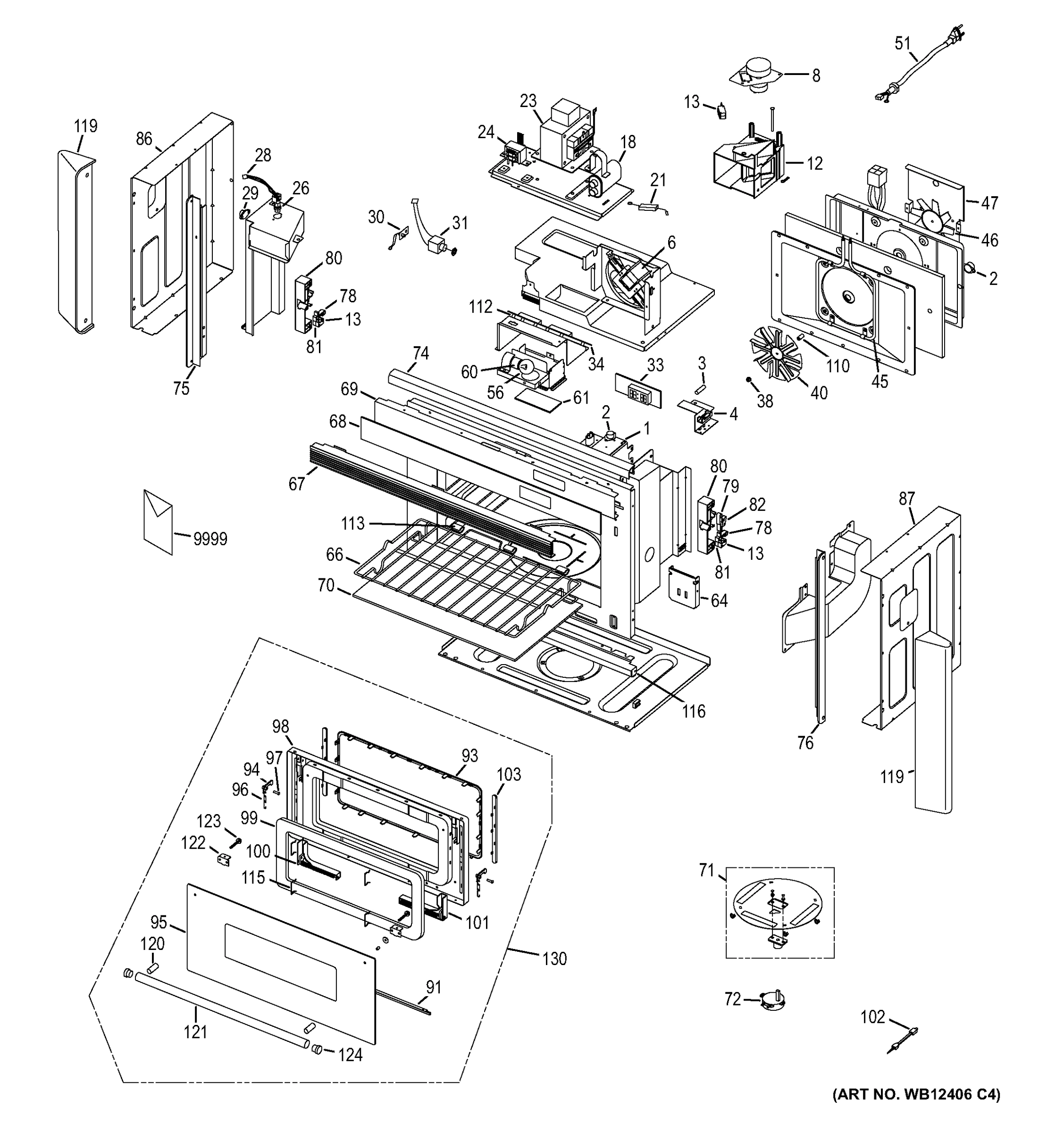

MICROWAVE
Common parts from model GE ZMC1095BF001 Microwave Or Advantium
2
THERMOSTAT GEN WB24X10041 Contact Us For Availability
28
WIRE HARNESS-H GEN WB18X0540 Contact Us For Availability
29
THERMOSTAT GEN WB24X0807 Contact Us For Availability
30
THERMOSTAT ASM GEN WB27X0877 Contact Us For Availability
31
SOCKET-PROBE GEN WB08X0302 Contact Us For Availability
33
ASSY PCB SUB GEN WB27X1055 Contact Us For Availability
34
PCB ASS'Y GEN WB27X10575 Contact Us For Availability
38
NUT-L GEN WB01X1416 Contact Us For Availability
40
BLADE-FAN GEN WB06X0376 Contact Us For Availability
45
HEATER-CONVECTION GEN WB44X10025 Contact Us For Availability
46
BLADE-FAN GEN WB06X0347 Contact Us For Availability
47
MOTOR-SYNCHRONOUS GEN WB26X0164 Contact Us For Availability
51
POWER CORD ASM GEN WB18X0545 Contact Us For Availability
60
SOCKET-LAMP GEN WB08X0300 Contact Us For Availability
61
GLASS-LAMP GEN WB36X0867 Contact Us For Availability
64
BRACKET-HINGE GEN WB04X0147 Contact Us For Availability
66
RACK-WIRE GEN WB48X0225 Contact Us For Availability
67
GRILLE GEN WB07X1956 Contact Us For Availability
68
SWITCH-MEMBRANE GEN WB27X10588 Contact Us For Availability
69
BRACKET-PANEL GEN WB04X0148 Contact Us For Availability
70
TRAY CERAMIC ASM GEN WB49X0678 Contact Us For Availability
71
BLADE STIRRER ASM GEN WB06X0349 Contact Us For Availability
72
STIRRER MOTOR GEN WB26X0154 Contact Us For Availability
74
TRIMMER-UPPER GEN WB07X1958 Contact Us For Availability
75
TRIMMER-SIDE-L GEN WB07X1960 Contact Us For Availability
76
TRIMMER-SIDE-R GEN WB07X1962 Contact Us For Availability
78
LEVER-SLIDER-A GEN WB04X0149 Contact Us For Availability
79
LEVER-SLIDER-B GEN WB04X0150 Contact Us For Availability
80
BODY-LATCH GEN WB04X0151 Contact Us For Availability
81
SWITCH-MICRO GEN WB24X0428 Contact Us For Availability
82
SWITCH-MICRO GEN WB24X10042 Contact Us For Availability
86
CABINET-L GEN WB53X0301 Contact Us For Availability
87
CABINET-R GEN WB53X0302 Contact Us For Availability
91
BRACKET-DOOR GEN WB04X0153 Contact Us For Availability
93
DOOR-C GEN WB55X0830 Contact Us For Availability
94
DOOR-KEY GEN WB04X0154 Contact Us For Availability
95
SCREEN-DOOR-A GEN WB36X10210 Contact Us For Availability
96
SPRING-KEY GEN WB01X1475 Contact Us For Availability
97
PIN-DOOR KEY GEN WB02X9766 Contact Us For Availability
98
LINER&CHOKE ASM W\GLASS GEN WB55X0831 Contact Us For Availability
99
ADIABATIC-DOOR GEN WB53X10009 Contact Us For Availability
100
LATCH(L) ASM GEN WB04X0155 Contact Us For Availability
101
LATCH(R) ASM GEN WB04X0157 Contact Us For Availability
102
SENSOR-THERMISTOR GEN WB20X0159 Contact Us For Availability
103
COVER-SLOT GEN WB55X0861 Contact Us For Availability
110
BUSHING GEN WB01X1486 Contact Us For Availability
115
HOLDER-ADIABATIC GEN WB02X10600 Contact Us For Availability
116
TRIMMER-LOWER GEN WB07X10236 Contact Us For Availability
119
TRIMMER-SIDE(30") GEN WB07X10494 Contact Us For Availability
120
SUPPORTER-BUSH GEN WB02X10815 Contact Us For Availability
121
HANDLE-DOOR GEN WB15X10080 Contact Us For Availability
122
BRKT HANDLE GEN WB14X0177 Contact Us For Availability
123
SCREW-MOUNTING GEN WB01X10087 Contact Us For Availability
124
CAP-INSERT GEN WB02X10816 Contact Us For Availability
130
DOOR COMPLETE ASS'Y GEN WB55X10549 Contact Us For Availability
9999
MINI MANUAL GEN 3120088 Contact Us For Availability
9999
USE & CARE GEN 49100982 Contact Us For Availability
9999
INSTRUCTIONS INSTALL GEN 498978 Contact Us For Availability
× ![]()
