Model GE ZIW241NBWBII – Common Parts & Diagrams

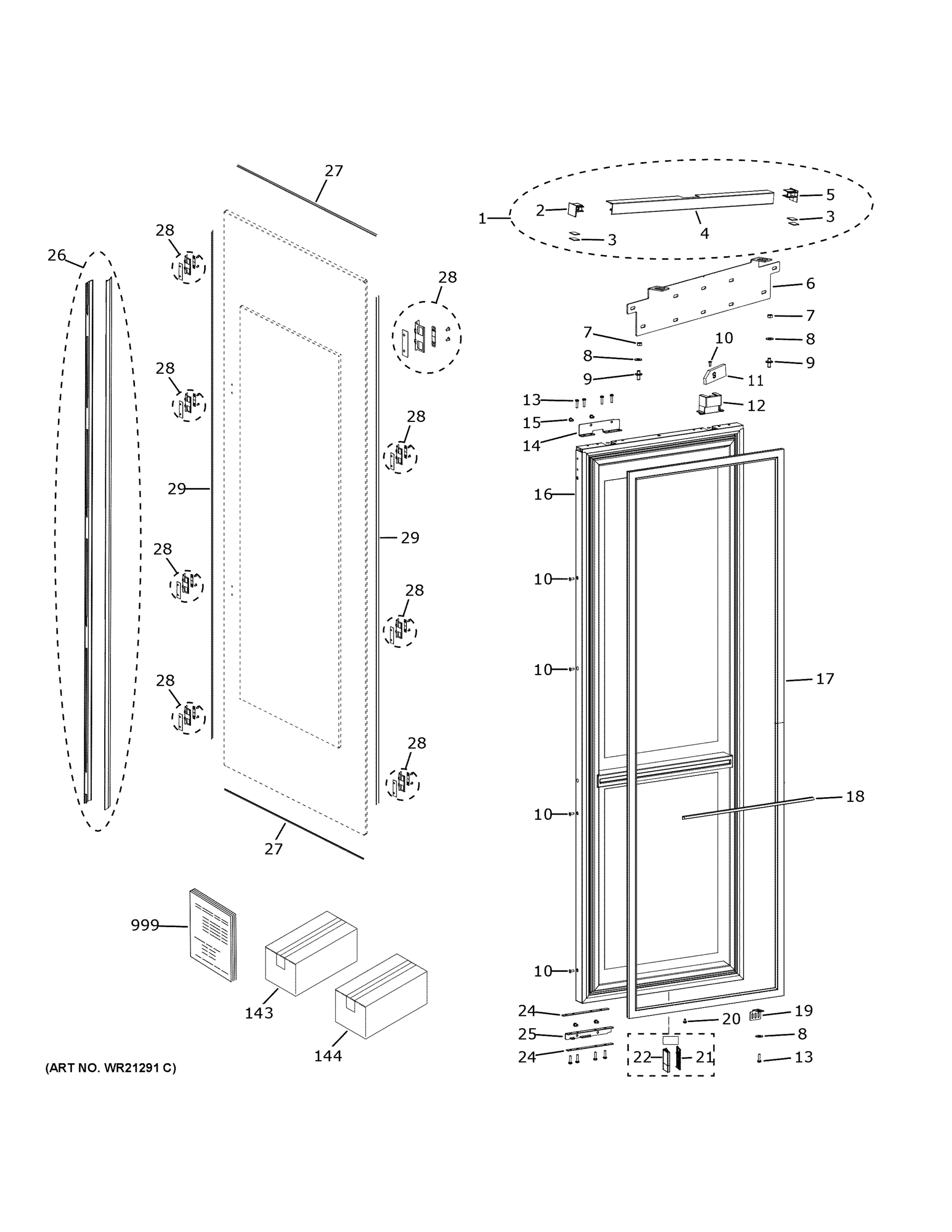

DOOR

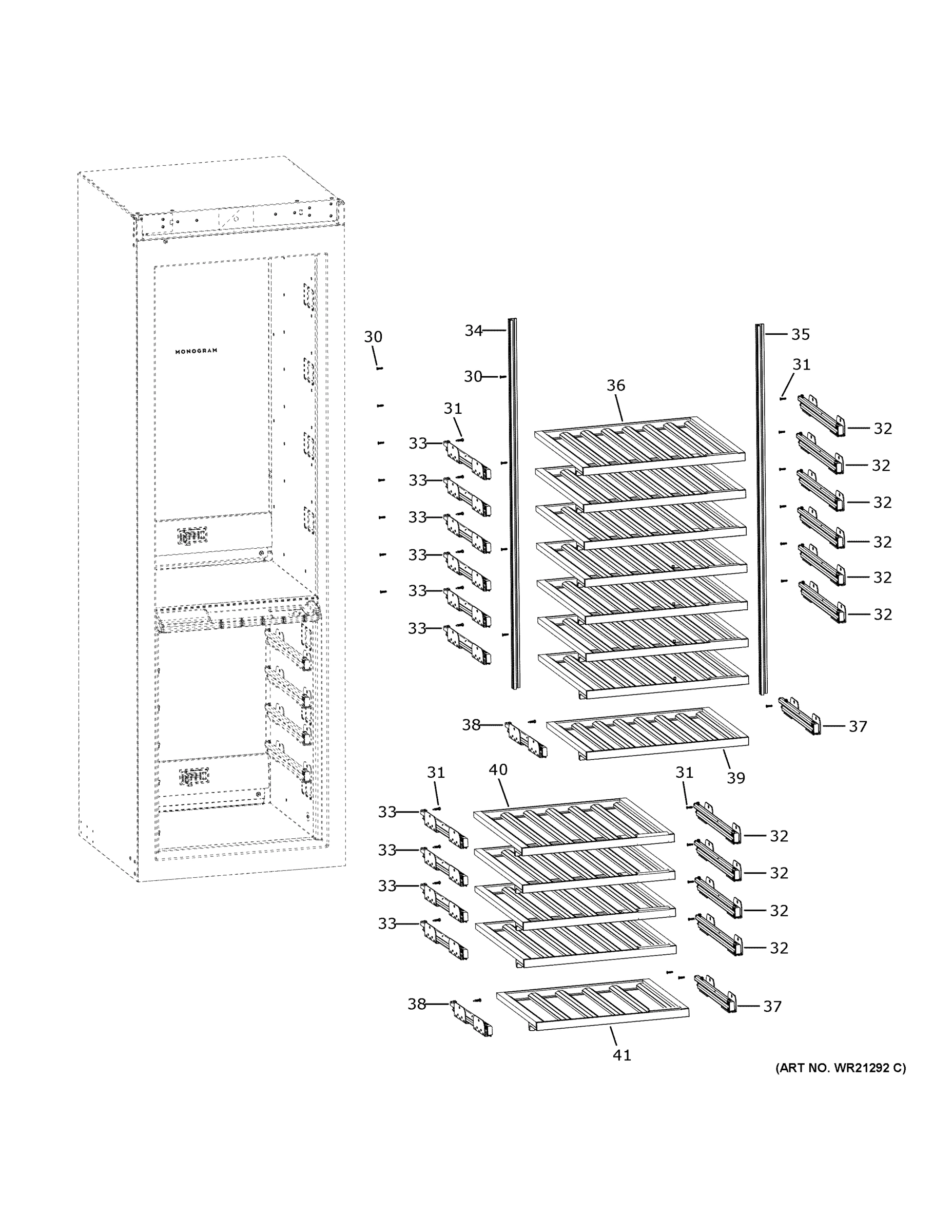

RACKS & SLIDES
REFRIGERATOR SECTION
CASE PARTS
MACHINE COMPARTMENT
LOKRING CONNECTORS
Common parts from model GE ZIW241NBWBII
7
HEX NUT M8 GEN WR01X46411 Contact Us For Availability
8
WASHER M8X21X1.6 GEN WR01X46412 Contact Us For Availability
9
BOLT GEN WR01X46413 Contact Us For Availability
11
DOOR MAGNET SWITCH GEN WR55X46415 Contact Us For Availability
12
DOOR MAGNET BRACKET GEN WR01X46425 Contact Us For Availability
13
SCREW MC M5X20 GEN WR01X46426 Contact Us For Availability
14
RIGHT TOP HINGE BRACKET GEN WR01X46427 Contact Us For Availability
15
SCREW MC M6X10 GEN WR01X46428 Contact Us For Availability
16
DOOR & GASKET ASSEMBLY GEN WR78X46429 Contact Us For Availability
18
DOOR SEAL DIVIDER GEN WR14X46431 Contact Us For Availability
19
DOOR STOP GEN WR01X46432 Contact Us For Availability
21
DIVIDER FLOW CAP GEN WR01X46434 Contact Us For Availability
22
DIVIDER MOUNT ASSEMBLY GEN WR01X46435 Contact Us For Availability
25
RIGHT BOTTOM HINGE BRACKET GEN WR01X46438 Contact Us For Availability
26
DOOR TRIM KIT GEN WR02X46439 Contact Us For Availability
27
GLASS DOOR PANEL TRIM - SHORT GEN WR02X46446 Contact Us For Availability
28
DOOR PANEL BRACKET KIT GEN WR02X46447 Contact Us For Availability
29
GLASS DOOR PANEL TRIM - LONG GEN WR02X46449 Contact Us For Availability
30
SCREW GEN WR01X46450 Contact Us For Availability
32
RIGHT SHELF SLIDE GEN WR72X46451 Contact Us For Availability
33
LEFT SHELF SLIDE GEN WR72X46452 Contact Us For Availability
34
LEFTHAND WINE RAIL GEN WR02X46453 Contact Us For Availability
35
RIGHTHAND WINE RAIL GEN WR02X46454 Contact Us For Availability
37
RIGHT SHORT SHELF SLIDE GEN WR72X46456 Contact Us For Availability
39
UPPER SHORT WINE RACK GEN WR71X46458 Contact Us For Availability
40
LOWER WINE RACK GEN WR71X46459 Contact Us For Availability
42
SCREW GEN WH2X1224 Contact Us For Availability
44
RIGHT END CAP GASKET GEN WR14X46462 Contact Us For Availability
46
LEFT END CAP GASKET GEN WR14X46464 Contact Us For Availability
47
LEFT END CAP GEN WR13X46465 Contact Us For Availability
48
DIVIDER COVER GEN WR13X46466 Contact Us For Availability
50
SCREW M4X35 GEN WR01X46468 Contact Us For Availability
52
ODOR FILTER ASSEMBLY GEN WR01X46470 Contact Us For Availability
54
LOWER DRAIN COVER GEN WR13X46472 Contact Us For Availability
56
GROUNDING CLIP GEN WR02X46474 Contact Us For Availability
58
LOWER EVAPORATOR COVER GEN WR14X46476 Contact Us For Availability
59
UPPER DRAIN COVER GEN WR13X46477 Contact Us For Availability
60
UPPER DRAIN COVER KIT GEN WR13X46478 Contact Us For Availability
61
UPPER EVAPORATOR COVER GEN WR14X46479 Contact Us For Availability
63
SCREW GEN WR01X46481 Contact Us For Availability
64
FAN HOUSING GEN WR02X46482 Contact Us For Availability
66
DEFROST HEATER GEN WR09X46484 Contact Us For Availability
67
DEFROST HEATER GROUNDING HARNESS GEN WR55X46485 Contact Us For Availability
68
UPPER HEAT SHIELD GEN WR02X46486 Contact Us For Availability
70
LOWER HEAT SHIELD GEN WR02X46488 Contact Us For Availability
71
LOWER DRAIN THROUGH GEN WR02X46489 Contact Us For Availability
73
UPPER DRAIN THROUGH GEN WR02X46491 Contact Us For Availability
76
THERMISTOR GEN WR09X46494 Contact Us For Availability
78
LOWER RIGHT HINGE BRACKET GEN WR02X46496 Contact Us For Availability
79
SCREW GEN WR01X46497 Contact Us For Availability
80
HINGE-K05-A GEN WR13X46505 Contact Us For Availability
82
WASHER GEN WR01X46507 Contact Us For Availability
84
TOP HINGE BRACKET GEN WR01X46509 Contact Us For Availability
87
LED COVER GEN WR13X46512 Contact Us For Availability
88
LED BOARD & COVER GEN WR55X46513 Contact Us For Availability
89
LIGHT PANEL GEN WR02X46514 Contact Us For Availability
90
TOP TRIM GEN WR02X46515 Contact Us For Availability
91
DUAL LOCK TAPE GEN WR02X46516 Contact Us For Availability
92
RIGHT TOP MOUNTING BRACKET GEN WR02X46517 Contact Us For Availability
94
WIFI AND BLUETOOTH MODULE WITH ENCLOSURE GEN WD21X34521 Contact Us For Availability
95
WIFI & BLUETOOTH HOUSING GEN WR02X46519 Contact Us For Availability
96
SCREW GEN WR01X46448 Contact Us For Availability
98
REED SWITCH GEN WR55X46521 Contact Us For Availability
100
HUMIDITY SENSOR BOARD GEN WR55X46523 Contact Us For Availability
101
CONDENSER FAN GEN WR60X46524 Contact Us For Availability
102
CONDENSER FAN BRACKET GEN WR01X46525 Contact Us For Availability
103
FILTER MANIFOLD COVER GEN WR13X46526 Contact Us For Availability
104
FILTER MANIFOLD HOLDER GEN WR02X46527 Contact Us For Availability
106
GROMMET GEN WR01X46529 Contact Us For Availability
107
MACHINE COVER GEN WR13X46530 Contact Us For Availability
109
SCREW GEN WR01X46532 Contact Us For Availability
110
3-WAY VALVE GEN WR87X46533 Contact Us For Availability
111
CLIP GEN WR01X46534 Contact Us For Availability
112
COMMUNICATION PORT COVER GEN WR13X46535 Contact Us For Availability
113
POWER CORD HARNESS GEN WR55X46536 Contact Us For Availability
115
COMPRESSOR KIT GEN WR87X46541 Contact Us For Availability
116
DRIER FILTER GEN WR87X46542 Contact Us For Availability
117
COMPRESSOR MOUNTING KIT GEN WR02X46537 Contact Us For Availability
119
COMPRESSOR MOUNTING STUD GEN WR01X46544 Contact Us For Availability
121
COMPRESSOR TERMINAL COVER GEN WR13X46546 Contact Us For Availability
122
INVERTER GEN WR87X46547 Contact Us For Availability
127
VALVE SENSOR HARNESS GEN WR55X46552 Contact Us For Availability
131
FILTER GRILLE COVER GEN WR13X46556 Contact Us For Availability
133
DISCHARGE TUBE GEN WR87X46557 Contact Us For Availability
134
TOEKICK PLATE BRACKET GEN WR02X46558 Contact Us For Availability
135
LOWER DRAIN TUBE GEN WR02X46559 Contact Us For Availability
137
UPPER DRAIN TUBE GEN WR02X46561 Contact Us For Availability
138
SCREW GEN WR01X46562 Contact Us For Availability
139
FRONT LEVELING LEG & ROLLER GEN WR01X46563 Contact Us For Availability
140
LEVELING LEG ADJUSTMENT ROD GEN WR01X46564 Contact Us For Availability
141
REAR LEVELING LEG & ROLLER GEN WR01X46565 Contact Us For Availability
145
PROCESS TUBE GEN WR02X46539 Contact Us For Availability
999
PRINTED AND ONLINEMINI MANUAL AND WIRING GEN 311000773 Contact Us For Availability
999
PRINTED AND ONLINEOWNERS MANUAL GEN 491000762 Contact Us For Availability
7003
.295" - 1/4" BRASS REDUC GEN WR97X10081 Contact Us For Availability
× ![]()
