Model GE ZISW48DCB Refrigerator – Common Parts & Diagrams

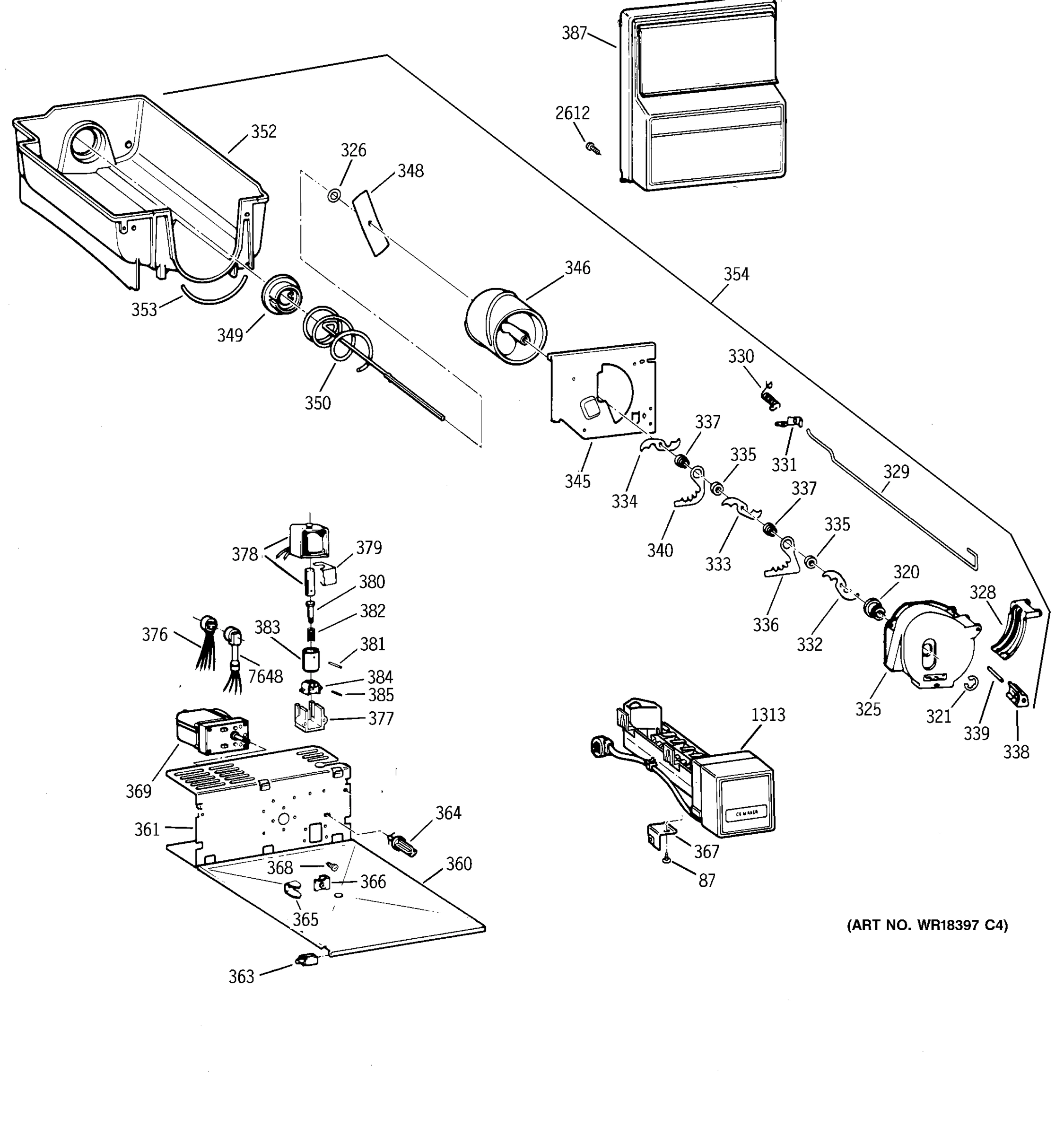

DISPENSER

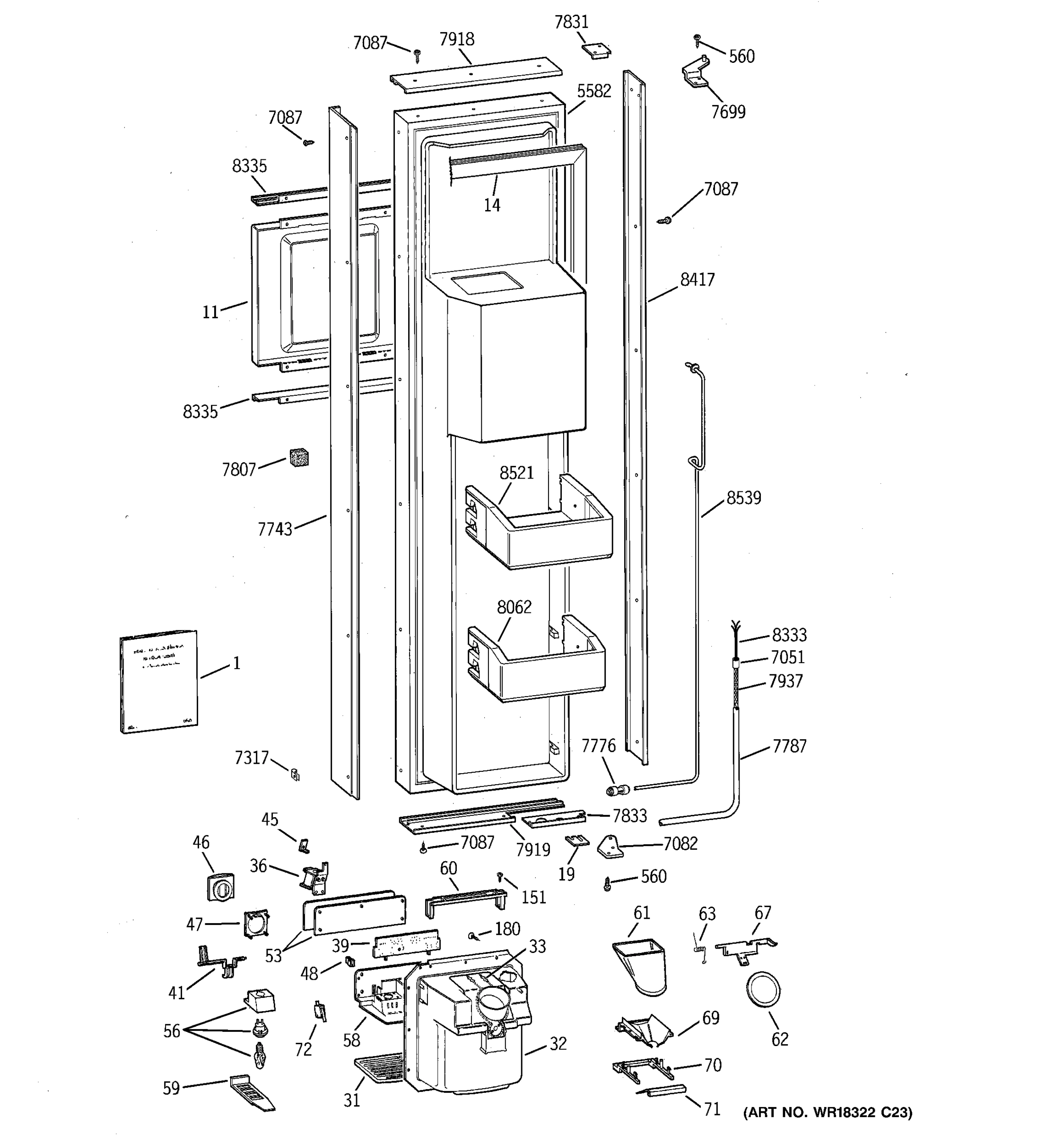

FREEZER DOOR

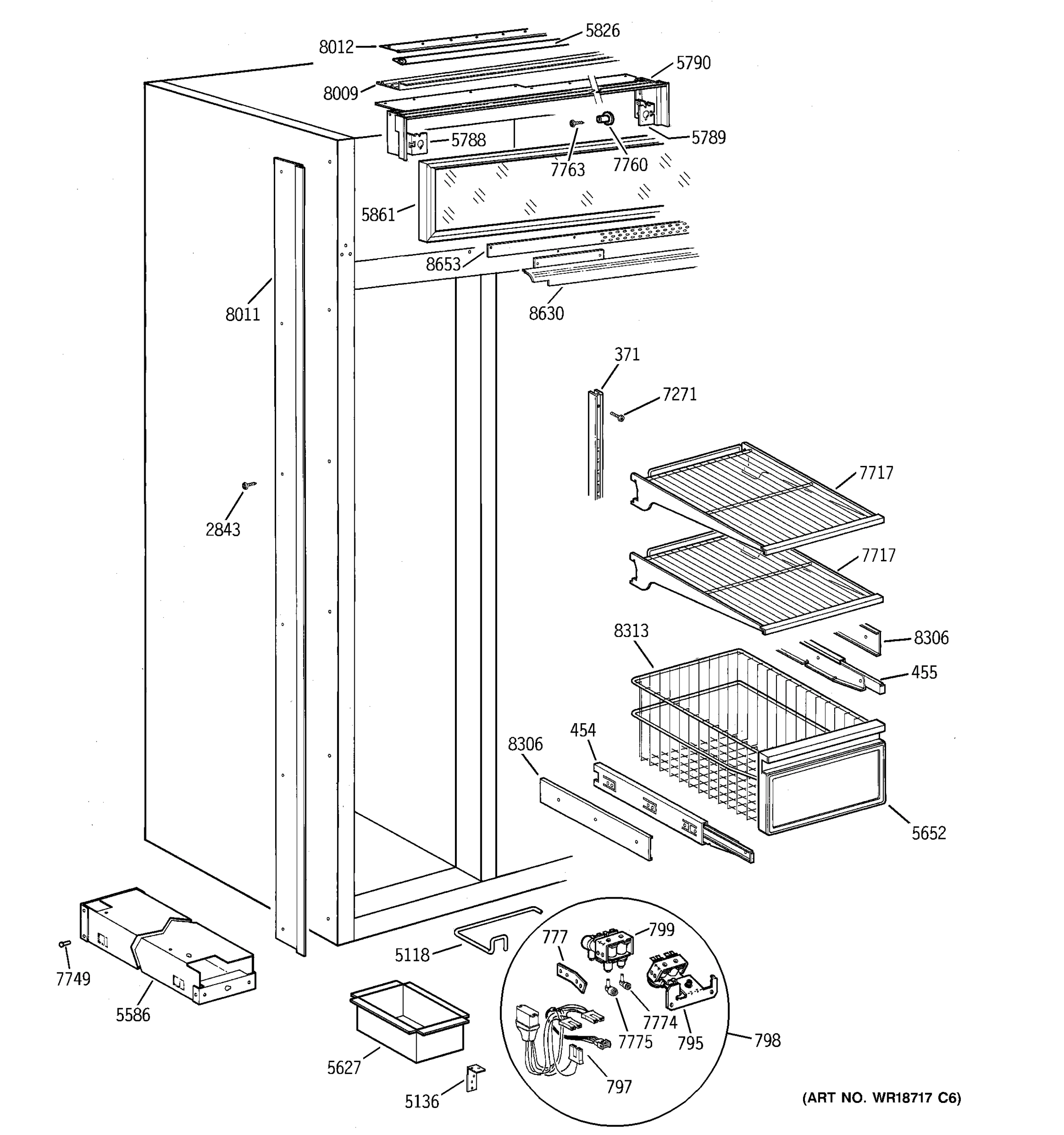

FREEZER SECTION

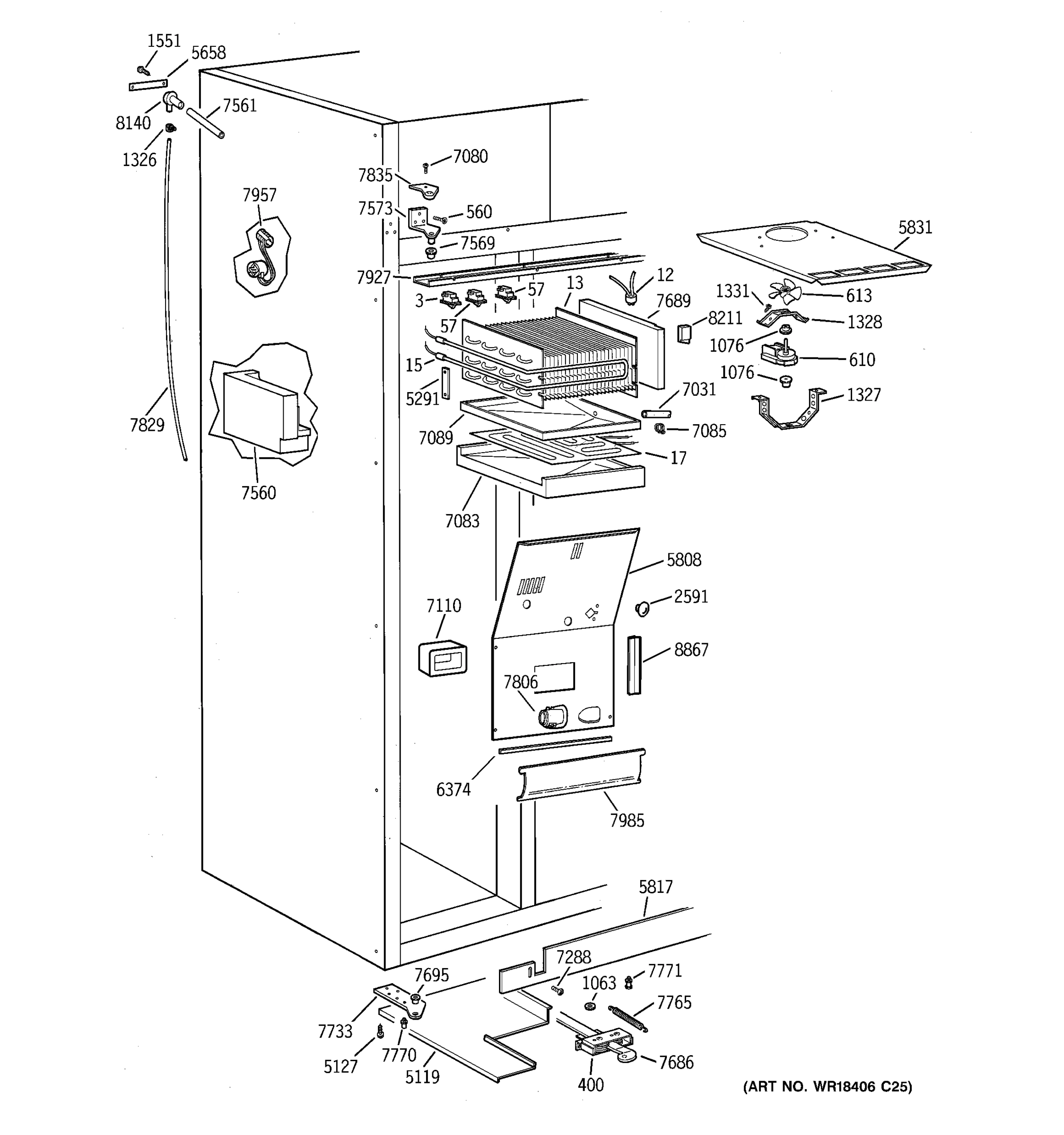

FREEZER SECTION

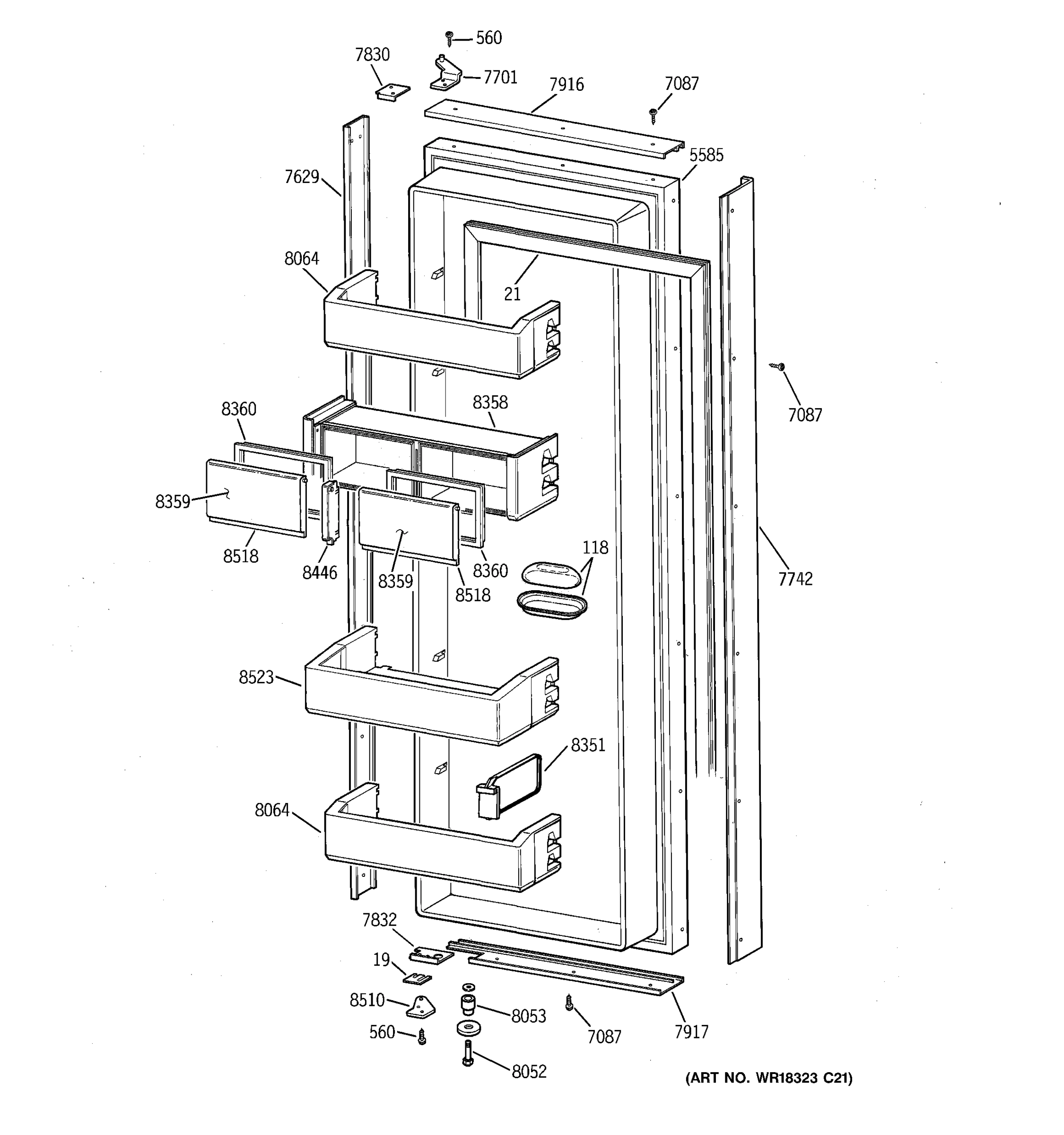

FRESH FOOD DOOR

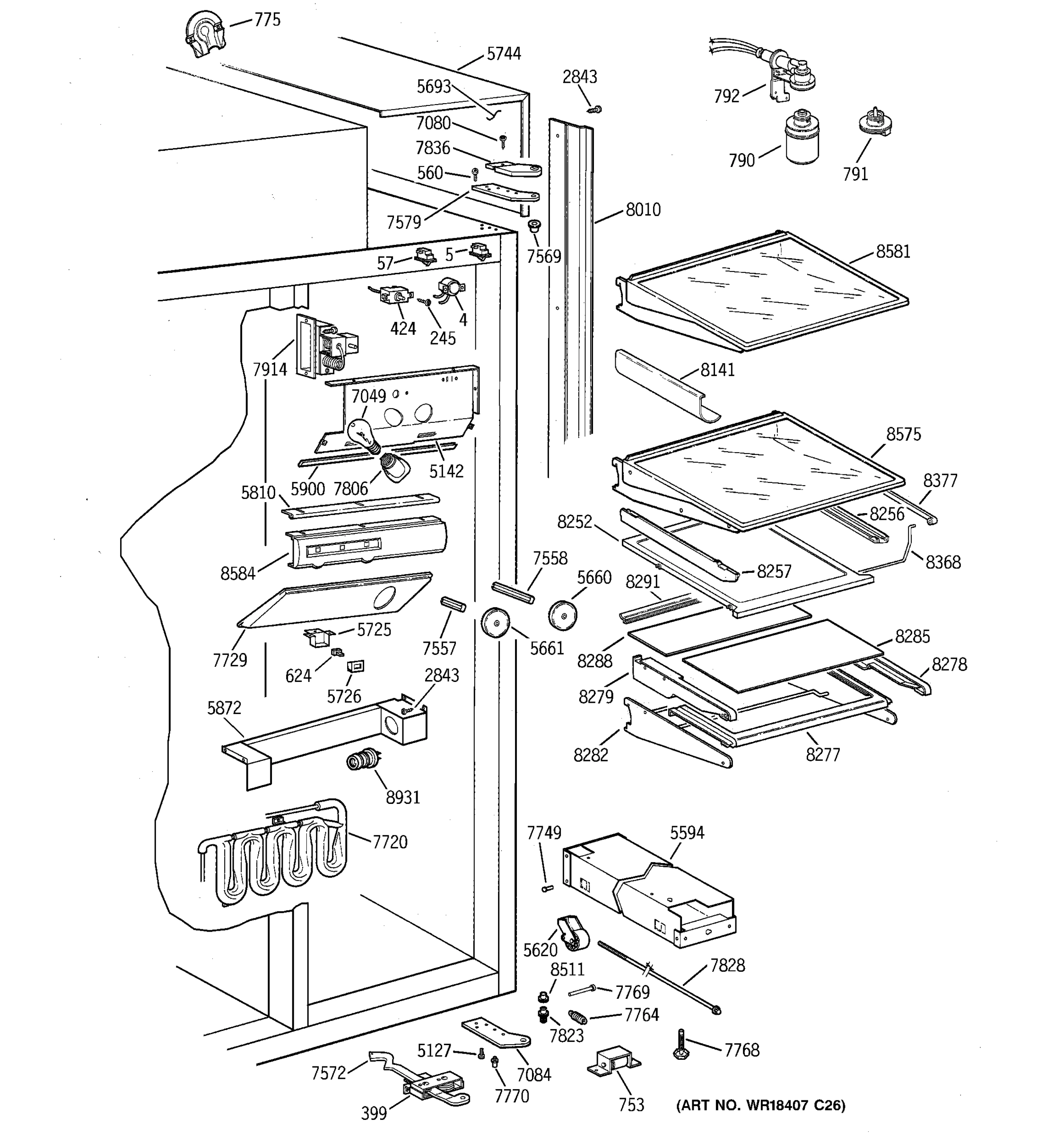

FRESH FOOD SECTION

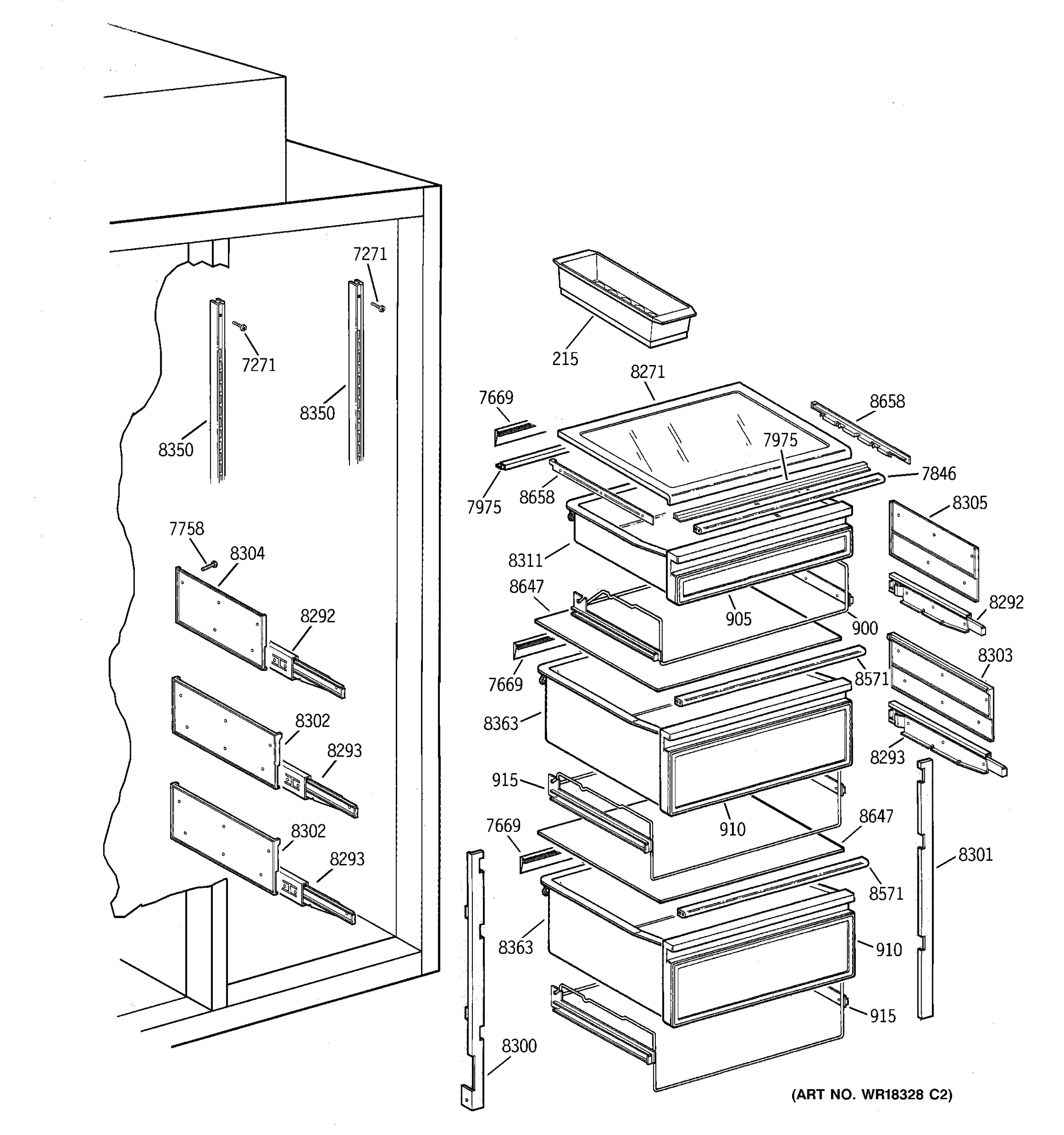

FRESH FOOD SECTION

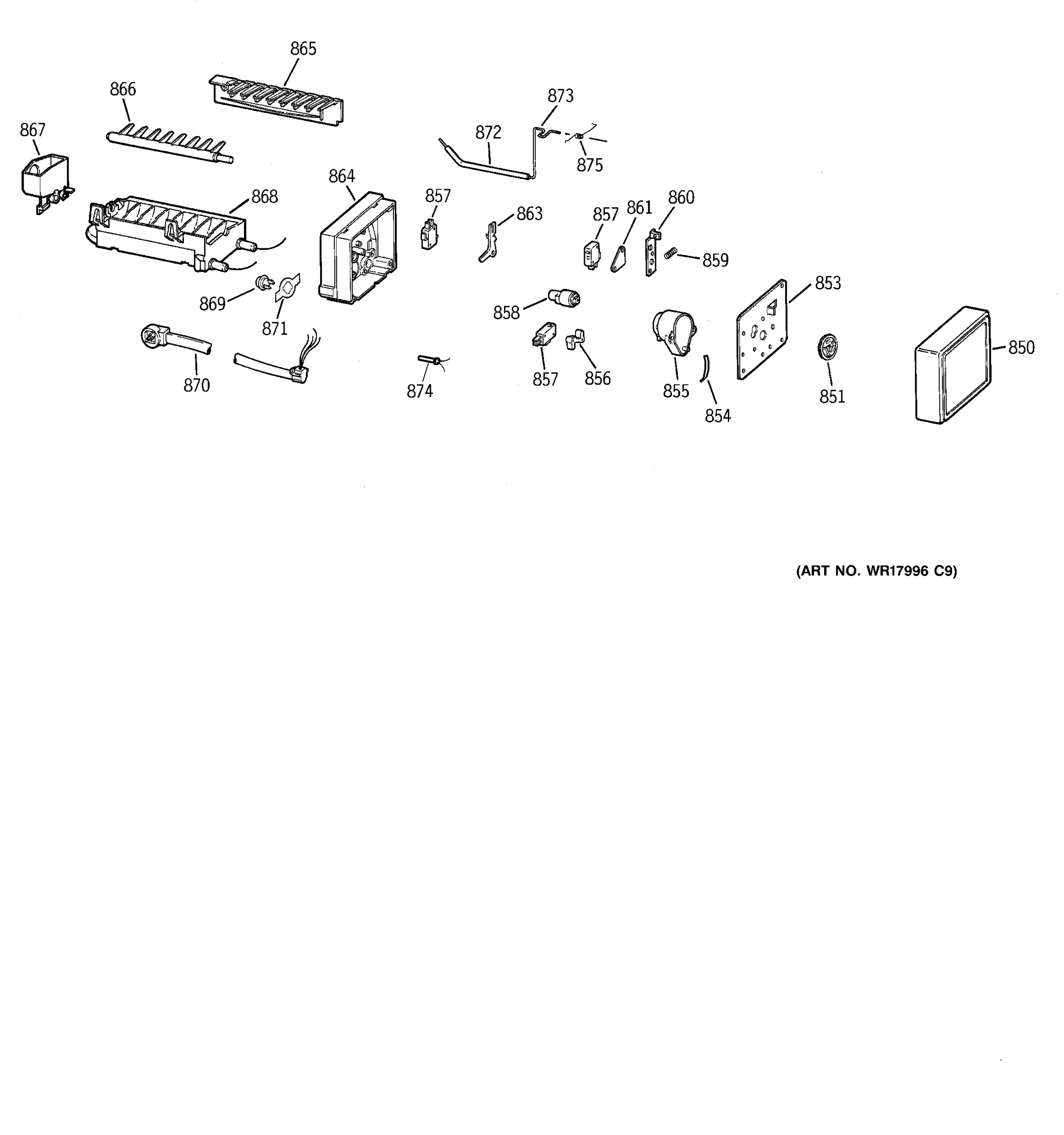

ICEMAKER WR30X0327

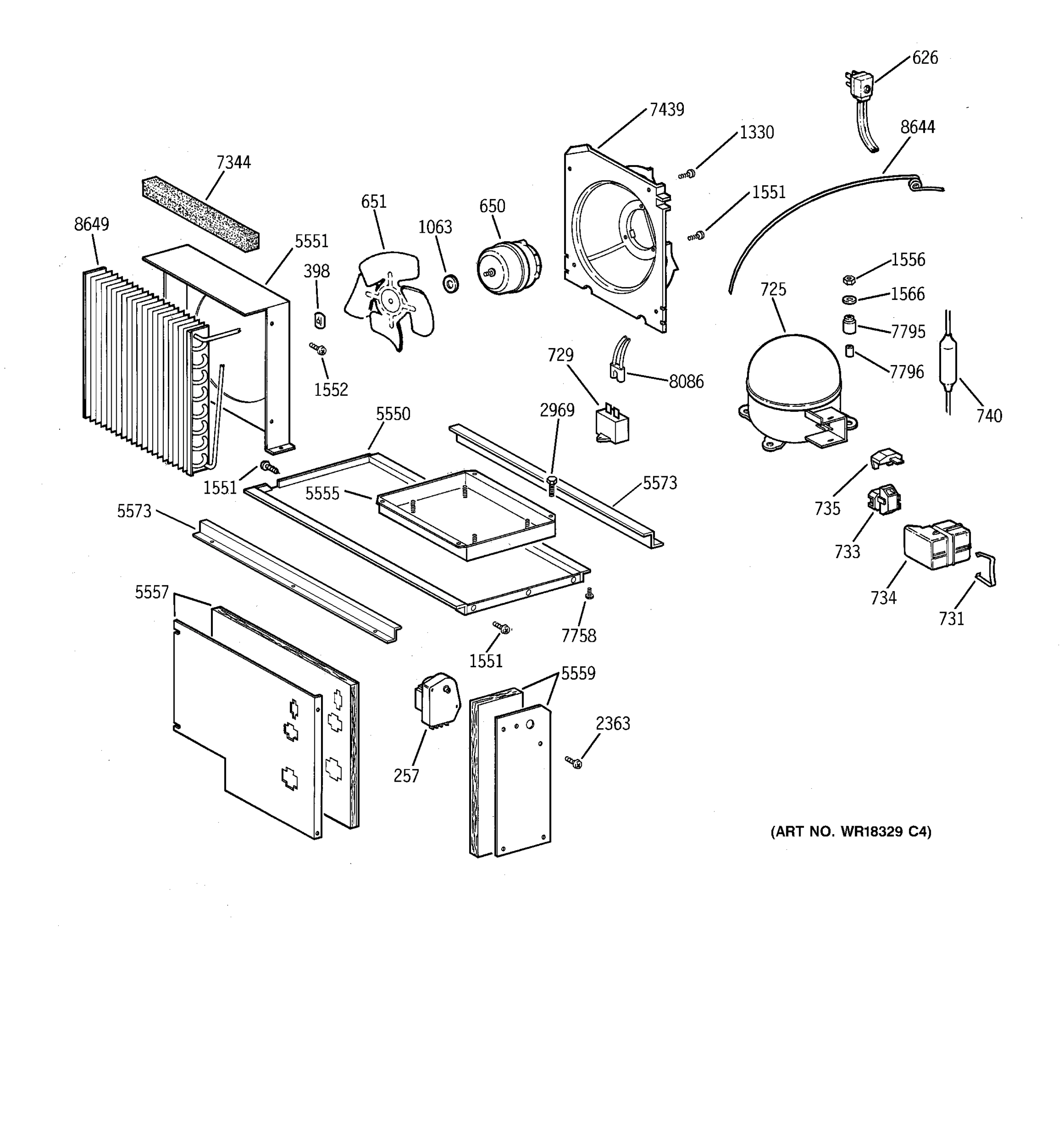

UNIT PARTS
Common parts from model GE ZISW48DCB Refrigerator
1
GEN 49-6963 GEN 49-6963 Contact Us For Availability
4
GEN WR50X0108 GEN WR50X0108 Contact Us For Availability
11
GEN WR38X2242 GEN WR38X2242 Contact Us For Availability
12
GEN WR50X0109 GEN WR50X0109 Contact Us For Availability
13
GEN WR85X0223 GEN WR85X0223 Contact Us For Availability
19
GEN WR02X8589 GEN WR02X8589 Contact Us For Availability
19
GEN WR02X8590 GEN WR02X8590 Contact Us For Availability
31
GEN WR17X4153 GEN WR17X4153 Contact Us For Availability
32
GEN WR17X3305 GEN WR17X3305 Contact Us For Availability
33
GEN WR51X0353 GEN WR51X0353 Contact Us For Availability
39
GEN WR55X0129 GEN WR55X0129 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
46
GEN WR02X8704 GEN WR02X8704 Contact Us For Availability
47
GEN WR02X8681 GEN WR02X8681 Contact Us For Availability
48
GEN WR02X8696 GEN WR02X8696 Contact Us For Availability
53
GEN WR17X10534 GEN WR17X10534 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
57
GEN WR23X0192 GEN WR23X0192 Contact Us For Availability
58
GEN WR17X4126 GEN WR17X4126 Contact Us For Availability
59
GEN WR02X8662 GEN WR02X8662 Contact Us For Availability
60
GEN WR02X8685 GEN WR02X8685 Contact Us For Availability
61
GEN WR02X8591 GEN WR02X8591 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
SUPT. FUNNEL & GUARD WH GEN WR02X8954 Contact Us For Availability
71
GEN WR17X3478 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
180
SCR 6-22 PL IHW 3/8 GEN WR01X1966 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
360
GEN WR71X2431 GEN WR71X2431 Contact Us For Availability
361
GEN WR71X2430 GEN WR71X2430 Contact Us For Availability
371
GEN WR17X3300 GEN WR17X3300 Contact Us For Availability
387
GEN WR17X3439 GEN WR17X3439 Contact Us For Availability
398
NUT COND MTR. GEN WR01X1715 Contact Us For Availability
399
CLOSURE FF DOOR GEN WR02X9467 Contact Us For Availability
400
CLOSURE FZ DOOR GEN WR02X9468 Contact Us For Availability
424
GEN WR09X0588 GEN WR09X0588 Contact Us For Availability
454
GEN WR72X0284 GEN WR72X0284 Contact Us For Availability
455
GEN WR72X0285 GEN WR72X0285 Contact Us For Availability
610
GEN WR60X0182 GEN WR60X0182 Contact Us For Availability
624
SWITCH POWERSAVER GEN WR23X0396 Contact Us For Availability
651
FAN BLADE GEN WR60X0167 Contact Us For Availability
731
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
733
GEN WR07X0253 GEN WR07X0253 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0157 GEN WR08X0157 Contact Us For Availability
753
FRONT WHEEL ASM GEN WR02X8470 Contact Us For Availability
790
GEN MXRC GEN MXRC Contact Us For Availability
791
GEN WR02X10173 GEN WR02X10173 Contact Us For Availability
792
GEN WR17X10521 GEN WR17X10521 Contact Us For Availability
850
GEN WR29X0182 GEN WR29X0182 Contact Us For Availability
853
GEN WR29X10005 GEN WR29X10005 Contact Us For Availability
856
GEN WR29X5118 GEN WR29X5118 Contact Us For Availability
857
GEN WR29X5171 GEN WR29X5171 Contact Us For Availability
858
GEN WR29X5167 GEN WR29X5167 Contact Us For Availability
861
GEN WR29X5188 GEN WR29X5188 Contact Us For Availability
863
ARM LEVER GEN WR29X5183 Contact Us For Availability
866
GEN WR29X5174 GEN WR29X5174 Contact Us For Availability
867
GEN WR29X0153 GEN WR29X0153 Contact Us For Availability
868
GEN WR29X0204 GEN WR29X0204 Contact Us For Availability
870
GEN WR29X0186 GEN WR29X0186 Contact Us For Availability
872
SLEEVE GEN WR29X5128 Contact Us For Availability
900
GEN WR72X0264 GEN WR72X0264 Contact Us For Availability
905
SNACK PAN FRONT ASM GEN WR71X2664 Contact Us For Availability
910
VEG PAN FRONT ASM GEN WR71X2667 Contact Us For Availability
915
GEN WR72X0267 GEN WR72X0267 Contact Us For Availability
1063
GEN WR01X1833 GEN WR01X1833 Contact Us For Availability
1076
GROMMET EVAP FAN MTR GEN WR02X7391 Contact Us For Availability
1327
BRACKET FAN REAR GEN WR02X8806 Contact Us For Availability
1328
BRACKET FAN FRONT GEN WR02X8805 Contact Us For Availability
1330
SCREW COND HSG GEN WR01X1825 Contact Us For Availability
1331
SCREW BRKT EVAP FAN GEN WZ06X0133 Contact Us For Availability
1552
SCREW SHROUD COND GEN WR29X5175 Contact Us For Availability
1556
NUT COMP GEN WR01X1898 Contact Us For Availability
1566
WASHER COMP MTG GEN WR01X5649 Contact Us For Availability
2591
PLUG BUTTON FZ REAR DUCT GEN WR01X1932 Contact Us For Availability
2969
SCREW PAN HOT GAS GEN WR01X5653 Contact Us For Availability
5119
GEN WR17X10526 GEN WR17X10526 Contact Us For Availability
5136
GEN WR02X10425 GEN WR02X10425 Contact Us For Availability
5142
FF REAR DUCT ASM 48 GEN WR17X10532 Contact Us For Availability
5550
GEN WR17X3041 GEN WR17X3041 Contact Us For Availability
5555
GEN WR17X3043 GEN WR17X3043 Contact Us For Availability
5557
GEN WR17X3044 GEN WR17X3044 Contact Us For Availability
5582
GEN WR78X8837 GEN WR78X8837 Contact Us For Availability
5585
FF O. DOOR 48" GEN WR78X8838 Contact Us For Availability
5586
GEN WR13X0670 GEN WR13X0670 Contact Us For Availability
5594
GEN WR13X0671 GEN WR13X0671 Contact Us For Availability
5627
GEN WR02X8604 GEN WR02X8604 Contact Us For Availability
5652
FRZ BASKET FRONT ASM GEN WR71X2669 Contact Us For Availability
5660
GEN WR02X8600 GEN WR02X8600 Contact Us For Availability
5661
GEN WR02X8601 GEN WR02X8601 Contact Us For Availability
5693
GEN WR17X3617 GEN WR17X3617 Contact Us For Availability
5725
GEN WR02X8918 GEN WR02X8918 Contact Us For Availability
5726
HOUSING FRONT PSS GEN WR02X8919 Contact Us For Availability
5744
GEN WR17X3448 GEN WR17X3448 Contact Us For Availability
5788
GEN WR01X1975 GEN WR01X1975 Contact Us For Availability
5789
GRILLE BRKT. FF RH GEN WR01X1976 Contact Us For Availability
5790
GEN WR74X0246 GEN WR74X0246 Contact Us For Availability
5808
GEN WR17X10012 GEN WR17X10012 Contact Us For Availability
5810
GEN WR14X0486 GEN WR14X0486 Contact Us For Availability
5817
GEN WR74X0237 GEN WR74X0237 Contact Us For Availability
5826
GEN WR02X9487 GEN WR02X9487 Contact Us For Availability
5831
EVAP. HOUSING BTM GEN WR17X4272 Contact Us For Availability
5861
GRILLE PANEL ASM 48 GEN WR74X10004 Contact Us For Availability
5872
GEN WR17X10013 GEN WR17X10013 Contact Us For Availability
5900
GEN WR38X2094 GEN WR38X2094 Contact Us For Availability
6374
TRIM FRZ REAR DUCT BTM GEN WR38X2022 Contact Us For Availability
7031
GEN WR17X10686 GEN WR17X10686 Contact Us For Availability
7051
PLUG ELECT HARNESS GEN WR02X8810 Contact Us For Availability
7080
GEN WR01X1933 GEN WR01X1933 Contact Us For Availability
7082
GEN WR13X10104 GEN WR13X10104 Contact Us For Availability
7084
HINGE CASE GEN WR13X10118 Contact Us For Availability
7085
GEN WR01X10185 GEN WR01X10185 Contact Us For Availability
7089
GEN WR17X10687 GEN WR17X10687 Contact Us For Availability
7110
GEN WR14X0450 GEN WR14X0450 Contact Us For Availability
7271
SCREW SHELF TRACK FRZ GEN WR01X5635 Contact Us For Availability
7288
SCREW TOE-KICK MTG GEN WR01X1831 Contact Us For Availability
7344
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
7557
GEN WR02X8602 GEN WR02X8602 Contact Us For Availability
7558
GEN WR02X8603 GEN WR02X8603 Contact Us For Availability
7560
GEN WR17X3039 GEN WR17X3039 Contact Us For Availability
7569
GEN WR02X8587 GEN WR02X8587 Contact Us For Availability
7572
ACTUATOR ARM FF GEN WR02X8925 Contact Us For Availability
7573
GEN WR13X0640 GEN WR13X0640 Contact Us For Availability
7579
GEN WR13X0642 GEN WR13X0642 Contact Us For Availability
7629
GEN WR17X3016 GEN WR17X3016 Contact Us For Availability
7669
GEN WR14X0446 GEN WR14X0446 Contact Us For Availability
7686
GEN WR02X8926 GEN WR02X8926 Contact Us For Availability
7689
BAFFLE FF GEN WR17X3040 Contact Us For Availability
7695
BUSHING BTM HINGE GEN WR02X8588 Contact Us For Availability
7699
GEN WR13X0635 GEN WR13X0635 Contact Us For Availability
7701
GEN WR13X0633 GEN WR13X0633 Contact Us For Availability
7717
SHELF FZ GEN WR71X2428 Contact Us For Availability
7720
GEN WR17X3226 GEN WR17X3226 Contact Us For Availability
7729
GEN WR17X10533 GEN WR17X10533 Contact Us For Availability
7733
GEN WR13X0641 GEN WR13X0641 Contact Us For Availability
7742
GEN WR12X10329 GEN WR12X10329 Contact Us For Availability
7743
GEN WR12X10330 GEN WR12X10330 Contact Us For Availability
7749
GEN WR01X1838 GEN WR01X1838 Contact Us For Availability
7758
GEN WR01X1840 GEN WR01X1840 Contact Us For Availability
7760
BARREL NUT GEN WR01X1900 Contact Us For Availability
7764
GEN WR02X8916 GEN WR02X8916 Contact Us For Availability
7765
GEN WR02X8804 GEN WR02X8804 Contact Us For Availability
7768
GEN WR02X7560 GEN WR02X7560 Contact Us For Availability
7769
GEN WR02X8800 GEN WR02X8800 Contact Us For Availability
7771
GEN WR01X1839 GEN WR01X1839 Contact Us For Availability
7774
GEN WR02X10445 GEN WR02X10445 Contact Us For Availability
7775
GEN WR02X10446 GEN WR02X10446 Contact Us For Availability
7787
SLEEVE HARNESS GEN WR02X8808 Contact Us For Availability
7795
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
7796
GEN WR01X5648 GEN WR01X5648 Contact Us For Availability
7806
GEN WR02X8928 GEN WR02X8928 Contact Us For Availability
7807
GEN WR02X8798 GEN WR02X8798 Contact Us For Availability
7823
GEN WR01X10187 GEN WR01X10187 Contact Us For Availability
7830
GEN WR02X8585 GEN WR02X8585 Contact Us For Availability
7831
GEN WR02X8592 GEN WR02X8592 Contact Us For Availability
7832
GEN WR02X8586 GEN WR02X8586 Contact Us For Availability
7833
GEN WR02X8593 GEN WR02X8593 Contact Us For Availability
7836
GEN WR13X0639 GEN WR13X0639 Contact Us For Availability
7846
SEAL SNACK PAN FRONT GEN WR14X0448 Contact Us For Availability
7914
GEN WR02X8957 GEN WR02X8957 Contact Us For Availability
7916
TRIM DOOR FF TOP GEN WR17X4155 Contact Us For Availability
7917
TRIM DOOR FF BTM GEN WR17X4156 Contact Us For Availability
7918
TRIM DOOR FZ TOP GEN WR17X4162 Contact Us For Availability
7919
GEN WR17X3450 GEN WR17X3450 Contact Us For Availability
7927
GEN WR17X3896 GEN WR17X3896 Contact Us For Availability
7937
GEN WR02X8809 GEN WR02X8809 Contact Us For Availability
7957
GEN WR51X0369 GEN WR51X0369 Contact Us For Availability
7975
GEN WR17X3440 GEN WR17X3440 Contact Us For Availability
7985
GEN WR17X3441 GEN WR17X3441 Contact Us For Availability
8009
GEN WR17X3655 GEN WR17X3655 Contact Us For Availability
8010
GEN WR17X3442 GEN WR17X3442 Contact Us For Availability
8011
GEN WR17X3443 GEN WR17X3443 Contact Us For Availability
8012
GEN WR49X0360 GEN WR49X0360 Contact Us For Availability
8052
GEN WR01X10184 GEN WR01X10184 Contact Us For Availability
8053
GEN WR01X10183 GEN WR01X10183 Contact Us For Availability
8062
GEN WR71X2723 GEN WR71X2723 Contact Us For Availability
8064
BIN FF GEN WR71X8064 Contact Us For Availability
8086
GEN WR23X0474 GEN WR23X0474 Contact Us For Availability
8141
GEN WR17X4141 GEN WR17X4141 Contact Us For Availability
8211
GEN WR02X9301 GEN WR02X9301 Contact Us For Availability
8252
GEN WR32X1548 GEN WR32X1548 Contact Us For Availability
8256
GEN WR72X0259 GEN WR72X0259 Contact Us For Availability
8257
GEN WR72X0258 GEN WR72X0258 Contact Us For Availability
8271
GEN WR32X1551 GEN WR32X1551 Contact Us For Availability
8277
GEN WR71X2659 GEN WR71X2659 Contact Us For Availability
8278
GEN WR72X0260 GEN WR72X0260 Contact Us For Availability
8279
GEN WR72X0261 GEN WR72X0261 Contact Us For Availability
8282
GEN WR71X2658 GEN WR71X2658 Contact Us For Availability
8285
GEN WR32X1550 GEN WR32X1550 Contact Us For Availability
8288
GEN WR32X1549 GEN WR32X1549 Contact Us For Availability
8291
GEN WR02X9415 GEN WR02X9415 Contact Us For Availability
8300
GEN WR17X4142 GEN WR17X4142 Contact Us For Availability
8301
GEN WR17X4143 GEN WR17X4143 Contact Us For Availability
8302
GEN WR02X9408 GEN WR02X9408 Contact Us For Availability
8303
GEN WR02X9407 GEN WR02X9407 Contact Us For Availability
8304
GEN WR02X9406 GEN WR02X9406 Contact Us For Availability
8305
GEN WR02X9405 GEN WR02X9405 Contact Us For Availability
8311
GEN WR32X1566 GEN WR32X1566 Contact Us For Availability
8313
GEN WR21X0206 GEN WR21X0206 Contact Us For Availability
8333
GEN WR23X0476 GEN WR23X0476 Contact Us For Availability
8335
GEN WR17X4159 GEN WR17X4159 Contact Us For Availability
8351
GEN WR02X9400 GEN WR02X9400 Contact Us For Availability
8358
GEN WR71X2682 GEN WR71X2682 Contact Us For Availability
8359
GEN WR22X0516 GEN WR22X0516 Contact Us For Availability
8360
GEN WR22X0517 GEN WR22X0517 Contact Us For Availability
8363
VEG PAN REAR 48" GEN WR32X1567 Contact Us For Availability
8368
GEN WR02X9428 GEN WR02X9428 Contact Us For Availability
8377
GEN WR02X9413 GEN WR02X9413 Contact Us For Availability
8417
GEN WR17X3020 GEN WR17X3020 Contact Us For Availability
8446
GEN WR02X9401 GEN WR02X9401 Contact Us For Availability
8510
HINGE DOOR BTM. RH/FF GEN WR13X10098 Contact Us For Availability
8511
BUSHING, FF HINGE GEN WR02X10483 Contact Us For Availability
8518
GEN WR38X2244 GEN WR38X2244 Contact Us For Availability
8521
BIN FZ GEN WR71X2678 Contact Us For Availability
8523
GEN WR71X2680 GEN WR71X2680 Contact Us For Availability
8539
GEN WR02X9414 GEN WR02X9414 Contact Us For Availability
8571
GEN WR14X0485 GEN WR14X0485 Contact Us For Availability
8575
GEN WR32X1546 GEN WR32X1546 Contact Us For Availability
8581
GEN WR32X1547 GEN WR32X1547 Contact Us For Availability
8584
GEN WR17X4274 GEN WR17X4274 Contact Us For Availability
8630
GEN WR02X9449 GEN WR02X9449 Contact Us For Availability
8647
GEN WR32X1552 GEN WR32X1552 Contact Us For Availability
8653
GEN WR02X9427 GEN WR02X9427 Contact Us For Availability
8658
GEN WR02X9404 GEN WR02X9404 Contact Us For Availability
8867
GEN WR14X10001 GEN WR14X10001 Contact Us For Availability
× ![]()
