Model GE ZISS48NCBSS – Common Parts & Diagrams
FREEZER DOOR
FREEZER SECTION
FREEZER SECTION

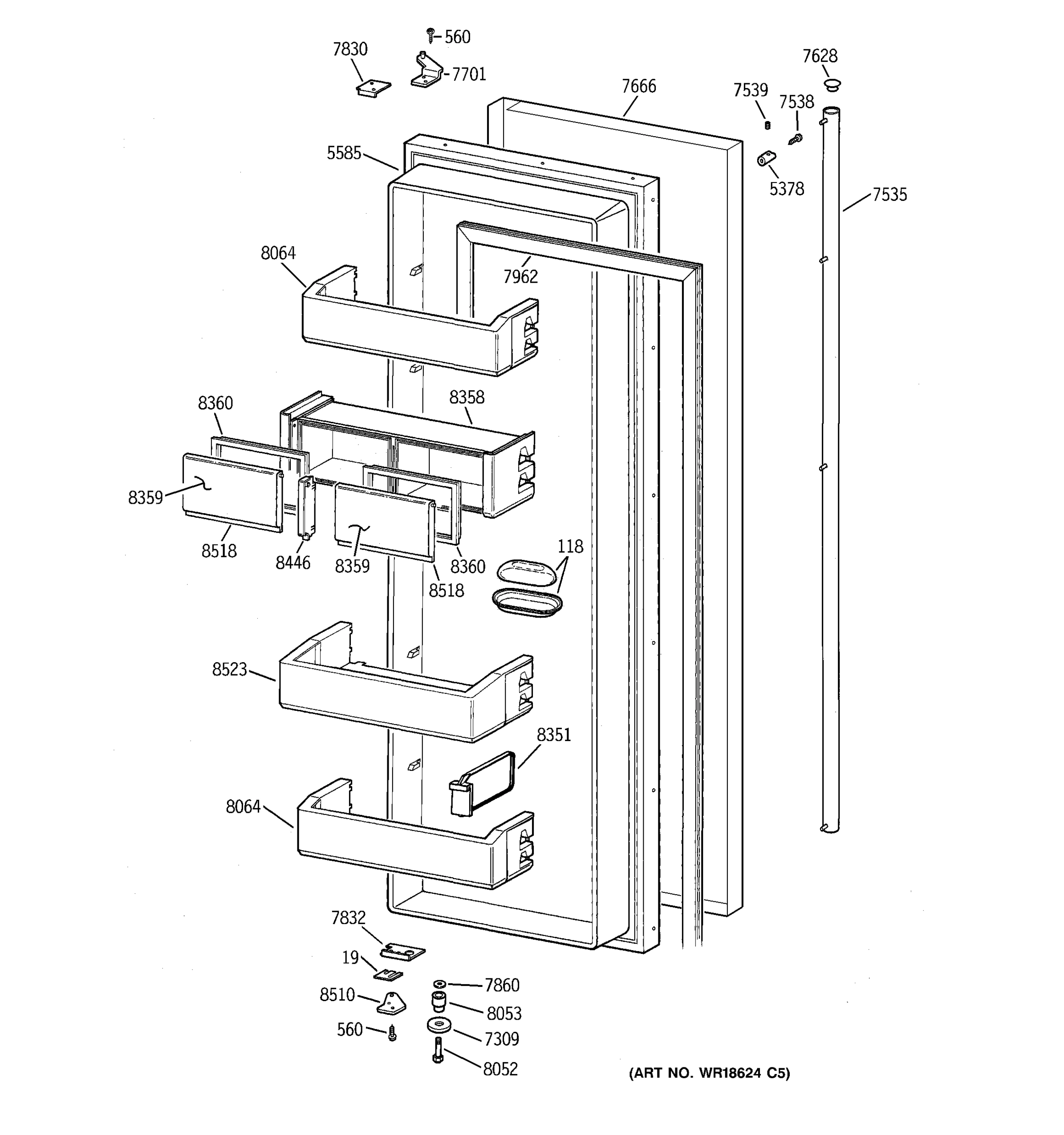

FRESH FOOD DOOR

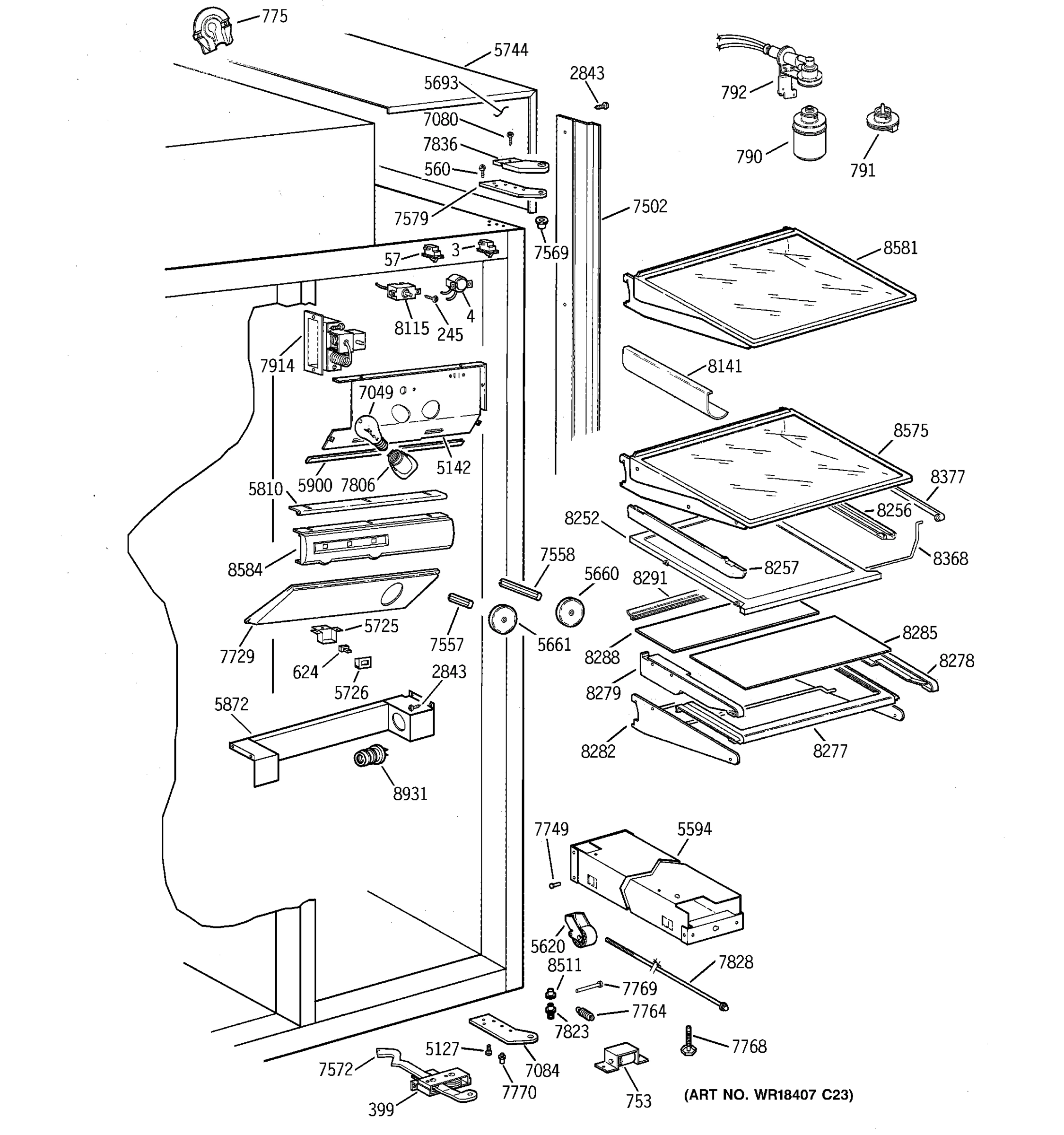

FRESH FOOD SECTION
FRESH FOOD SECTION
ICEMAKER WR30X0327

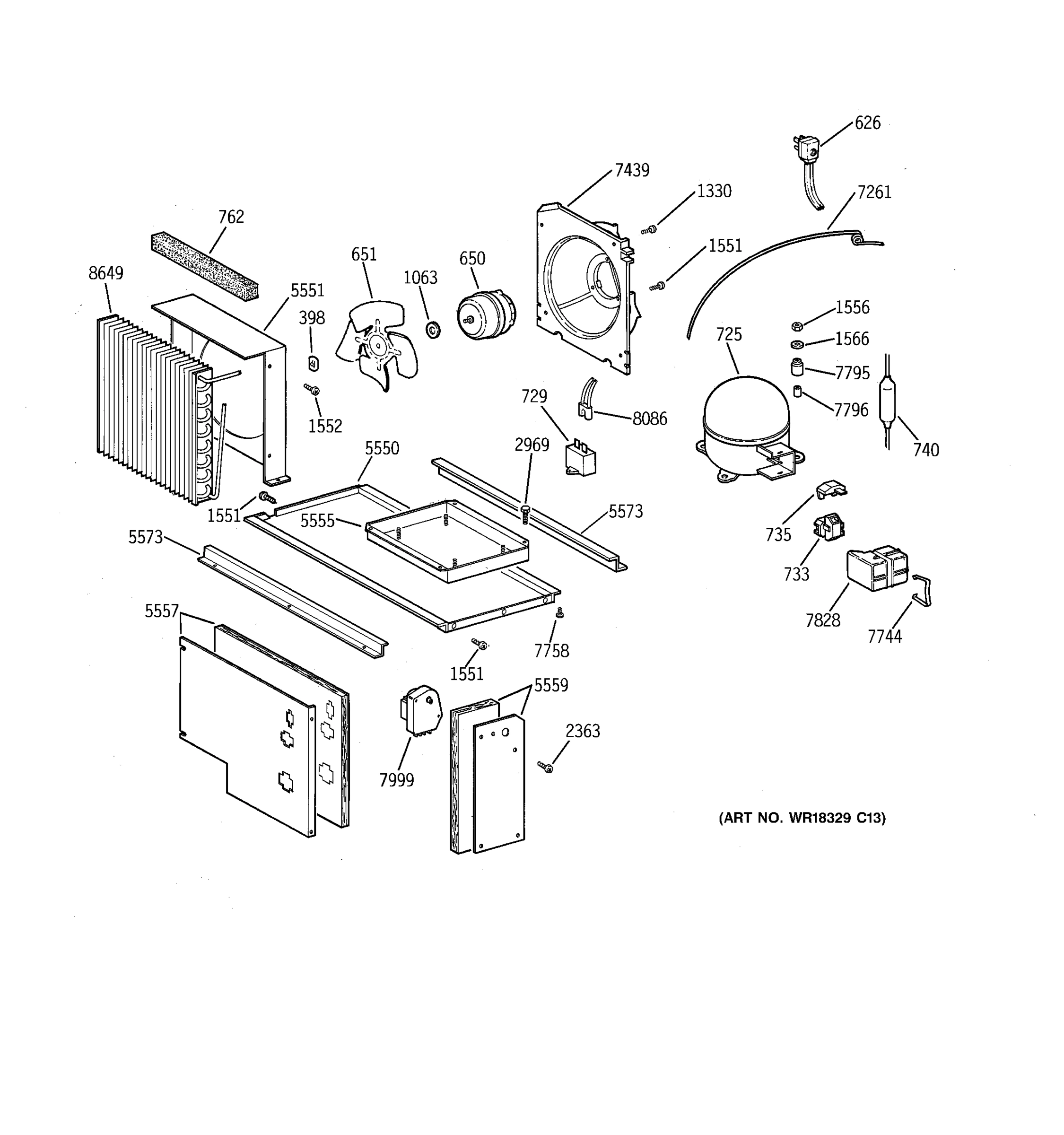

UNIT PARTS
Common parts from model GE ZISS48NCBSS
4
THERMODISK & BRKT ASM GEN WR50X0108 Contact Us For Availability
19
SHIM GEN WR02X8589 Contact Us For Availability
19
SHIM GEN WR02X8590 Contact Us For Availability
29
GEN WB02X10349 GEN WB02X10349 Contact Us For Availability
57
GEN WR23X0192 GEN WR23X0192 Contact Us For Availability
371
GEN WR17X3300 GEN WR17X3300 Contact Us For Availability
398
NUT COND MOTOR GEN WR01X1715 Contact Us For Availability
399
CLOSURE FF DOOR GEN WR02X9467 Contact Us For Availability
454
GEN WR72X0284 GEN WR72X0284 Contact Us For Availability
455
GEN WR72X0285 GEN WR72X0285 Contact Us For Availability
624
SWITCH POWERSAVER GEN WR23X0396 Contact Us For Availability
651
FAN BLADE ASM GEN WR60X0167 Contact Us For Availability
733
GEN WR07X0253 GEN WR07X0253 Contact Us For Availability
735
GEN WR08X0157 GEN WR08X0157 Contact Us For Availability
753
FRONT WHEEL ASM GEN WR02X8470 Contact Us For Availability
762
COND TOP BAFFLE FOAM GEN WR14X0313 Contact Us For Availability
791
GEN WR02X10173 GEN WR02X10173 Contact Us For Availability
792
GEN WR17X10521 GEN WR17X10521 Contact Us For Availability
850
GEN WR29X0182 GEN WR29X0182 Contact Us For Availability
853
PLATE MOUNTING GEN WR29X5111 Contact Us For Availability
856
GEN WR29X5118 GEN WR29X5118 Contact Us For Availability
857
GEN WR29X5171 GEN WR29X5171 Contact Us For Availability
861
INSULATOR GEN WR29X5117 Contact Us For Availability
867
GEN WR29X0153 GEN WR29X0153 Contact Us For Availability
868
GEN WR29X0204 GEN WR29X0204 Contact Us For Availability
870
GEN WR29X0186 GEN WR29X0186 Contact Us For Availability
872
SLEEVE VINYL GEN WR29X5128 Contact Us For Availability
900
GEN WR72X0264 GEN WR72X0264 Contact Us For Availability
905
SNACK PAN FRONT ASM GEN WR71X2664 Contact Us For Availability
910
VEG PAN FRONT ASM GEN WR71X2667 Contact Us For Availability
915
GEN WR72X0267 GEN WR72X0267 Contact Us For Availability
1063
GEN WR01X1833 GEN WR01X1833 Contact Us For Availability
1330
SCREW COND HSG GEN WR01X1825 Contact Us For Availability
1552
SCREW SHROUD COND GEN WR29X5175 Contact Us For Availability
1556
NUT COMP GEN WR01X1898 Contact Us For Availability
1566
WASHER COMP MTG GEN WR01X5649 Contact Us For Availability
2591
PLUG BUTTON FRZ R. DUCT GEN WR01X1932 Contact Us For Availability
2969
GEN WR01X1899 GEN WR01X1899 Contact Us For Availability
5119
GEN WR17X10526 GEN WR17X10526 Contact Us For Availability
5136
GEN WR02X10425 GEN WR02X10425 Contact Us For Availability
5142
FF REAR DUCT ASM 48 GEN WR17X10532 Contact Us For Availability
5550
GEN WR17X3041 GEN WR17X3041 Contact Us For Availability
5555
GEN WR17X3043 GEN WR17X3043 Contact Us For Availability
5557
GEN WR17X3044 GEN WR17X3044 Contact Us For Availability
5585
FF O. DOOR 48" GEN WR78X8838 Contact Us For Availability
5586
GEN WR13X0670 GEN WR13X0670 Contact Us For Availability
5594
GEN WR13X0671 GEN WR13X0671 Contact Us For Availability
5627
GEN WR02X8604 GEN WR02X8604 Contact Us For Availability
5652
FRZ BASKET FRONT ASM GEN WR71X2669 Contact Us For Availability
5660
GEN WR02X8600 GEN WR02X8600 Contact Us For Availability
5661
GEN WR02X8601 GEN WR02X8601 Contact Us For Availability
5693
GEN WR17X3617 GEN WR17X3617 Contact Us For Availability
5725
GEN WR02X8918 GEN WR02X8918 Contact Us For Availability
5726
HOUSING FRONT PSS GEN WR02X8919 Contact Us For Availability
5744
GEN WR17X3428 GEN WR17X3428 Contact Us For Availability
5807
GEN WR17X10015 GEN WR17X10015 Contact Us For Availability
5810
GEN WR14X0486 GEN WR14X0486 Contact Us For Availability
5831
EVAP. HOUSING BTM GEN WR17X4272 Contact Us For Availability
5872
GEN WR17X10013 GEN WR17X10013 Contact Us For Availability
5884
GEN WR71X10002 GEN WR71X10002 Contact Us For Availability
5900
GEN WR38X2094 GEN WR38X2094 Contact Us For Availability
5945
GEN WR74X10027 GEN WR74X10027 Contact Us For Availability
6374
GEN WR38X2022 GEN WR38X2022 Contact Us For Availability
7031
GEN WR17X10686 GEN WR17X10686 Contact Us For Availability
7080
GEN WR01X1933 GEN WR01X1933 Contact Us For Availability
7084
HINGE CASE GEN WR13X10118 Contact Us For Availability
7085
GEN WR01X10185 GEN WR01X10185 Contact Us For Availability
7089
GEN WR17X10687 GEN WR17X10687 Contact Us For Availability
7261
GEN WR86X0089 GEN WR86X0089 Contact Us For Availability
7271
GEN WR01X5635 GEN WR01X5635 Contact Us For Availability
7288
SCREW TOE KICK MTG GEN WR01X1831 Contact Us For Availability
7502
GEN WR17X10150 GEN WR17X10150 Contact Us For Availability
7503
GEN WR17X10151 GEN WR17X10151 Contact Us For Availability
7505
GEN WR17X10164 GEN WR17X10164 Contact Us For Availability
7557
GEN WR02X8602 GEN WR02X8602 Contact Us For Availability
7558
GEN WR02X8603 GEN WR02X8603 Contact Us For Availability
7560
GEN WR17X3039 GEN WR17X3039 Contact Us For Availability
7569
GEN WR02X8587 GEN WR02X8587 Contact Us For Availability
7572
ACTUATOR ARM FF GEN WR02X8925 Contact Us For Availability
7573
GEN WR13X0640 GEN WR13X0640 Contact Us For Availability
7579
GEN WR13X0642 GEN WR13X0642 Contact Us For Availability
7593
GEN WR17X10382 GEN WR17X10382 Contact Us For Availability
7608
GEN WR74X10026 GEN WR74X10026 Contact Us For Availability
7628
GEN WR02X10166 GEN WR02X10166 Contact Us For Availability
7666
GEN WR17X10379 GEN WR17X10379 Contact Us For Availability
7669
SEAL SNACK/VEG PAN REAR GEN WR14X0446 Contact Us For Availability
7686
GEN WR02X8926 GEN WR02X8926 Contact Us For Availability
7689
GEN WR17X3040 GEN WR17X3040 Contact Us For Availability
7695
BUSHING BTM HINGE GEN WR02X8588 Contact Us For Availability
7701
GEN WR13X0633 GEN WR13X0633 Contact Us For Availability
7717
SHELF FZ CANT. 48" GEN WR71X2428 Contact Us For Availability
7729
GEN WR17X10533 GEN WR17X10533 Contact Us For Availability
7733
GEN WR13X0641 GEN WR13X0641 Contact Us For Availability
7744
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
7749
GEN WR01X1838 GEN WR01X1838 Contact Us For Availability
7758
GEN WR01X1840 GEN WR01X1840 Contact Us For Availability
7764
GEN WR02X8916 GEN WR02X8916 Contact Us For Availability
7765
GEN WR02X8804 GEN WR02X8804 Contact Us For Availability
7768
GEN WR02X7560 GEN WR02X7560 Contact Us For Availability
7769
GEN WR02X8800 GEN WR02X8800 Contact Us For Availability
7771
GEN WR01X1839 GEN WR01X1839 Contact Us For Availability
7774
GEN WR02X10445 GEN WR02X10445 Contact Us For Availability
7775
GEN WR02X10446 GEN WR02X10446 Contact Us For Availability
7795
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
7796
GEN WR01X5648 GEN WR01X5648 Contact Us For Availability
7806
GEN WR02X8928 GEN WR02X8928 Contact Us For Availability
7823
GEN WR01X10187 GEN WR01X10187 Contact Us For Availability
7828
COVER RELAY GEN WR02X7834 Contact Us For Availability
7830
GEN WR02X8585 GEN WR02X8585 Contact Us For Availability
7832
GEN WR02X8586 GEN WR02X8586 Contact Us For Availability
7836
GEN WR13X0639 GEN WR13X0639 Contact Us For Availability
7846
SEAL SNACK PAN FRONT GEN WR14X0448 Contact Us For Availability
7860
GEN WR01X1835 GEN WR01X1835 Contact Us For Availability
7957
GEN WR51X0369 GEN WR51X0369 Contact Us For Availability
7961
GEN WR74X0238 GEN WR74X0238 Contact Us For Availability
7975
GEN WR17X3440 GEN WR17X3440 Contact Us For Availability
7985
GEN WR17X3441 GEN WR17X3441 Contact Us For Availability
8009
GEN WR17X3655 GEN WR17X3655 Contact Us For Availability
8012
GEN WR49X0360 GEN WR49X0360 Contact Us For Availability
8013
GEN WR02X8972 GEN WR02X8972 Contact Us For Availability
8052
GEN WR01X10184 GEN WR01X10184 Contact Us For Availability
8053
GEN WR01X10183 GEN WR01X10183 Contact Us For Availability
8064
BIN FF DOOR ASM GEN WR71X2427 Contact Us For Availability
8086
GEN WR23X0474 GEN WR23X0474 Contact Us For Availability
8115
GEN WR09X0588 GEN WR09X0588 Contact Us For Availability
8141
GEN WR17X3023 GEN WR17X3023 Contact Us For Availability
8211
EVAPORATOR BLOCK GEN WR02X9301 Contact Us For Availability
8252
GEN WR32X1548 GEN WR32X1548 Contact Us For Availability
8256
GEN WR72X0259 GEN WR72X0259 Contact Us For Availability
8257
GEN WR72X0258 GEN WR72X0258 Contact Us For Availability
8271
GEN WR32X1551 GEN WR32X1551 Contact Us For Availability
8277
GEN WR71X2659 GEN WR71X2659 Contact Us For Availability
8278
GEN WR72X0260 GEN WR72X0260 Contact Us For Availability
8279
GEN WR72X0261 GEN WR72X0261 Contact Us For Availability
8282
GEN WR71X2658 GEN WR71X2658 Contact Us For Availability
8285
GEN WR32X1550 GEN WR32X1550 Contact Us For Availability
8288
GEN WR32X1549 GEN WR32X1549 Contact Us For Availability
8291
GEN WR02X9415 GEN WR02X9415 Contact Us For Availability
8300
GEN WR17X4142 GEN WR17X4142 Contact Us For Availability
8301
GEN WR17X4143 GEN WR17X4143 Contact Us For Availability
8302
GEN WR02X9408 GEN WR02X9408 Contact Us For Availability
8303
GEN WR02X9407 GEN WR02X9407 Contact Us For Availability
8304
GEN WR02X9406 GEN WR02X9406 Contact Us For Availability
8305
GEN WR02X9405 GEN WR02X9405 Contact Us For Availability
8311
GEN WR32X1566 GEN WR32X1566 Contact Us For Availability
8313
GEN WR21X0206 GEN WR21X0206 Contact Us For Availability
8351
GEN WR02X9400 GEN WR02X9400 Contact Us For Availability
8358
GEN WR71X2682 GEN WR71X2682 Contact Us For Availability
8359
GEN WR22X0516 GEN WR22X0516 Contact Us For Availability
8360
GEN WR22X0517 GEN WR22X0517 Contact Us For Availability
8363
VEG PAN REAR 48" GEN WR32X1567 Contact Us For Availability
8368
GEN WR02X9428 GEN WR02X9428 Contact Us For Availability
8377
GEN WR02X9413 GEN WR02X9413 Contact Us For Availability
8446
GEN WR02X9401 GEN WR02X9401 Contact Us For Availability
8510
HINGE DOOR BTM. RH/FF GEN WR13X10098 Contact Us For Availability
8511
BUSHING, FF HINGE GEN WR02X10483 Contact Us For Availability
8518
GEN WR38X2244 GEN WR38X2244 Contact Us For Availability
8523
GEN WR71X2680 GEN WR71X2680 Contact Us For Availability
8571
GEN WR14X0485 GEN WR14X0485 Contact Us For Availability
8575
GEN WR32X1546 GEN WR32X1546 Contact Us For Availability
8581
GEN WR32X1547 GEN WR32X1547 Contact Us For Availability
8584
GEN WR17X4274 GEN WR17X4274 Contact Us For Availability
8647
GEN WR32X1552 GEN WR32X1552 Contact Us For Availability
8653
GEN WR02X9427 GEN WR02X9427 Contact Us For Availability
8658
GEN WR02X9404 GEN WR02X9404 Contact Us For Availability
8867
GEN WR14X10001 GEN WR14X10001 Contact Us For Availability
× ![]()
